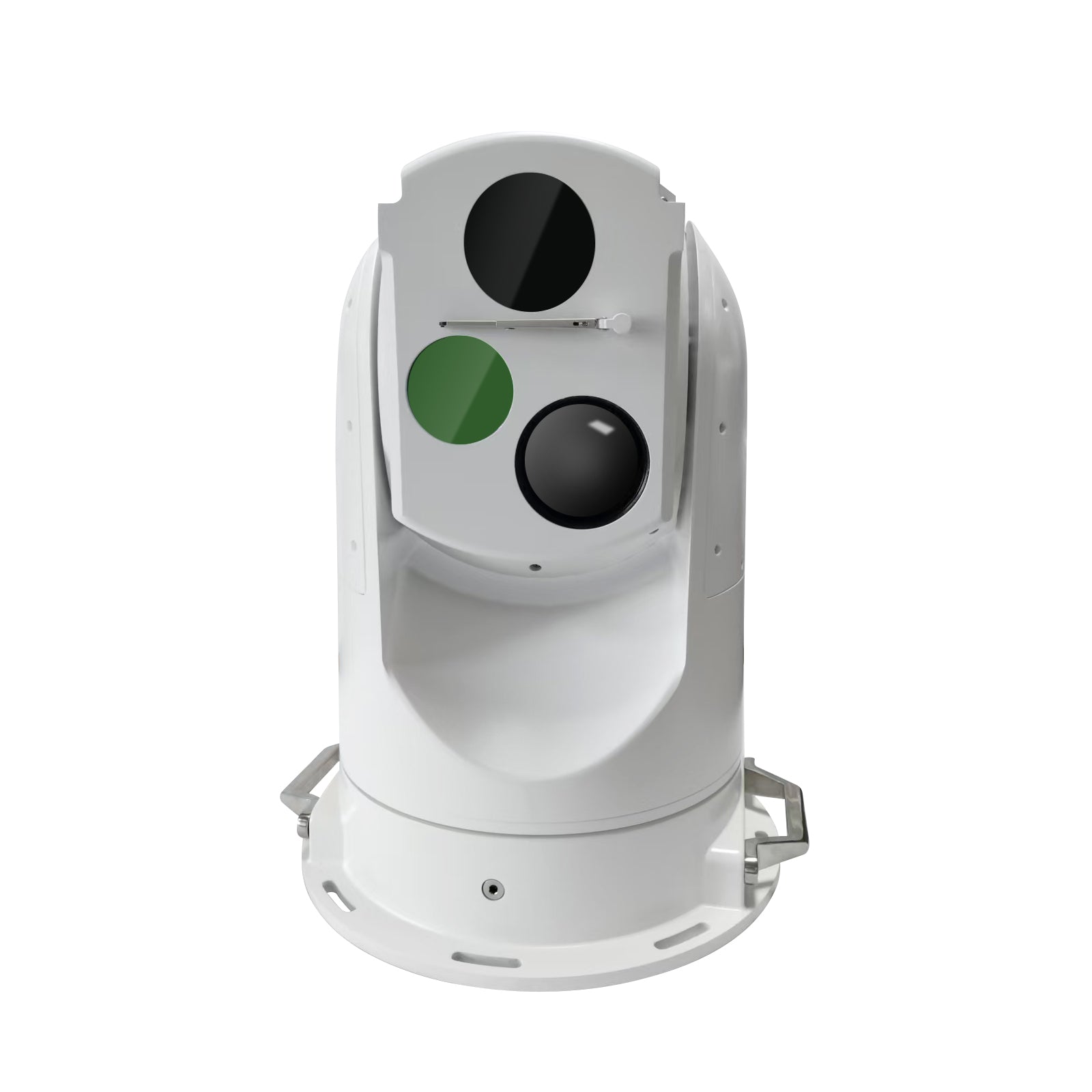

JideTech Multispectral Target Recognition and Tracking Servo Turntable - Drones Tracking System
JideTech Multispectral Target Recognition and Tracking Servo Turntable - Drones Tracking System
【Product Applications】
Perimeter security, rail transit inspection, drone countermeasures, and tracking of low, small, and slow targets.
【Key Features】:
1. Multispectral imaging: visible light, thermal imaging, and laser illumination are encoded and transmitted under the same SOC.
2. Autofocus for both dual-spectral images; integrated optical and fog-penetrating capabilities for visible light images.
3. Intelligent applications: edge computing and deep learning algorithms support target detection, target recognition, and target tracking.
4. Target classification and recognition: recognition of over 80 types of targets including people, vehicles, ships, and animals, with similarity ratio judgment.
5. Optional multi-sensor signal input: sensor alarm, voice intercom, environmental parameters, power management, etc.
6. Open architecture: compatible with radar guidance, AIS, spectrum detection, TDOA, and other multi- system guidance.
7. Features full-screen target capture, automatic tracking, guided tracking, and platform control functions.
8. Single IP or virtual dual IP output, supports national protocols, and can be freely connected to various NVRs, IPSANs, and management platforms.
9. Rugged design, wind resistance up to level 12, suitable for use in harsh environments.
10. Targets low, small, and slow targets at 1-3 km.
11. Targets targets at 1-15 km. Large aircraft target detection, 1-5KM aircraft landing gear target identification
|
Item |
Name |
Multispectral target recognition and tracking servo turntable |
|
Model No. |
LC007 |
|
|
Visible light image |
Resolution |
1920*1080 @25fps |
|
Lens |
F7.2-360mm（50X Optical Zoom） |
|
|
Optical properties |
Color, black and white, optically clear fog |
|
|
Image Adjustable |
White balance, wide dynamic range, gain control |
|
|
Video Parameters |
Brightness, contrast, sharpness, saturation |
|
|
Focus Mode |
Automatic/Manual |
|
|
Daytime Performance Indicators |
1. Reference Target: Civil Aircraft Detection Range: ≥15KM; Tracking Range: ≥10KM; Identification Range: ≥7KM 2. Reference Target: Unmanned Aerial Vehicle (UAV) 0.35m*0.35m Detection Range: ≥3.5KM; Tracking Range: ≥3KM; Identification Range: ≥2.5KM (Operating Conditions: Ambient Temperature: 20℃, Visibility: ≥20Km, Relative Humidity: <40%) |
|
|
Thermal |
Detector Type |
Uncooled vanadium oxide detector |
|
Image resolution |
640*512; Image encoding resolution: 1280*1024 |
|
|
Lens focal length |
F30--150mm |
|
|
Image mode |
Hot black, hot white, pseudo-color |
|
|
Nighttime Performance Indicators |
1. Reference Target: Civil Aircraft Detection Range: ≥10KM; Tracking Range: ≥6KM; Recognition Range: ≥4KM 2. Reference Target: UAV (0.35m*0.35m) Detection Range: ≥1.8KM; Tracking Range: ≥1.5KM; Recognition Range: ≥1.2KM (Operating Conditions: Background Temperature Difference ≥10℃, Visibility: ≥20Km, Relative Humidity: <40%) |
|
|
Laser Ranging |
laser wavelength |
1530nm (Eye safety) |
|
Maximum range |
10KM ( RCS10m² ) |
|
|
Distance Measurement accuracy |
±5 meters |
|
|
Ranging frequency |
1HZ (Working time: ≤5 minutes per cycle) |
|
|
Serve and Transfer Station |
Turntable type |
Servo direct drive, PID feedback |
|
Horizontal Range Speed |
Horizontal keying speed from 0° to 360°: 0.1° to 80°/s |
|
|
Pitch Range Speed |
Vertical keying speed: -45°~90°: 0.1°~60°/s |
|
|
Angle deflection Correction |
Electronic compensation |
|
|
Preset stop accuracy |
±0.01° |
|
|
Video Compression and AI |
Video Compression |
H.256 / H.264/ MJPEG(Limited to snapshots) |
|
Intelligent guidance |
It can receive radar guidance, spectrum guidance, TDOA guidance, and multi-point electro-optical positioning guidance. |
|
|
Intelligent Search |
Full-screen moving target search, thermal target tracking search |
|
|
Intelligent tracking |
Specific target recognition and tracking, moving target tracking, guided tracking, manual tracking |
|
|
Target Recognition |
Supports the recognition of more than 80 types of targets, including drones, people, vehicles, and ships. |
|
|
Network Protocol |
IPv4, TCP/IP, UDP, etc. |
|
|
Common |
Interface |
Standard aviation connector (including: DC48V power supply, 10M/100M adaptive network interface) |
|
Waterproof |
IP66, optional tri-proof |
|
|
Operating Temperature humidity |
-40℃～+60℃, humidity <90% |
|
|
Power supply & Power Consumption |
AC220V to DC48V, power supply required; power consumption ≤120W |
|
|
Size |
Φ360*547mm(Standard configuration is for reference only; customized equipment is excluded.) |
|
|
Weight(N.W) |
≤40Kg(Standard configuration, for reference only, excluding customized equipment) |
