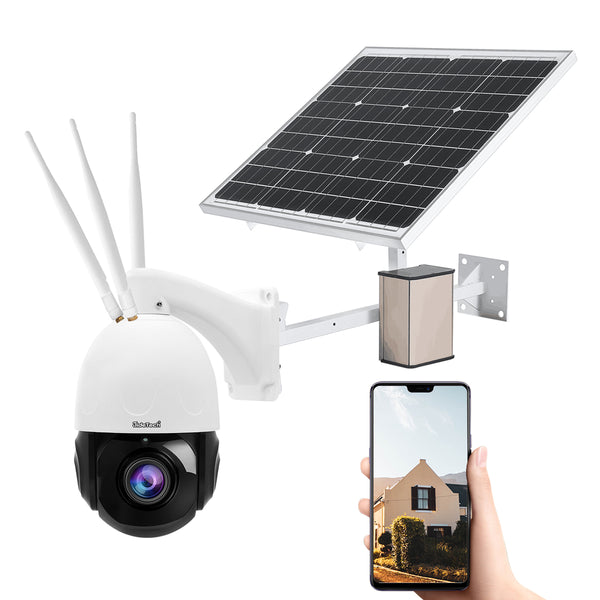

JideTech 4G 5MP 20X SIM Card Solar IP Security Camera(P2-5MP20X-4G)

$148.00
$148.00
Shipping calculated at checkout.

JideTech 4G 5MP 20X SIM Card Solar IP Security Camera(P2-5MP20X-4G)

Features

  • Support 4G/3G/2G+ Wi-Fi wireless access
  • 4G wireless transmission rate up to 150Mbps
  • Supports up to 8 users to access WIFI hotspots
  • Support ICR intelligent infrared, infrared effective distance 120M
  • Support 18/36xoptical zoom, support full focus
  • Support RTSP real-time streaming protocol
  • Support H.265/H.264/MJPEGDG triple compression, three streams, support video output
  • Excellent code stream control, low code stream and high image quality, delay less than 200ms
  • Dual system backup, fault self-recovery, support A-B, cruise and other functions
  • Support 6KV lightning surge protection, strong hardware
  • Original PWM infrared dimming technology, uniform brightness, low heat. The life of the infrared lamp is extended by more than 3 times;
  • Applicable Scene: reservoir, power system, forest, remote mountain area, construction site, etc.

Specification

Model No.

P2-5MP20X-4G

Image Sensor

1/2.9”3516E+SONY307

Video Resolution

HD: 1080p/18fps

HD:960P/30fps ,25fps

4G Main Chip

MDM9607/MDM9207

WIFI Chip set

RTL8189ES-VB-CG

Network Type

GSM/GPRS/EDGE/&CDMA2000,1X/1xAdvance/1XEv-DOrA&WCDMA,R99toDC-

HSPA+&TD-SCDMA&TDD-LTE,FDD-LTE CAT4

Working Frequency Band CN 7 Mode + EU (European standard)

GSM/GPRS/EDGE 900M/1800M

CDMA/EVDO BC0 800M

TD_SDCMA B34,B39

UMTS/WCDMA B1 B5 B8

LTE-FDD B1 B3 B5 B7 B8 B20

LTE-TDD B38 B39 B40 B41

Wireless Rate

GPRS:Max 85.6Kpbs(DL)/Max 85.6Kpbs(UL)

CDMA/EVDO:Max 3.1Mpbs(DL)/Max 1.8Mpbs(UL)

WCDMA/DC-HSPA+:Max 42Mbps(DL)/Max 5.76Mbps(UL)

TD-SCDMA:Max 4.2Mbps(DL)/Max 2.2bps(UL)

LTE-FDD:non-CA cat4 Max 150Mbps(DL)/Max 50Mbps(UL)

LTE-TDD:non-CA cat4 Max 130Mbps(DL)/Max 35Mbps(UL)

Operating System

Windows XP/Windows vista/Windows7/Windows8/8.1/Mac OS X10.7+

Ethernet

1 *RJ45  interface,10/100M ,support wifi

USIM/SIM

Micro SIM

WiFi Standard

802.11b/g/n, 72Mbps

WiFi Frequency Band

2412MHz----2472MHz

WiFi Safe Mode

Open,WPA-PSK,WPA2-PSK

Power Adapter

DC12/4A

Working Temperature

-40℃~+60℃

Power Consumption

≤25W

Rotate Range

Pan:360º   Tilt:93 º

Pan Rotate Speed

0-45°/s

Tilt Rotate Speed

0-30°/s

Auto Rotate Function

support

Proportional Shifting

automatically match

Infrared Led

6pc, distance:60M

Automatic Control of

Infrared light

Intelligent matching focal length PWM dimming technology

AB Two-point Scanning

Position

Set by random

AB Two-point Scanning

Speed

Level 1-64

Number of Presets

220

Number of Patrol Groups

3 groups (16 per group can be edited independently,

residence time and speed)

Mechanical Zero

Calibration

Support

Multi-Stream

Support dual encoding, three stream

Focus

5.35mm~96.3mm

Network Security

HTTPS,802.1X、IP ADDRESS FILTERING

Network Interface

None

Alarm Interface

Support

Video Compression

G711,PCM

Two Ways Audio

Support (optional)

Mobile Phone Remote

Support Android, IOS smartphone access

Shortcut Command

PELCO instruction set

Waterproof Level

IP66

OSD Function

Support(English)

Preset Cruise Speed

Setting

Support

Power-on Mode

Power-on recovery / AB scan / horizontal scan / watch position/ patrol group 1 / / no action

Pattern Scanning

Not support

Ambient Light

Detection

Support

Infrared Light Turns on illuminance

Support

Lightning Protection

Instant 6000V

Weight

G.W:1KG
