JideTech 180° Wide-Angle Dual-Lens PoE IP Camera with 4MP/8MP Options (DM12）
JideTech 180° Wide-Angle Dual-Lens PoE IP Camera with 4MP/8MP Options (DM12）

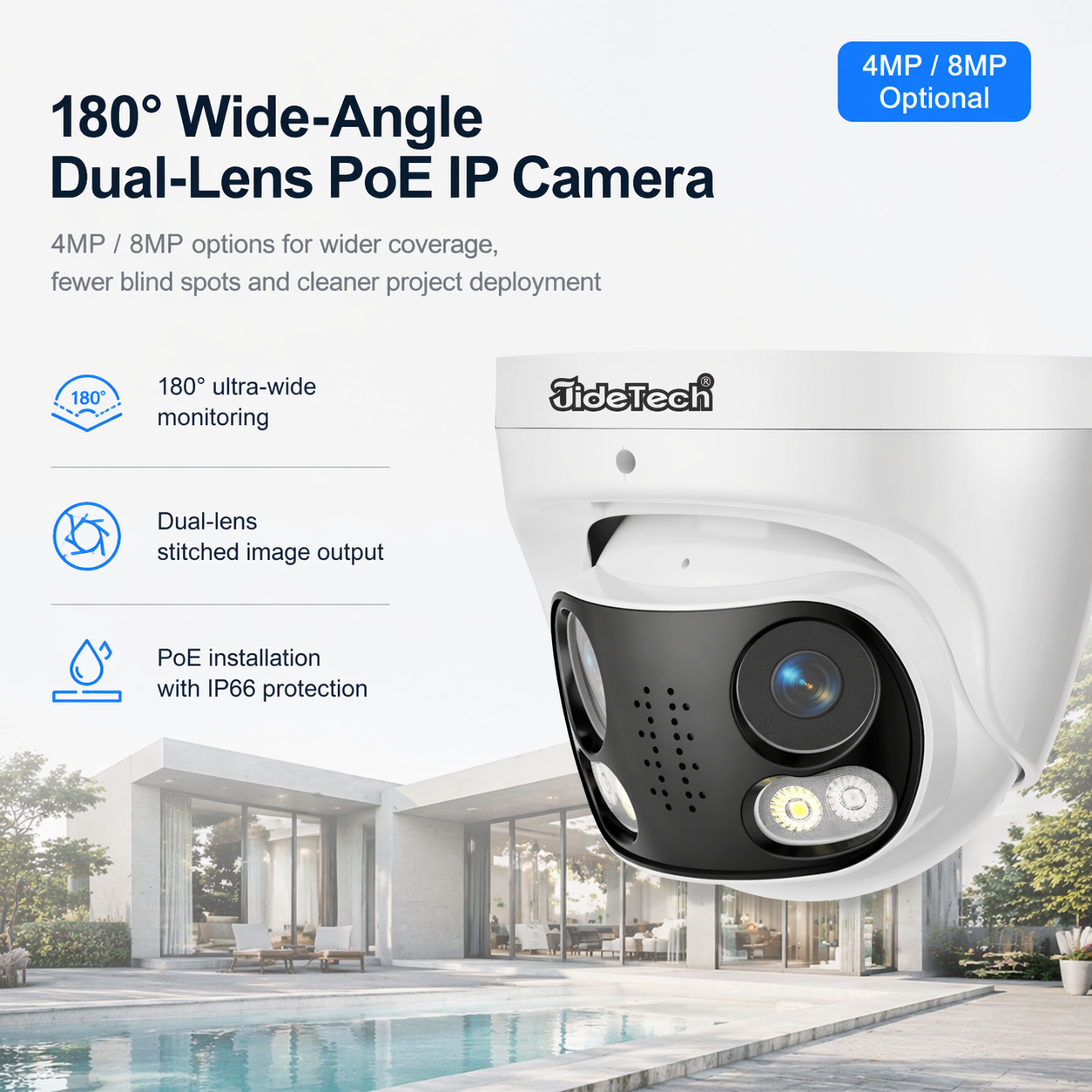

JideTech 180° Wide-Angle 4MP/8MP Dual-Lens PoE IP Security Camera
Designed for wider scene coverage with fewer blind spots, this dual-lens security camera delivers a 180° ultra-wide view, PoE installation, two-way audio, AI detection and IP66 protection for professional CCTV projects.
Product Overview

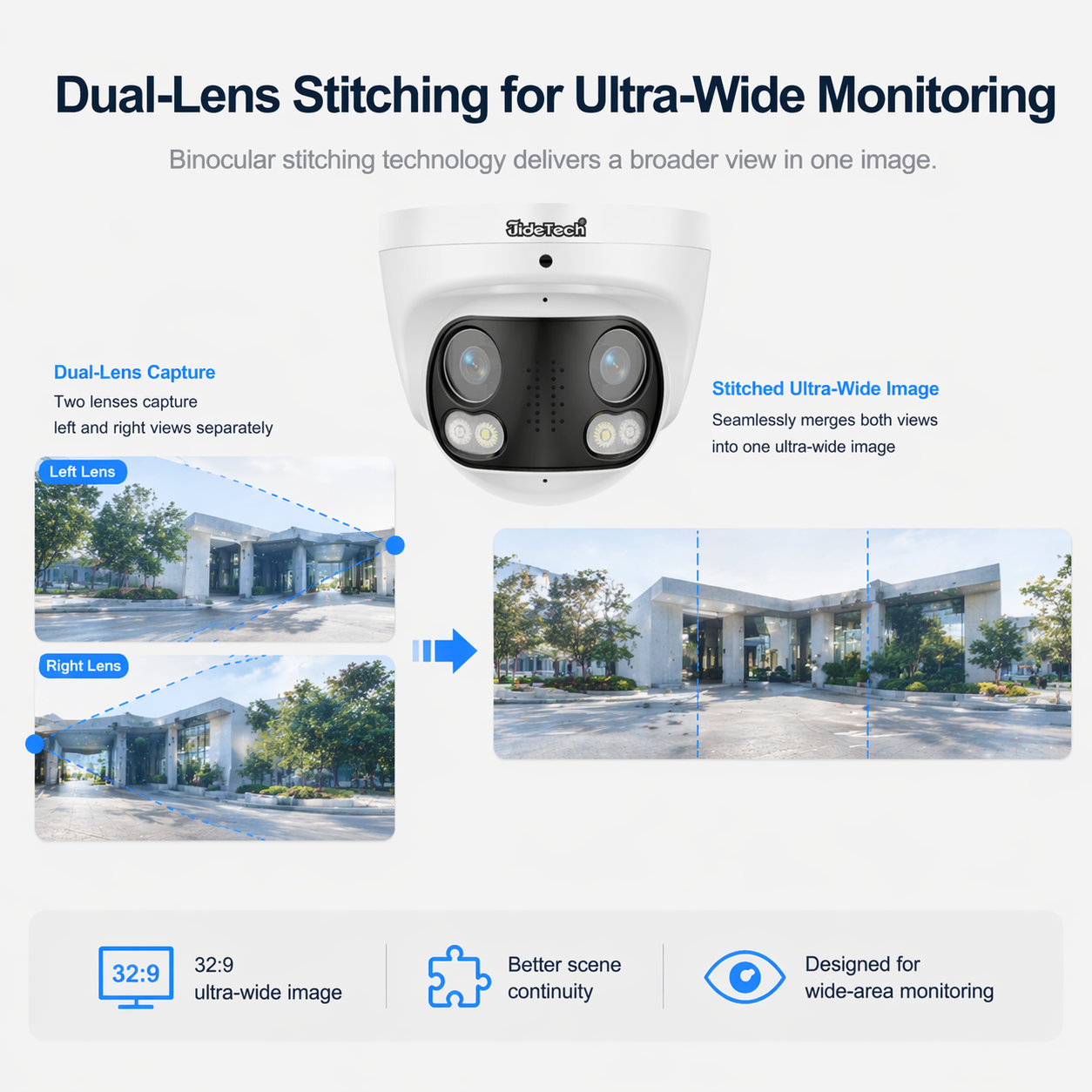

The JideTech 180° Wide-Angle Dual-Lens PoE IP Security Camera is built for projects that need wider coverage, fewer blind spots and cleaner deployment. With binocular stitching technology, it outputs a 32:9 ultra-wide image and provides a 180° horizontal field of view.
Available in 4MP and 8MP versions, this model integrates PoE installation, built-in microphone and speaker, AI detection, local SD card recording and IP66 weather protection in one compact housing.
Four Reasons Project Customers Choose This Camera

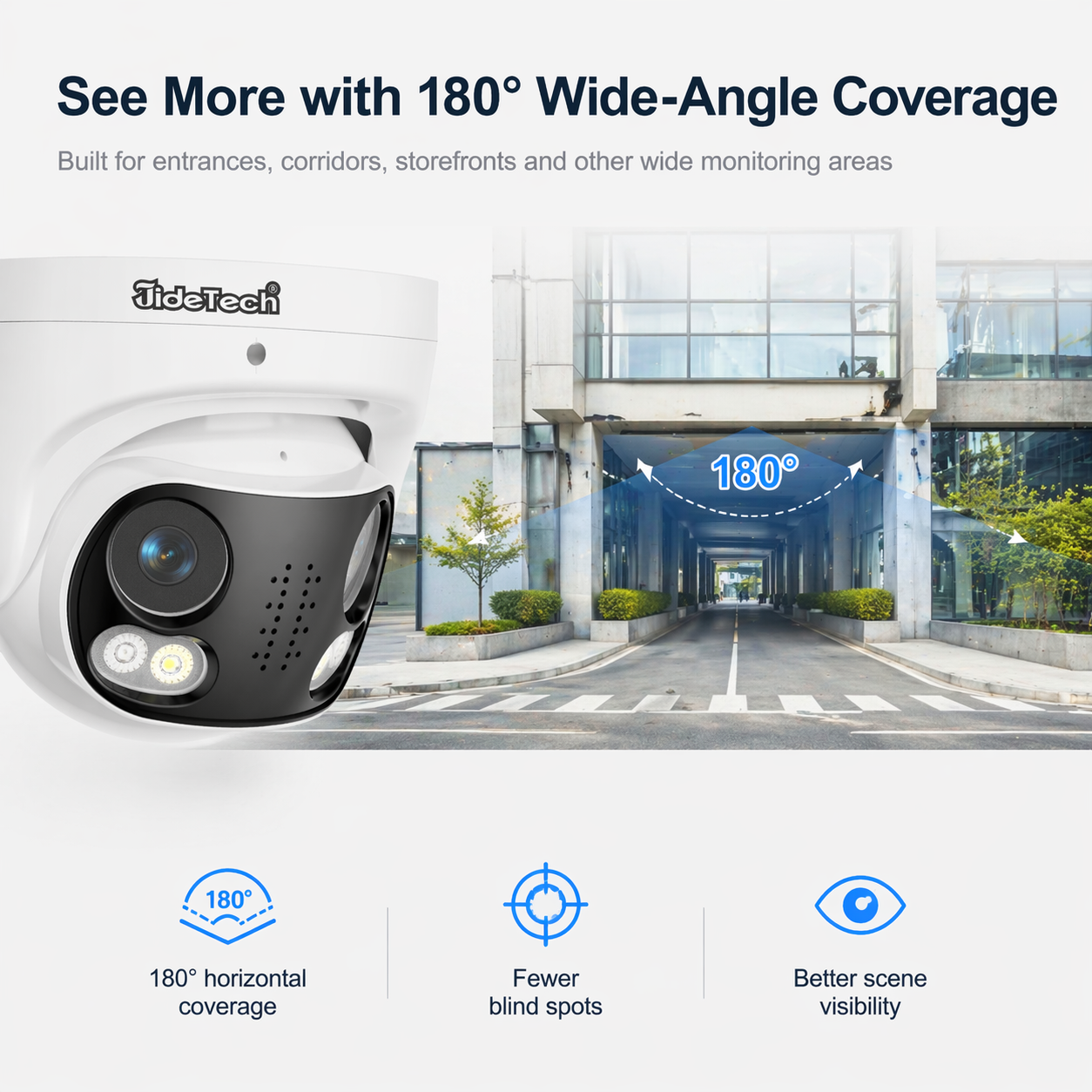

Wider Scene Coverage
The 180° wide-angle design helps monitor broader areas with fewer cameras, reducing blind spots at entrances, storefronts, corridors and building perimeters.

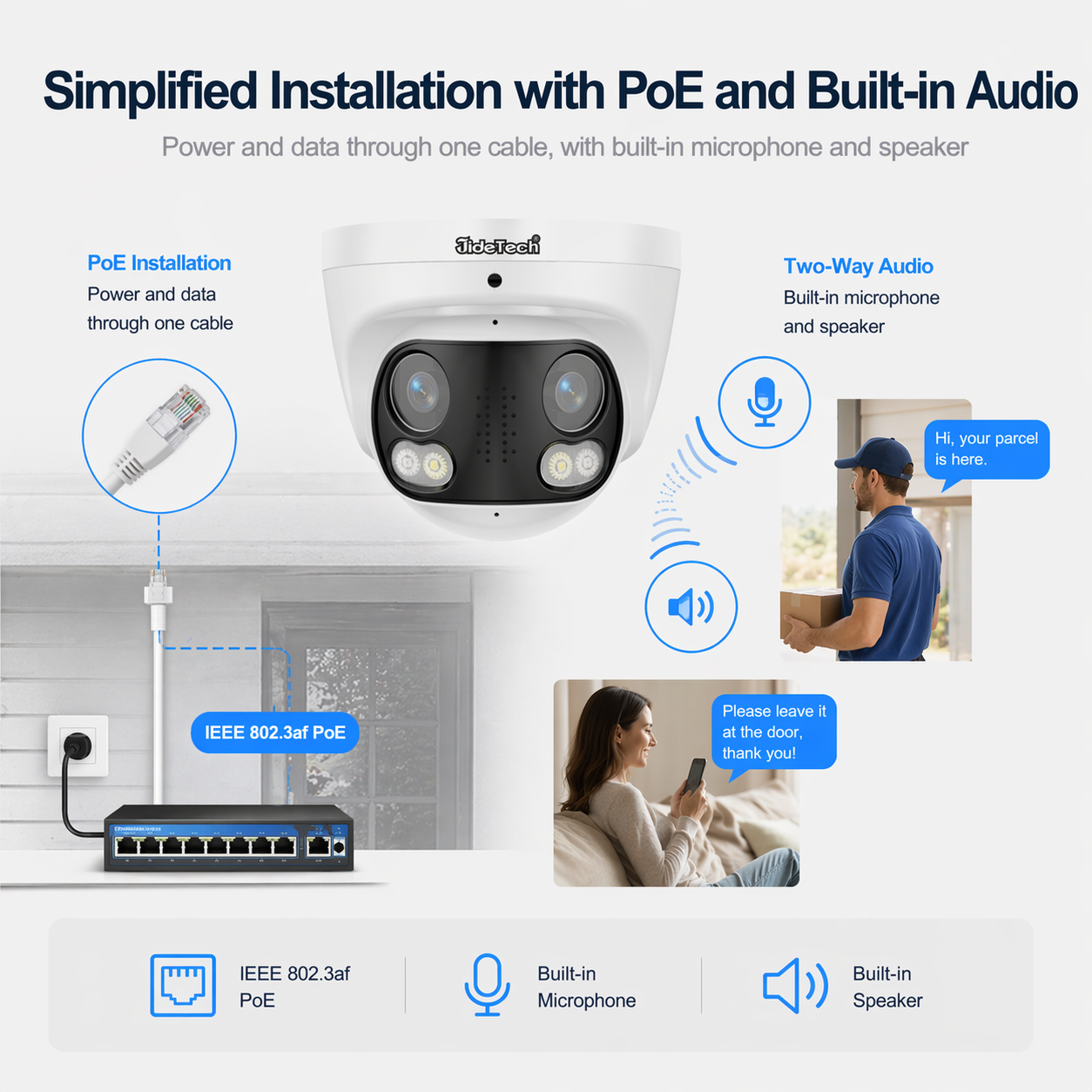

Cleaner PoE Installation
With IEEE 802.3af PoE support, power and data run through a single cable, making installation faster and cleaner in real project environments.

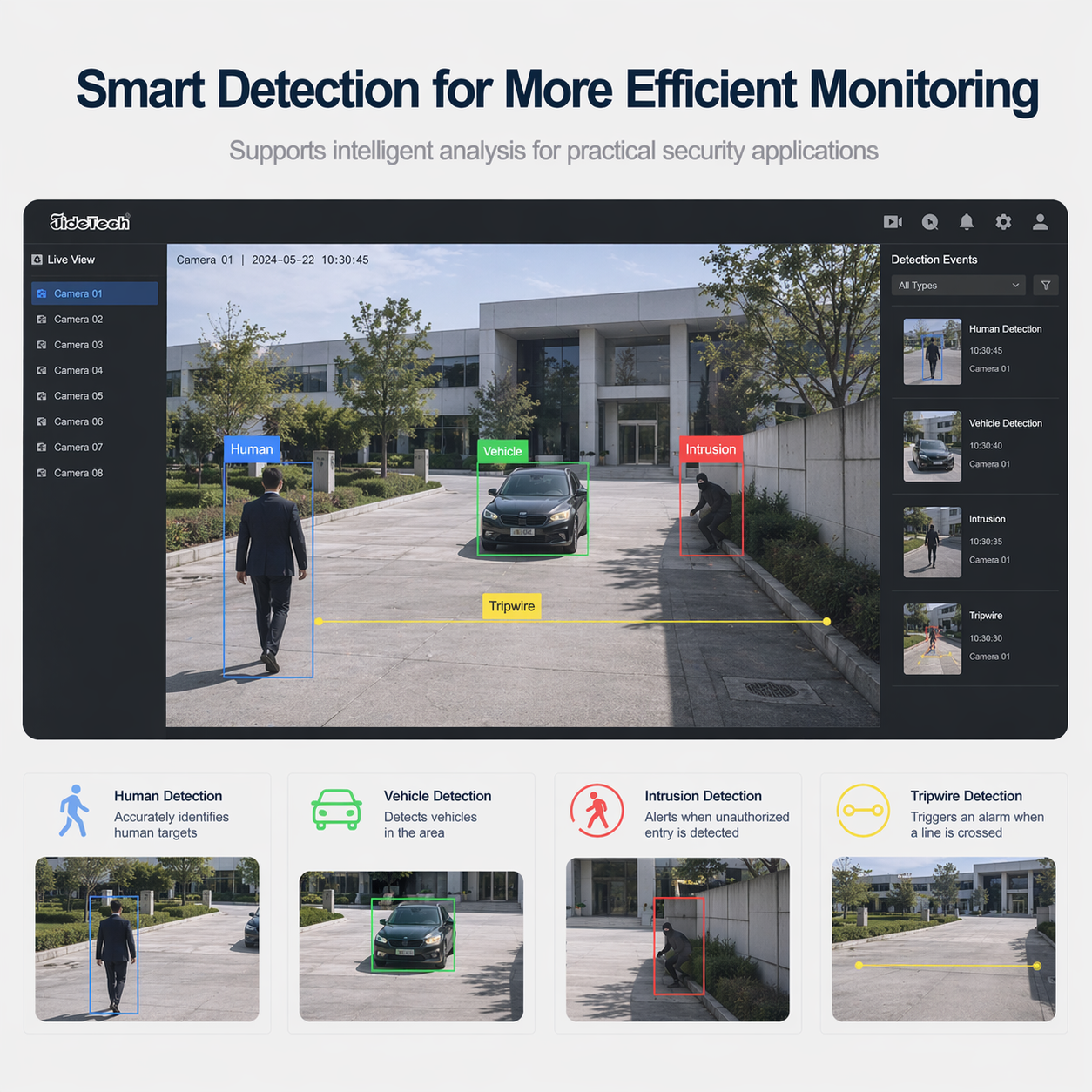

Audio + Smart Detection
Built-in mic and speaker support two-way audio, while human detection, vehicle detection, tripwire and intrusion detection improve practical usability.
Professional Compatibility
Supports ONVIF, RTSP, RTMP, HTTP, HTTPS, FTP, GB28181 and Hikvision private protocol for stronger integration in CCTV systems.
Why Dual-Lens Instead of a Standard Single-Lens Camera?
| Comparison Item | Standard Single-Lens Camera | JideTech Dual-Lens 180° Camera |
|---|---|---|
| Field of View | Usually narrower scene coverage | 180° wide-angle coverage |
| Blind Spots | More likely in wide entrances or long corridors | Fewer blind spots in wide scenes |
| Number of Cameras Needed | May require multiple cameras | Can reduce camera quantity in some projects |
| Monitoring Efficiency | Standard scene capture | Better for wide storefronts, passages and perimeter areas |
| Deployment Value | Normal coverage solution | More practical for project-based wide-area coverage |
Ideal Applications

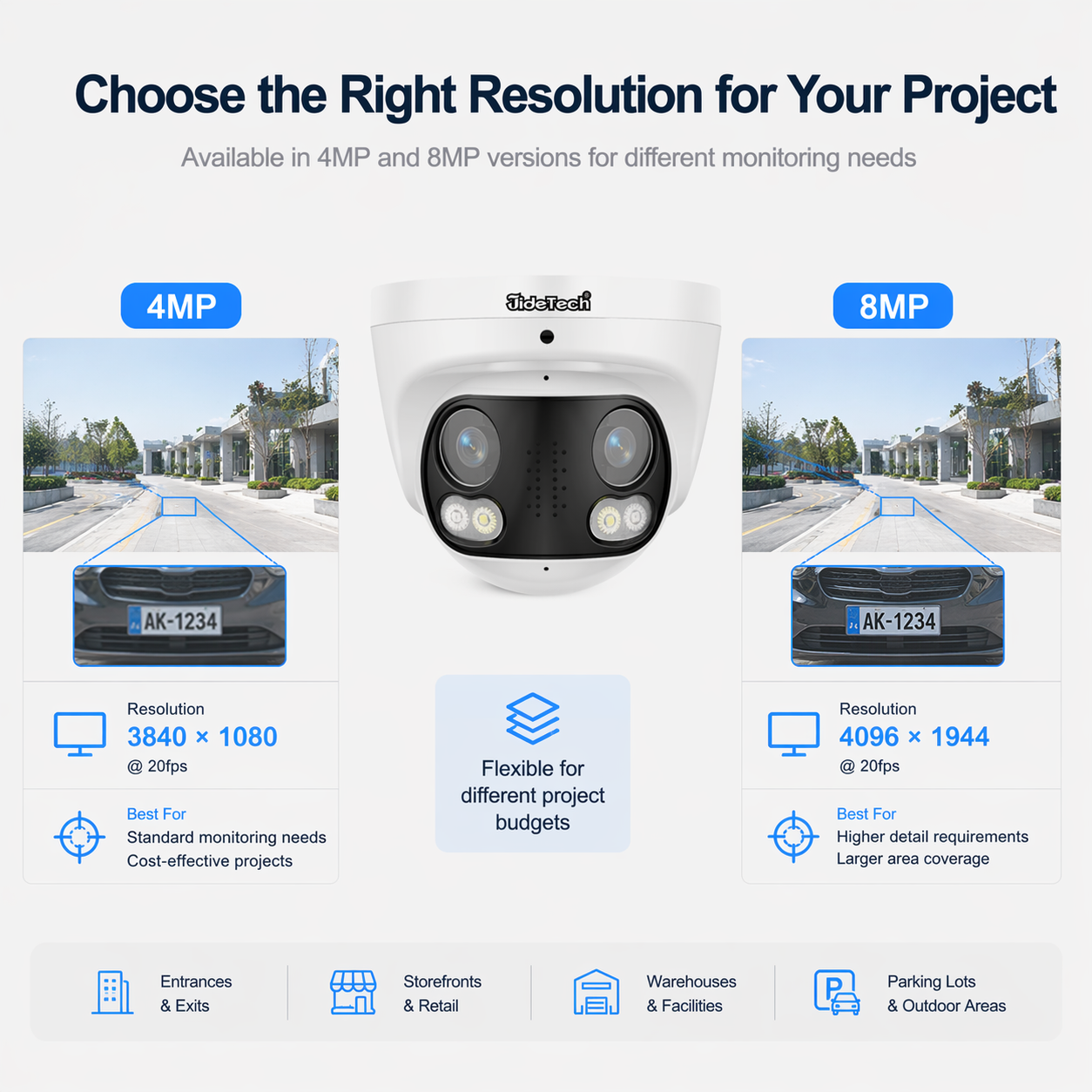

4MP / 8MP Model Options
DM12-4MP-DL
| Sensor | 1/2.9" SSC30KQ + GC2063 |
| Lens | 2 × 3.6mm fixed lens |
| Resolution | 3840 × 1080 |
| Frame Rate | 20fps |
| IR Range | 20m |
| White Light Range | 15m |
DM12-8MP-DL
| Sensor | 1/2.7" SSC359G + GC5623 |
| Lens | 2 × 2.8mm fixed lens |
| Resolution | 4096 × 1944 |
| Frame Rate | 20fps |
| IR Range | 30m |
| White Light Range | 20m |
Main Technical Features
| Item | Specification |
|---|---|
| Camera Type | Dual-Lens PoE IP Security Camera |
| Viewing Angle | 180° horizontal wide-angle monitoring |
| Image Output | 32:9 ultra-wide stitched image |
| Video Compression | H.264 / H.265 / H.265+ |
| Audio | Built-in microphone and speaker |
| Smart Functions | Human detection, vehicle detection, area intrusion detection, tripwire detection |
| Storage | MicroSD card slot, up to 512GB |
| Network Protocols | ONVIF 2.4, RTSP, RTMP, HTTP, HTTPS, FTP, GB28181, Hikvision private protocol |
| IP Version | IPv4 / IPv6 |
| Power Supply | 12V DC ±10% / IEEE 802.3af PoE |
| Protection Level | IP66 waterproof |
| Working Temperature | -10°C to 60°C |
A Practical Wide-Area Camera for Installers, Integrators and Distributors
This model is ideal for project customers who need broader scene coverage, better system compatibility, easier PoE deployment and a more professional wide-angle monitoring solution.
• System Integrators
• Security Installers
• Project-Based Buyers
• OEM / ODM Cooperation
Need Project Pricing or Distributor Support?
Contact JideTech for quotation, technical recommendations, bulk orders and OEM / ODM cooperation.
