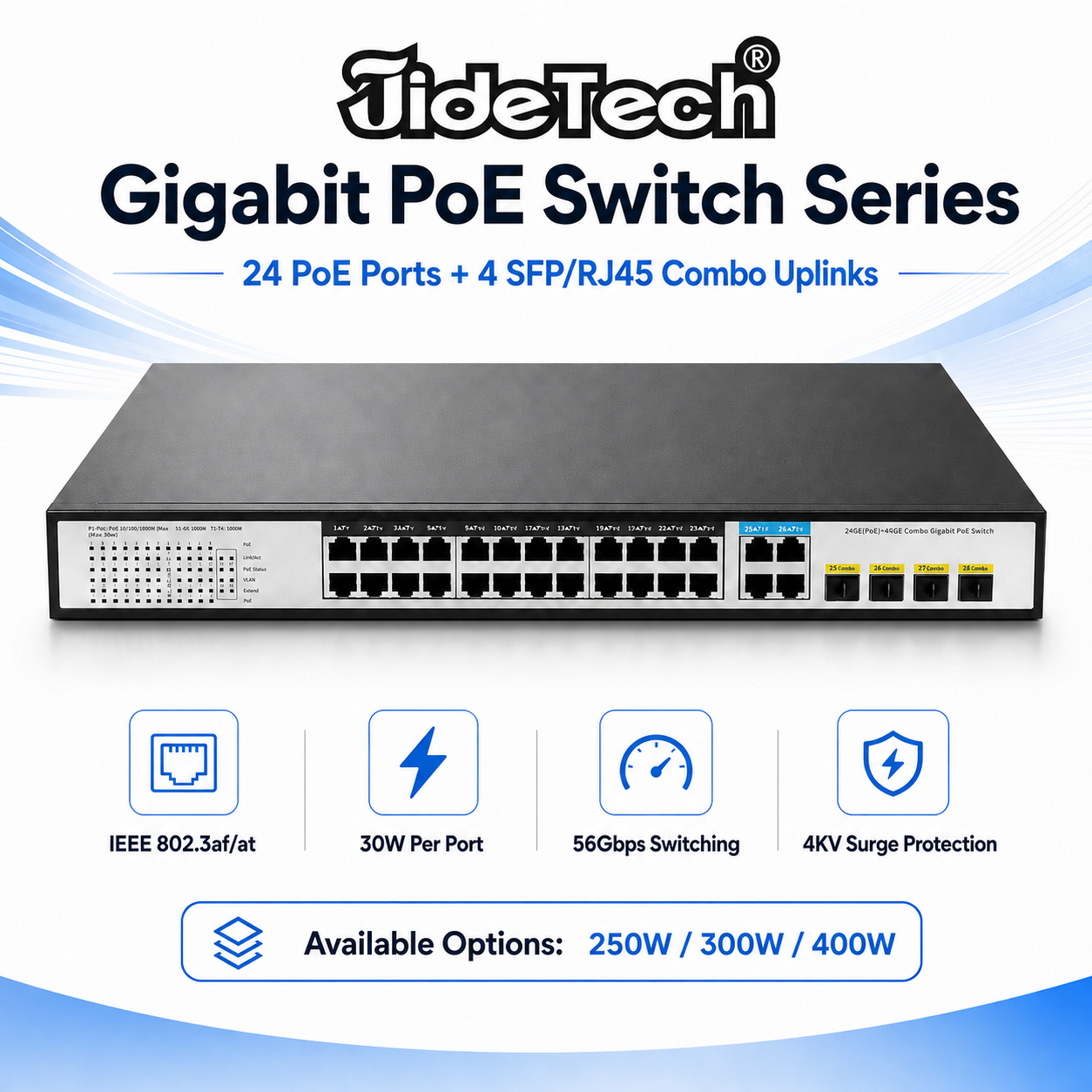

JideTech Gigabit PoE Switch with 4 SFP/RJ45 Combo Uplinks, 16/24-Port, 250W/300W/400W

Port & Power

JideTech Gigabit PoE Switch with 4 SFP/RJ45 Combo Uplinks, 16/24-Port, 250W/300W/400W

JideTech Gigabit PoE Switch with 4 SFP/RJ45 Combo Uplinks

The JideTech S316GP-4GC / S324GP-4GC series is an unmanaged full Gigabit PoE switch designed for IP camera systems, wireless APs, IP phones, video intercoms, hotels, campuses, industrial parks, residential communities, and SMB networks.

This series provides 16-port and 24-port PoE options with 4 Gigabit SFP/RJ45 combo uplink ports, supporting flexible copper and fiber network expansion. Ports support IEEE 802.3af/at standard PoE power supply, with up to 30W per port.

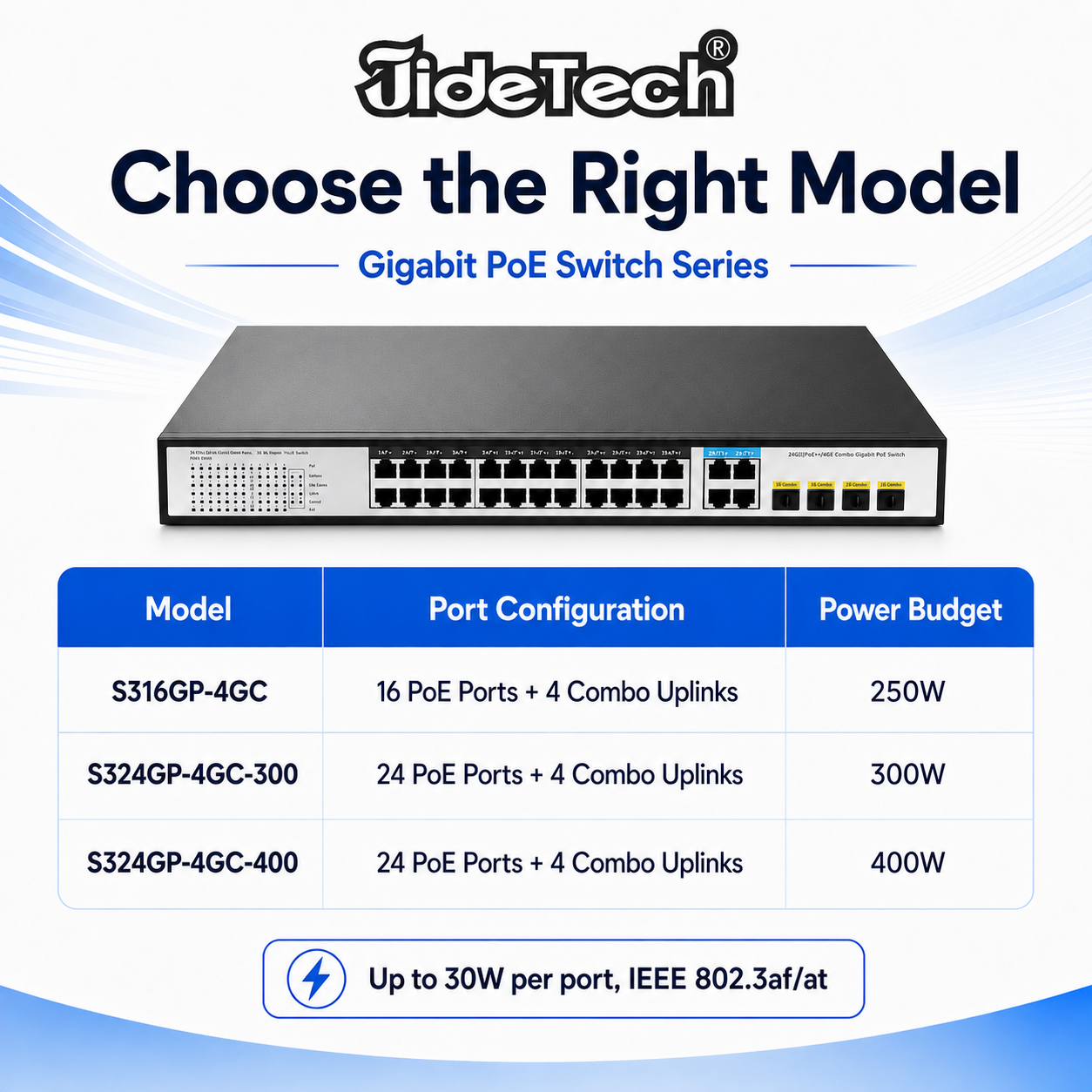

Available Models

Model PoE Ports Combo Uplink Ports PoE Power Budget
S316GP-4GC 16 × 10/100/1000M PoE RJ45 ports 4 × Gigabit SFP/RJ45 combo uplinks 250W
S324GP-4GC-300 24 × 10/100/1000M PoE RJ45 ports 4 × Gigabit SFP/RJ45 combo uplinks 300W
S324GP-4GC-400 24 × 10/100/1000M PoE RJ45 ports 4 × Gigabit SFP/RJ45 combo uplinks 400W

Key Features

  • 16-Port and 24-Port Options: Choose 16 PoE ports with 250W power budget or 24 PoE ports with 300W / 400W power budget.

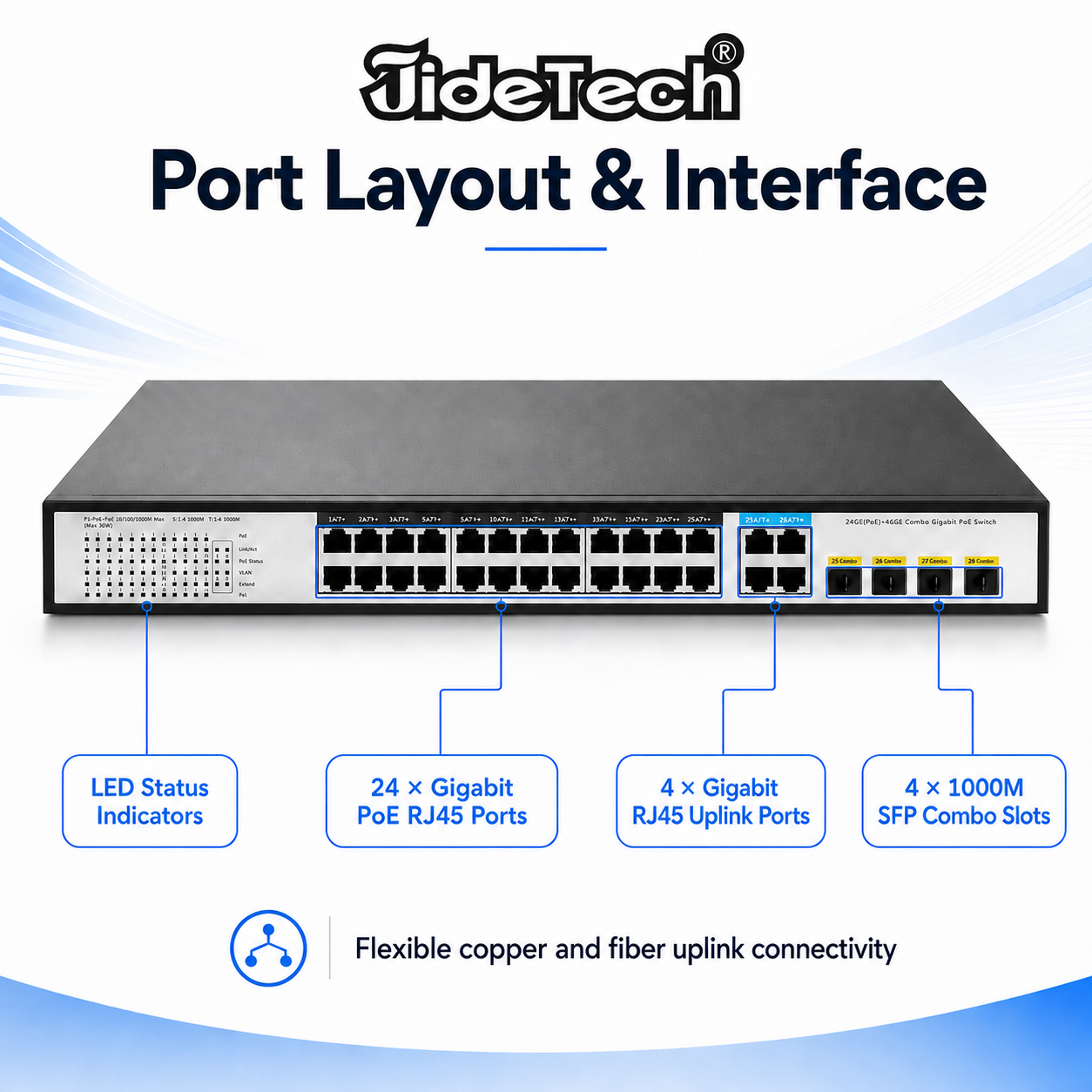

  • 4 SFP/RJ45 Combo Uplinks: Supports 4 Gigabit RJ45 uplink ports and 4 Gigabit SFP fiber combo slots for flexible network deployment.

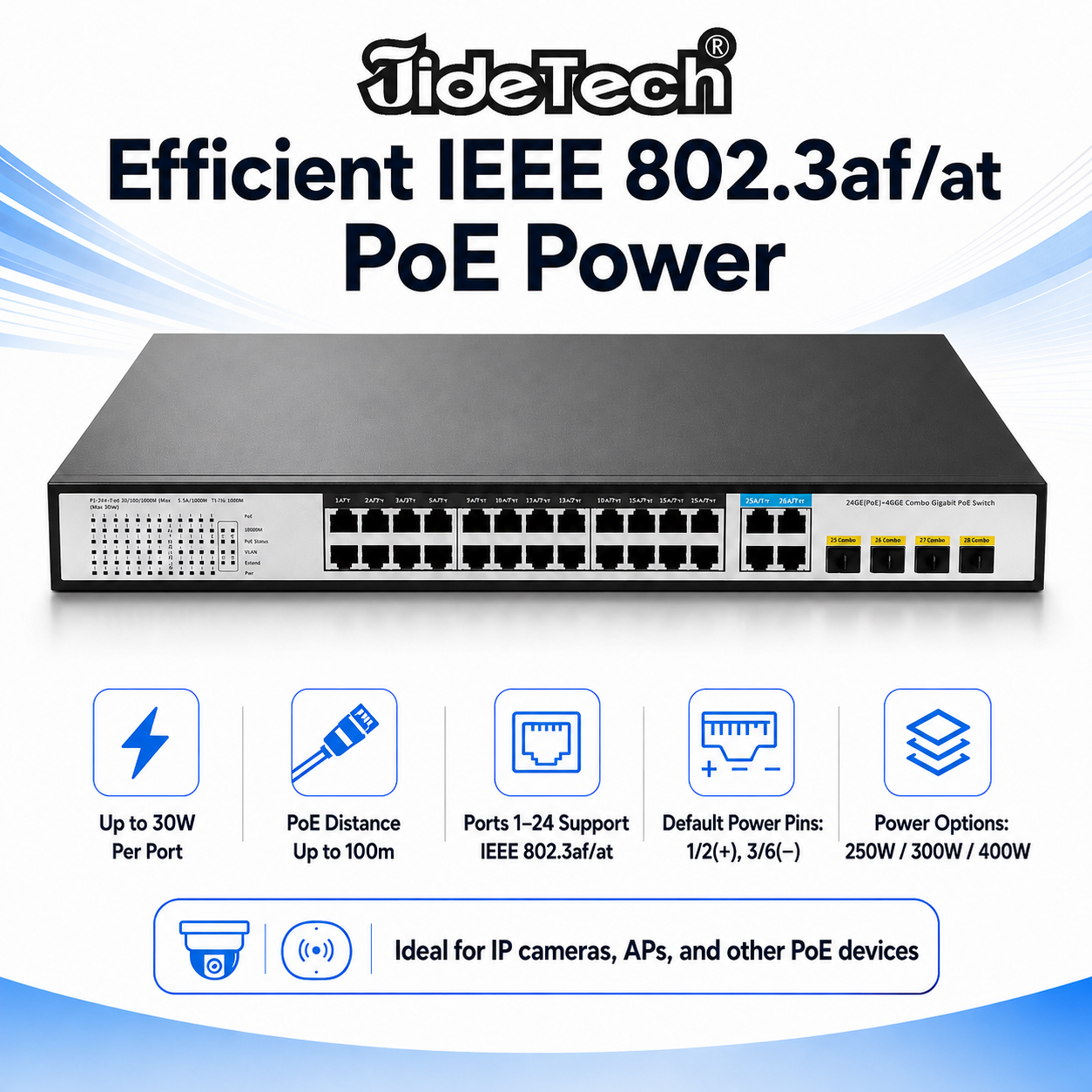

  • IEEE 802.3af/at PoE: PoE ports support standard IEEE 802.3af/at power supply, with up to 30W per port.
  • Full Gigabit Performance: High-speed Gigabit transmission with non-blocking switching performance for stable video and data transmission.
  • Plug and Play: Unmanaged design with no configuration required, making installation simple and efficient.

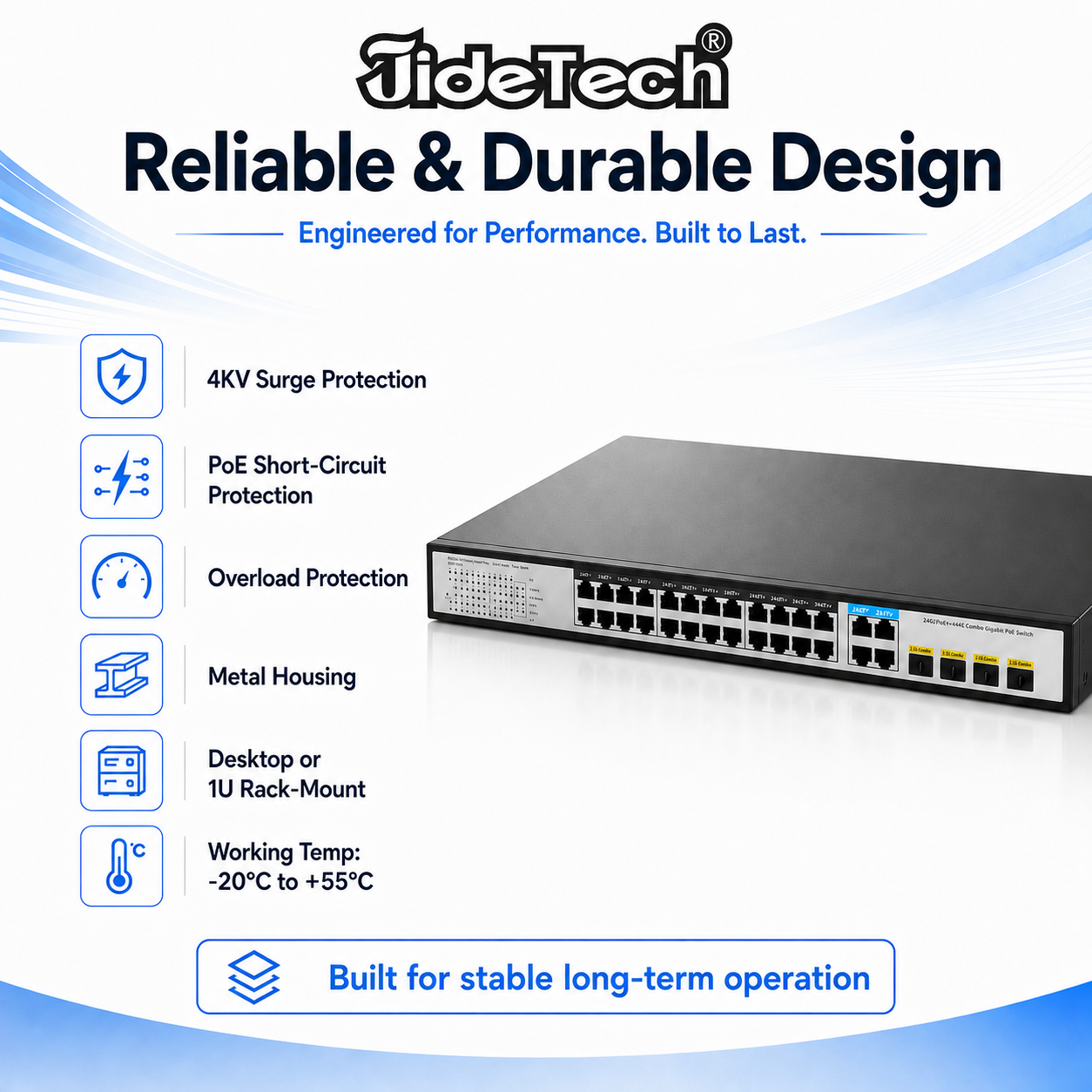

  • Reliable Protection: 4KV surge/lightning protection, PoE short-circuit protection, and overload protection for safer operation.
  • Rack-Mount Design: Durable metal housing with strong heat dissipation, suitable for desktop or 1U rack-mount installation.

Technical Specifications

Management Type Unmanaged
PoE Standard IEEE 802.3af/at
Max PoE Power Per Port 30W
Uplink Ports 4 × 10/100/1000Base-T RJ45 ports + 4 × 1000M SFP combo slots
Ethernet Transmission Distance Up to 100m

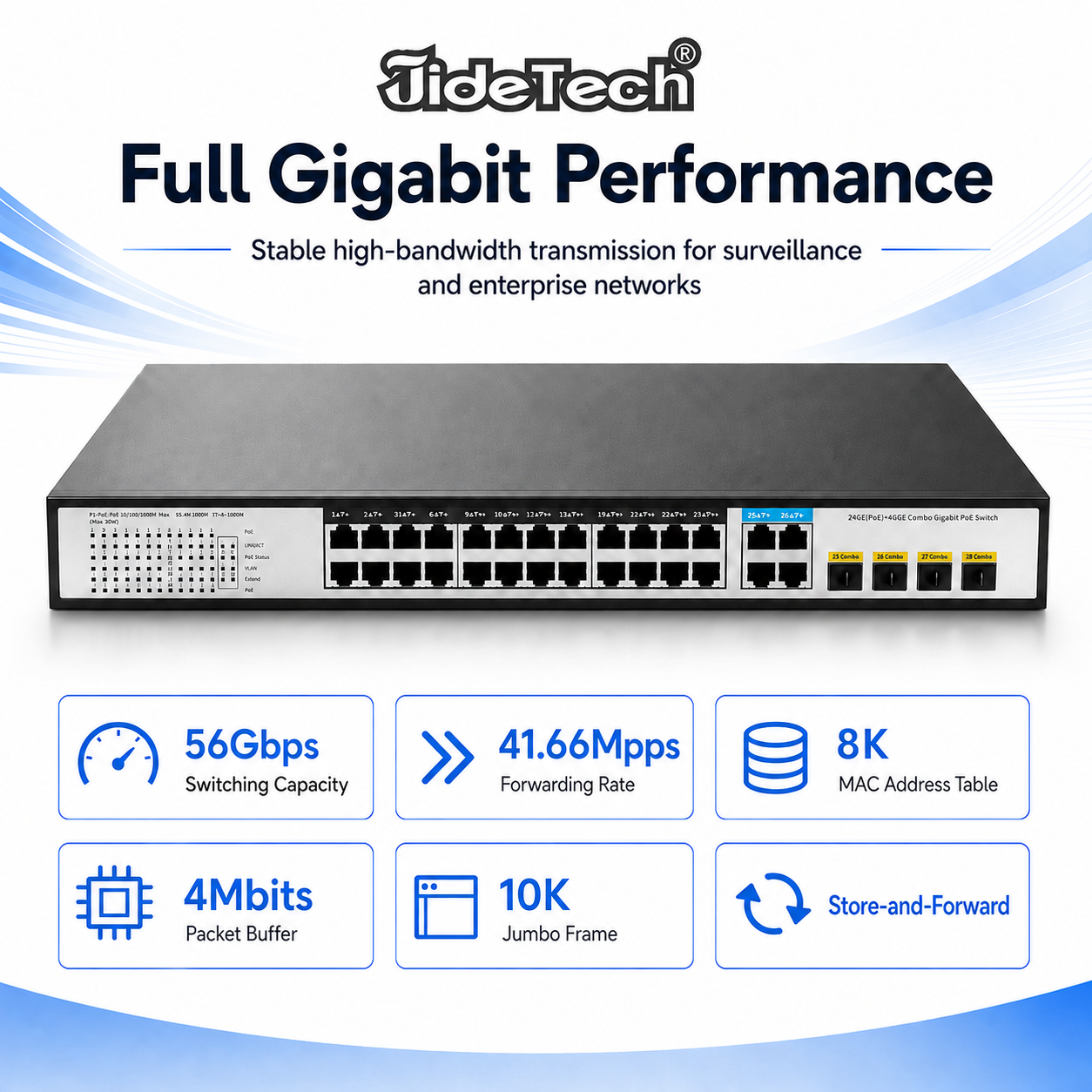

Switching Capacity 56Gbps
MAC Address Table 8K
Packet Buffer 4Mbits
Jumbo Frame 10Kbytes
Input Voltage AC 100–240V, 50/60Hz
Dimensions 440 × 290 × 45 mm
Installation Desktop or rack-mount installation
Protection 4KV port lightning protection, IP30
Certifications CE, FCC, RoHS, CCC
Warranty 2 years

Model Comparison

Model Recommended Use
S316GP-4GC | 250W Suitable for medium-size IP camera or office PoE network projects requiring up to 16 PoE devices.
S324GP-4GC-300 | 300W Suitable for standard 24-channel IP camera systems or enterprise PoE networks.
S324GP-4GC-400 | 400W Recommended for 24-channel PoE systems with higher power consumption devices, such as PTZ cameras, wireless APs, or mixed PoE loads.

Application Scenarios

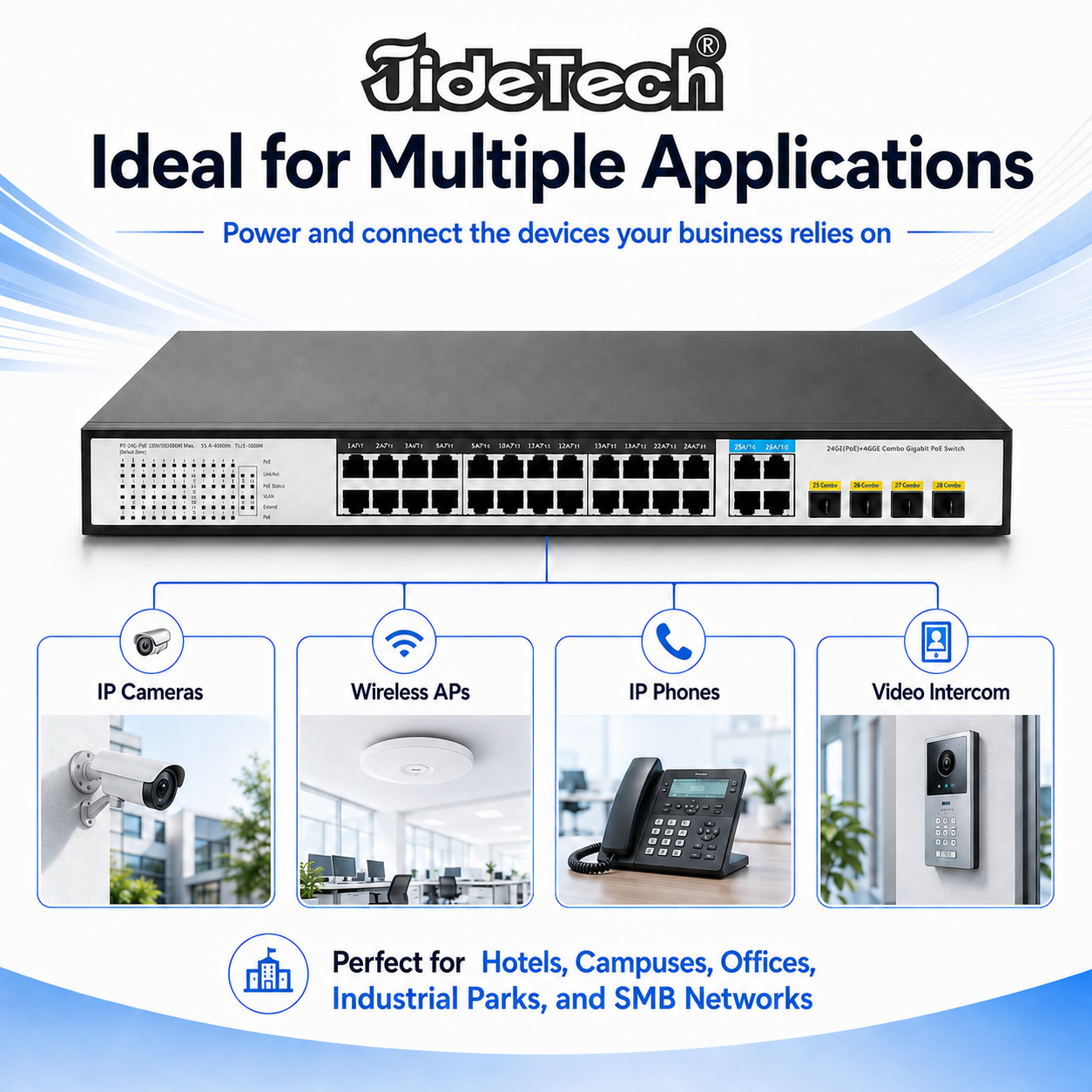

This Gigabit PoE switch series is ideal for CCTV surveillance systems, IP camera networks, office buildings, hotels, schools, campuses, warehouses, industrial parks, residential communities, and SMB networks requiring stable PoE power supply and Gigabit data transmission.

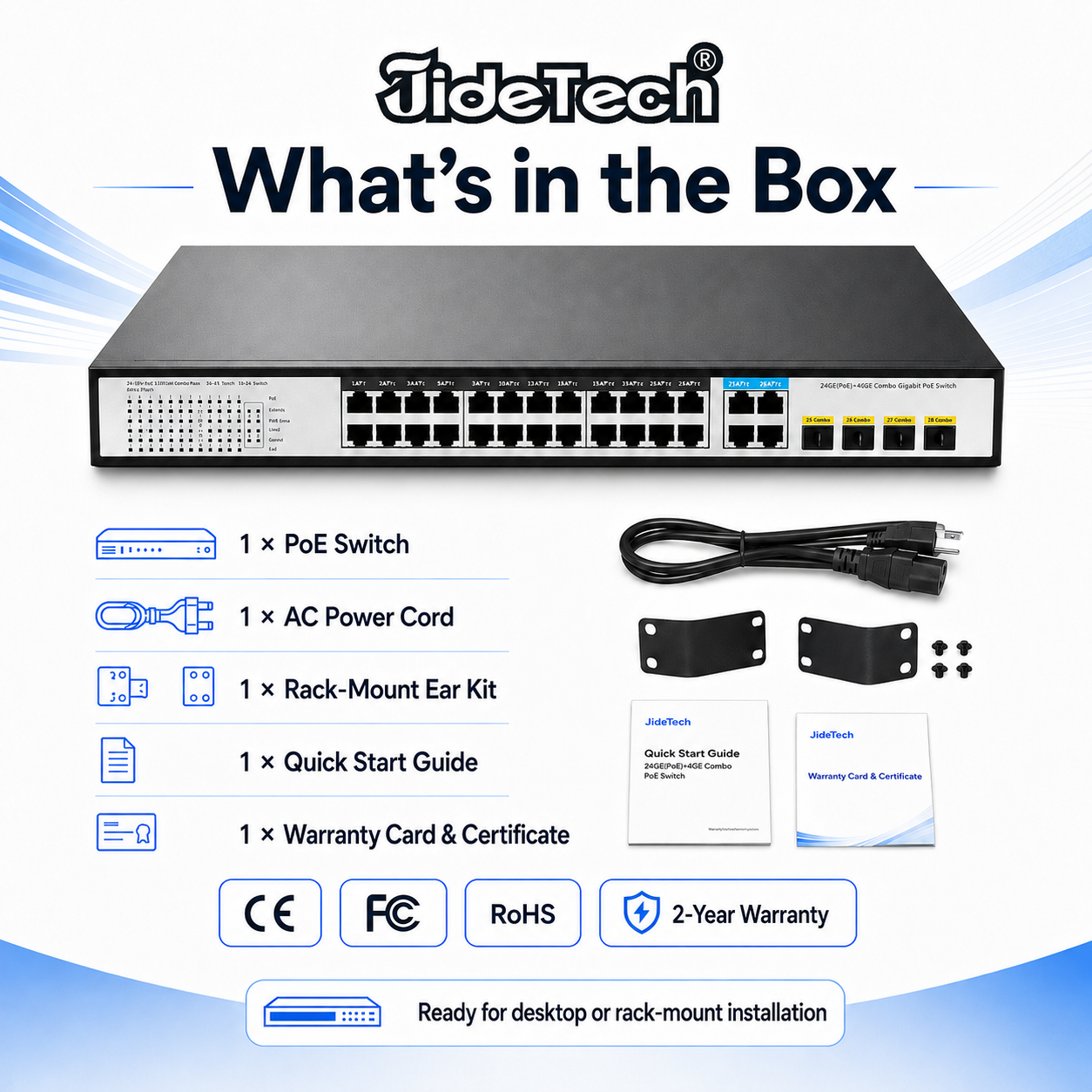

Package Includes

  • 1 × Gigabit PoE Switch
  • 1 × AC Power Cord
  • 1 × Rack-Mount Ear Kit
  • 1 × Quick Start Guide
  • 1 × Warranty Card and Certificate of Conformity

FAQ

Is this PoE switch managed or unmanaged?

This series is unmanaged. It supports plug-and-play installation without configuration.

What is the difference between the 250W, 300W, and 400W options?

The 250W version is the 16-port PoE model. The 300W and 400W versions are 24-port PoE models. The 400W version is recommended when more high-power PoE devices are connected.

Does it support IEEE 802.3af/at PoE?

Yes. The PoE ports support IEEE 802.3af/at standard PoE power supply, with up to 30W per port.

Can it be used for IP camera systems?

Yes. It is suitable for IP cameras, wireless APs, IP phones, video intercom systems, and other standard PoE devices.

Are SFP optical modules included?

No. SFP optical modules are not included by default and can be purchased separately according to project requirements.
