JideTech LC002 4MP 36X Zoom Green Laser PTZ Camera

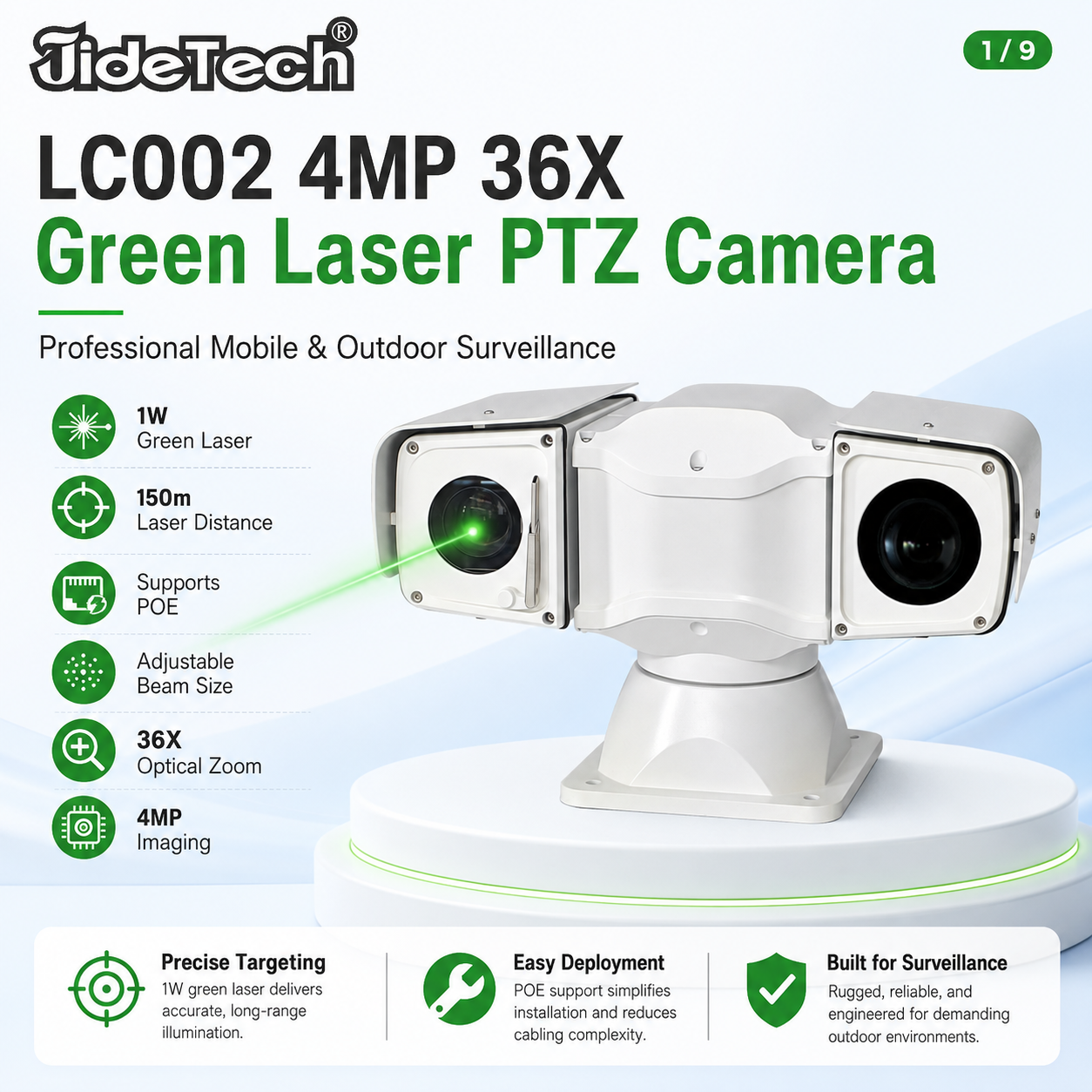

The JideTech LC002-4MP-GreenLaser is a professional 4MP 36X optical zoom PTZ camera designed for mobile law enforcement, emergency command vehicles, road patrol, fire rescue, urban management enforcement, and special vehicle inspection systems.
Equipped with a Sony 1/2.8" CMOS sensor, 5.3–175mm 36X optical zoom lens, integrated green laser module, IP66 aluminum alloy housing, and advanced anti-fog/defrost structure, LC002 is built for demanding outdoor and mobile surveillance applications.
Key Features

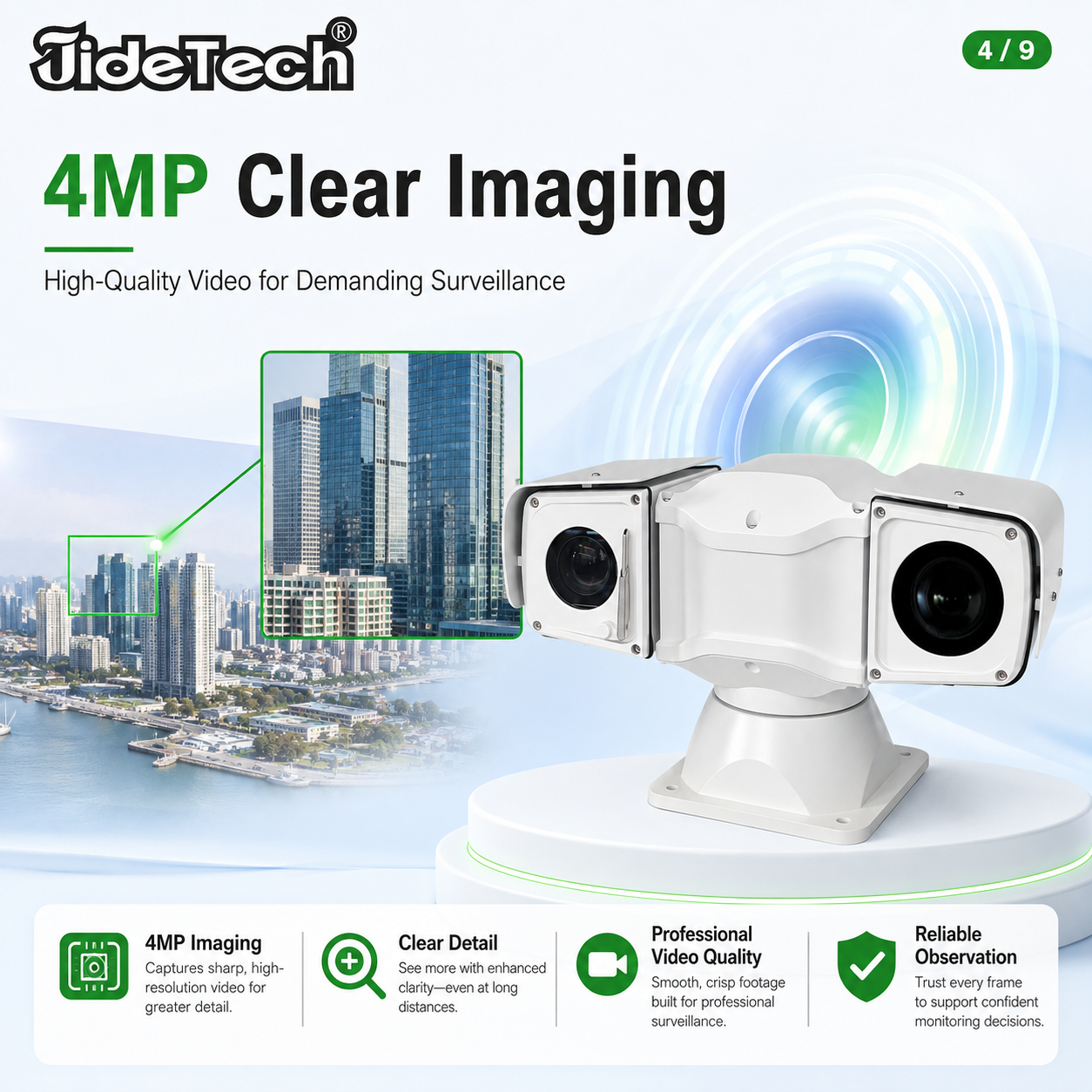

- 4MP high-resolution imaging with Sony 1/2.8" CMOS sensor

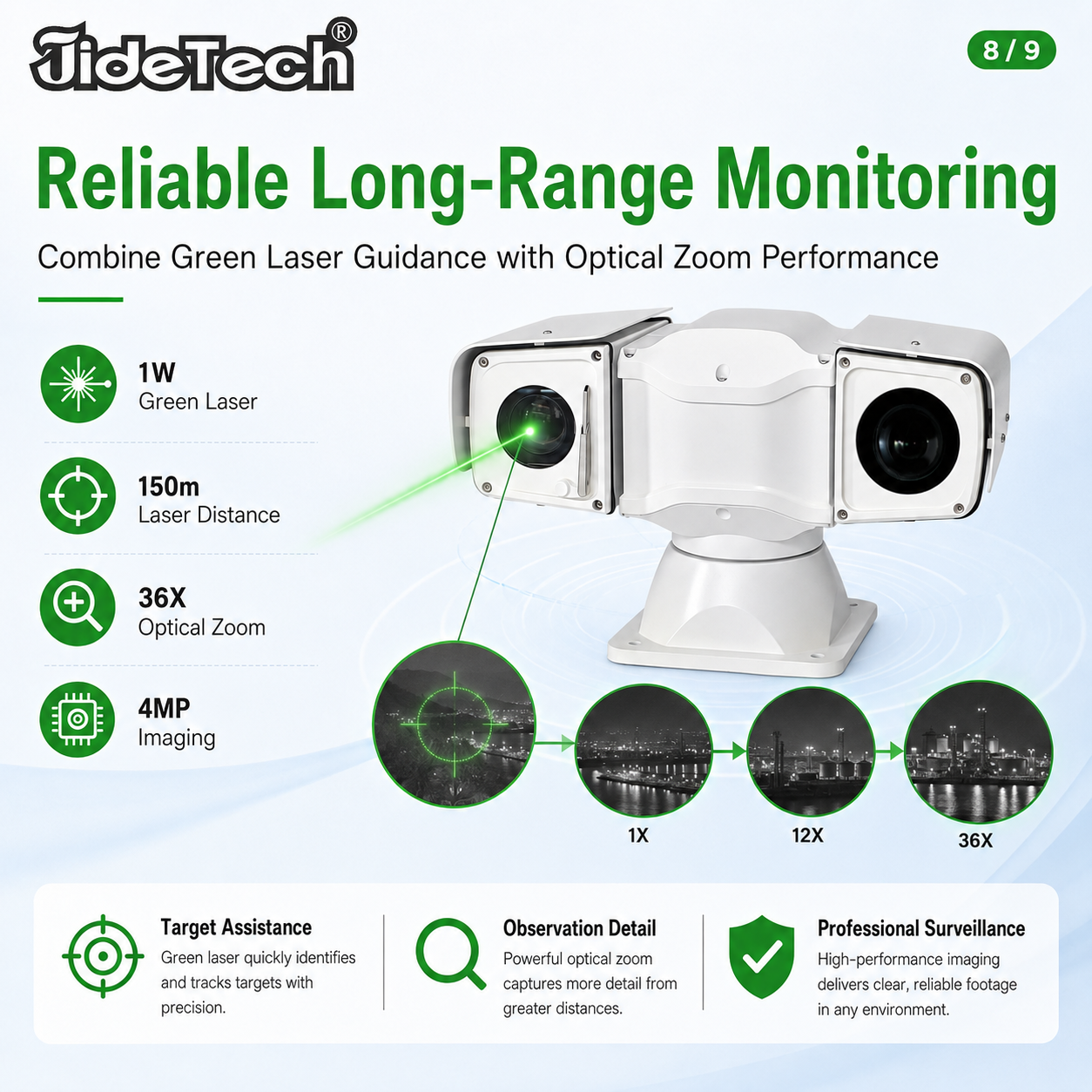

- 36X optical zoom, 5.3–175mm focal length for long-range monitoring
- Integrated green laser module with 515–530nm peak emission wavelength
- 120dB WDR for improved image quality in high-contrast environments
- White-light night vision supplement, clear image quality at 120–150 meters
- Independent defogging and defrosting module to reduce lens fogging in outdoor temperature changes
- IP66 weatherproof aluminum alloy housing for harsh outdoor environments
- Smooth PTZ movement with stable high-speed rotation and jitter-free low-speed control
- ONVIF, GB/T28181, RTSP, RTMP, HTTPS and IPv6 support for system integration
- Triple-stream video output with H.264 / H.265 compression

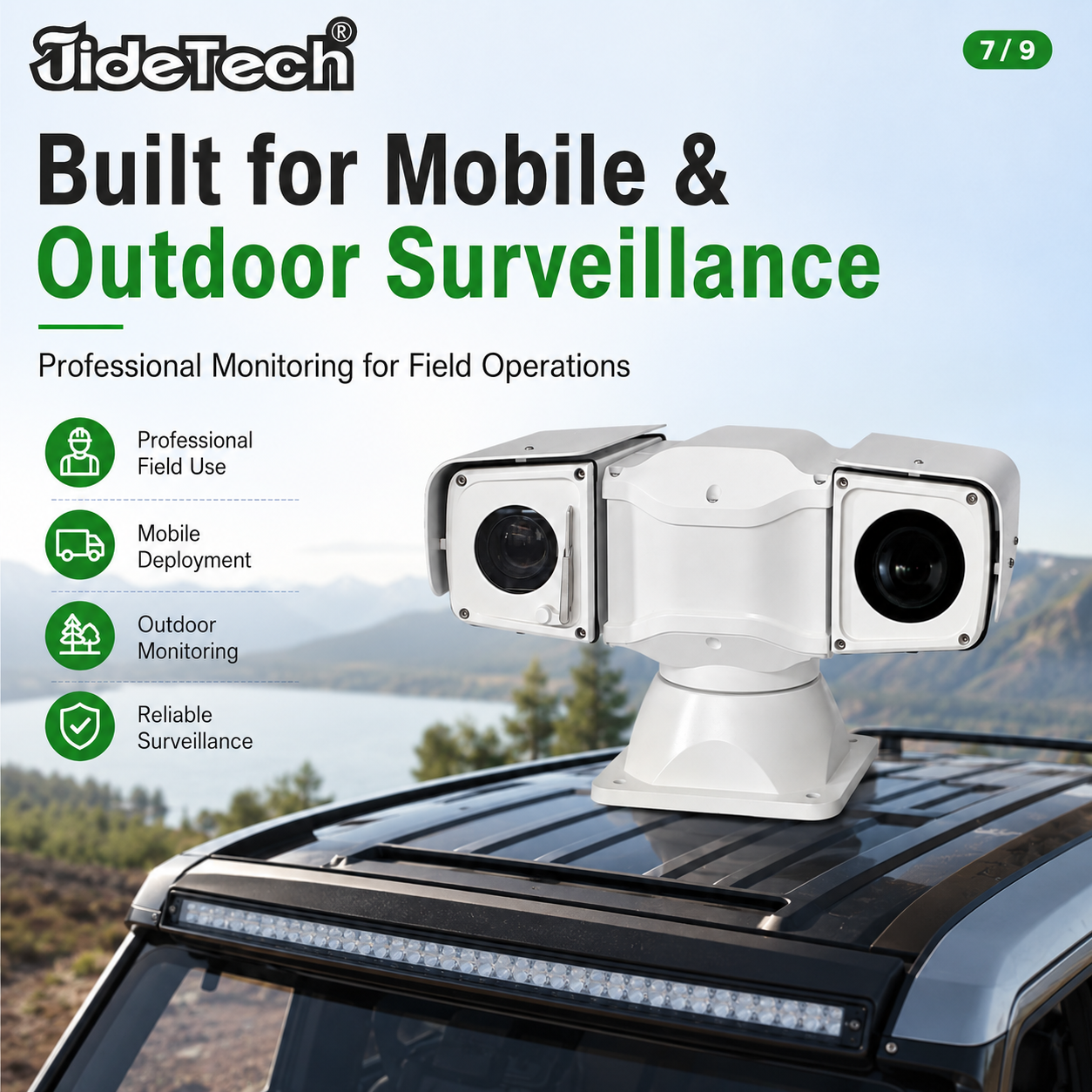

Designed for Mobile & Emergency Command Applications

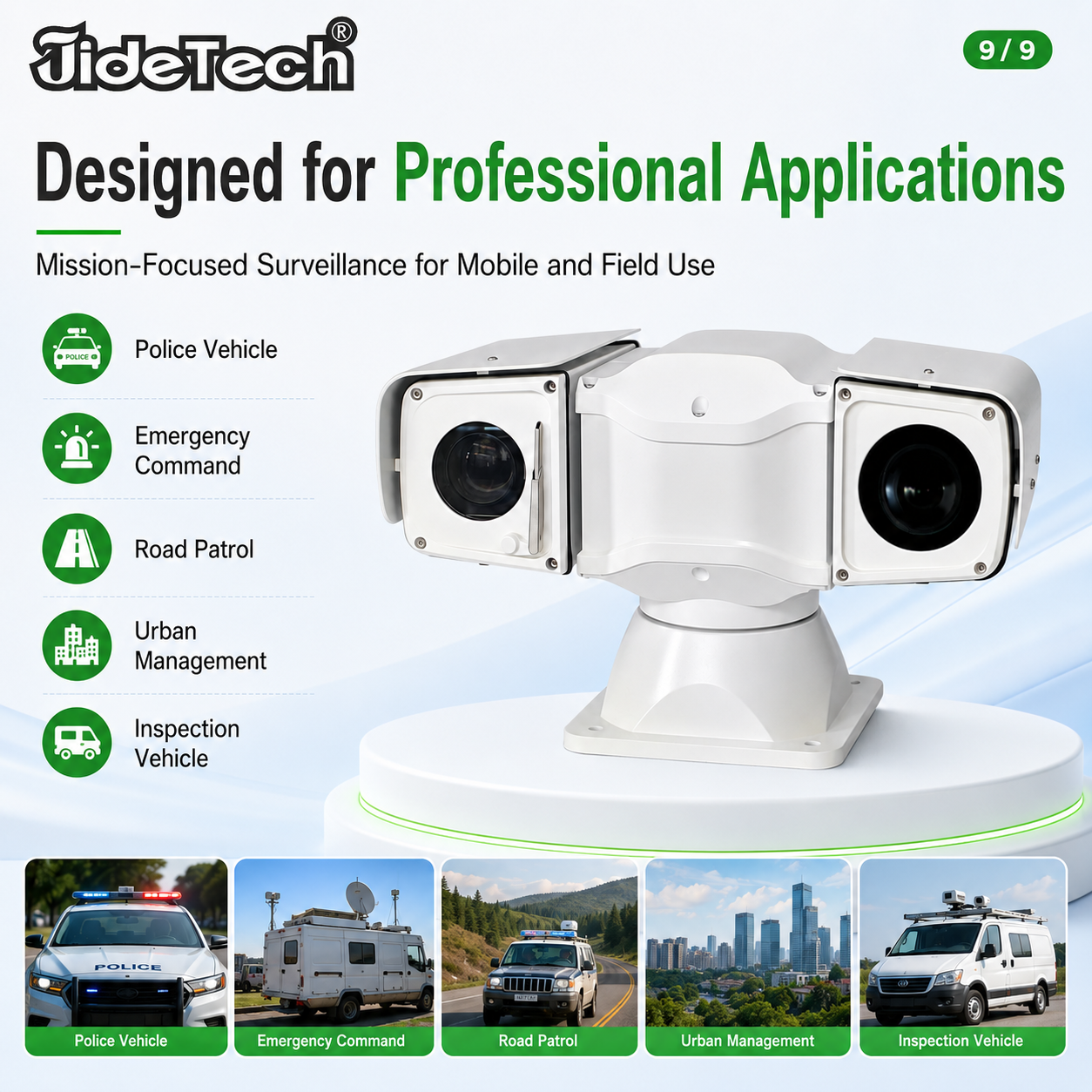

LC002 is suitable for police vehicle mobile law enforcement, fire emergency command, emergency medical command systems, road administration patrol, urban management public security enforcement, and special vehicle mobile inspection.
Camera Specifications
| Model No. | LC002-4MP-GreenLaser |
| Sensor | Sony 1/2.8" CMOS |

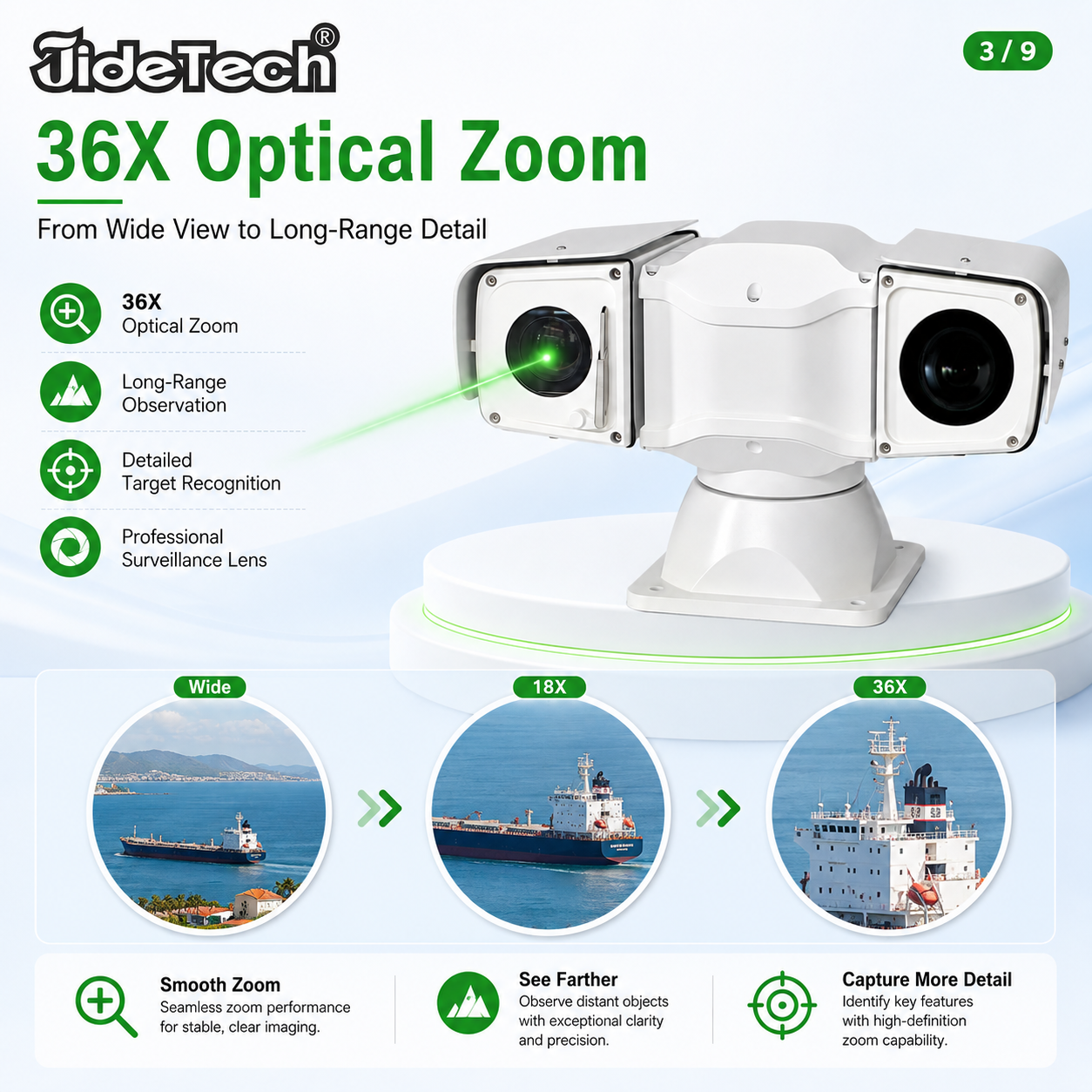

| Optical Lens | 5.3–175mm, 36X optical zoom |
| Minimum Illumination | Color: 0.01 Lux @ AGC ON; B/W: 0.005 Lux @ AGC ON |
| Field of View | 57°–1.7° wide to telephoto |
| Zoom Speed | Approx. 5 seconds, optical wide to telephoto |
| WDR | 120dB |
| Video Compression | H.264 / H.265, MJPEG |
| Video Bitrate | 64 Kbps–16 Mbps |
| Storage | TF card local storage up to 256GB, Class 10 recommended |

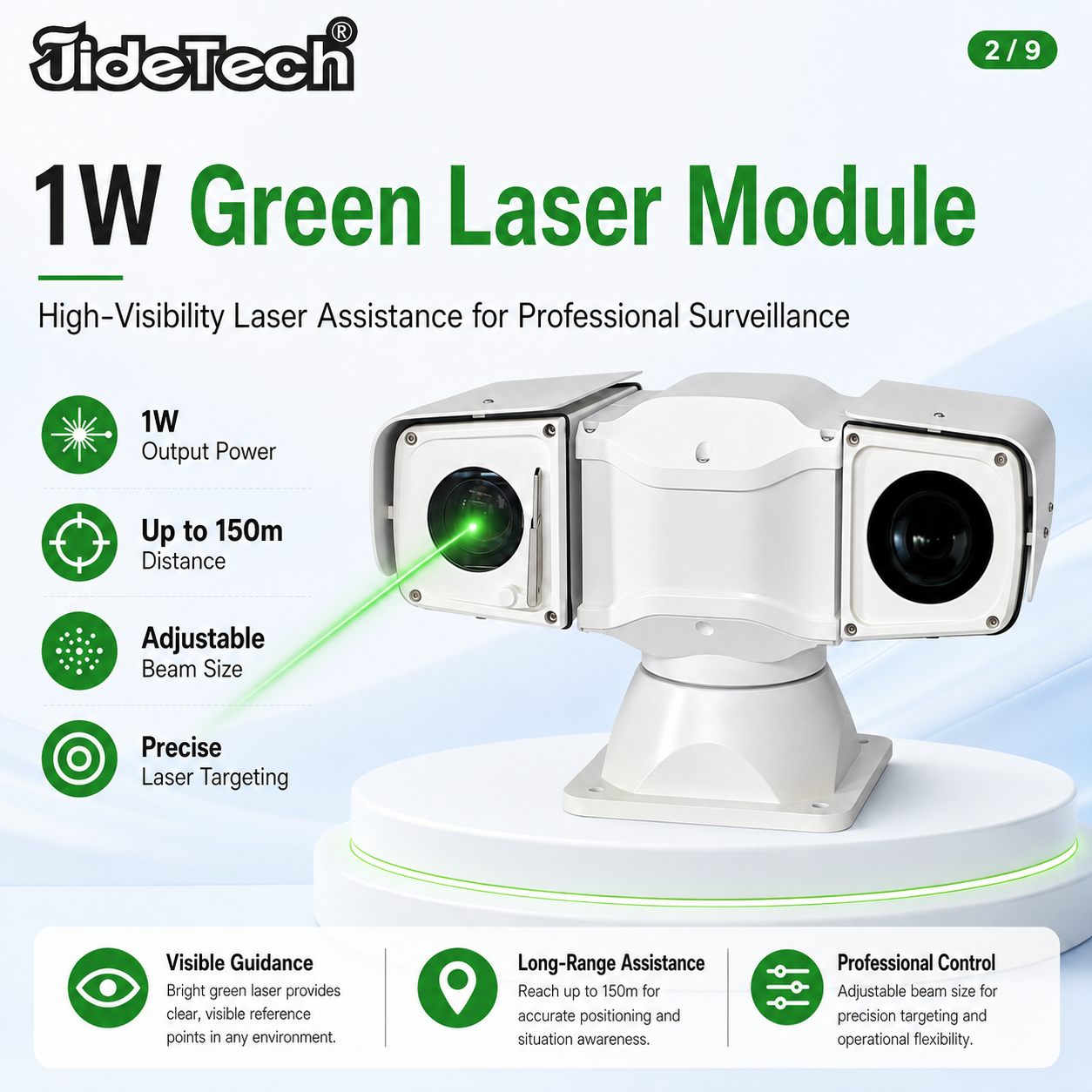

Green Laser Module Parameters
| Optical Power | 500–600mW, typical 550mW |
| Operating Voltage | 12–24V |
| Operating Current @ 24V | Max. 500mA |
| Peak Emission Wavelength | 515–530nm, typical 520nm |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +80°C |

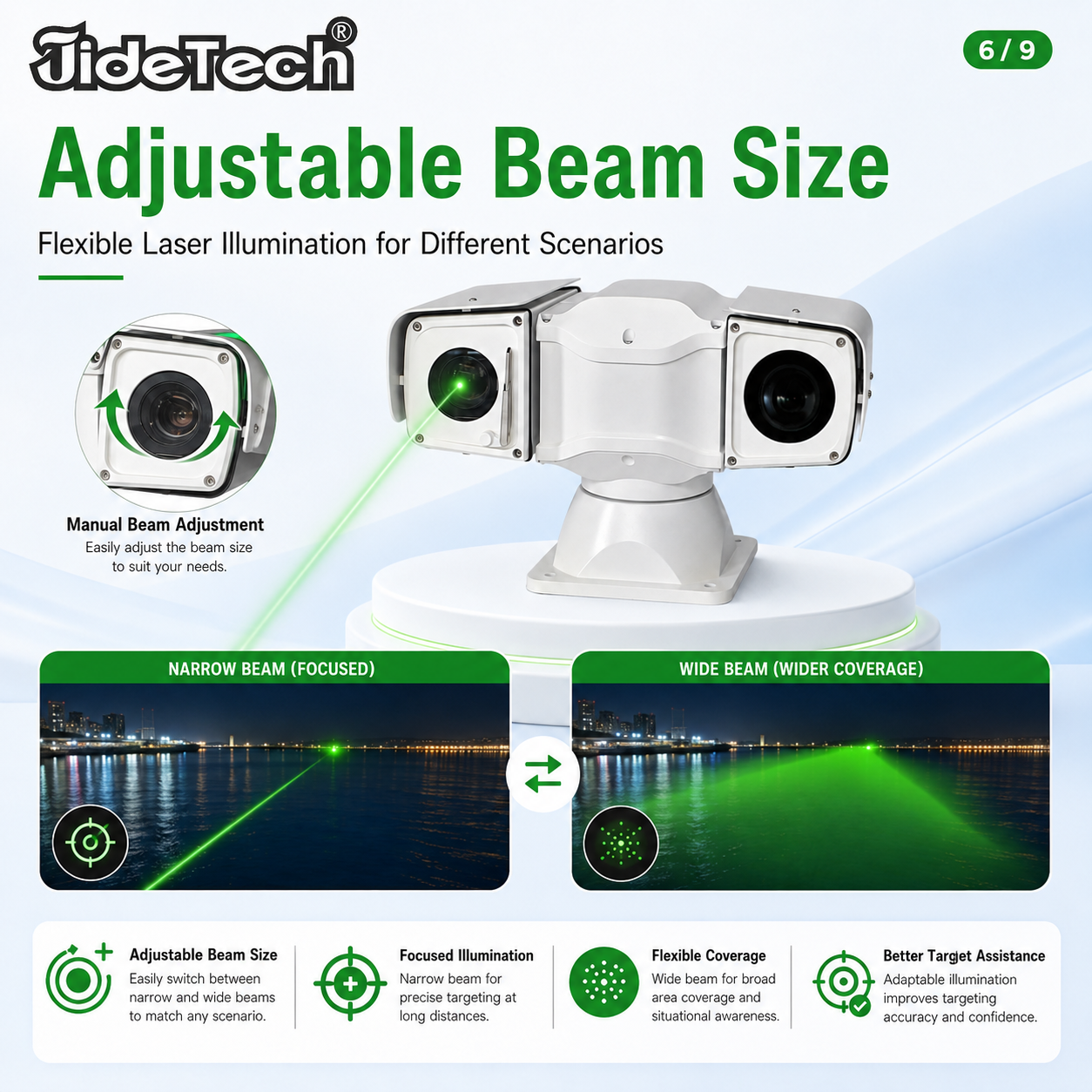

| Beam Size at 10m | 10 × 30mm |
Network & Integration
LC002 supports TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, IGMP, RTMP, IPv6, ONVIF, GB/T28181 and other mainstream protocols, making it suitable for integration with VMS platforms, mobile command systems and third-party surveillance software.
Why Choose JideTech LC002?
Unlike ordinary PTZ cameras, LC002 is designed for professional mobile and outdoor deployment. Its anti-fog structure, voltage stabilization design, rugged IP66 housing, green laser module, and 36X optical zoom make it a strong choice for law enforcement vehicles, patrol vehicles, emergency response vehicles and project-based surveillance systems.
Contact JideTech for project pricing, OEM/ODM support, and system integration solutions.
