JideTech LC002 Vehicle-Mounted Thermal PTZ Camera, 4MP 40X Zoom, 640×512 Thermal Imaging, 50mm Lens
JideTech LC002 Vehicle-Mounted Thermal PTZ Camera, 4MP 40X Zoom, 640×512 Thermal Imaging, 50mm Lens
4MP 40X Zoom Thermal PTZ Camera Built for Mobile Command & Patrol
Designed for police vehicle mobile law enforcement, fire emergency command, emergency medical coordination, urban public safety enforcement, and special vehicle inspection.
Why This Camera Fits Mobile Projects Better
LC002 is designed around vibration, unstable vehicle current, outdoor temperature differences, and long-hour patrol or command use instead of fixed-point surveillance only.
Helps reduce lens fogging caused by temperature differences in outdoor vehicle environments.
Keeps the PTZ camera compartment and infrared compartment better aligned under vibration.
Filters unstable current from the vehicle and helps the PTZ remain in a stable operating state.
Built for harsh outdoor deployment where patrol, emergency, and inspection teams need stronger durability.

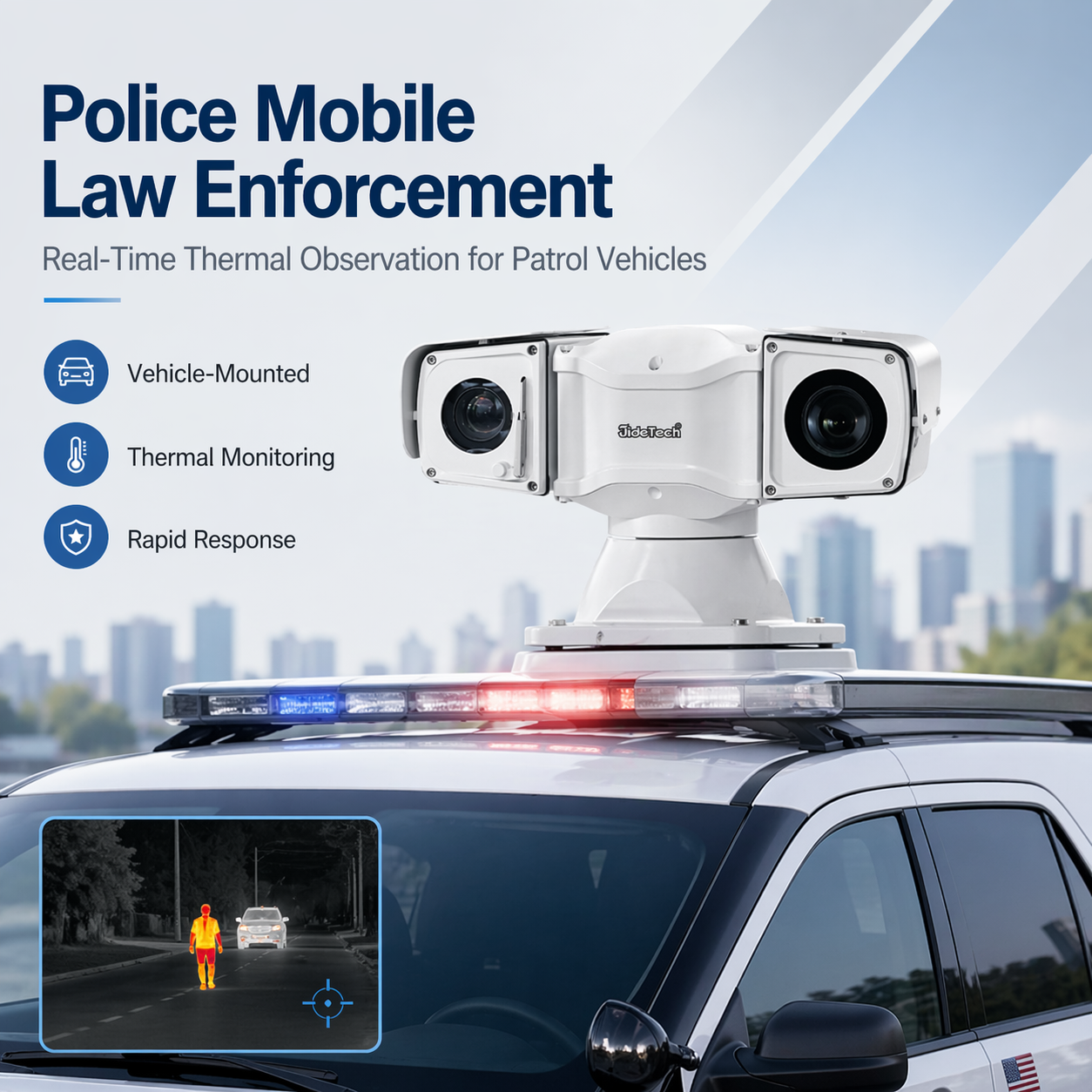

Vehicle-Mounted Thermal Observation for Patrol Vehicles
LC002 supports police patrol vehicles with vehicle-mounted thermal observation, helping field teams gain wider situational awareness in law enforcement and rapid-response scenarios.
- Vehicle-mounted deployment for patrol cars and mobile command SUVs
- Thermal-assisted observation in low-visibility environments
- Wide-area monitoring with 40X optical zoom
- Built for smoother movement and better stability on the road

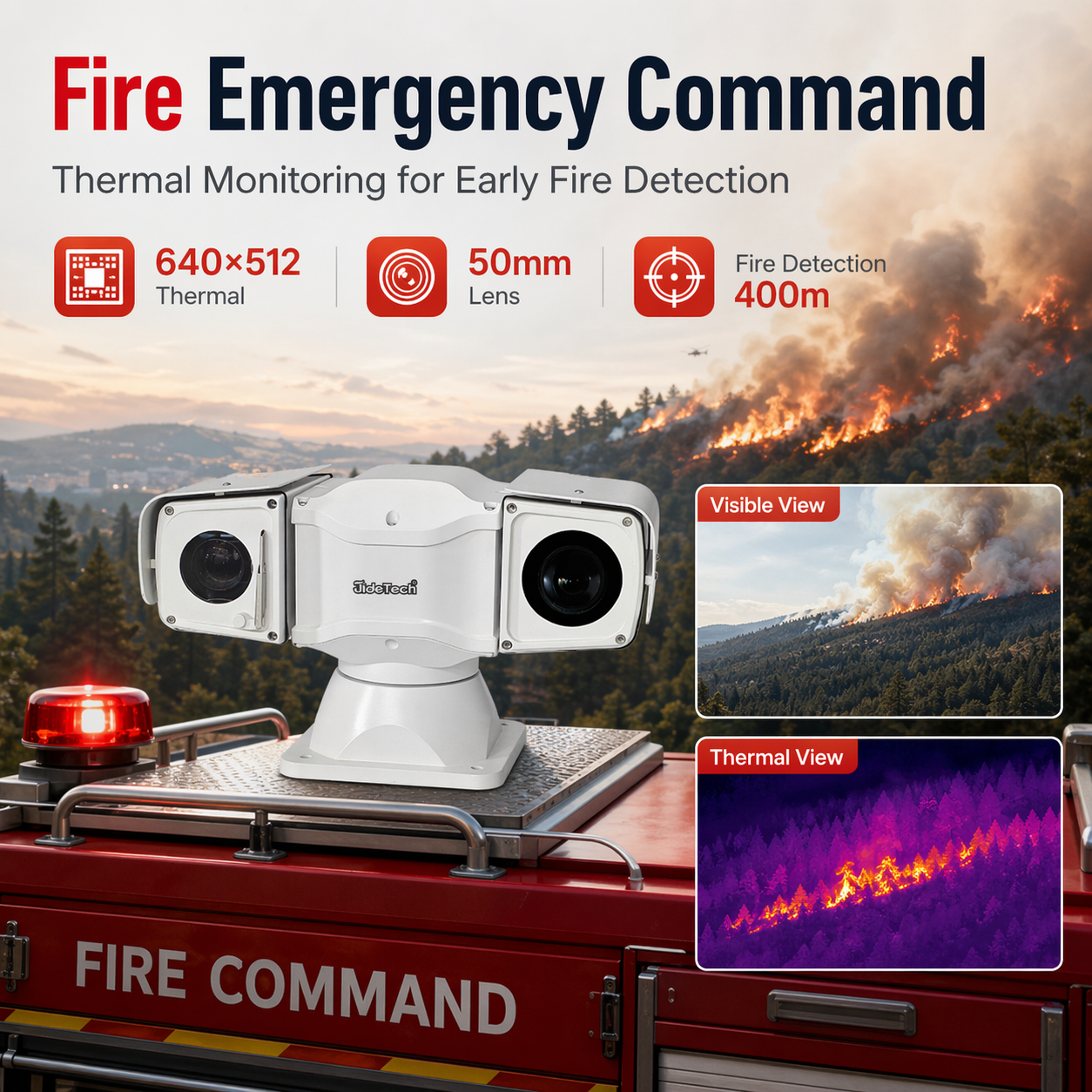

Thermal Monitoring for Early Fire Detection
The thermal module supports fire point detection, abnormal temperature alarm, and thermal awareness, making LC002 suitable for forest fire warning support and emergency command vehicle deployment.
- 640×512 thermal imaging with 50mm lens
- Fire point detection for thermal early warning
- Thermal palettes for clearer hotspot analysis
- Vehicle-mounted design for mobile fire command teams

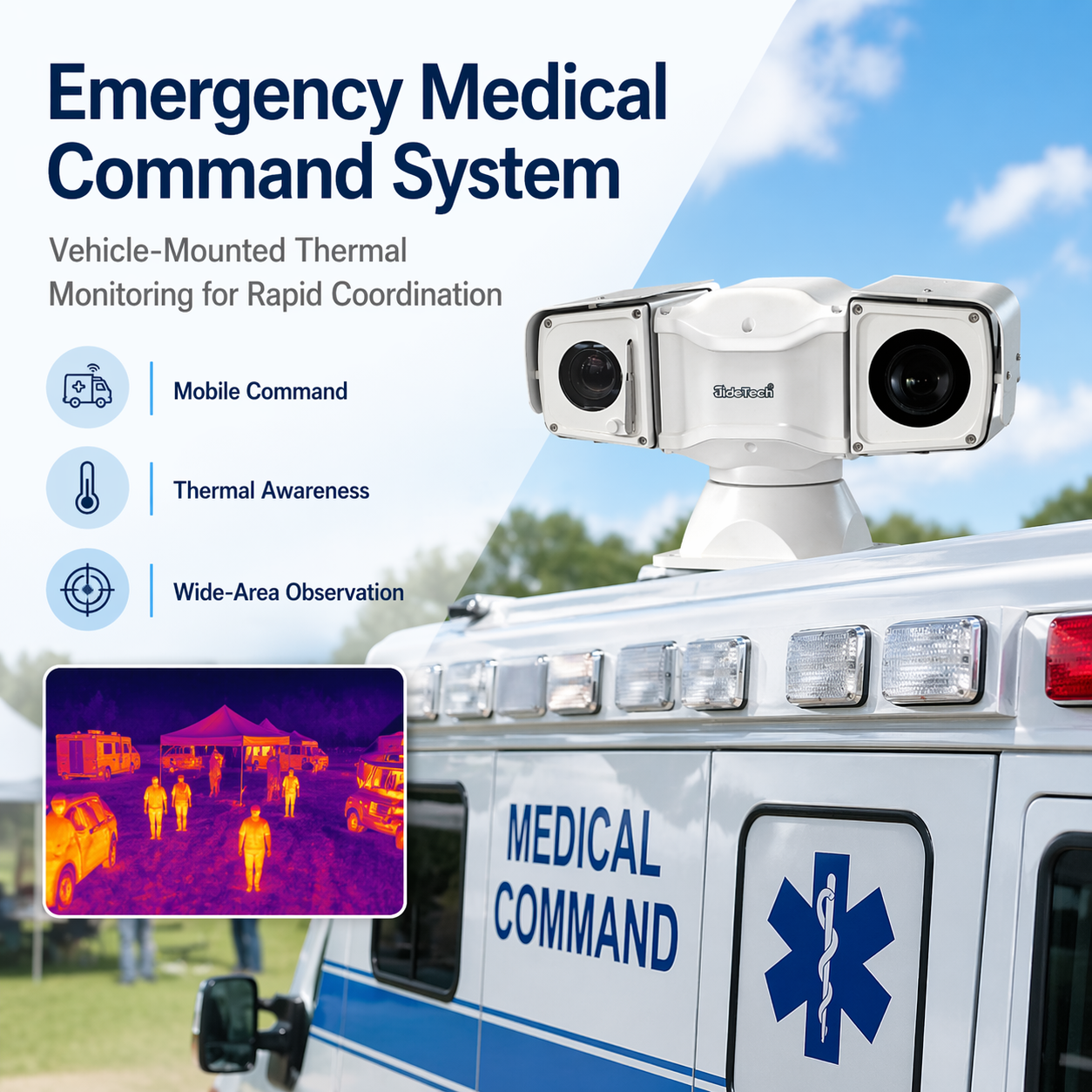

Vehicle-Mounted Thermal Monitoring for Rapid Coordination
For temporary field coordination and rapid-response operations, LC002 helps emergency teams maintain better mobile observation and environmental awareness from vehicle-mounted command platforms.
- Supports wider-area observation for mobile coordination
- Thermal monitoring adds visibility in complex field conditions
- Stable PTZ movement for mobile deployment
- Useful for temporary command posts and response units

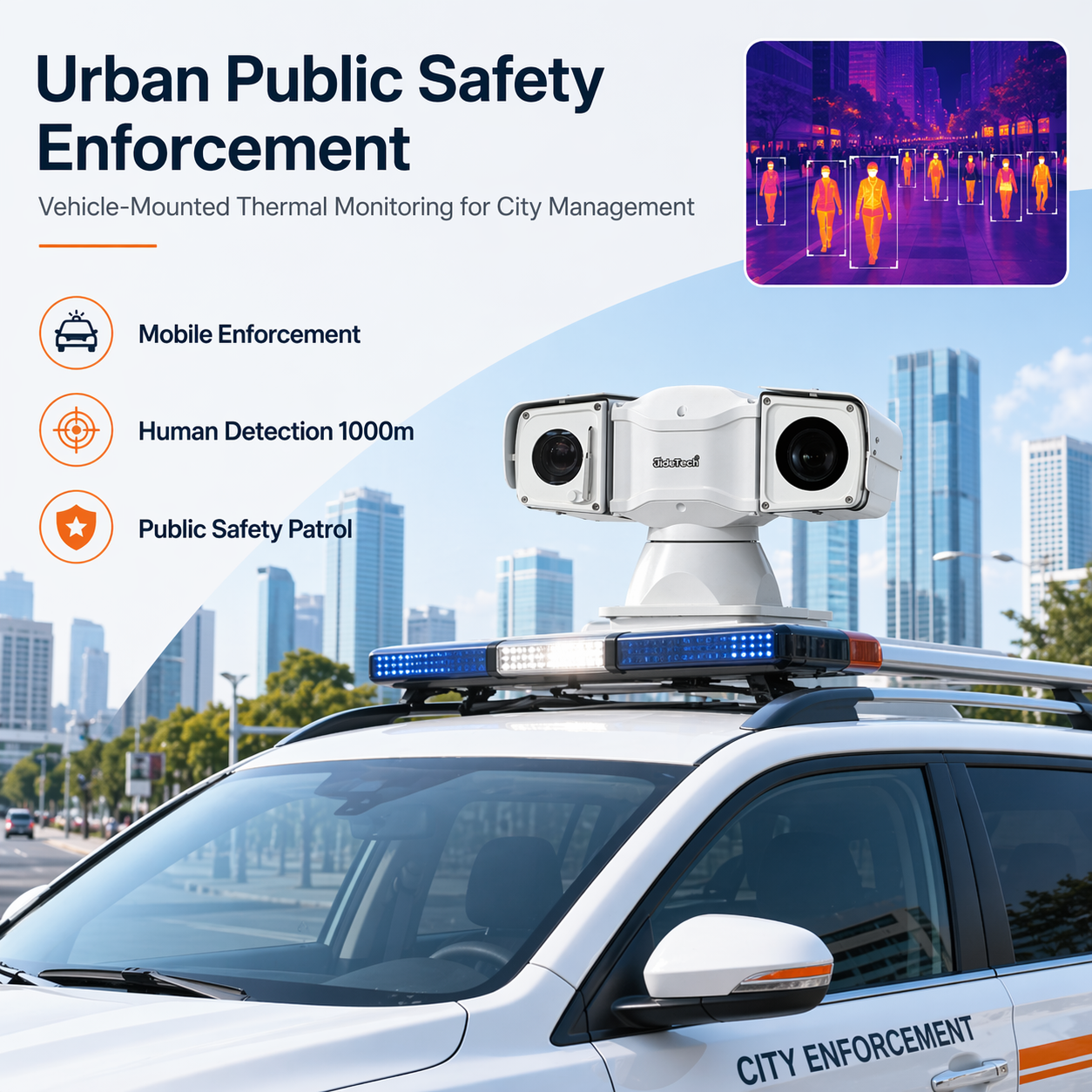

Vehicle-Mounted Thermal Monitoring for City Management
For city management and public safety patrol work, LC002 provides a vehicle-mounted thermal monitoring solution that helps operators maintain broader urban situational awareness.
- Supports public safety patrol and city enforcement vehicles
- Human detection marketing range: 1000m
- Useful for thermal-assisted urban observation
- Stable for repeated mobile deployment
Thermal Awareness for Fast Field Coordination
This second command-style image works well as a support module for broader mobile coordination use, where operators need fast scene awareness, long-range visibility, and vehicle-mounted deployment flexibility.
- Useful for mobile command and temporary coordination vehicles
- Combines visible zoom and thermal awareness in one system
- Helps support fast scene assessment in the field
- Well suited for emergency deployment scenarios

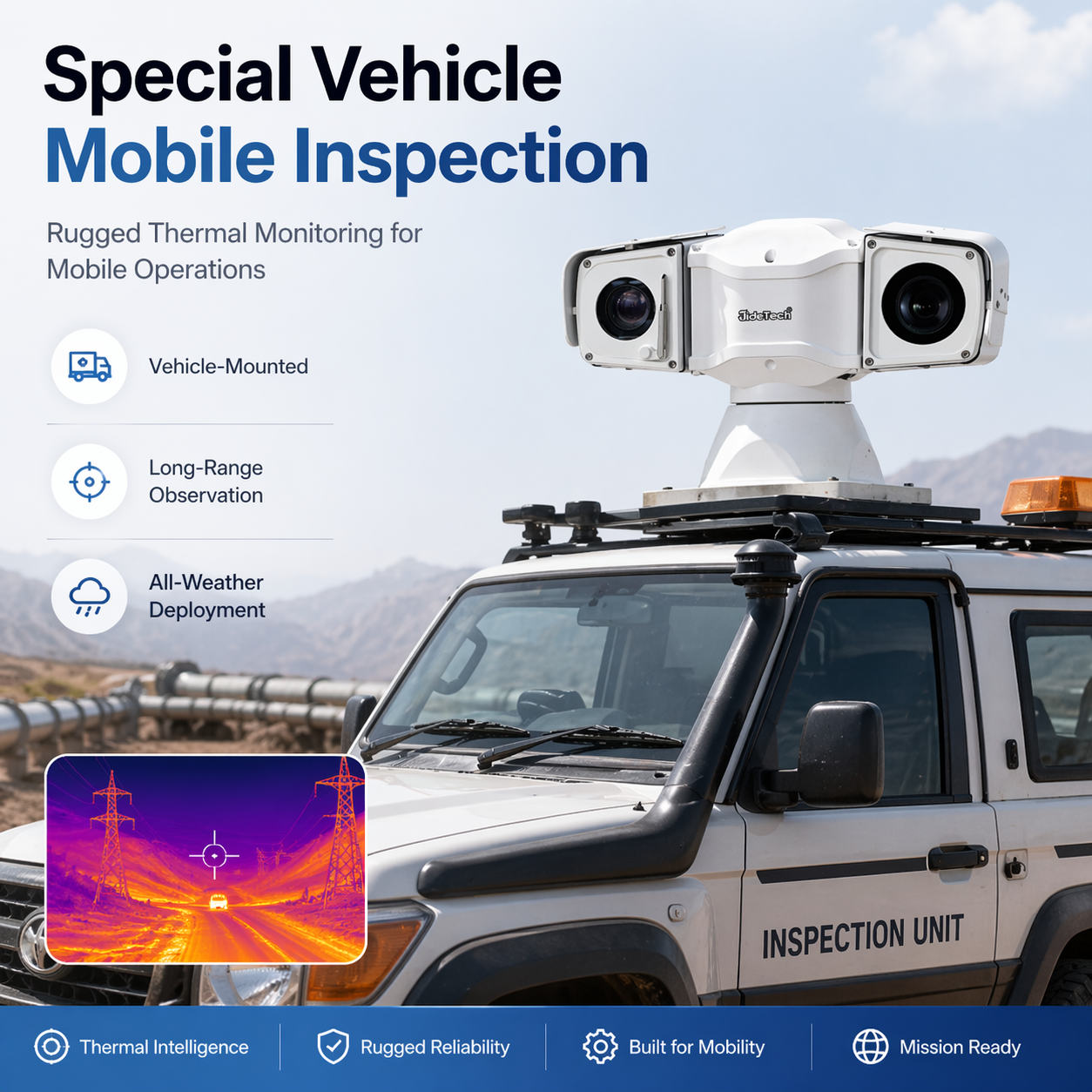

Rugged Thermal Monitoring for Mobile Operations
LC002 also fits rugged special inspection vehicles that need thermal visibility, long-range observation, and stronger environmental adaptability during mobile operations.
- Vehicle-mounted platform for rugged field use
- All-weather design with IP66 protection
- Thermal monitoring for remote inspection scenarios
- Supports RS232, RS485, local storage, and common protocols

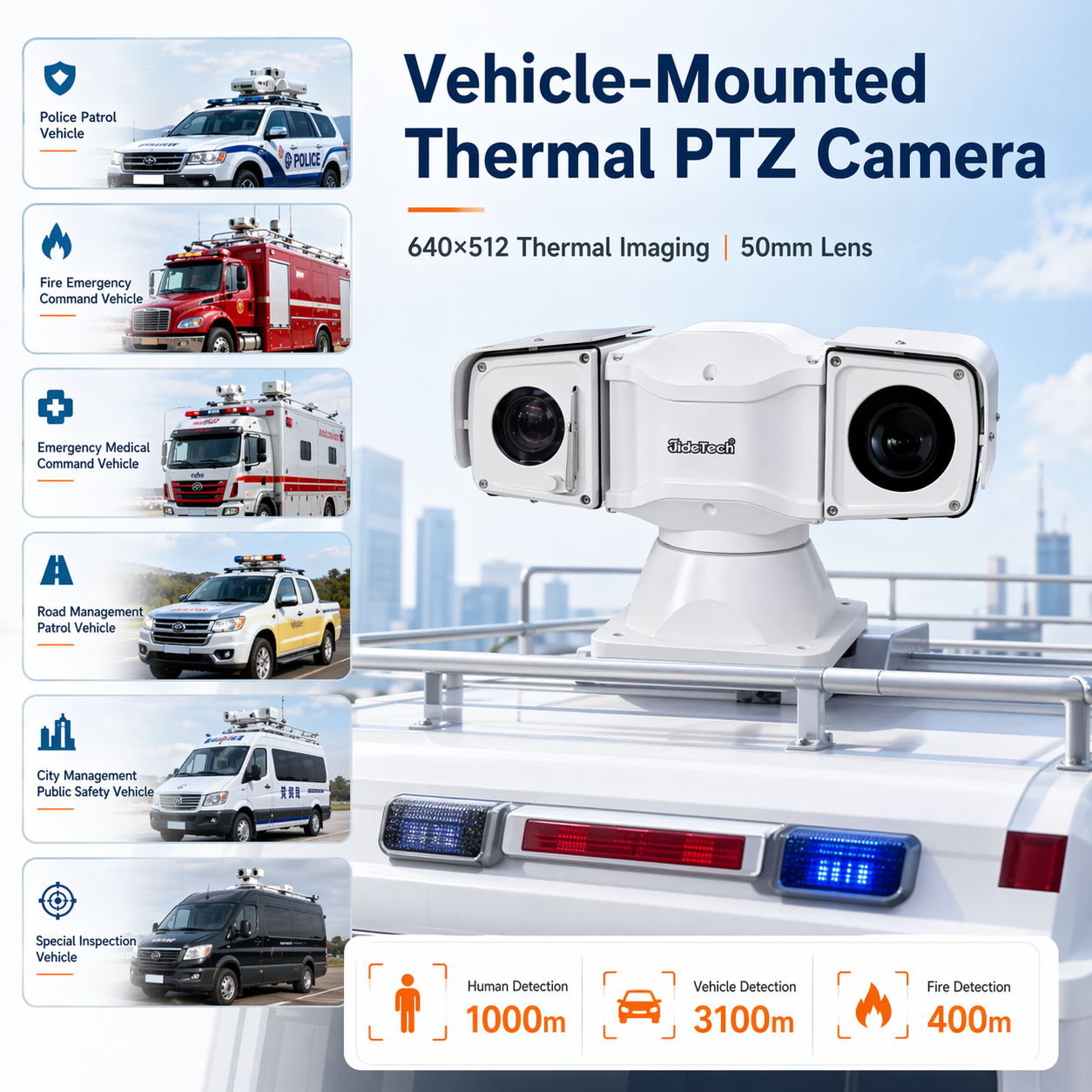

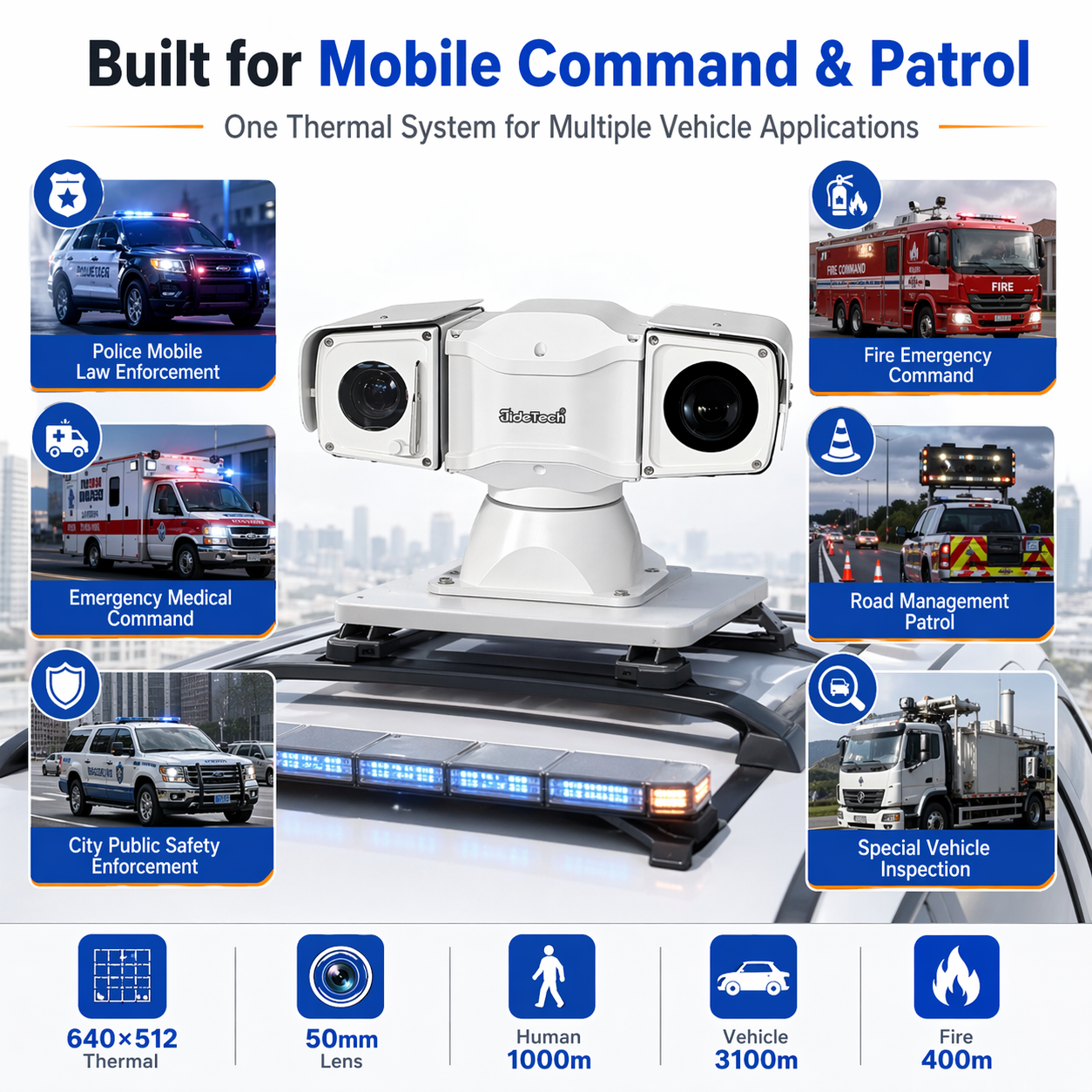

One Thermal System for Multiple Vehicle Applications
LC002 combines visible imaging, thermal monitoring, long-range zoom, and vehicle-ready PTZ stability in one platform built for mobile command, patrol, and inspection use.
Dual-Spectrum Monitoring for Faster Field Decisions
The visible module delivers long-range zoom observation, while the thermal module adds heat-based detection, fire warning, and temperature analysis support for mobile response teams.
- Sony 1/1.8" CMOS sensor
- 6.8–272mm focal length
- 40X optical zoom
- Up to 2688×1520 @25fps (PAL)
- 120dB wide dynamic range
- Defog, mirror, flip, EIS, distortion correction, and 3D positioning
- VOx uncooled focal plane detector
- 640×512 resolution
- 12μm pixel size
- 50mm thermal lens
- NETD ≤40mK @25℃
- 10 palettes including black hot, white hot, iron red, and rainbow
Built for Fire Warning and Temperature Alarm Tasks
LC002 supports fire point detection, abnormal temperature alarm, full-screen temperature positioning, and multi-area thermal measurement for more practical field use.
- Fire point detection
- Abnormal temperature alarm
- Full-screen highest and lowest temperature positioning
- Alarm linkage support
- 1 line, 9 boxes, 10 points
- 2 irregular areas and 2 elliptical areas
- -20°C to 150°C standard range
- 550°C extension support
- ±2°C or ±2% accuracy, whichever is greater
Wide-Area Observation from a Moving Platform
Smooth PTZ movement matters more on vehicles than on fixed poles. LC002 combines speed, control accuracy, preset efficiency, and outdoor durability in one platform.
Practical Integration for Projects and Command Systems
LC002 supports common protocols, compression standards, storage, and serial communication interfaces, making it easier to fit broader deployment requirements.
LC002 Main Specs
This section is formatted for Shopify readability while staying aligned with the uploaded technical sheet.
| Visible Camera & Video | |
|---|---|
| Sensor | Sony 1/1.8" CMOS |
| Optical Focal Length | 6.8–272mm, 40X optical zoom |
| Shutter | 1/25 ~ 1/100000 |
| Illumination | Color @0.01Lux (AGC ON), B/W @0.005Lux (AGC ON) |
| Horizontal Field of View | 60°–1.7° |
| Main Stream | PAL: 2688×1520 / 1920×1080 / 1280×720 @25fps NTSC: 2304×1296 / 1920×1080 / 1280×720 @30fps |
| Focus Mode | Auto, Manual, Semi-Auto, One-Push Focus |
| Wide Dynamic Range | 120dB |
| Compression | H.264 / H.265 / MJPEG |
| Bit Rate | 64 Kbps ~ 16 Mbps |
| Audio Compression | G.711A, AAC, G711U, G726 |
| Thermal Imaging | |
|---|---|
| Detector Type | VOx uncooled focal plane detector |
| Thermal Resolution | 640×512 |
| Pixel Size | 12μm |
| NETD | ≤40mK @25℃ |
| Spectral Range | 8~14μm |
| Thermal Lens | 50mm |
| Main Thermal Stream | 1280×1024 / 1280×720 / 640×512 @25Hz |
| Startup Time | 10s |
| Palettes | Supports 10 palettes including black hot, white hot, iron red, and rainbow |
| Thermal Functions | Fire point detection, abnormal temperature alarm, temperature measurement |
| PTZ & Vehicle Deployment | |
|---|---|
| Horizontal Angle | 360° continuous rotation |
| Vertical Angle | -90° ~ +90° |
| Horizontal Preset Speed | 100°/s |
| Vertical Preset Speed | 60°/s |
| Horizontal Manual Speed | 0° ~ 60°/s |
| Vertical Manual Speed | 0° ~ 40°/s |
| Preset Accuracy | ±0.1° |
| Preset Positions | 256 preset positions, 8 patrol tracks |
| Wiper Function | Supported |
| Impact Resistance | ≥4G |
| Weight | 7kg |
| Interface, Power & Environment | |
|---|---|
| Access Protocol | ONVIF, GB/T28181 |
| Supported Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, IGMP, QoSR, RTMP, IPv6 |
| Storage | TF Card local storage up to 256G |
| Communication | RS232 (VISCA), RS485 (Pelco) |
| Alarm I/O | 1 input / 2 outputs |
| Visible Camera Power | DC 12V ±25% |
| PTZ Power Range | DC10.8V ~ DC18V |
| Thermal Typical Power | 1.6W |
| Protection Rating | IP66 |
| Operating Temperature | Camera: -20°C ~ +60°C PTZ: -35°C ~ +55°C Thermal module: -30°C ~ +60°C |
