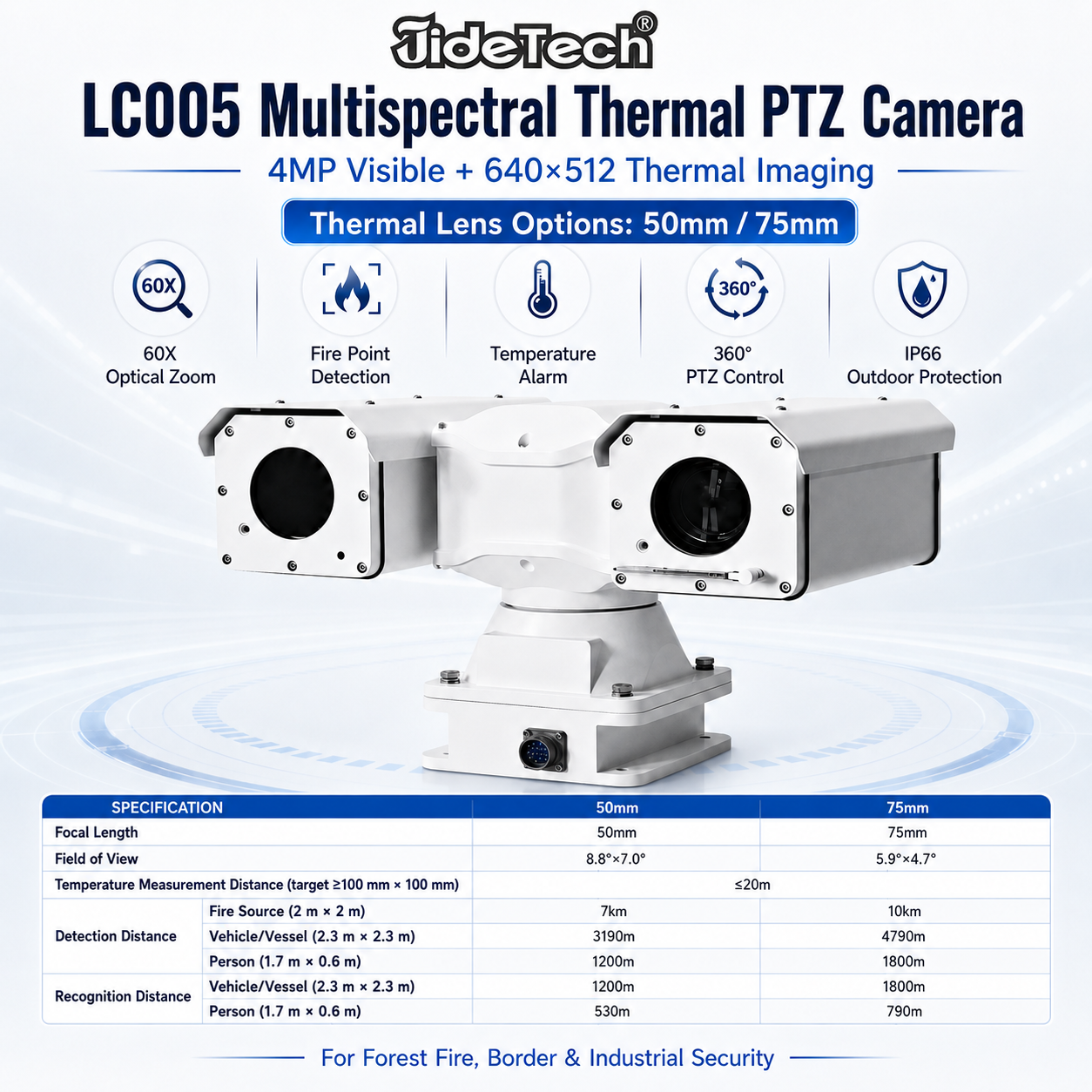

JideTech LC005 4MP 60X Multispectral Thermal PTZ Camera with 640×512 Thermal Imaging | 50mm / 75mm Lens Options
JideTech LC005 4MP 60X Multispectral Thermal PTZ Camera with 640×512 Thermal Imaging | 50mm / 75mm Lens Options
JideTech LC005 4MP 60X Multispectral Thermal PTZ Camera with 640×512 Thermal Imaging
The JideTech LC005 is a project-grade multispectral thermal PTZ camera designed for long-range outdoor surveillance, forest fire detection, border security, port monitoring, industrial perimeter protection, and critical infrastructure projects.
It combines a 4MP 60X visible camera with a 640×512 thermal imaging module, helping operators detect heat signatures, fire risks, vehicles, vessels, and human targets in demanding day and night environments.

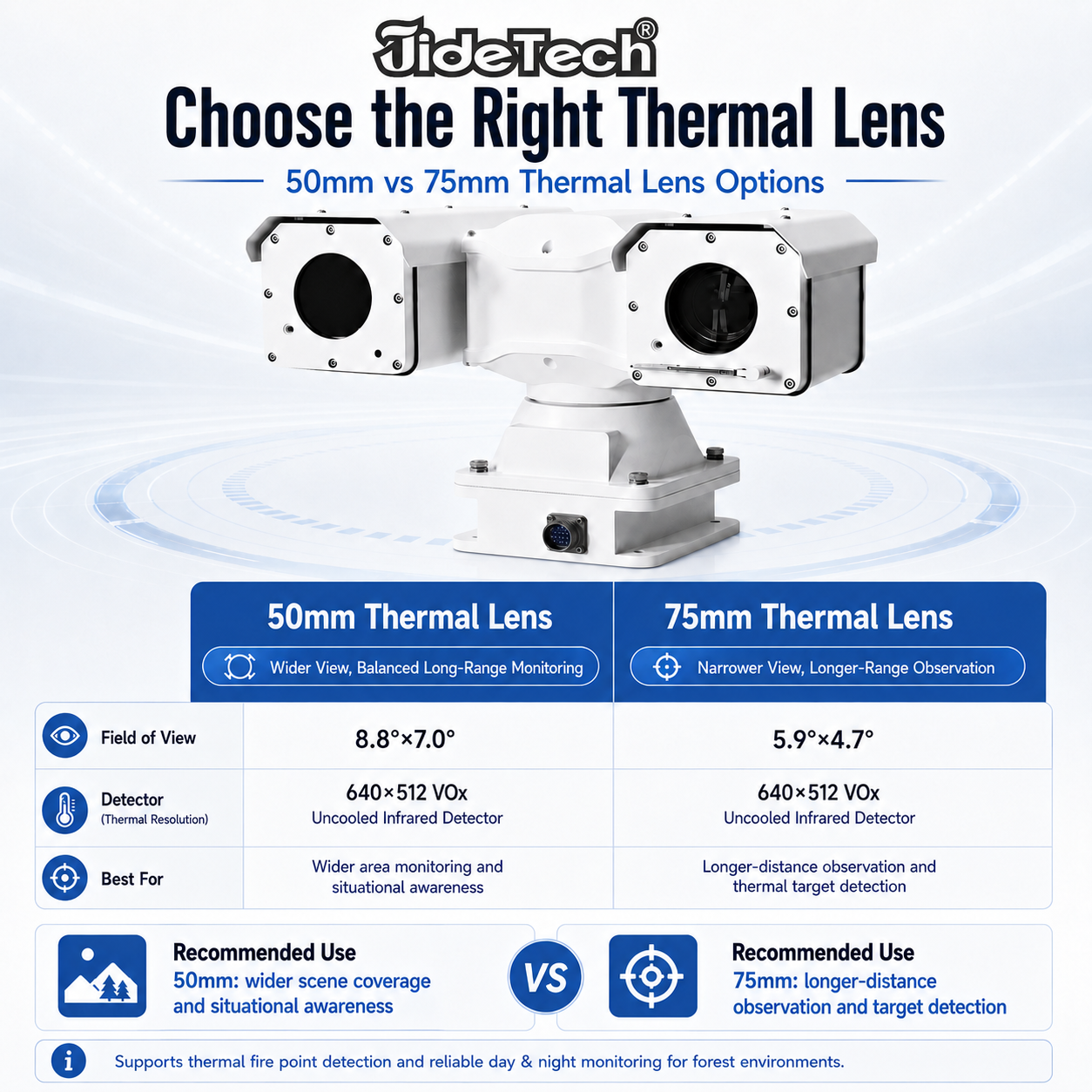

Available Thermal Lens Options
The LC005 is available with two thermal lens options: 50mm thermal lens and 75mm long-range thermal lens. The 50mm version provides a wider field of view, while the 75mm version is designed for longer-range target detection.
| Thermal Lens | 50mm | 75mm |
|---|---|---|
| Field of View | 8.8° × 7.0° | 5.9° × 4.7° |
| Temperature Measurement Distance Target size >100mm × 100mm |
≤20m | ≤20m |

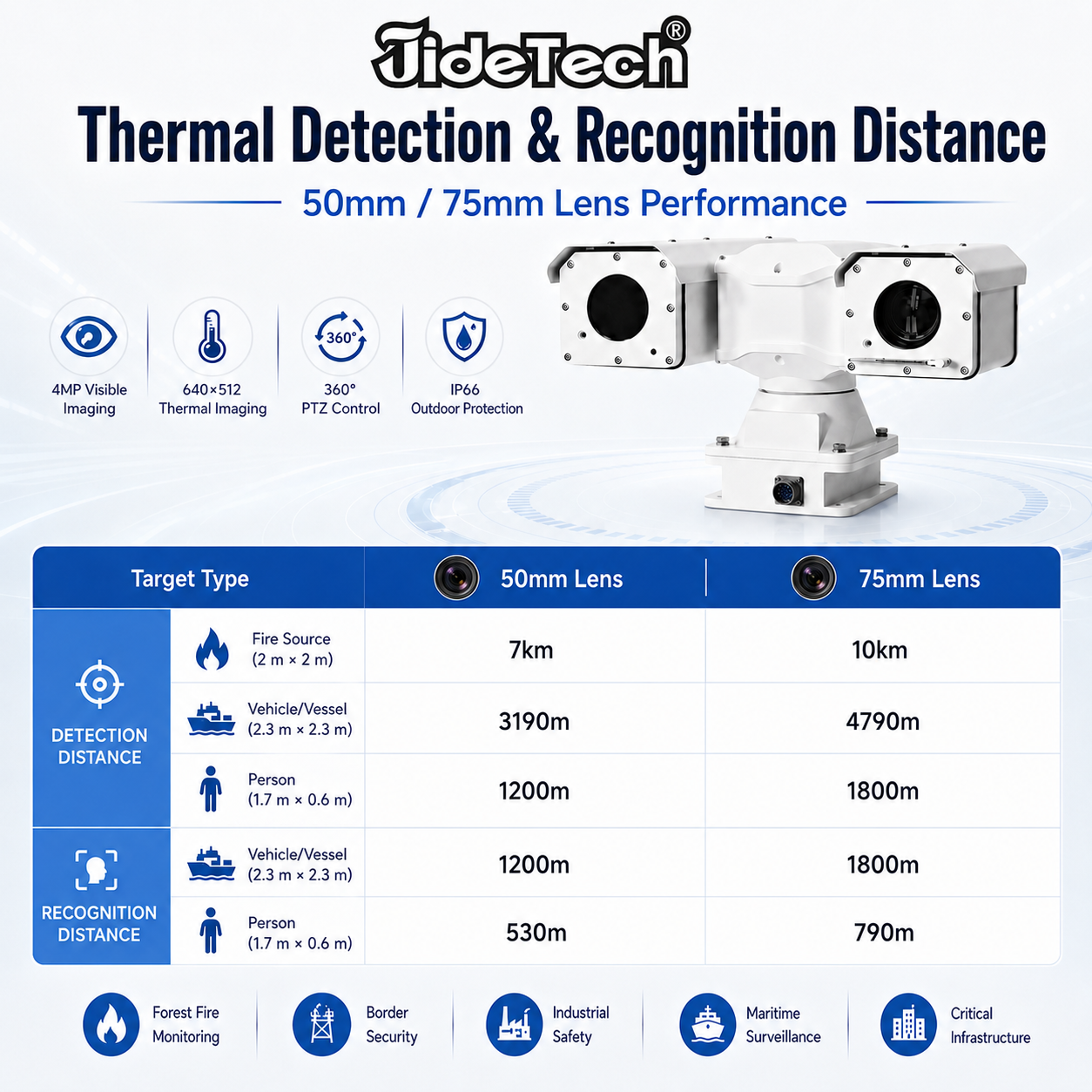

Thermal Detection Distance
| Target Type | 50mm Thermal Lens | 75mm Thermal Lens |
|---|---|---|
| Fire Source 2m × 2m | 7km | 10km |
| Vehicle / Vessel 2.3m × 2.3m | 3190m | 4790m |
| Person 1.7m × 0.6m | 1200m | 1800m |
Thermal Recognition Distance
| Target Type | 50mm Thermal Lens | 75mm Thermal Lens |
|---|---|---|
| Vehicle / Vessel 2.3m × 2.3m | 1200m | 1800m |
| Person 1.7m × 0.6m | 530m | 790m |
Key Features

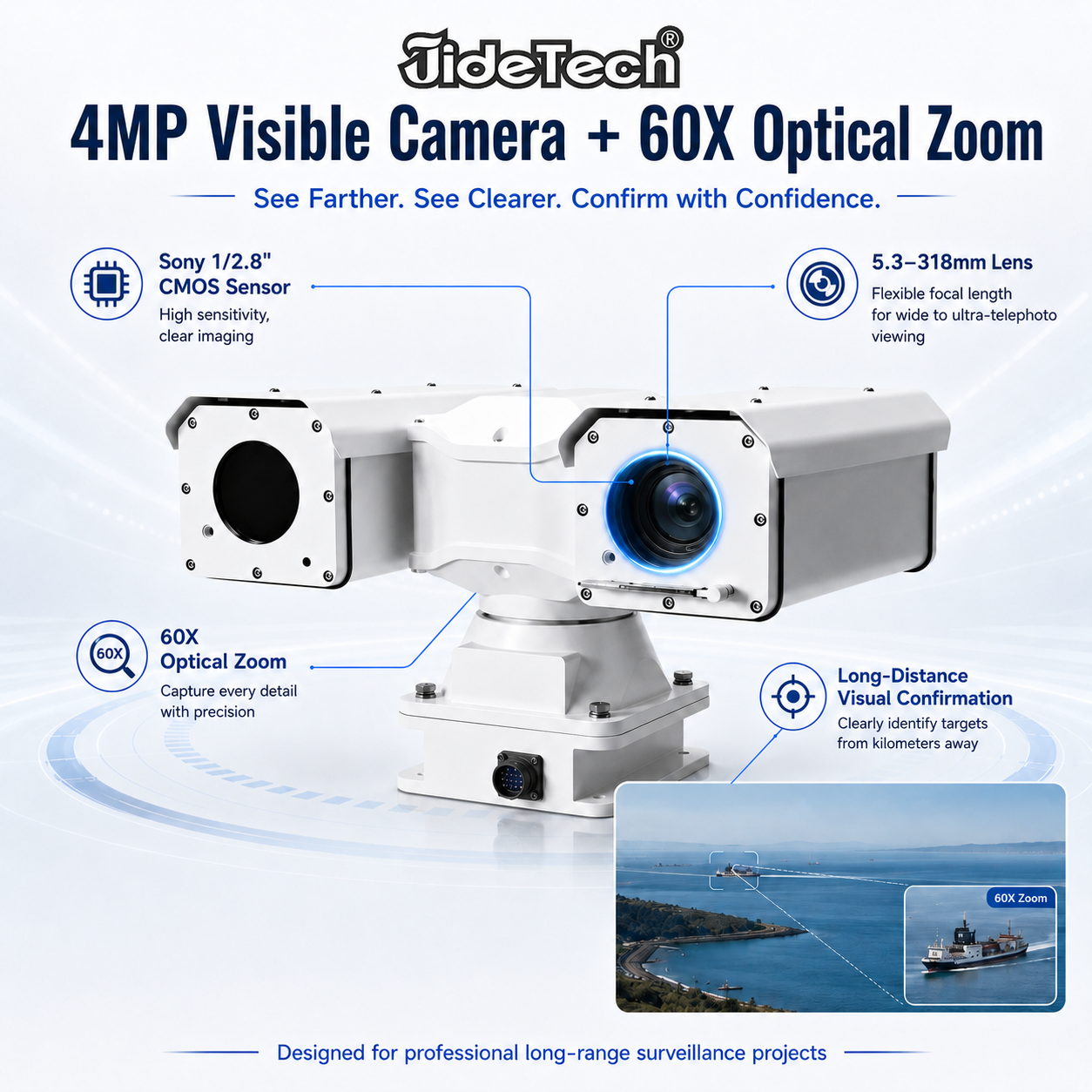

- 4MP 60X visible camera: 5.3–318mm optical zoom lens for long-distance visual confirmation.

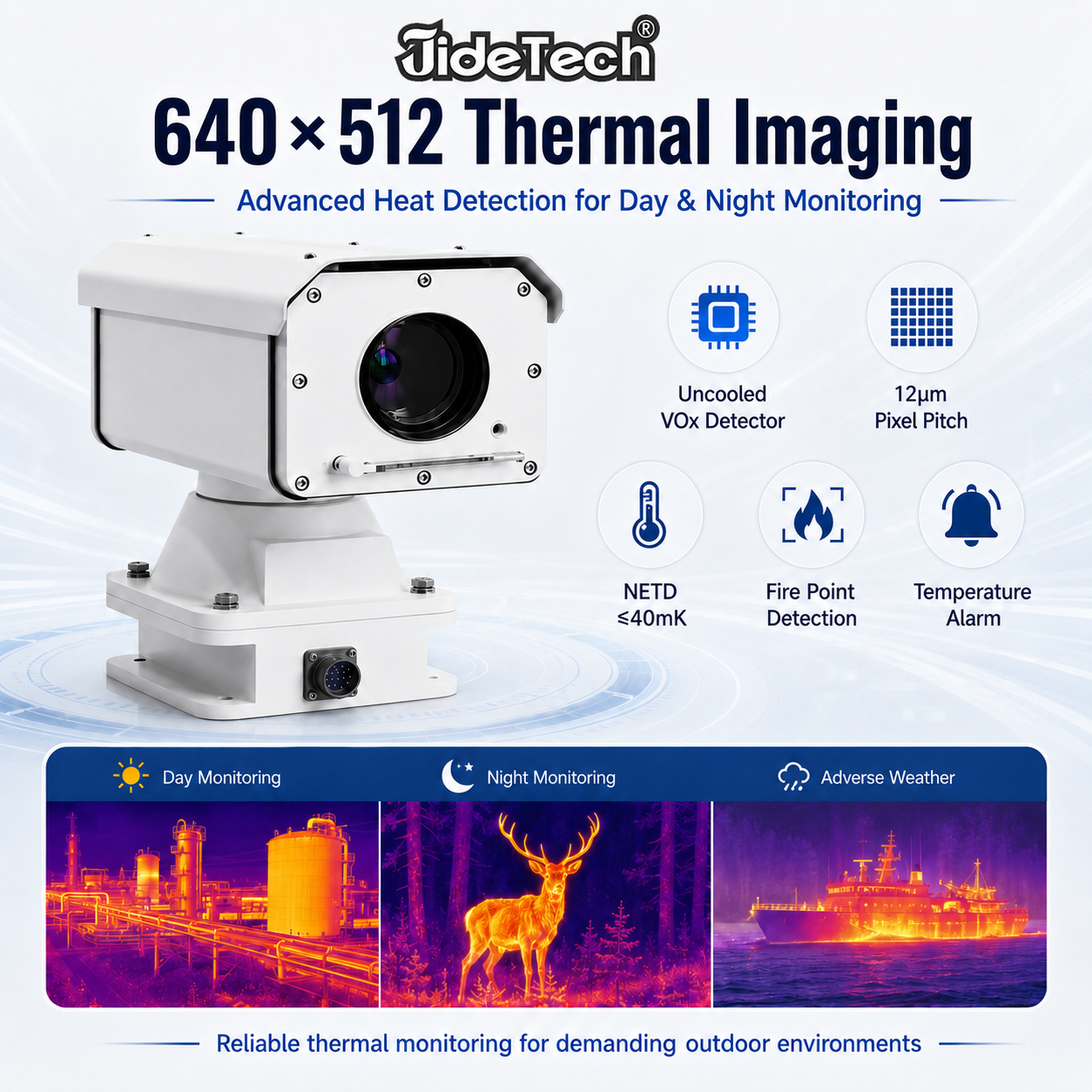

- 640×512 thermal imaging: Uncooled vanadium oxide thermal detector with 12μm pixel pitch.
- 50mm / 75mm thermal lens options: Choose the proper thermal lens based on detection range and field of view requirements.
- Fire source detection: Suitable for forest fire early warning, industrial fire prevention, and outdoor thermal monitoring.
- Long-range target detection: Supports detection of fire sources, vehicles, vessels, and human targets.

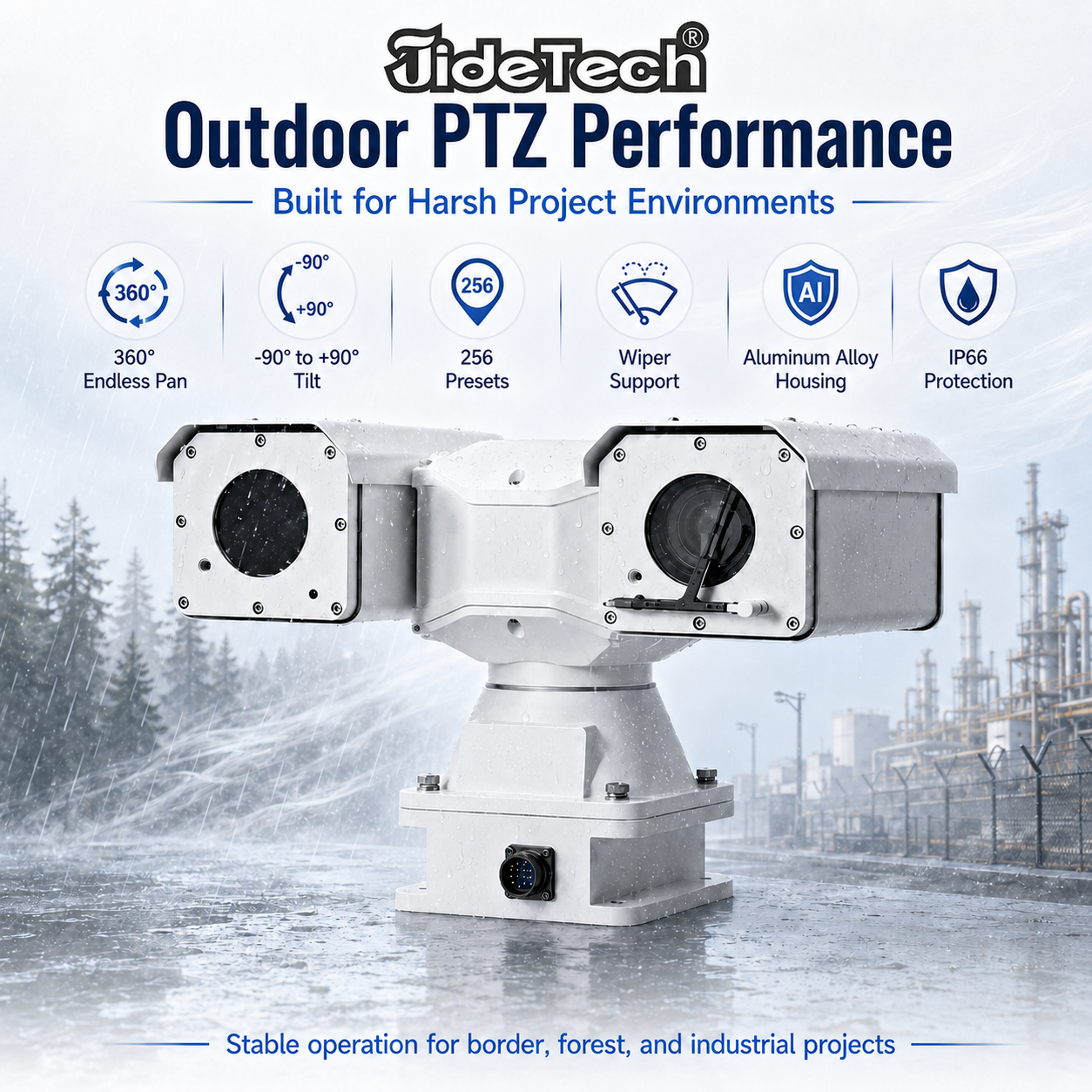

- Professional PTZ control: 360° endless pan, -90° to +90° tilt, presets, patrol routes, and precise positioning.
- Outdoor industrial design: Aluminum alloy housing, IP66 protection, and wiper support for harsh environments.
- System integration ready: Supports ONVIF, GB/T28181, RTSP, HTTP, FTP, TCP/IP, RS485, Pelco-D and Pelco-P protocols.

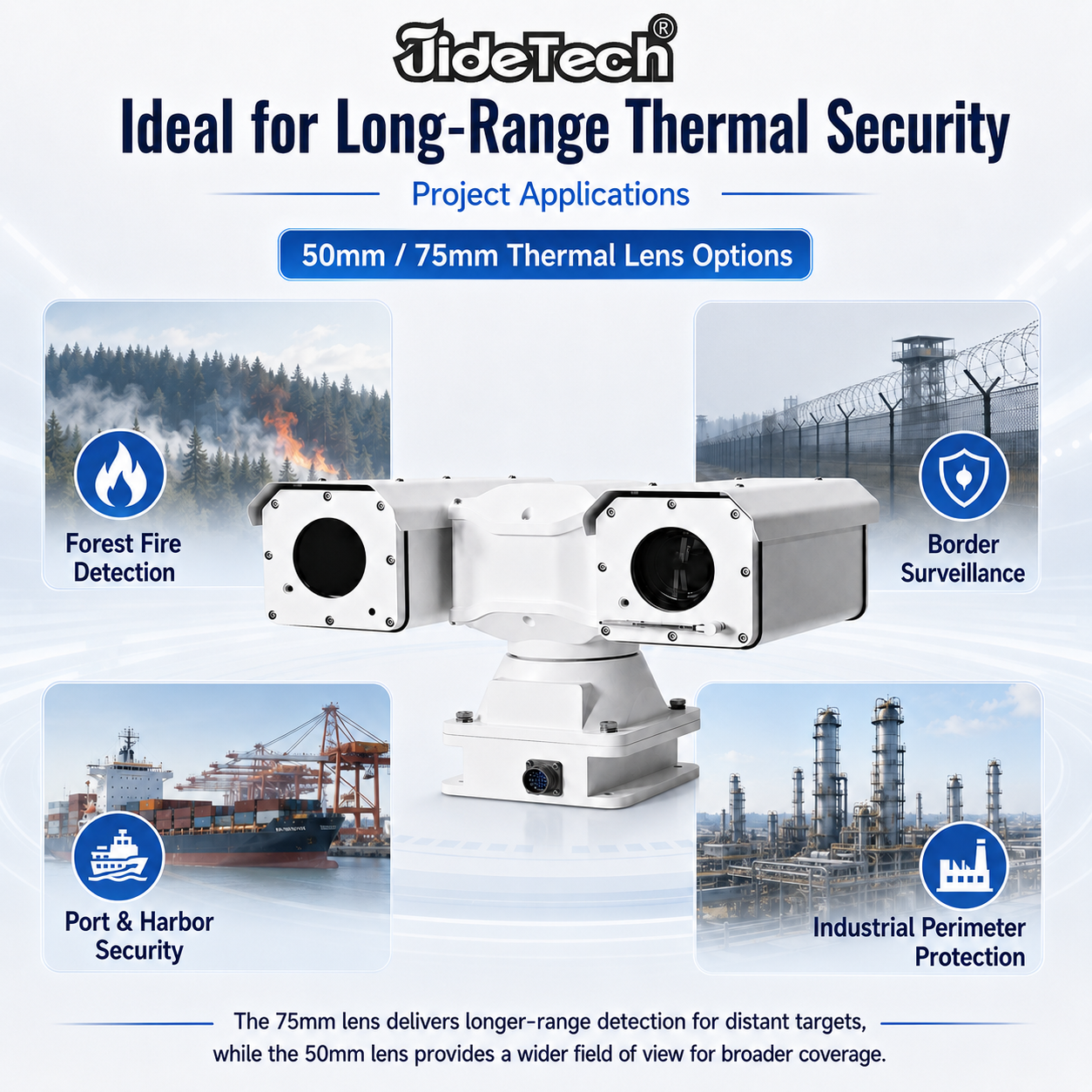

Recommended Applications
- Forest fire detection and early warning
- Border and coastal surveillance
- Port, harbor, and maritime security
- Oil and gas facility monitoring
- Power plant and substation protection
- Industrial perimeter security
- Airport and railway perimeter monitoring
- Critical infrastructure surveillance

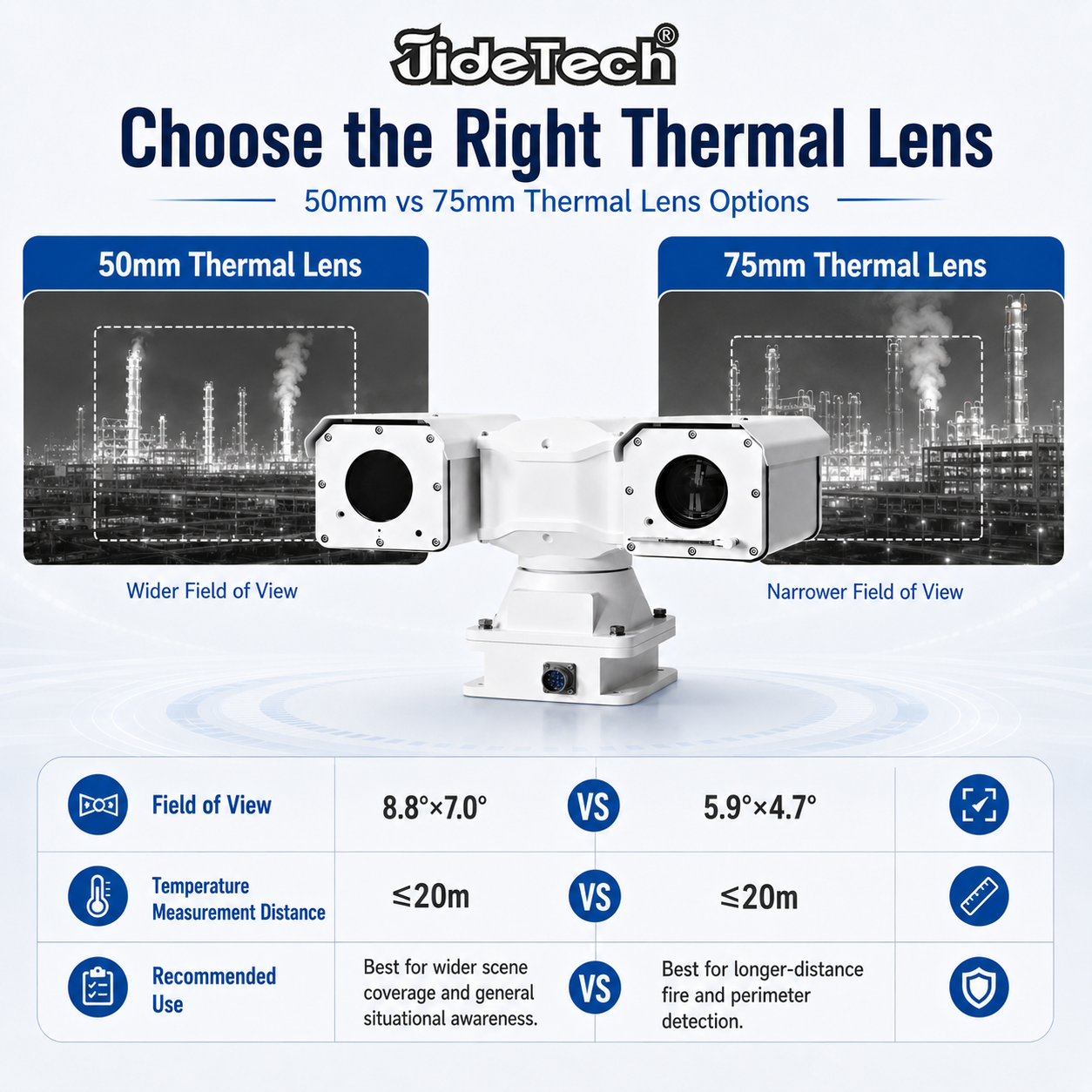

How to Choose Between 50mm and 75mm Thermal Lens
Choose the 50mm thermal lens if your project requires a relatively wider monitoring area and balanced long-range thermal detection.
Choose the 75mm thermal lens if your project requires longer detection distance, such as forest fire monitoring, border surveillance, coastal security, or long-range perimeter protection.
Looking for a Long Range Thermal PTZ Camera Manufacturer?
Contact JideTech for project-based thermal PTZ camera configuration, forest fire detection solutions, border surveillance systems, industrial thermal monitoring, and customized multispectral PTZ camera support.
