JideTech Mobile Solar Security Tower with 5MP 20X 4G PTZ Camera | 200W Solar Panels & 160Ah Battery
JideTech Mobile Solar Security Tower with 5MP 20X 4G PTZ Camera | 200W Solar Panels & 160Ah Battery

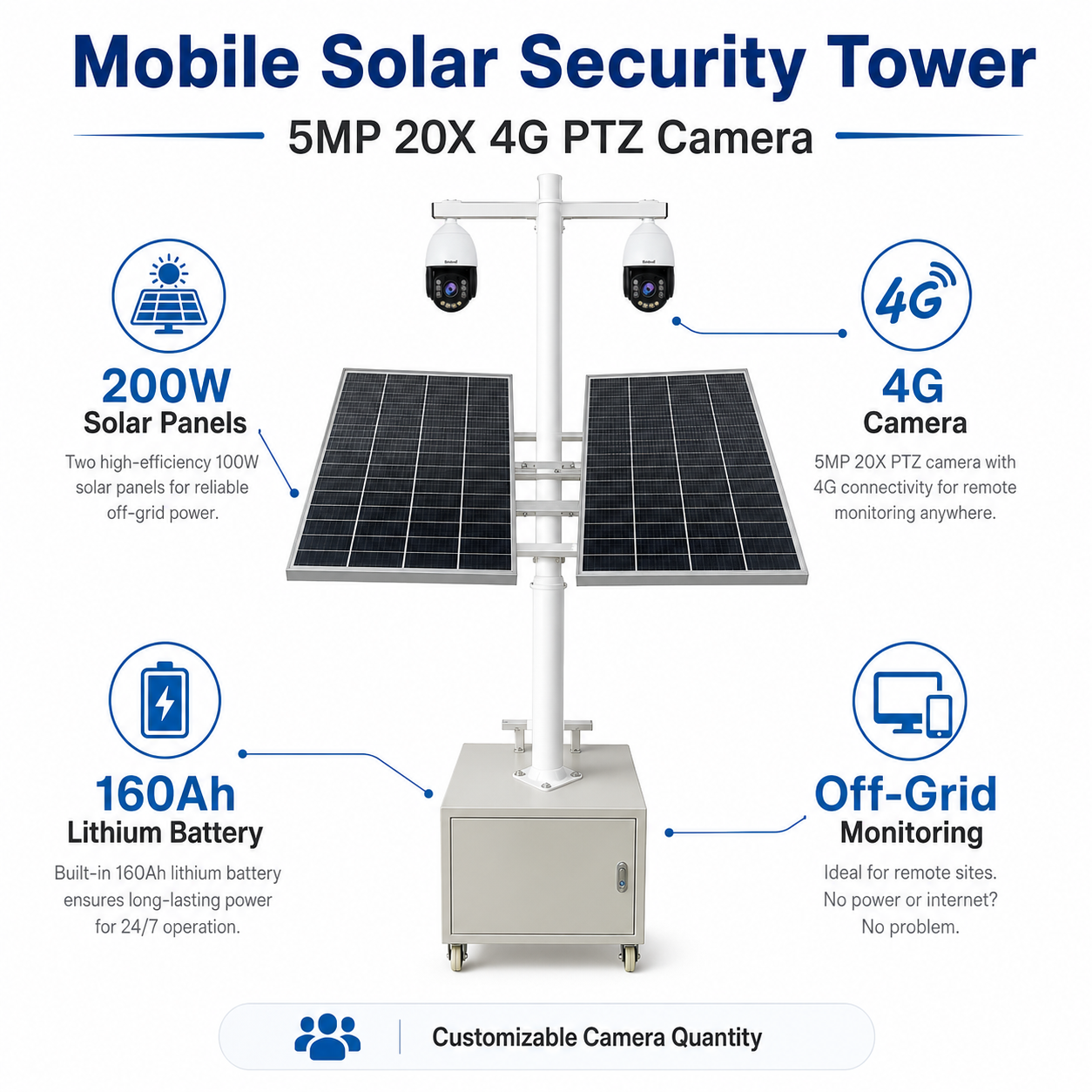

JideTech Mobile Solar Security Tower with 5MP 20X 4G PTZ Camera
The JideTech Mobile Solar Security Tower is a complete off-grid surveillance solution designed for outdoor locations where fixed power and wired internet are not available. It integrates a 5MP 20X optical zoom 4G PTZ camera, 200W solar power system, 160Ah lithium battery, mobile cabinet, and 4-meter pole structure for flexible deployment.
It is ideal for construction sites, farms, parking lots, warehouses, industrial yards, temporary projects, remote entrances, and other outdoor monitoring applications.

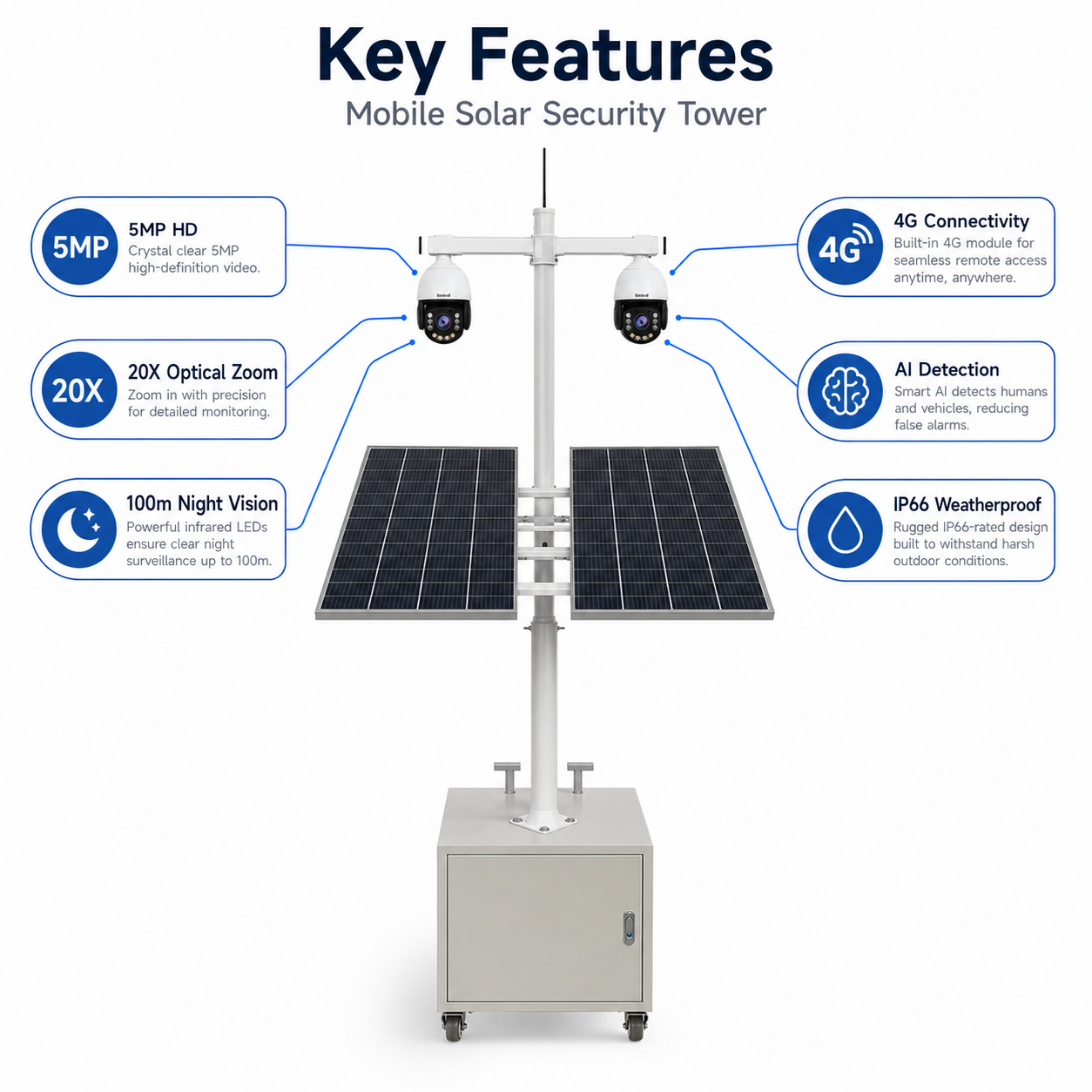

Key Highlights
High-definition PTZ camera with 20X optical zoom and built-in 4G remote access.
Equipped with 2 × 100W monocrystalline solar panels for off-grid power supply.
Built-in lithium battery storage for outdoor and remote surveillance applications.
Cabinet with wheels allows fast relocation and flexible temporary deployment.
Complete System Configuration
| System Type | Mobile Solar Security Tower / Off-Grid CCTV Tower |
| Camera Model | P10-20X-5MP4G |
| Camera Resolution | 5MP, 2560 × 1920 |
| Optical Zoom | 20X Optical Zoom, 4.7–84.6 mm motorized lens |
| Network Connection | 4G LTE, 2.4G / 5G Wi-Fi, Ethernet |
| Solar Power System | 200W Total, 2 × 100W Monocrystalline Solar Panels |
| Battery | L12160 160Ah Lithium Battery, 1776Wh nominal energy |
| Cabinet Size | Approx. 60 × 60 × 50 cm |
| Pole Height | Approx. 4 m pole; total height approx. 450 cm including cabinet |
5MP 20X 4G PTZ Camera
The integrated PTZ camera provides 5MP HD video, 20X optical zoom, 360° pan rotation, 90° tilt movement, and 128 preset positions. With built-in 4G connectivity, it can be deployed in remote locations without wired internet.
```- 5MP resolution: 2560 × 1920
- 20X optical zoom lens: 4.7–84.6 mm
- Pan range: 360° endless rotation
- Tilt range: 0°–90°
- Maximum rotation speed: 30°/s
- 128 preset positions
- Supports fixed-point tracking and cruise tracking
- Supports H.265+, H.265, and H.264 video compression
- Supports Micro SD card storage up to 256GB
- Built-in speaker and microphone for two-way audio
- Supports ONVIF 2.4 and RTSP protocol
- IP66 weatherproof protection for outdoor use

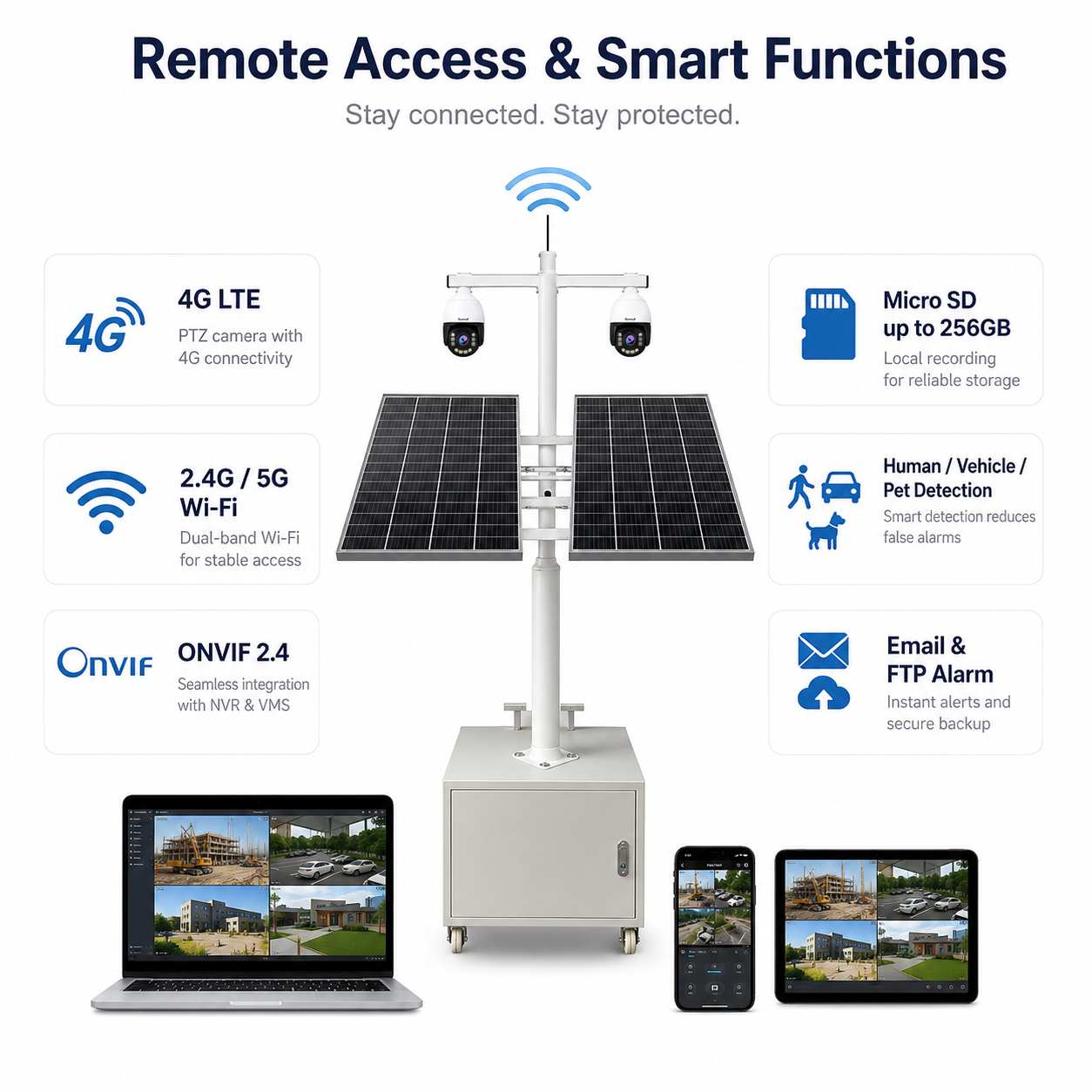

4G / Wi-Fi Remote Access
The PTZ camera supports 4G LTE, 2.4G / 5G Wi-Fi, and Ethernet connection. Users can remotely view live video, control PTZ movement, check playback, and receive alarm notifications.
```| LTE FDD | B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| LTE TDD | B38 / B40 / B41 |
| WCDMA | B1 / B5 / B8 |
| Wi-Fi | 2.4G / 5G Wi-Fi |

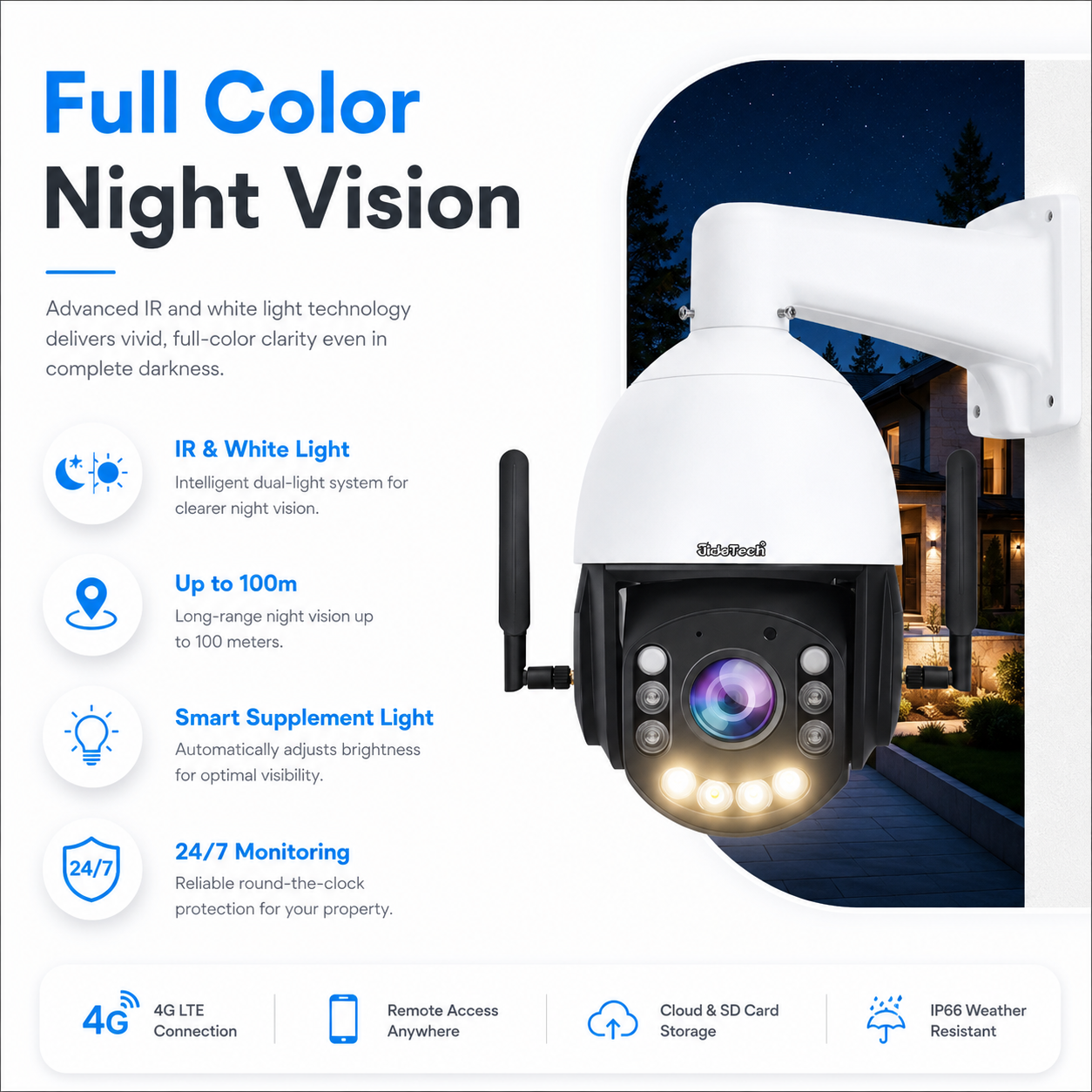

Full-Color Night Vision
The PTZ camera supports full-color night vision with IR and white light. It is equipped with 10 LED lights and smart supplement light control, providing night monitoring up to 100 meters.
```Dual-light design for clearer night monitoring.
Long-range illumination for outdoor surveillance.
Automatically improves visibility in low-light environments.

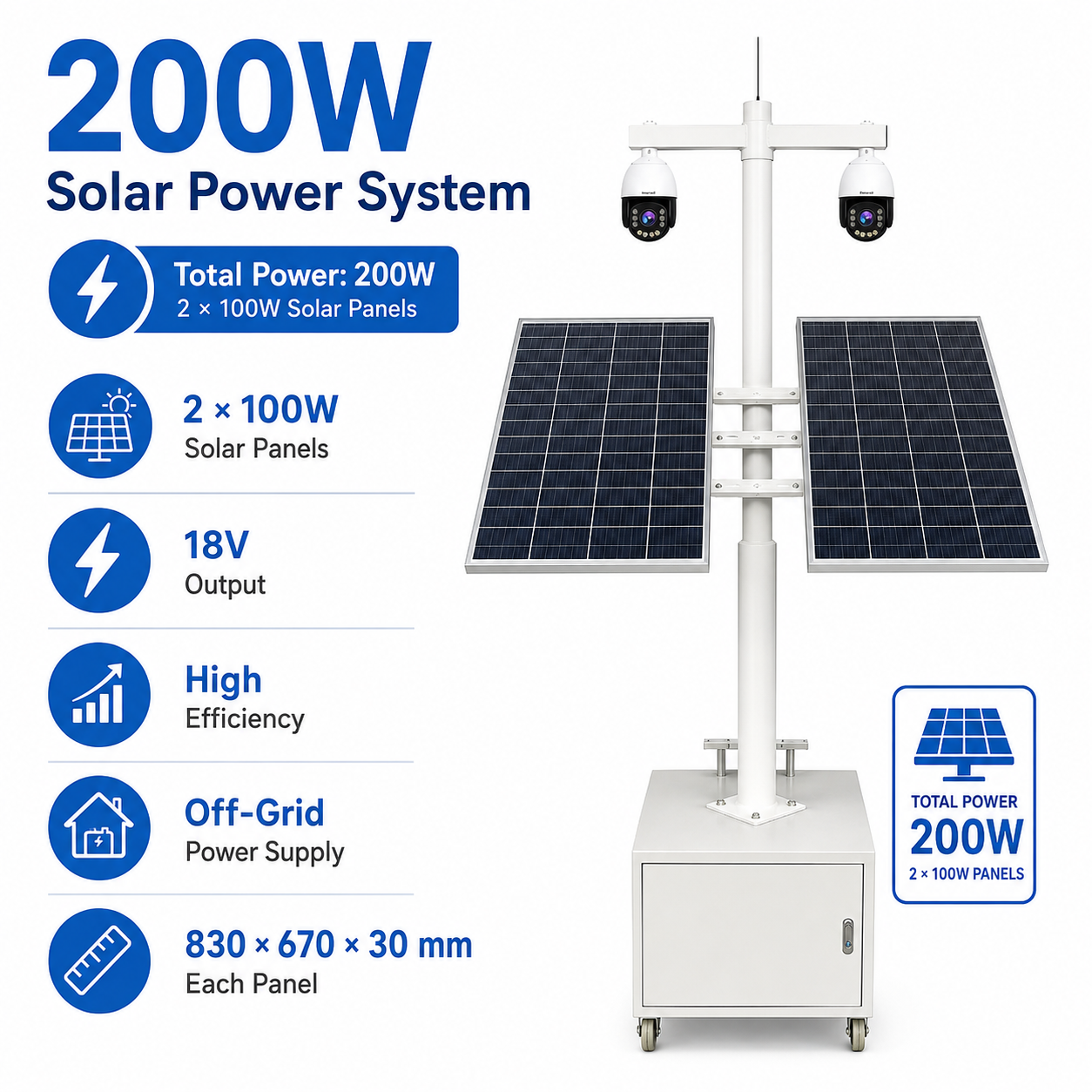

200W Solar Power System
The tower is equipped with two high-efficiency 100W monocrystalline solar panels, providing a total solar power capacity of 200W. This configuration is designed to support outdoor off-grid operation and reduce dependence on fixed power infrastructure.
```| Total Solar Power | 200W |
| Solar Panel Quantity | 2 × 100W |
| Solar Panel Type | Monocrystalline Silicon |
| Maximum Operating Voltage | 18.2V |
| Maximum Operating Current | 5.99A per panel |
| Open-Circuit Voltage | 21.4V |
| Panel Size | 830 × 670 × 30 mm per panel |

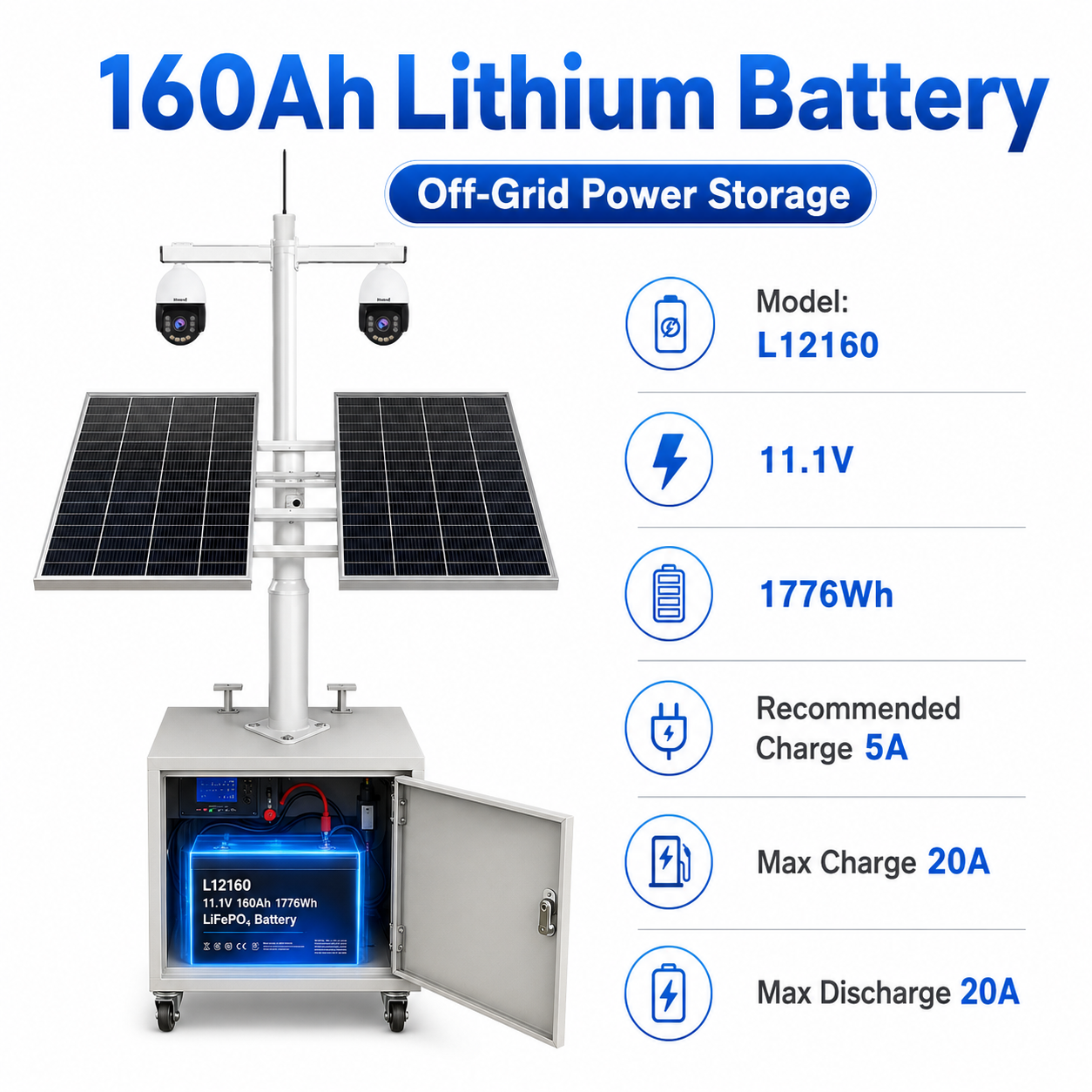

160Ah Lithium Battery
The built-in 160Ah lithium battery stores solar energy and provides stable power support for off-grid surveillance applications. It is suitable for mobile monitoring projects that require flexible deployment and independent power supply.
```| Battery Model | L12160 |
| Battery Capacity | 160Ah |
| Nominal Voltage | 11.1V |
| Nominal Energy | 1776Wh |
| Recommended Charging Current | 5A |
| Maximum Continuous Charging Current | 20A |
| Maximum Discharge Current | 20A |
| Recommended Charging Temperature | 10°C to 45°C |
| Discharging Temperature | -20°C to 60°C |

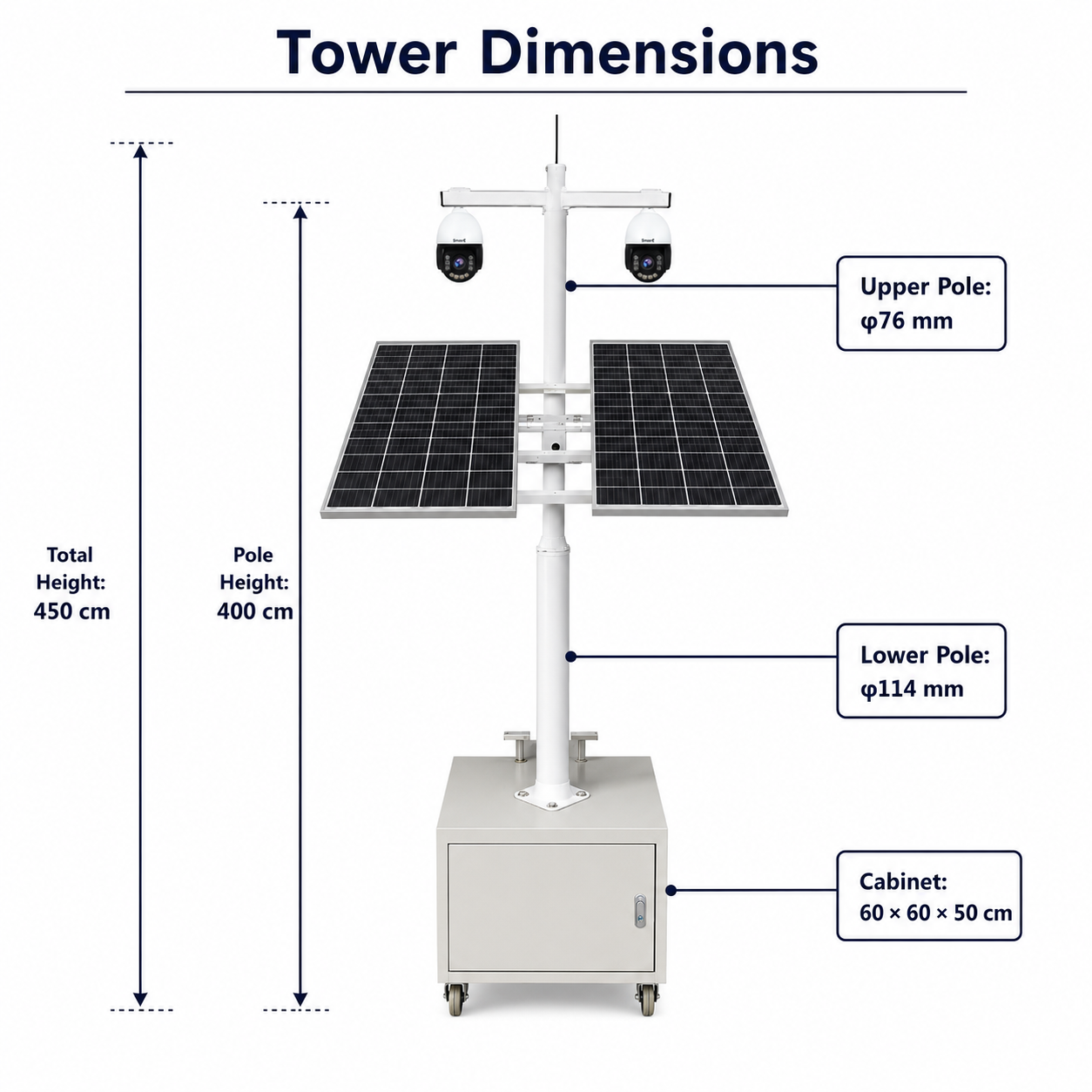

Tower Structure & Dimensions
| Total Height | Approx. 450 cm including cabinet |
| Pole Height | Approx. 400 cm |
| Upper Pole Diameter | φ76 mm |
| Lower Pole Diameter | φ114 mm |
| Cabinet Size | Approx. 60 × 60 × 50 cm |
Application Scenarios
This mobile solar security tower is designed for flexible off-grid surveillance in outdoor and temporary locations.
```- Construction site security
- Farm and ranch monitoring
- Parking lot surveillance
- Warehouse and logistics yard monitoring
- Industrial site and perimeter protection
- Temporary event security
- Remote entrance and road monitoring
- Remote areas without fixed power or wired internet
Custom Configuration Available
Camera quantity, solar panel quantity, battery capacity, pole height, cabinet design, and network configuration can be customized according to project requirements.
Contact JideTech for configuration confirmation, project evaluation, and quotation.
