JideTech P10 5MP 20X 4G WiFi Solar PTZ Camera with OpenVPN & ONVIF
JideTech P10 5MP 20X 4G WiFi Solar PTZ Camera with OpenVPN & ONVIF
Professional Continuous-Power Solar Surveillance

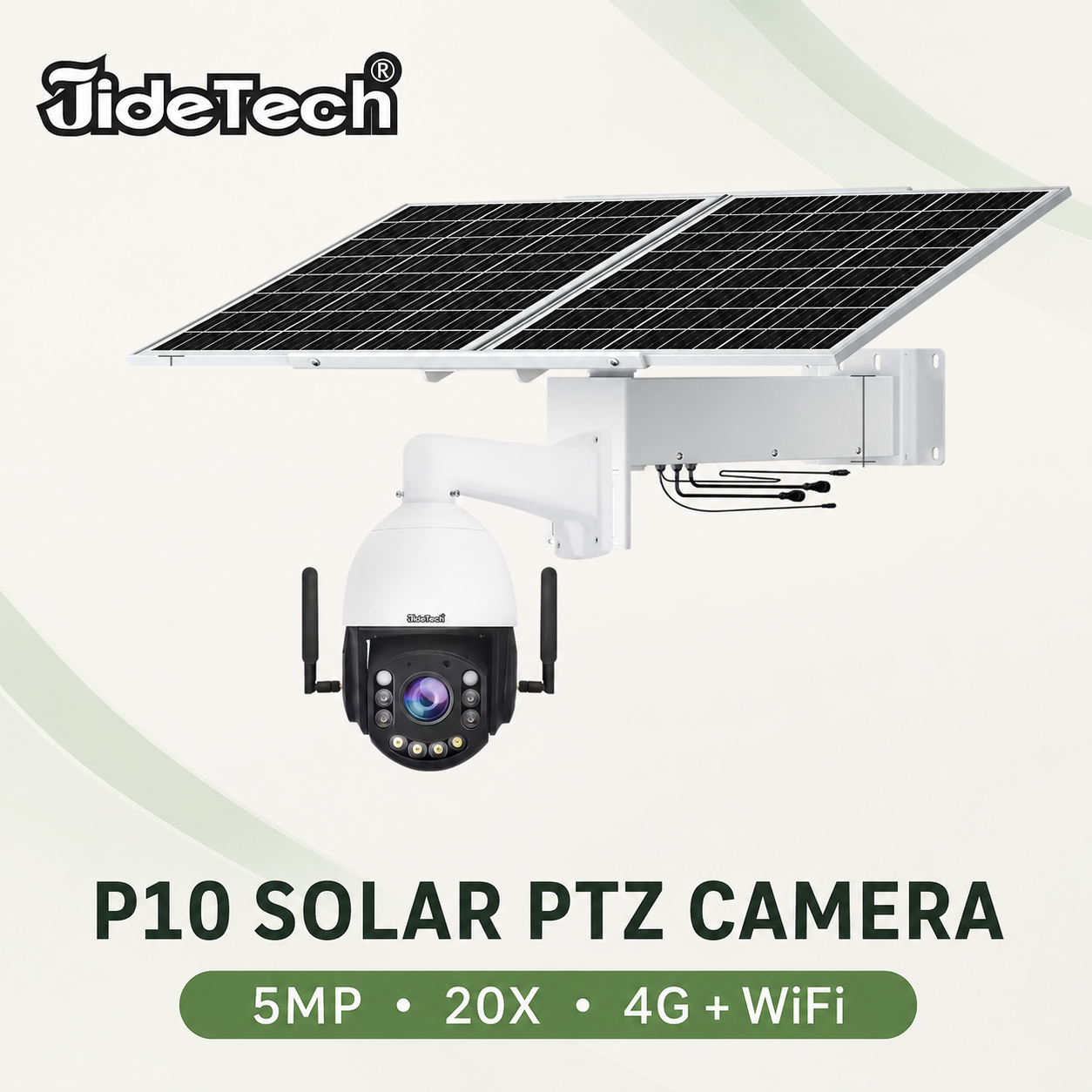

5MP 20X 4G + WiFi Solar PTZ Camera
A professional solar-powered PTZ surveillance system with 4G LTE, dual-band WiFi and RJ45 Ethernet connectivity. Supports OpenVPN, ONVIF, RTSP, RTMP and NVR/VMS integration for remote projects where stable, continuous monitoring is required.
Built for Professional Solar Surveillance Projects

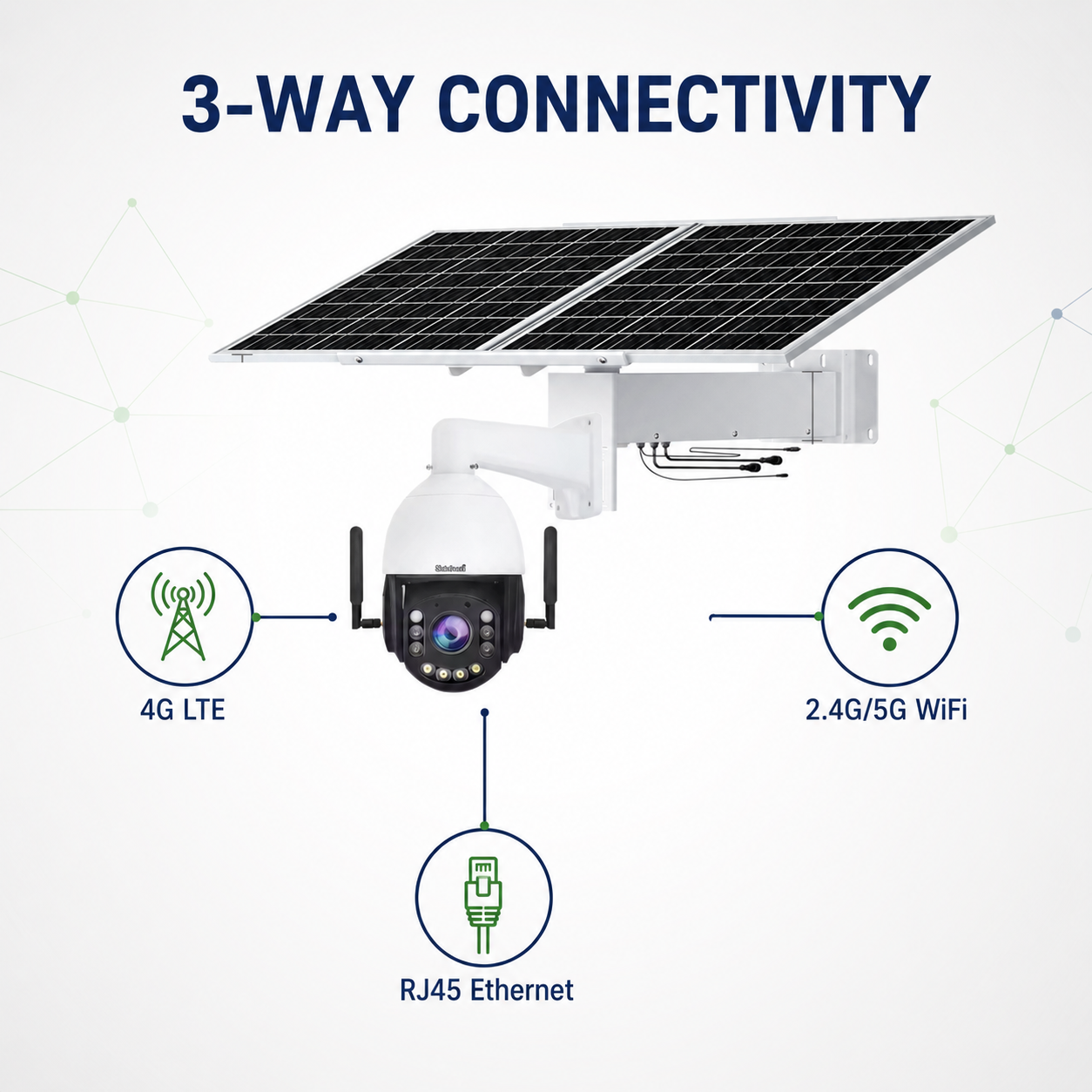

Three Network Interfaces
Built-in 4G LTE, 2.4GHz/5GHz WiFi and 10/100M RJ45 Ethernet interfaces in one camera, providing flexible deployment for different project environments.

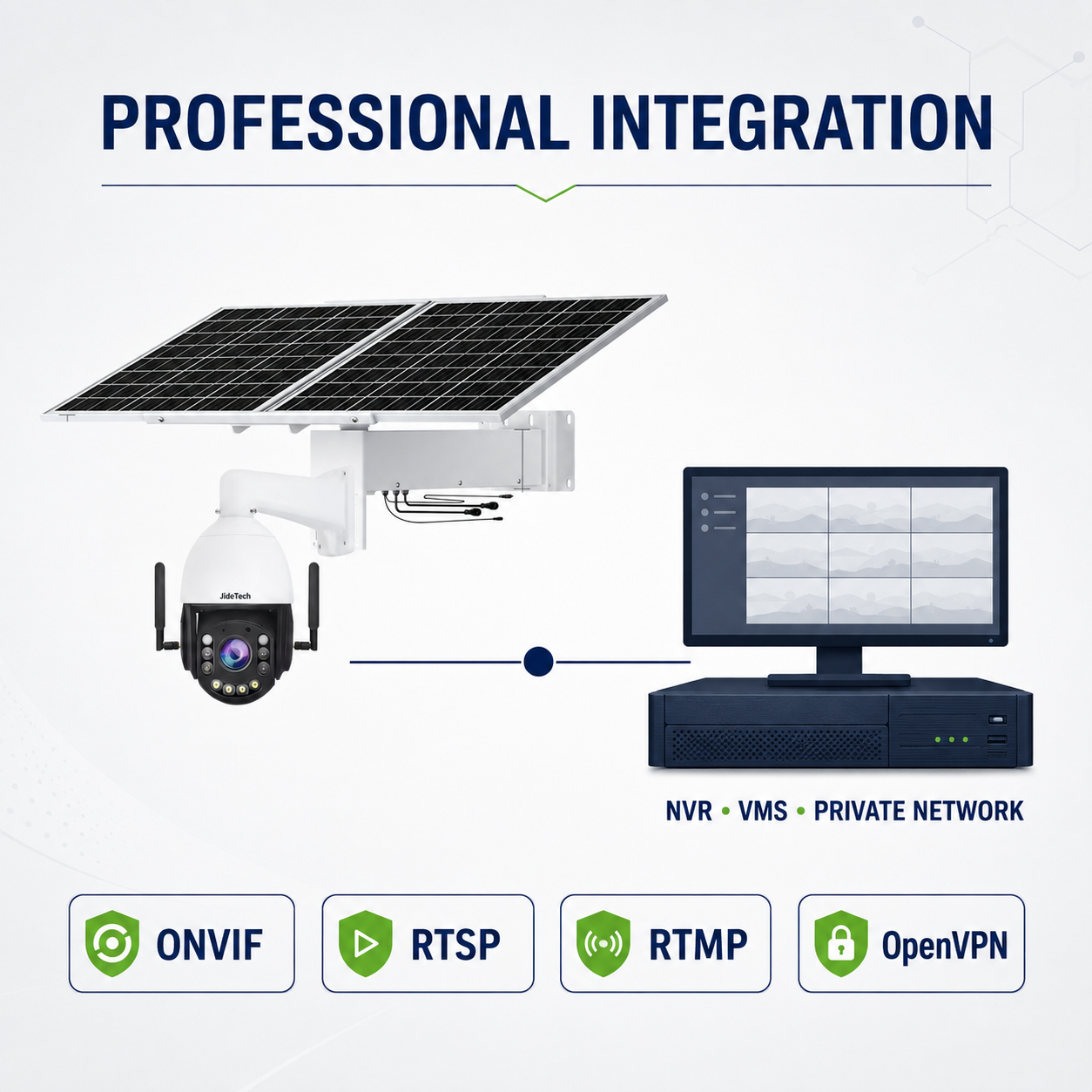

NVR & VMS Integration
Supports ONVIF Profile S/G, RTSP, RTMP, API, SDK and Hikvision/Dahua private protocols for integration with compatible NVR and VMS platforms.
OpenVPN Secure Access
Connect the camera to a private OpenVPN server through 4G, WiFi or wired Ethernet without directly exposing the device to the public internet.
Continuous-Power Design
Unlike low-power AOV cameras designed mainly for mobile-app viewing, this system is built for full-frame recording and professional project integration.

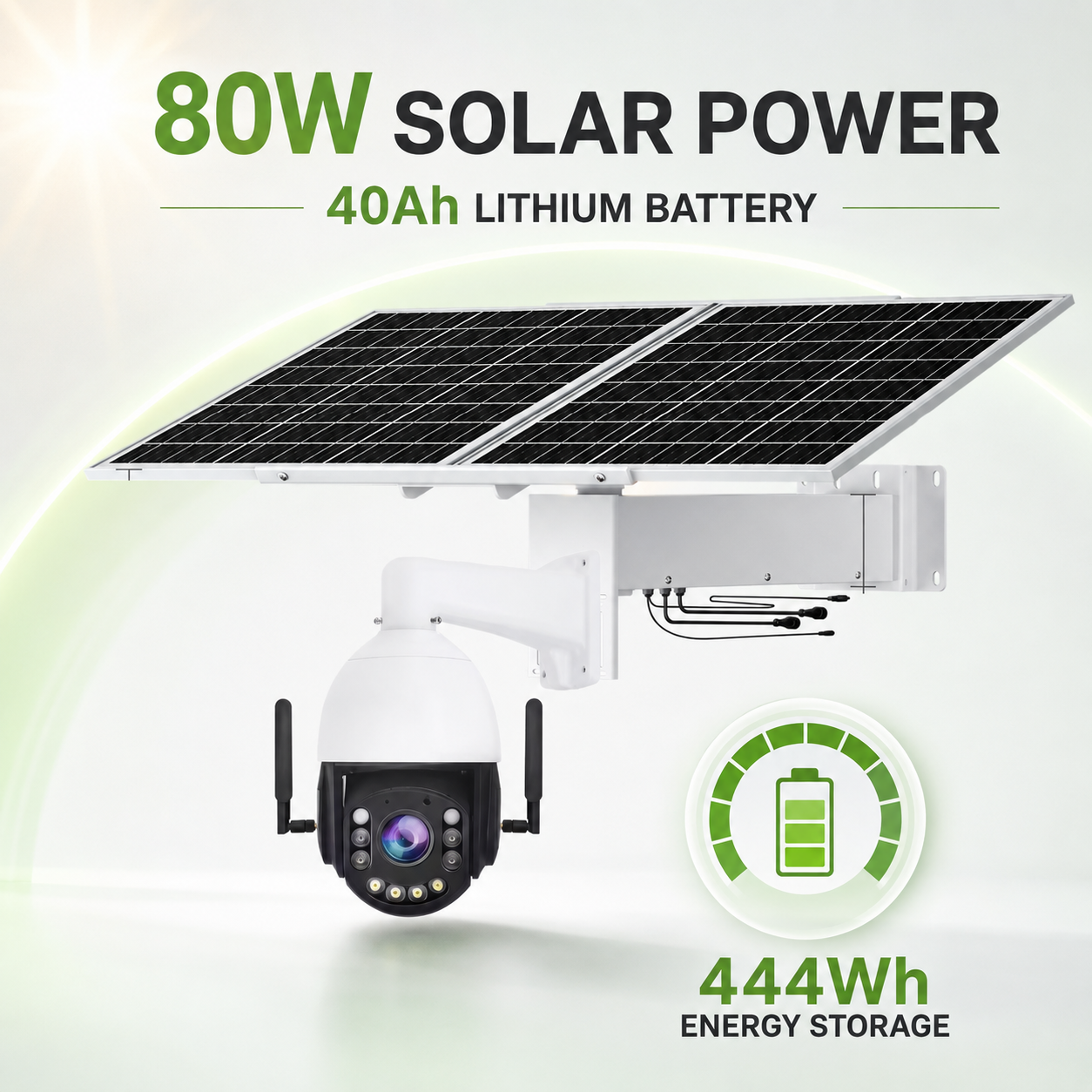

80W Solar Panel + 40Ah Lithium Battery
The standard power system includes an 80W solar panel and a 40Ah lithium battery with approximately 444Wh of stored energy.

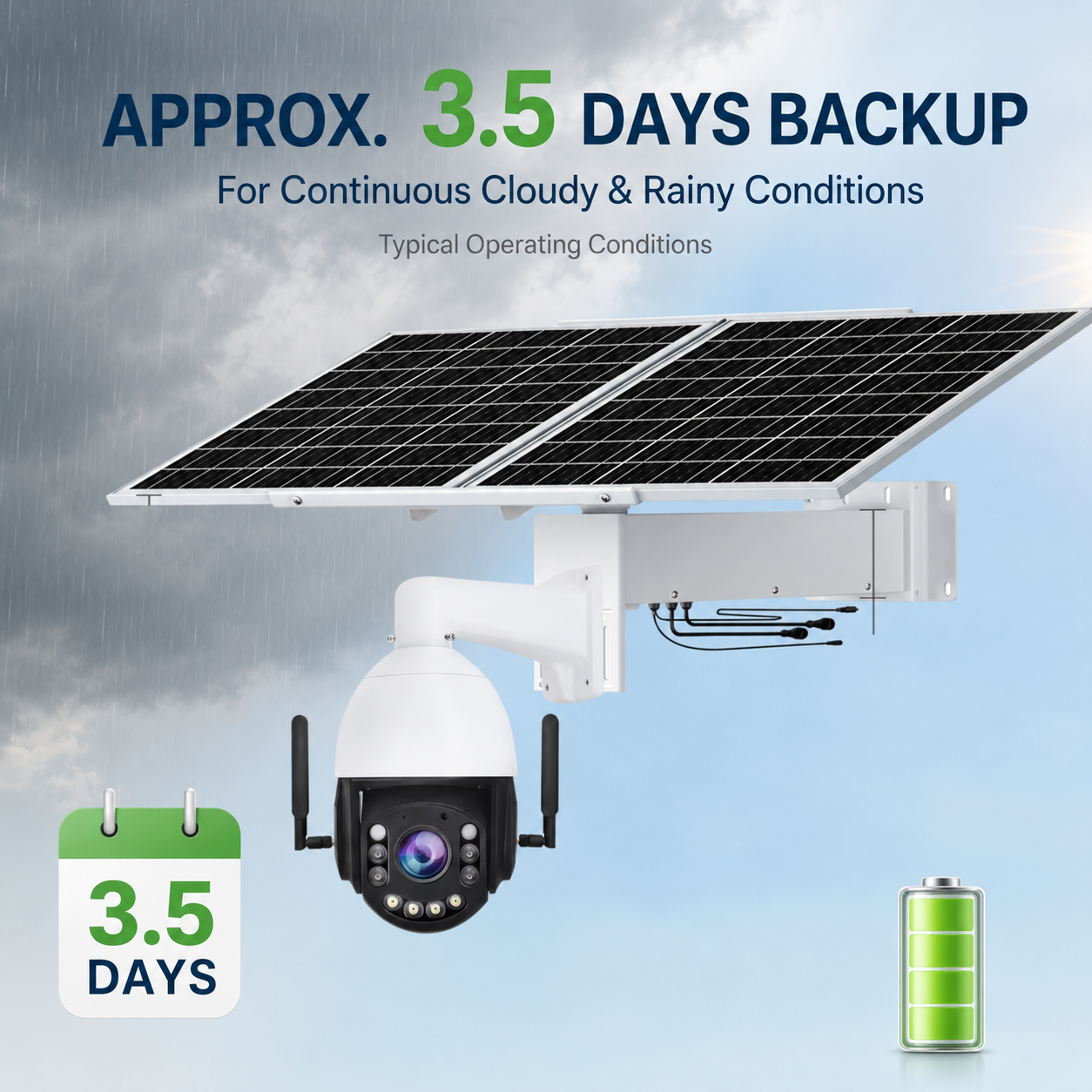

Under JideTech typical operating test conditions, the system can power the P10 camera for approximately 3.5 days during continuous cloudy or rainy weather.
Actual operating time depends on sunlight, battery condition, temperature, 4G signal strength, PTZ movement, recording mode and the use of IR or white lights.
Need a Larger Solar Power System?
Larger solar panels and higher-capacity batteries can be customized according to the camera power consumption, installation country, local sunlight conditions and required backup time.
Please send us an inquiry with the installation location and required rainy-day backup time for a customized recommendation.
Continuous-Power Solar Camera vs. AOV Camera
Choose the continuous-power P10 solution when ONVIF, NVR management, full-frame recording and professional protocol integration are required.

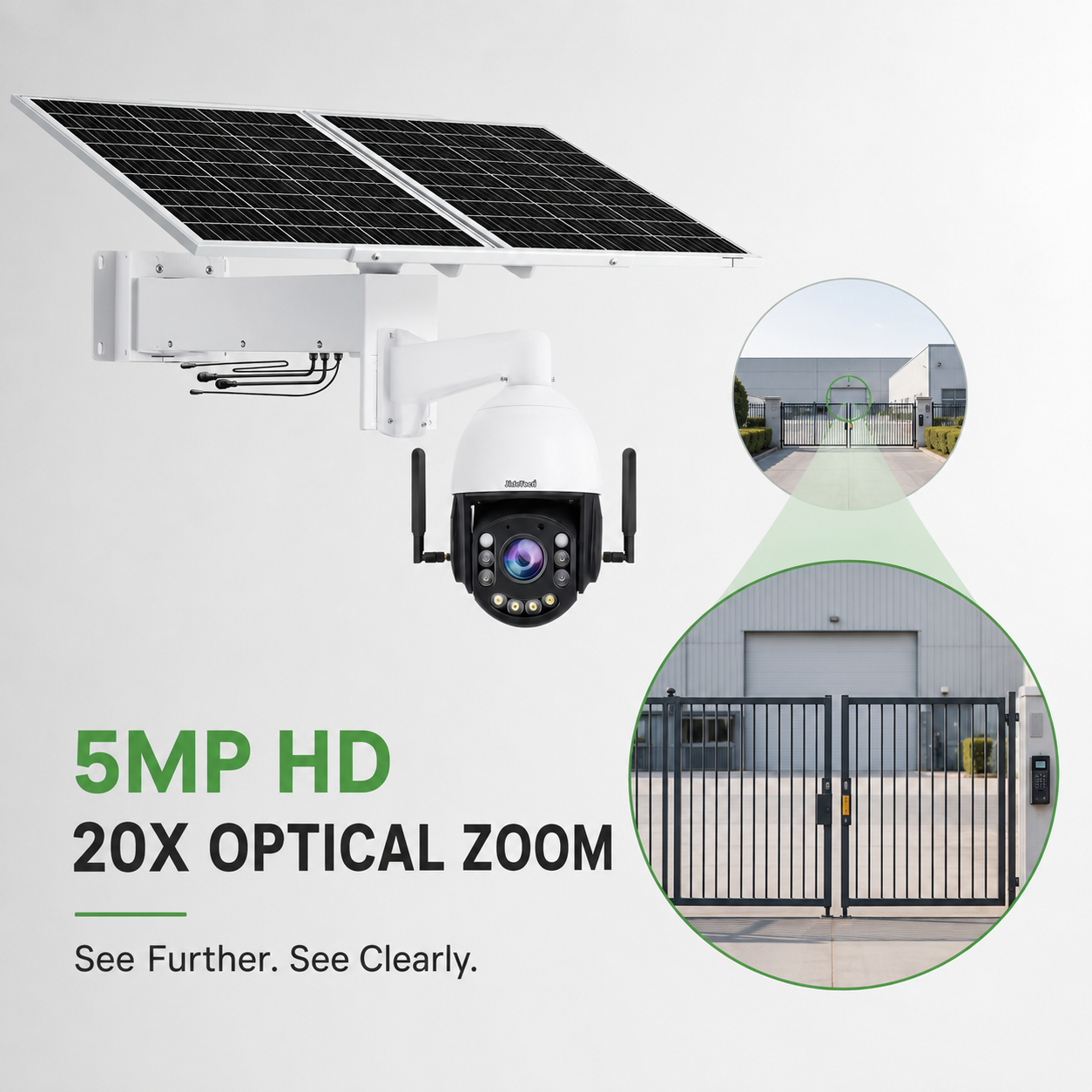

5MP Imaging and 20X Optical Zoom
- Up to 2592 × 1944 resolution at 30fps
- 4.7–84.6mm motorized 20X optical zoom lens
- Up to 10X digital zoom
- Automatic focus

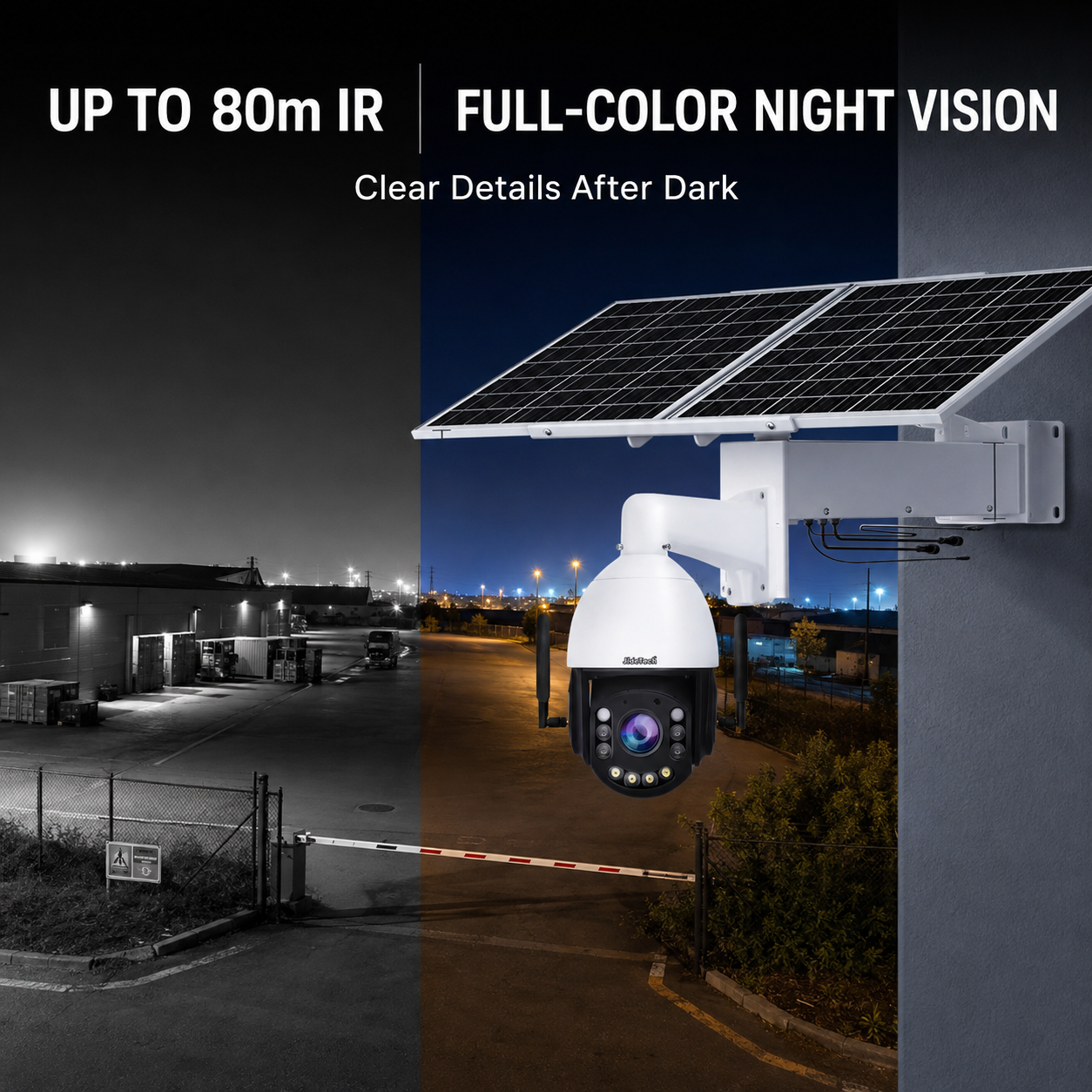

- IR and full-color night vision
- Night-vision distance up to 80 metres
- H.264, H.265 and H.265+ compression
PTZ Control and Intelligent Detection
PTZ Functions
- 360° endless pan
- 0°–90° tilt with auto flip
- 128 preset positions
- Cruise and limit scanning
- Automatic tracking with zoom
Smart Detection
- Human and vehicle detection
- Intrusion detection
- Line-crossing detection
- Off-duty detection
- Passenger-flow statistics
Recording and Audio
- MicroSD storage up to 512GB
- NFS network storage
- Built-in microphone and speaker
- Two-way audio
- Scheduled continuous recording
Available Camera Versions
| Model | Sensor | Resolution | Optical Zoom |
|---|---|---|---|
| P10-20X-5MP-E | 1/2.7" SSC377D + SmartSens SC535 | 5MP / 2592 × 1944 | 20X |
| P10-20X-5MP | 1/2.8" MSTAR30KD + Sony IMX335 | 5MP / 2592 × 1944 | 20X |
Technical Specifications
| Maximum resolution | 5MP, 2592 × 1944 at up to 30fps |
|---|---|
| Lens | 4.7–84.6mm motorized lens, 20X optical zoom |
| Night vision | IR and full-color night vision, up to 80m |
| Network connections | 4G LTE, 2.4GHz/5GHz WiFi and 10/100M RJ45 Ethernet |
| Integration | ONVIF Profile S/G, API, SDK, RTSP and RTMP |
| Protocols | HTTP, HTTPS, RTSP, RTMP, SMTP, FTP, GB28181 and HTML5 |
| VPN | OpenVPN secure tunnel access |
| Storage | MicroSD up to 512GB and NFS network storage |
| Audio | Built-in microphone and speaker, two-way audio |
| Camera power | DC 12V/3A, maximum listed consumption 18W |
| Protection | Full-metal housing, IP66 |
| Operating temperature | -40°C to +60°C |

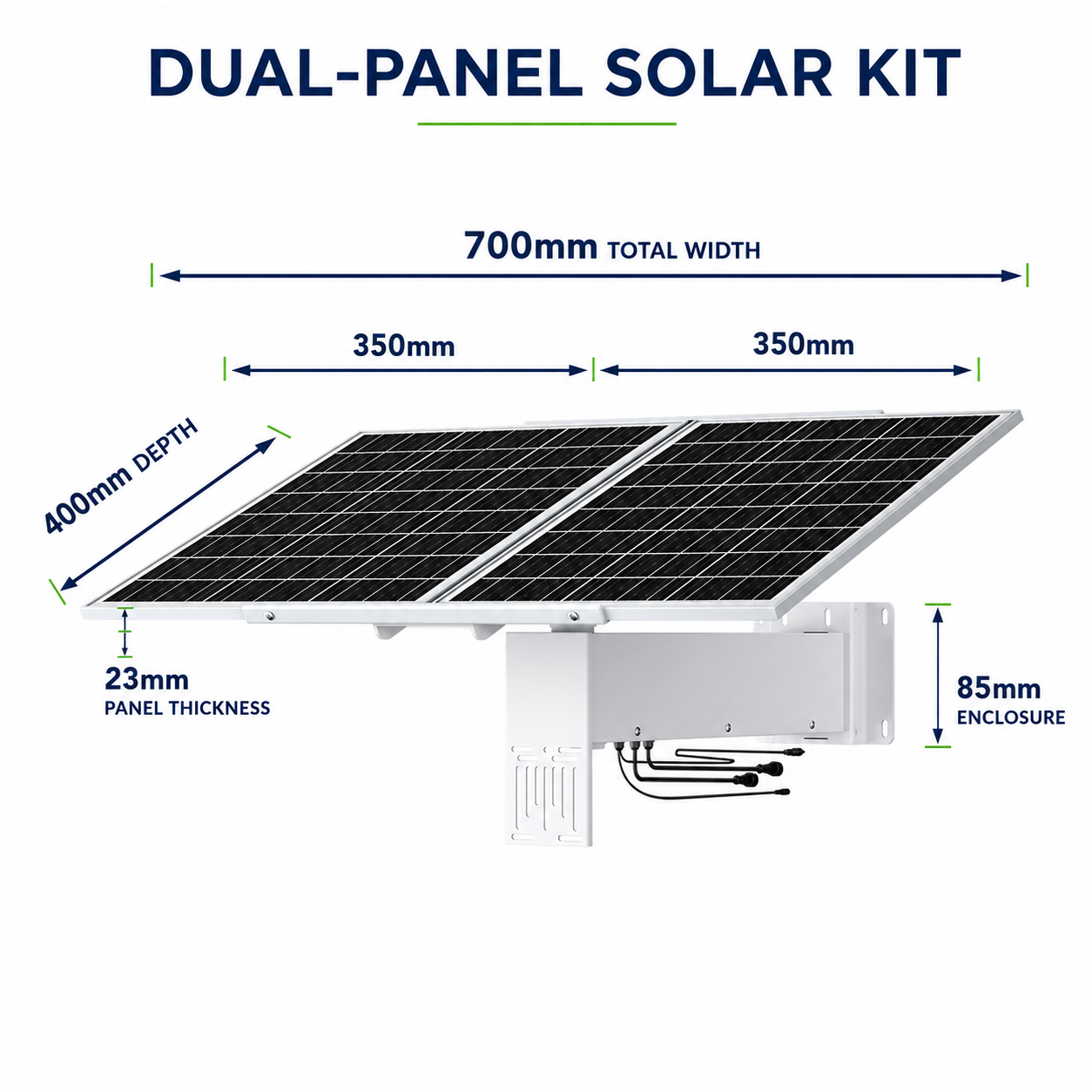

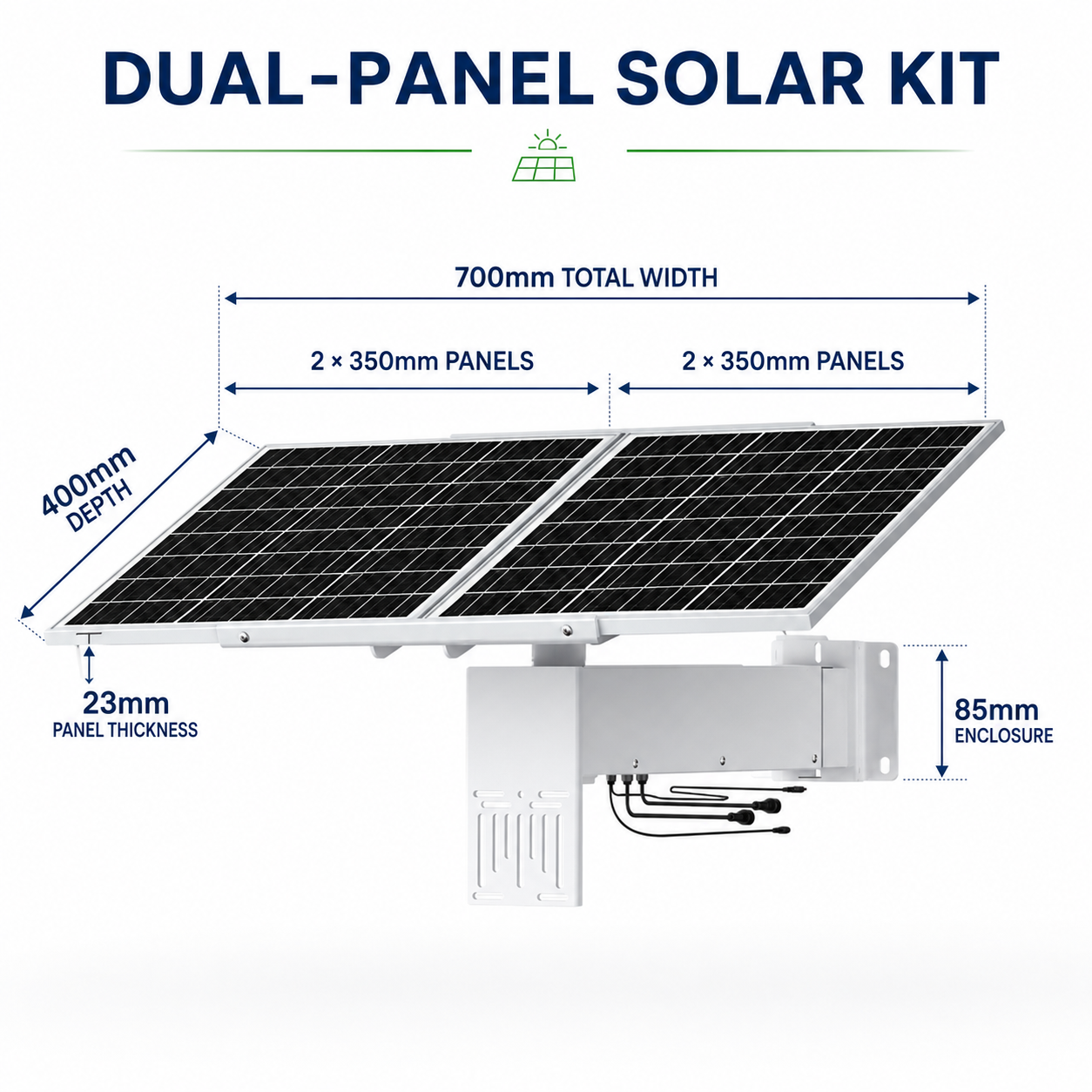

| Solar configuration | 80W solar panel + 40Ah / approximately 444Wh lithium battery |
| Certifications | CE, FCC, RoHS and SABER |
Confirm the 4G Frequency Before Ordering
Available global module bands include LTE FDD B1/B3/B5/B7/B8/B20/B28, LTE TDD B38/B40/B41 and WCDMA B1/B5/B8. Other regional module configurations may be available.
Please provide the installation country and mobile operator before ordering. Do not assume compatibility based only on the SIM-card size.
Recommended Applications
Request a Project Quotation
Tell us the required quantity, installation country, mobile operator, shipping address and required rainy-day backup time. JideTech can recommend the correct 4G module and solar power configuration for your project.
Larger solar panels and batteries are available by customization.
