JideTech 8MP/5MP Wise-ISP PoE DomeTurret IP Camera (DM15)
JideTech 8MP/5MP Wise-ISP PoE DomeTurret IP Camera (DM15)
Main Features
1) Aluminum Alloy Metal, fixed 2.8mm/F1.0 Lens, 4pcs Light LED, IR Distance 20 meters
2). H.265+/H.265 /H264 Video Compression, Onvif 2.4 Compatibility, FTP, RTSP, RTMP,HTTP,HTTPS,GB28181,Hikvision Private Protocol, GB28181 protocol
3) Built-in SD card slot, supports up to 512GB TF card for automatic recording.

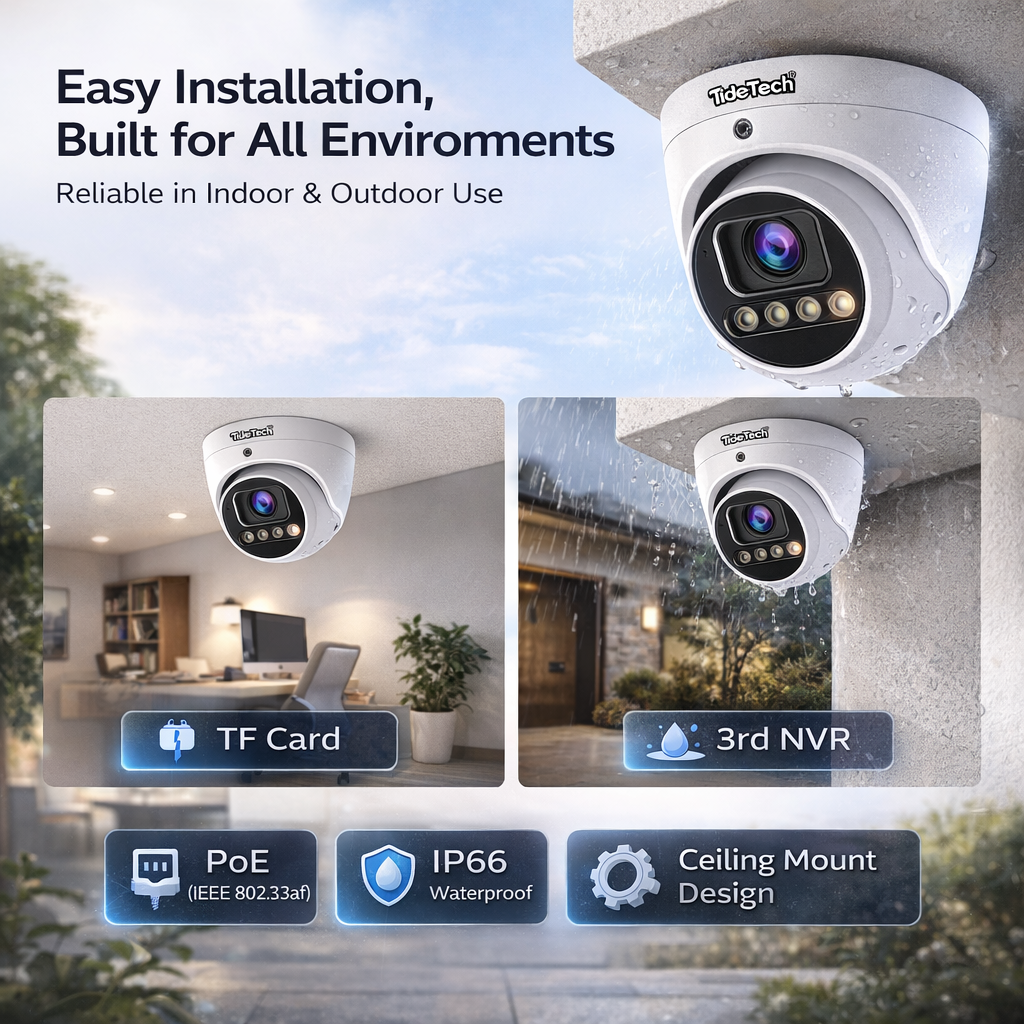

4) Built-in POE (48V-52V IEEE 802.3af standard), waterproof grade IP66
5) Built-in Speaker and Microphone
6) Supports intelligent analysis: pedestrian detection, vehicle detection, area detection, and tripwire detection; supports voice intercom and voice broadcast
NDAA Section 889 Compliant
We are committed to providing secure and trusted surveillance solutions. All our cameras are strictly compliant with Section 889 of the National Defense Authorization Act (NDAA). Engineered utilizing industry-leading Mstar and SONY chipsets, our products are manufactured with a secure supply chain. We ensure that absolutely no components are sourced from manufacturers on the U.S. restricted entity list, allowing you to deploy our devices with complete confidence in government, enterprise, and highly secure environments.
Specification
| Model No.: | DM15-5MP-WP | DM15-8MP-WP |
| Camera | ||
| Max Resolution | 5MP | 8MP |
| Sensor | 1/1.8" SC377D+SC450X | 1/1.8" 378DE+850SL |
| Min. Illumination | Color 0.001Lux/Night 0.0001Lux@F1.0 | |
| Shutter | Auto/Manual | |
| WDR | WDR.HDR | |
| Lens | ||
| Lens | 2.8mm Lens | |
| Aperture | F1.0 | |
| Focus | Auto-Focus | |
| Field of View (Horizontal) | 104° | |
| Field of View (Vertical) | 87° | |
| Field of View (Diagonal) | 116° | |
| Illuminator | ||
| IR LED | 4pcs Array led | |
| IR Distance | 20m | |
| Smart Supplement Light | Yes | |
| IR CUT setting | Support Auto, Timing, External and Manual | |
| Video | ||
| Video Compression | H.264 / H.265 /H.265+ | |
| Max Resolution | 2592*1944 | 3840*2160 |
| Frame Rate | 25fps | 25fps |
| Main Stream | 2592x1944, 2560x1440, 2304x1296, 1080P, 720P | 3840x2160, 3072x2048, 2592x1944, 2560x1440, 2304x1296, 1080P, 720P |
| Sub Stream | 720x480 30fps, 640x360 30fps ,480x360 30fps,CIF, VGA | |
| 3rd Stream | 1080P, 720P, CIF | |
| Bit Rate Type | CBR, VBR | |
| Bit Rate(kbps) | Main stream 512~12288, Sub-Stream 64~1024, 3rd Stream 64~1024 | |
| Frame Interval | 1-200 | |
| Day and night switching | Support automatic D/N switch, and commodify the switching sensitivity. | |
| Image | ||
| Digital Noise Reduction | 2D/3D | |
| Image adjustment | Support Brightness, Contrast, Saturation, sharpness, blc, hlc, 2D NR, 3D Repower Frequency, Forced Anti-flicker, Horizon Flip, Vertical Flip, Defogged shutter and Night shutter mode | |
| IR Cut Mode | Auto, timing, External, Manual | |
| HLC | Support | |
| BLC | Support | |
| Defog | Support | |
| WDR | Support | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| Audio | ||
| Microphone | Built-in | |
| Speaker | Built-in | |
| Encode Type | G.711U, G.711A, AAC | |
| Sample Rate | 8000 | |
| Bitrate | 64000 | |
| Audio output Volume | 0-100 | |
| Audio Input Volume | 0-100 | |
| Event | ||
| Motion Detect | Support Tigger Recording, Snapshot etc | |
| Intelligent detection | Motion detection; humanoid detection; occlusion detection, custom area | |
| Detect Target | Human, Car, Motorcycle, E-bike, Bicycle, Gas tank | |
| Alarm linkage | TF card recording, screenshot, email upload, FTP upload, sound alarm, occlusion alarm, alarm information push | |
| Storage | ||
| Local Storage | MicroSD, up to 512 GB & USB | |
| Network Storage | NFS、Cloud Storage | |
| Schedule Record | Support | |
| Interface | ||
| Audio I/O | 1 input, 1 output | |
| WIFI | N/A | |
| Alarm I/O | N/A （Scalable） | |
| Built-in Mic | Yes | |
| Built-in Speaker | Yes | |
| Network | 1*10/100Mbps Ethernet port, RJ45 port | |
| RS485 | N/A （Scalable） | |
| RS232 | N/A （Scalable） | |
| Network | ||
| TCP/IP | Static/DHCP | |
| IP Version | IPv4, IPv6 | |
| Protocols | SMTP, RTMP, HTTP, HTTPS, HTML5, RTSP, HIKVISION Private Protocol , DAHUA Private Protocol , | |
| P2P | Support, Videolink | |
| Client | AjDevTools, LMS | |
| Web Browser | Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
| Compatible Integration | ONVIF (Profile S, Profile G), API, SDK | |
| General | ||
| Power | DC12V2A, IEEE 802.3af standard | |
| Humidity | ≤95% Non-Condensing | |
| Consumption | < 6W | |
| Protection level | Waterproof IP67 | |
| Working Environment | -40 ℃ to 60 ℃ Humidity: ≤ 95% RH (non-condensing) | |
| Storage Environment | -40 ℃ to 60 ℃ E101, Humidity: ≤ 95% RH (non-condensing) | |
| Web Client Language | 12 Languages:English, Chinese PyccKni, Deutsch Italiano Turkiye Polski Russian Arabic Japanese | |

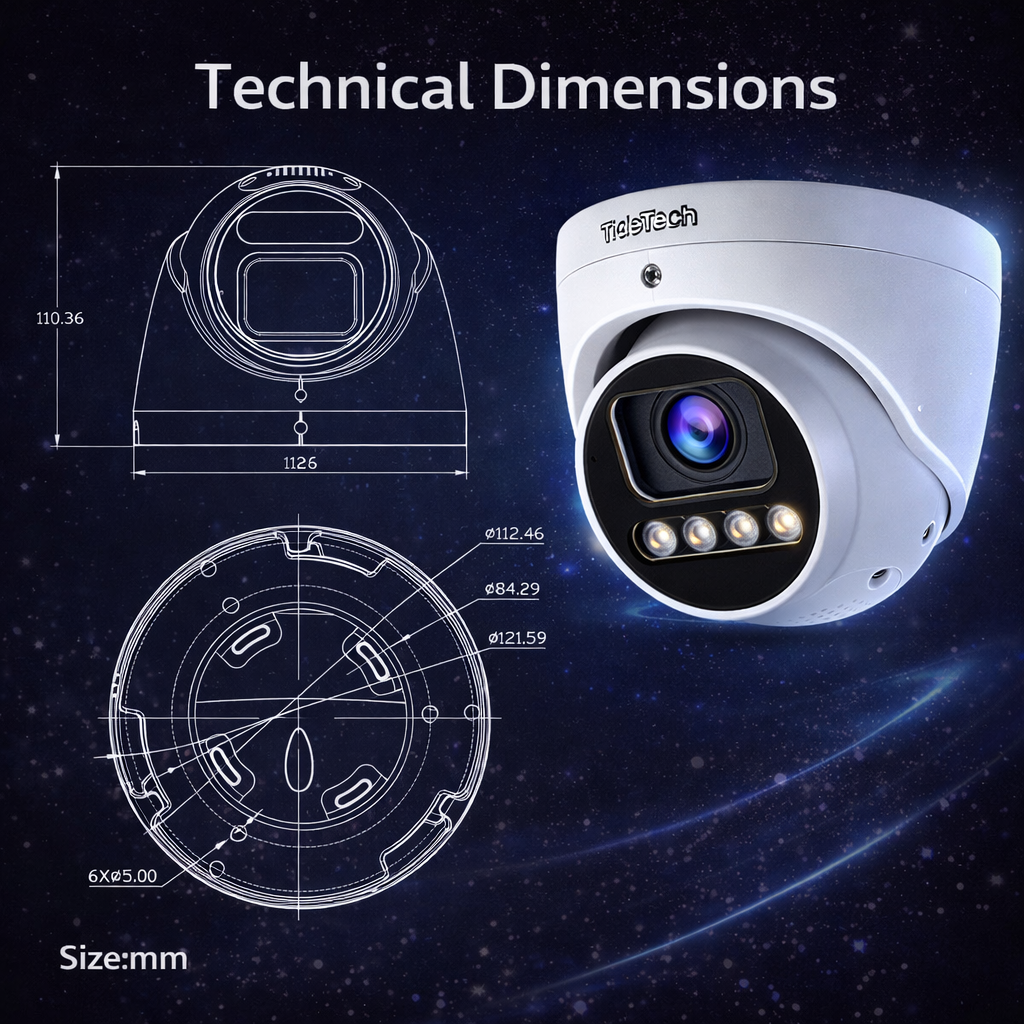

| Dimensions | ||
| Weight | ||
| Certification | CE,FCC, RoHs, SABER | |
