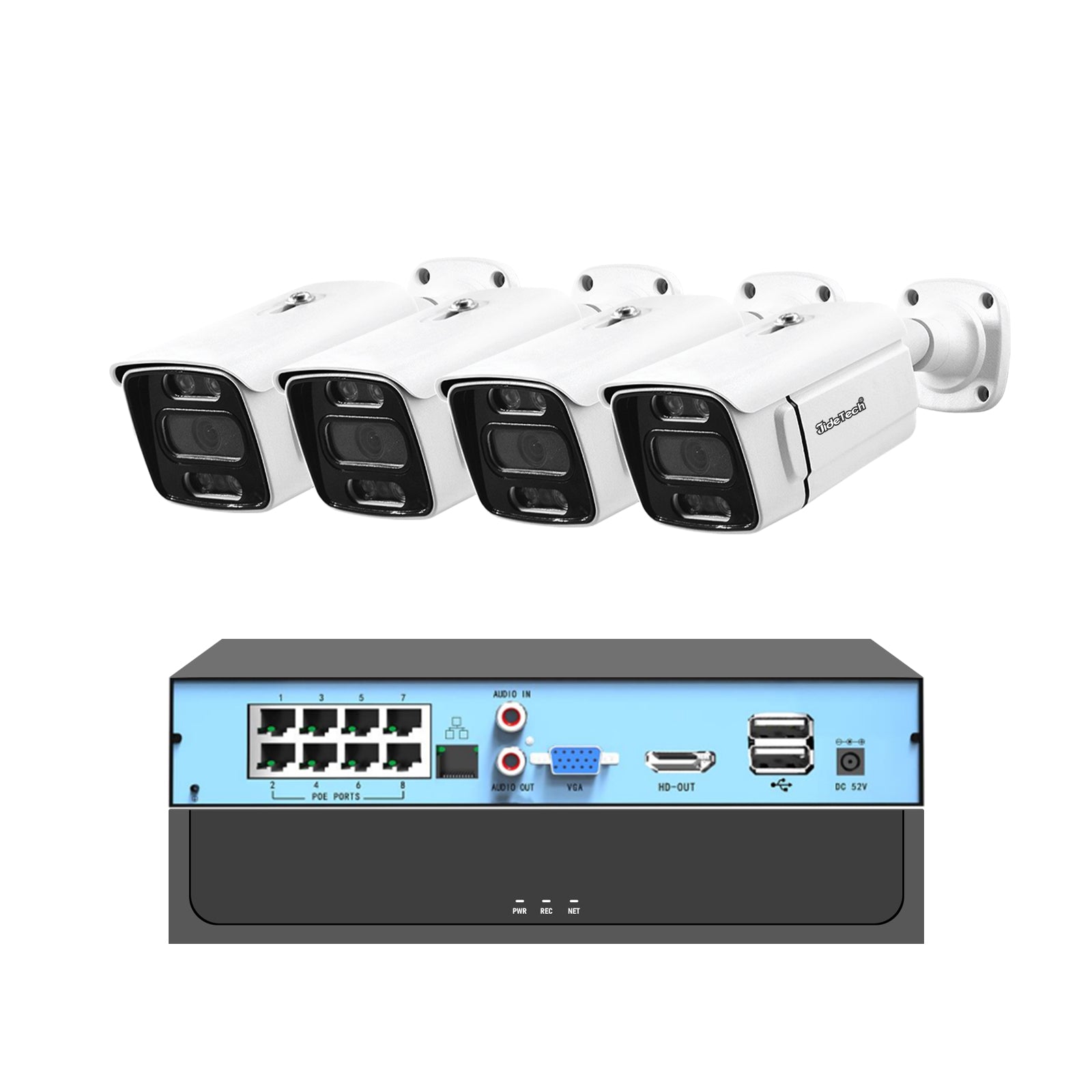

JideTech POE 5MP/8MP 8CH CCTV Camera NVR Security Camera System (NK2-4H-5MP)


Features of NVR

  1. Support preview, storage and playback of 8MP high-definition network video;
  2. POE power supply: direct network cable connection, one line meets network + power supply, easy to install;
  3. Support H.265 video code stream, support H.265, H.264 device hybrid access;
  4. Automatically add IPC, support plug and play;
  5. Support VGA and HDMI interface output video signal at the same time (same source), HDMIup to 4K output;
  6. Compatible with third-party network cameras that conform to standard ONVIF and RTSP protocols;

 Features of Camera

  1. Infrared and white light dual light design, support three adjustable night vision modes, to achieve full color at night;
  2. Active defense, if someone breaks into the warning area, the equipment will alarm with sound and light;
  3. Intelligent humanoid detection, filtering false alarms, and accurately guarding your safety;
  4. Built-in high-sensitivity MIC and speaker, support two-way voice intercom;
  5. Support multi-channel remote monitoring of mobile phone and PC client, and view the live scene anytime and anywhere;

Specification:

Model number

NK2-4H-5MP

Camera(5MP)

Sensor

1/2.8" SSC30KQ

Main Chip

SONY335

Resolution

Mainstream: 2592x1944,2560x1440,2304x1296,1080P,720P

Sub stream:720x480, VGA, 640x360,480x360,CIF

Third stream:1080P,720P,CIF

Frame Rate

5MP,4MP,3MP  30fps.  1080P,720P 60fps

Lens

3.6mm fixed Lens

Video encode

H.265,H.265+,H.264.Third stream: H.265,H.265+,H.264 and MJPEG, Record encode:MP4

Audio encode

G.711,G711A,Sample Rate:8000-16000.Bit rate :64000.AAC ,Sample Rate: 16000.Bit rate :16000

Image adjustment

Support Brightness, Contrast,Saturation,sharpness,blc,hlc,2D NR,3D Repower Frequency, Forced Anti-flicker, Horizon Flip, Vertical Flip,Day shutter and Night shutter mode

WDR

Support WDR,HDR

IR LED

4PCS Array LED, Support Night vision 20-30meters

IR CUT setting

Support Auto, Timing, External and Manual

Day/Night

Auto, Timing, External and Manual

Light ON/OFF sensitivity

0-100 can be set

Light on illumination

Support 0.001Lux to 1.5 LUX

IP address

Support static and DHCP, and Support MAC address modification

ONVIF protocol

Support ONVIF and ONVIF Absolute move, RTSP, RTMP, Hikvision and Dahua protocol, Support FTP,SMTP(EMAIL)

AI

Support Motion detect, Human, car, motorcycle and bicycle detect,

P2P connection

Support mobile APP and P2P PC APP

Network protocols

TCP/IP, HTTP, TCP, ICMP, UDP, ARP,IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, RTMP,etc

Waterproof

Metal Case, IP66

Power

DC12V/1A &PoE

Working Temperature

-10~+60

Network Video Recorder (NVR)

Video decoding

H.265,H.265+,H.264

Decoding capability

1x12MP@30,1x8MP@30,2x5MP@25+2xD1,

4x4MP@25,4x 3MP@25, 4x1080p@308xD1@30

Audio decoding

G.711

Network video input

8 channels 12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P

Network video access bandwidth

80M

Audio input 1 channel

RCA

HDMI output

1 channel HDMI resolution:

1024x768/60HZ, 1280x720/60HZ,1280x720/50HZ, 1280x1024/60HZ, 1440x900/60HZ,1920x1080/60HZ, 1920x1080/50HZ, 2560x1440/60HZ, 3840x2160/60HZ

VGA output

1 channel VGA Resolution: 1024x768/60HZ, 1280x720/60HZ,

1280x720/50HZ, 1280x1024/60HZ, 1440x900/60HZ,1920x1080/60HZ, 1920x1080/50HZ

Audio output

1 channel, RCA

Preview split screen

1/2/4/6/8/9 screen

Video resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF/

QCIF

Synchronous playback

8ch D1/4ch 4MP/1ch 8MP/1ch 12MP

Backup Mode

Regular Backup, Video Clip Backup

Maximum capacity

Each interface supports 1TB/2TB/3TB/4TB/5TB/6TB/8TB and other capacity hard drives

Network port

1*RJ45 10M/100M adaptive Ethernet port

PoE Power

Single PoE port maximum 30W,Standard full load power consumption is about 93W

USB interface

2*USB2.0

Power

DC52V

Power Consumption

≤3W

Working Temperature

-10~+55

Working humidity

10%90% (non-condensing)

Size

260mm*220mm*43mm
