8MP PoE Turret Camera for Professional CCTV Integration

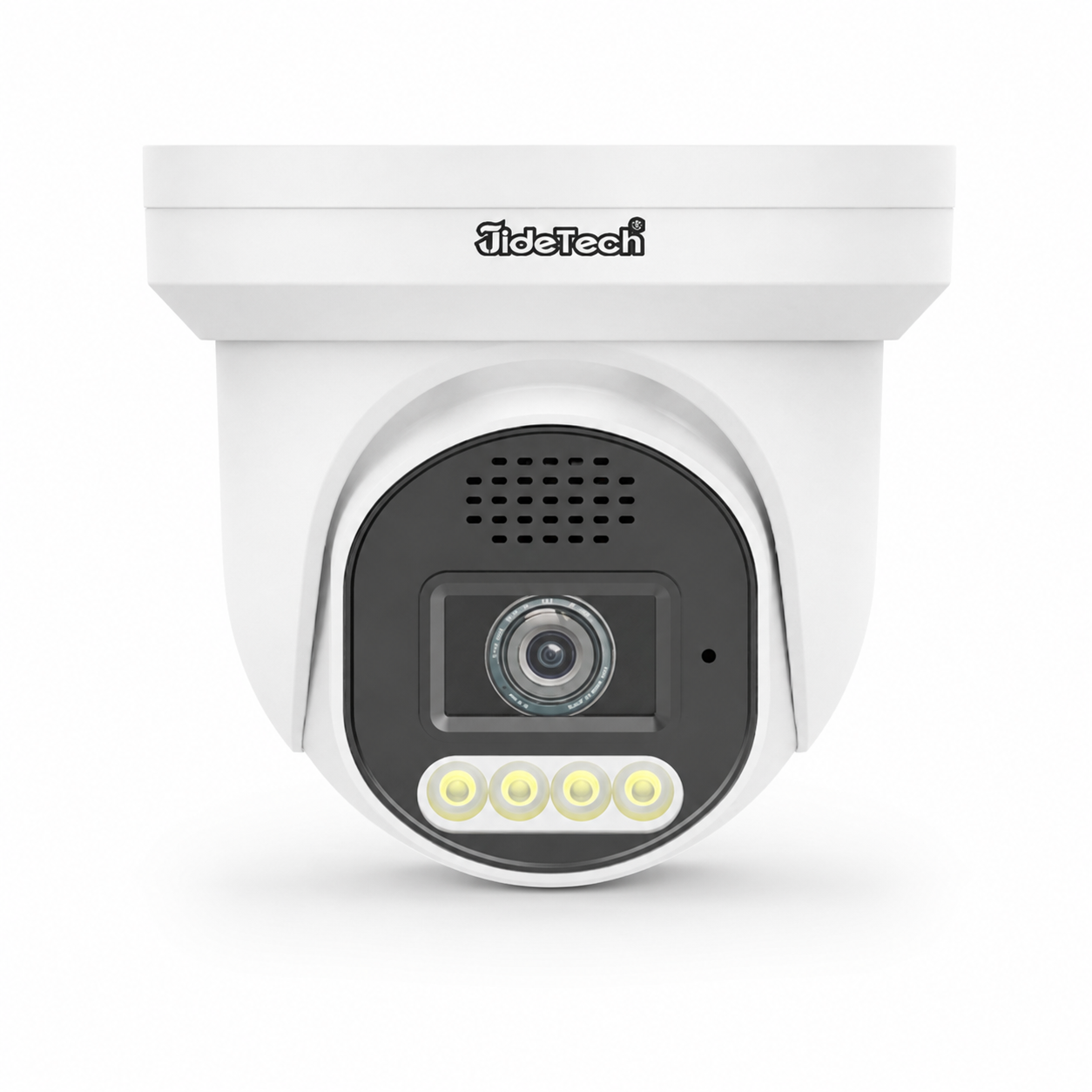

The JideTech DM10 is a compact 8MP PoE turret IP camera designed for security integrators, distributors and OEM projects. It combines 3840 × 2160 video, full-color night vision, two-way audio, edge recording and broad third-party integration in an IP67 metal housing.
Three hardware versions are available for different project requirements. The DM10-8MP-G delivers up to 30fps at 4K, while the DM10-8MP and DM10-8MP-S deliver up to 20fps.
Key Features
- 8MP / 4K resolution: up to 3840 × 2160 for detailed video surveillance.
- Full-color night vision: four integrated LEDs with illumination distance up to 20m.
- 2.8mm F1.6 fixed lens: wide field of view for entrances, shops, offices, warehouses and perimeter areas.
- Built-in microphone and speaker: supports two-way audio, voice intercom and voice broadcast.
- PoE and 12V DC: IEEE 802.3af PoE simplifies installation while 12V DC provides an alternative power option.
- Local recording: built-in microSD card slot supports cards up to 512GB.
- Smart detection: human and vehicle classification, custom-area detection, tripwire detection, motion detection and occlusion detection.

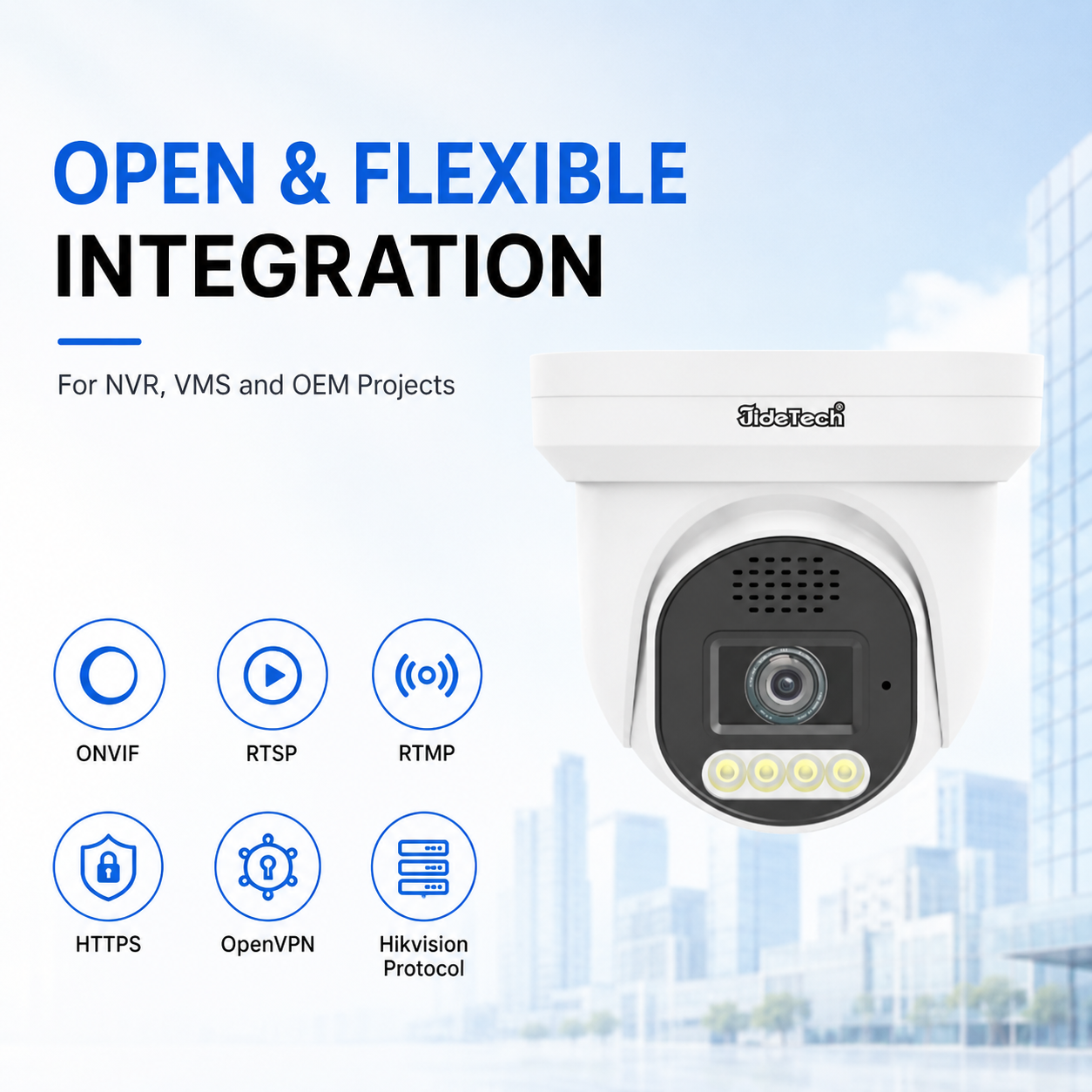

- Open integration: ONVIF Profile S/G, RTSP, RTMP, HTTP, HTTPS, FTP, SMTP, IPv4/IPv6, API and SDK.
- Third-party compatibility: supports Hikvision and Dahua private protocols for easier integration into mixed CCTV systems.
- Secure remote networking: supports OpenVPN for project deployments that require protected remote connectivity.
- Outdoor protection: IP67 metal housing, rated for operation from -40°C to 60°C.
Dual Night Vision Modes
Choose infrared mode for discreet black-and-white monitoring, or use full-color mode to retain useful color details such as clothing, vehicles and objects after dark.
DM10-8MP Night Vision Video
Actual performance may vary with ambient lighting, installation height, reflective surfaces and viewing distance.
Choose the Right DM10 Version
| Model | Image Sensor / Chipset | Maximum Frame Rate | Typical Selection |
|---|---|---|---|
| DM10-8MP | 1/2.7-inch SSC378DE + GC8613 | 20fps | Cost-effective 8MP projects |
| DM10-8MP-S | 1/2.8-inch MSTAR338Q + Sony IMX415 | 20fps | Projects specifying a Sony sensor |
| DM10-8MP-G | 1/2.8-inch MSTAR339G + Sony IMX415 | 30fps | Smoother 4K video and higher-motion scenes |
Recommended Applications
The DM10 is suitable for retail stores, offices, warehouses, schools, residential buildings, entrances, parking areas and other indoor or outdoor surveillance projects. Its ONVIF support and private-protocol compatibility make it practical for both new installations and replacement projects using third-party NVRs or VMS platforms.
Technical Specifications
| Maximum Resolution | 3840 × 2160 (8MP / 4K) |
|---|---|
| Lens | 2.8mm fixed lens, F1.6 |
| Field of View | DM10-8MP: H 92°, V 60°, D 99°; Sony versions: H 90°, V 58°, D 98° |
| Minimum Illumination | Color 0.01 lux; night 0.001 lux @ F1.6 |
| Night Vision | 4 LEDs; IR and full-color night vision; up to 20m |
| Video Compression | H.265+, H.265, H.264 |
| Streams | Main stream, sub-stream and third stream |
| Image Functions | WDR, HDR, HLC, BLC, 2D/3D DNR, anti-flicker, horizontal/vertical flip, white balance |
| Audio | Built-in microphone and speaker; G.711U, G.711A, AAC |
| Storage | MicroSD up to 512GB; NFS network storage |
| Network | RJ45 10/100M Ethernet; static IP/DHCP; IPv4/IPv6 |
| Protocols | TCP/IP, SMTP, FTP, RTSP, RTMP, HTTP, HTTPS, HTML5, OpenVPN, ONVIF Profile S/G, Hikvision private protocol, Dahua private protocol |
| Power | IEEE 802.3af PoE (48-52V) or DC 12V/1A |
| Power Consumption | Less than 6W |
| Protection | IP67 |
| Operating Temperature | -40°C to 60°C; up to 95% RH, non-condensing |
| Housing | Metal and glass |
| Dimensions / Net Weight | Approximately 120 × 120 × 100mm / 0.45kg |
| Certifications | CE, FCC, RoHS, SABER |
Frequently Asked Questions
Does the DM10 support third-party NVRs?
Yes. The DM10 supports ONVIF Profile S and Profile G, RTSP, API and SDK integration. It also supports Hikvision and Dahua private protocols, subject to NVR firmware and feature compatibility.
Which DM10 model supports 4K at 30fps?
The DM10-8MP-G supports up to 3840 × 2160 at 30fps. The DM10-8MP and DM10-8MP-S support up to 20fps.
Can the camera record without an NVR?
Yes. A built-in microSD card slot supports local recording with cards up to 512GB. NFS network storage is also supported.
Does the DM10 have two-way audio?
Yes. The camera includes a microphone and speaker for two-way intercom, voice broadcast and audible alarm functions.
Can the DM10 provide full-color images at night?
Yes. Its integrated dual-light system supports full-color night vision and smart supplementary lighting at distances up to 20m, depending on the scene and installation conditions.
Is OEM or ODM service available?
Yes. JideTech supports OEM and ODM cooperation for distributors, system integrators and project buyers. Contact us with your required model, quantity, branding and integration requirements.
Request a Project Quote
Tell us your required model, quantity, NVR or VMS platform, delivery country and any OEM requirements. JideTech will confirm compatibility, lead time and project pricing before order placement.
