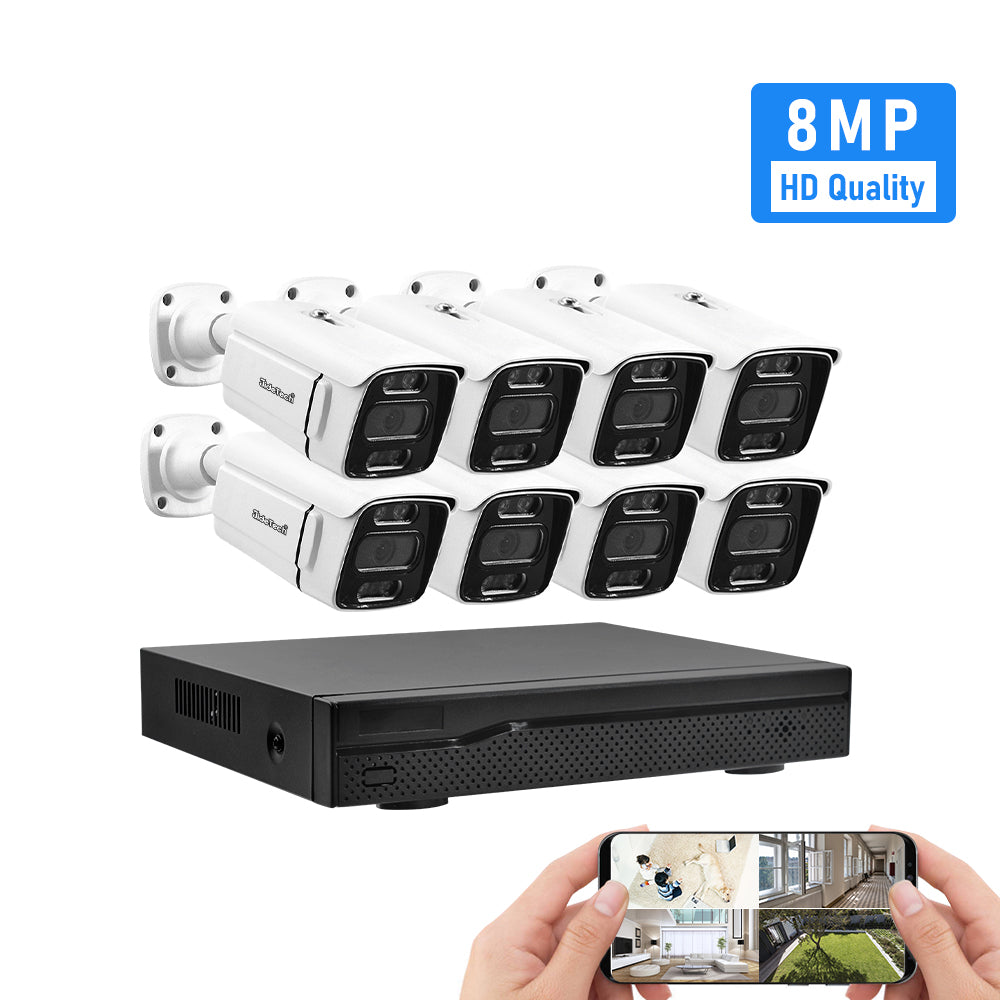

JideTech POE 4K 8CH IP Camera NVR CCTV Camera System (NK2-8H-8MP)
$332.00
$332.00
Versand wird an der Kasse berechnet.
Schließen
JideTech POE 4K 8CH IP Camera NVR CCTV Camera System (NK2-8H-8MP)
Key Features:
- 8 million pixels, enjoy ultra-high-definition picture quality
- POE over power supply: the network cable is directly connected, just one wire meets the requirement of network + power supply, and the installation is convenient
- H.265+ high compression ratio, reducing storage space and transmission bandwidth
- Automatically add IPC, support plug and play
- Support ONVIF protocol; can connect to third-party NVR and platform, also can connect to third-party IPC
- Infrared white light dual-light design, supports three adjustable night vision modes to achieve full color at night
- Active defense, when someone breaks into the warning area, the equipment will sound and light alarm
- Intelligent humanoid detection, filtering false positives, and accurately protecting your safety
- Built-in high-sensitivity MIC and speaker, support two-way voice intercom
- Support multi-channel remote monitoring of mobile phones and PC clients, and view the live scene anytime, anywhere
Specifications
PoE NVR | |
Processor | Industrial embedded microcontroller |
Operating system | Embedded LINUX operating system |
Picture decoding | 720P,960P,1080P ,3MP,4MP,5MP,8MP vedio encoding |
Video interface | 8*720P/960P/1080P/3MP/4MP/5MP/8MP |
Video output | 1080P@60fps,4K@30fps (1H VGA output, 1H HDMI output) |
Video code | Timing video、motion detection video |
Video storage | SATA hard disk*1, Maximum 6TB |
Video playback | 1*8MP playback;1*5MP playback;2*3MP playback; 8*1080P playback |
Backup mode | USB backup and Network backup |
Network protocol | TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,P2P |
Mobile Phone app | EseeCloud(Android, IOS), Tuya is optional |
Network interface | 1*RJ45 10M/100Mbps adaptive Ethernet port |
POE | 4/8* PoE IEEE802.3af/RJ45 10M/100Mbps adaptive Ethernet port |
USB | 2*USB 2.0 |
Audio output | 1*3.5mm audio interface (support HDMI audio output) |
Audio intput | |
Power | DC 48V /2A |
Power Consumption | 4H≈30W 8H≈58W |
Working temperature | -10℃~+55℃ |
Working environment | Indoor |
IP Camera | |
Sensor | 1/2.5” CMOS Sensor,Color: 0.1 Lux, Black/White: 0.01 Lux |
Vedio coding | H.264/H.265 |
Maximum resolution | Main stream:3840x2160@15fps;sub-stream:720x576@15fps |
Len | 4mm |
Function | Support motion detection、JPEG screenshot |
Night vision fill light | IR light(20M) |
Day and night | IR-CUT IR Filter |
Audio | Optional, support voice intercom/built-in microphone |
POE | PoE IEEE802.3af |
Interface | 1*RJ45 10/100M adaptive Ethernet port |
Protocol | Support RTSP,DHCP,ONVIF,N1 private protocol |
Power | DC 12V /1A / PoE |
Dimension of box | 335*270*305MM/Set |
Qty/CTN | 2 Set/ CTN, |
Dimension of Carton | 560*355*325MM |
Installation | Universal |
Working environment | Indoor/outdoor |
Protection grade | IP66 |
