JideTech P22 8MP 30X Optical Zoom 4G LTE OpenVPN PTZ IP Camera

JideTech P22 8MP 30X Optical Zoom 4G LTE OpenVPN PTZ Camera

The JideTech P22 Series is a professional 8MP 4G LTE PTZ IP camera designed for remote surveillance, private network integration and centralized monitoring projects. It is available in three hardware versions, including a standard 20FPS version, a Sony IMX415 20FPS version and a Sony IMX415 30FPS version.

All three versions feature 8MP Ultra HD resolution, 30X optical zoom, 4G LTE connectivity, Wi-Fi, RJ45 Ethernet, ONVIF compatibility, RTSP streaming, intelligent detection, long-range night vision and optional OpenVPN secure tunnel access.

Available Camera Versions

Version Selection: Select the required camera version before adding the product to your cart. The 30FPS Sony IMX415 version is recommended for projects requiring smoother live video, moving-target monitoring or professional centralized surveillance.

Main Features

• Three Hardware Versions: Choose between standard 20FPS, Sony IMX415 20FPS and Sony IMX415 30FPS versions.
• 8MP Ultra HD Resolution: Supports video resolution up to 3840 × 2160.
• 30X Optical Zoom: 4.3–129mm motorized zoom lens for wide-area and long-distance surveillance.
• Up to 10X Digital Zoom: Provides additional digital image enlargement.
• 4G LTE Connectivity: Supports SIM card connection for locations without fixed broadband.
• OpenVPN Secure Access: Supports connection to a private VPN server through 4G, Wi-Fi or Ethernet.
• ONVIF Compatibility: Supports ONVIF Profile S, Profile G and ONVIF Absolute Move.
• Open Network Protocols: Supports RTSP, RTMP, HTTP, HTTPS, SMTP, FTP, NFS, API and SDK integration.

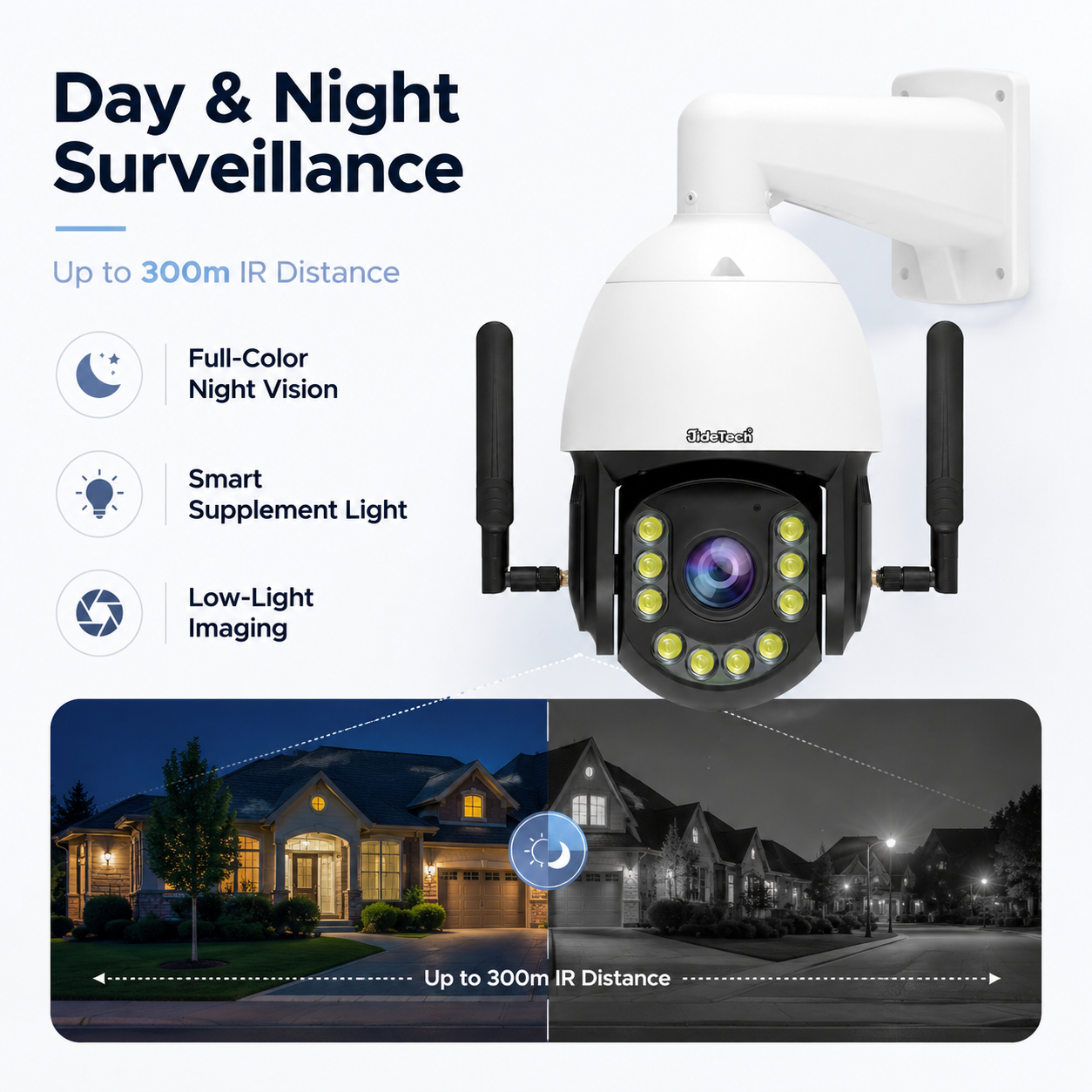

• Long-Range Night Vision: Infrared and white-light illumination with a distance of up to 300 meters.
• Full-Color Night Vision: Integrated white lights provide color images in low-light environments.
• AI Detection: Supports human, car, motorcycle, e-bike, bicycle and gas tank detection.
• Automatic Tracking: Supports fixed-point tracking, cruise tracking and automatic zoom.
• Two-Way Audio: Built-in microphone and speaker.
• Local Storage: Supports microSD cards up to 512GB.

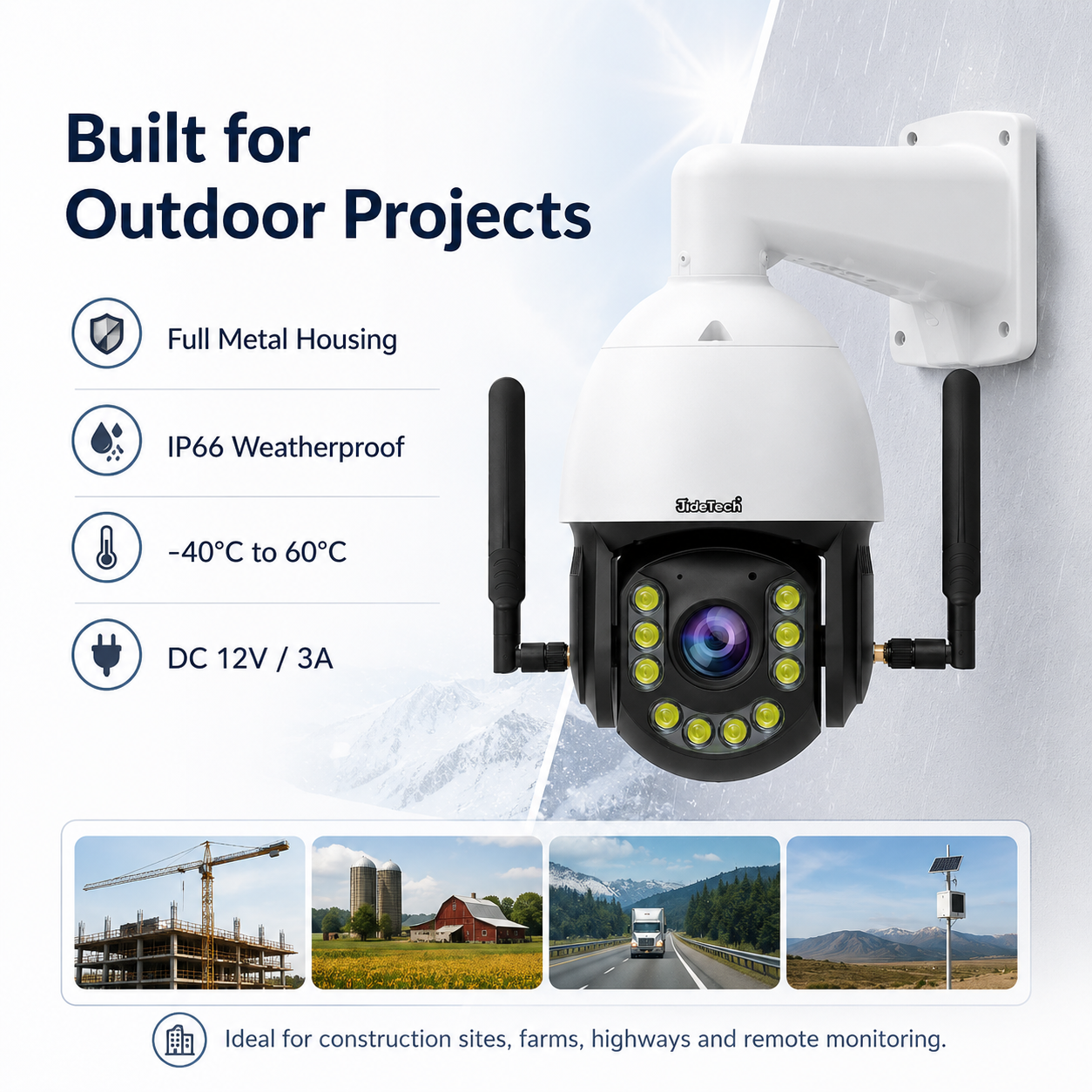

• Outdoor Metal Housing: IP66-rated construction for outdoor surveillance applications.

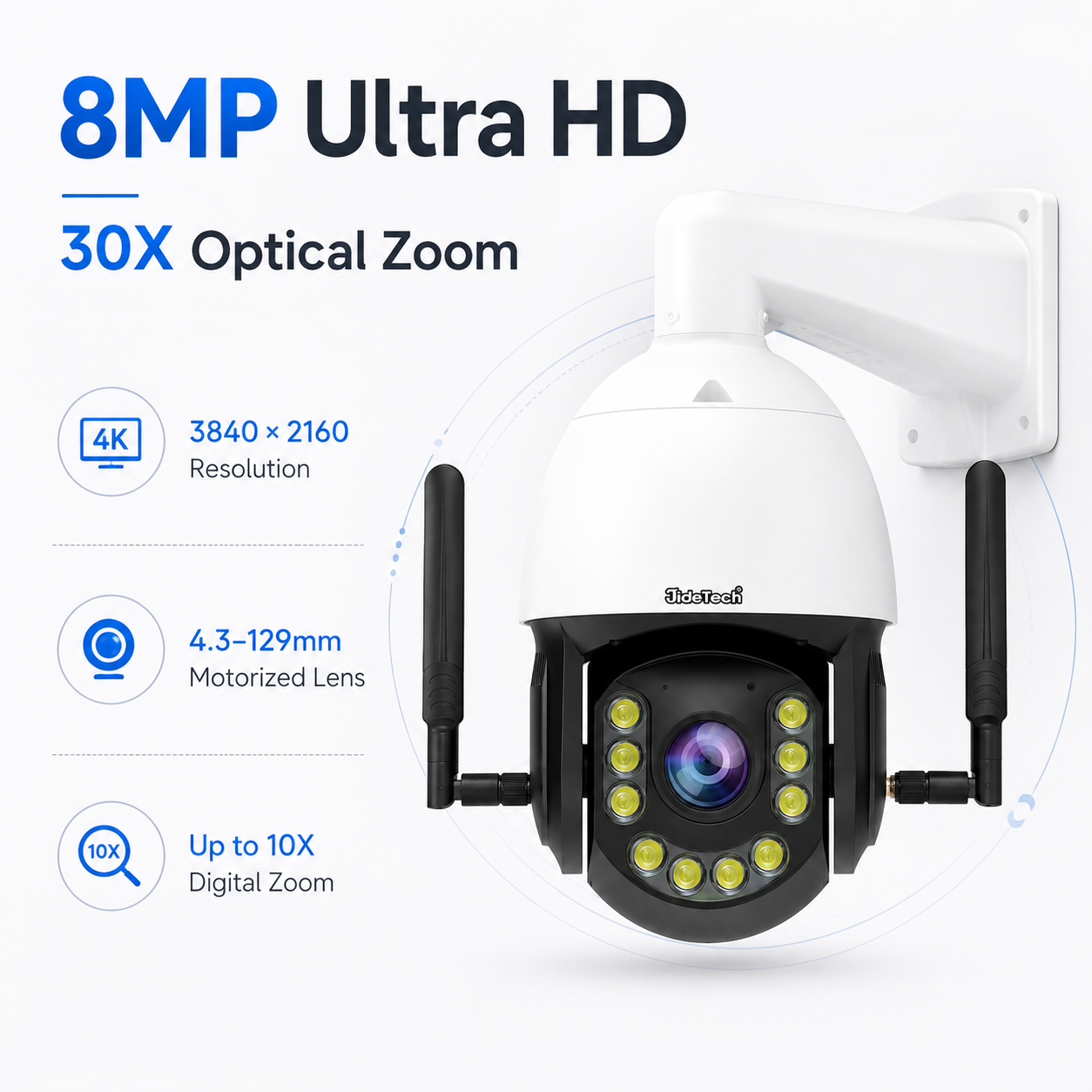

8MP Video and 30X Optical Zoom

The P22 Series uses a 4.3–129mm motorized lens with 30X optical zoom. It allows operators to monitor wide areas and zoom in on distant objects without relying only on digital enlargement.

• Maximum resolution: 3840 × 2160
• Maximum frame rate: 20FPS or 30FPS depending on the selected version
• Main stream: 8MP, 6MP, 5MP, 4MP, 1080P and 720P
• Triple-stream video output
• H.264, H.265 and H.265+ video compression
• CBR and VBR bitrate control
• WDR, HDR, BLC, HLC and digital defog
• 2D and 3D digital noise reduction

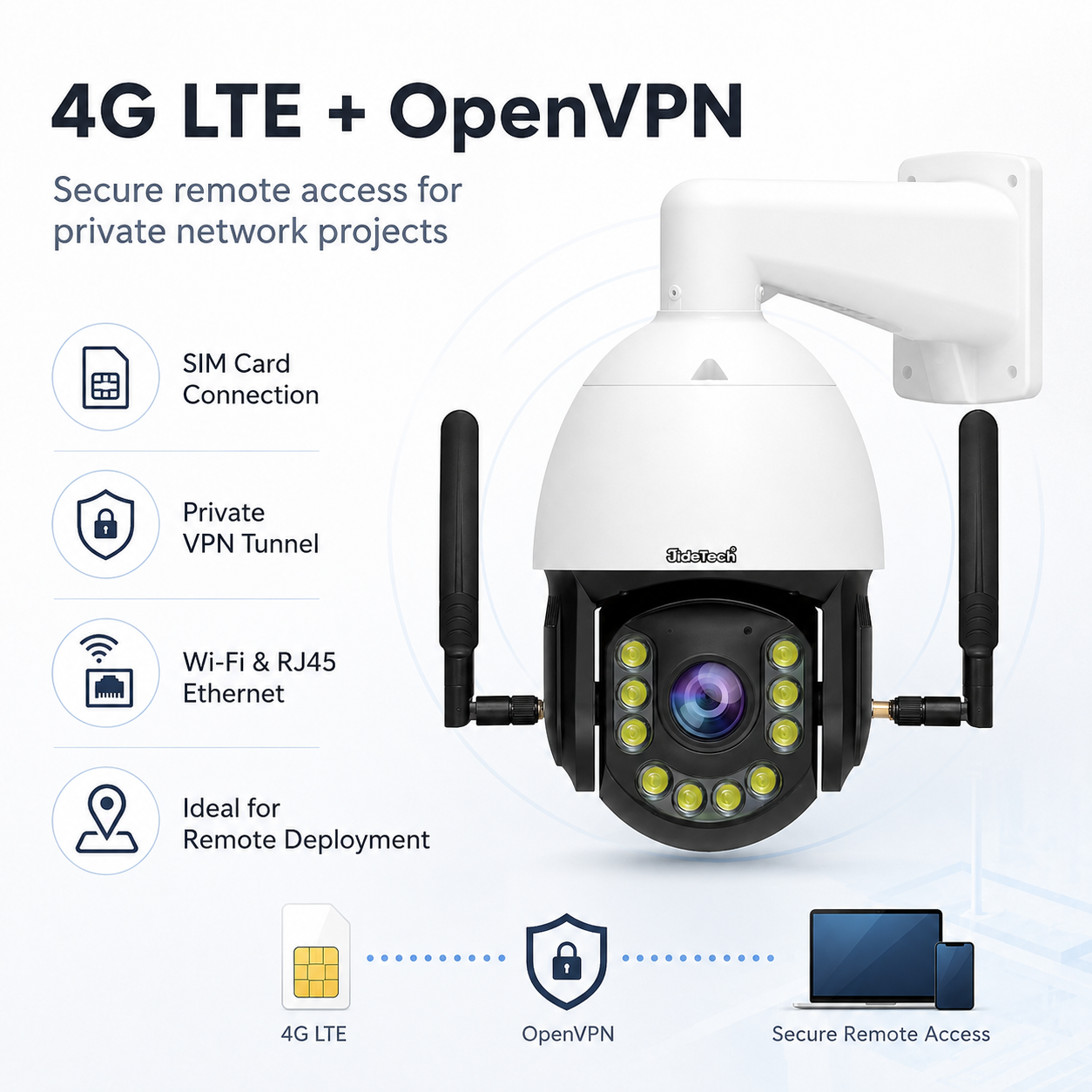

4G LTE and OpenVPN Private Network Access

The camera can connect to the internet through a 4G SIM card, 2.4GHz or 5GHz Wi-Fi, or a wired RJ45 Ethernet connection. It can then establish a secure connection to a customer-owned OpenVPN server for remote access and private network integration.

What Is OpenVPN?

OpenVPN is a VPN technology used to create an encrypted network tunnel between the camera and a private VPN server. After the tunnel is established, authorized users, VMS platforms, NVR systems or monitoring servers can access the camera through the private network.

Instead of relying only on direct public internet access, OpenVPN allows the camera to communicate with the customer's monitoring system through a controlled private network. This is especially useful for remote 4G surveillance projects, centralized monitoring platforms and installations with stricter network security requirements.

How OpenVPN Works with the Camera

1. The camera connects to the internet through 4G LTE, Wi-Fi or wired Ethernet.
2. The built-in VPN client connects to the customer's OpenVPN server.
3. A secure VPN tunnel is established between the camera and the private network.
4. Authorized monitoring systems can access the camera through the VPN network.
5. ONVIF, RTSP, HTTP, HTTPS and other supported protocols can be used through the private network, subject to the customer's routing and firewall configuration.

Benefits of OpenVPN Camera Access

• Private Network Integration: Connect remote cameras to a customer-controlled private network.
• Encrypted Communication: Camera traffic can be transmitted through an encrypted VPN tunnel.
• Reduced Public Exposure: Reduces the need to expose the camera management interface directly to the public internet.
• Centralized Monitoring: Multiple remote cameras can be connected to one private monitoring platform.
• Third-Party System Integration: Suitable for VMS, NVR, monitoring servers and customer-developed platforms.
• Flexible Network Access: OpenVPN can operate through 4G LTE, Wi-Fi or wired Ethernet.
• Remote Site Deployment: Suitable for construction sites, highways, farms, solar surveillance towers and other locations without fixed broadband.

OpenVPN Configuration Information

To configure the camera for a customer-owned OpenVPN server, the following information may be required:

• OpenVPN server IP address or domain name
• VPN server port
• TCP or UDP connection mode, depending on the server configuration
• VPN username and password, if required
• OpenVPN certificate or configuration files, if required
• Private IP address and network routing requirements
• DNS settings, if required
• Installation country and local 4G operator

The 4G LTE module and OpenVPN function are optional configurations and must be confirmed before production. Please provide the installation country, local mobile operator and VPN requirements before placing an order.

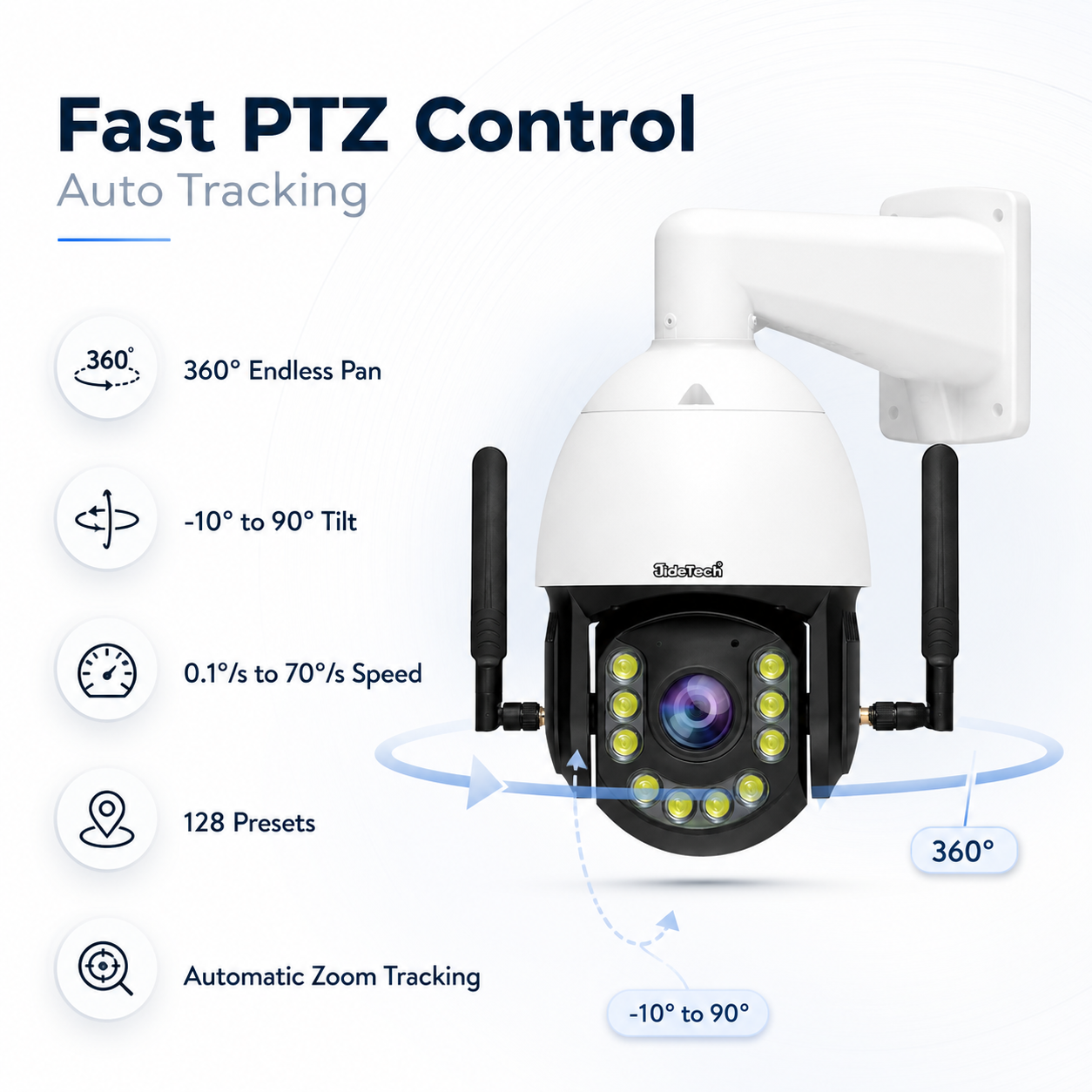

Professional PTZ Functions

• Continuous 360° pan rotation
• Tilt range from -10° to 90°
• Pan and tilt speed from 0.1°/s to 70°/s
• 128 preset positions
• Up to 32 presets in one cruise route
• Horizontal 360° scanning
• Left and right limit scanning
• Adjustable cruise and tracking speed
• ONVIF Absolute Move and absolute positioning

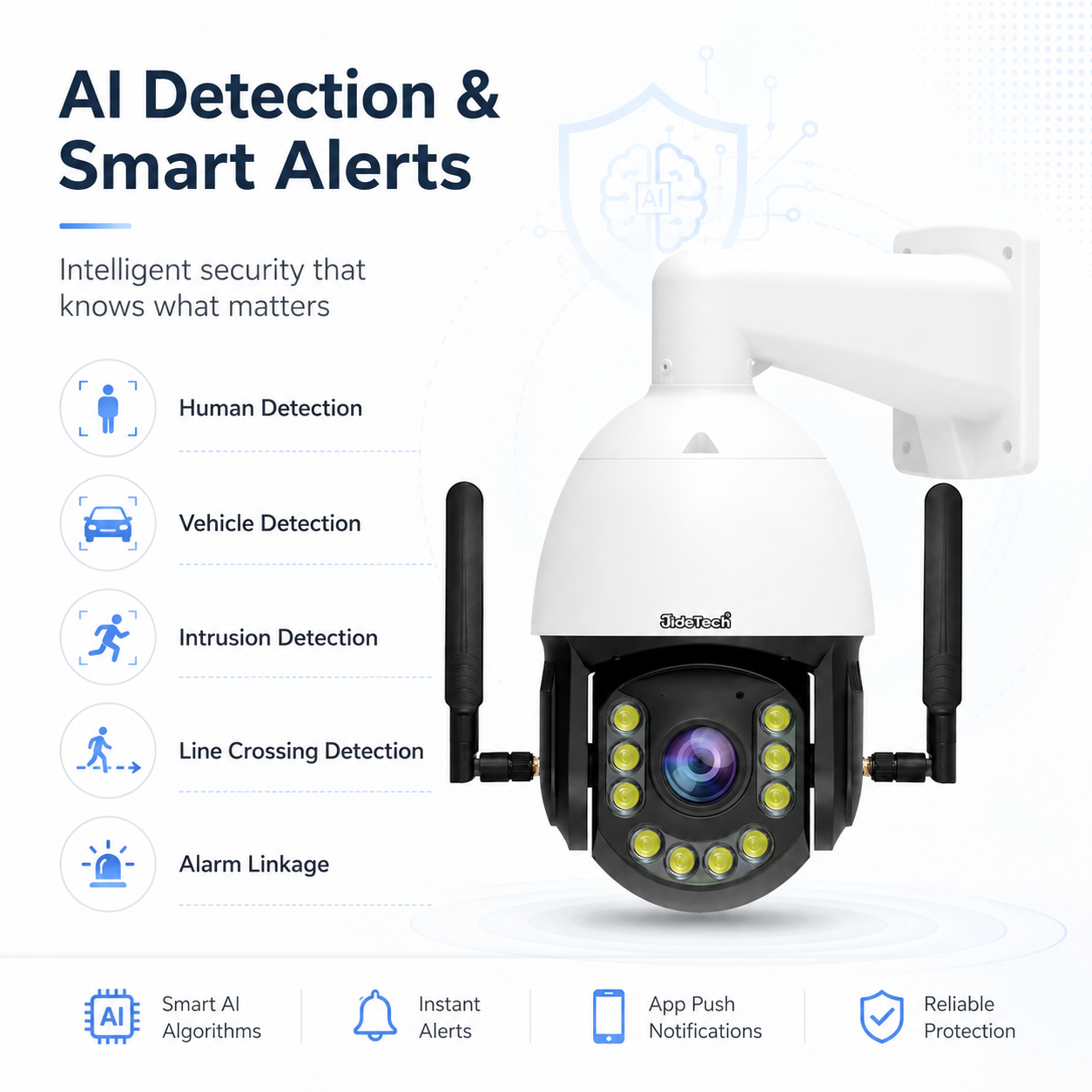

Intelligent Detection and Alarm Functions

• Motion detection
• Human detection
• Vehicle detection
• Intrusion detection
• Line-crossing detection
• Occlusion detection
• Custom detection areas
• Off-duty detection
• Passenger flow statistics
• Automatic human tracking with zoom

Intelligent events can trigger local recording, snapshots, FTP uploads, email notifications, audible alarms and alarm information push.

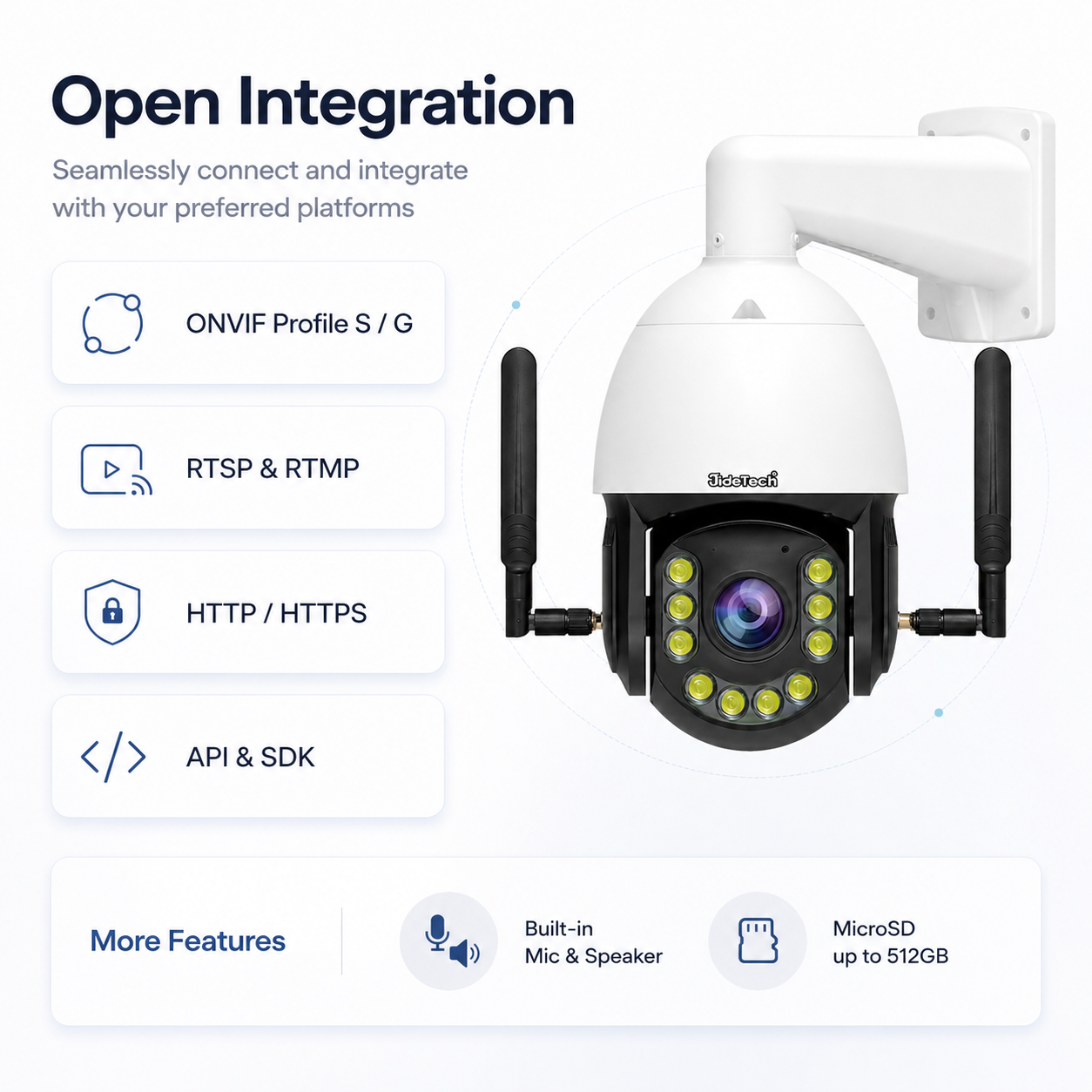

Network and System Integration

• 4G LTE SIM card connection
• RJ45 10/100Mbps Ethernet interface
• 2.4GHz and 5GHz Wi-Fi
• IPv4 and IPv6
• ONVIF Profile S and Profile G
• ONVIF Absolute Move
• RTSP live video streaming
• RTMP video transmission
• HTTP and HTTPS access
• Hikvision private protocol
• Dahua private protocol
• API and SDK available
• CGI snapshot interface

Supported 4G Frequency Bands

Available frequency bands depend on the selected regional 4G module. The European and international module can support:

• LTE FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28
• LTE TDD: B38 / B40 / B41
• WCDMA: B1 / B5 / B8

Please provide the installation country and local mobile operator so that the correct 4G module can be confirmed.

Technical Specifications

Typical Applications

• Remote construction site surveillance
• Solar-powered security towers
• Private APN and VPN monitoring projects
• Farms and agricultural facilities
• Highways and remote road monitoring
• Industrial facilities and warehouses
• Parking areas and temporary security projects
• Mobile and rapidly deployed surveillance systems

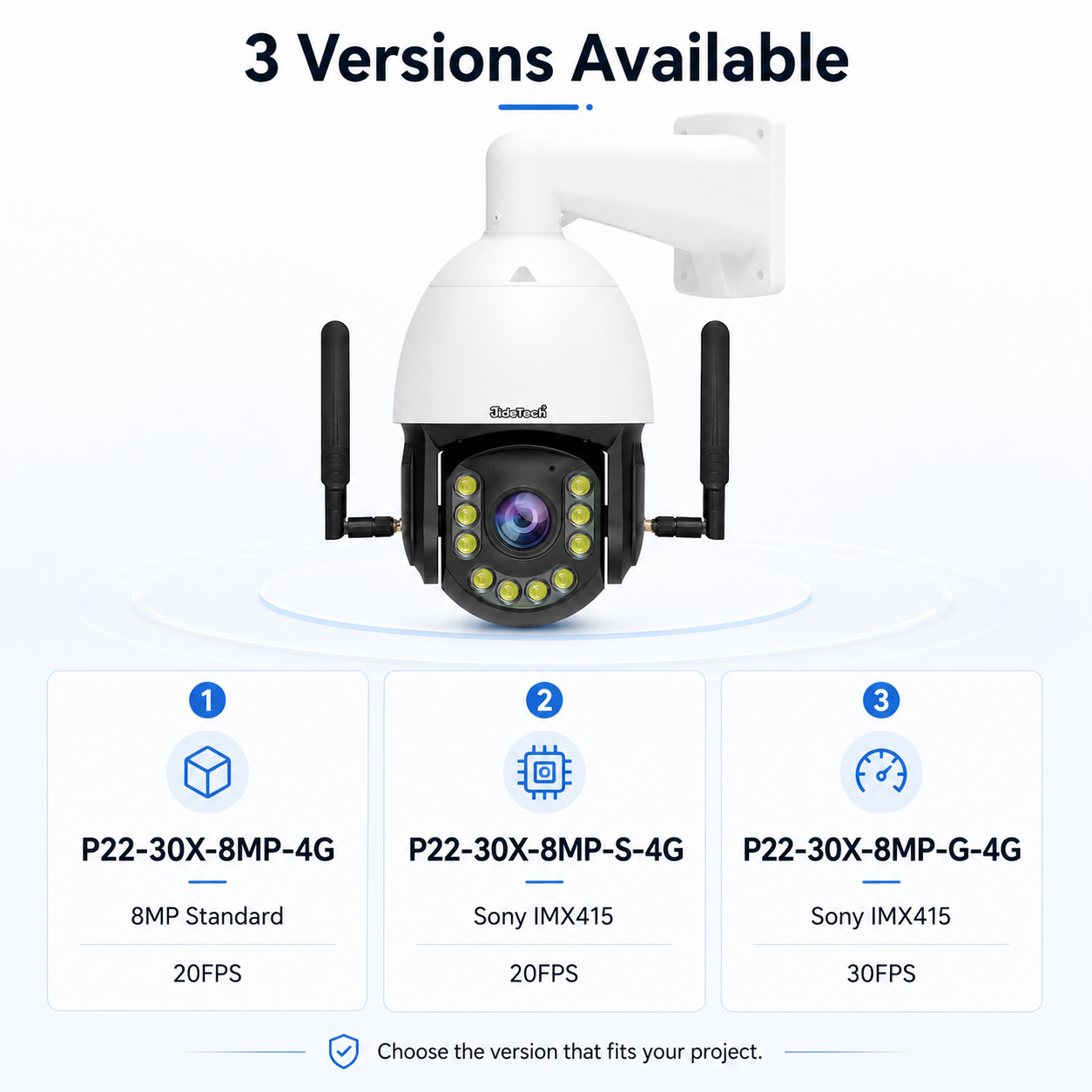

Ordering Information

Select the required camera version before ordering:

• P22-30X-8MP-4G: Standard 20FPS version
• P22-30X-8MP-S-4G: Sony IMX415 20FPS version
• P22-30X-8MP-G-4G: Sony IMX415 30FPS version

Please also confirm the installation country, mobile operator, required 4G frequency bands and OpenVPN server configuration.
