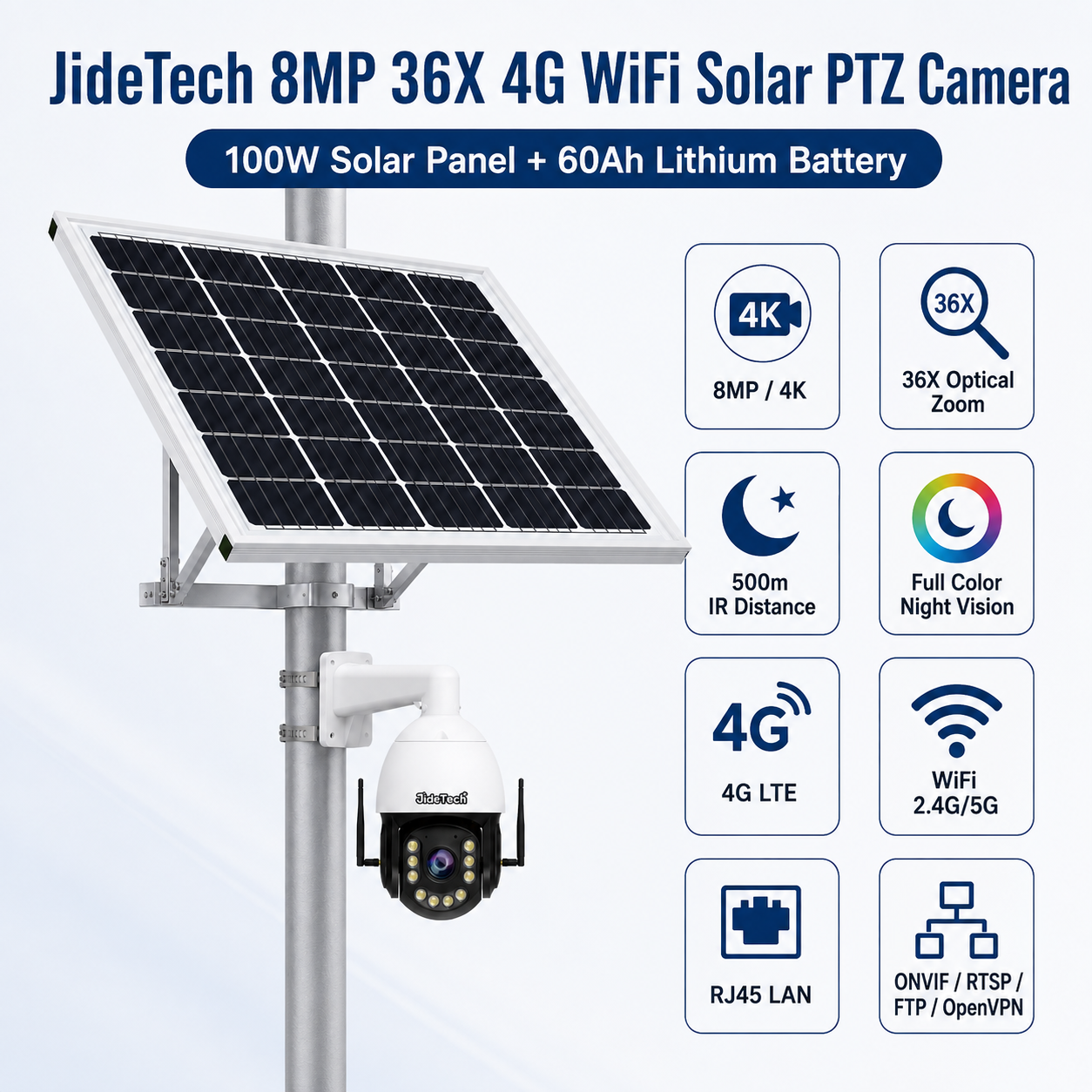

JideTech 8MP 36X 4G WiFi Solar PTZ Camera
The JideTech P22 Series is a professional continuous-power solar PTZ surveillance system designed for remote security projects, farms, construction sites, highways, industrial sites, borders, large properties and locations where grid power or wired network access is difficult.
Unlike low-power AOV solar cameras designed mainly for mobile APP monitoring, this system is built for professional CCTV projects requiring ONVIF, RTSP, FTP, OpenVPN, NVR/VMS integration and continuous video streaming.
Key Features
- 8MP / 4K Ultra HD Resolution
- 36X Optical Zoom with 4.6–167mm motorized zoom lens
- Up to 500m IR Night Vision
- Full Color Night Vision
- 4G LTE + 2.4G/5G WiFi + RJ45 LAN
- OpenVPN Secure Private Network Access
- ONVIF Compatible for NVR / VMS integration
- Supports FTP, RTSP, RTMP, HTTP and HTTPS
- Supports Hikvision Private Protocol
- Supports API / SDK integration
- MicroSD card storage up to 512GB
- Built-in microphone and speaker
- Human and vehicle intelligent detection
- Auto Tracking with Optical Zoom
- 360° Endless Pan Rotation
- IP66 Full-Metal Weatherproof Housing

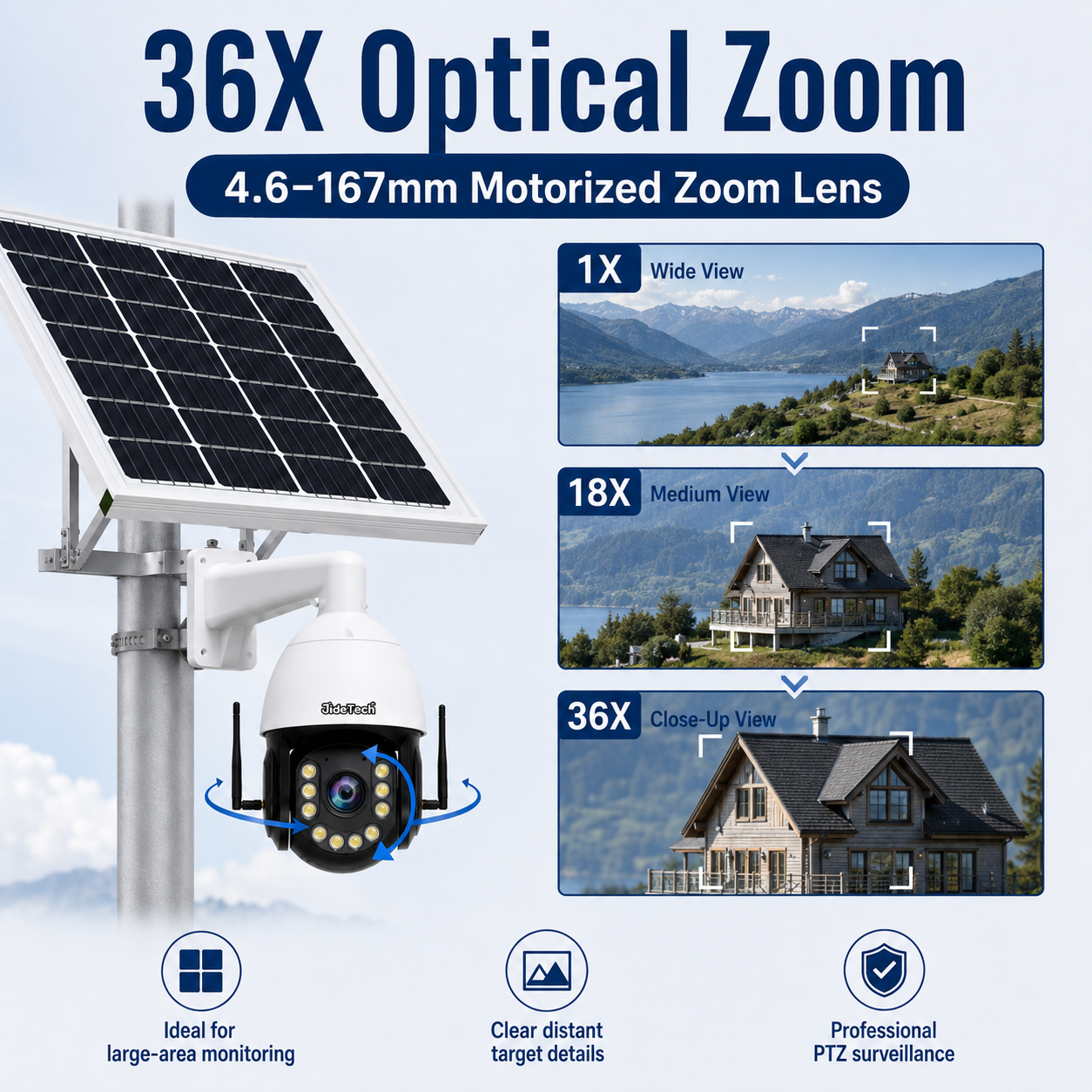

36X Optical Zoom & Up to 500m Long-Range Surveillance
Equipped with a 4.6–167mm motorized lens and 36X optical zoom, the P22 Series is designed for monitoring large outdoor areas and distant targets.

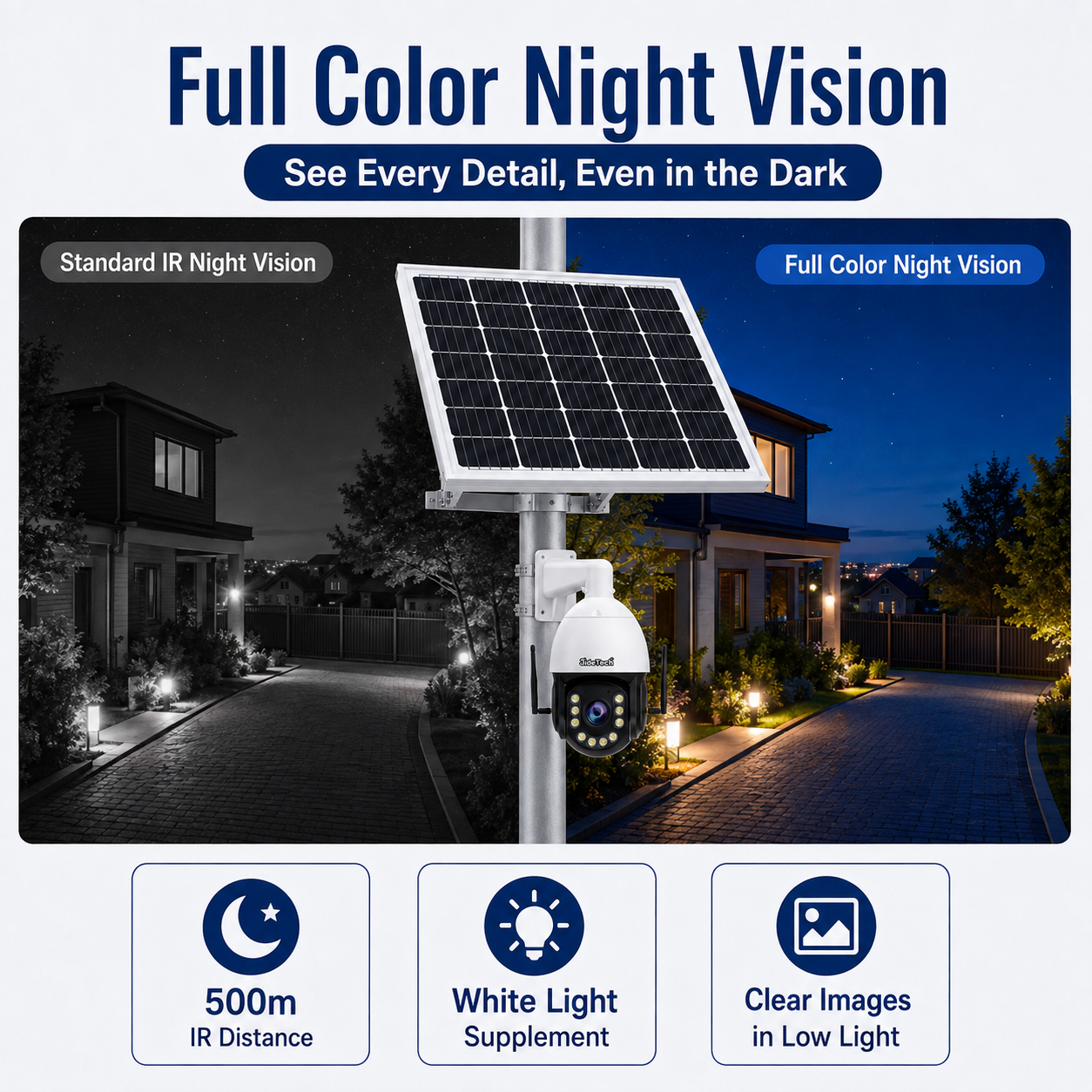

The powerful infrared illumination system provides a night viewing distance of up to 500 meters. Supplementary white light also enables full-color night vision when required.
This makes the camera particularly suitable for farms, highways, construction sites, industrial facilities, large properties, perimeter protection and other long-range outdoor surveillance applications.

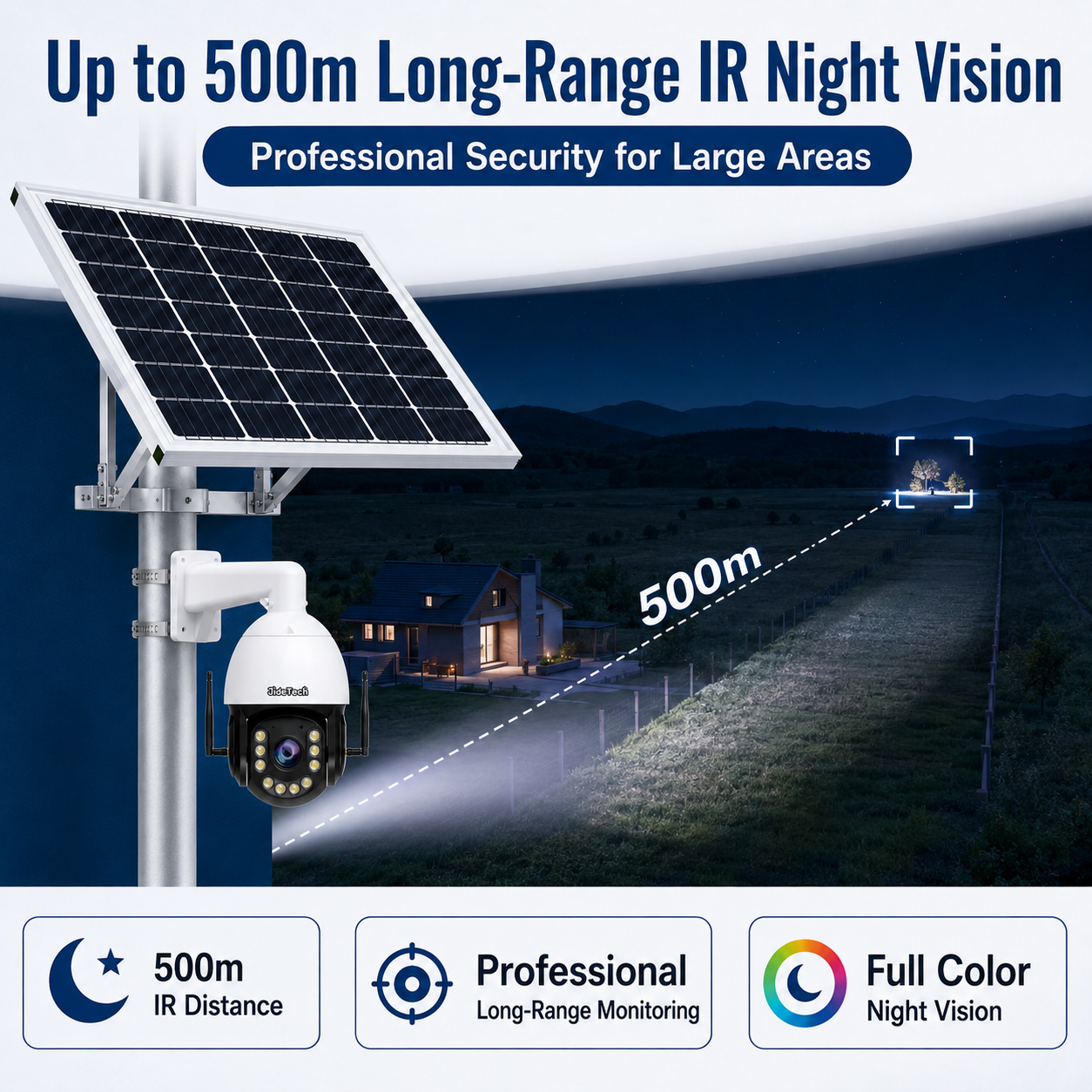

Up to 500m Long-Range Viewing Distance
Long-range optical zoom and infrared illumination allow the camera to monitor distant targets in large outdoor environments.
Long-range surveillance demonstration. Actual viewing performance may vary depending on weather, lighting conditions, target size and installation environment.
Professional High-Speed PTZ Control
The P22 Series supports 360° endless pan rotation and PTZ movement speeds up to 70°/s. It also supports presets, cruise scanning, limit scanning and intelligent target tracking.
Automatic zoom tracking allows the PTZ camera to follow detected targets while adjusting the optical zoom, providing better monitoring capability for large outdoor areas.

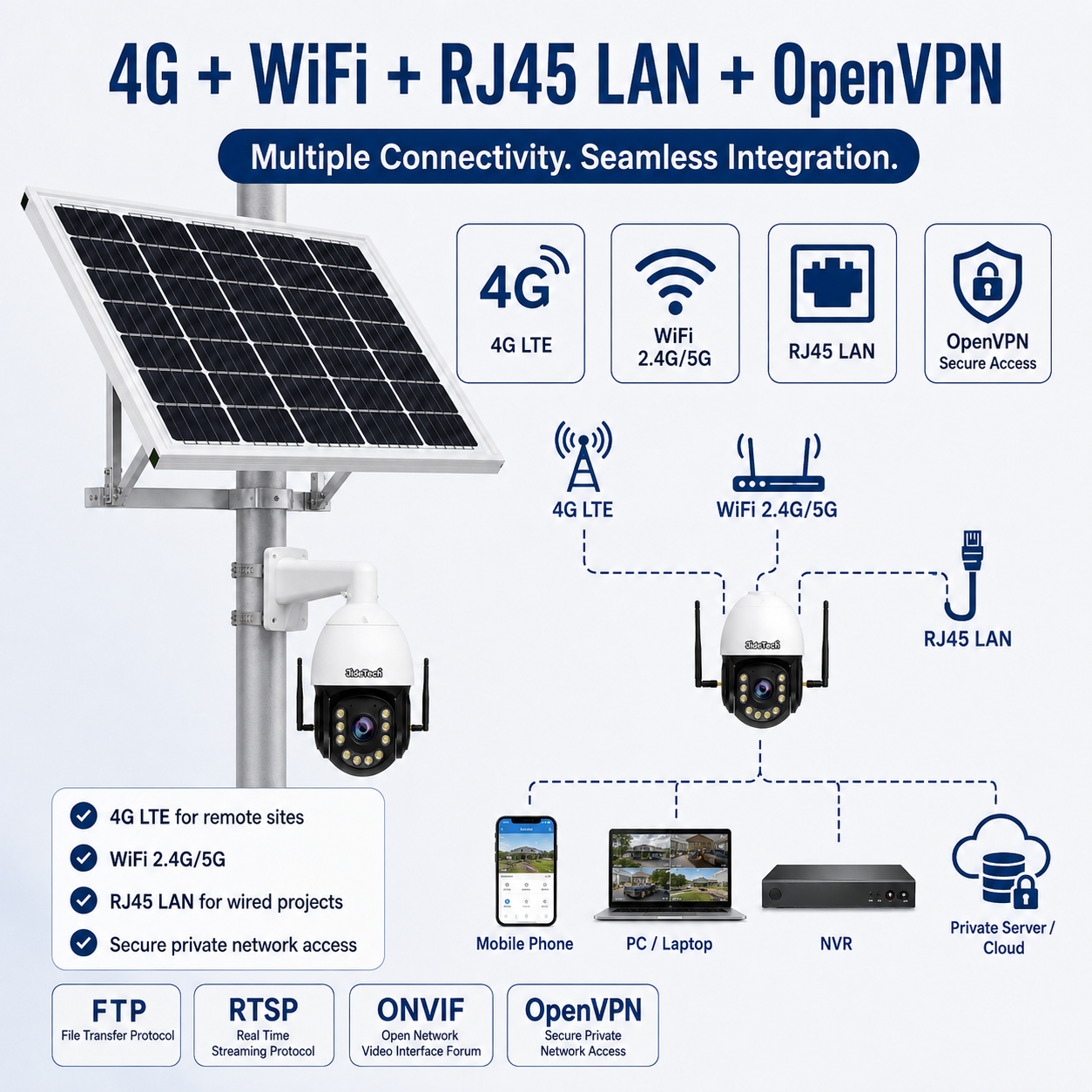

4G LTE + WiFi + LAN — Flexible Network Connection
One of the key advantages of the P22 solar PTZ system is that it is not limited to one network connection. The camera can connect through:
| Connection | Application |
|---|---|
| 4G LTE | Remote sites without fixed broadband connection |
| 2.4GHz / 5GHz WiFi | Wireless connection to local network |
| RJ45 LAN | Wired Ethernet connection for NVR, VMS or private networks |
This makes the camera suitable for standalone solar surveillance as well as professional CCTV systems requiring centralized NVR or VMS management.
OpenVPN Secure Private Network Access
The camera supports OpenVPN secure tunnel access for professional remote surveillance projects.
The camera can connect to a private VPN server through 4G LTE, WiFi or wired Ethernet, allowing project integrators to remotely access cameras through their own private network.
This is particularly useful for remote infrastructure, construction projects, farms, highways, mobile surveillance systems and other applications where secure private network integration is required.
ONVIF / RTSP / FTP / NVR / VMS Integration
The P22 is a professional IP surveillance camera rather than a closed, APP-only solar camera.
It supports standard CCTV protocols and integration methods including:
FTP can be used for image upload and project applications requiring scheduled or event-triggered snapshots. RTSP allows the live video stream to be integrated into compatible third-party software, NVRs and surveillance platforms.

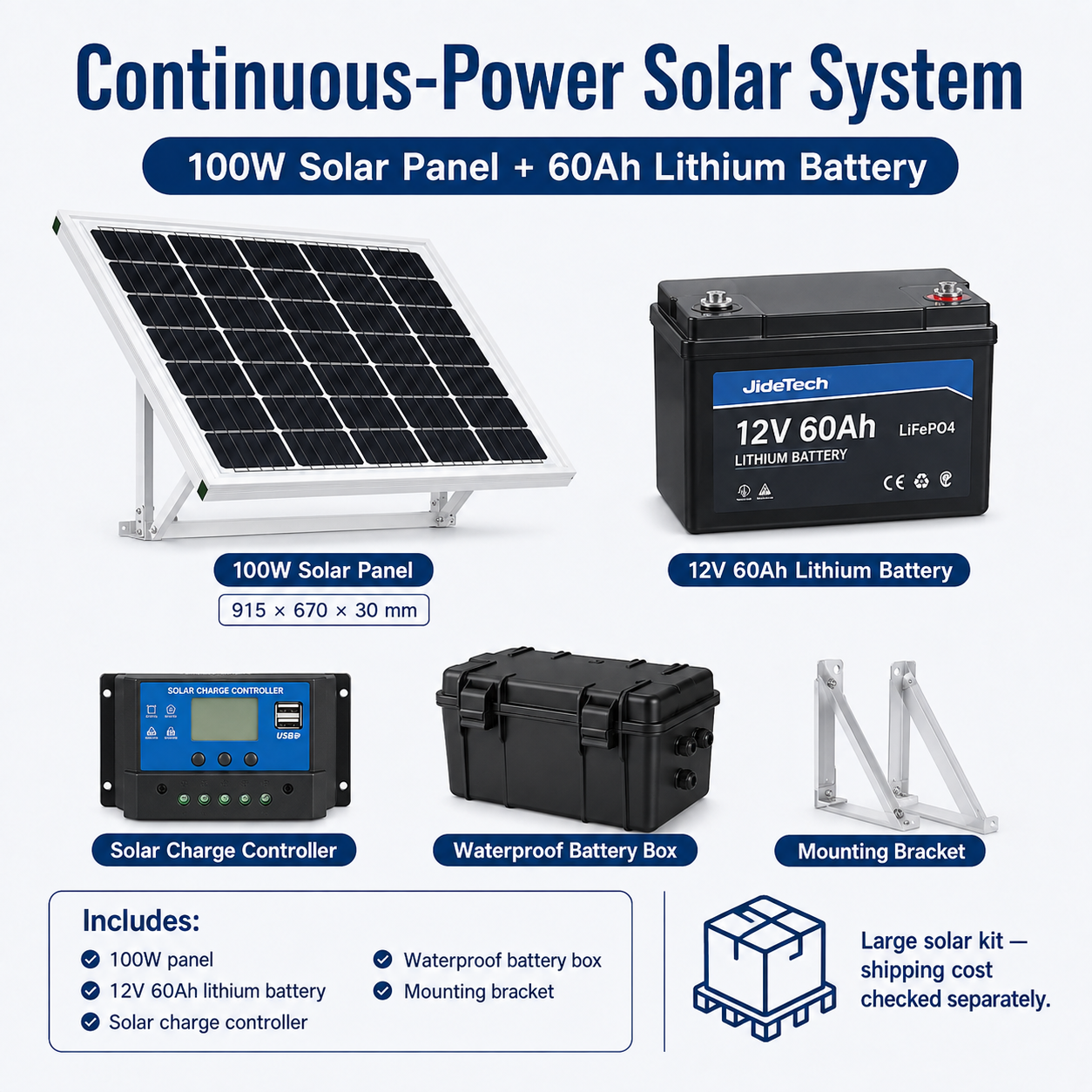

100W Solar Panel + 60Ah Lithium Battery
The solar power system is specifically designed to provide power for the professional P22 continuous-power PTZ camera.
The complete solar kit includes a 100W monocrystalline solar panel, 12V 60Ah lithium battery, solar charge controller, waterproof battery box and mounting bracket.
| Solar System | Specification |
|---|---|
| Solar Panel | 100W Monocrystalline Solar Panel |
| Solar Panel Size | Approx. 915 × 670 × 30mm |
| Lithium Battery | 12V 60Ah |
| Charge Controller | Solar Charge Controller |
| Battery Box | Waterproof Battery Box |
| Solar Panel Bracket | Included |
Important Shipping Notice
The 100W solar panel and 60Ah battery system is large and heavy, therefore international shipping costs can be relatively high.
Shipping cost is calculated separately according to order quantity and destination. Please send us your quantity, country, city and delivery address so JideTech can check the most suitable air, sea or other freight solution for your project.

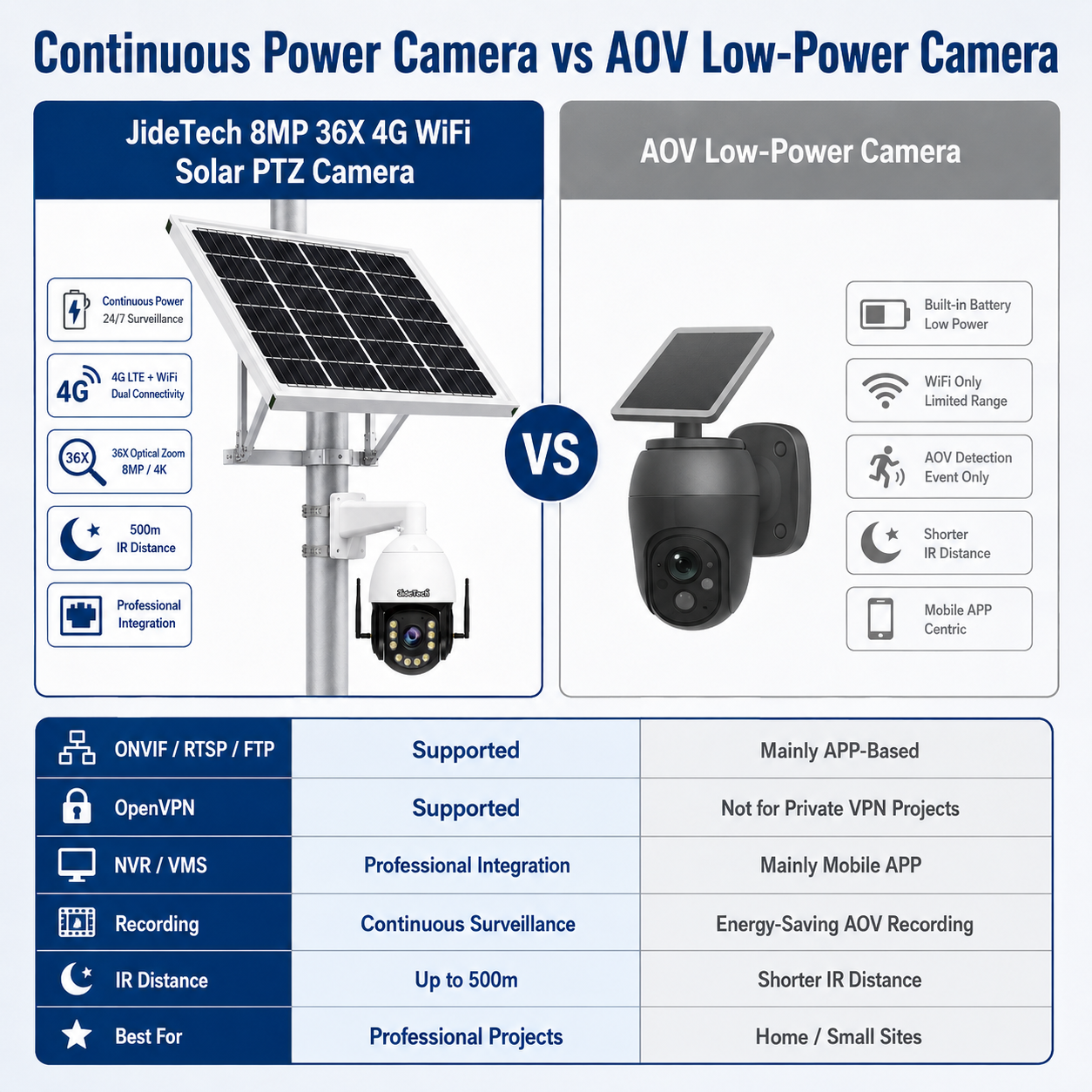

Continuous-Power Solar Camera vs AOV Low-Power Camera
Solar cameras are not all designed for the same type of application.
The JideTech P22 is a continuous-power professional surveillance system designed for CCTV projects requiring long-range monitoring, standard network protocols, NVR/VMS integration and private network access.
AOV low-power solar cameras focus more on low energy consumption, compact size, lower shipping cost and convenient mobile APP monitoring.
| Feature | Continuous-Power P22 | AOV Low-Power Camera |
|---|---|---|
| ONVIF | ✓ Supported | Mainly APP-based |
| RTSP | ✓ Supported | Mainly APP-based |
| OpenVPN | ✓ Supported | Not designed for private VPN projects |
| NVR / VMS | ✓ Professional Integration | Mainly Mobile APP |
| Recording | Continuous Surveillance | Energy-Saving AOV Recording |
| IR Distance | Up to 500m | Shorter Range |
| Solar System Size | Larger — Project Grade | Compact & Lightweight |
| Best For | Professional Projects | Home / Small Remote Sites |

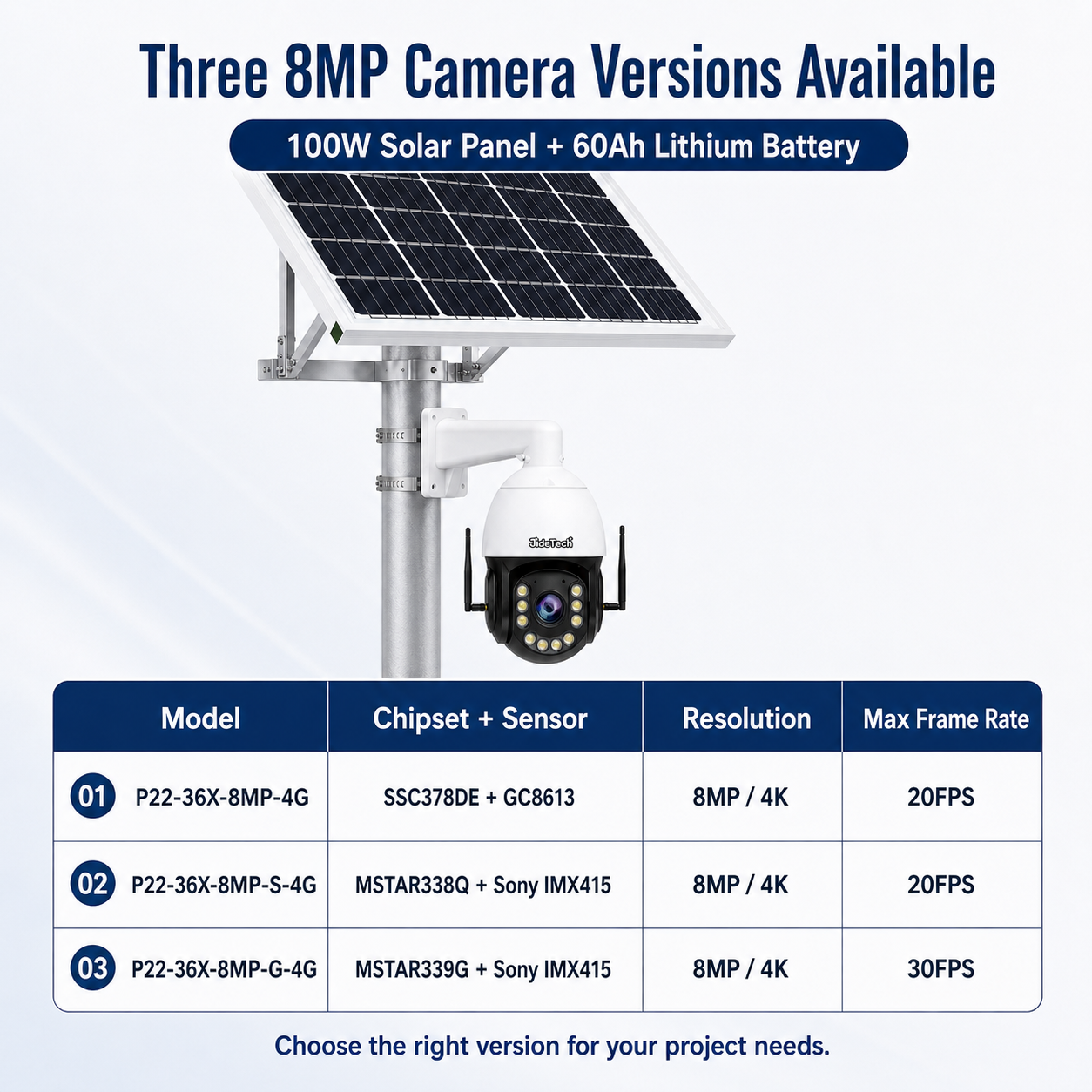

Three 8MP Camera Versions Available
Choose from three 8MP versions according to project requirements, chipset preference and frame rate.
| Model | Sensor / Chipset | Resolution | Frame Rate |
|---|---|---|---|
| P22-36X-8MP-4G | SSC378DE + GC8613 | 8MP / 4K | 20FPS |
| P22-36X-8MP-S-4G | MSTAR338Q + Sony IMX415 | 8MP / 4K | 20FPS |
| P22-36X-8MP-G-4G | MSTAR339G + Sony IMX415 | 8MP / 4K | 30FPS |
Main Specifications
| Resolution | 8MP / 3840 × 2160 |
| Optical Zoom | 36X |
| Lens | 4.6–167mm Motorized Zoom Lens |
| Digital Zoom | Up to 10X |
| IR Distance | Up to 500m |
| Full Color Night Vision | Supported |
| Network | 4G LTE / WiFi / RJ45 LAN |
| Protocols | ONVIF / RTSP / RTMP / FTP / HTTP / HTTPS |
| VPN | OpenVPN |
| Pan | 360° Endless |
| Tilt | -10° to 90° |
| Storage | MicroSD Card up to 512GB |
| Audio | Built-in Microphone & Speaker |
| Video Compression | H.264 / H.265 / H.265+ |
| Weather Protection | IP66 |
| Maximum Camera Power Consumption | Max. 23W |

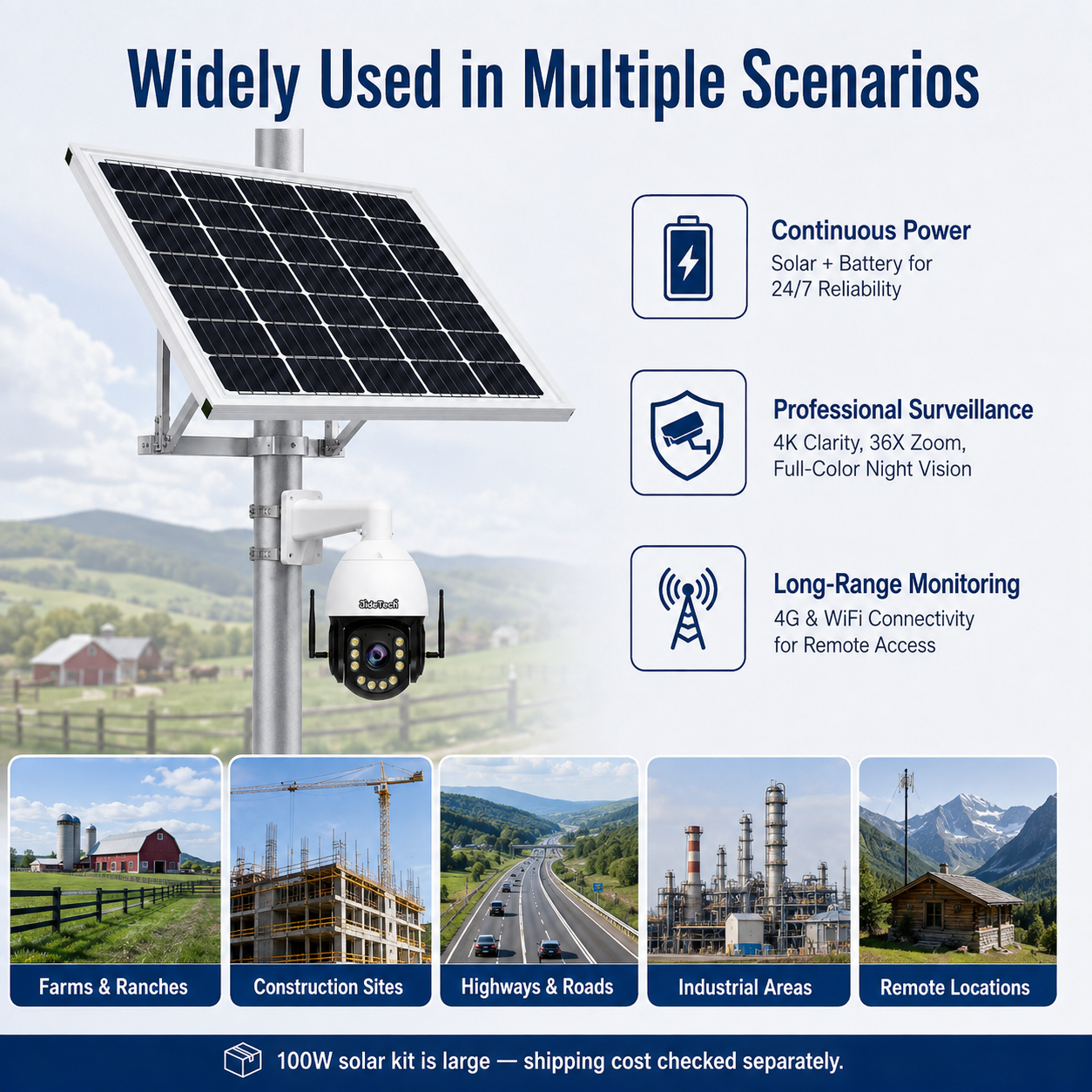

Recommended Applications
- Construction Site Surveillance
- Farm & Ranch Security
- Highway & Road Monitoring
- Industrial Sites
- Remote Infrastructure
- Perimeter Security
- Large Warehouse Yards
- Solar Surveillance Projects
- Private Network CCTV Projects
- Locations Without Grid Power or Fixed Internet
Need a Solar Surveillance Solution for Your Project?
Tell us your installation location, camera quantity, required backup time and delivery address. JideTech can recommend the appropriate solar power configuration and calculate the best shipping solution for your project.
