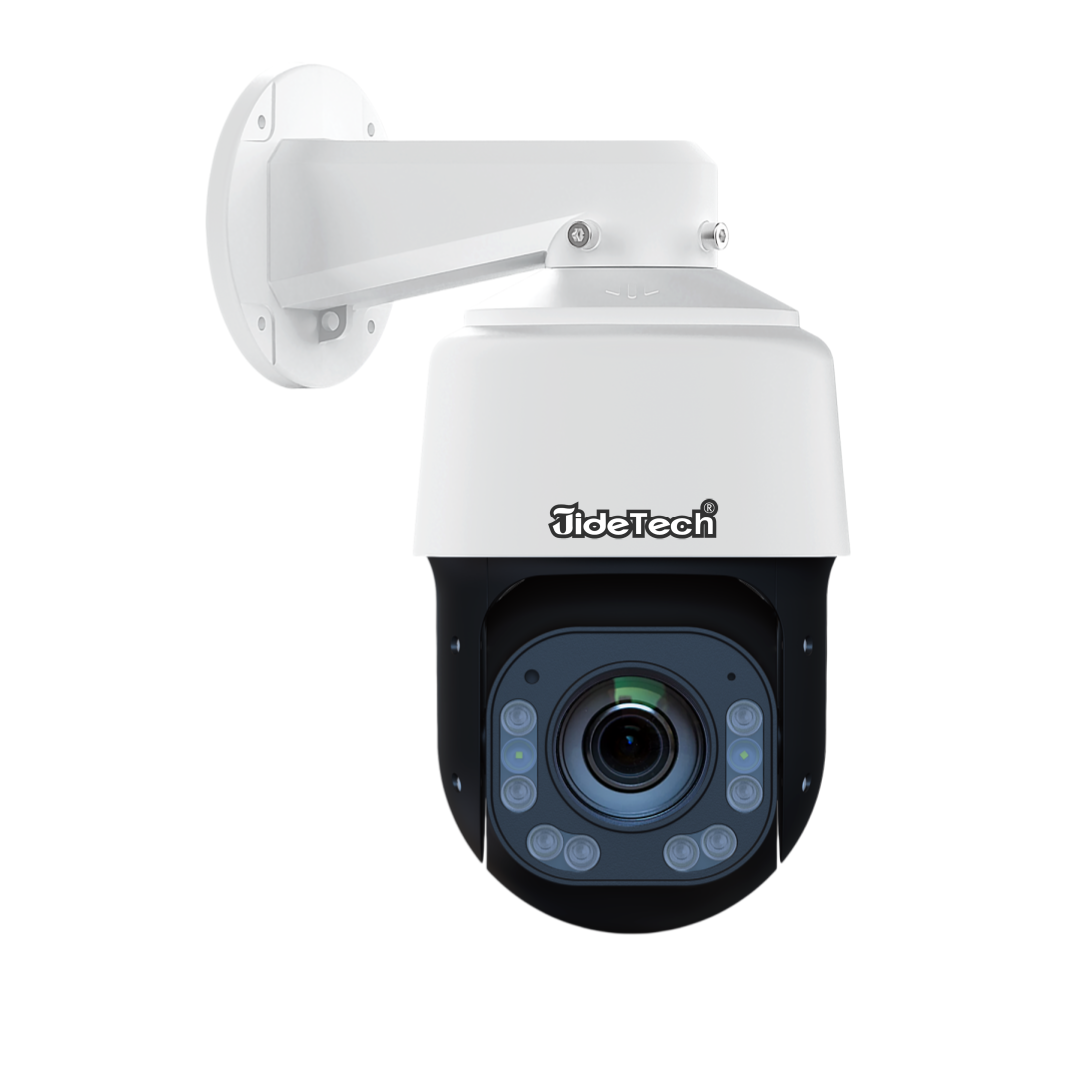

JideTech 5MP 20X Optical Zoom Absolute Positioning PoE PTZ IP Camera (P7-30X-5MP)
JideTech 5MP 20X Optical Zoom Absolute Positioning PoE PTZ IP Camera (P7-30X-5MP)
Features
1) 4.5inch PTZ Camera with Waterproof IP66, H.264/H.265/H.265+ Video Compression, Onvif 2.4 Version
2) 20X optical zoom 4.7-84.6mm Lens, 10 Pieces LED with infrared & White LED, Support Full Color Night , IR distance up to 120 meters.
3) Onvif 2.4 Compatibility,Supports Human Detection, Vehicle Detection, intrusion detection, crossing line detection, off-duty detection, Passenger flow statistics. FTP, RTSP, RTMP,HTTP,HTTPS,GB28181,Hikvision Private Protocol, Support ONVIF Absolute Positioning
4) Level: 0°~360°, rotation speed 0°/s～70°/s, Vertical -10°～90°, rotation speed 0°/s～70°/s
5)Built-in SD Card Slot (Max Support 512GB), Built-in microphone,
6) Built-in Power Over Ethernet POE: 48V-52V (IEEE 802.3af standard )
Specification
| Model No.: | P7-20X-5MP-E | P7-20X-5MP |
| Camera | ||
| Max Resolution | 5MP | |
| Sensor | 1/2.7" SSC377D+SC535 | 1/2.8" MSTAR30KD+IMX335 |
| Min. Illumination | Color 0.01Lux/Night 0.001Lux@F1.6 | |
| Shutter | Auto/Manual | |
| WDR | WDR.HDR | |
| Lens | ||
| Lens | 4.7–84.6mm Motorized Zoom Lens | |
| Zoom | 20X | |
| Digital Zoom | Support, Up to 10X Digital Zoom | |
| Aperture | F1.6 | |
| Focus | Auto-Focus | |
| Field of View (Horizontal) | 59.5° ~ 3.3° | |
| Field of View (Vertical) | 35.6° ~ 1.9° | |
| Field of View (Diagonal) | 66.6° ~ 3.8° | |
| Illuminator | ||
| IR LED | Φ38 6pcs + 4pcs Lights | |
| IR Distance | Up to 120 m | |
| Smart Supplement Light | Yes | |
| IR CUT setting | Support Auto, Timing, External and Manual | |
| Video | ||
| Video Compression | H.264 / H.265 /H.265+ | |
| Max Resolution | 2592X1944 | |
| Frame Rate | 30fps | |
| Main Stream | 2592x1944, 2560x1440, 2304x1296, 1080P, 720P | |
| Sub Stream | 720x480 30fps, 640x360 30fps ,480x360 30fps,CIF, VGA | |
| 3rd Stream | 1080P, 720P, CIF | |
| Bit Rate Type | CBR, VBR | |
| Bit Rate(kbps) | Main stream 512~12288, Sub-Stream 64~1024, 3rd Stream 64~1024 | |
| Frame Interval | 1-200 | |
| Day and night switching | Support automatic D/N switch, and commodify the switching sensitivity. | |
| Image | ||
| Digital Noise Reduction | 2D/3D | |
| Image adjustment | Support Brightness, Contrast, Saturation, sharpness, blc, hlc, 2D NR, 3D Repower Frequency, Forced Anti-flicker, Horizon Flip, Vertical Flip, Defogged shutter and Night shutter mode | |
| IR Cut Mode | Auto, timing, External, Manual | |
| HLC | Support | |
| BLC | Support | |
| Defog | Support | |
| WDR | Support | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| Audio | ||
| Microphone | Built-in | |
| Speaker | Built-in | |
| Encode Type | G.711U, G.711A, AAC | |
| Sample Rate | 8000 | |
| Bitrate | 64000 | |
| Audio output Volume | 0-100 | |
| Audio Input Volume | 0-100 | |
| PTZ | ||
| Protocol | PELCO-P, PELCO-D, MOLYN-P, SAMTA-P | |
| Preset | 128 | |
| Pan Range | 360° (endless) | |
| Pan Speed | 0.1°/s to 70°/s | |
| Tilt Range | -10°~90° | |
| Tilt Speed | 0.1°/s to 70°/s | |
| Tracking Speed | Tracking speed can be customized | |
| Tracking zoom | support automatic lens zoom on or off | |
| Humanoid Tracking | support fixed-point tracking and cruise tracking | |
| Horizontal 360°scanning | Supports horizontal 360° horizontal scanning all the way, and supports the speed can be customized | |
| Cruise | Support one cruise scan (maximum support 32 preset positions) | |
| Cruising speed | Support speed adjustable | |
| Left & right limit scanning | Support 1channel limit scanning, support adjustable scanning speed | |
| Focus Mode | Support 3 focus modes | |
| Absolute Positioning | Support ONVIF and Onvif Absolute move, RTSP, RTMP, Hikvision protocol, Absolute Positioning | |
| Event | ||
| Motion Detect | Support Tigger Recording, Snapshot etc | |
| Intelligent detection | Motion detection; humanoid detection; occlusion detection, custom area | |
| Detect Target | Human, Car, Motorcycle, E-bike, Bicycle, Gas tank | |
| Alarm linkage | TF card recording, screenshot, email upload, FTP upload, sound alarm, occlusion alarm, alarm information push | |
| Storage | ||
| Local Storage | MicroSD, up to 512 GB & USB | |
| Network Storage | NFS | |
| Schedule Record | Support | |
| Interface | ||
| Audio I/O | 1 input, 1 output | |
| WIFI | N/A | |
| Alarm I/O | N/A （Scalable） | |
| Built-in Mic | Yes | |
| Built-in Speaker | Yes | |
| Network | 1*10/100Mbps Ethernet port, RJ45 port | |
| RS485 | N/A （Scalable） | |
| RS232 | N/A （Scalable） | |
| Network | ||
| TCP/IP | Static/DHCP | |
| IP Version | IPv4, IPv6 | |
| Protocols | SMTP, RTMP, HTTP, HTTPS, HTML5, RTSP, HIKVISION Private Protocol , DAHUA Private Protocol , | |
| P2P | Support, Videolink | |
| Client | AjDevTools, LMS | |
| Web Browser | Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
| Compatible Integration | ONVIF (Profile S, Profile G), API, SDK | |
| General | ||
| Power | DC12V3A, IEEE 802.3af standard | |
| Humidity | ≤95% Non-Condensing | |
| Consumption | < 24W | |
| Working Environment | -40 ℃ to 60 ℃ Humidity: ≤ 95% RH (non-condensing) | |
| Storage Environment | -40 ℃ to 60 ℃ E101, Humidity: ≤ 95% RH (non-condensing) | |
| Web Client Language | 12 Languages:English, Chinese PyccKni, Deutsch Italiano Turkiye Polski Russian Arabic Japanese | |
| Dimensions | 24.5*24.5*16.5CM | |
| Weight | ||
| Certification | CE,FCC, RoHs, SABER | |
