JideTech 8CH/16CH 8MP AI PoE NVR with 4K HDMI
JideTech 8CH/16CH 8MP AI PoE NVR with 4K HDMI

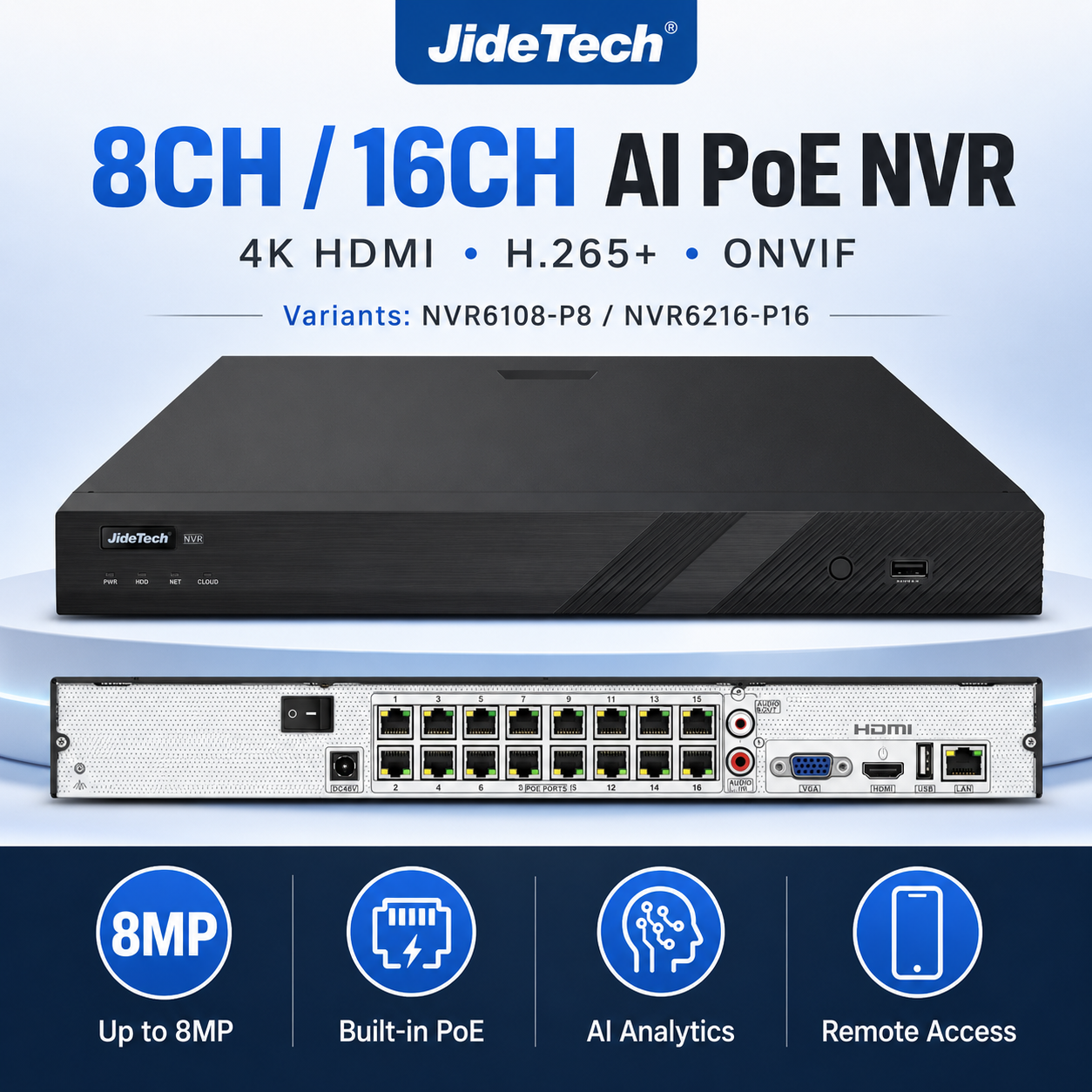

8CH / 16CH AI PoE Network Video Recorder
The JideTech AI PoE NVR series is available in 8-channel and 16-channel configurations for professional IP surveillance systems. Both models support IP cameras with resolutions up to 8MP, built-in PoE ports, 4K HDMI output, H.265+ compression and intelligent video analytics.
Choose the 8-channel model for small and medium-sized surveillance systems, or the 16-channel model for larger commercial, industrial, parking and access-control projects.
Key Features
- 8CH or 16CH IP camera input: Two configurations available
- Built-in PoE ports: Connect and power compatible PoE cameras directly
- Up to 8MP camera resolution: Supports 8MP, 6MP, 5MP, 4MP, 3MP and lower-resolution IP cameras
- 4K HDMI output: Up to 3840 × 2160 display resolution
- H.265+ compression: Reduces storage and bandwidth requirements
- AI analytics: Face detection and human/vehicle classification
- License plate recognition: Supports LPR analytics provided by compatible IP cameras
- Smart recording: Manual, scheduled, motion, sensor, POS and AI recording modes
- Smart search: Search recordings by time, event, tag or intelligent event
- Simultaneous playback: Up to 8 or 16 channels depending on the selected model
- ONVIF support: Designed for integration with compatible ONVIF IP cameras
- Remote monitoring: Web browser, CMS and mobile access
- Two-way audio: RCA audio input and output
- Flexible backup: USB storage and network backup

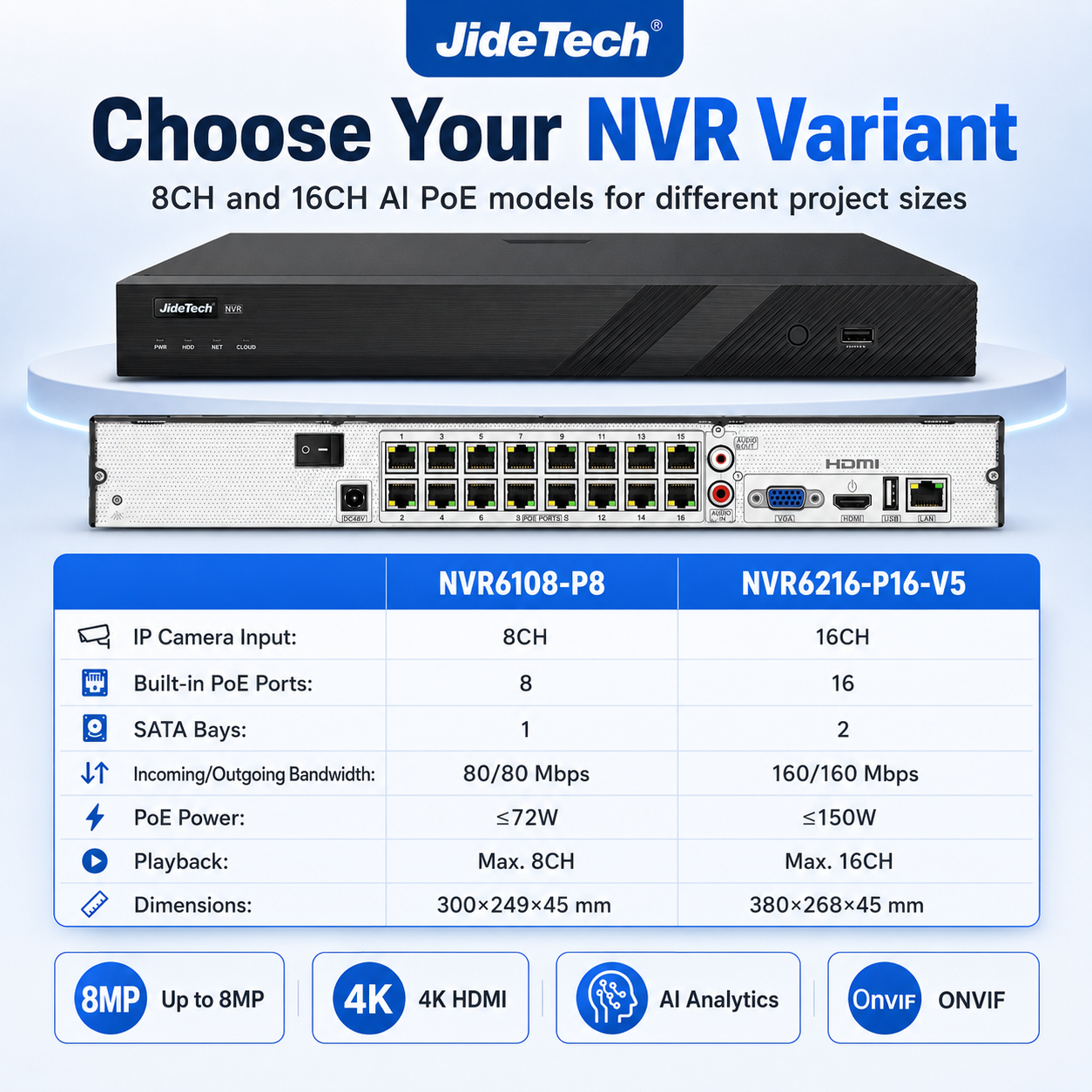

Choose the Right Model
| Specification | 8CH PoE / 1 SATA Bay | 16CH PoE / 2 SATA Bays |
|---|---|---|
| Model | NVR6108-P8 | NVR6216-P16-V5 |
| IP Camera Input | 8 Channels | 16 Channels |
| Built-in PoE Ports | 8 × 100Mbps RJ45 | 16 × 100Mbps RJ45 |
| Maximum Camera Resolution | Up to 8MP | Up to 8MP |
| Simultaneous Playback | Up to 8 Channels | Up to 16 Channels |
| Incoming / Outgoing Bandwidth | 80 / 80Mbps | 160 / 160Mbps |
| AI by IP Camera | Up to 8 Channels | Up to 16 Channels |
| AI by NVR | Up to 2 Channels | Up to 2 Channels |
| SATA Interface | 1 × SATA 3.0, max. 10TB | 2 × SATA 3.0, max. 10TB |
| Maximum PoE Output | 72W | 150W |
| Power Supply | DC 48V / 1.8A | DC 48V / 3.75A |
| Dimensions | 300 × 249 × 45mm | 380 × 268 × 45mm |
The SATA specification indicates the number of supported internal hard-drive bays. A hard drive is not stated as included unless it is separately selected or confirmed in the order.
AI Video Analytics
The NVR supports intelligent surveillance functions provided either by compatible AI IP cameras or by the NVR itself.
- Face detection by compatible IP cameras
- Up to 2-channel face detection processed by the NVR
- Human and vehicle classification
- Human and vehicle attribute analysis provided by compatible IP cameras
- License plate recognition events provided by compatible LPR cameras
- Region intrusion and tripwire events
- Object abandoned or missing detection
- Video exception and smart alarm events

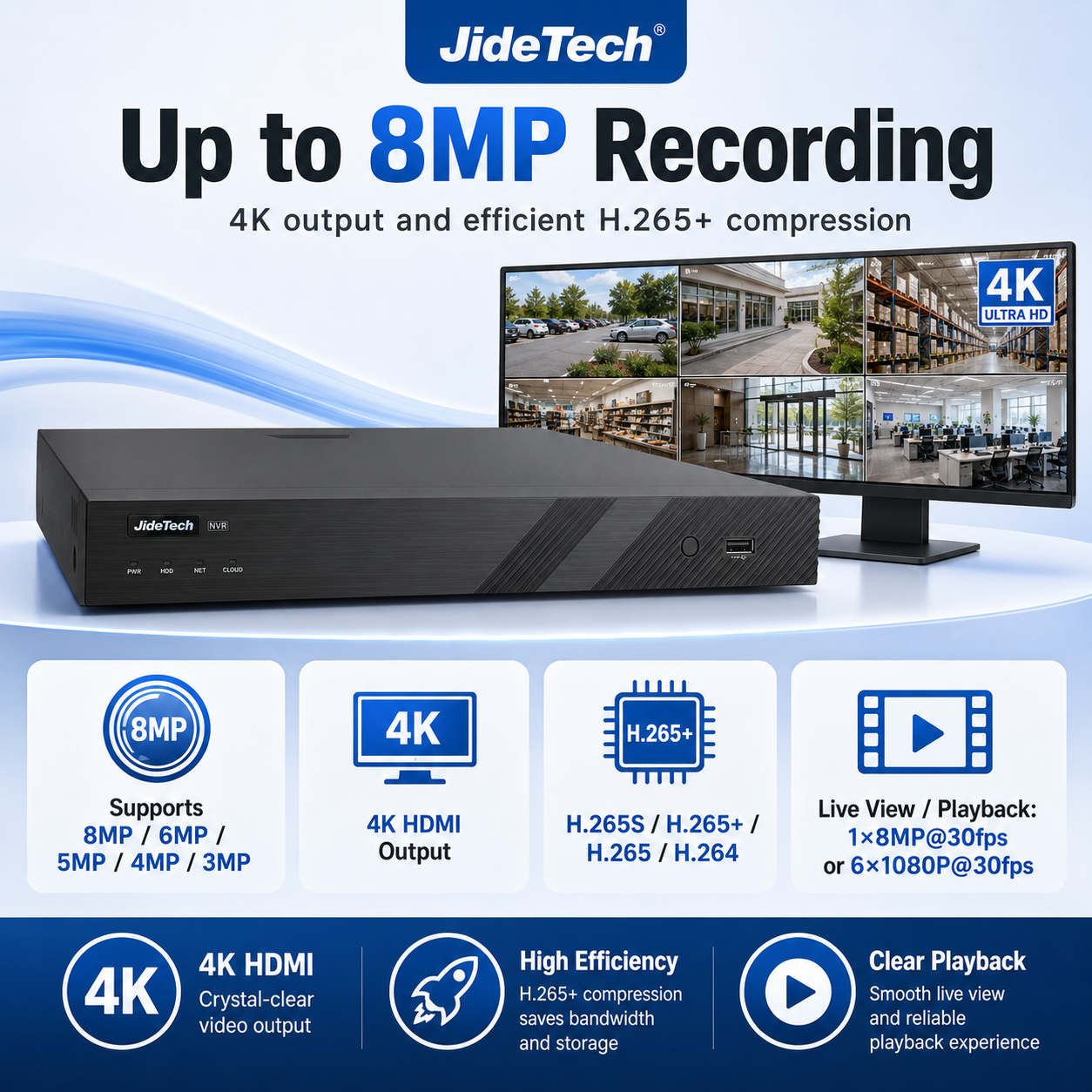

Up to 8MP Recording and 4K Display
Both models support IP camera input and recording resolutions including 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P and lower resolutions.
The HDMI output supports resolutions up to 3840 × 2160, while the VGA output supports up to 1920 × 1080.
Efficient H.265+ Video Compression
H.265S, H.265+, H.265 and H.264 video compression formats help reduce storage usage and network bandwidth while maintaining high-quality video.
Flexible Recording and Playback
The NVR supports manual, scheduled, motion, sensor, POS and AI event recording. Recordings can be searched by time slice, time, event, tag or smart event.
Playback functions include play, pause, fast forward, fast backward and digital zoom.
Remote Monitoring and Management
Users can access the NVR remotely through a web browser, CMS software or compatible iOS and Android mobile devices.
Remote functions include live preview, playback, backup, PTZ operation and system configuration. Up to 64 client users can access the system.
Network Compatibility
Supported network protocols include TCP/IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, HTTPS, SMTP, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP and ONVIF.

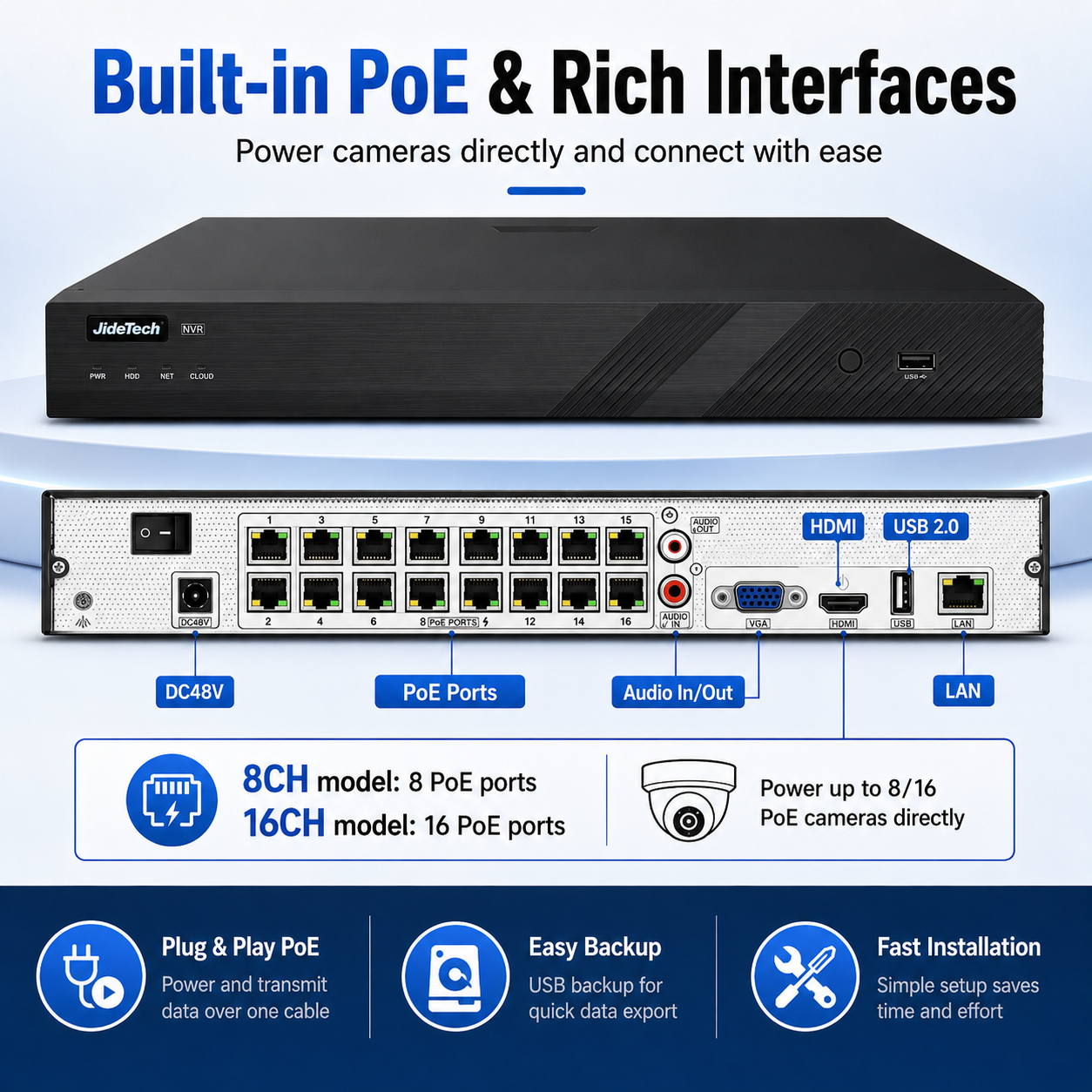

Audio, Alarm and Backup
- Network audio from connected IP cameras
- 1 × RCA audio input for two-way audio
- 1 × RCA audio output
- Supports alarm input and output from compatible IP cameras
- Alarm actions include recording, snapshot, preset and e-mail notification
- Local backup through USB flash drive or USB hard drive
- Network backup supported
- 2 × USB 2.0 ports
Recommended Applications
- Residential and commercial surveillance
- Retail stores and offices
- Warehouses and factories
- Parking and barrier gate systems
- License plate recognition projects
- Industrial parks and logistics centers
- Schools, hotels and residential communities
- Multi-camera PoE security systems
Certifications and Operating Environment
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 10%–90%
- Certifications: CE and FCC
- Environmental Compliance: EU RoHS, REACH and WEEE
