JideTech LC010 Forest Fire Prevention Solution

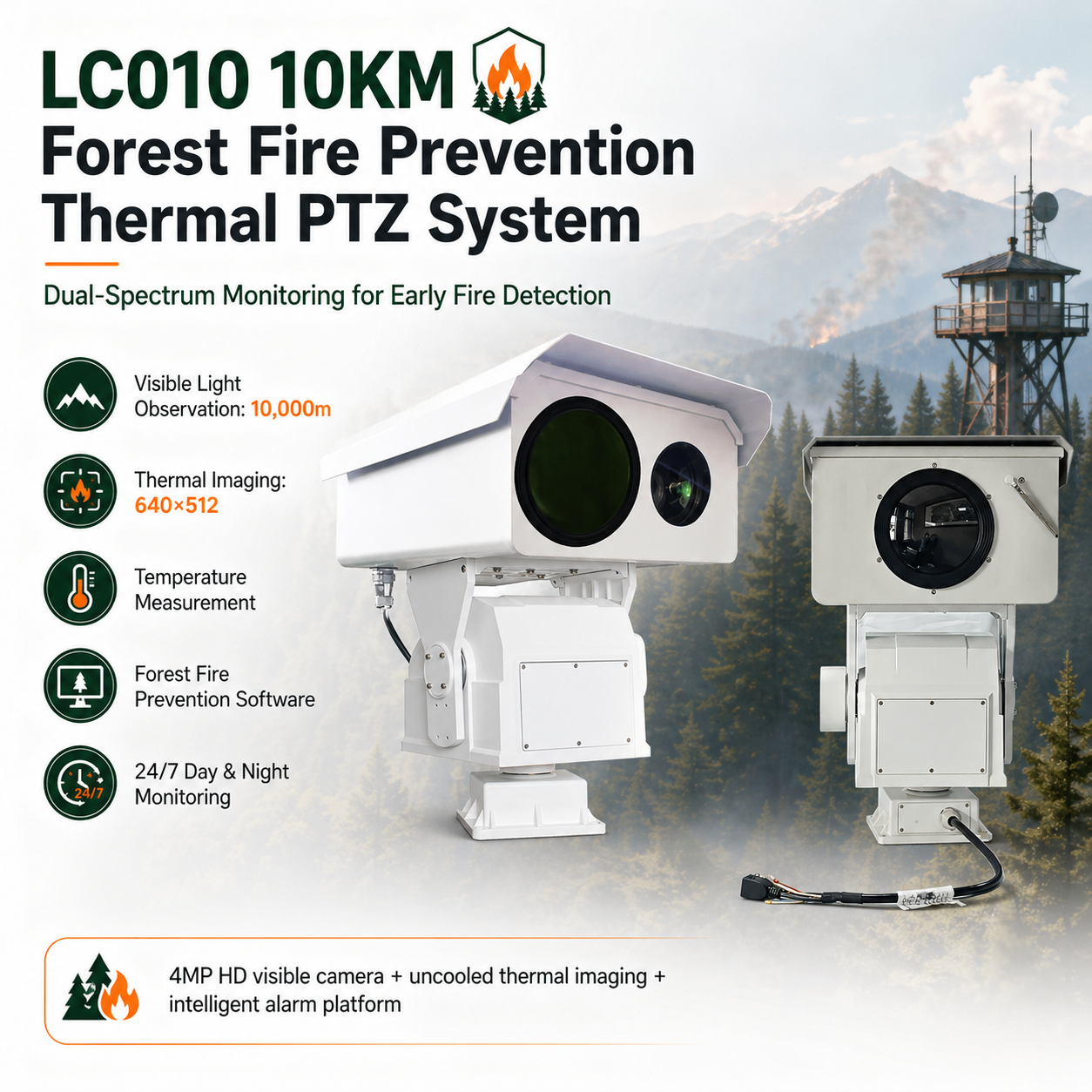

LC010 10KM Forest Fire Prevention Thermal PTZ Camera

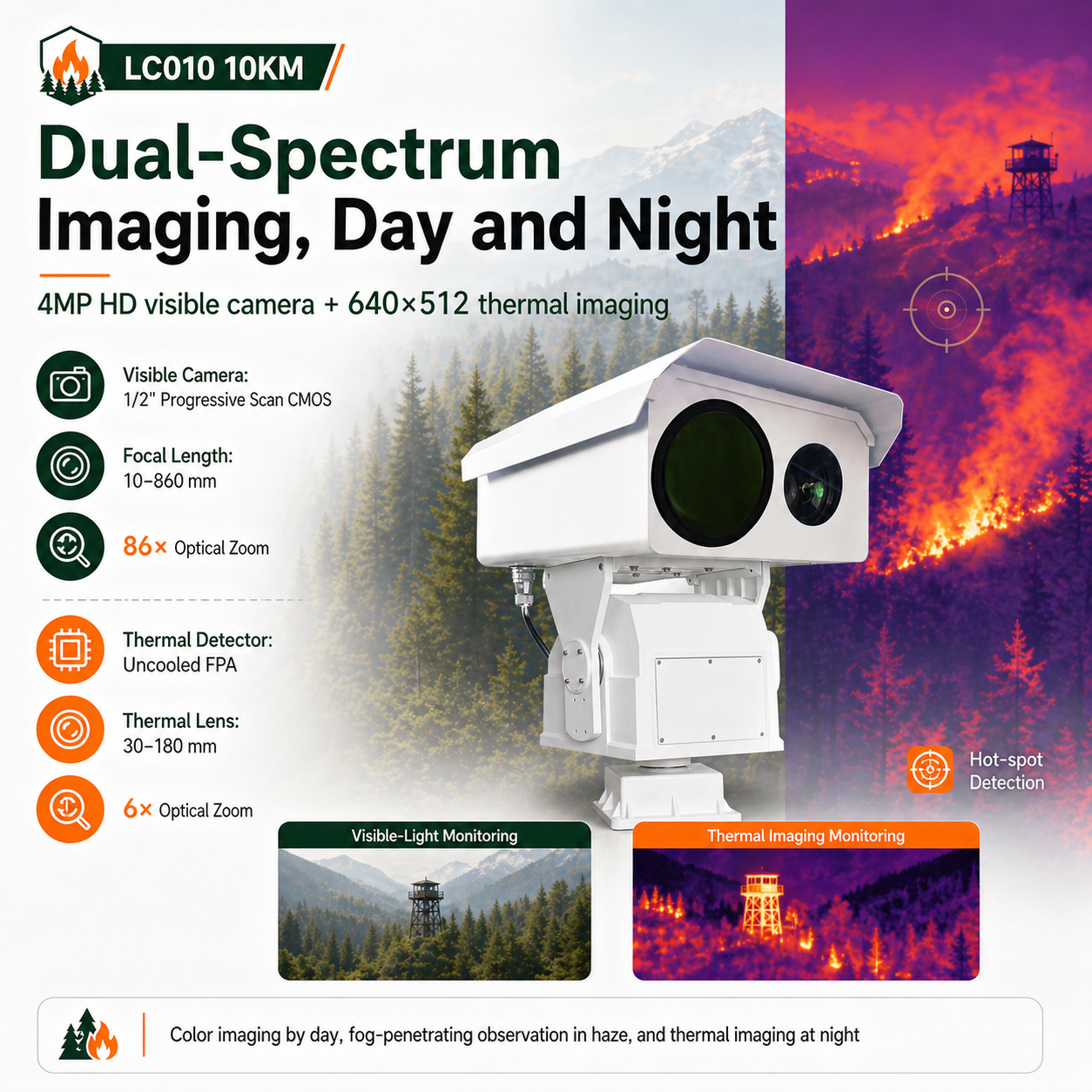

The JideTech LC010 is a long-range dual-spectrum thermal PTZ camera designed for forest fire prevention, mountain surveillance, national parks, nature reserves, border areas, and large outdoor monitoring projects. It combines 4MP visible-light imaging, 640×512 thermal imaging, temperature measurement, GIS alarm linkage, emergency command functions, and ranger patrol app support.
What Is the LC010 10KM Forest Fire Prevention Thermal PTZ Camera?
LC010 is a professional long-range thermal PTZ camera system for early forest fire detection and large-area outdoor monitoring. The visible-light camera is designed for daytime observation up to 10,000m, while the thermal imaging module helps detect abnormal heat, hot spots, and hidden fire sources during night monitoring or low-visibility conditions.

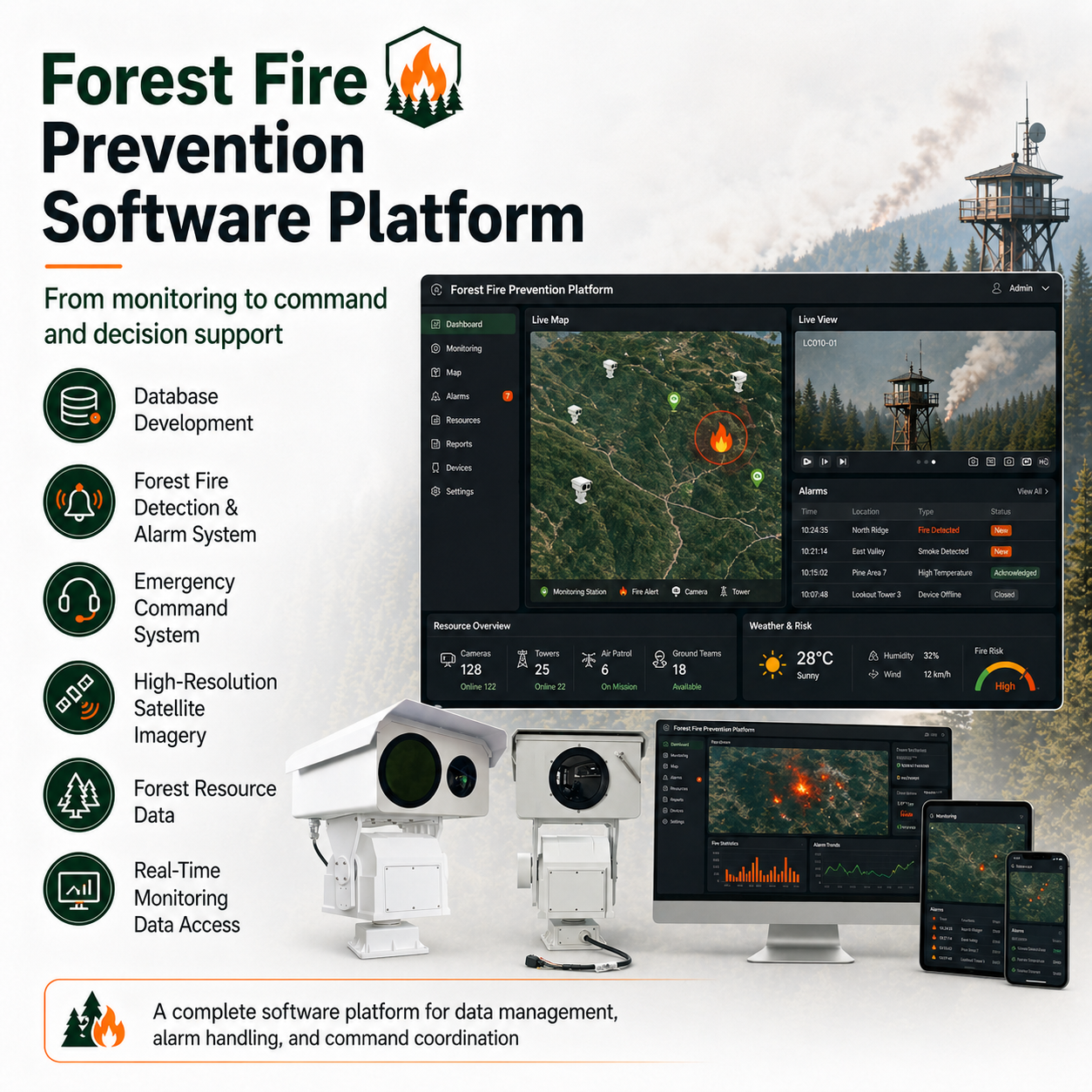

For forestry departments, project integrators, command centers, and government security projects, LC010 can be deployed with forest fire prevention software to support automatic fire alarms, GIS-based fire point positioning, PTZ linkage, emergency command, resource management, and ranger patrol app functions.

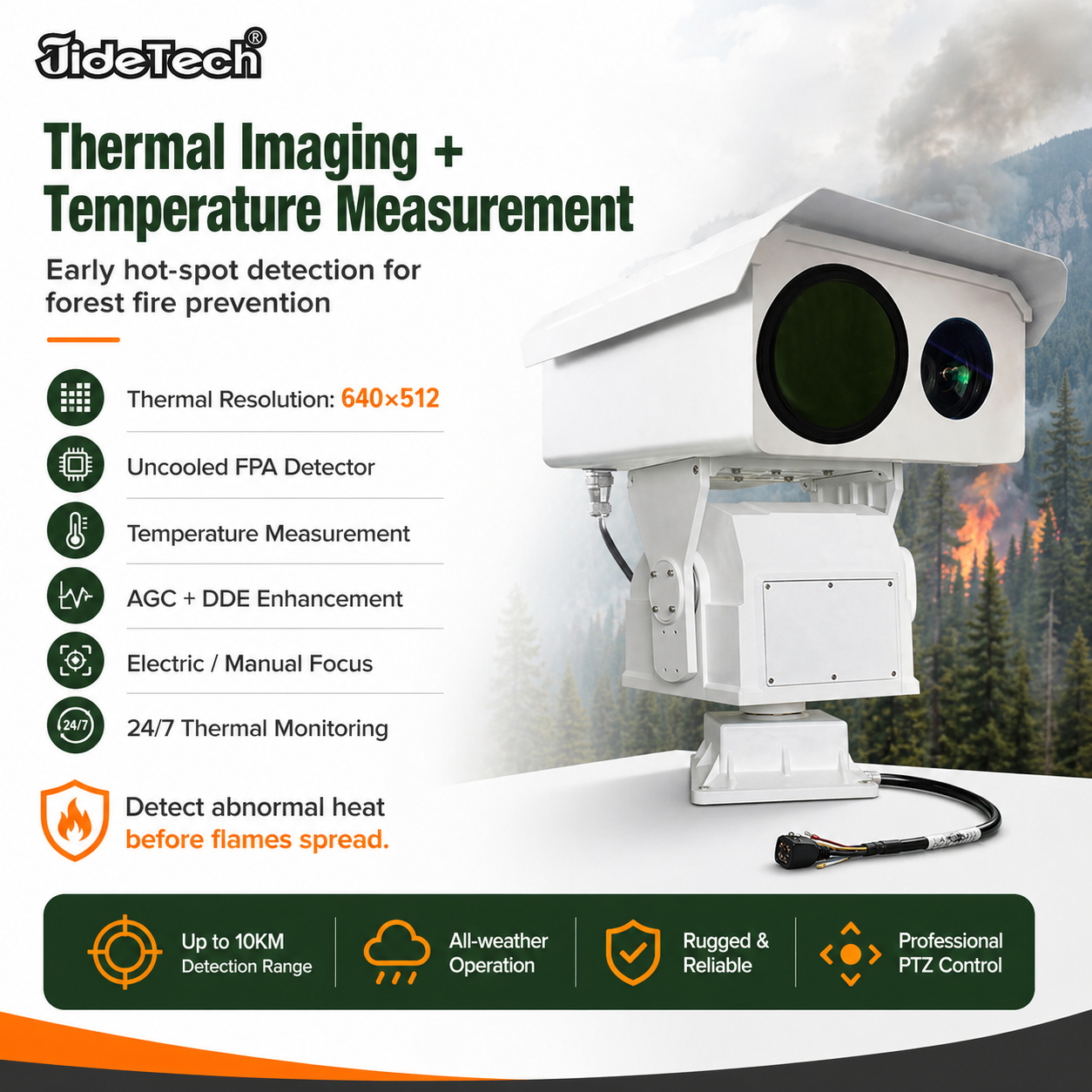

Thermal Early Warning
Thermal Imaging + Temperature Measurement
LC010 uses 640×512 thermal imaging to detect abnormal temperature changes and hot spots in large forest areas. Temperature measurement helps operators identify early fire risks before flames spread.
- 640×512 uncooled thermal imaging
- Temperature measurement for hot-spot detection
- AGC + DDE image enhancement
- Electric / manual focus support
- 24/7 thermal monitoring for forest fire prevention

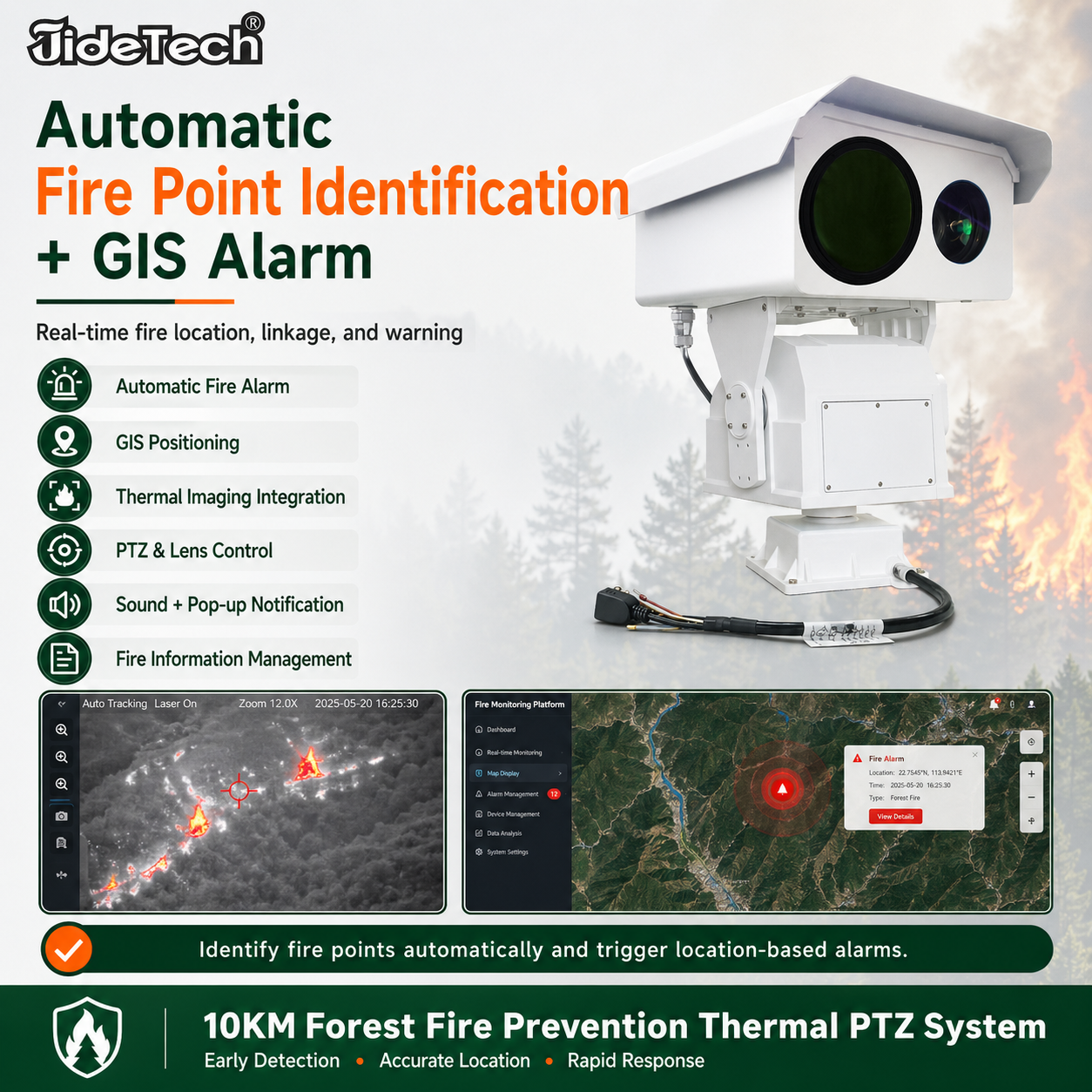

Software Alarm Linkage
Automatic Fire Point Identification + GIS Alarm
With the forest fire prevention software platform, LC010 can support automatic fire point identification, thermal alarm linkage, GIS positioning, PTZ control, and real-time alarm notification.
- Automatic fire alarm
- GIS-based fire point positioning
- Thermal imaging integration and alarm
- PTZ and lens control linkage
- Sound and pop-up notification
- Fire information management

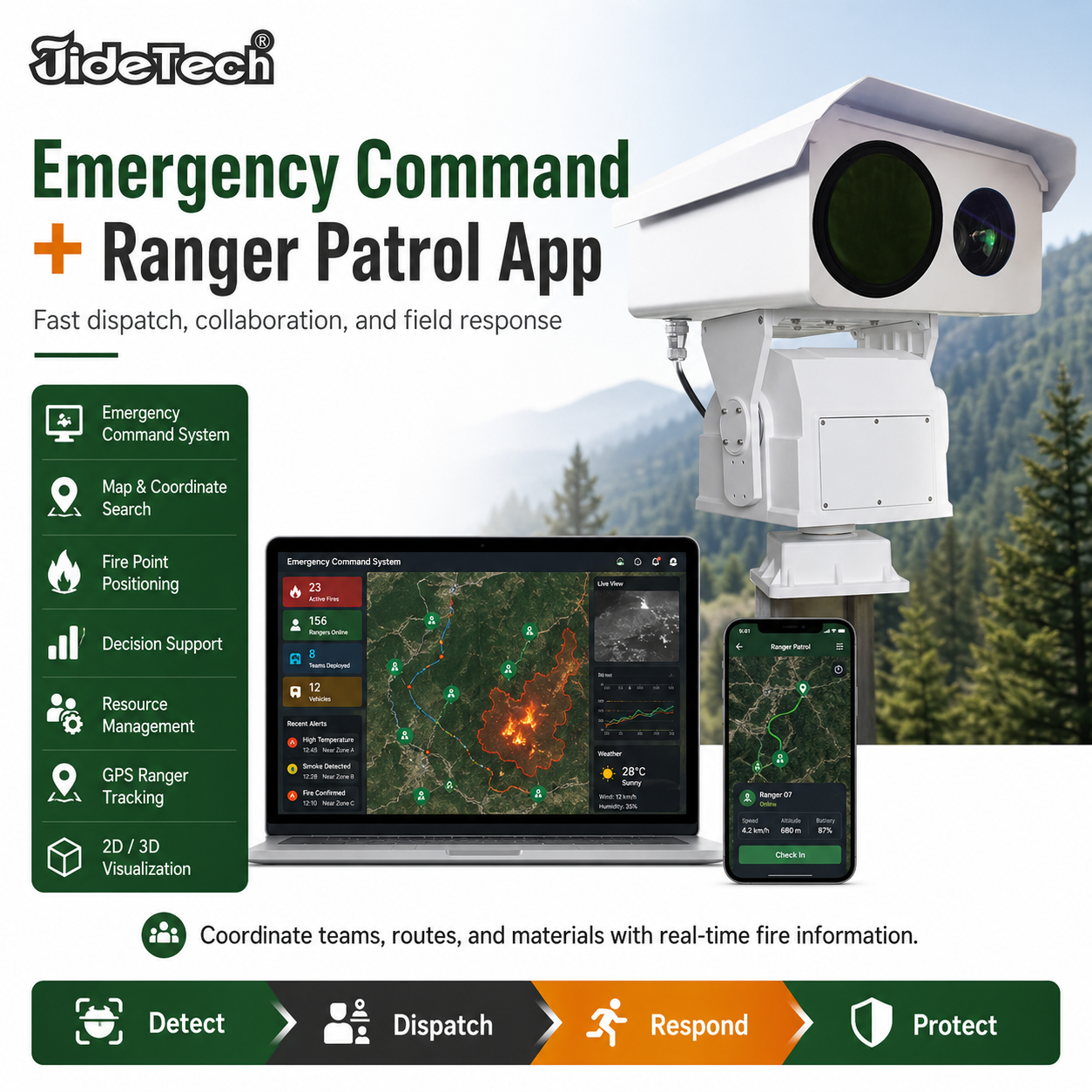

Command & Field Response
Emergency Command + Ranger Patrol App
The optional emergency command system helps users manage fire alarms, map positioning, field teams, patrol routes, materials, and response resources. The ranger patrol app supports GPS tracking and incident reporting for field operations.
- Emergency command system
- Map display, zoom, coordinate search, and layer management
- Fire point positioning via GIS, coordinates, or satellite data
- Decision support and resource management
- Ranger patrol system with real-time GPS tracking
- 2D / 3D visualization support

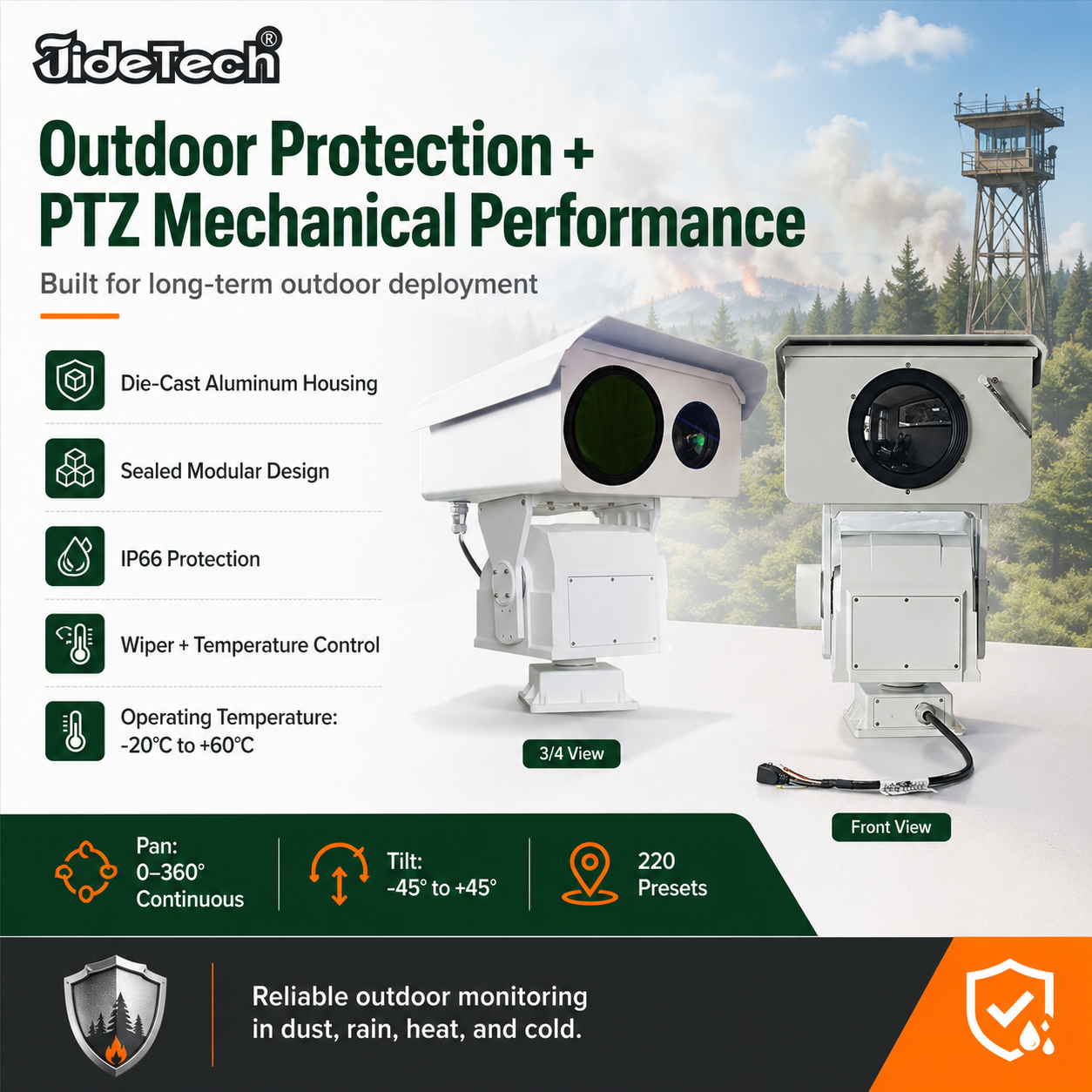

Outdoor PTZ Hardware
Outdoor Protection + PTZ Mechanical Performance
LC010 is built for long-term outdoor deployment in harsh environments. The system uses a die-cast aluminum air-cooled protective housing with sealed modular design, IP66 protection, wiper, temperature control, and precise PTZ mechanical movement.
- Die-cast aluminum outdoor housing
- IP66 protection for dust and water resistance
- Wiper + temperature control
- Operating temperature: -20°C to +60°C
- Pan: 0–360° continuous rotation
- Tilt: -45° to +45°
- 220 preset positions
Optional Thermal Lens Configuration
LC010 is a project-based long-range thermal PTZ camera. The thermal lens can be configured according to the required monitoring distance, fire detection range, installation height, and application environment.
Variant Option
Thermal Lens Option
Available Lens
30mm / 50mm / 75mm / 100mm / 150mm / 180mm / Custom
Thermal Resolution
640×512 Uncooled FPA Detector
Project Use
Forest fire prevention / mountain surveillance / remote outdoor monitoring

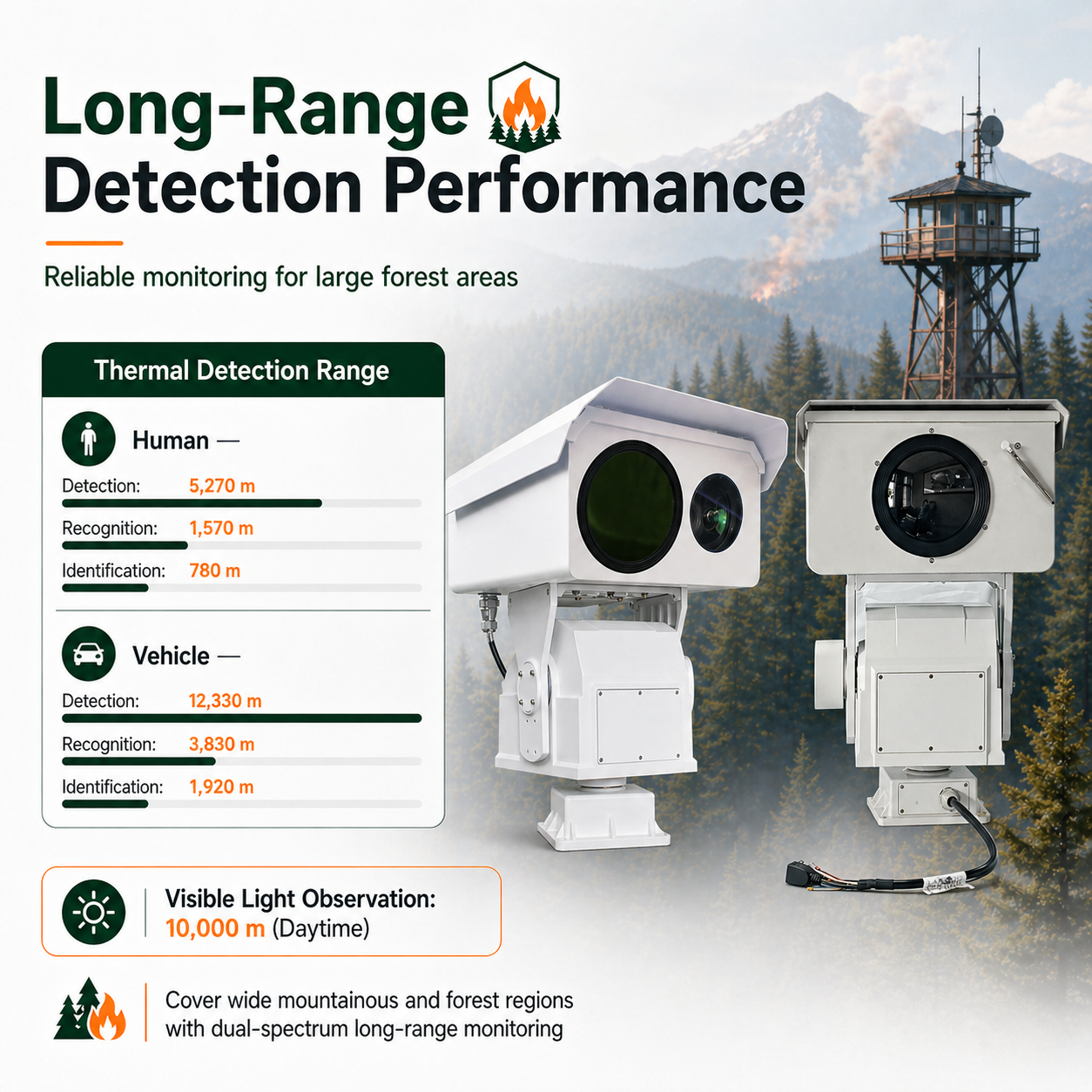

Note: The 10KM specification refers to visible-light daytime observation. Thermal detection distance depends on the selected thermal lens, target size, environment, and project configuration.
Core Advantages

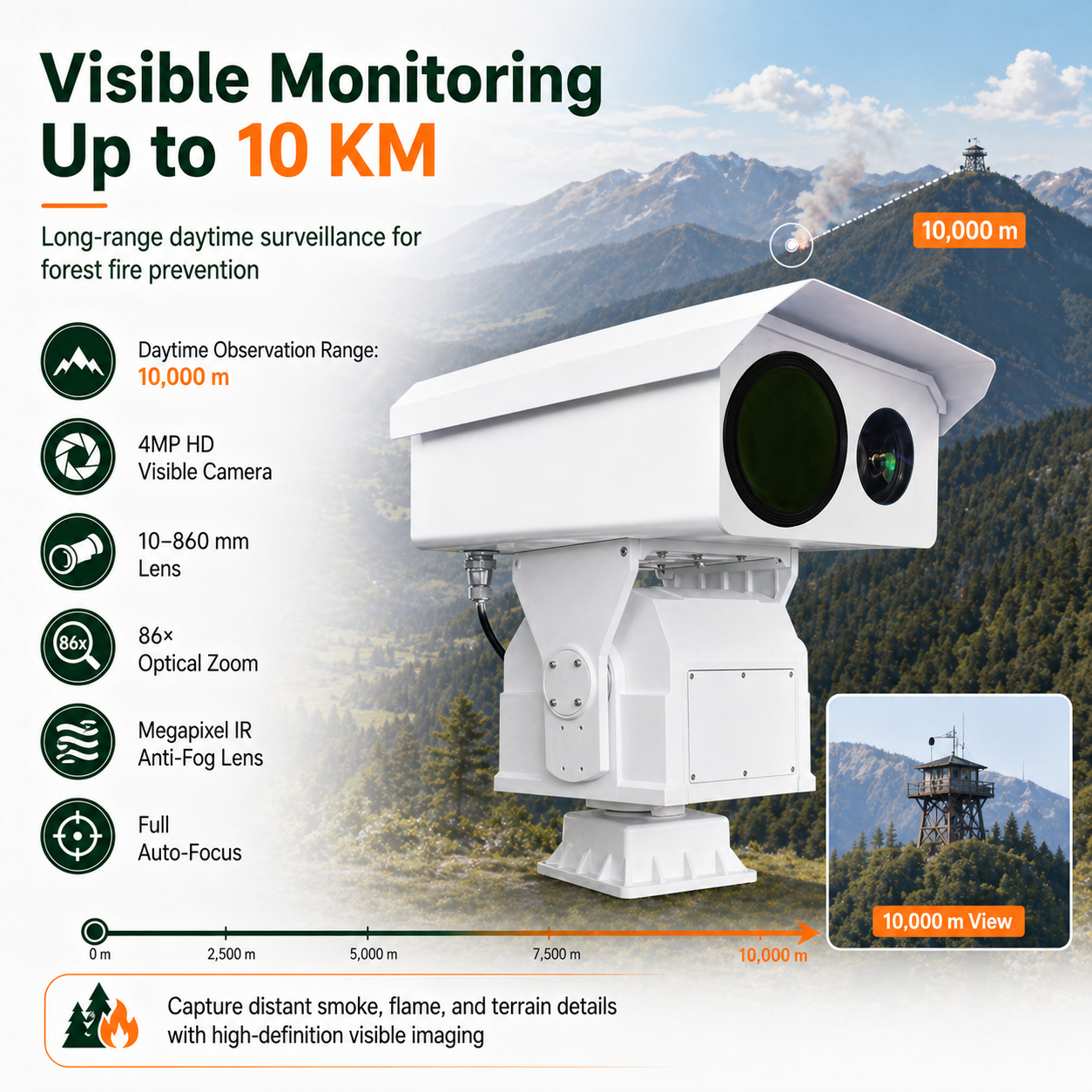

10KM Visible Observation
4MP visible camera with long-range optical zoom for daytime forest, mountain, and terrain monitoring.
Thermal Early Warning
Thermal imaging and temperature measurement help detect abnormal heat and hidden fire sources earlier.
GIS Alarm Linkage
GIS-based fire point positioning and alarm linkage support faster location confirmation and response.
Command Platform
Emergency command, resource management, ranger patrol, and 2D/3D visualization improve response efficiency.
Recommended Applications
LC010 is designed for long-range outdoor monitoring projects where early fire detection, large-area coverage, GIS positioning, and emergency response are critical.
Main Specifications
| Model | LC010 |
| Visible Camera | 4MP HD Camera, 1/2" Progressive Scan CMOS |
| Visible Lens | 10–860mm, 86× optical zoom, full auto-focus |
| Visible Observation | Up to 10,000m in daytime |
| Thermal Detector | 640×512 uncooled focal plane detector |
| Thermal Lens | Optional thermal lens configuration: 30mm / 50mm / 75mm / 100mm / 150mm / 180mm / Custom |
| Focus Mode | Electric / Manual Focus |
| PTZ Range | Pan: 0–360° continuous rotation / Tilt: -45° to +45° |
| Presets | 220 preset positions |
| Protection Level | IP66 outdoor protection |
| Operating Temperature | -20°C to +60°C |
| Software Functions | Thermal alarm, GIS positioning, fire information management, emergency command, ranger patrol app, resource management, 2D / 3D visualization |
FAQ
Can I choose different thermal lens options?
Yes. LC010 supports optional thermal lens configuration. The suitable lens should be selected based on monitoring distance, installation height, and project requirements.
Is 10KM the thermal detection distance?
No. 10KM refers to visible-light daytime observation. Thermal detection distance depends on the thermal lens, target type, weather, and project environment.
Does LC010 support forest fire prevention software?
Yes. LC010 can work with forest fire prevention software for automatic fire alarm, GIS positioning, fire information management, emergency command, and ranger patrol functions.
Is LC010 suitable for outdoor mountain deployment?
Yes. LC010 uses an outdoor protective housing with IP66 protection, wiper, temperature control, and precise PTZ mechanical performance for harsh outdoor environments.
