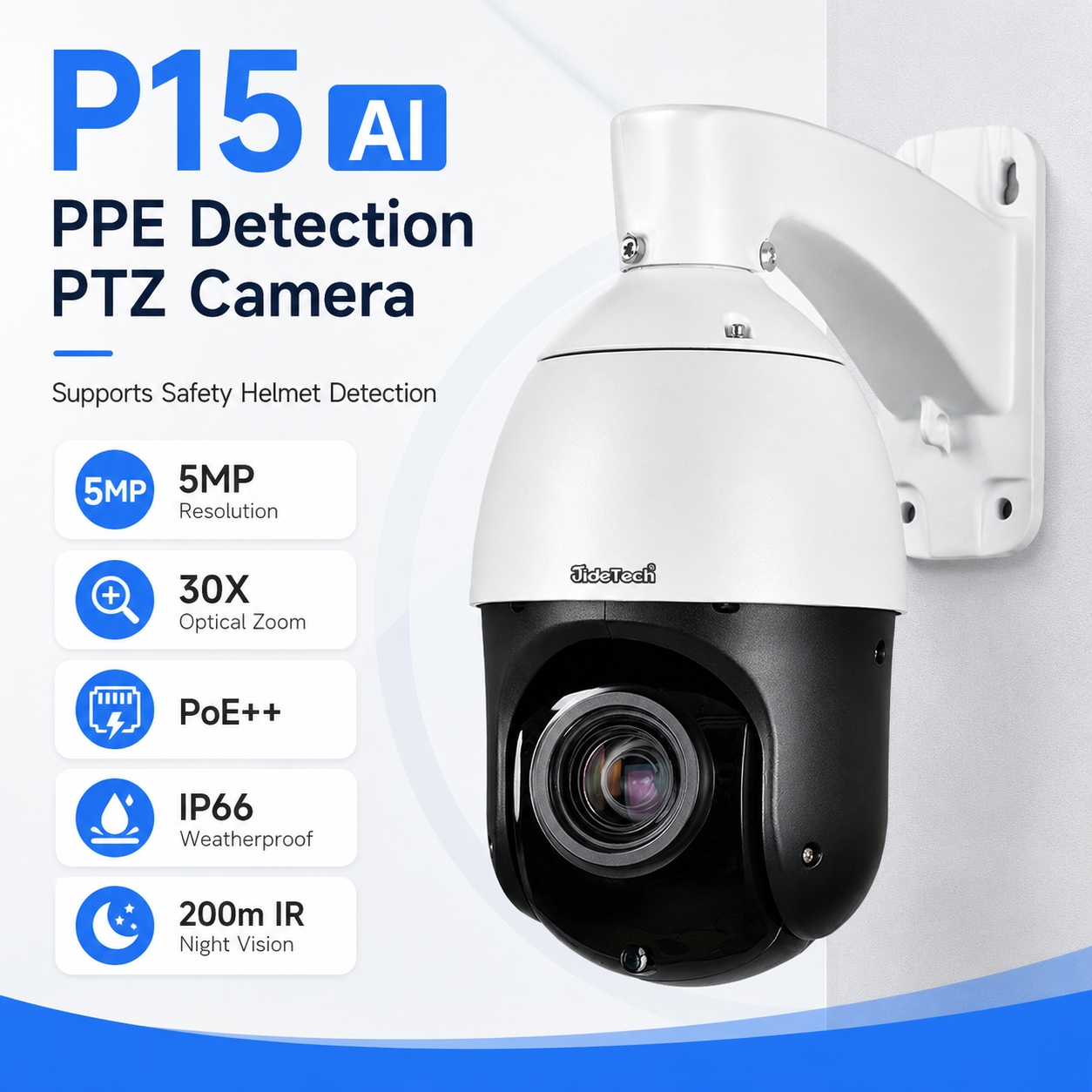

JideTech P15 5MP 30X PoE PTZ Camera with AI PPE Detection
JideTech P15 5MP 30X PoE PTZ Camera with AI PPE Detection
AI Safety Helmet Detection for Industrial Worksites

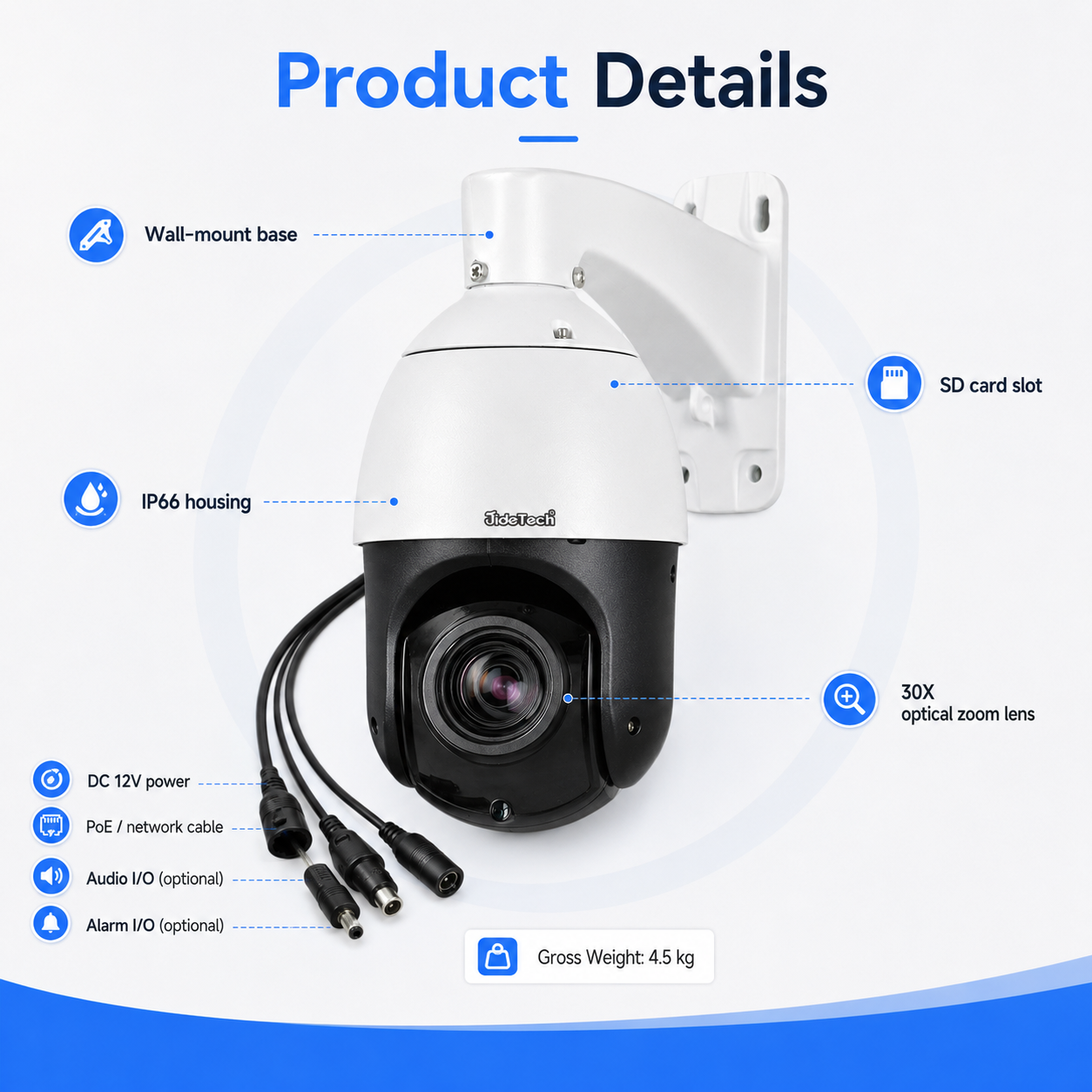

The JideTech P15 is a professional 5MP high-speed PoE PTZ camera designed for industrial safety monitoring and wide-area video surveillance.
Its built-in AI analytics support intelligent safety helmet and hard hat detection, helping security operators monitor whether personnel are wearing required protective helmets at construction sites, factories, warehouses, mines, ports and other industrial environments.
The camera can also detect and capture people, motor vehicles, non-motor vehicles and boats.

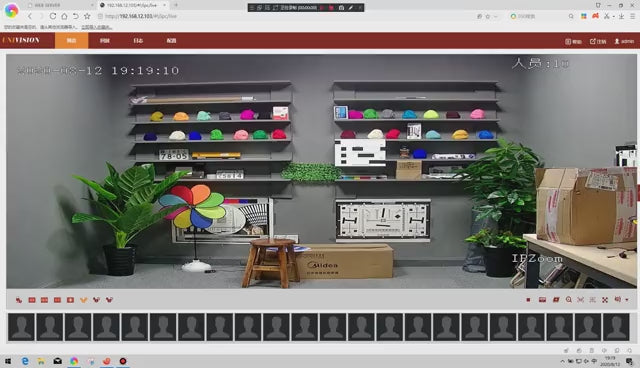

AI Safety Helmet Detection Demo
Watch the demonstration below to see the P15 identifying personnel and safety helmets in real time.
Key Features
- AI Safety Helmet Detection: Intelligent recognition of personnel and safety helmets for workplace safety monitoring.
- 5MP High-Resolution Video: Supports up to 2592 × 1944 resolution at 30 fps.
- 30X Optical Zoom: 5.1–153 mm motorized lens with 30X optical zoom and 16X digital zoom.
- 2T AI Computing Power: Built-in deep-learning computing capability improves intelligent video analytics performance.
- Multi-Target Detection: Detects and captures people, motor vehicles, non-motor vehicles and boats.
- 200 m IR Night Vision: Six array IR LEDs and four long-range laser IR LEDs automatically adjust according to the camera focal length.

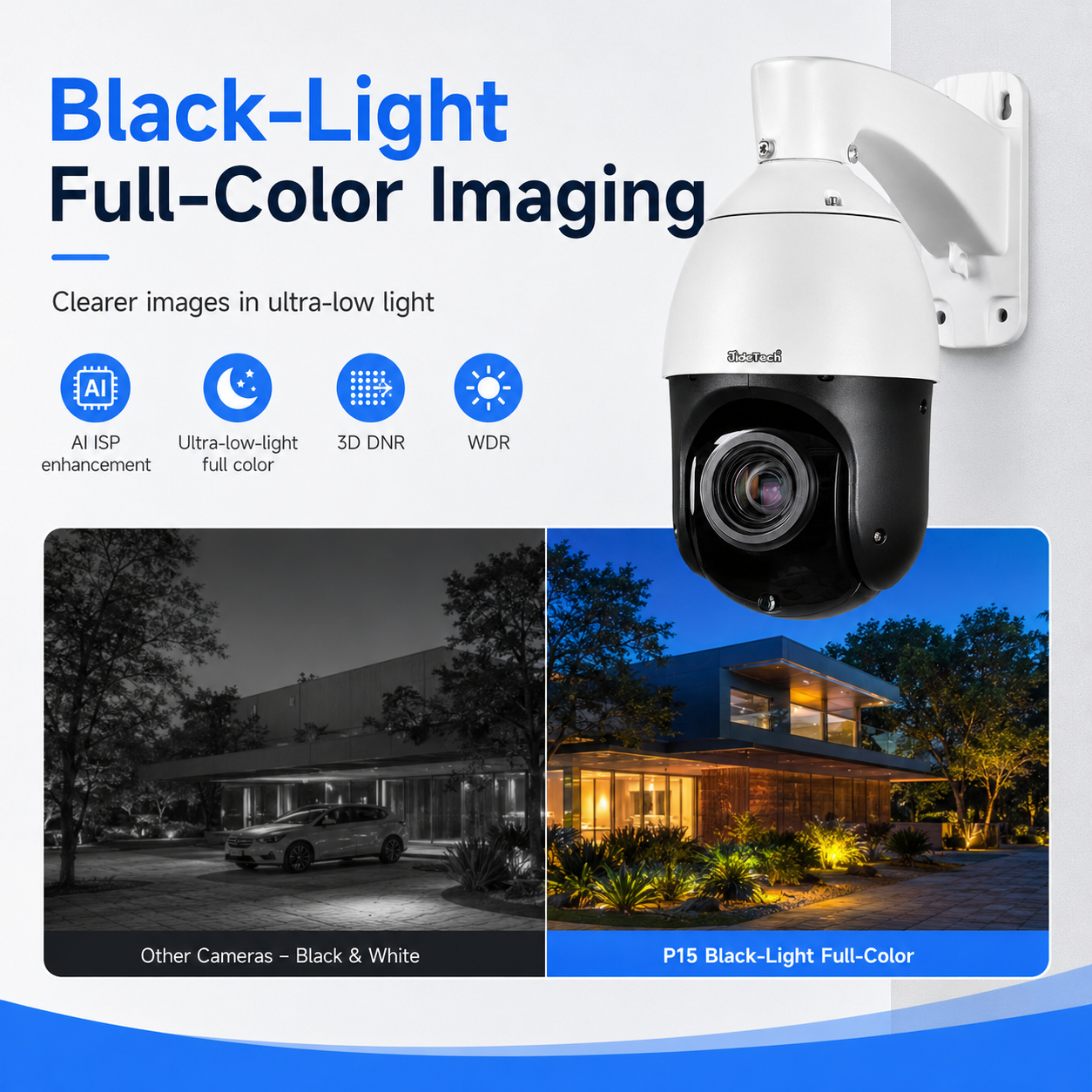

- Ultra-Low-Light Imaging: AI ISP image enhancement provides clearer full-color images in ultra-low-light environments.
- AI Auto Focus: Proprietary AI AF deep-learning algorithm delivers faster and more stable focusing.
- High-Speed PTZ Control: 360° continuous pan, up to 240°/s pan speed and up to 180°/s tilt speed.
- PoE++ Support: Supports DC 12 V power input and PoE++ for simplified installation.
- ONVIF Compatible: Supports ONVIF Profile S, ONVIF Profile G, RTSP and GB28181 integration.

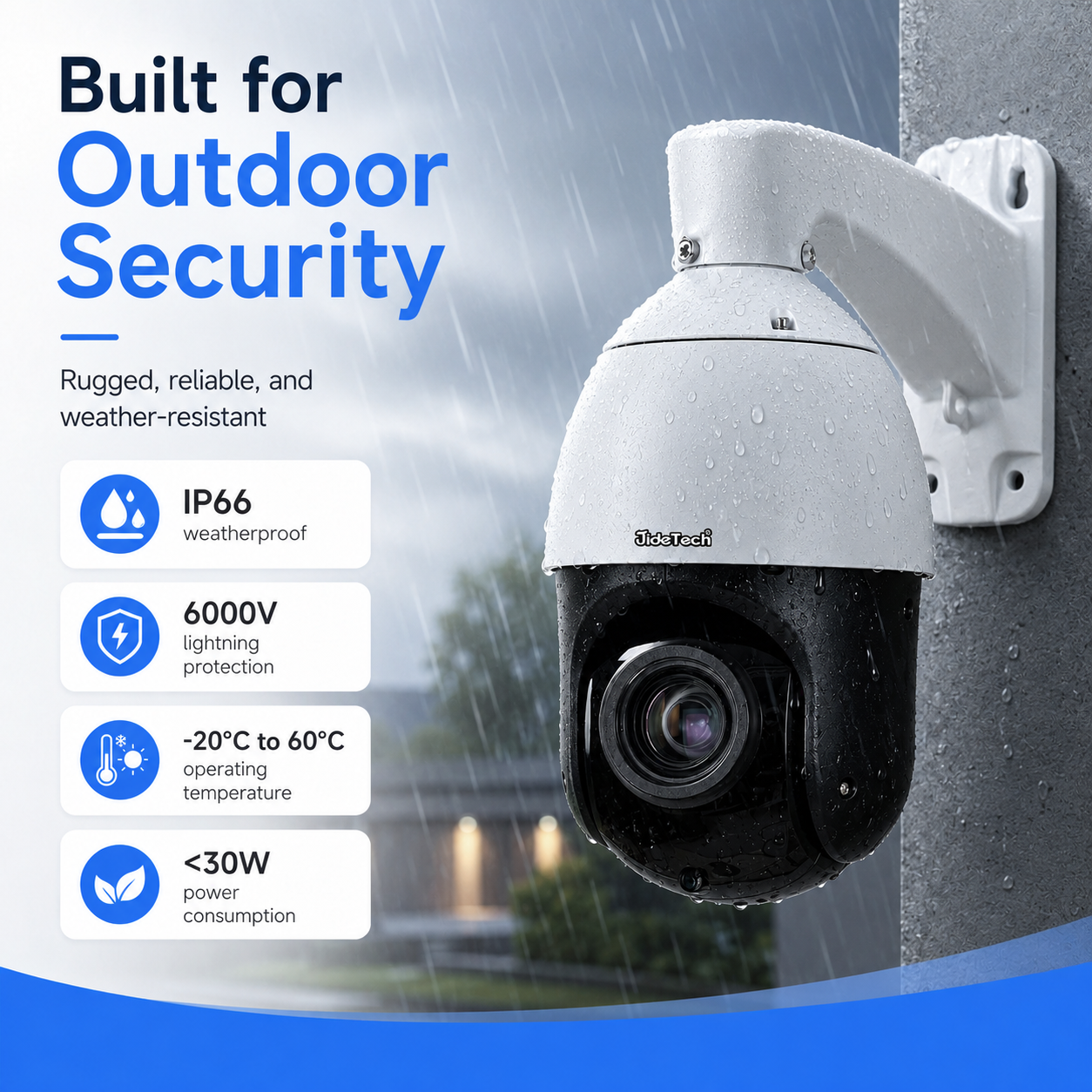

- Outdoor Protection: IP66 weatherproof housing with 6000 V lightning, surge and transient protection.

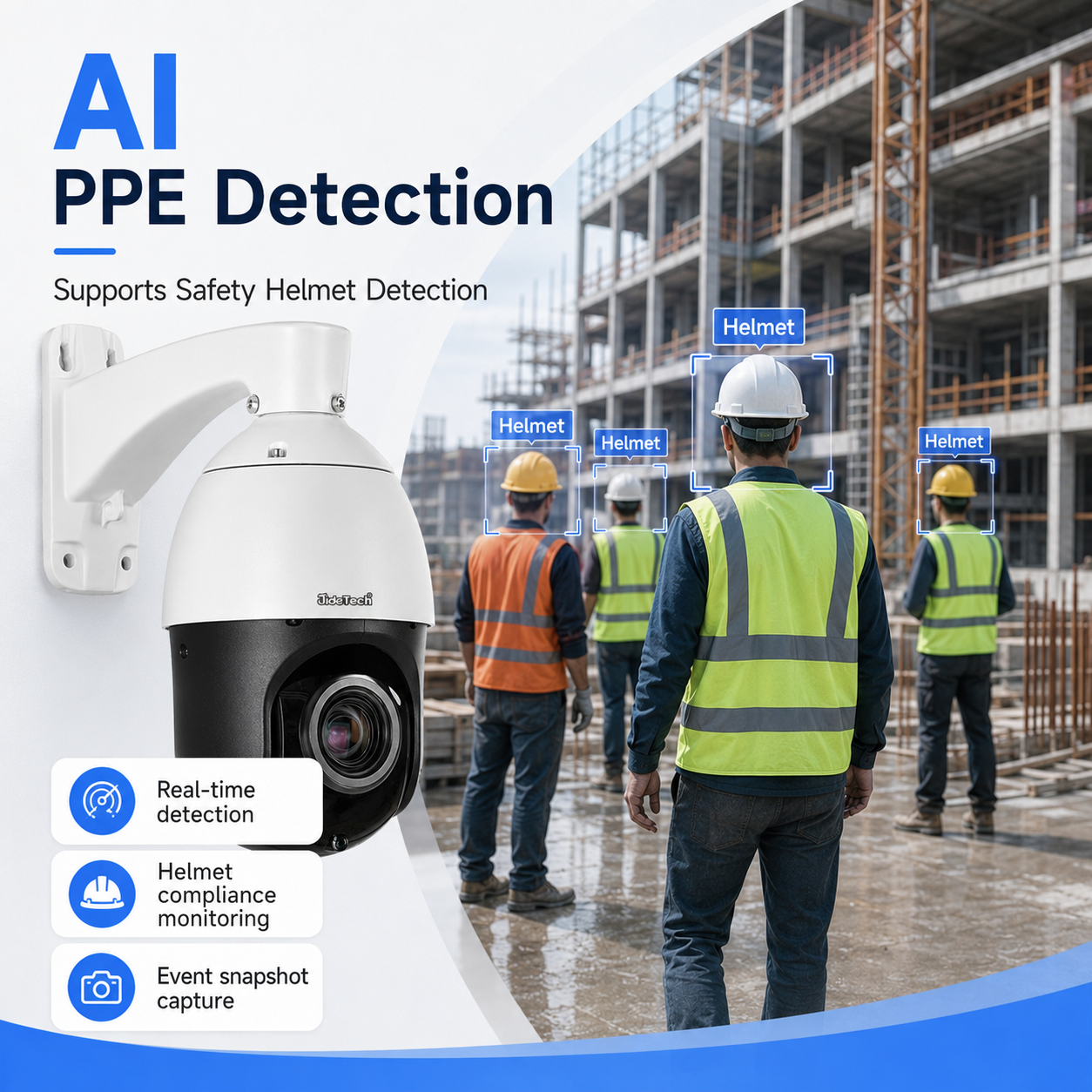

Intelligent Safety Monitoring
Unlike a conventional PTZ surveillance camera, the P15 combines long-range optical zoom with intelligent safety helmet recognition.
Security operators can use the camera to monitor large industrial areas while identifying personnel and safety helmets through the live monitoring interface. Detection results and captured images help operators review workplace safety events more efficiently.

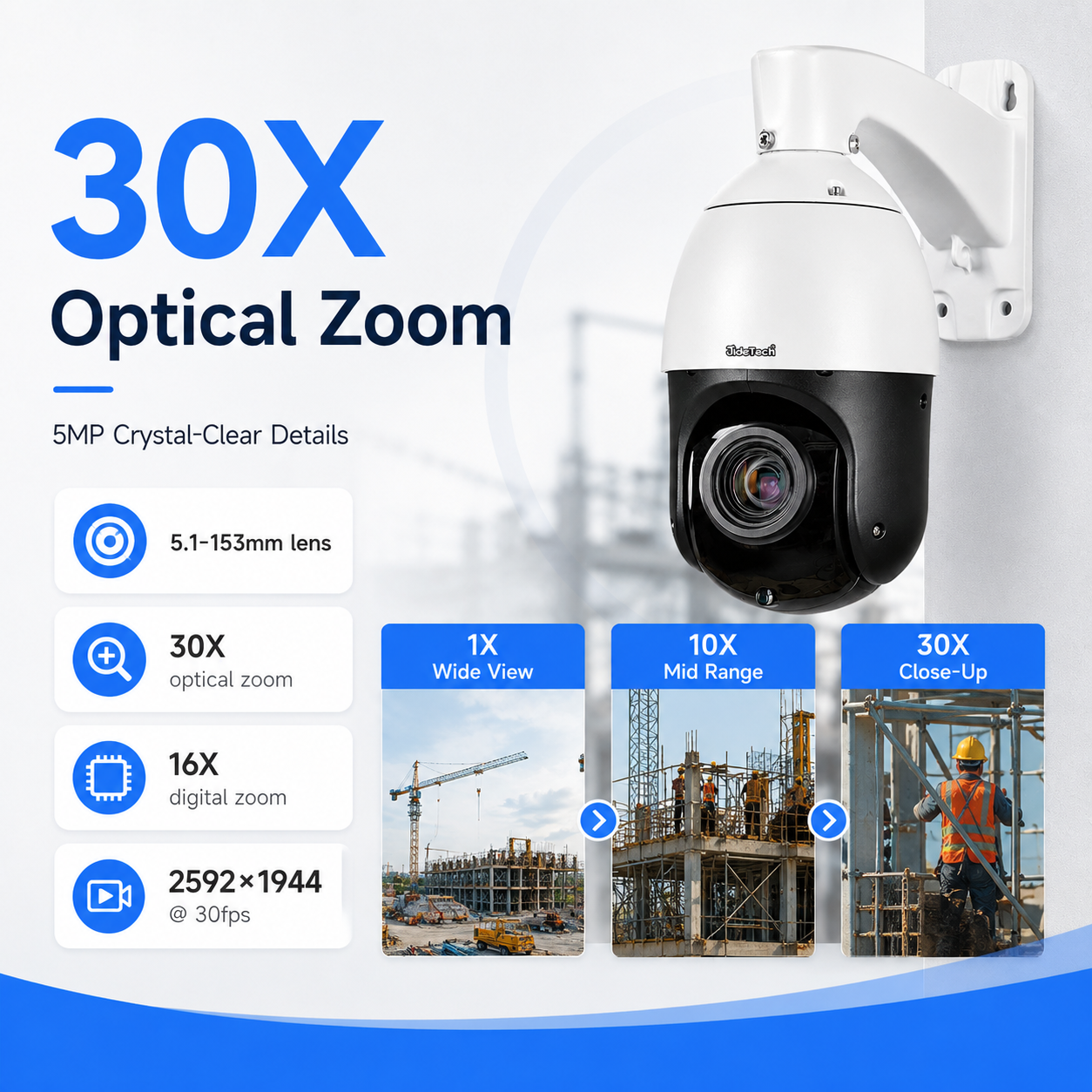

5MP Video with 30X Optical Zoom
The P15 uses a 1/2.8-inch Progressive Scan CMOS sensor and delivers video up to 2592 × 1944 at 30 fps.
Its 5.1–153 mm lens provides 30X optical zoom, allowing operators to monitor wide areas and then zoom in to inspect personnel, equipment or distant activity without physically repositioning the camera.

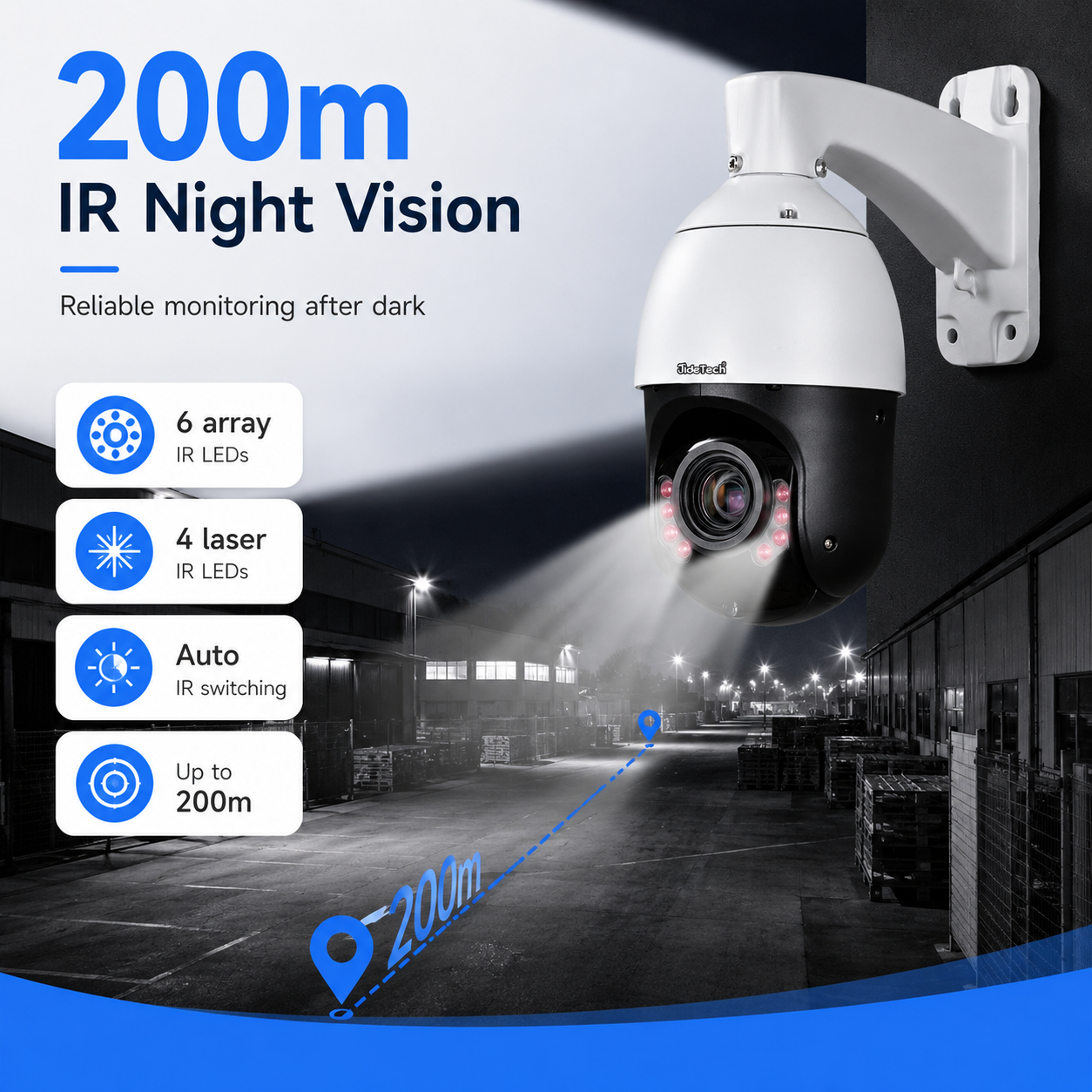

Long-Range Night Monitoring
The camera is equipped with six premium array IR LEDs and four long-range laser IR LEDs. The illumination system automatically switches between near, medium and long-range lighting according to the zoom position.
The maximum infrared illumination distance reaches approximately 200 meters, making the camera suitable for large outdoor facilities and low-light environments.

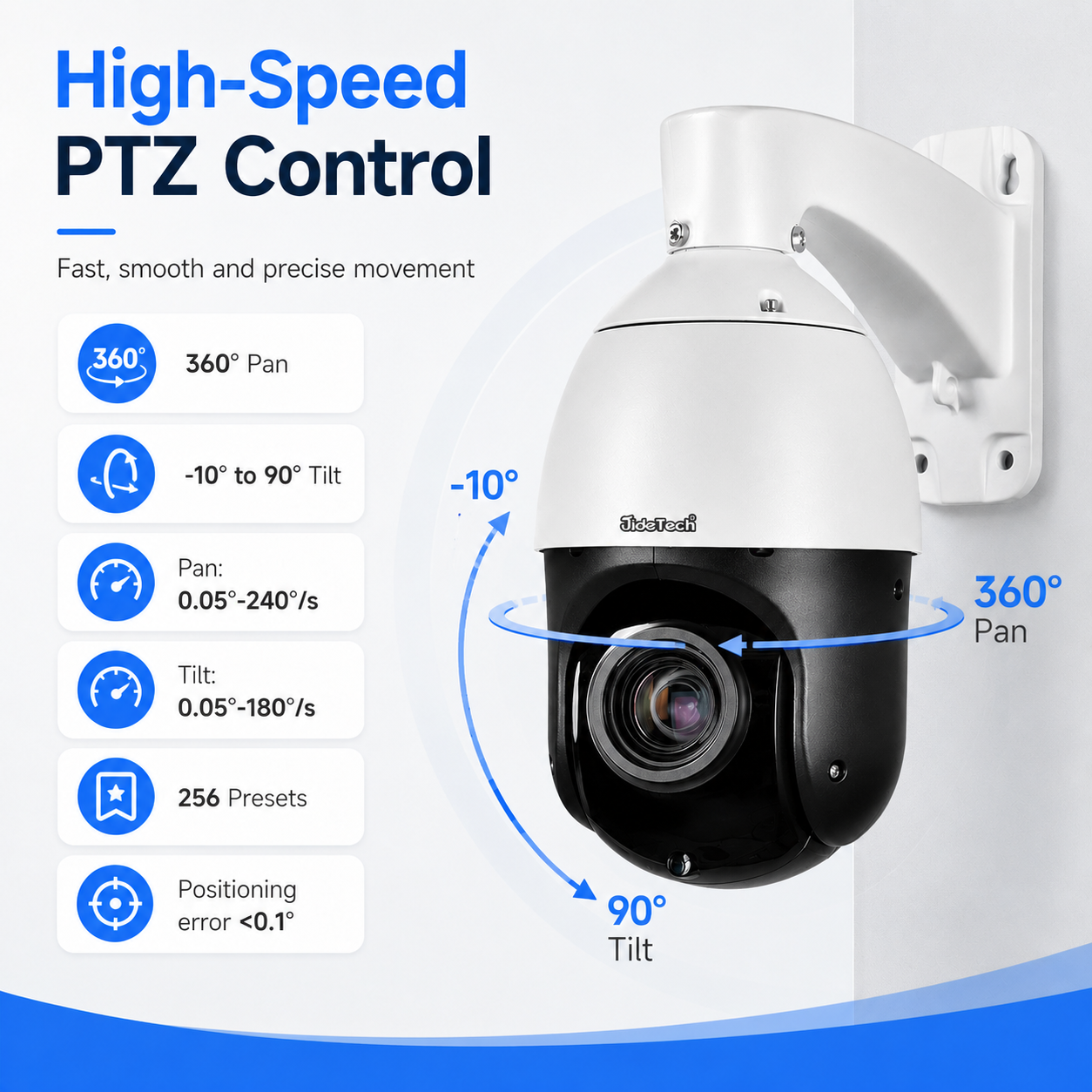

Fast and Accurate PTZ Control
- 360° continuous pan rotation
- -10° to 90° tilt range
- Pan speed: 0.05°–240°/s
- Tilt speed: 0.05°–180°/s
- 256 preset positions
- Cruise scan support
- Left-right scan support
- 360° horizontal scan support
- Positioning error below 0.1°
- Automatic focal-length and PTZ-speed matching

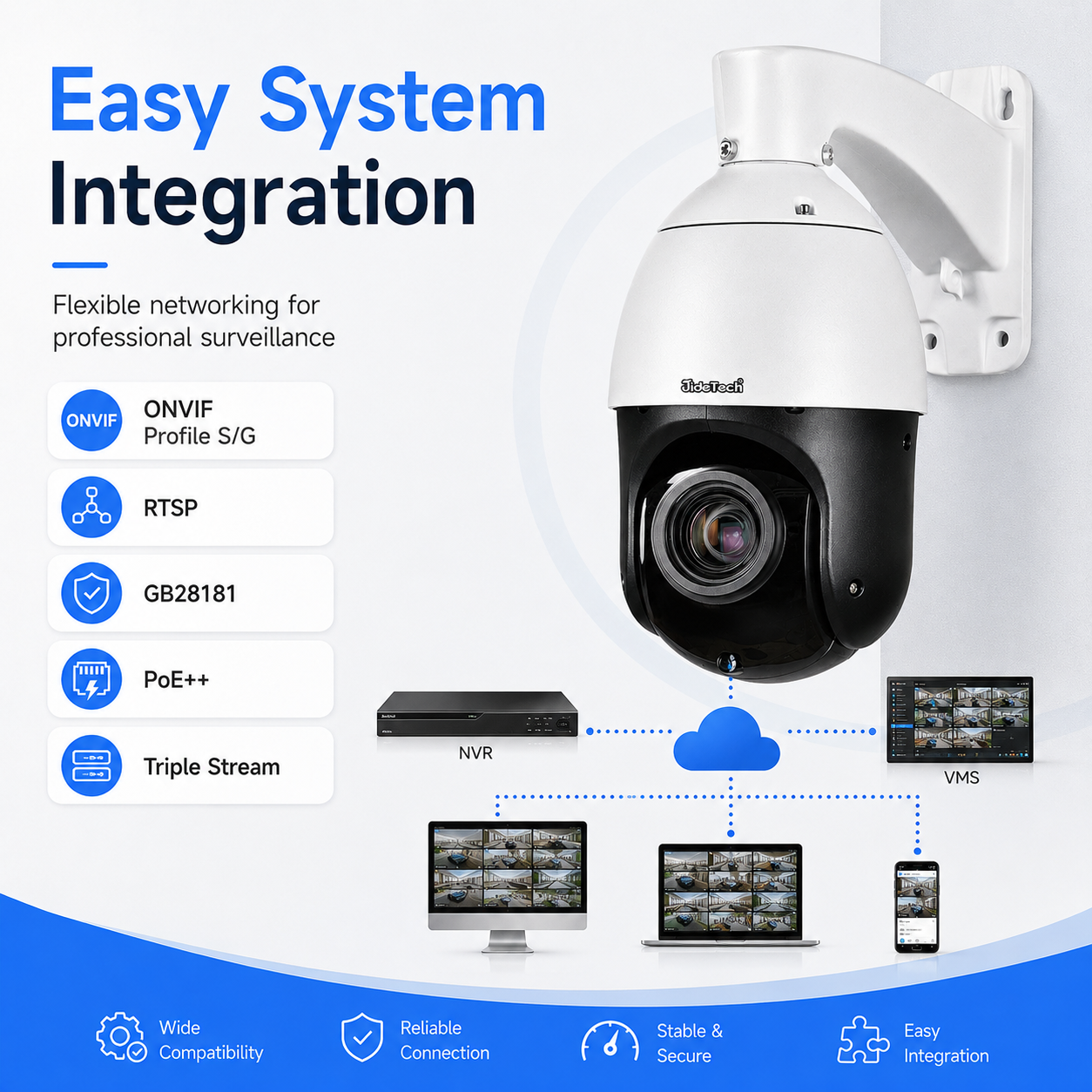

Flexible System Integration
The P15 can be integrated into compatible third-party VMS and NVR systems through standard network protocols.
- ONVIF Profile S
- ONVIF Profile G
- RTSP
- HTTP and HTTPS
- FTP
- RTP and RTCP
- SNMP
- IPv6
- GB28181-2016
Optional full-feature configurations can include audio input/output, alarm input/output and CVBS video output. Please confirm the required interfaces before ordering.
Recommended Applications
- Construction site safety monitoring
- Factory and manufacturing plant surveillance
- Warehouse and logistics center monitoring
- Mining and quarry safety monitoring
- Power plant and energy facility surveillance
- Port and shipyard monitoring
- Industrial park perimeter surveillance
- Large outdoor infrastructure projects
Technical Specifications
| Model | P15 |
|---|---|
| Image Sensor | 1/2.8-inch Progressive Scan CMOS |
| Maximum Resolution | 2592 × 1944 at 30 fps |
| Optical Zoom | 30X |
| Digital Zoom | 16X |
| Focal Length | 5.1–153 mm |
| Aperture | F1.67–F3.67 |
| Minimum Illumination | Color: 0.0005 Lux; B/W: 0.0001 Lux |
| AI Computing Power | 2T |
| AI Analytics | Safety helmet detection, people detection, motor vehicle detection, non-motor vehicle detection and boat detection |
| IR Distance | Up to 200 m |
| Video Compression | H.265 / H.264 / MJPEG |
| Video Streams | Triple stream |
| Pan Range | 0°–360° continuous rotation |
| Tilt Range | -10°–90° |
| Preset Positions | 256 |
| Network Protocols | ONVIF Profile S/G, RTSP, HTTP, HTTPS, FTP, RTP, RTCP, SNMP, IPv6 and GB28181 |
| Power Supply | DC 12 V, 4 A / PoE++ |
| Power Consumption | Less than 30 W |
| Protection Rating | IP66 |
| Operating Temperature | -20°C to 60°C |
| Gross Weight | 4.5 kg |
Important Configuration Notice
Audio I/O, alarm I/O, CVBS output and certain interface configurations may be optional. Please confirm the required functions, system compatibility and integration requirements before placing an order.
