JideTech 5MP 30X Absolute Positioning PoE PTZ Camera with 500m IR Night Vision

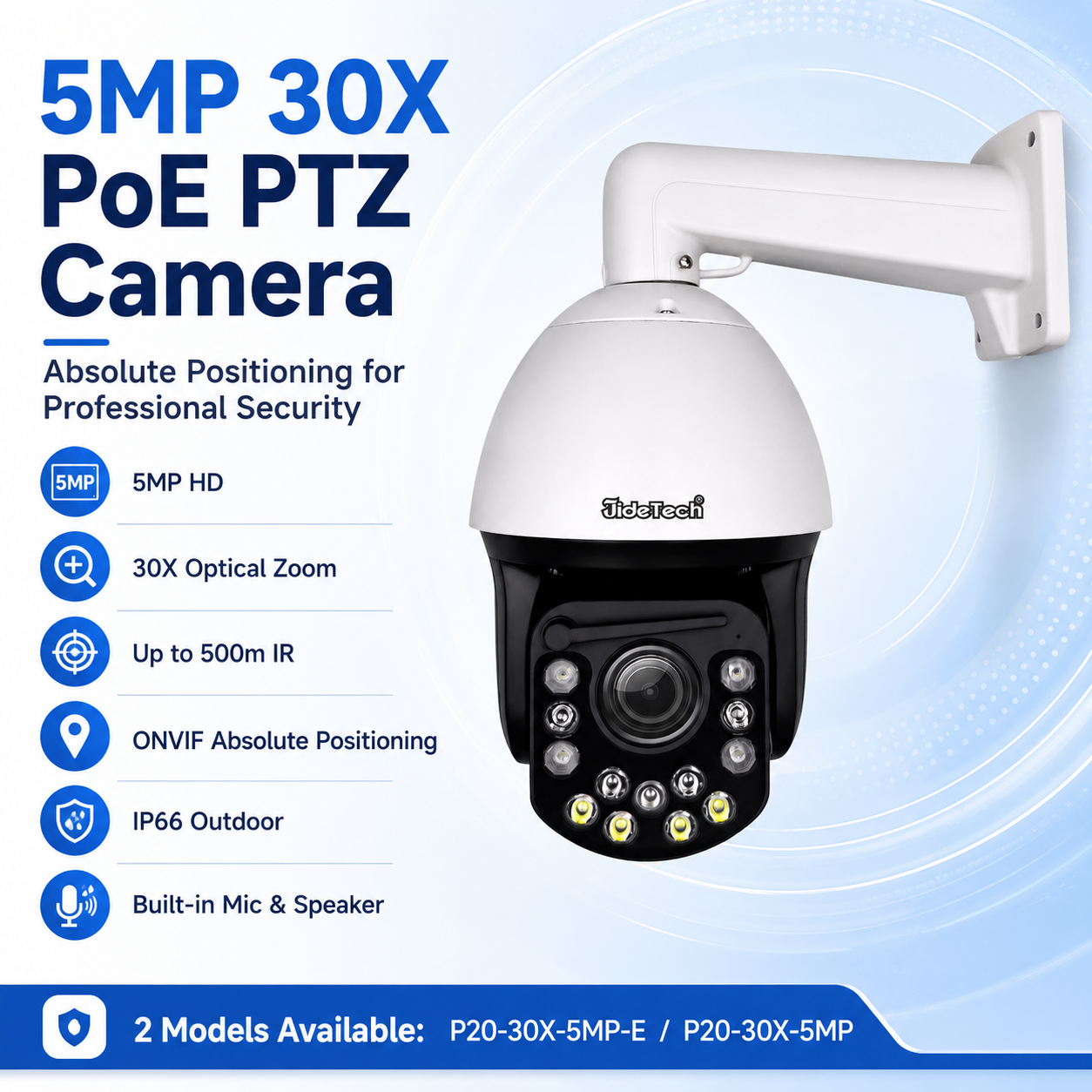

JideTech 5MP 30X Absolute Positioning PoE PTZ Camera

The JideTech 5MP 30X Absolute Positioning PoE PTZ Camera is designed for professional outdoor security projects that require long-range zoom, accurate PTZ control, reliable night vision, and strong system compatibility. With 5MP high-definition video, 30X optical zoom, ONVIF Absolute Positioning, up to 500m IR night vision, PoE power supply, IP66 outdoor housing, built-in microphone and speaker, smart human and vehicle detection, and professional protocol support, this camera is suitable for farms, warehouses, construction sites, parking lots, industrial parks, schools, roads, and perimeter security applications.

This product is available in two model options: P20-30X-5MP-E and P20-30X-5MP. Both models support 5MP resolution, 30X optical zoom, Absolute Positioning, PoE, up to 500m IR distance, IP66 outdoor protection, smart detection, and professional integration. The main difference is the sensor solution.

Why Choose This 5MP 30X PTZ Camera?

• 5MP HD Video: clearer image quality than standard 1080P security cameras.
• 30X Optical Zoom: monitor wide areas and zoom in for long-distance details.
• ONVIF Absolute Positioning: supports accurate PTZ position control for professional projects.
• Up to 500m IR Night Vision: reliable monitoring for large outdoor areas after dark.
• PoE Power Supply: power and data through one Ethernet cable for easier installation.
• IP66 Outdoor Housing: built for rain, dust, and harsh weather conditions.
• Built-in Mic & Speaker: supports audio monitoring and two-way communication.
• Smart Human and Vehicle Detection: helps reduce false alarms and improve security response.
• Professional Compatibility: supports ONVIF, RTSP, RTMP, HTTP, HTTPS, HTML5, Hikvision protocol, Dahua protocol, API, and SDK.

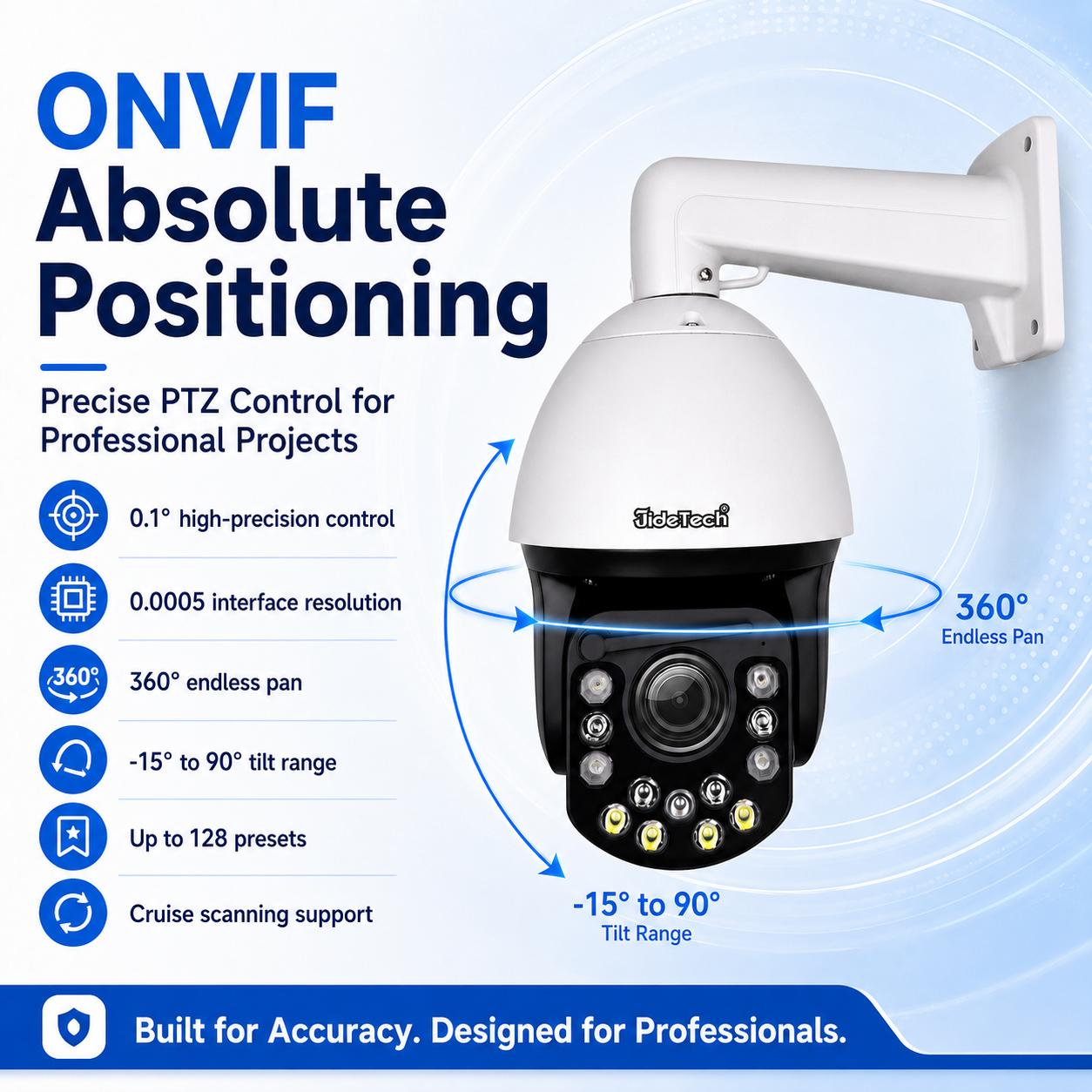

Key Feature: ONVIF Absolute Positioning

Absolute Positioning is one of the most important advantages of this PTZ camera. Standard PTZ cameras usually receive basic movement commands such as left, right, up, down, zoom in, or zoom out. This model supports more accurate position control, allowing the camera to move to specific pan and tilt coordinates.

The camera supports high-resolution PTZ commands with 0.1° control accuracy, and the interface resolution can reach 0.0005. This makes it suitable for professional surveillance platforms, command centers, preset patrol routes, radar linkage, map-based PTZ control, smart city monitoring, and system integration projects.

• Supports ONVIF Absolute Positioning and ONVIF Absolute Move
• High-resolution PTZ command with 0.1° accuracy
• Interface resolution up to 0.0005

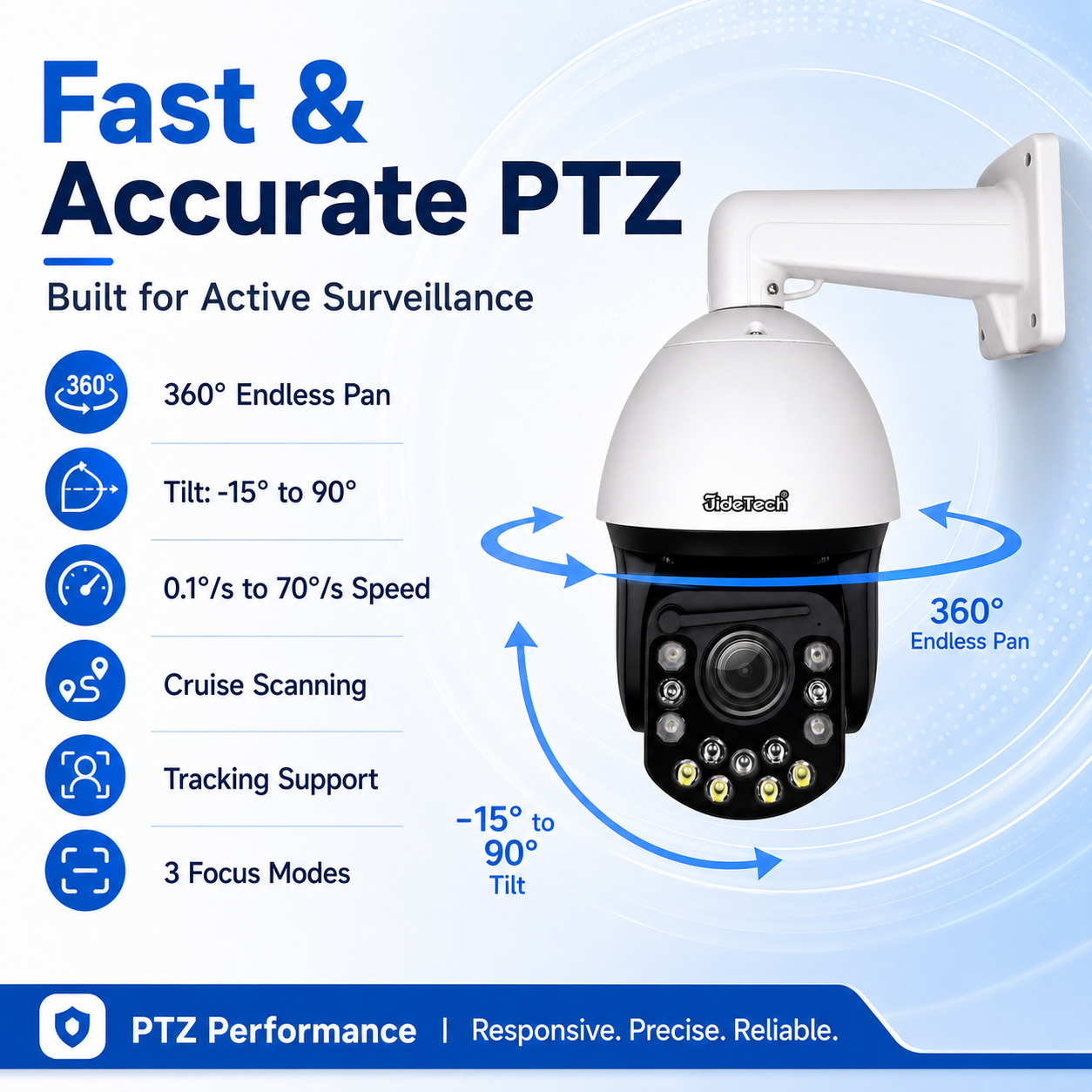

• 360° endless pan rotation
• Tilt range from -15° to 90°
• Pan and tilt speed from 0.1°/s to 70°/s
• Up to 128 preset positions
• Supports cruise scanning and limit scanning

5MP High-Definition Image Quality

This 5MP PTZ camera provides up to 2592 × 1944 resolution, delivering clear image details for outdoor security applications. Compared with standard 2MP cameras, 5MP resolution helps capture more useful details in large monitoring areas.

• 5MP maximum resolution
• 2592 × 1944 video output
• 30fps frame rate
• H.264 / H.265 / H.265+ video compression
• Main stream, sub-stream, and third-stream support
• WDR, HDR, BLC, HLC, defog, 2D/3D noise reduction
• Automatic day and night switching

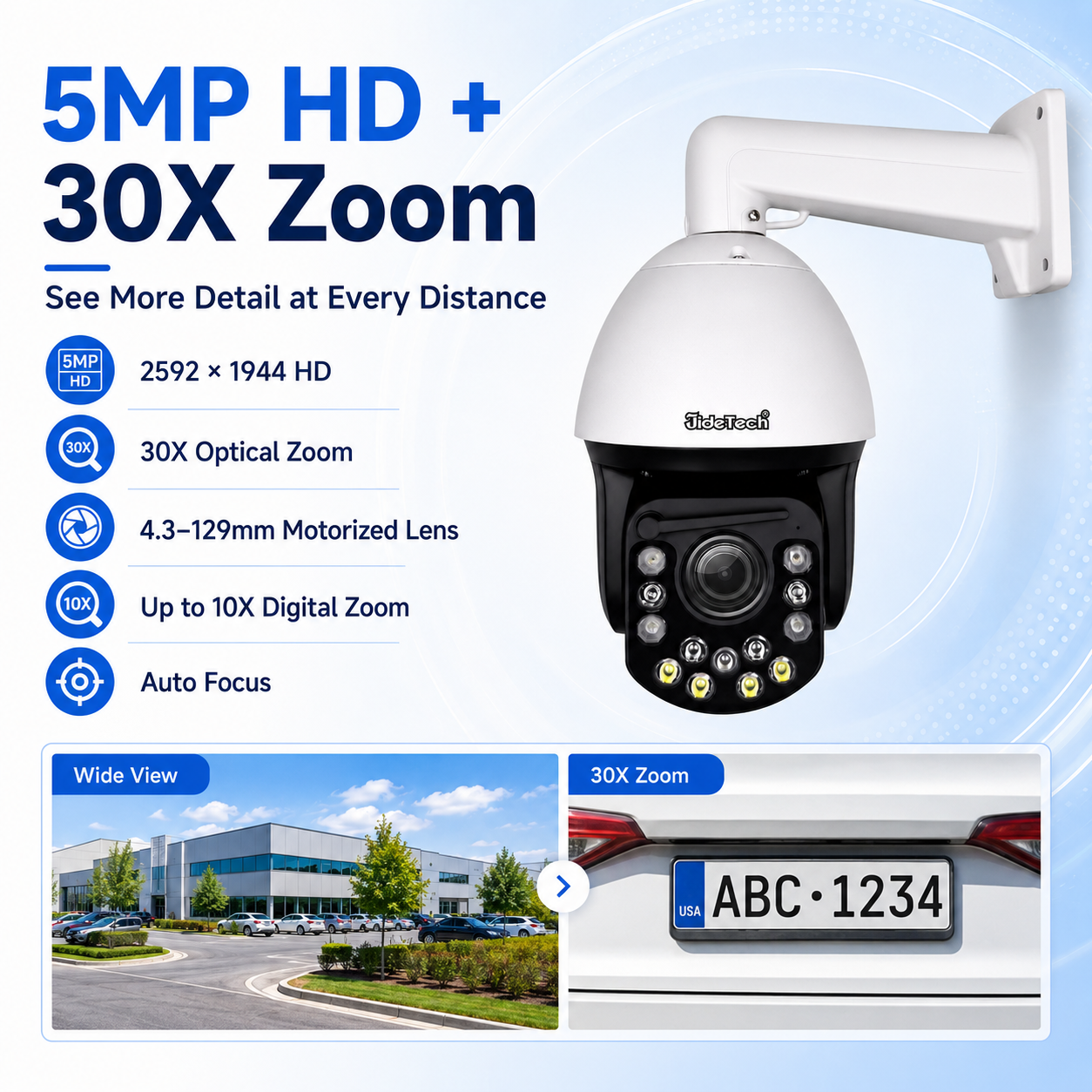

30X Optical Zoom for Long-Range Surveillance

Equipped with a 4.3–129mm motorized zoom lens, this camera provides 30X optical zoom for both wide-area monitoring and long-distance detail capture. Users can monitor a large area first, then zoom in to check gates, roads, vehicles, yards, entrances, parking lots, or other important locations.

• 30X optical zoom
• 4.3–129mm motorized zoom lens
• Up to 10X digital zoom
• Auto-focus support
• F1.6–2.8 aperture
• Horizontal field of view: 64.0° to 2.4°
• Vertical field of view: 38.5° to 1.3°
• Diagonal field of view: 71.5° to 2.7°

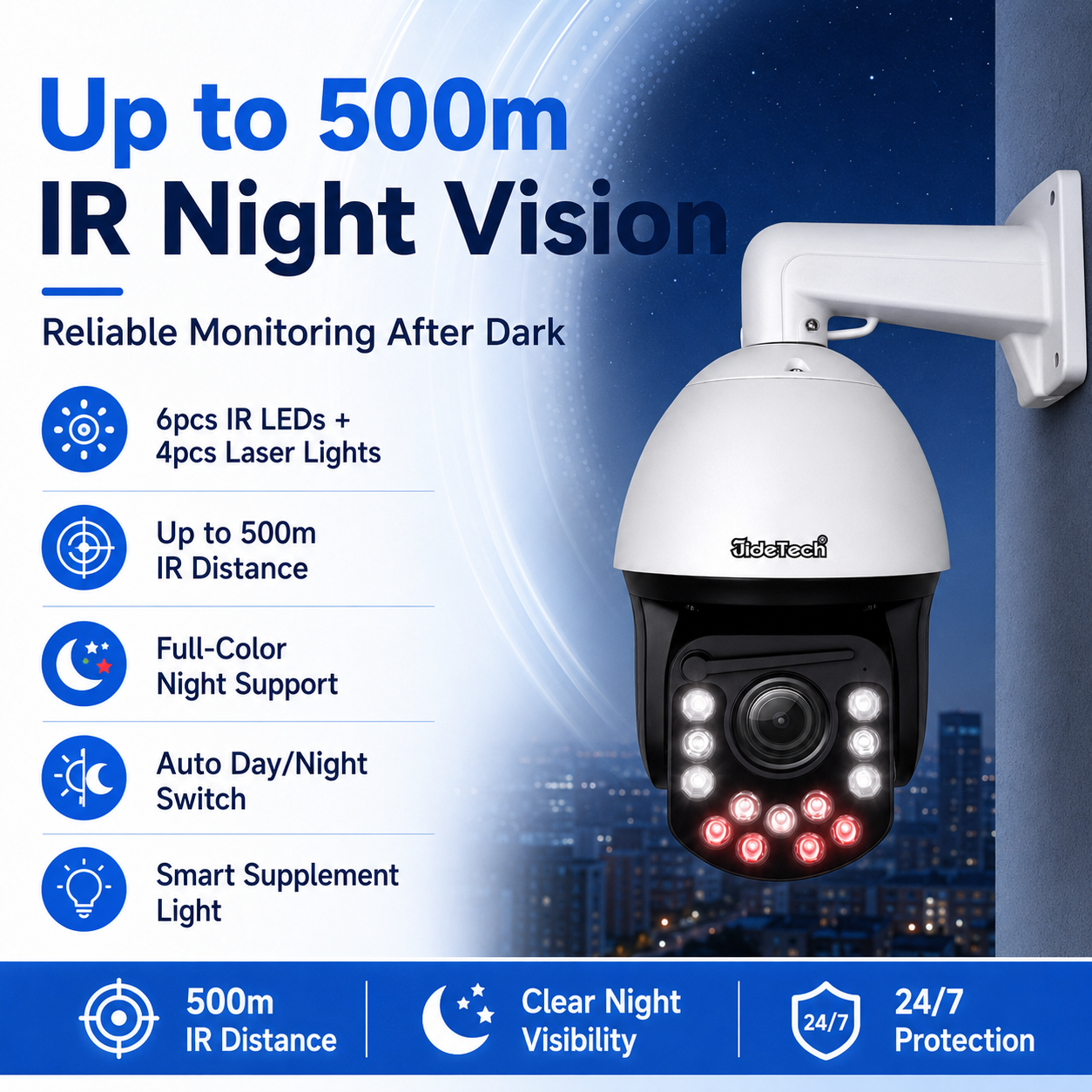

Up to 500m IR Night Vision

This outdoor PTZ camera uses infrared LEDs and laser lights to support long-range night monitoring. With up to 500m IR distance, it is suitable for large outdoor areas that need reliable night surveillance, such as farms, construction sites, warehouses, roads, industrial parks, and perimeter security projects.

• 6pcs IR LEDs + 4pcs laser lights
• Up to 500m infrared distance
• Smart supplement light support
• Automatic IR cut switching
• Full-color night monitoring support

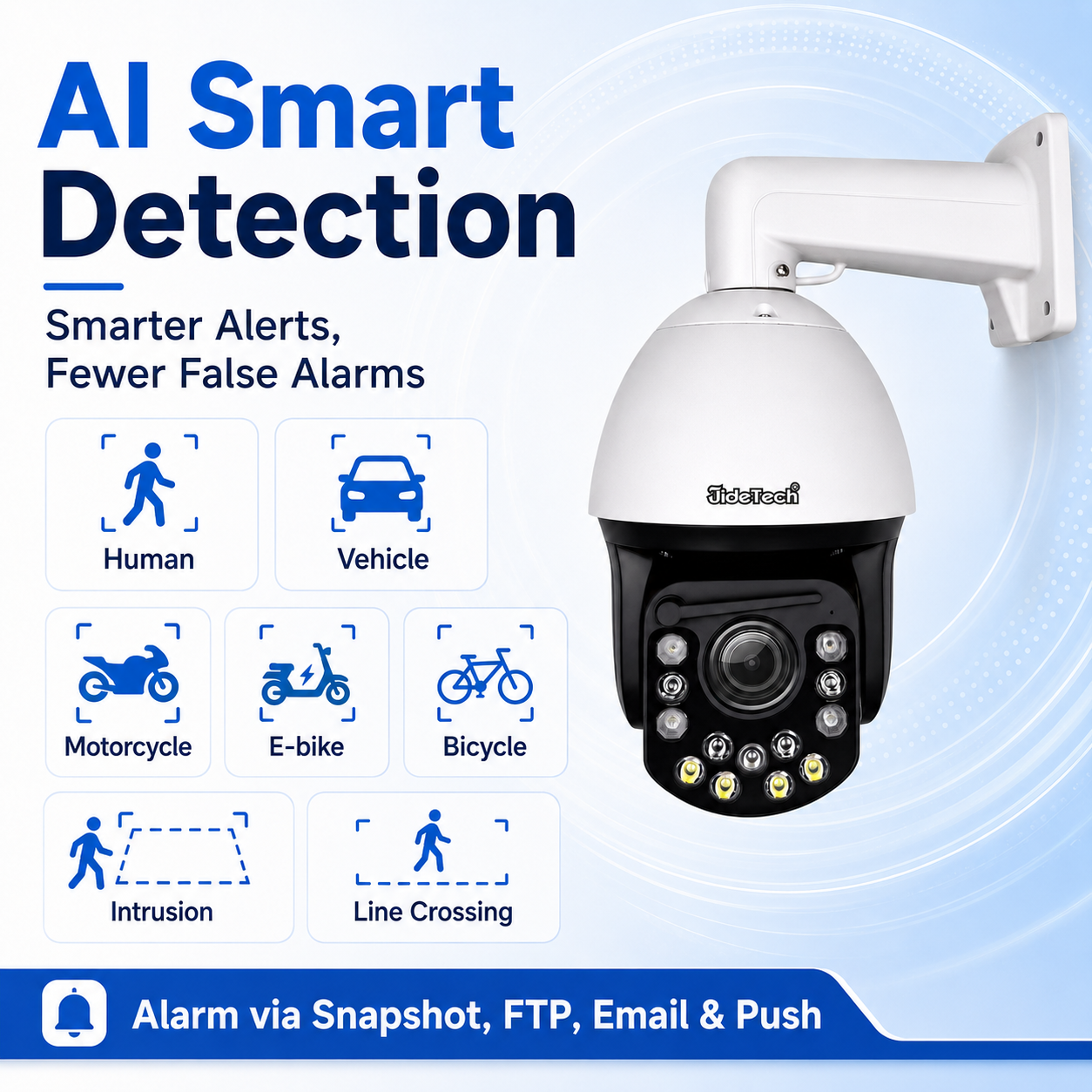

Smart Human and Vehicle Detection

The camera supports intelligent detection functions for real security use. It can detect humans, vehicles, motorcycles, e-bikes, bicycles, and other targets. This helps reduce false alarms and makes the camera more useful for practical outdoor surveillance projects.

• Human detection
• Vehicle detection
• Motorcycle detection
• E-bike and bicycle detection
• Motion detection
• Occlusion detection
• Custom area detection
• Intrusion detection
• Line crossing detection
• Alarm linkage with TF card recording, snapshot, FTP upload, email upload, sound alarm, and push notification

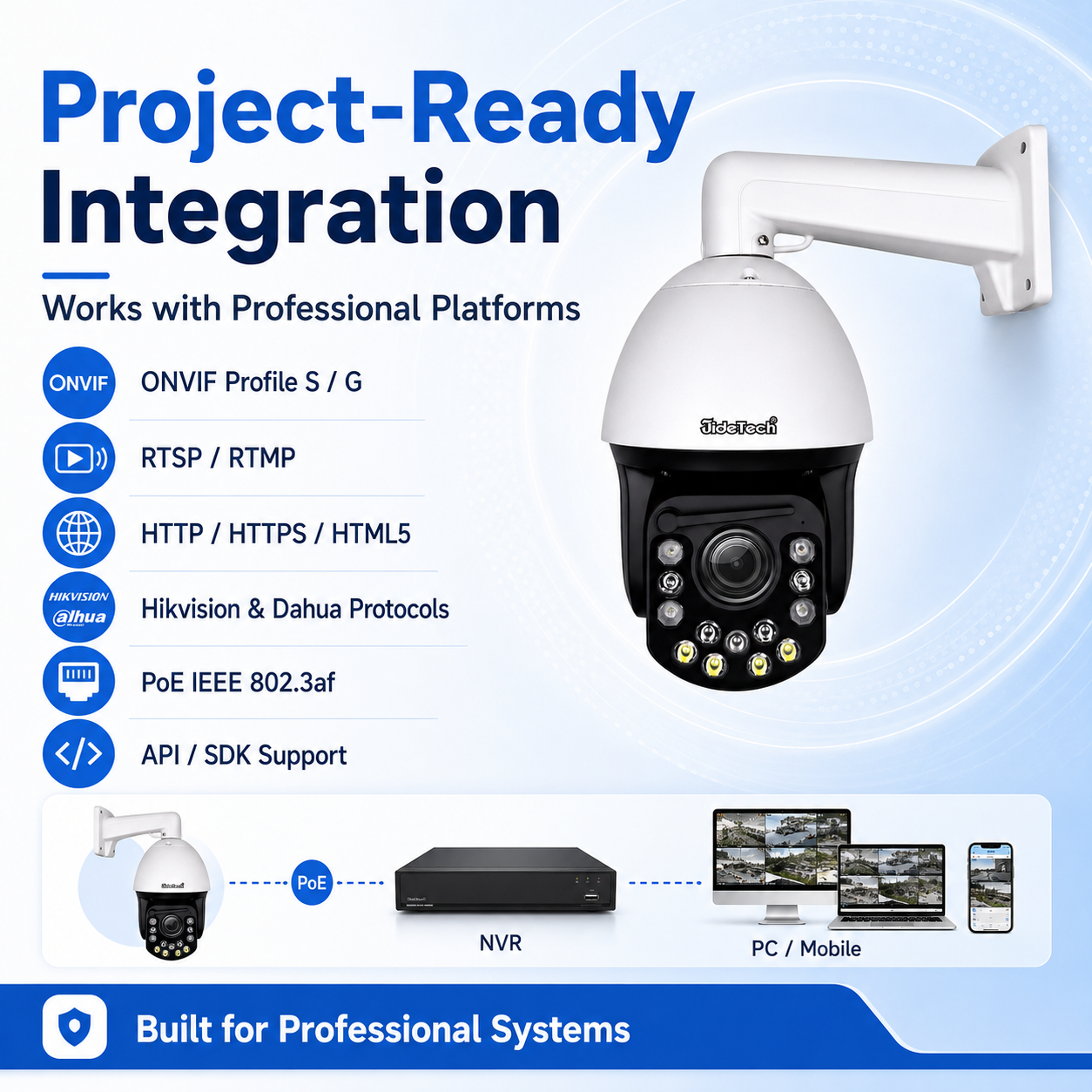

Professional Protocol Compatibility

This camera is suitable for professional security systems and third-party platform integration. It supports ONVIF Profile S/G, RTSP, RTMP, HTTP, HTTPS, HTML5, Hikvision private protocol, Dahua private protocol, API, and SDK. It can work with NVR systems, VMS platforms, web browsers, and custom security projects.

• ONVIF Profile S / Profile G
• ONVIF Absolute Positioning and Absolute Move
• RTSP / RTMP / HTTP / HTTPS / HTML5
• Hikvision private protocol support
• Dahua private protocol support
• API and SDK support
• Plug-in free live view via Chrome, Firefox, and Edge
• Compatible with AjDevTools and LMS client

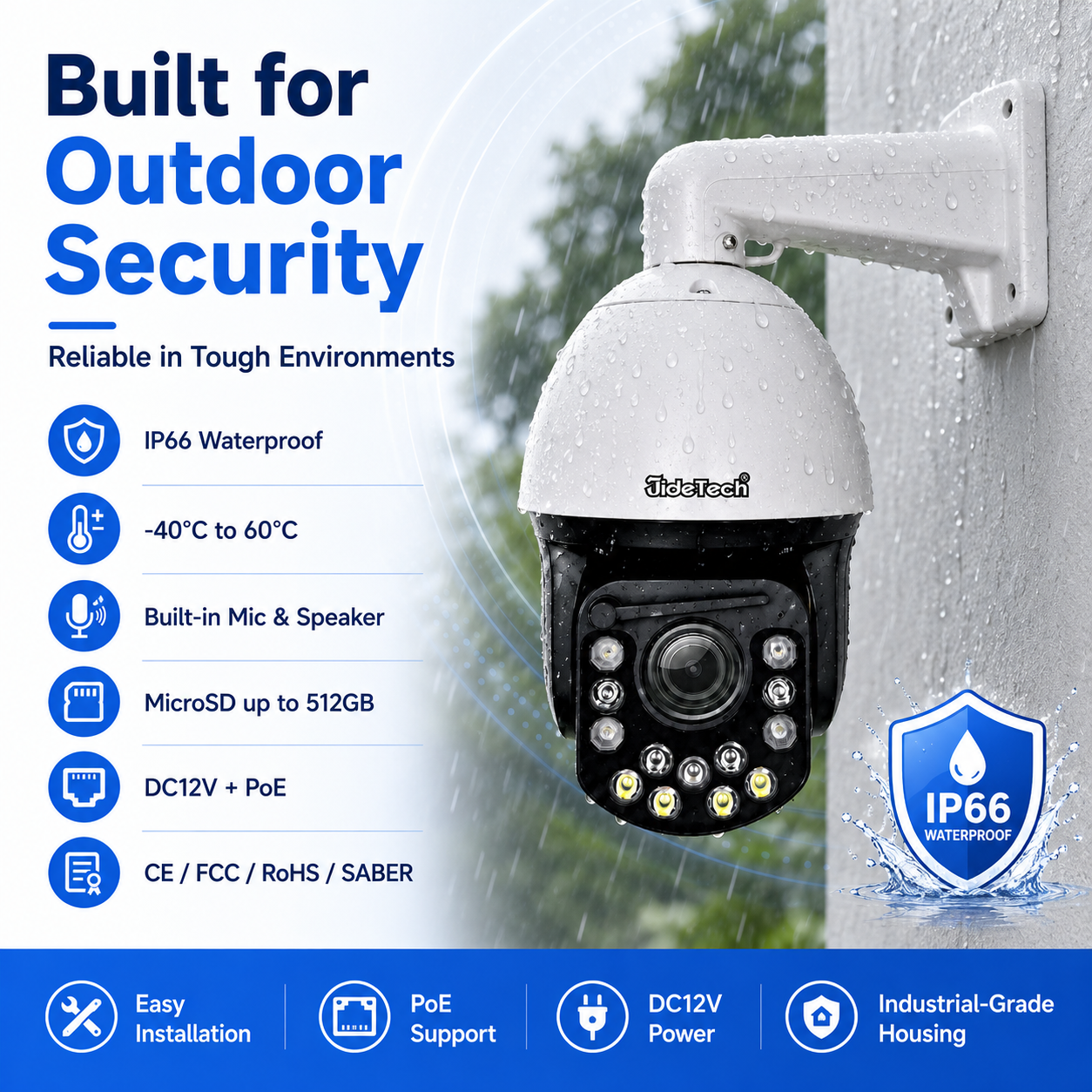

Built for Outdoor Security Projects

The camera is built for outdoor and industrial environments. It supports IP66 waterproof protection, PoE power supply, built-in microphone, built-in speaker, local MicroSD storage, and stable operation in harsh weather conditions.

• IP66 waterproof outdoor housing
• Built-in wiper
• Built-in microphone and speaker
• MicroSD card storage up to 512GB and USB
• DC12V3A and IEEE 802.3af PoE power support
• Power consumption less than 24W
• Working temperature: -40°C to 60°C
• Operating humidity: ≤95% RH, non-condensing
• CE, FCC, RoHS, and SABER certified

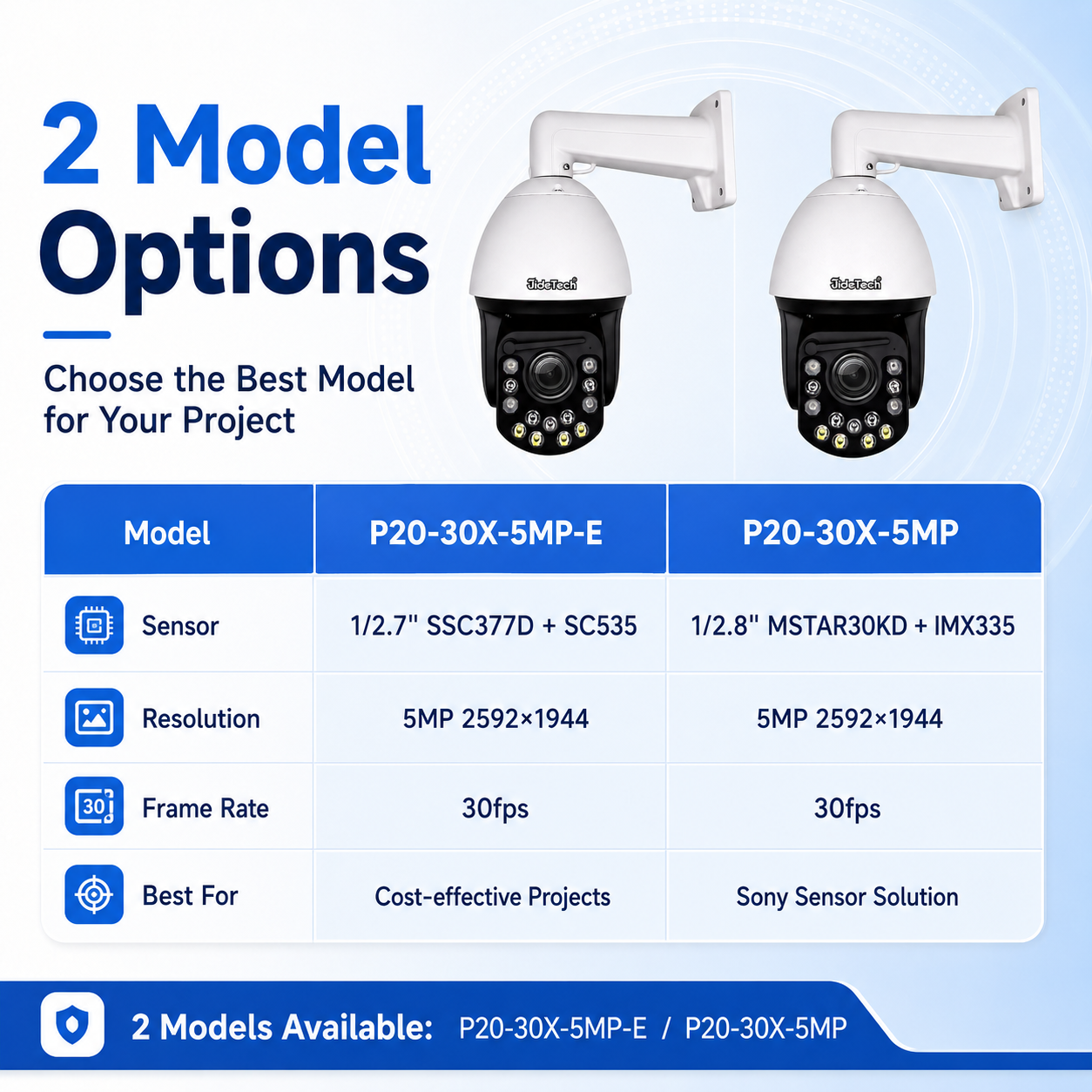

Choose from 2 Model Options

This 5MP 30X PoE PTZ camera is available in two model versions. Both versions support 5MP resolution, 30X optical zoom, ONVIF Absolute Positioning, up to 500m IR night vision, PoE power supply, IP66 outdoor housing, smart detection, and professional protocol compatibility. The main difference is the sensor solution.

Choose P20-30X-5MP-E for a more cost-effective 5MP 30X PTZ camera solution. Choose P20-30X-5MP if your project requires a Sony sensor solution with IMX335.

Main Specifications

Recommended Applications

• Farm and ranch security
• Construction site monitoring
• Warehouse and logistics center security
• Parking lot and road surveillance
• Industrial park monitoring
• School and campus security
• Smart city surveillance
• Border and perimeter security
• Remote outdoor security projects

FAQ

What is Absolute Positioning on a PTZ camera?

Absolute Positioning allows the PTZ camera to move to specific pan and tilt coordinates. This is more accurate than standard PTZ control and is useful for professional projects, preset patrol, map-based monitoring, radar linkage, and system integration.

Does this 5MP PTZ camera support PoE?

Yes. This camera supports IEEE 802.3af PoE, allowing power and data transmission through one Ethernet cable. It also supports DC12V3A power input.

How far can this camera see at night?

The camera supports up to 500m IR night vision with infrared LEDs and laser lights, making it suitable for long-range outdoor monitoring after dark.

Can this camera work with third-party NVR or VMS systems?

Yes. The camera supports ONVIF Profile S/G, RTSP, RTMP, HTTP, HTTPS, HTML5, Hikvision private protocol, Dahua private protocol, API, and SDK for professional integration.

Which model should I choose?

Choose P20-30X-5MP-E if you need a cost-effective 5MP 30X PTZ solution. Choose P20-30X-5MP if your project requires a Sony IMX335 sensor solution.

Is this camera suitable for outdoor security?

Yes. The camera uses an IP66 outdoor housing and works from -40°C to 60°C, making it suitable for farms, warehouses, roads, parking lots, construction sites, and industrial areas.

The JideTech 5MP 30X Absolute Positioning PoE PTZ Camera is a professional outdoor security camera for buyers who need long-range zoom, accurate PTZ control, powerful night vision, smart detection, and reliable system compatibility.
