JideTech P22 PLUS 8MP 30X Starlight PoE PTZ IP Camera with ONVIF Absolute Positioning

JideTech P22 PLUS 8MP 30X Starlight PoE PTZ IP Camera with ONVIF Absolute Positioning

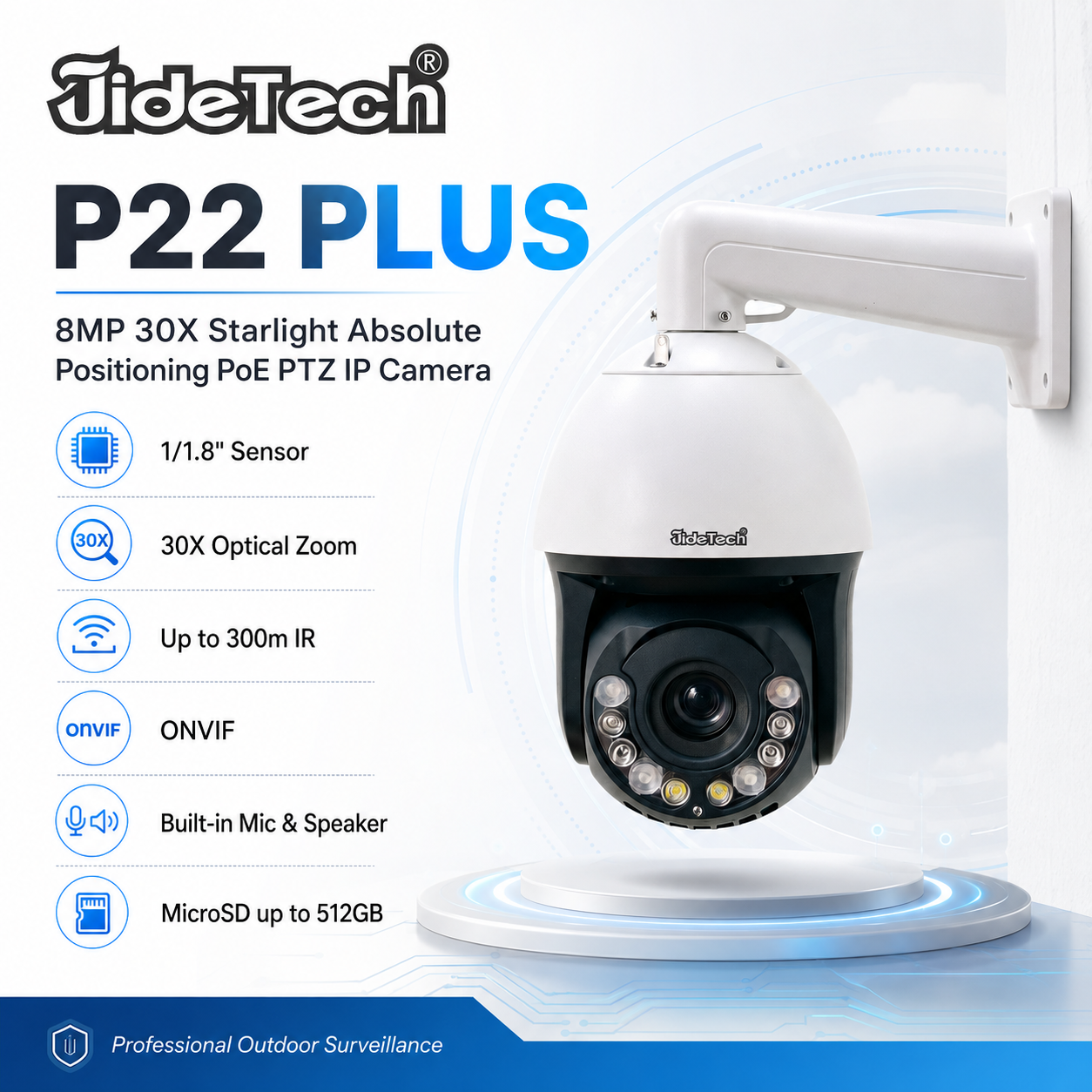

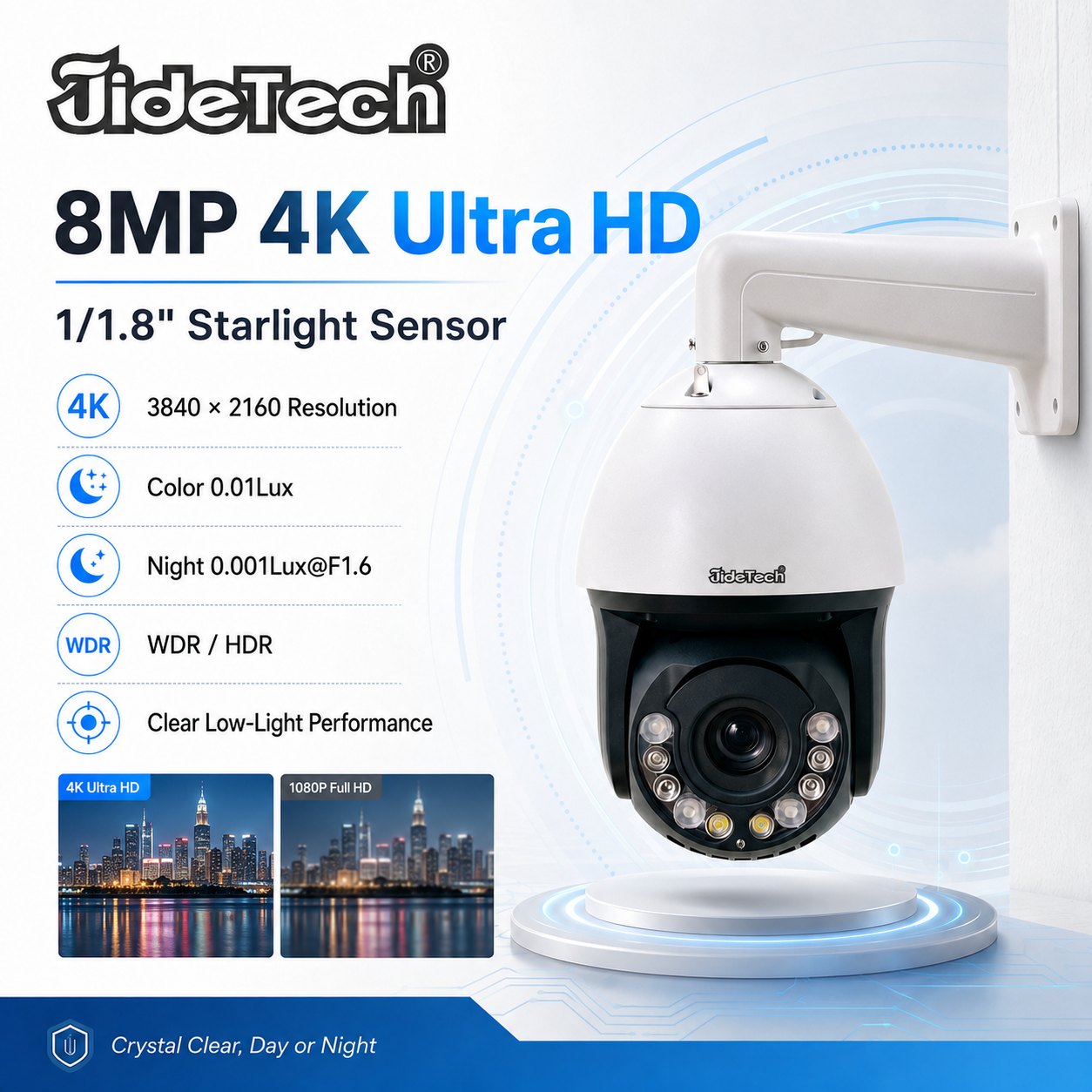

JideTech P22 PLUS 8MP 30X Starlight PoE PTZ IP Camera

The JideTech P22 PLUS is an 8MP 4K professional PoE PTZ IP camera designed for long-range security monitoring, smart city surveillance, industrial sites, parking areas, warehouses, farms, ports, construction sites, and perimeter protection projects.

Built with a 1/1.8" starlight sensor, 30X optical zoom, 4.3–129mm motorized zoom lens, and ONVIF Absolute Positioning, this camera provides detailed video, accurate PTZ control, and reliable integration with professional VMS, NVR, and third-party security systems.

Key Features

  • 8MP / 4K Ultra HD Resolution: Supports up to 3840 × 2160 video resolution for clear image detail.
  • 1/1.8" Starlight Sensor: Designed for low-light monitoring with color illumination down to 0.01Lux and night sensitivity down to 0.001Lux@F1.6.

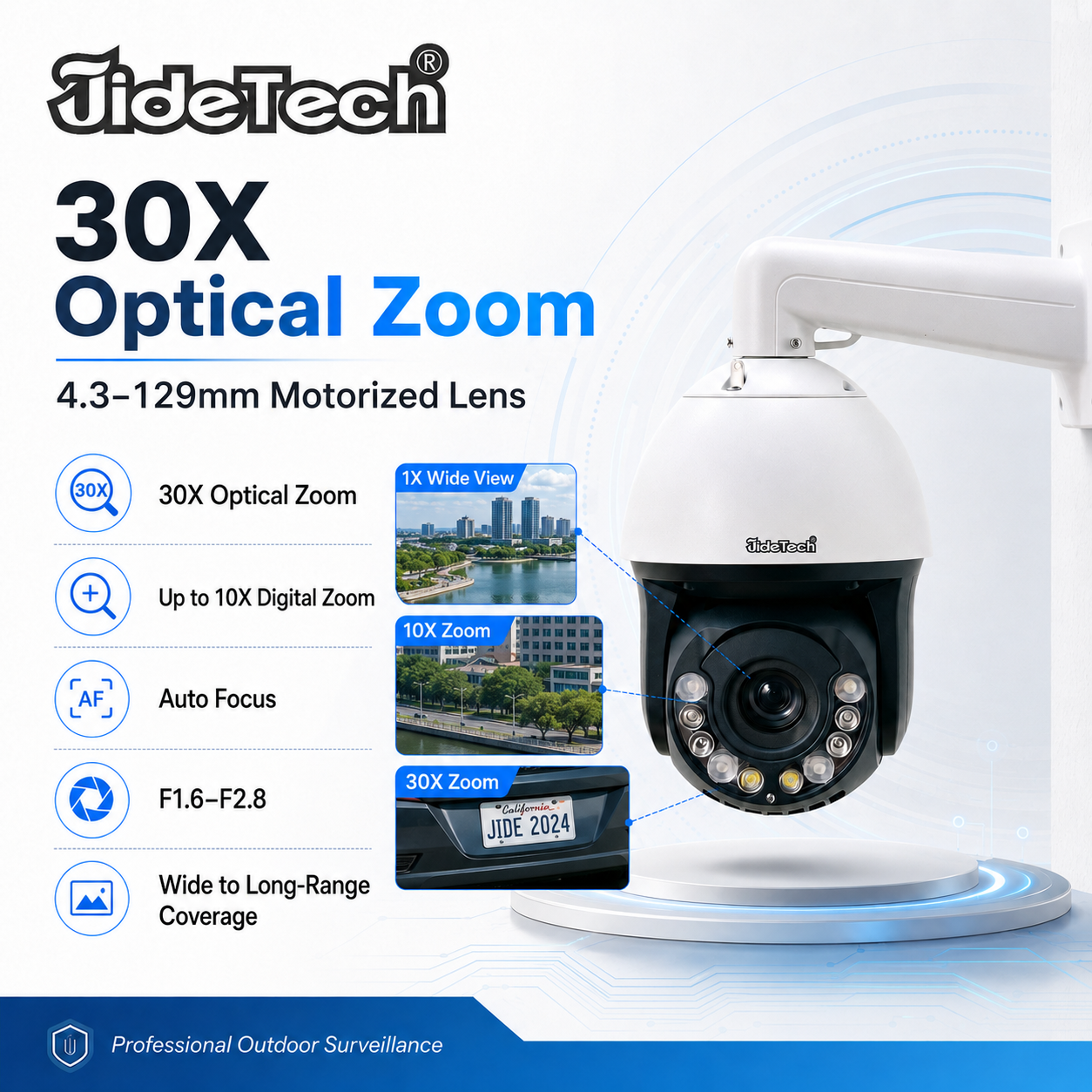

  • 30X Optical Zoom Lens: 4.3–129mm motorized zoom lens, ideal for wide-area monitoring and long-distance target observation.

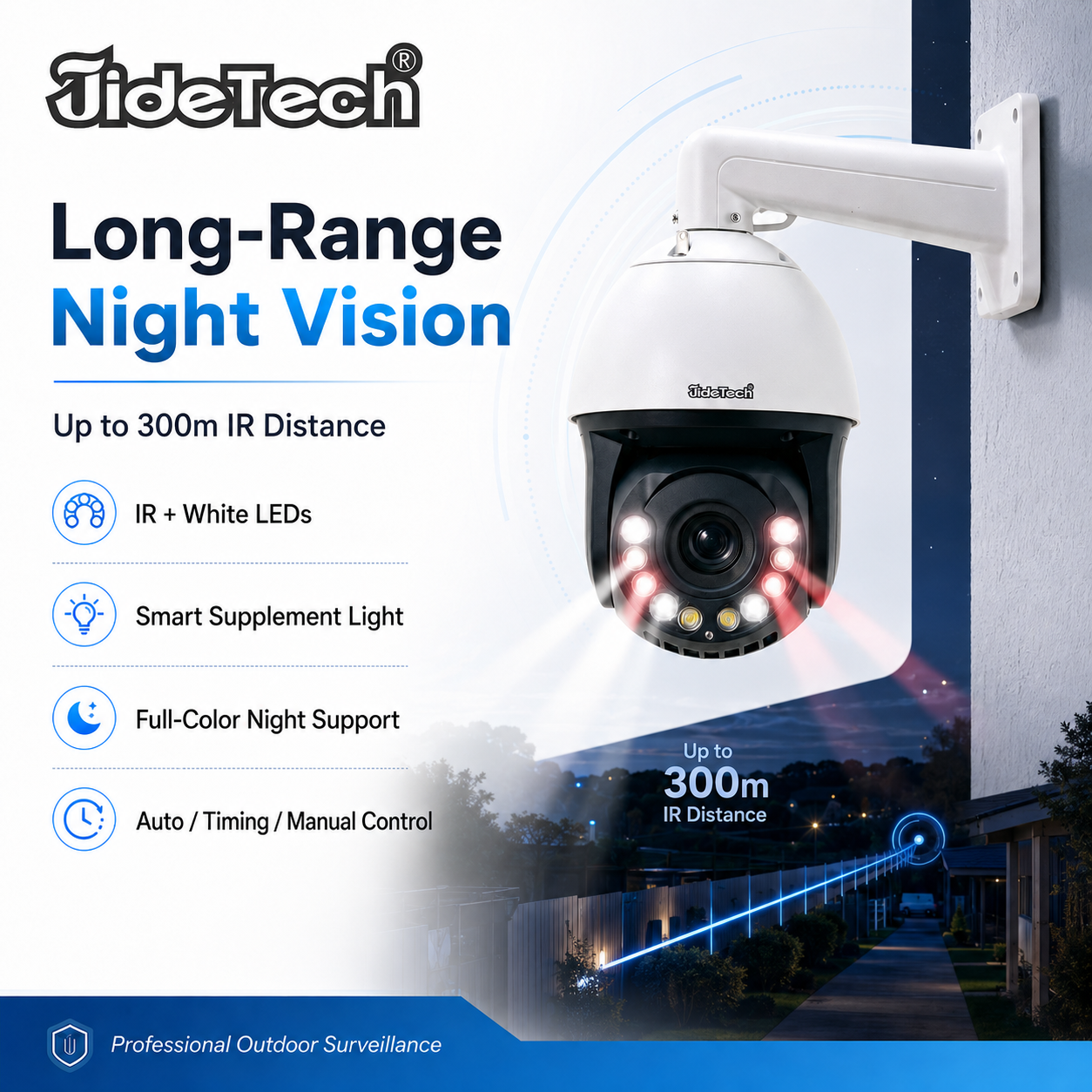

  • Up to 300m IR Distance: Equipped with infrared and laser illumination for long-range night surveillance.
  • ONVIF Absolute Positioning: Supports high-resolution PTZ command control with 0.1° command accuracy and 0.0005 interface resolution.

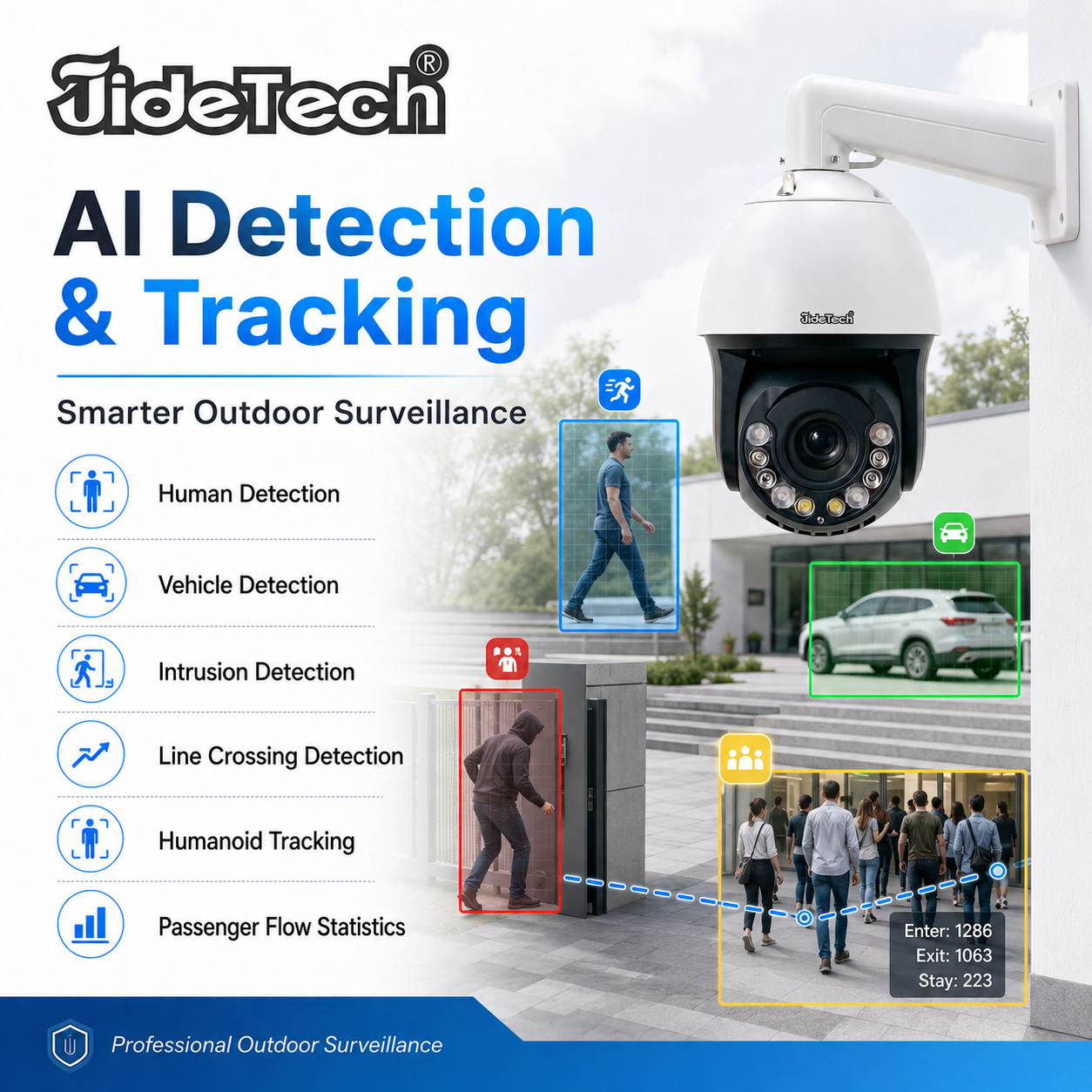

  • AI Smart Detection: Supports motion detection, humanoid detection, occlusion detection, and custom detection areas.
  • Multiple Detection Targets: Human, car, motorcycle, e-bike, bicycle, and gas tank detection.

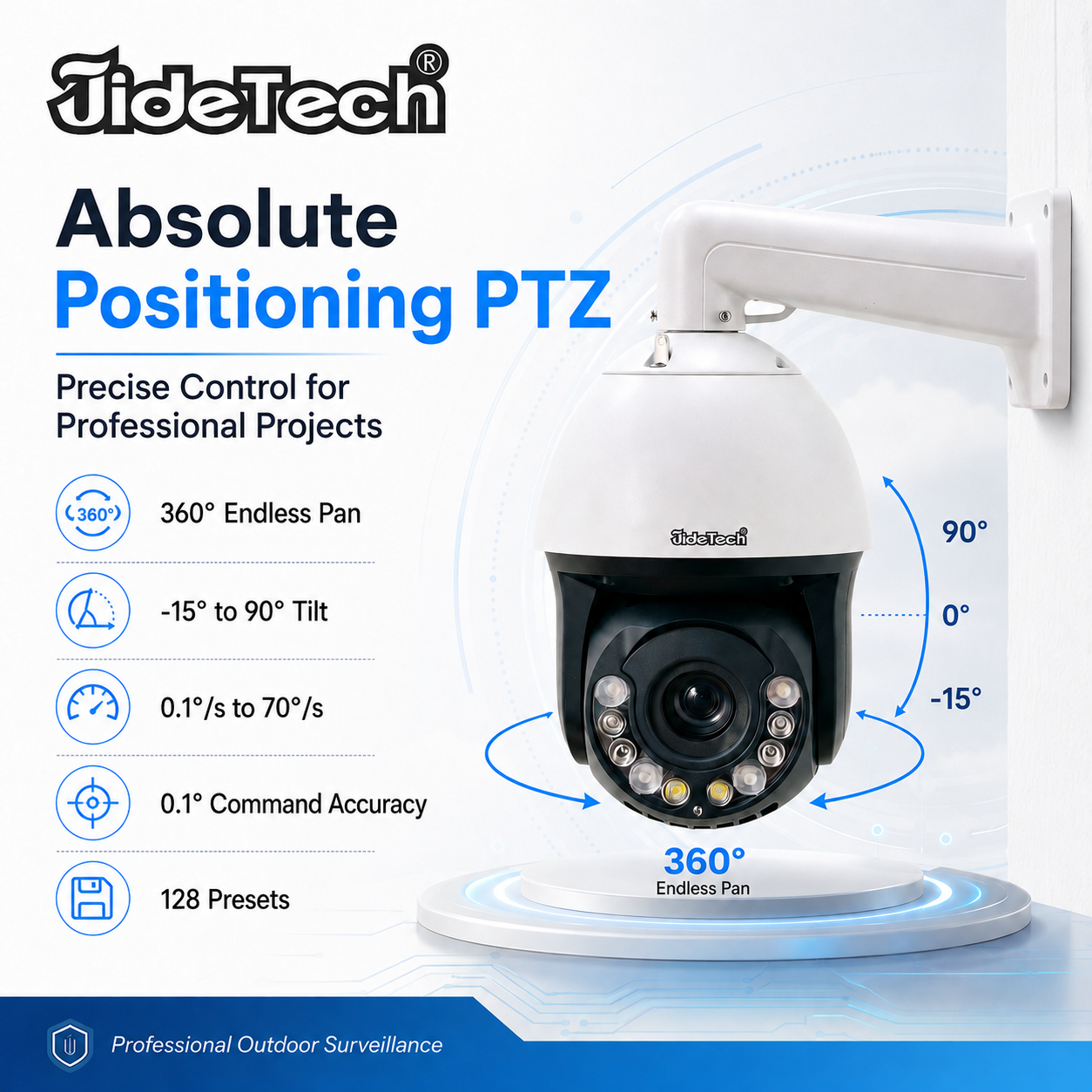

  • Professional PTZ Control: 360° endless pan, -15° to 90° tilt, 128 presets, cruise scan, and customizable tracking speed.
  • PoE and DC Power: Supports DC12V3A and PoE power input for flexible project installation.

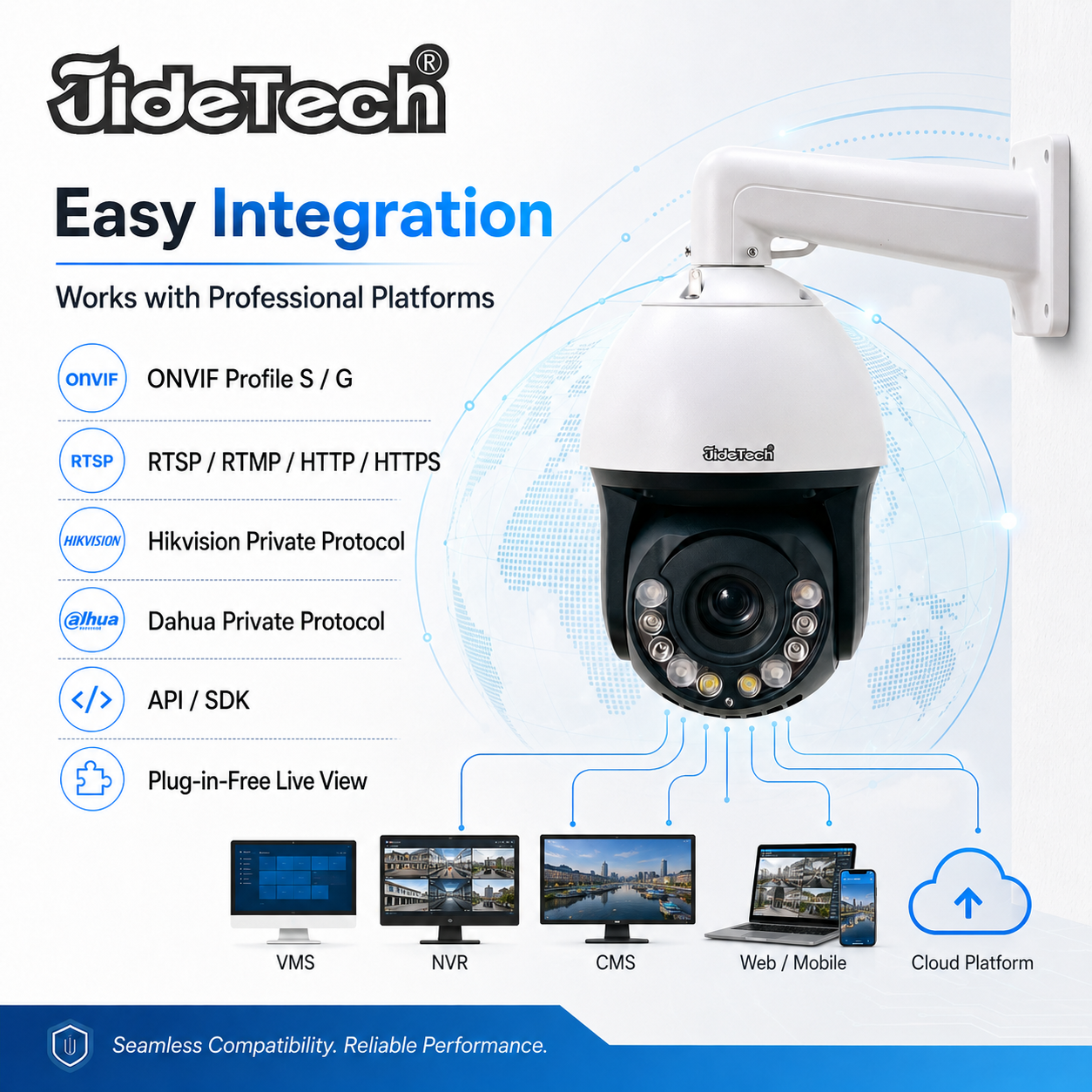

  • ONVIF & Private Protocol Support: Compatible with ONVIF Profile S/G, RTSP, RTMP, HTTP, HTTPS, Hikvision private protocol, Dahua private protocol, API, and SDK integration.

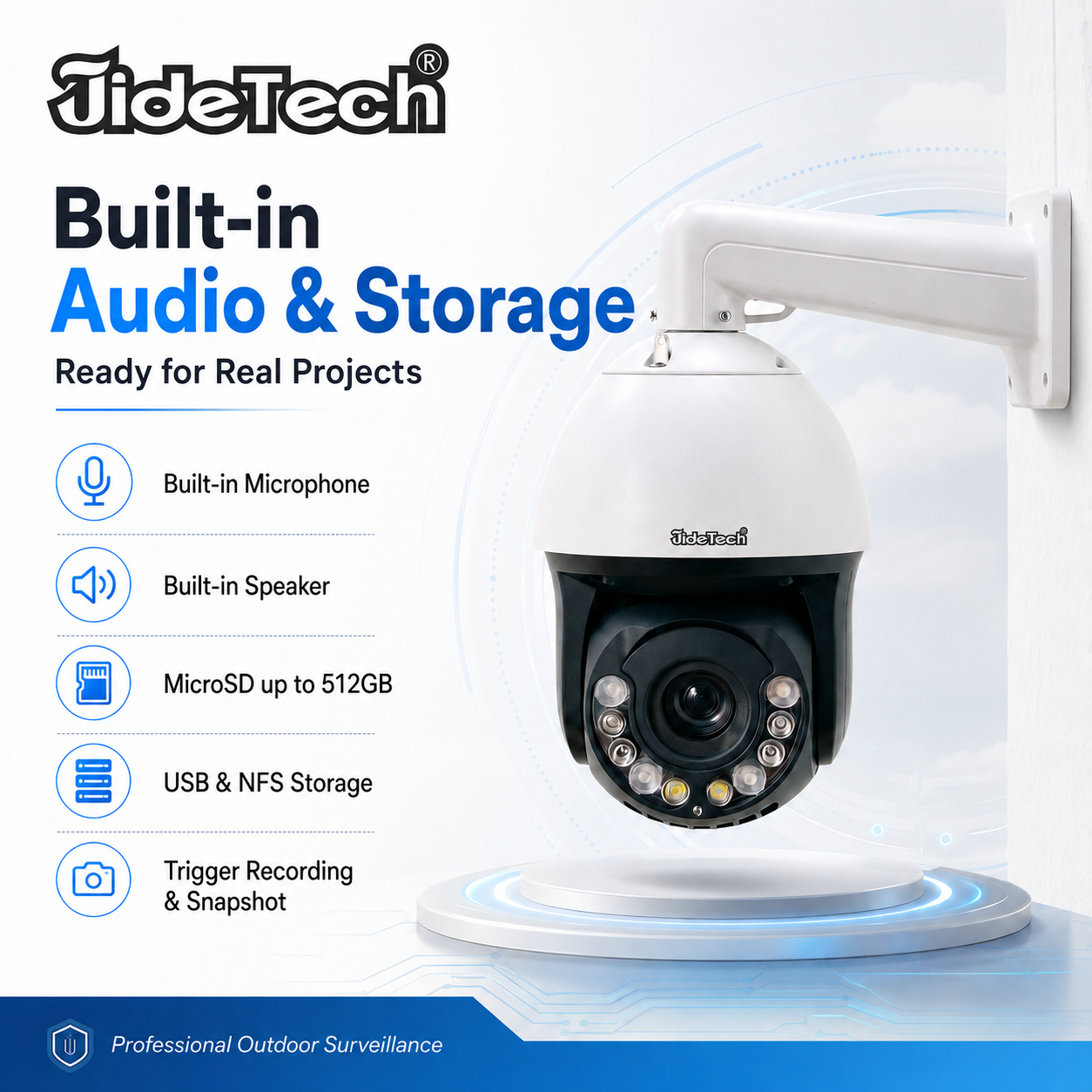

  • Built-in Audio: Built-in microphone and speaker for two-way audio applications.
  • Local Storage: Supports MicroSD card storage up to 512GB.

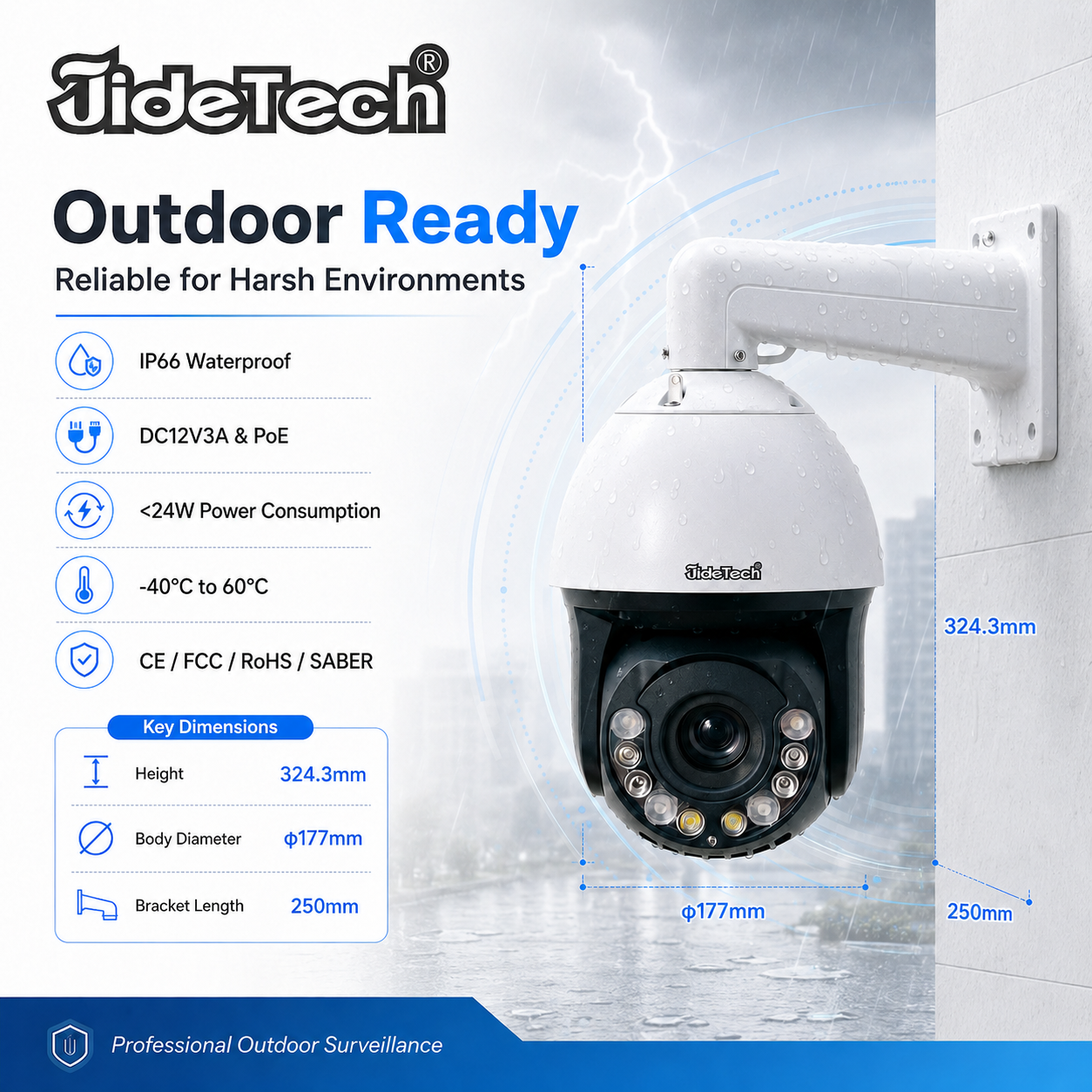

  • Outdoor Rated: IP66 waterproof design for outdoor surveillance environments.

Why Choose P22 PLUS?

The P22 PLUS is not just a standard PTZ camera. It is built for projects that need long-range zoom, precise PTZ positioning, AI target detection, and third-party platform integration. It is suitable for system integrators, security contractors, installers, distributors, and professional surveillance projects that require stable video performance and flexible protocol compatibility.

Recommended Applications

  • Smart city surveillance
  • Parking lot and perimeter security
  • Construction site monitoring
  • Warehouse and logistics security
  • Farm and remote site surveillance
  • Industrial park security
  • Port, border, and critical infrastructure monitoring
  • Long-distance outdoor PTZ surveillance projects

Technical Specifications

Model P22 PLUS-30X-8MP 1/1.8
Max Resolution 8MP / 4K, 3840 × 2160
Sensor 1/1.8" SSC378DE + 850Ai
Lens 4.3–129mm motorized zoom lens
Optical Zoom 30X
Digital Zoom Up to 10X
Aperture F1.6–F2.8
Horizontal Field of View 80°–3.2°
Vertical Field of View 50°–1.8°
Diagonal Field of View 88°–3.7°
IR Distance Up to 300m
Video Compression H.264 / H.265 / H.265+
Frame Rate 20fps
Pan Range 360° endless
Tilt Range -15° to 90°
Pan/Tilt Speed 0.1°/s to 70°/s
Presets 128 presets
Storage MicroSD up to 512GB, USB, NFS
Protocols ONVIF Profile S/G, RTSP, RTMP, HTTP, HTTPS, Hikvision Private Protocol, Dahua Private Protocol, API, SDK
Network 1 × 10/100Mbps RJ45 Ethernet port
Power DC12V3A, PoE
Power Consumption < 24W
Working Temperature -40°C to 60°C
Dimensions 27 × 27 × 44 cm
Weight N.W. 4.5kg, G.W. 8kg
Certifications CE, FCC, RoHS, SABER

FAQ

Is the P22 PLUS suitable for outdoor security projects?

Yes. The P22 PLUS is an IP66 outdoor PTZ camera designed for professional outdoor surveillance applications such as construction sites, parking lots, industrial parks, farms, ports, and perimeter security.

Does this 8MP PTZ camera support ONVIF?

Yes. The P22 PLUS supports ONVIF Profile S and Profile G, and also supports RTSP, RTMP, HTTP, HTTPS, Hikvision private protocol, Dahua private protocol, API, and SDK integration.

What is ONVIF Absolute Positioning?

ONVIF Absolute Positioning allows the camera to receive precise PTZ position commands from compatible software platforms, making it suitable for VMS integration, smart tracking, and professional project deployment.

How far can the camera see at night?

The P22 PLUS supports up to 300 meters IR distance, making it suitable for long-range night monitoring.

Can this camera record locally?

Yes. It supports MicroSD card storage up to 512GB, and also supports network storage through NFS.

Best For

Security installers, CCTV distributors, system integrators, smart city contractors, construction site security providers, warehouse security projects, industrial surveillance projects, farm monitoring, and long-range outdoor PTZ camera applications.
