JideTech 12MP 23X Zoom Fast Speed PTZ Camera (P22-23X-12MP) Apply to NDAA

JideTech 12MP 23X Zoom Fast Speed PTZ Camera (P22-23X-12MP) Apply to NDAA

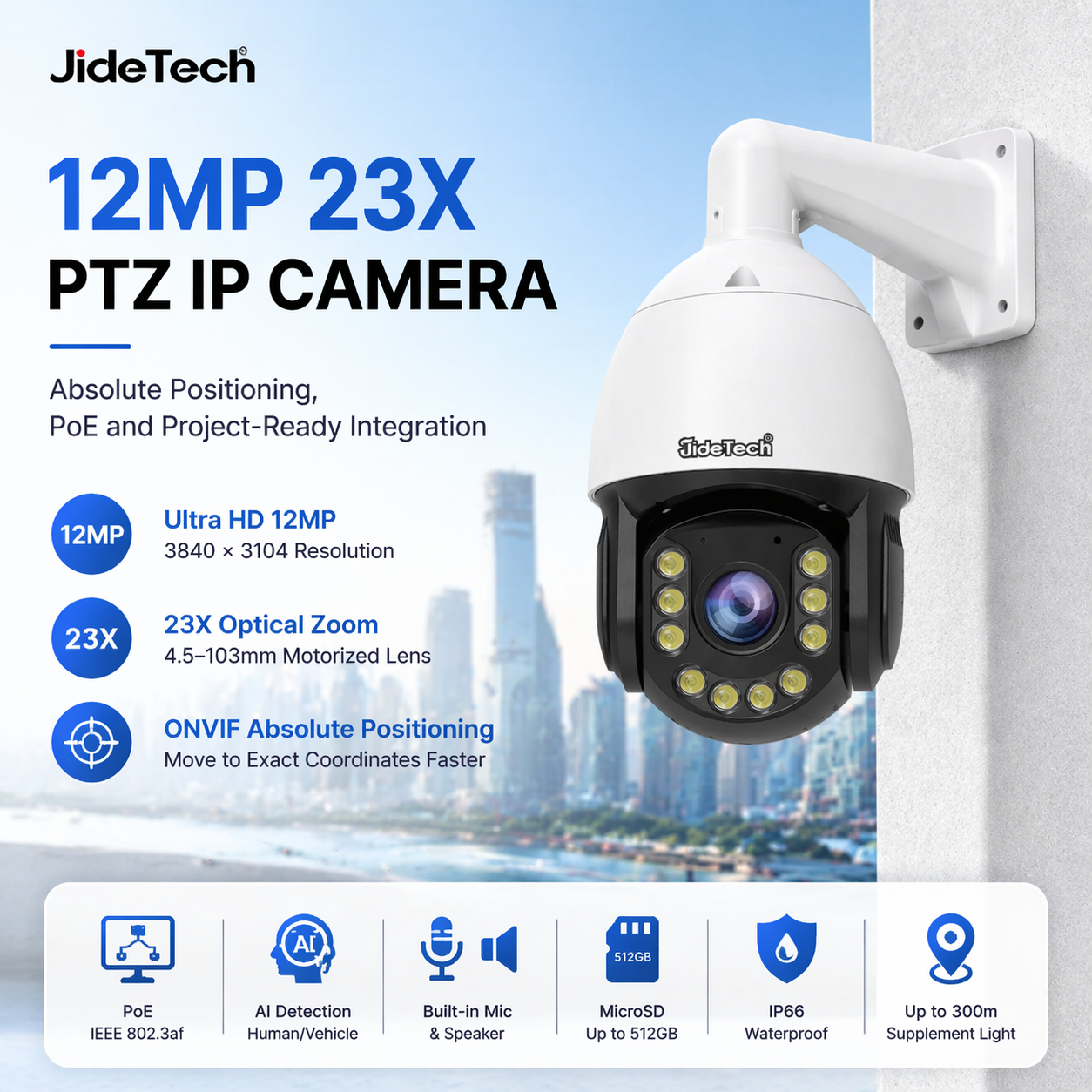

JideTech 12MP 23X PTZ IP Camera with ONVIF Absolute Positioning

Built for project surveillance, long-range monitoring and third-party integration, the P22-23X-12MP combines 12MP image clarity, 23X optical zoom, precise PTZ control and flexible protocol support in one professional outdoor PTZ camera.

12MP 3840 × 3104 23X Optical Zoom ONVIF Absolute Positioning PoE Supported IP66 Outdoor Rated AI Detection

Ultra-Clear 12MP Imaging

Up to 3840 × 3104 resolution for sharper scene coverage and better detail verification.

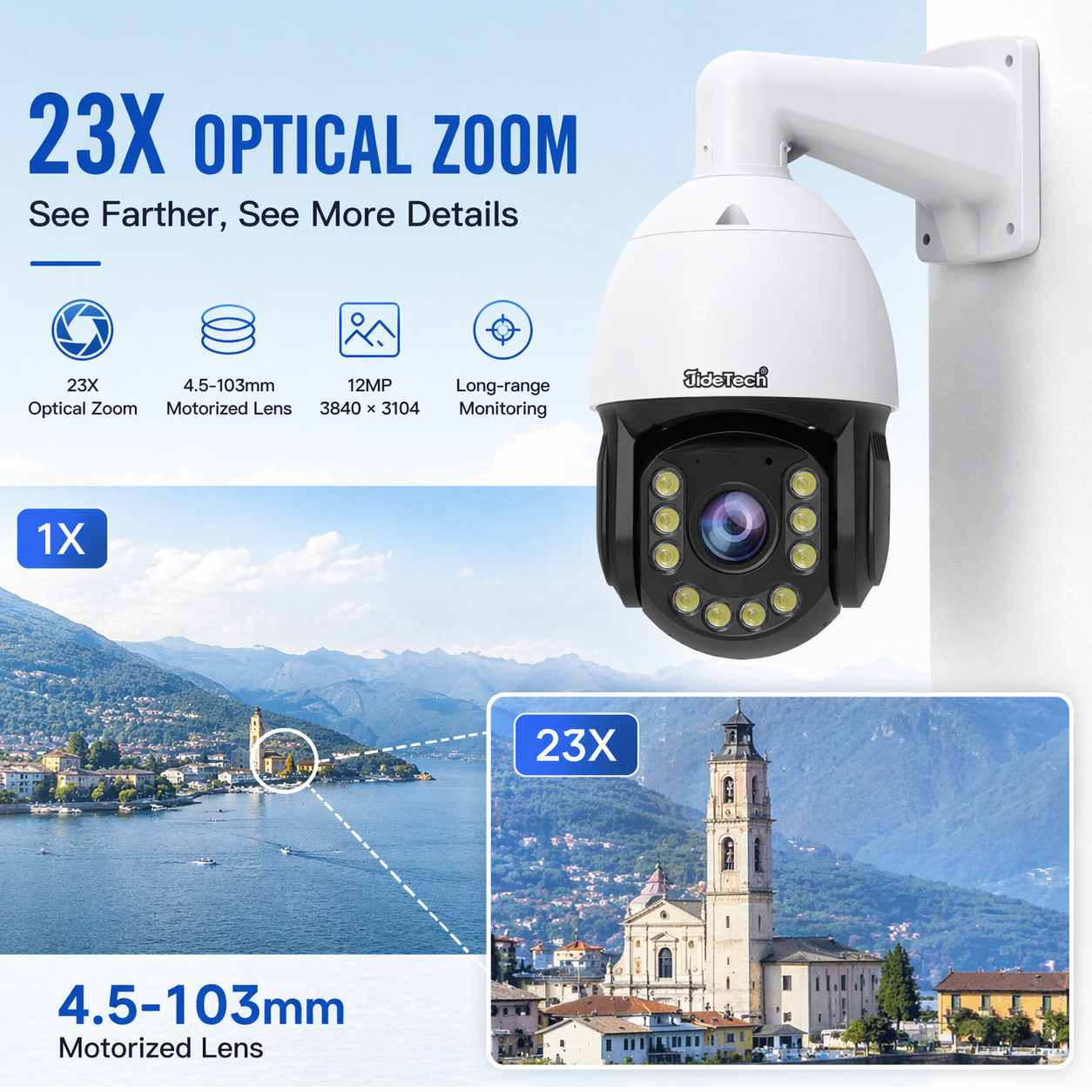

23X Optical Zoom

4.5–103mm motorized lens helps monitor wide areas and zoom in on key targets when needed.

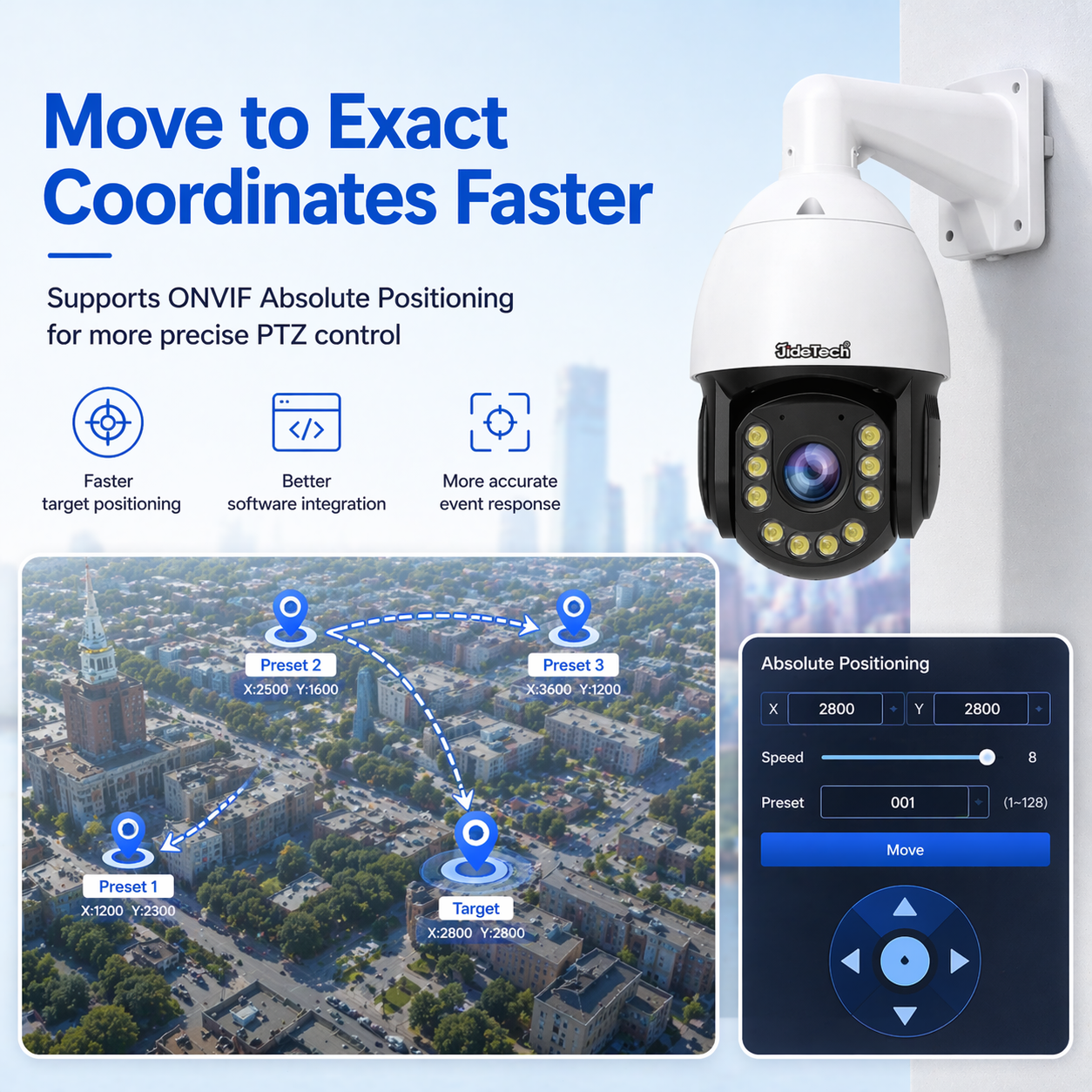

Absolute Positioning

Supports ONVIF Absolute Positioning for faster and more accurate PTZ movement to target coordinates.

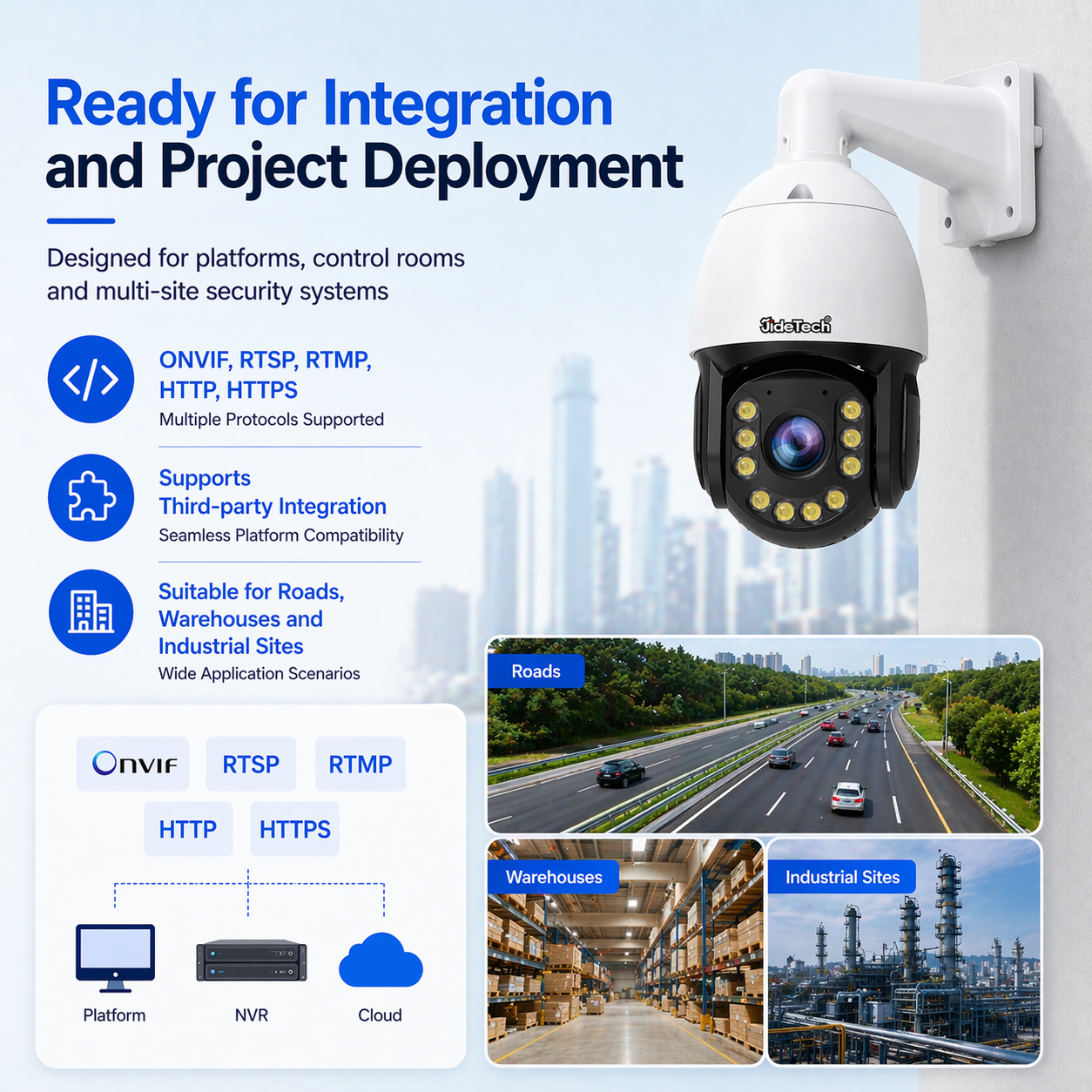

Project-Ready Integration

Supports ONVIF, RTSP, RTMP, HTTP, HTTPS, GB28181 and private protocol integration.

Why This 12MP PTZ Camera Stands Out

The P22-23X-12MP is designed for users who need more than basic PTZ video. It combines high-resolution imaging, accurate pan-tilt control, built-in audio, event linkage and broad protocol compatibility for professional surveillance projects.

Whether you are building a smart city system, protecting a warehouse, monitoring a construction site or integrating with a central platform, this model gives you the flexibility needed for real deployment.

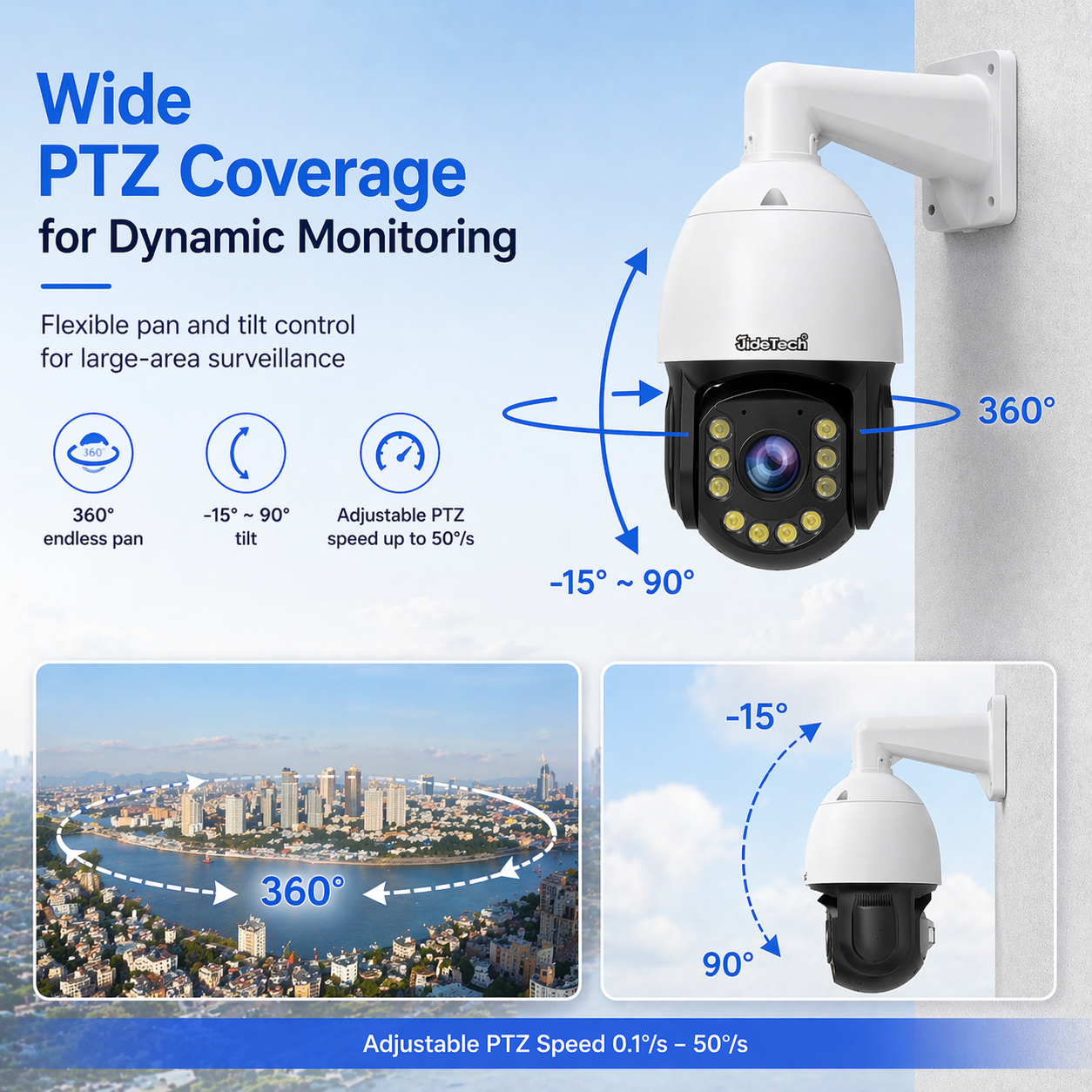

Built for Accurate PTZ Control

Unlike ordinary PTZ cameras that only support basic relative movement, this model supports ONVIF Absolute Positioning. That means the camera can move to a defined coordinate more precisely, helping improve response speed in event-driven surveillance and software-based tracking workflows.

  • 360° endless pan
  • -15° to 90° tilt
  • 0.1°/s to 50°/s pan and tilt speed
  • Up to 128 presets
  • Supports fixed-point tracking and cruise tracking

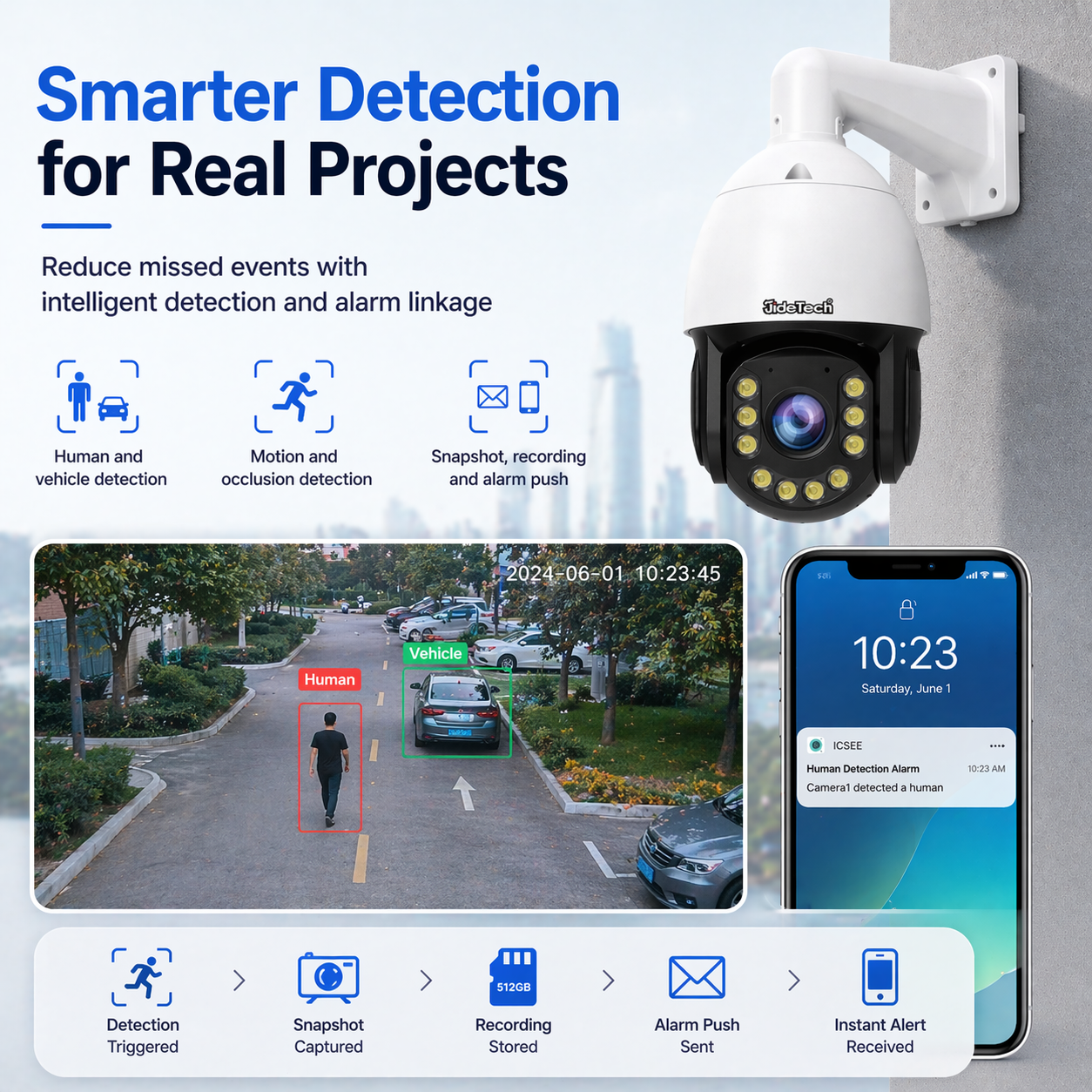

Smart Detection and Alarm Linkage

This PTZ IP camera supports intelligent detection functions to help reduce missed events and improve operational efficiency.

  • Motion detection
  • Humanoid detection
  • Occlusion detection
  • Custom area detection
  • Detection targets: Human, Car, Motorcycle, E-bike, Bicycle and Gas tank
  • Alarm linkage: recording, snapshot, email upload, FTP upload, alarm push and sound alarm

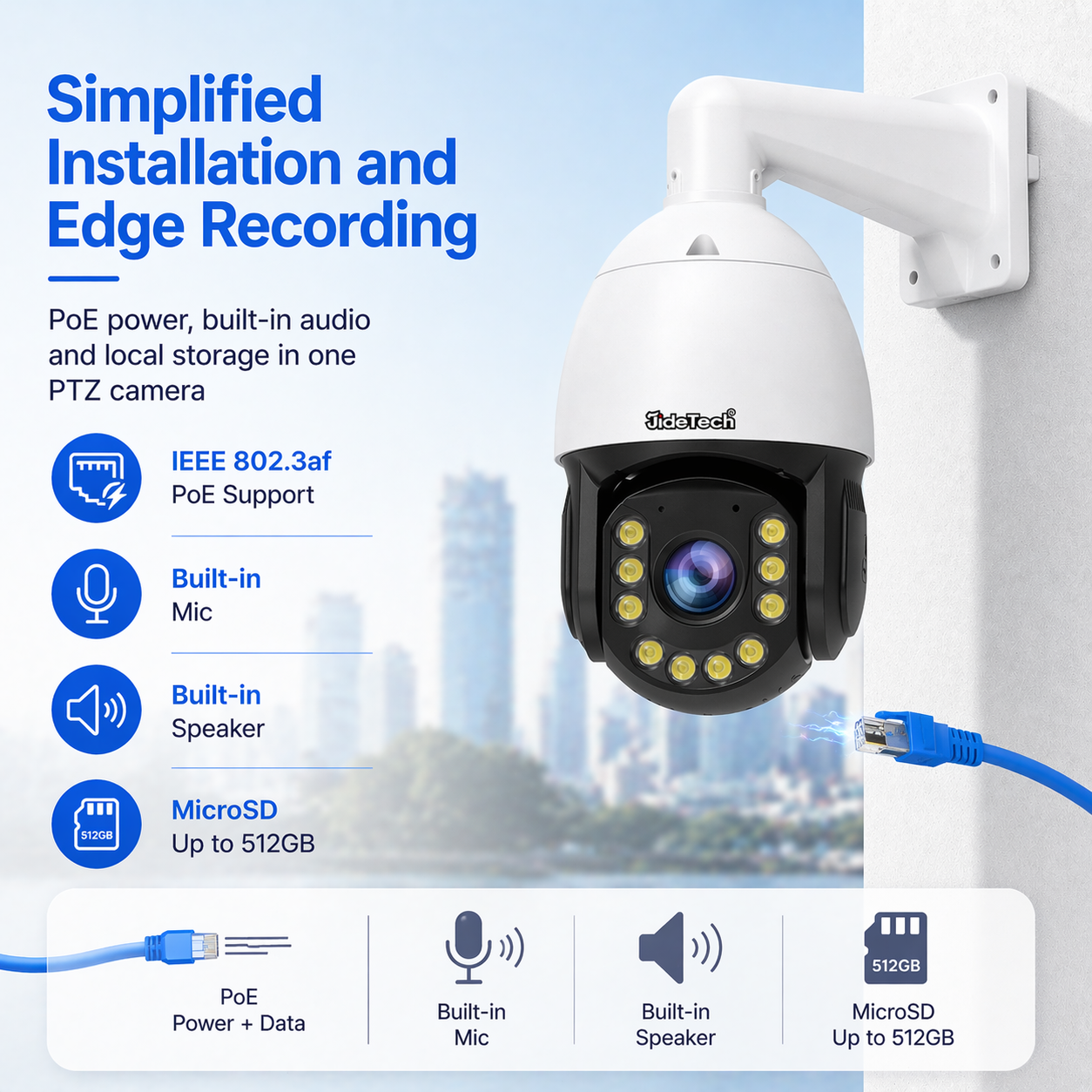

Professional Audio, Storage and Network Support

The camera includes a built-in microphone and speaker, supports local storage up to 512GB, and offers both PoE and DC power options for flexible installation.

  • Built-in microphone
  • Built-in speaker
  • MicroSD card support up to 512GB
  • 1 input / 1 output alarm interface
  • 10/100Mbps RJ45 Ethernet port
  • IPv4 and IPv6 support
  • PoE (IEEE 802.3af) and DC12V 3A

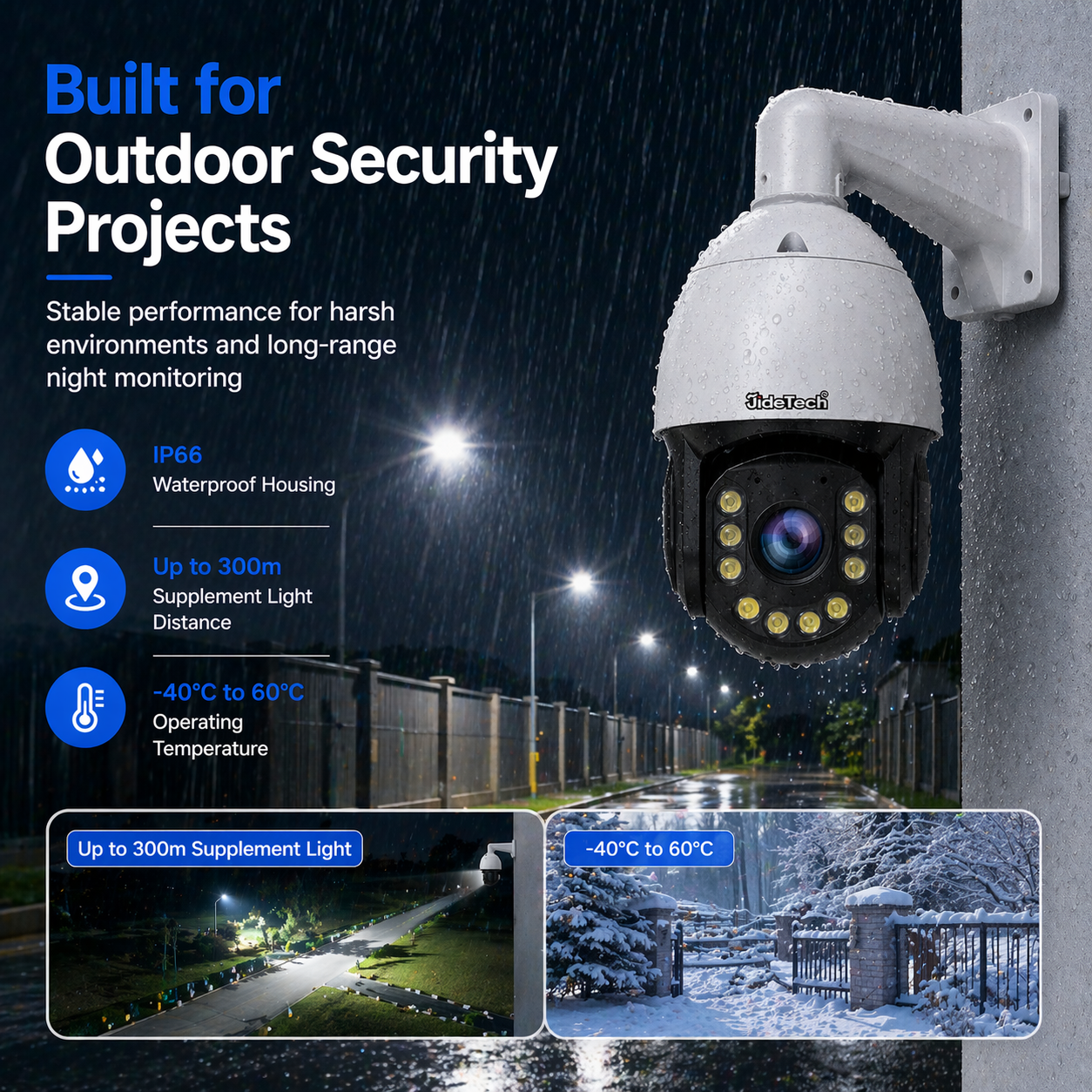

Outdoor Deployment Ready

With IP66 weather protection and operating stability for demanding environments, the P22-23X-12MP is suitable for outdoor security projects where reliability matters.

  • IP66 waterproof housing
  • Up to 300m supplement light distance
  • Operating environment: -40°C to 60°C
  • Suitable for perimeter, road, yard, industrial and project surveillance

Main Specifications

Model P22-23X-12MP
Sensor 1/2.5" MSC338G + OS12D40
Resolution 12MP, 3840 × 3104
Frame Rate Up to 15fps
Lens 4.5–103mm motorized zoom lens
Optical Zoom 23X
Video Compression H.264 / H.265 / H.265+
Pan / Tilt 360° endless pan, -15° to 90° tilt
Pan / Tilt Speed 0.1°/s to 50°/s
Local Storage MicroSD up to 512GB
Audio Built-in mic and built-in speaker
Network RJ45, IPv4 / IPv6
Power IEEE 802.3af PoE / DC12V 3A
Protection IP66
Certifications CE, FCC, RoHS, SABER

Applications

Smart city surveillance
Road and traffic monitoring
Warehouse and logistics security
Construction site monitoring
Industrial perimeter protection
Campus and public area surveillance

FAQ

Is this page for the 23X model or the 30X model?

This page is written specifically for the P22-23X-12MP model. If you also sell a 30X version, it is better to keep that as a separate product page.

Does it support ONVIF Absolute Positioning?

Yes. This model supports ONVIF and ONVIF Absolute Positioning for more precise PTZ control.

Does it support PoE?

Yes. It supports IEEE 802.3af PoE and also supports DC12V 3A power input.

Can it record locally?

Yes. It supports local storage via MicroSD card up to 512GB.

What kind of projects is it suitable for?

It is suitable for project surveillance, industrial sites, road monitoring, warehouse security, perimeter protection and other applications requiring accurate PTZ control and third-party integration.

Need Pricing, OEM Support or Project Solution Advice?

Contact JideTech for project quotes, distributor cooperation and integration support.

Request a Quote
