LC007 Multispectral UAV Anti-Tracking System Platform

Multispectral UAV Detection, Tracking & Custom Command Software

LC007 is a project-grade anti-drone tracking solution that combines multispectral PTZ camera hardware, optional thermal imaging, AI UAV target recognition, guided tracking, alarm linkage and a customizable software command platform.

It is designed for low-altitude, small and slow-moving UAV monitoring in airports, ports, critical infrastructure, industrial parks, rail transit, border areas and public safety projects.

40X Visible Zoom Optional Thermal Imaging AI UAV Detection Guided / Auto Tracking Custom Software Service

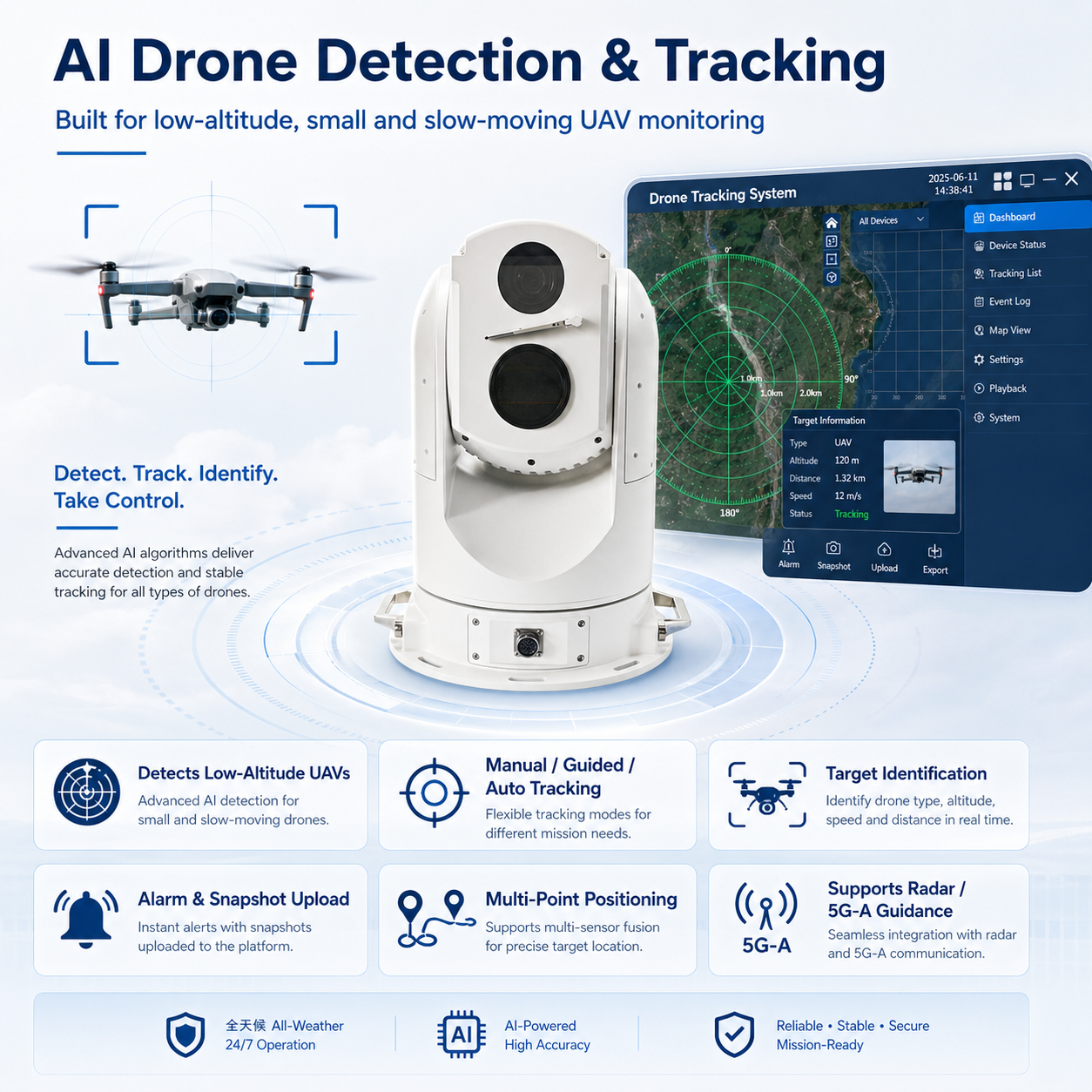

LC007 complete anti-drone solution with multispectral PTZ camera and command software platform

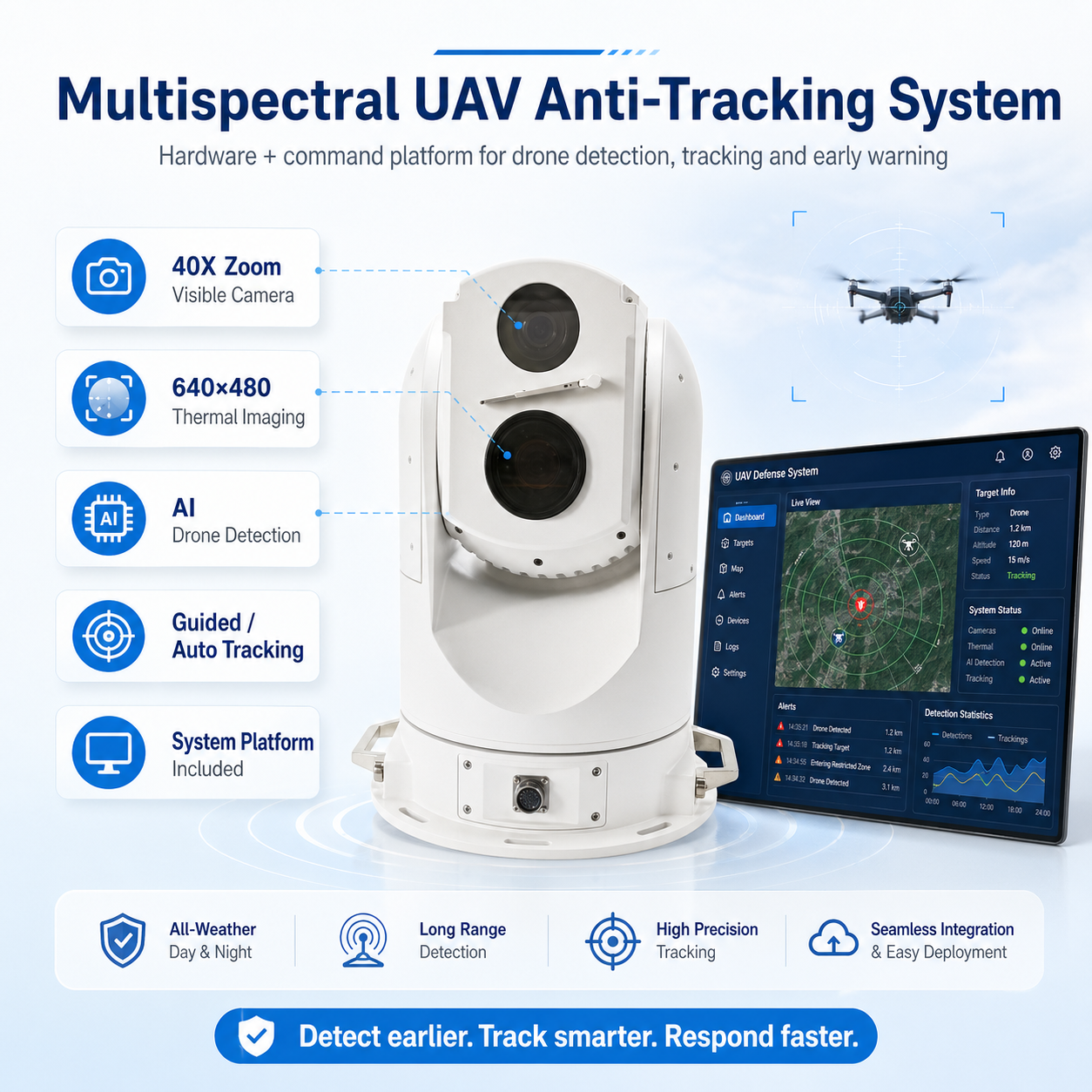

Complete anti-drone solution with hardware and software platform for UAV detection tracking and warning

Complete Anti-Drone Solution: Hardware + Software Platform

LC007 is not only a multispectral PTZ camera. It can also be supplied with an anti-drone command platform for UAV detection, tracking, identification, alarm management and centralized operation. This helps project customers deploy a complete low-altitude security system from one supplier.

Designed for UAV Detection, Tracking and Early Warning

For anti-drone projects, the real value is not only image capture. Customers need target detection, continuous tracking, alarm linkage, software management and project-level integration. LC007 is built around that full workflow.

Detect

Detect low-altitude UAVs and suspicious slow-moving aerial targets in real time.

Track

Support manual, motion, guided and automatic tracking for different mission needs.

Identify

Recognize drone targets and display type, distance, altitude and tracking status.

Warn

Upload alarms, capture snapshots and help operators respond faster.

Custom Software Platform Service

JideTech can provide software customization service for anti-drone projects. The platform can be tailored according to your real deployment environment, operation workflow and integration requirements.

Custom anti-drone command platform software for UAV monitoring tracking alarm records and device management

Integrated Anti-Drone Command Platform

The software platform can support live map tracking, user management, alarm records, history playback, device management, coordinate tools and customized project workflows. For system integrators and project customers, this means easier deployment, stronger operation control and higher project value.

Software Customization Options

Customized dashboard interface for UAV detection and tracking projects
Live map view with radar-style target tracking display
User management, permission control and operation logs
Alarm records, snapshot capture and history playback
Device management for EO camera, thermal camera, radar and other sensors
Coordinate tools, optical search and target information display
Customized language, logo, menu structure and project workflow

Project Integration Support

Supports radar, 5G-A, spectrum, TDOA and ADS-B guidance integration
Supports multi-point electro-optical positioning guidance
Compatible with GPS positioning, environmental data and power management
Video protocols include ONVIF, GB/T 28181 and RTSP
Network protocols include IPv4, TCP/IP and UDP
Suitable for command centers, ports, airports, borders and critical sites
Hardware + software one-stop solution available for project deployment

Why software customization matters: Anti-drone projects usually require more than video monitoring. Operators need a command interface, target tracking view, alarm records, device status, user permissions and integration with third-party detection systems. JideTech can support project-level software customization to make the system easier to deploy and manage.

Software customization scope depends on project requirements, deployment environment, third-party platform integration and customer operation workflow. Please contact JideTech before ordering to confirm the final software service scope.

Flexible Variant Configuration

LC007 can be configured by project requirements. The thermal imaging module is optional, and the visible-light camera resolution can also be selected according to the required budget, image detail and application scenario.

Variant Option	Available Configuration	Recommended Use
Visible-Light Camera Resolution	2MP / 4MP / 8MP options available by project configuration	Target observation, UAV confirmation and long-distance image capture
Visible Optical Zoom	40X optical zoom visible camera	Long-range visual confirmation and detailed target observation
Thermal Imaging Module	Without thermal / 640×480 thermal / 640×512 thermal / custom thermal module	Day-night monitoring, thermal target search and adverse-environment detection
Software Platform	Standard platform / Custom software platform / Platform + integration support	Command center operation, alarm records, target tracking and system deployment

Note: Thermal resolution and visible camera resolution should be confirmed before production. Final specifications may vary depending on selected module, project requirements and customization scope.

Core Advantages

LC007 brings together multispectral imaging, AI recognition, precision PTZ control and software-based command management for demanding anti-drone and low-altitude security projects.

Multispectral Observation

Combines visible-light imaging and optional thermal imaging for all-day UAV monitoring and target confirmation.

AI UAV Recognition

Supports intelligent target classification including drones, people, vehicles and ships, with similarity analysis.

Guided / Auto Tracking

Supports specific target recognition tracking, motion tracking, guided tracking, manual tracking and occlusion re-tracking.

Thermal Detection & Alarm

Supports thermal source detection, tracking, early warning, alarm upload, snapshot capture and preset position linkage.

High-Precision Gimbal

360° continuous pan, -35° to +90° tilt, pan speed up to 120°/s and preset accuracy up to ±0.05°.

Outdoor Reliability

IP66 protection, integrated wiper, optional triple protection and operating temperature from -40°C to +70°C.

Technical Specifications

The following specifications are for reference. Final configuration can be adjusted based on visible camera resolution, thermal module and software customization requirements.

Model	LC007 Multispectral Target Recognition and UAV Anti-Tracking System Platform
Visible-Light Imaging	Standard 1920×1080 @25/30fps; 2MP / 4MP / 8MP options available by project configuration
Visible Lens	F3.6–160mm, 40X optical zoom
Visible Imaging Modes	Color / Black & White / Optical Defog
Image Adjustment	White balance, exposure compensation, wide dynamic range, gain control and 3D noise reduction
Focusing Mode	Auto / Manual
Thermal Imaging	Optional uncooled VOx thermal module, 640×480 / 640×512 available by configuration
Thermal Lens	25–55mm zoom lens, depending on selected thermal module
Thermal Imaging Modes	Black Hot / White Hot / Pseudo Color
Pan Range & Speed	0°–360° continuous pan; 0.05°–120°/s
Tilt Range & Speed	-35° to +90°; 0.05°–40°/s
Preset Accuracy	±0.05°
Gimbal Functions	3D control, home position, auto patrol, pattern scan and long focal speed limit
Auto Search	Full-screen motion and thermal target search
Guidance Mode	Compatible with radar, 5G-A, spectrum, TDOA and ADS-B; supports multi-point electro-optical positioning guidance
Tracking Mode	Specific target recognition tracking, motion tracking, guided tracking, manual tracking and occlusion re-tracking
Target Recognition	Supports classification of drones, people, vehicles, ships and other targets with similarity analysis
Alarm Linkage	Alarm upload, snapshot capture and preset position linkage
Video Compression	H.265 / H.264 / MJPEG for snapshot
Video Protocols	ONVIF, GB/T 28181, RTSP
Network Protocols	IPv4, TCP/IP, UDP and more
Interface	Standard aviation connector, including DC24V power and 10M/100M adaptive Ethernet port
Power Supply	DC24V 5A ±15%; typical 70W, max 120W with heating on
Protection Rating	IP66, optional triple protection
Operating Temperature	-40°C to +70°C, humidity <90%
Dimensions	Φ365 × H502 mm, standard configuration for reference only
Weight	≤24 kg, standard configuration, customized versions excluded

Recommended Applications

LC007 is suitable for project customers who need a complete anti-drone tracking system with both camera hardware and command software platform support.

Airports & Ports

Monitor restricted low-altitude airspace and support early warning for UAV activities.

Critical Infrastructure

Protect power plants, oil and gas facilities, industrial parks and sensitive operation areas.

Border & Perimeter Security

Support wide-area detection, target tracking and visual confirmation for perimeter defense.

Rail Transit

Monitor rail transit areas, depots, stations and restricted trackside zones.

Public Safety

Support emergency command, event security and low-altitude monitoring for public safety projects.

Command Center Projects

Integrate camera, radar, alarms and tracking data into a centralized software platform.

FAQ

Common questions for project customers and system integrators.

Is LC007 only a camera, or a complete anti-drone system?

LC007 can be supplied as camera hardware, but the stronger project value is the hardware + software solution. JideTech can provide an anti-drone command platform and customization service according to project requirements.

Can the software platform be customized?

Yes. We can customize the platform interface, function modules, user permissions, live tracking view, alarm records, device management, coordinate tools and project workflow based on deployment needs.

Can I choose different visible camera resolutions?

Yes. Visible-light camera resolution can be configured as 2MP, 4MP or 8MP according to your project requirement.

Is thermal imaging optional?

Yes. Thermal imaging can be optional. Available configurations include without thermal, 640×480 thermal, 640×512 thermal or custom thermal module depending on project needs.

Can it integrate with radar or other detection systems?

Yes. LC007 supports guided integration with radar, 5G-A, spectrum, TDOA and ADS-B systems, and supports multi-point electro-optical positioning guidance.

Need a Custom Anti-Drone Tracking System?

Tell us your project scenario, target detection distance, visible camera resolution, thermal imaging requirement, software platform requirements and integration needs. JideTech can help configure the hardware and customize the software platform for your deployment.

Request a Custom Solution
