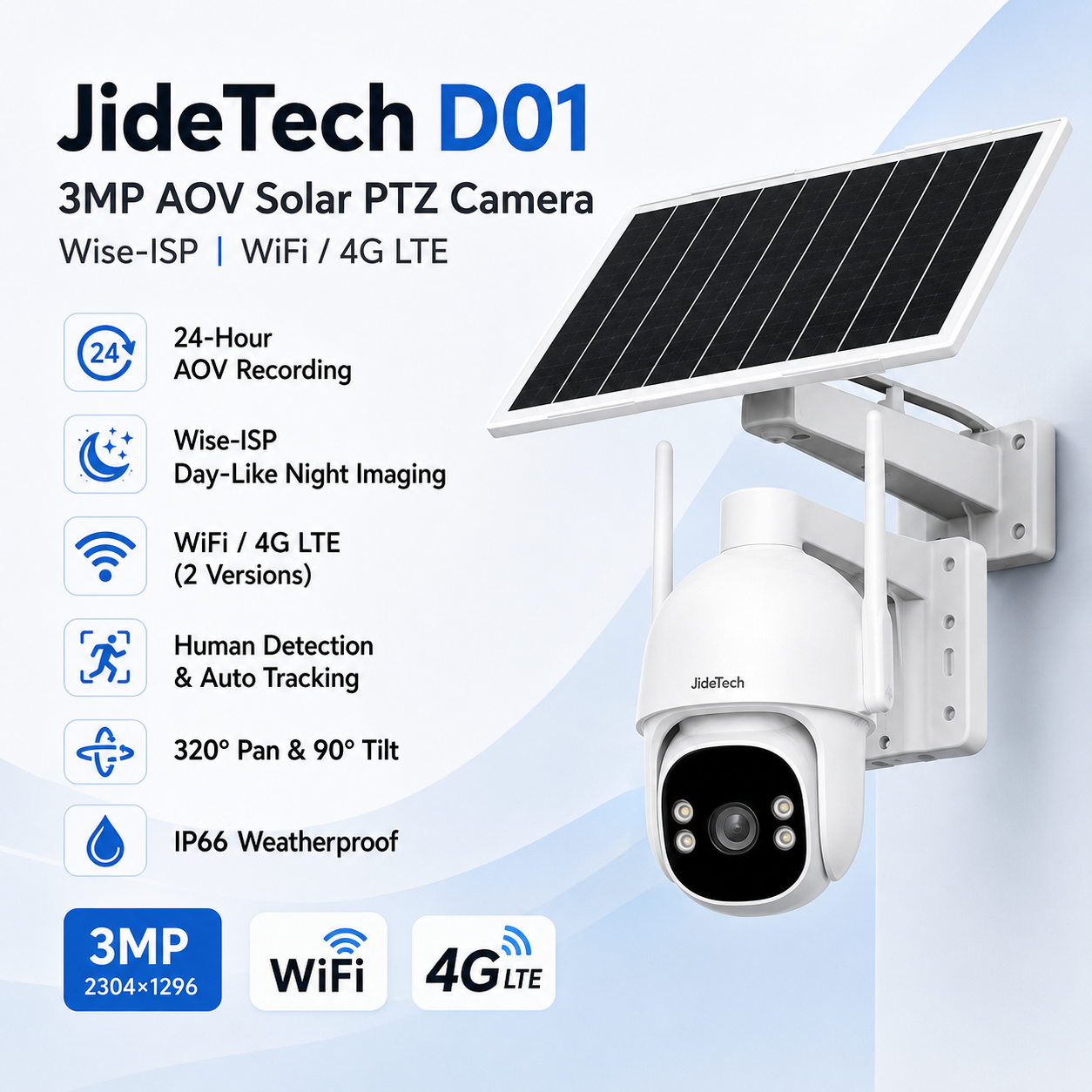

3MP AOV Solar 4G PTZ Security Camera
Designed for off-grid and remote surveillance applications, this 3MP AOV solar security camera combines low-power operation, 4G connectivity, solar charging, PTZ control and intelligent human tracking in one compact system.
With a built-in 16000mAh battery and 12W solar panel, the camera can operate without fixed power or wired network infrastructure, making it suitable for farms, construction sites, remote properties, temporary installations and other locations where power and network cabling are difficult to deploy.
Key Features
Equipped with a 1/2.7" CMOS sensor for clear surveillance video.
Runs at approximately 1 frame per second when no person is detected and switches to 25 fps when a human figure appears.
Built-in 4G connectivity allows remote viewing without requiring a wired Ethernet or WiFi network.
Powered by a 12W solar panel for off-grid surveillance applications.
Integrated high-capacity battery supports low-power continuous operation.
Supports 320° horizontal rotation, 90° vertical rotation and automatic human tracking.
See the Camera in Action

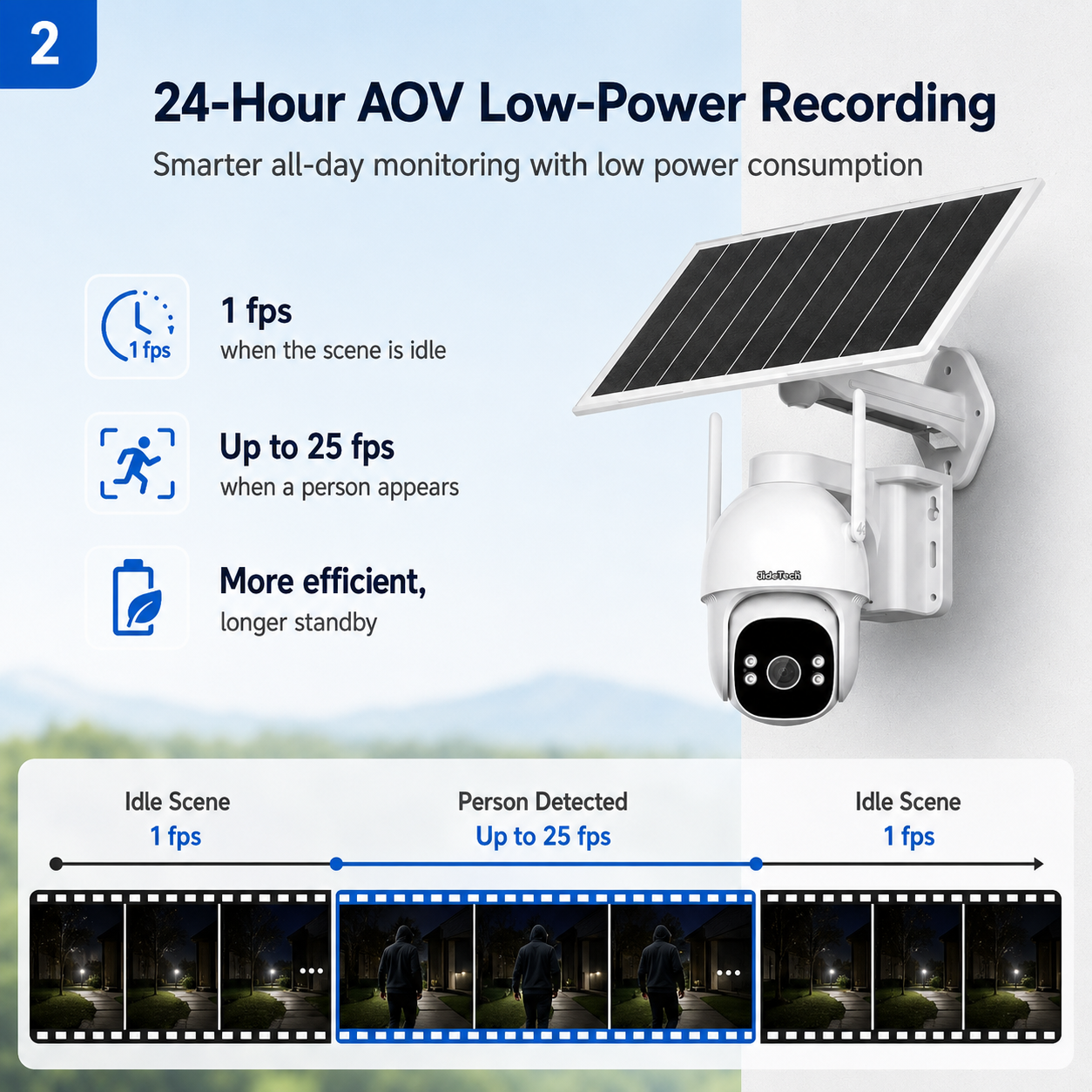

AOV Low-Power 24-Hour Recording
Unlike conventional battery cameras that remain fully active at all times, the AOV low-power design reduces power consumption when the monitored scene is inactive.
When no person is present, the camera operates at approximately 1 frame per second. When a human figure is detected, the video automatically returns to 25 fps.
Standby power consumption is approximately 0.16W, with working consumption of up to 1W during daytime and 1.8W at night.

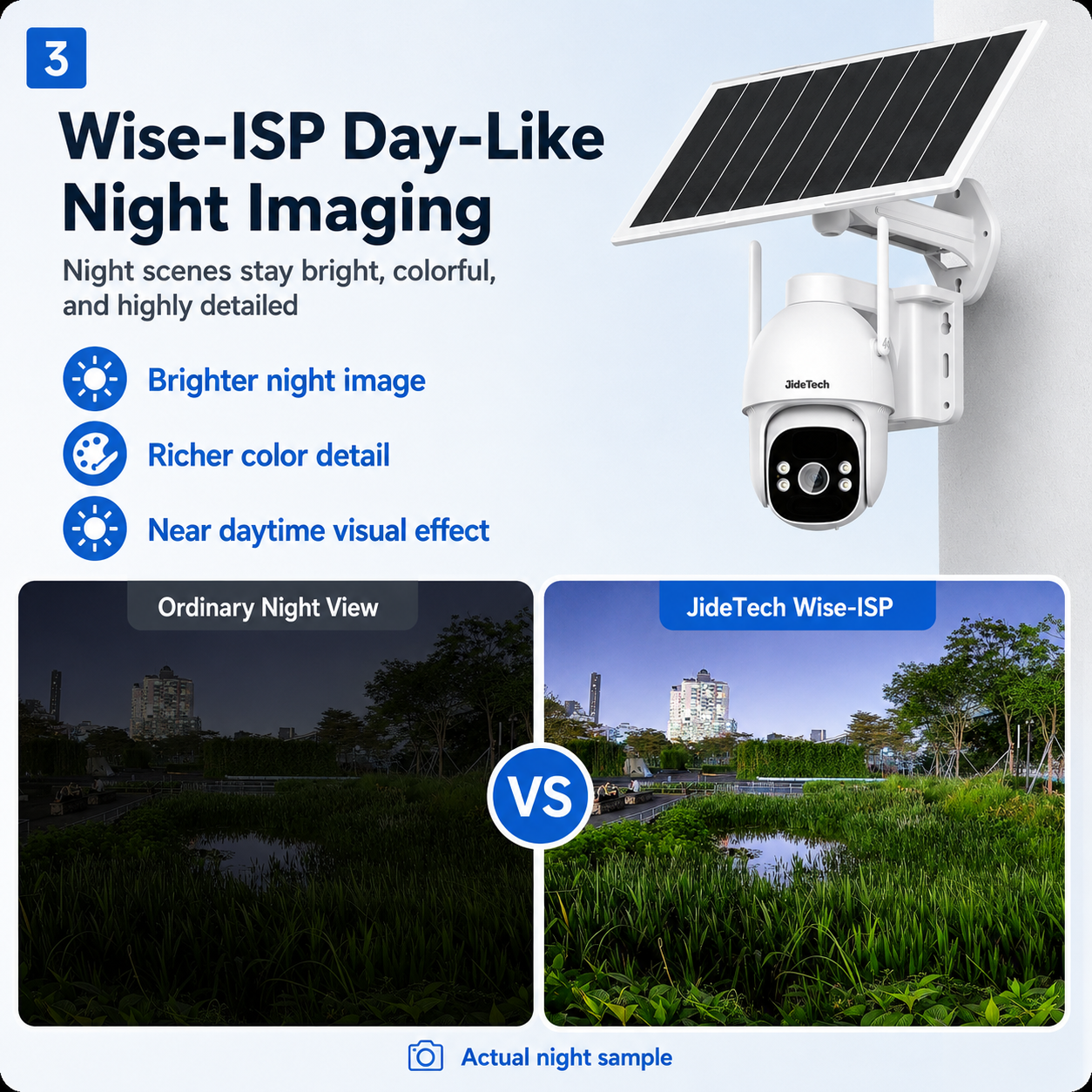

Full-Color Low-Light Imaging
The camera uses a low-illumination image sensor designed to retain color information in low-light conditions.
A 1W white fill light can activate when ambient lighting becomes very low. Infrared night shooting is also available as an optional configuration.

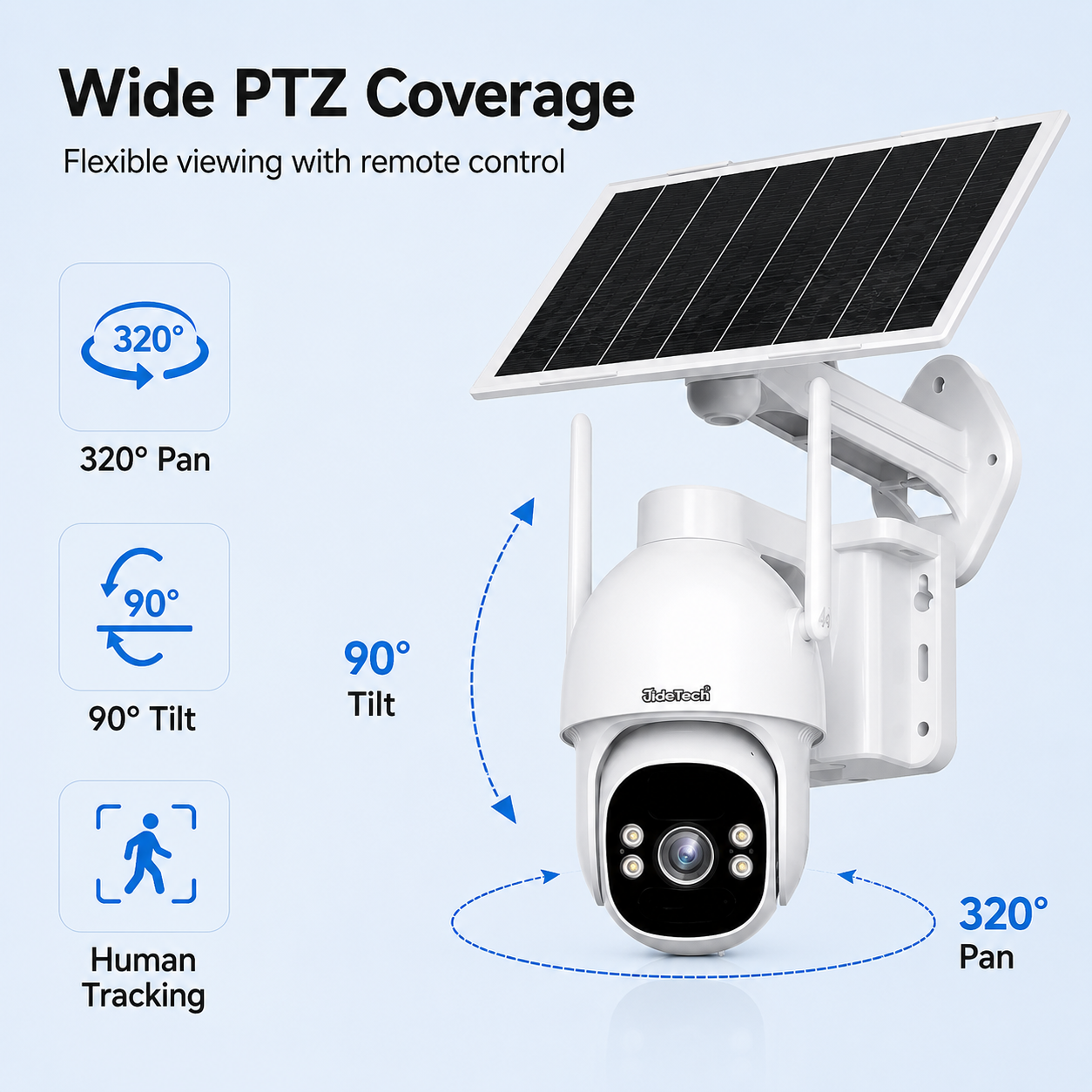

Wide PTZ Coverage
Remote PTZ control allows the camera to cover a much larger monitoring area than a fixed camera.
- Horizontal rotation: 320°
- Vertical rotation: 90°

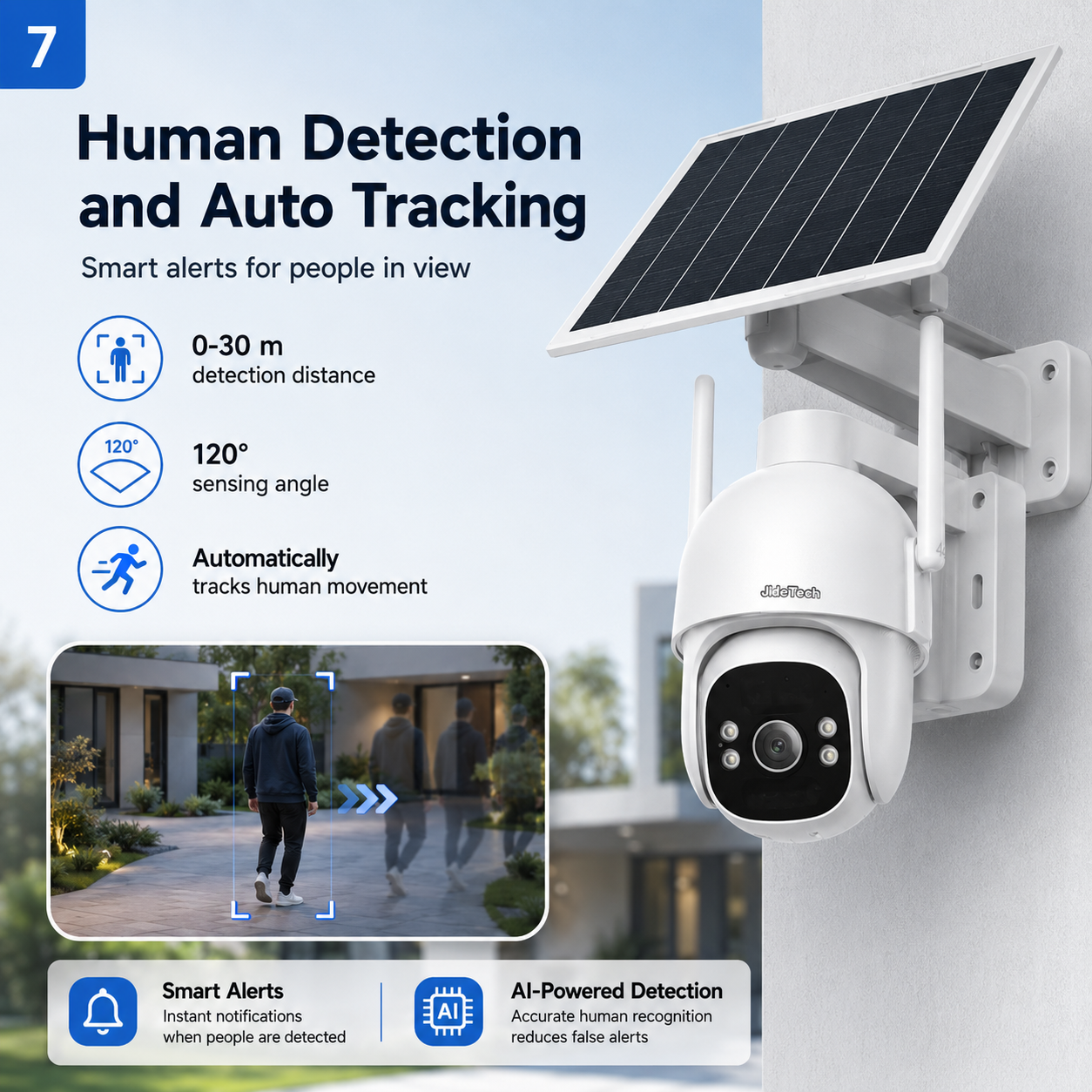

- Human tracking: Supported
- Human sensing distance: 0–30 meters
- Sensing angle: 120°
Built for Remote & Off-Grid Surveillance
The combination of solar power, battery operation and 4G connectivity makes this camera particularly suitable for locations without convenient access to electricity or wired internet.
- Farms and agricultural properties
- Construction sites
- Remote properties
- Temporary surveillance locations
- Outdoor equipment monitoring
- Off-grid security projects
Technical Specifications
| Model | A1-3MP4G |
| Product Type | AOV Low-Power Dome Camera |
| Resolution | 3MP |
| Image Sensor | 1/2.7" CMOS Sensor |
| Main Chip | T41ZM |
| Lens | 4mm @ F1.0 |
| 4G Version | European Version |
| Network Protocols | TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P |
| Horizontal Rotation | 320° |
| Vertical Rotation | 90° |
| Human Detection Distance | 0–30 m |
| Sensing Angle | 120° |
| Battery Capacity | 16000mAh |
| Solar Panel | 12W |
| Maximum Charging Current | 2000mA |
| Standby Consumption | Approx. 0.16W |
| Daytime Consumption | ≤1W |
| Night Consumption | ≤1.8W |
| White Light | 1W LED |
| Night Shooting | White fill light; IR optional |

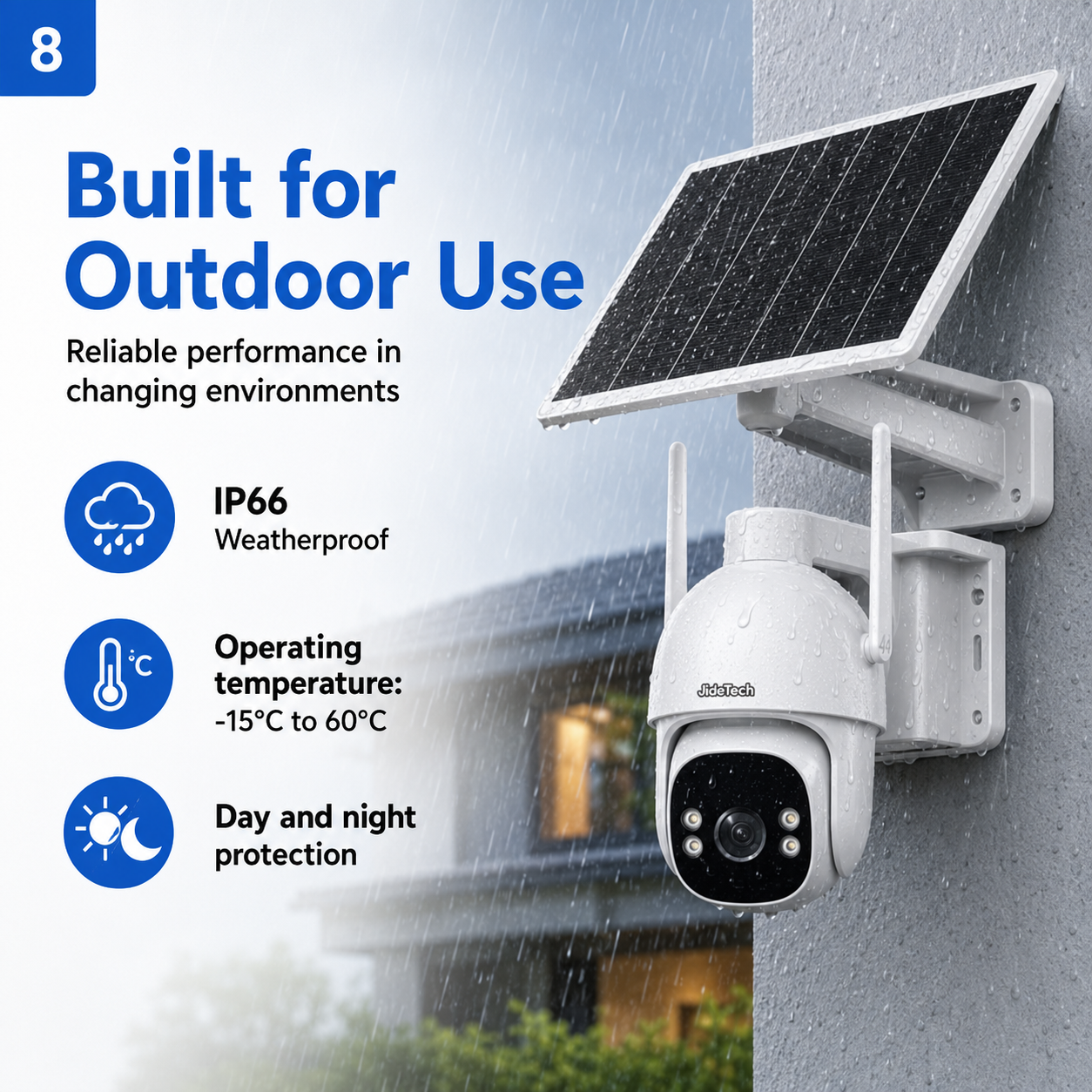

| Weather Protection | IP66 |
| Operating Temperature | -15°C to 60°C |
| Operating Humidity | 0%–90% RH |
OEM / ODM & Bulk Orders
Looking for solar 4G security cameras for distribution or project deployment? JideTech provides factory-direct pricing, OEM / ODM customization and project support.
Contact us with your required quantity, destination country and project requirements for a quotation.
