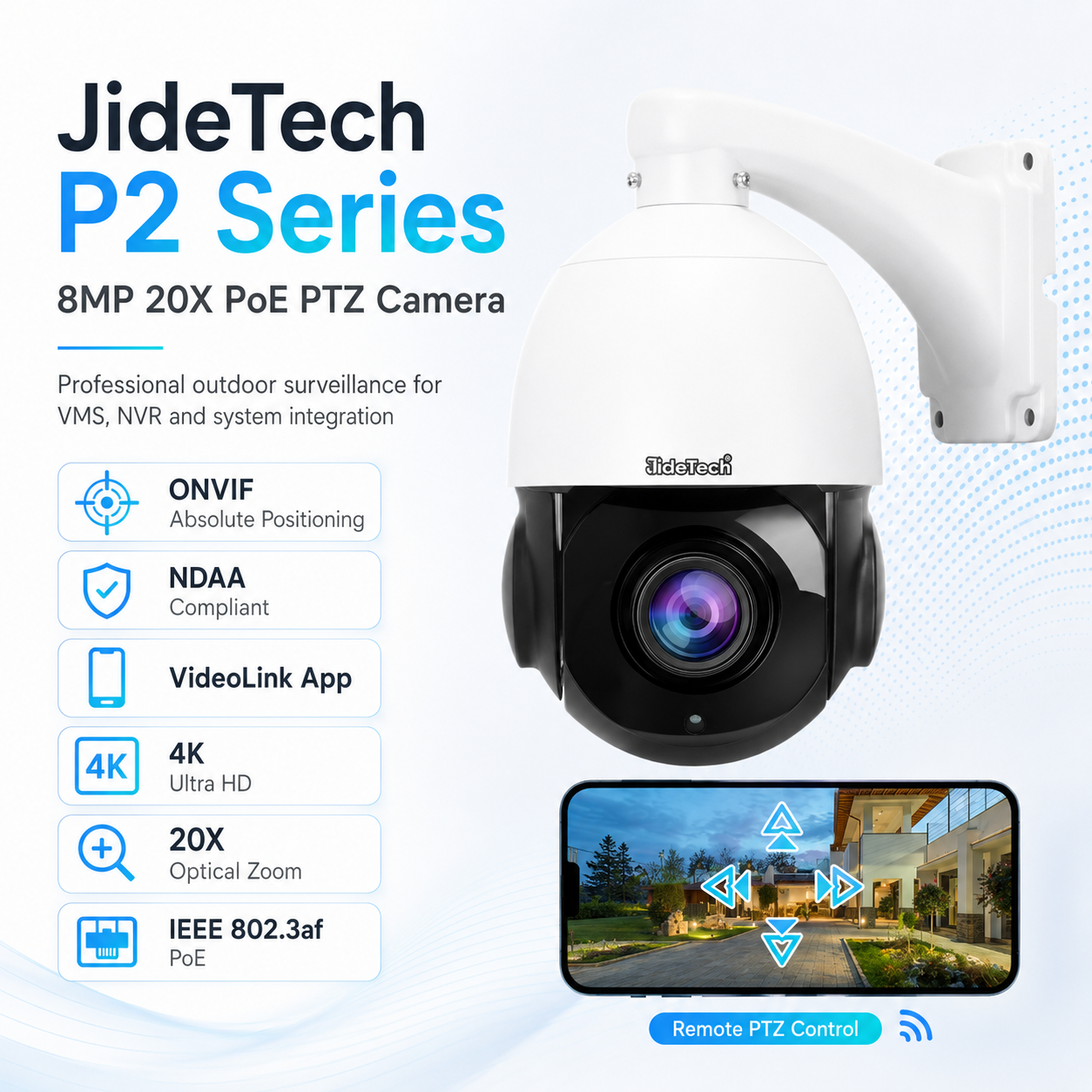

JideTech 8MP 20X ONVIF Absolute Positioning PoE PTZ Camera – P2 Series
JideTech 8MP 20X ONVIF Absolute Positioning PoE PTZ Camera – P2 Series
The JideTech P2 Series is an NDAA-compliant 4K 8MP 20X optical zoom PoE PTZ camera with ONVIF AbsoluteMove positioning, designed for professional security systems, software integration and long-distance outdoor surveillance.
Unlike standard PTZ cameras that only support directional movement, the P2 Series supports ONVIF absolute positioning, allowing compatible VMS, NVR and third-party software to send defined pan, tilt and zoom position commands to the camera.
The camera also supports the VideoLink mobile app through P2P remote access. Three hardware versions are available, including 8MP 20fps and 8MP 30fps options.
8MP 20X ONVIF Absolute Positioning PoE PTZ Camera
The JideTech P2 Series combines 3840 × 2160 Ultra HD video, a 4.7–84.6mm motorized zoom lens, 20X optical zoom and 360° endless pan movement in a compact 5-inch metal PTZ housing.
It is suitable for factories, warehouses, logistics yards, parking areas, farms, campuses, commercial properties, industrial facilities and perimeter surveillance projects.
What Is ONVIF Absolute Positioning?
A standard PTZ control command normally tells a camera to move left, right, up, down, zoom in or zoom out. This is generally known as directional or relative PTZ control.
With ONVIF AbsoluteMove, compatible software can send a defined pan, tilt and zoom target position directly to the camera. This allows the PTZ camera to move toward a specific position instead of only moving by a relative distance.
Absolute positioning is especially useful for:
- VMS and security software integration
- Automated camera patrols
- Repeat monitoring positions
- Preset recall and scheduled inspection
- Industrial monitoring systems
- API and SDK-based PTZ control
- Multi-camera command and control platforms
ONVIF Absolute Positioning Demonstration
Watch the following video to see the absolute positioning function of the JideTech P2 Series 8MP 20X PoE PTZ camera.
The demonstration shows absolute pan, tilt and zoom positioning through a compatible PTZ integration platform.

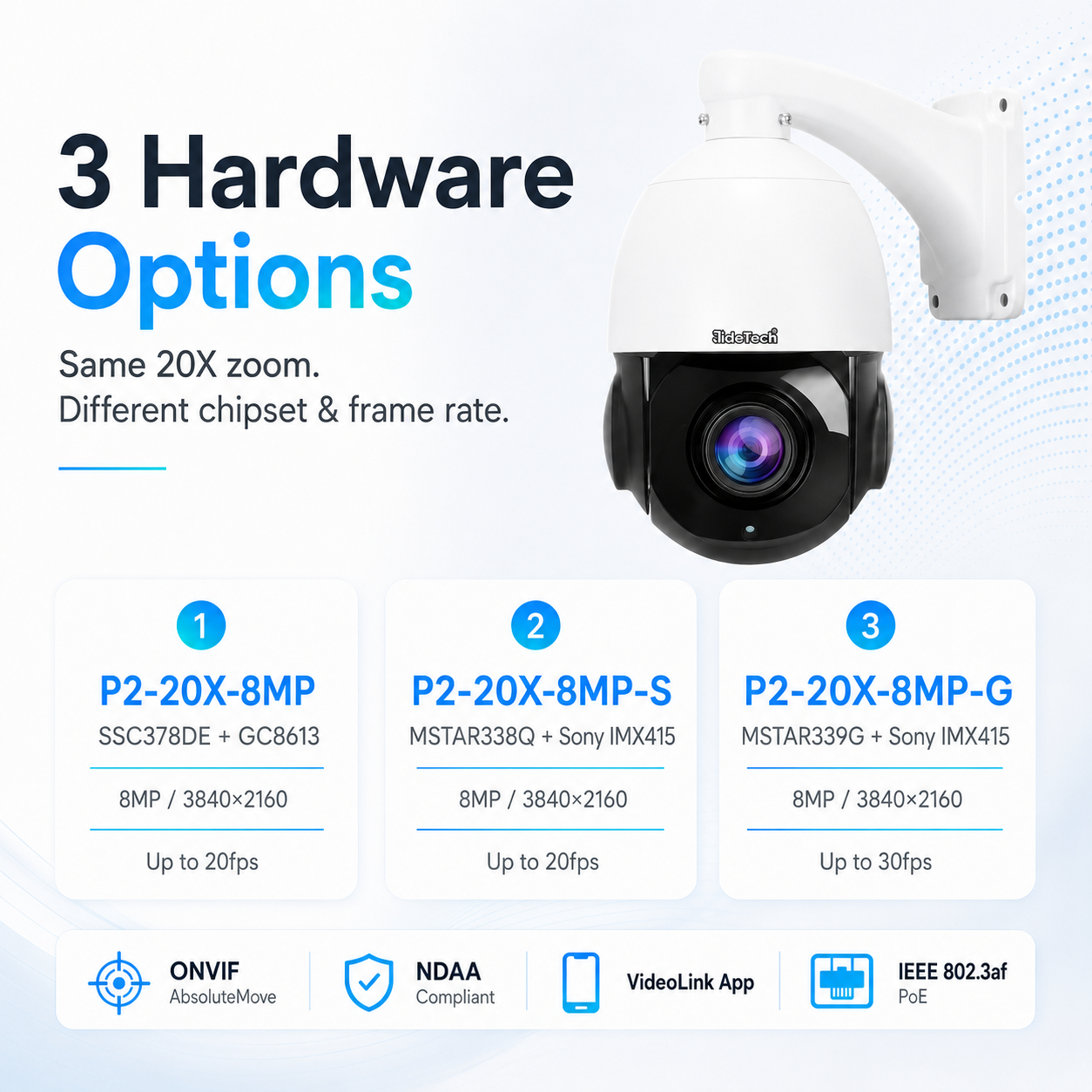

Three P2 Hardware Options
The P2 Series is available in three versions. All three models support 8MP resolution, 20X optical zoom, PoE, ONVIF absolute positioning, NDAA compliance and the VideoLink app. The main differences are the processor, image sensor and maximum 8MP frame rate.
| Model | Processor and Sensor | Resolution | Frame Rate | Absolute Positioning | NDAA | App |
|---|---|---|---|---|---|---|
| P2-20X-8MP | SSC378DE + GC8613 | 8MP / 3840 × 2160 | Up to 20fps | ONVIF AbsoluteMove | Compliant | VideoLink |
| P2-20X-8MP-S | MSTAR338Q + Sony IMX415 | 8MP / 3840 × 2160 | Up to 20fps | ONVIF AbsoluteMove | Compliant | VideoLink |
| P2-20X-8MP-G | MSTAR339G + Sony IMX415 | 8MP / 3840 × 2160 | Up to 30fps | ONVIF AbsoluteMove | Compliant | VideoLink |
Key Features

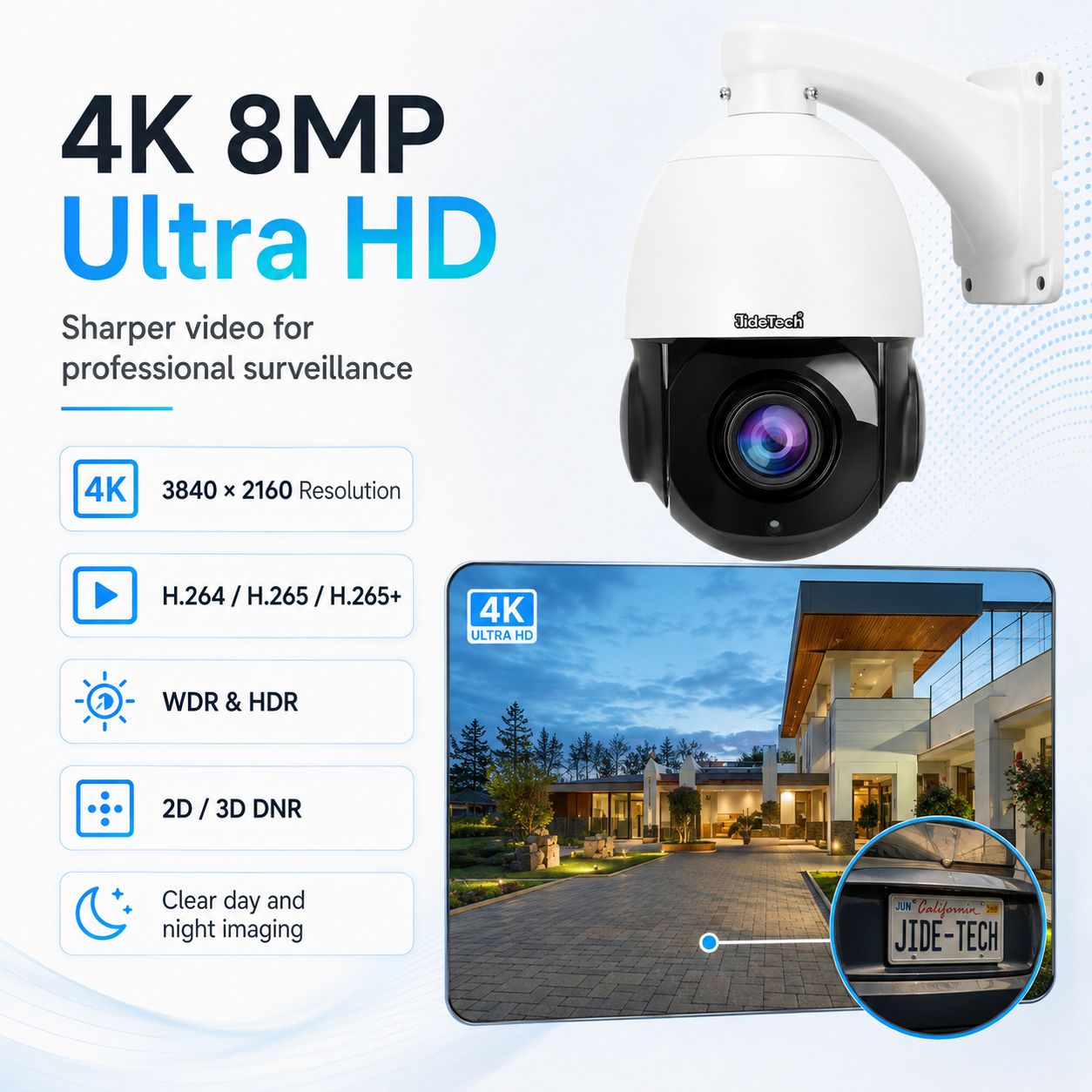

- 4K Ultra HD resolution: Supports video resolution up to 8MP 3840 × 2160.

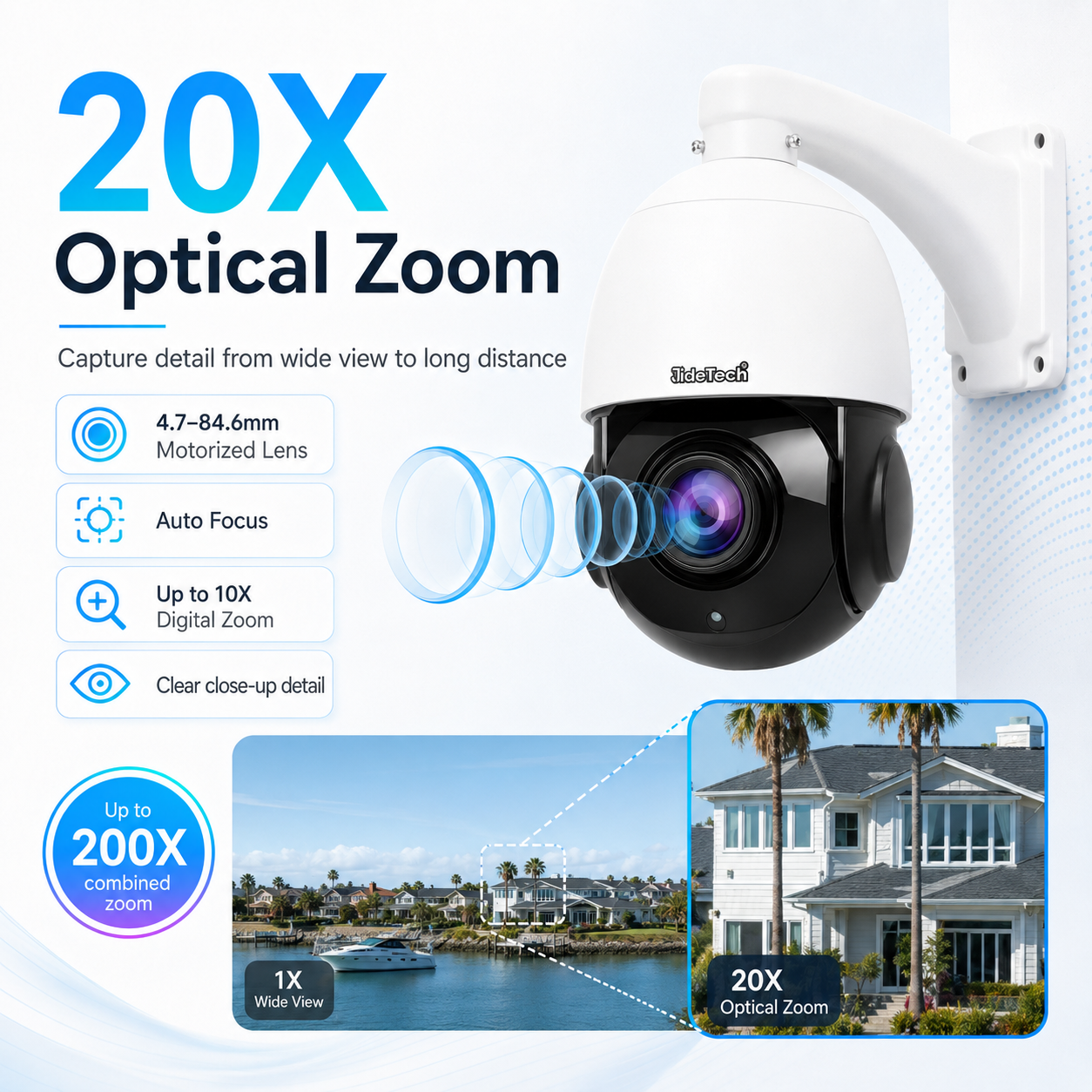

- 20X optical zoom: Equipped with a 4.7–84.6mm motorized autofocus zoom lens.
- Up to 10X digital zoom: Provides additional digital enlargement when required.
- ONVIF absolute positioning: Supports ONVIF AbsoluteMove pan, tilt and zoom commands.
- NDAA compliant: Suitable for surveillance projects requiring NDAA-compliant security camera equipment.
- VideoLink mobile app: Supports VideoLink P2P app access for remote camera connection.
- 360° PTZ coverage: Supports continuous 360° endless pan movement and wide vertical viewing coverage.
- Adjustable PTZ speed: Pan and tilt speed can be adjusted from 0.1°/s to 30°/s.
- 128 preset positions: Supports preset position storage for repeat monitoring points.
- Automatic cruise: Supports one cruise route with up to 32 preset positions.

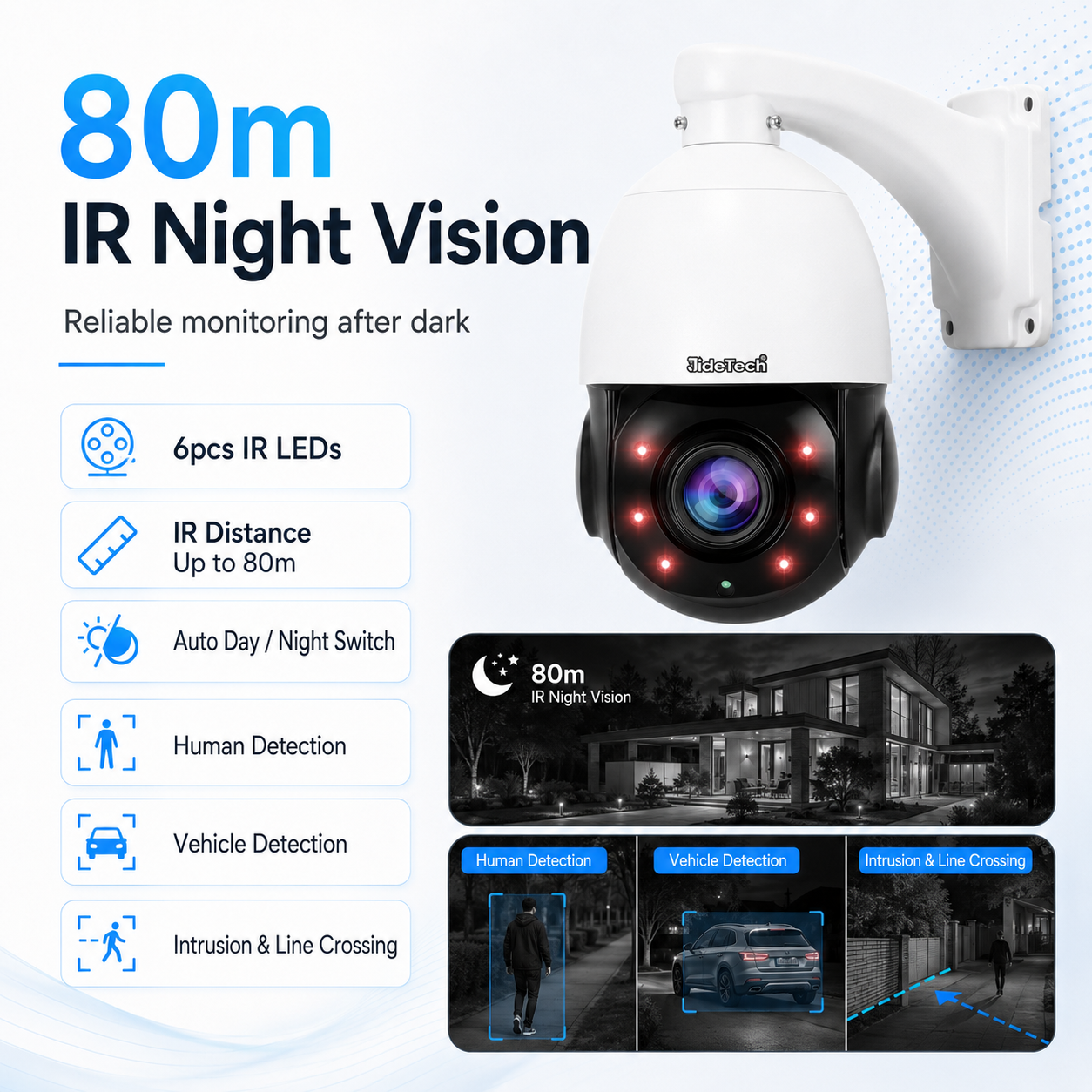

- 80m infrared night vision: Six infrared LEDs provide night surveillance at distances up to 80 metres.
- Smart image processing: Supports WDR, HDR, BLC, HLC, defog, white balance and 2D/3D digital noise reduction.
- Smart detection: Supports motion detection, human detection, vehicle detection, intrusion detection and line-crossing detection.
- Auto tracking: Supports fixed-point tracking and cruise tracking with adjustable tracking speed.
- Built-in microphone and speaker: Provides integrated audio capability, with one audio input and one audio output.
- MicroSD card recording: Supports local MicroSD storage up to 512GB.
- NFS network storage: Supports network-based recording and scheduled recording.

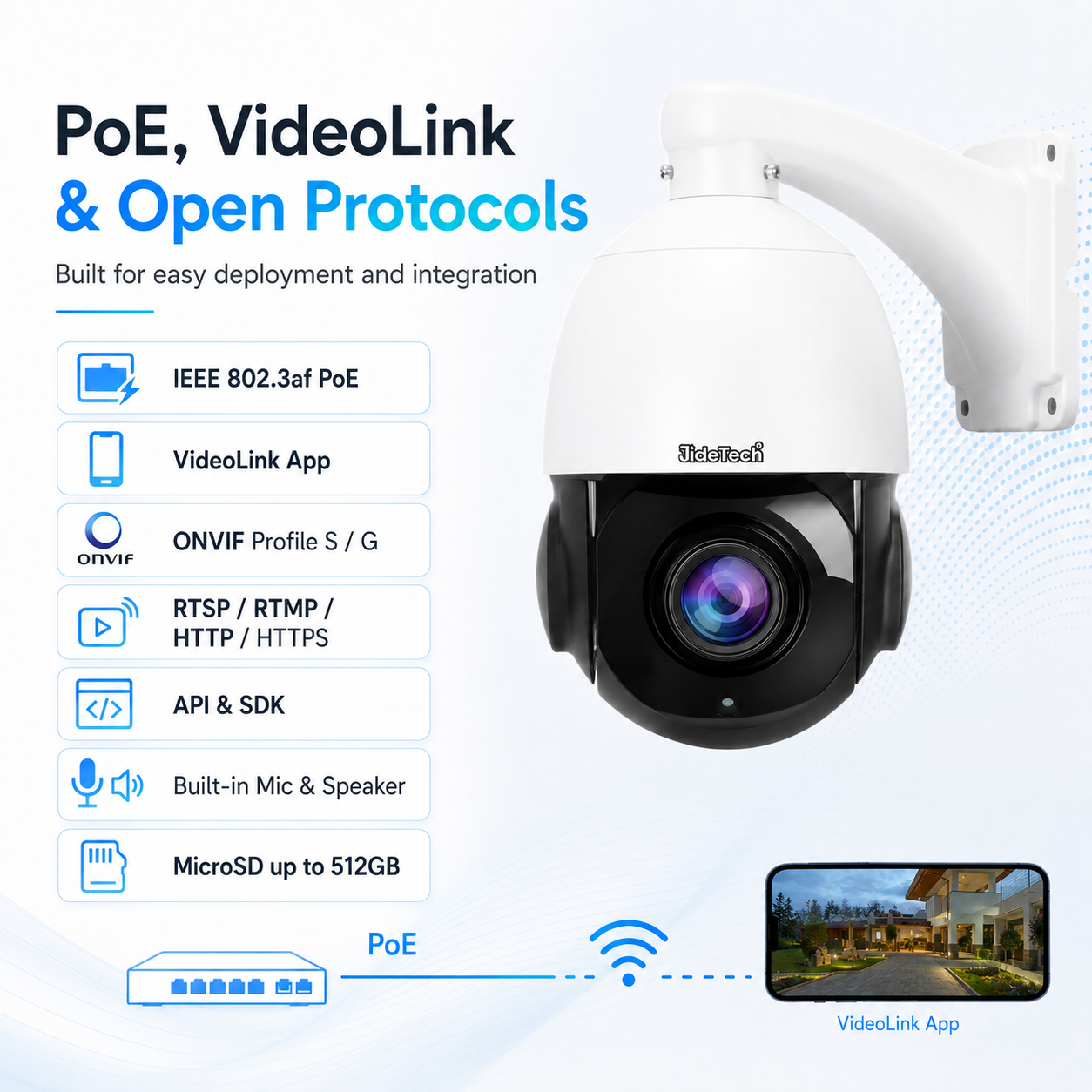

- PoE and DC power: Supports IEEE 802.3af PoE and DC 12V power supply.
- Outdoor metal housing: Full-metal IP66 enclosure for indoor and outdoor installation.
NDAA-Compliant PTZ Camera
The JideTech P2 Series is NDAA compliant and is designed for professional video surveillance and security integration projects that require NDAA-compliant equipment.
It can be used in commercial facilities, industrial sites, infrastructure projects, public facilities and other professional surveillance applications.
VideoLink App Remote Access
The P2 Series supports the VideoLink mobile app through P2P connectivity, providing convenient remote access to the camera from compatible mobile devices.
In addition to VideoLink app access, the camera can be integrated with compatible VMS, NVR and third-party software through ONVIF, RTSP, HTTP, HTTPS, API and SDK interfaces.
ONVIF, RTSP, API and SDK Integration
The P2 is designed for CCTV distributors, security installers, software developers and system integrators that require open network protocols and third-party platform compatibility.
- ONVIF Profile S
- ONVIF Profile G
- ONVIF AbsoluteMove
- RTSP video streaming
- RTMP video streaming
- HTTP and HTTPS
- HTML5 browser access

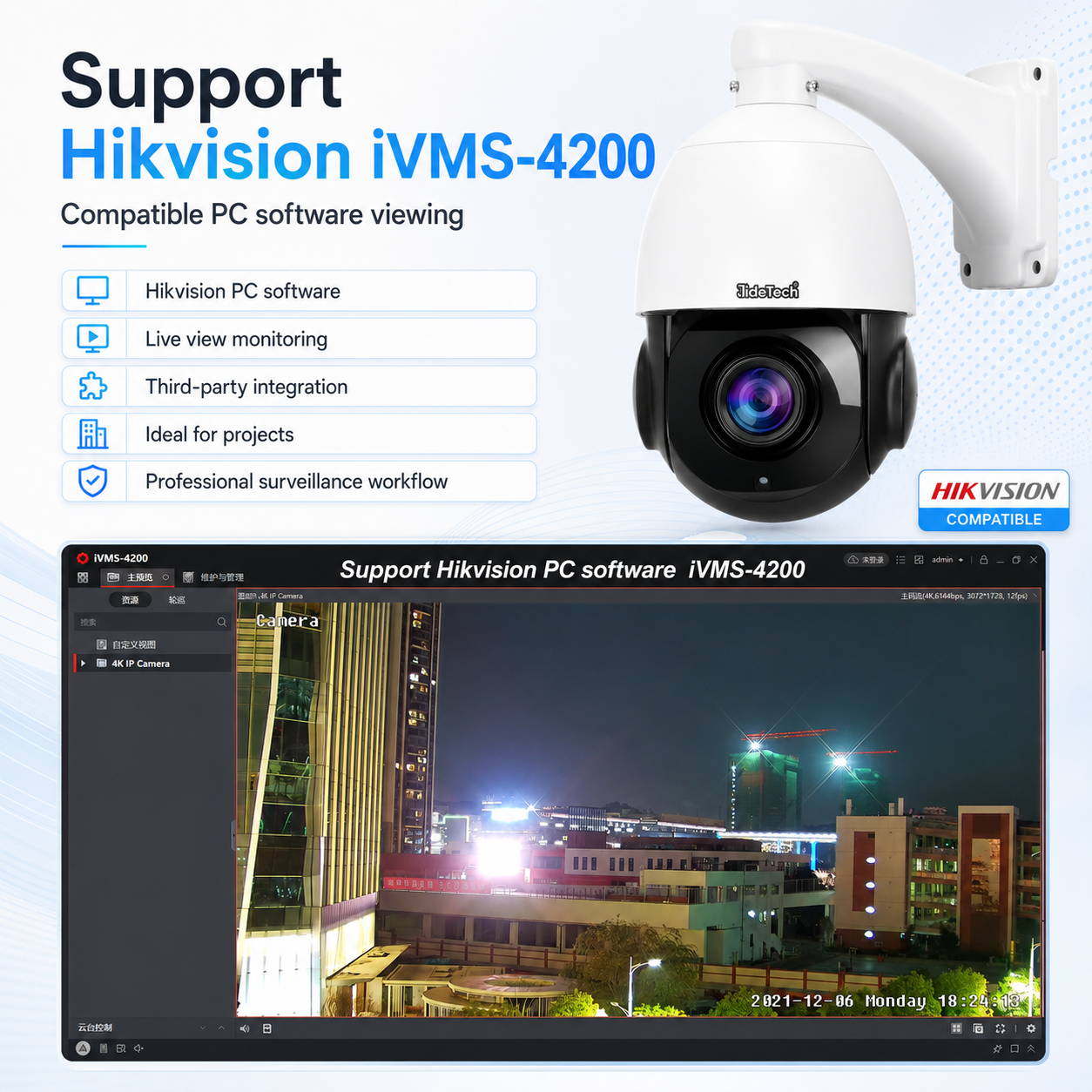

- Hikvision private protocol
- Dahua private protocol
- API integration support
- SDK integration support
- IPv4 and IPv6
- Static IP and DHCP
Main Technical Specifications
| Product Type | 5-inch PoE PTZ IP Camera |
|---|---|
| Maximum Resolution | 8MP / 3840 × 2160 |
| Lens | 4.7–84.6mm motorized autofocus lens |
| Optical Zoom | 20X |
| Digital Zoom | Up to 10X |
| Video Compression | H.264 / H.265 / H.265+ |
| Infrared Distance | Up to 80m |
| Pan Range | 360° endless |
| Pan and Tilt Speed | 0.1°/s to 30°/s |
| Preset Positions | 128 presets |
| Absolute Positioning | ONVIF AbsoluteMove |
| Mobile App | VideoLink |
| NDAA Status | NDAA Compliant |
| Local Storage | MicroSD card up to 512GB |
| Network Storage | NFS |
| Audio | Built-in microphone and speaker; 1 audio input and 1 audio output |
| Network Interface | 1 × RJ45 10/100Mbps Ethernet port |
| Power Supply | IEEE 802.3af PoE or DC 12V / 3A |
| Maximum Power Consumption | Maximum 10W |
| Protection Level | Full-metal IP66 housing |
| Working Temperature | -30°C to 60°C |
| Certifications | CE, FCC, RoHS and SABER |
Recommended Applications
- Factories and industrial facilities
- Warehouses and logistics centres
- Parking lots and commercial properties
- Farms and agricultural facilities
- Schools and campuses
- Construction sites
- Perimeter security projects
- Infrastructure monitoring
- VMS and software integration projects
- NDAA-compliant surveillance projects
Frequently Asked Questions
Do all three P2 versions support ONVIF absolute positioning?
Yes. The P2-20X-8MP, P2-20X-8MP-S and P2-20X-8MP-G all support ONVIF AbsoluteMove and absolute positioning.
What is the difference between the three models?
The main differences are the processor, image sensor and maximum 8MP frame rate. The P2-20X-8MP-G supports 8MP video at up to 30fps, while the other two versions support 8MP video at up to 20fps.
Is the JideTech P2 Series NDAA compliant?
Yes. The JideTech P2 Series is NDAA compliant and is suitable for professional surveillance projects that require NDAA-compliant security equipment.
Which mobile app does the P2 PTZ camera use?
The P2 Series supports the VideoLink app through P2P connectivity for remote camera access.
Does the camera support Wi-Fi?
No. The P2 is a wired IP camera with an RJ45 Ethernet port and IEEE 802.3af PoE support.
Does this model support full-colour night vision?
No. This model uses infrared night vision with an IR distance of up to 80 metres. Contact JideTech for other PTZ camera models if white-light full-colour night vision is required.
Can the camera work with third-party VMS or NVR systems?
The camera supports ONVIF Profile S/G, ONVIF AbsoluteMove, RTSP, RTMP, HTTP, HTTPS, API and SDK integration. Compatibility with specific software versions and advanced PTZ functions should be tested before bulk deployment.
What is the maximum MicroSD card capacity?
The P2 Series supports a MicroSD card with a maximum capacity of 512GB.
OEM, ODM and Project Integration Support
JideTech provides OEM and ODM services, bulk project pricing, API and SDK documentation, protocol integration assistance and technical compatibility support for distributors, CCTV installers, software developers and security system integrators.
Please provide your required quantity, target application, VMS or NVR platform and required PTZ control method when requesting a quotation.
