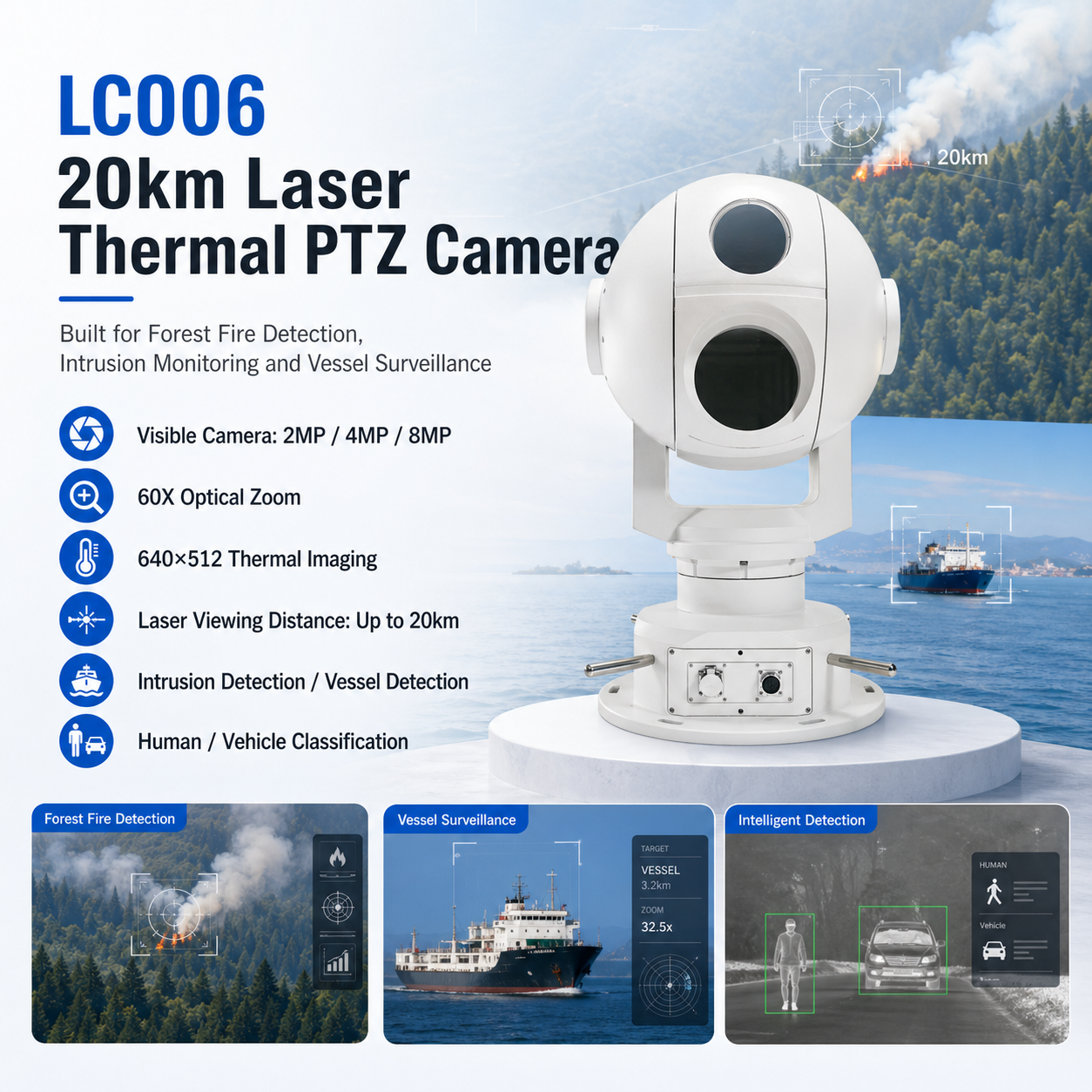

LC006 Long-Range Laser Thermal PTZ Camera
20km Laser Thermal PTZ Camera for Forest, Marine & Perimeter Surveillance
The JideTech LC006 is a project-based customizable long-range thermal PTZ camera designed for forest fire detection, vessel surveillance, intrusion monitoring and large-area outdoor security.
Customizable for Project Needs
LC006 is not a single fixed-configuration camera. Visible resolution, thermal lens, temperature measurement and output configuration can be selected based on detection distance, target size, field of view and installation scenario.
Key Features
LC006 combines long-range visible imaging, thermal detection, laser-assisted night viewing and intelligent PTZ control for demanding outdoor surveillance applications.
Forest Fire Detection
Thermal imaging helps detect smoke, heat sources and fire hotspots in forests, mountain areas and remote fire watch stations.
Vessel Detection
Suitable for coastlines, harbors, reservoirs and marine monitoring where long-distance vessel detection is required.

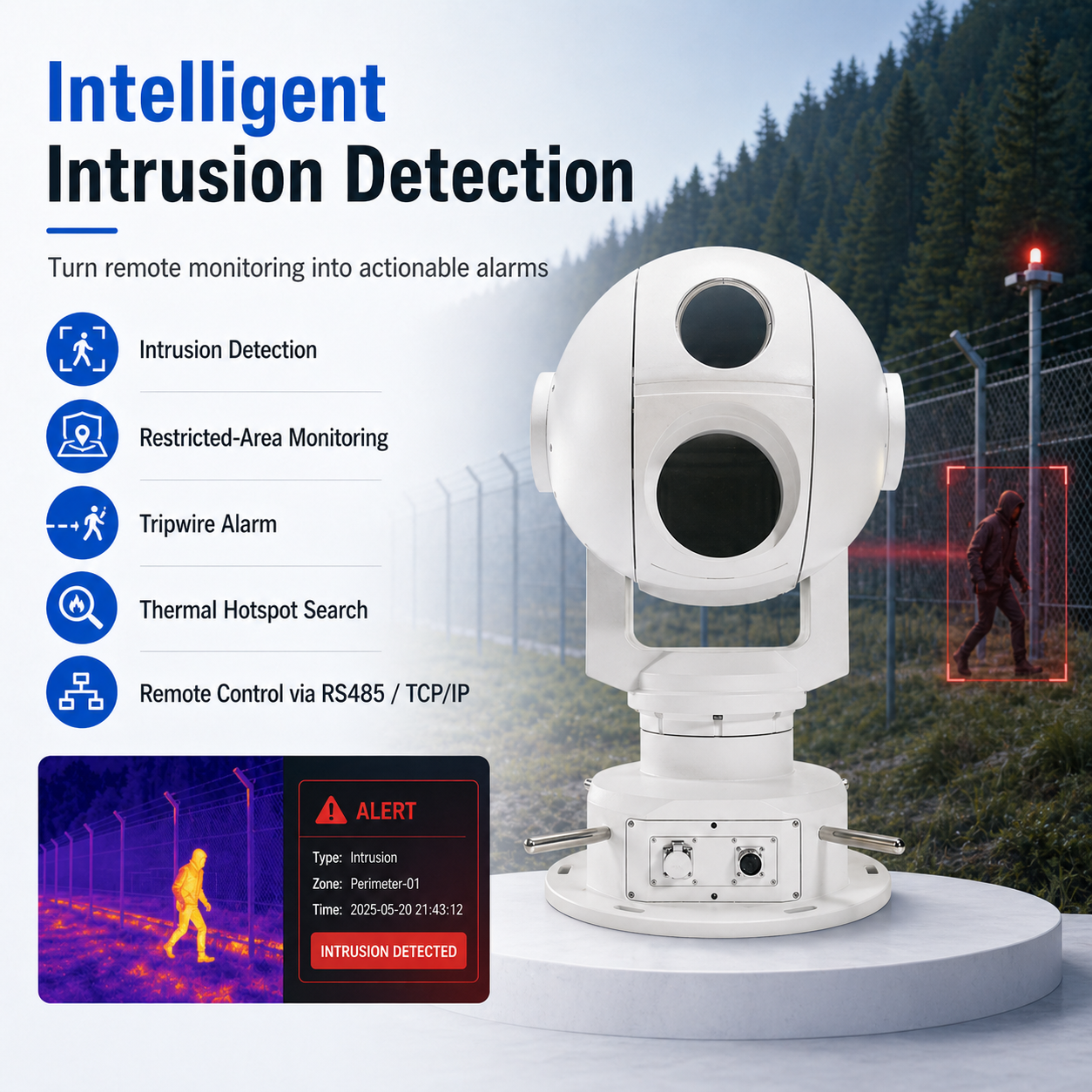

Intrusion Monitoring
Supports intelligent analysis such as tripwire detection, restricted-area monitoring and remote alarm reporting.

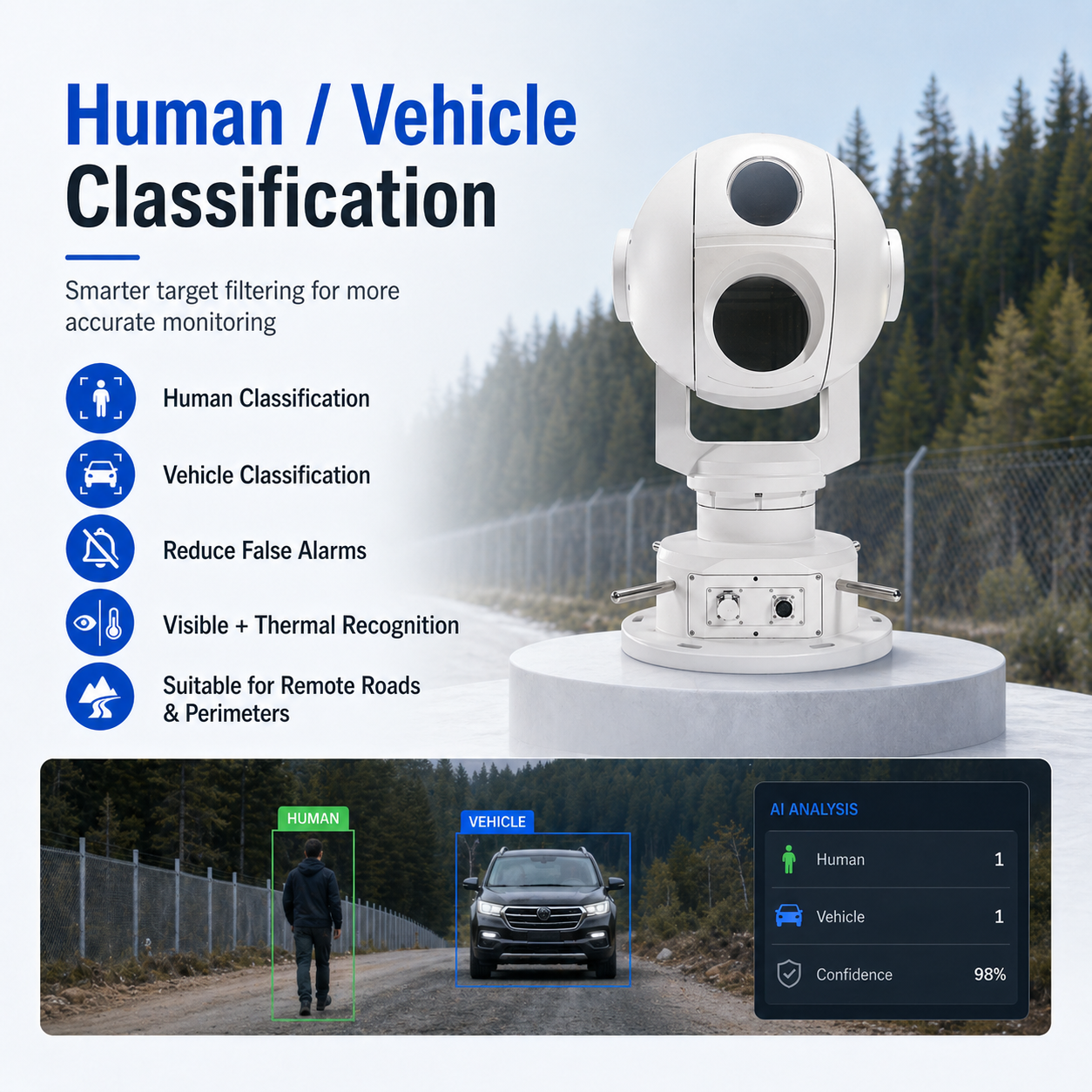

Human / Vehicle Classification
Helps identify people and vehicles to improve target filtering and reduce unnecessary false alarms in large-area monitoring.
60X Optical Zoom
Provides long-range visual confirmation with auto focus, suitable for distant target recognition and verification.

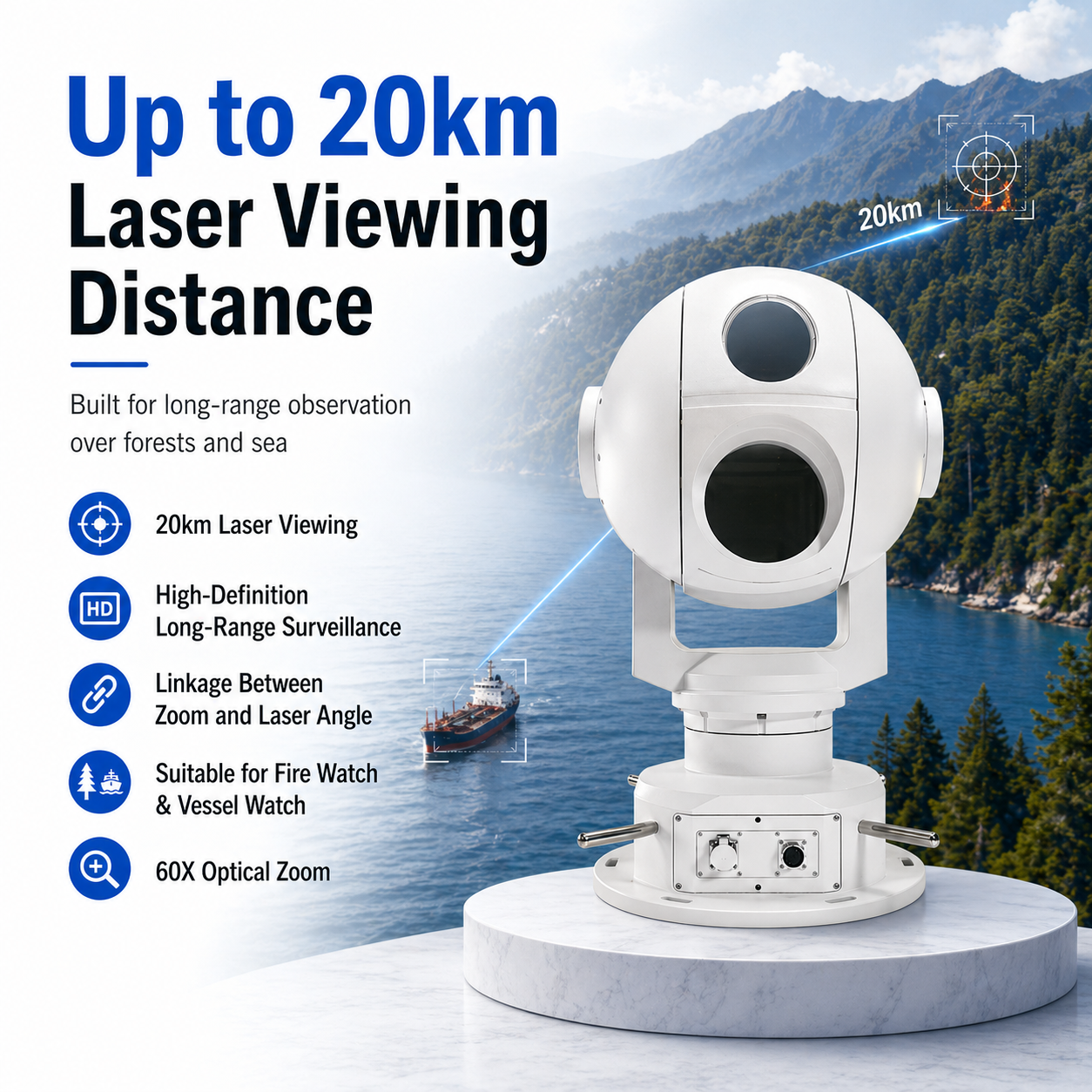

20km Laser Viewing
Laser viewing distance up to 20km for long-range observation in low-light or night monitoring environments.
Designed for Forest & Marine Detection
LC006 is designed for large open-area environments where standard cameras cannot provide enough range, visibility or thermal detection capability.

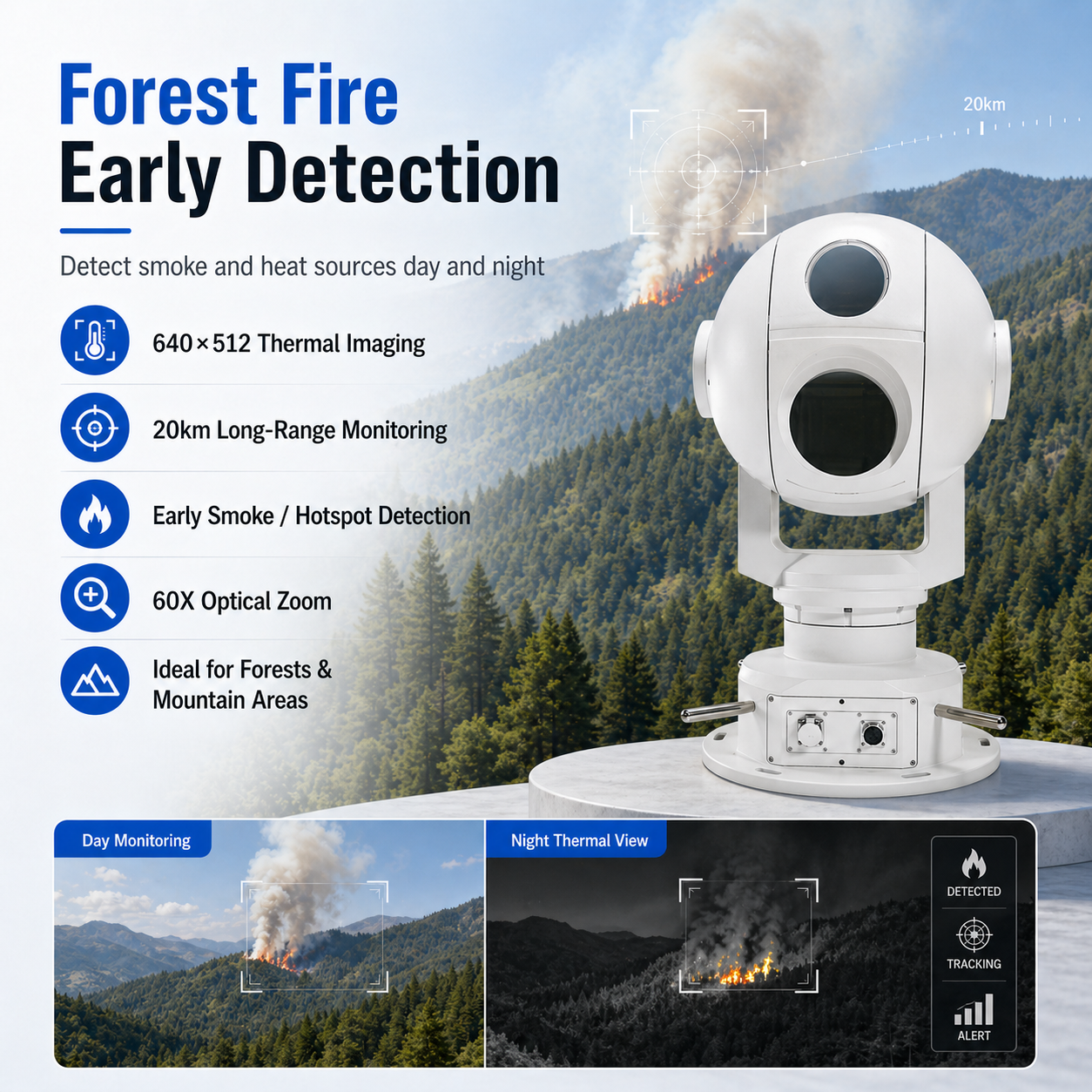

Forest Fire Early Detection
Ideal for forest towers, mountain areas and wildfire prevention projects. The 640×512 thermal imaging module helps detect smoke, heat sources and fire hotspots early, while 60X optical zoom supports long-range target confirmation.

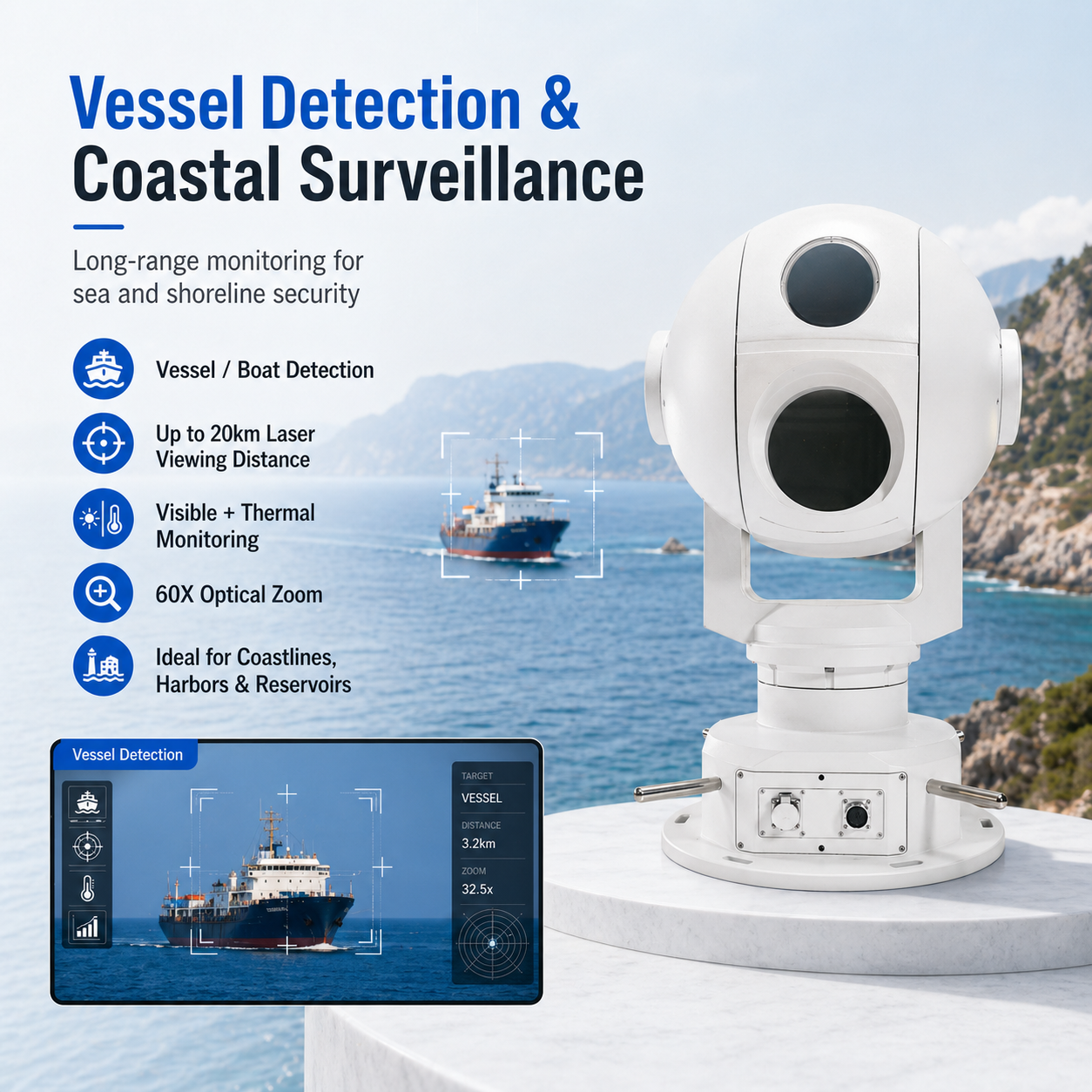

Vessel Detection & Coastal Surveillance
Suitable for coastlines, harbors, reservoirs and offshore monitoring. With long-range laser viewing, visible imaging and thermal detection, LC006 supports vessel monitoring and remote target observation.
Flexible Configuration for Different Projects
LC006 should be configured according to the actual project. Detection distance, target size, field of view, installation height, terrain and weather conditions all affect the recommended visible camera and thermal lens selection.
Visible Camera Options
- 2MP visible camera option
- 4MP visible camera option
- 8MP visible camera option
- 60X optical zoom
- Auto focus support
- Day / night monitoring
Thermal Lens Options
- 640×512 thermal imaging
- 75mm thermal lens configuration
- Fixed thermal lens optional
- Zoom thermal lens optional
- Lens selected based on detection distance and field of view
Detection Functions
- Forest fire hotspot detection
- Vessel / boat detection
- Intrusion detection
- Human / vehicle classification
- Temperature measurement alarm optional
- Restricted-area and tripwire alarm support
Application Scenarios
LC006 is suitable for high-value outdoor security projects where long-range detection, thermal verification and stable PTZ control are required.
Forest Fire Prevention
For forest towers, mountain regions, reservoirs and remote wildfire monitoring stations requiring early warning and long-range target search.
Coastal & Vessel Surveillance
For coastlines, harbors, ports, reservoirs and sea-facing facilities that need vessel monitoring and long-range observation.
Perimeter Intrusion Security
For industrial sites, border-style perimeters, restricted areas, oil and gas facilities and remote infrastructure protection.
Remote Infrastructure Monitoring
For power stations, mountain roads, remote command stations and open-area security projects with difficult field conditions.
Technical Specifications
| Visible Camera | |
|---|---|
| Resolution Options | 2MP / 4MP / 8MP optional |
| Image Sensor | 1/1.8" CMOS for 4MP configuration |
| Optical Zoom | 60X |
| Focal Length | 13–784mm |
| Auto Focus | Supported |
| Minimum Illumination | 0.001Lux color / 0.0001Lux black and white |
| Day / Night Conversion | ICR infrared filter |
| Laser Viewing Distance | Up to 20km |

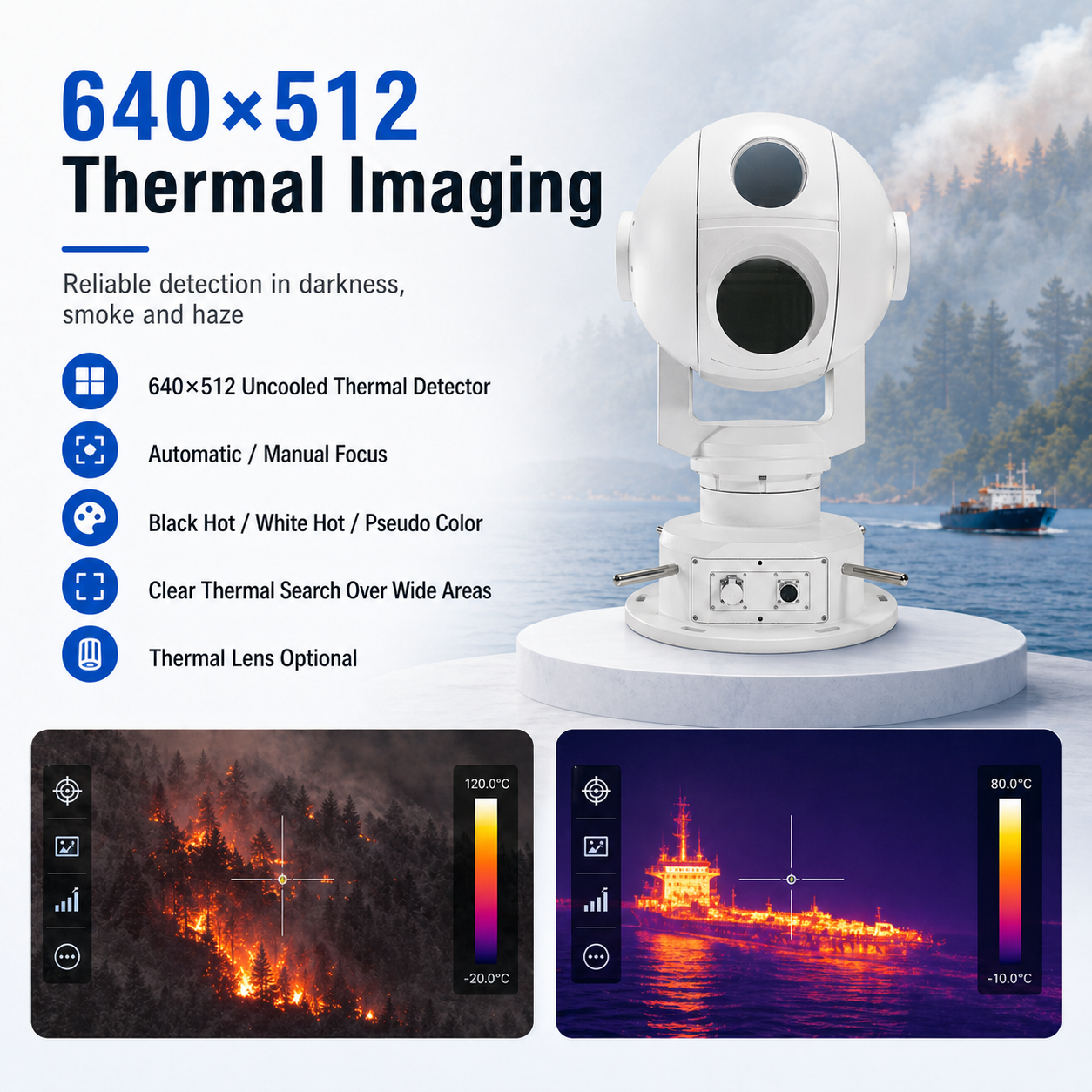

| Thermal Imaging | |
| Thermal Detector | 640×512 uncooled thermal detector |
| Standard Thermal Lens | 75mm thermal lens configuration |
| Thermal Lens Options | Fixed lens / zoom lens optional, selected according to detection distance and field of view |
| Thermal Focus | Automatic / manual focusing |
| Thermal Display Modes | Black hot / white hot / multiple pseudo color conversion |
| Temperature Measurement | Optional temperature measurement alarm function |
| AI & Detection | |
| Intelligent Analysis | Tripwire detection, restricted-area monitoring and alarm reporting |
| Target Detection | Forest fire hotspot, vessel / boat, human, vehicle and intrusion detection depending on project configuration |
| Remote Control | RS485 / TCP/IP signal control |

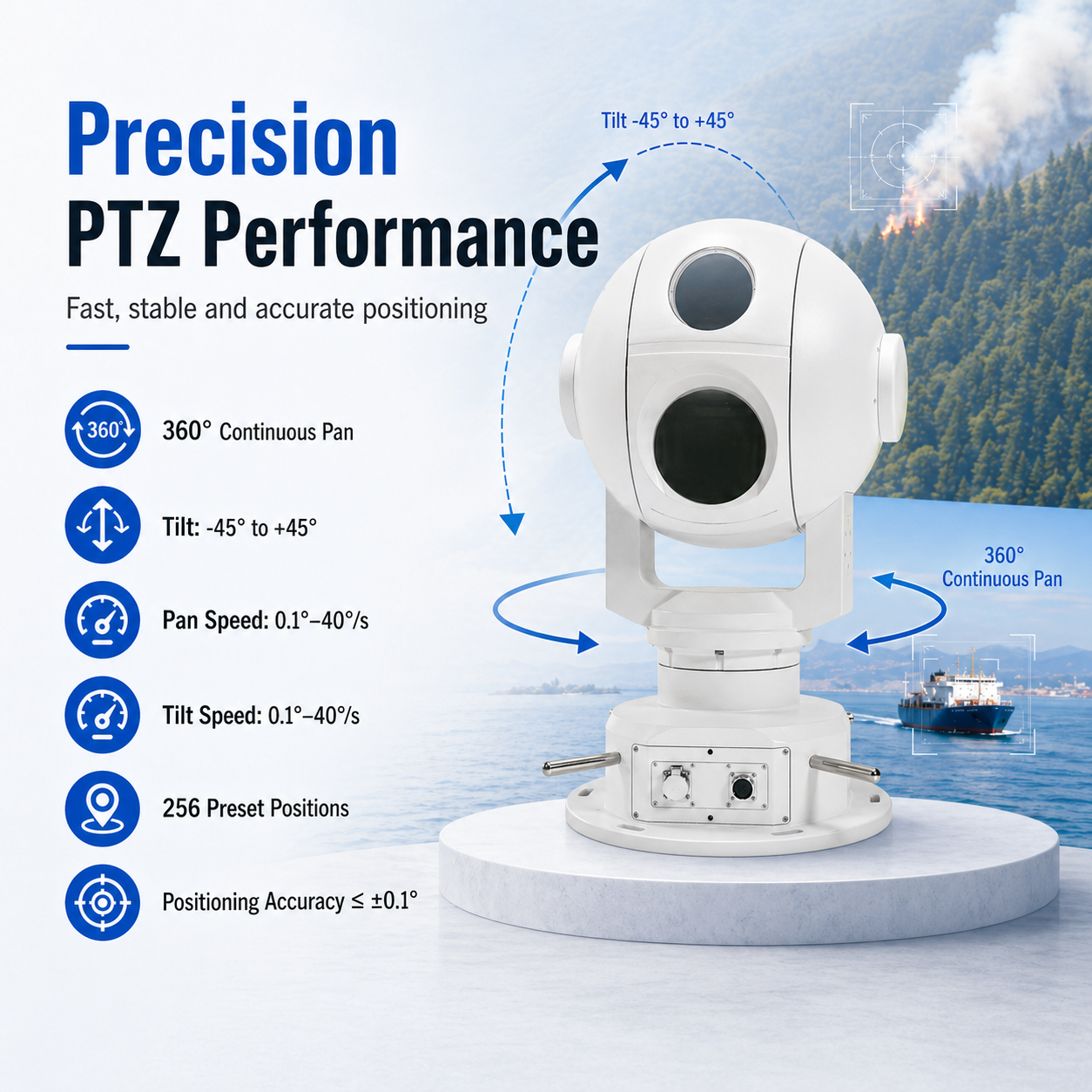

| PTZ Performance | |
| Horizontal Rotation | 360° continuous rotation |
| Vertical Angle | -45° to +45° |
| Pan Speed | 0.1°–40°/s |
| Tilt Speed | 0.1°–40°/s |
| Preset Positions | 256 preset positions with power-off memory |
| Patrol Route | 9 cruise lines |
| Positioning Accuracy | ≤ ±0.1° |

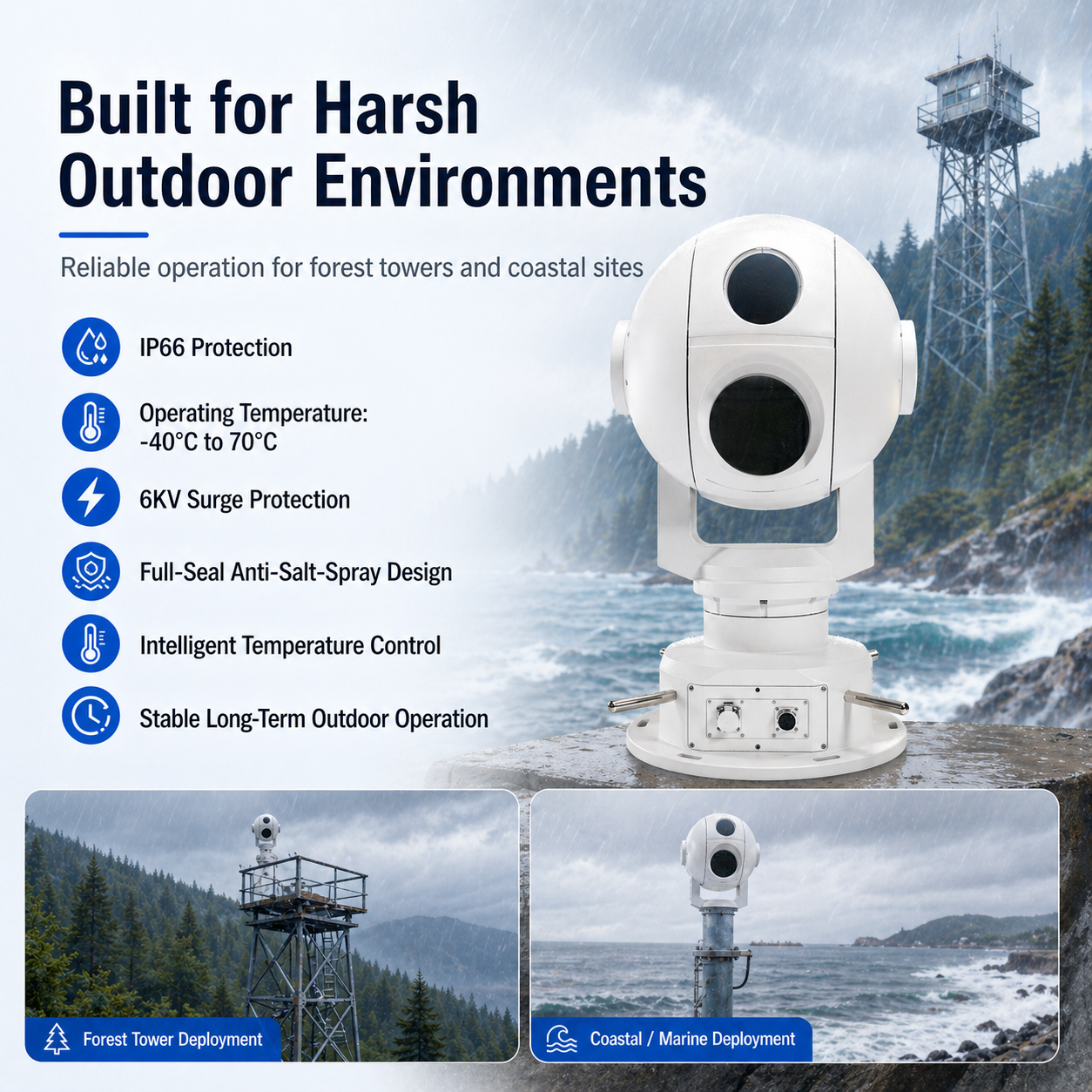

| General | |
| Protection Level | IP66 |
| Protection Design | Integrated spherical full-seal design with anti-salt-spray protection |
| Surge Protection | 6KV surge protection with multi-level lightning protection |
| Operating Temperature | -40°C to 70°C |
| Network Interface | 1× RJ45 10/100M adaptive Ethernet port, 1× RS-485 interface |
| Power Supply | AC220V / DC48V |
| Power Consumption | ≤ 200W |
| Wiper | Built-in wiper |
| Dimensions | 550mm × 550mm × 995mm |
| Weight | Approx. 95kg |
Why Choose LC006?
Long-range thermal surveillance projects are not standard consumer camera applications. Detection distance, target size, terrain, sea conditions, installation height and lens field of view all affect the final configuration. JideTech can help match the visible camera, thermal lens and alarm functions based on your project requirements.
FAQ
Can the LC006 be customized?
Yes. LC006 supports different visible camera resolutions, thermal lens options, temperature measurement options and output configurations. The final configuration should be selected based on the project requirement.
What visible camera resolutions are available?
The visible camera can be configured with 2MP, 4MP or 8MP resolution, depending on the monitoring requirement.
Is the 75mm thermal lens the only option?
No. The 75mm thermal lens is one recommended configuration. Thermal lenses can be selected as fixed or zoom configurations based on detection distance, target size and field-of-view requirements.
Can this camera be used for vessel detection?
Yes. LC006 is suitable for coastal surveillance, vessel monitoring, reservoir security and other long-range outdoor monitoring applications.
Does it support intrusion detection?
Yes. It supports intelligent detection functions such as tripwire detection and restricted-area monitoring for perimeter security.
How should I choose the thermal lens?
The thermal lens should be selected according to target size, required detection distance, field of view, installation height and application scenario. For project use, please contact JideTech for configuration support.
Need a Custom LC006 Configuration?
Send us your monitoring distance, target type, installation height and application scenario. JideTech will help recommend the right visible camera and thermal lens configuration.
