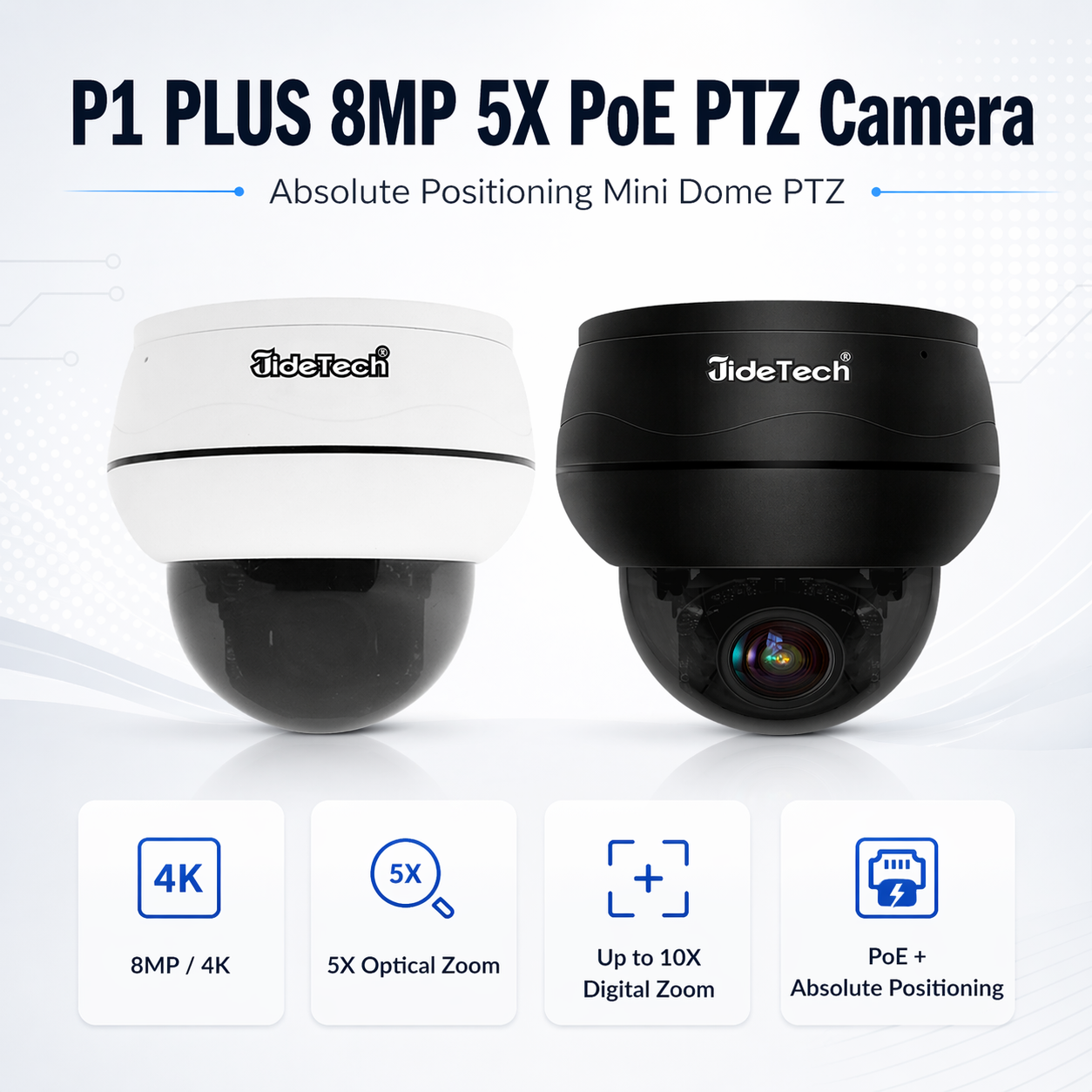

JideTech P1 PLUS 8MP 5X Optical Zoom PoE Mini PTZ Dome Camera with Absolute Positioning
JideTech P1 PLUS 8MP 5X Optical Zoom PoE Mini PTZ Dome Camera with Absolute Positioning
8MP Mini PTZ Camera with ONVIF Absolute Positioning
Built for professional CCTV projects, the JideTech P1 PLUS combines 8MP 4K resolution, 5X optical zoom, PoE installation, smart detection and ONVIF Absolute Move support for more accurate third-party VMS integration.
Precise PTZ Control
Supports positioning commands in 0.1-degree increments for more accurate PTZ movement.
Key Features
A compact PoE PTZ dome camera designed for installers, integrators, VMS platforms and project-based surveillance deployments.

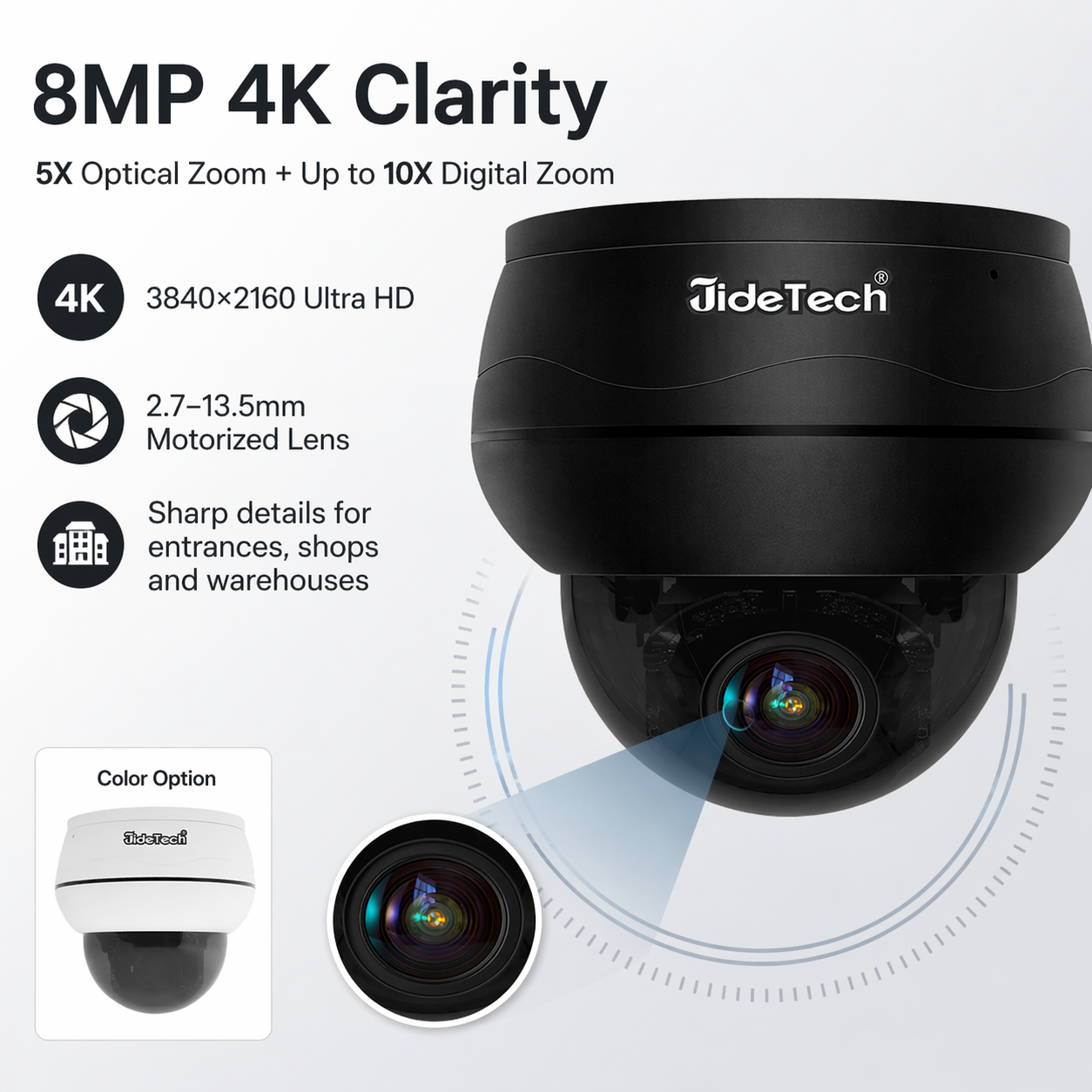

8MP 4K Resolution
Capture sharper video details with up to 3840 × 2160 resolution for professional monitoring.
5X Optical Zoom
Equipped with a 2.7–13.5mm motorized lens for flexible wide-angle and close-up viewing.
Absolute Positioning
Move the PTZ camera to exact coordinates with ONVIF Absolute Move and positioning commands.

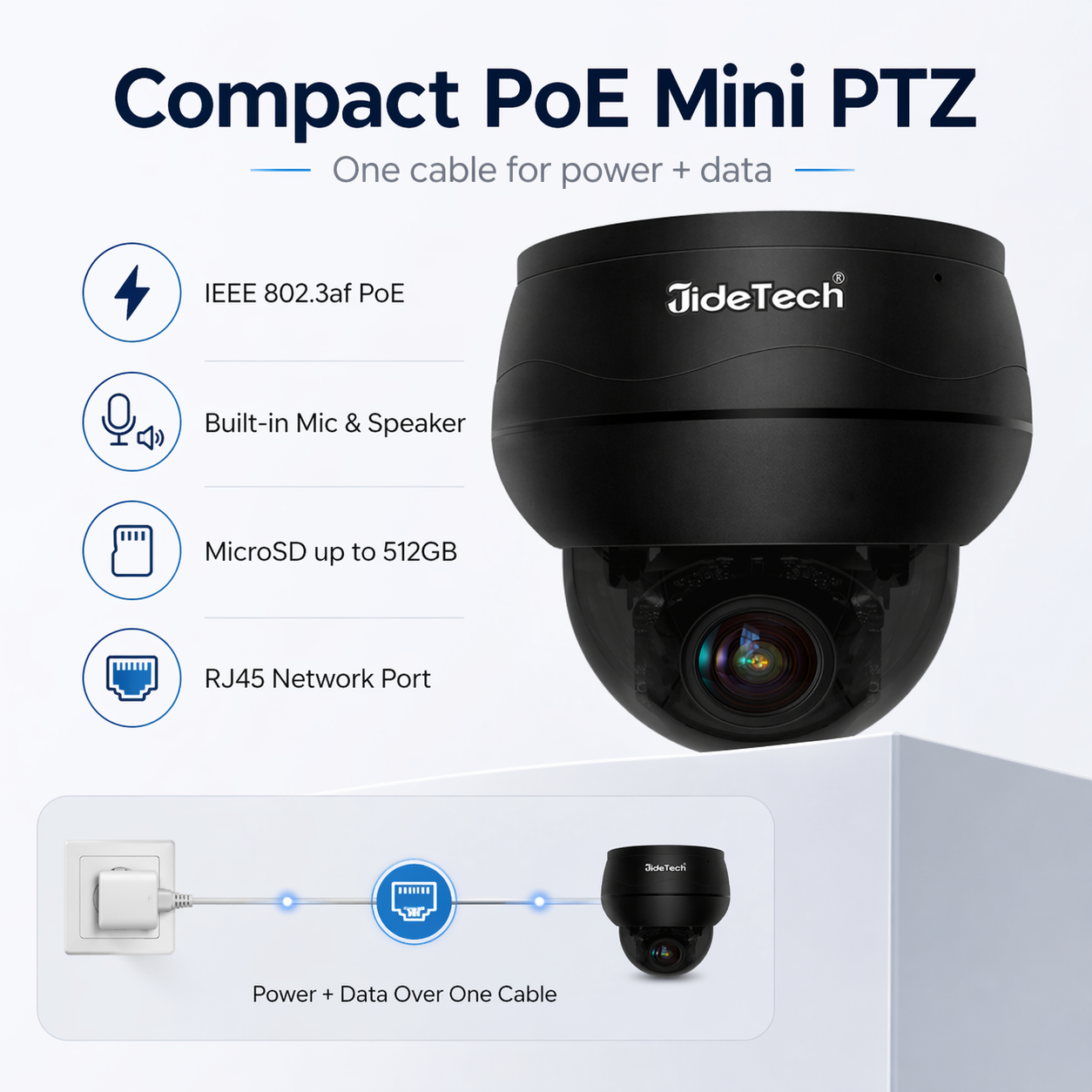

PoE Installation
Supports IEEE 802.3af PoE for easier installation using one Ethernet cable for power and data.

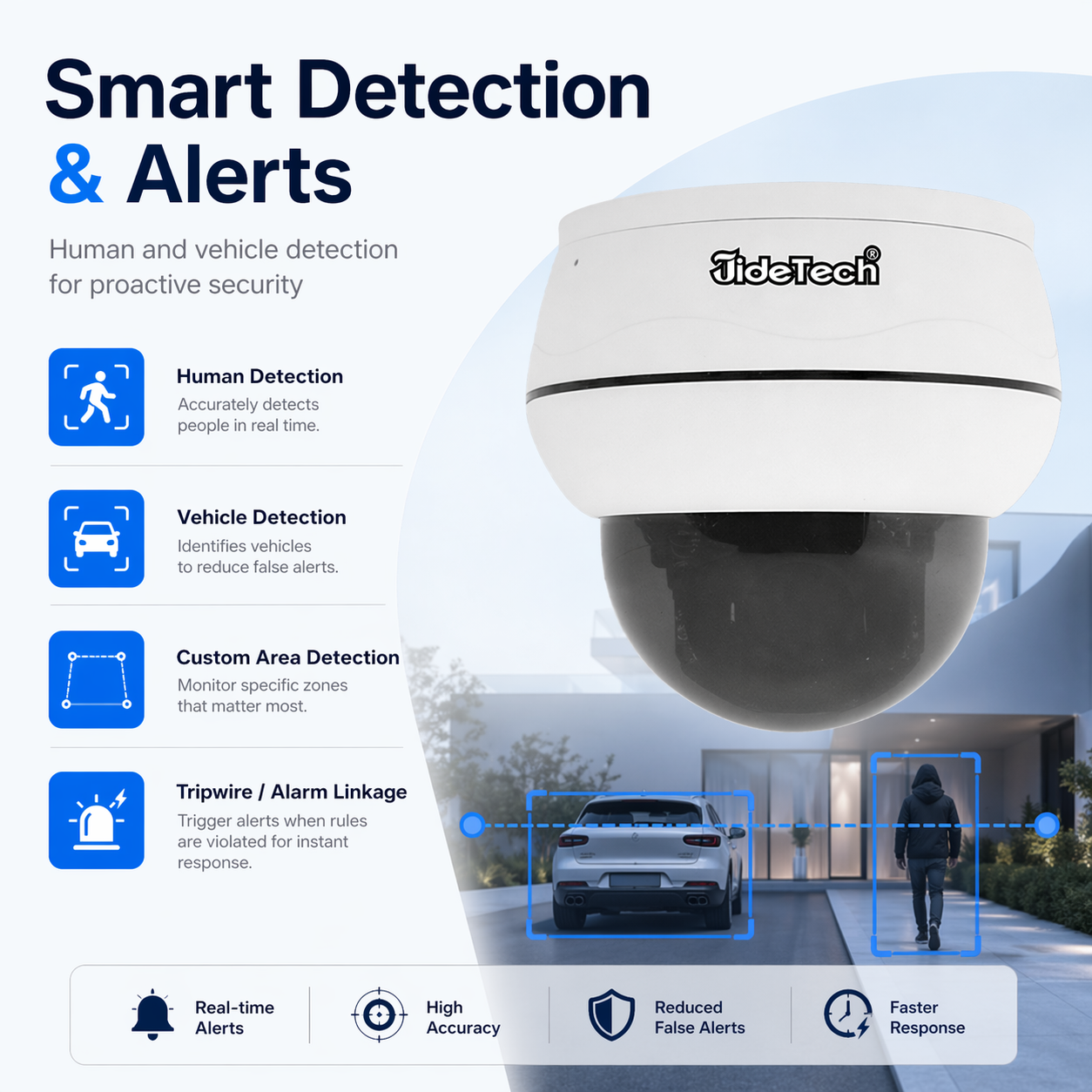

Human & Vehicle Detection
Supports human detection, vehicle detection, motion detection and custom area detection.
Auto Tracking
Supports humanoid tracking, fixed-point tracking and cruise tracking for active monitoring.
Two-Way Audio
Built-in microphone and speaker support audio monitoring and voice announcement.
512GB Local Storage
Supports MicroSD card storage up to 512GB for flexible local recording.

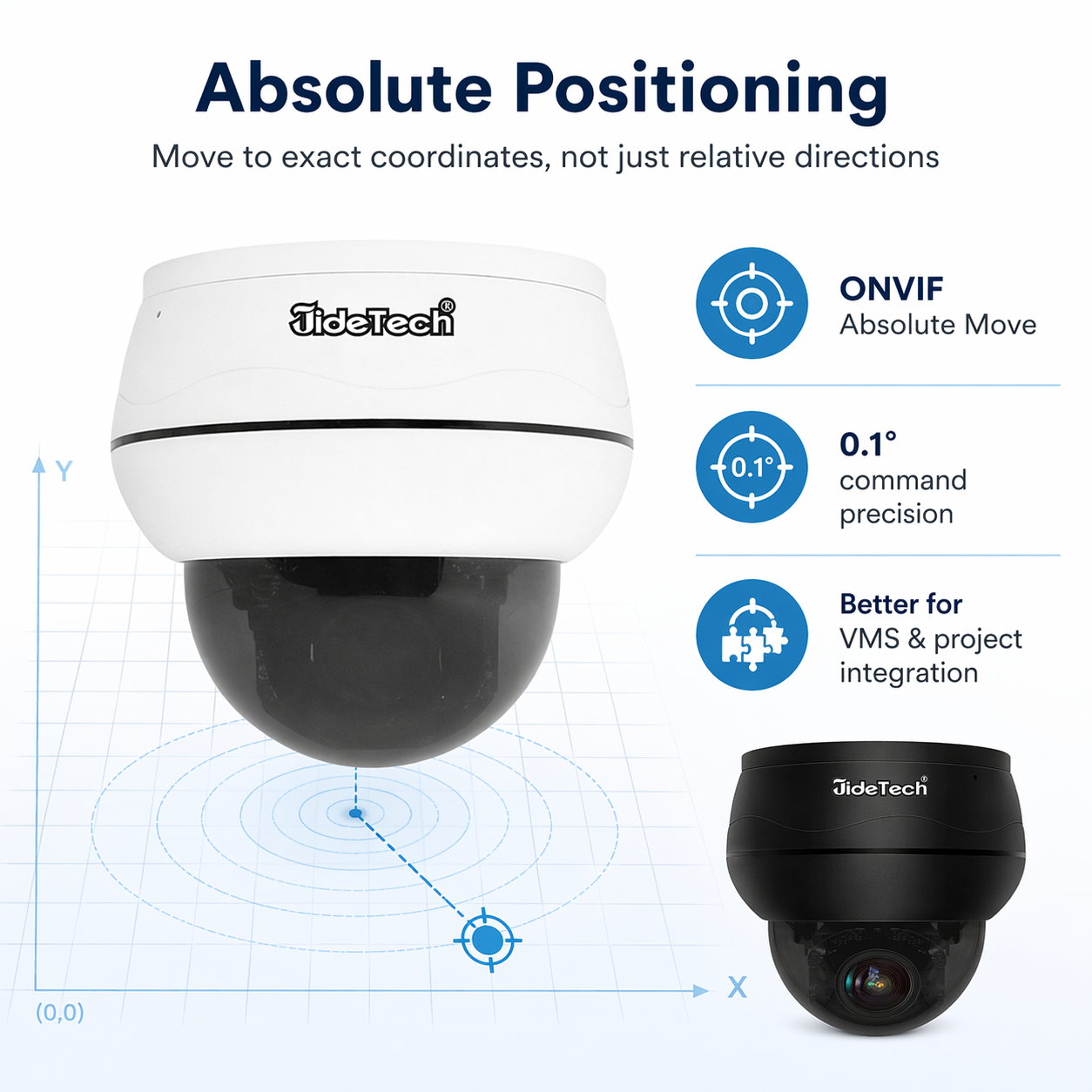

Absolute Positioning: More Than Normal PTZ Control
Traditional PTZ control usually moves the camera by relative direction. Absolute Positioning allows the camera to move to specific coordinates, making it more suitable for VMS platforms, map-based monitoring and command center applications.
- Supports ONVIF Absolute Move
- Supports positioning commands in 0.1-degree increments
- Better for software integration and centralized control
- Ideal for projects requiring repeatable PTZ movement
Relative movement by direction
Coordinate-based PTZ movement
Limited to saved preset points
Move to exact target positions
Video stream and limited control
ONVIF, RTSP, RTMP and private protocols
Three Versions Available
Choose the right version based on chipset, sensor and frame rate requirements for your project.
P1 PLUS-5X-8MP
- 8MP / 4K resolution
- 1/2.7" SSC378DE + GC8613
- 5X optical zoom
- 20fps
P1 PLUS-5X-8MP-S
- 8MP / 4K resolution
- 1/2.8" MSTAR338Q + IMX415
- 5X optical zoom
- 20fps
P1 PLUS-5X-8MP-G
- 8MP / 4K resolution
- 1/2.8" MSTAR339G + IMX415
- 5X optical zoom
- 30fps
Technical Specifications
Professional specifications for CCTV installers, distributors and system integrators.
| Category | Specification |
|---|---|
| Model | P1 PLUS-5X-8MP / P1 PLUS-5X-8MP-S / P1 PLUS-5X-8MP-G |
| Max Resolution | 8MP / 4K, 3840 × 2160 |
| Sensor Options | 1/2.7" SSC378DE + GC8613 / 1/2.8" MSTAR338Q + IMX415 / 1/2.8" MSTAR339G + IMX415 |
| Lens | 2.7–13.5mm motorized zoom lens |
| Optical Zoom | 5X optical zoom |
| Digital Zoom | Supports up to 10X digital zoom option |
| Focus | Auto-focus |
| Aperture | F1.6 |
| IR LEDs | 850nm, 4pcs IR LEDs |
| IR Distance | Up to 40m |
| Video Compression | H.264 / H.265 / H.265+ |
| Main Stream | 3840 × 2160, 3072 × 2048, 2592 × 1944, 2560 × 1440, 2304 × 1296, 1080P, 720P |
| Frame Rate | 20fps / 20fps / 30fps depending on version |
| PTZ Presets | 128 presets |

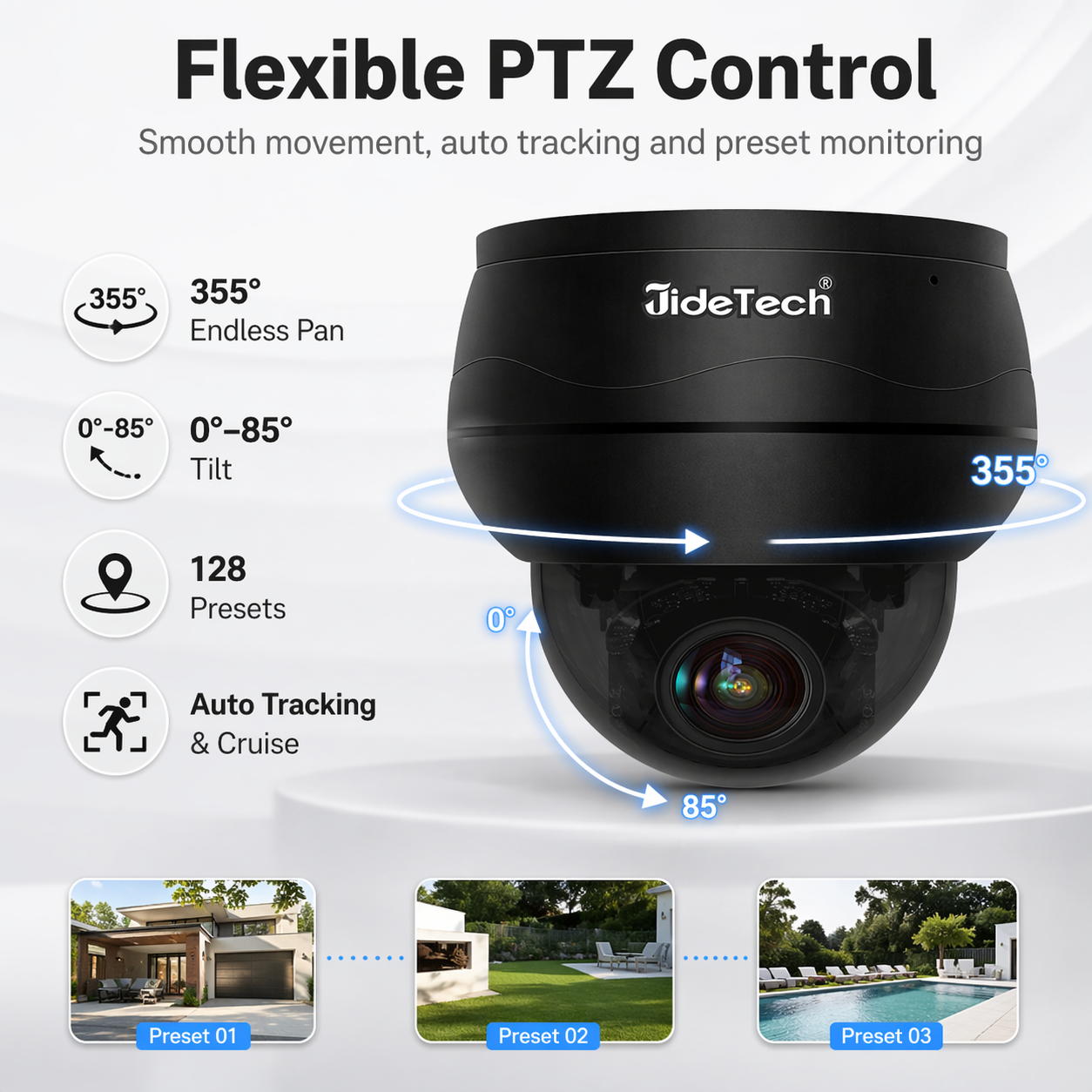

| Pan Range | 355° endless |
| Pan Speed | 0.1°/s to 30°/s |
| Tilt Range | 0°–85° |
| Tilt Speed | 0.1°/s to 30°/s |
| Absolute Positioning | Supports ONVIF Absolute Move and positioning commands in 0.1-degree increments |
| Tracking | Humanoid tracking, fixed-point tracking, cruise tracking, customizable tracking speed |
| Detection Target | Human, car, motorcycle, e-bike, bicycle, gas tank |
| Alarm Linkage | TF card recording, snapshot, email upload, FTP upload, sound alarm, occlusion alarm, alarm push |
| Audio | Built-in microphone and built-in speaker; G.711U, G.711A, AAC |
| Storage | MicroSD card up to 512GB; NFS network storage supported |
| Network Port | 1 × 10/100Mbps Ethernet port, RJ45 |

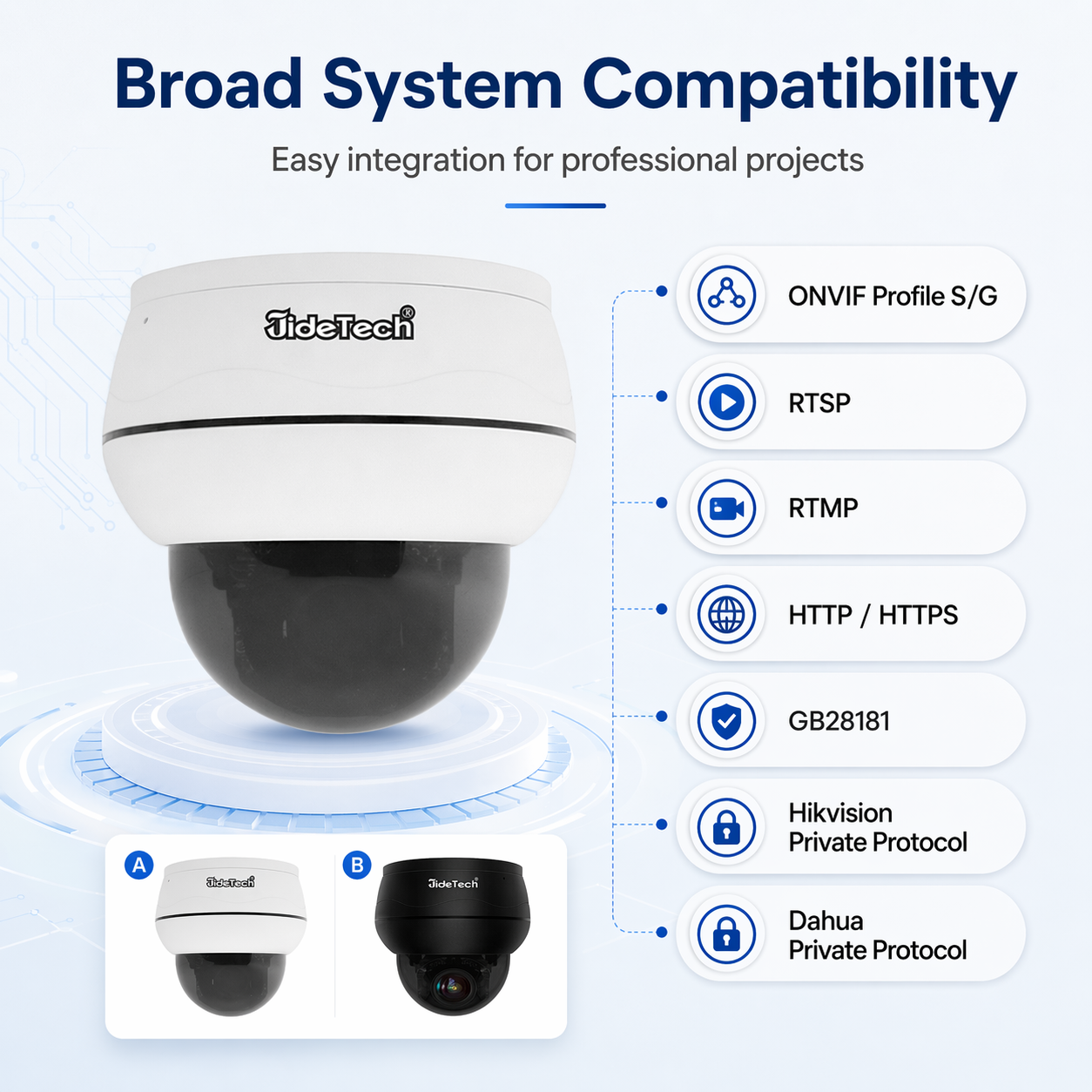

| Protocols | ONVIF Profile S/G, RTSP, RTMP, HTTP, HTTPS, SMTP, GB28181, Hikvision Private Protocol, Dahua Private Protocol |
| Web Browser | Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Power | DC12V 3A, IEEE 802.3af PoE |
| Power Consumption | < 24W |
| Working Environment | -40°C to 60°C, humidity ≤ 95% RH non-condensing |
| Certification | CE, FCC, RoHS, SABER |
FAQ
Frequently asked questions for project buyers and system integrators.
What is Absolute Positioning?
Absolute Positioning allows the PTZ camera to move to specific coordinates, instead of only moving by relative direction. This is useful for VMS platforms, command centers and software integration.
Does this camera support ONVIF Absolute Move?
Yes. The P1 PLUS supports ONVIF Absolute Move and positioning commands in 0.1-degree increments.
Is this a 50X optical zoom camera?
No. This model uses a 5X optical zoom lens and supports up to 10X digital zoom. It can be displayed as up to 50X combined zoom, but it should not be described as 50X optical zoom.
Does it support PoE?
Yes. It supports IEEE 802.3af PoE, allowing power and data transmission through one Ethernet cable.
Can it work with Hikvision or Dahua systems?
Yes. It supports ONVIF, RTSP, Hikvision Private Protocol and Dahua Private Protocol for better third-party compatibility.
Does it support human and vehicle detection?
Yes. It supports motion detection, human detection, vehicle detection, custom area detection and alarm linkage.
Does it support local storage?
Yes. It supports MicroSD card storage up to 512GB and also supports NFS network storage.
