JideTech 5MP/8MP 20X 4G LTE Solar PTZ Security Camera with OpenVPN, RTSP, RTMP, ONVIF
JideTech 5MP/8MP 20X 4G LTE Solar PTZ Security Camera with OpenVPN, RTSP, RTMP, ONVIF
PROFESSIONAL 4G LTE • OPENVPN • SOLAR PTZ SURVEILLANCE

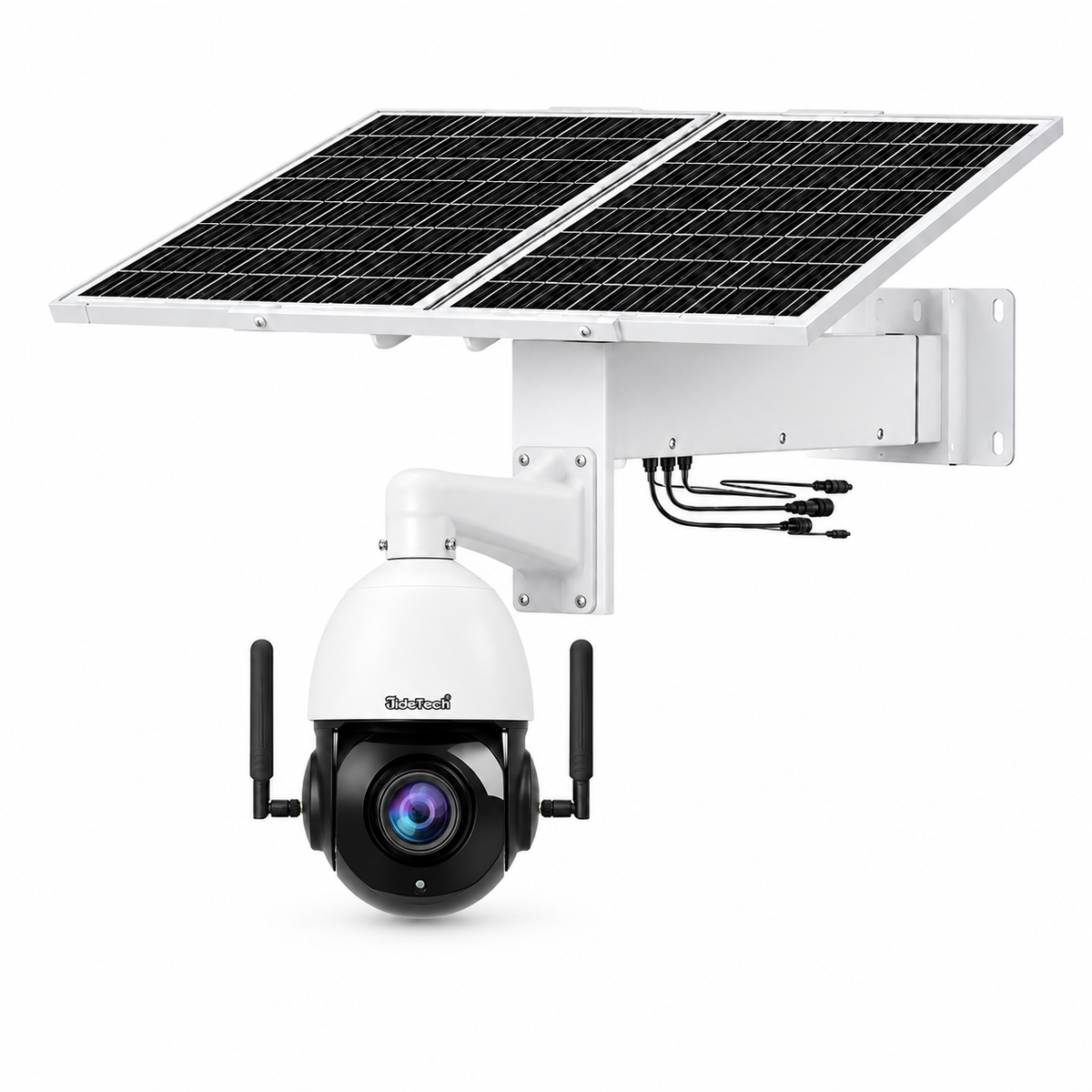

JideTech 5MP / 8MP 20X 4G LTE Solar PTZ Security Camera
Professional 20X optical zoom 4G PTZ security camera designed for remote surveillance, private-network projects and solar-powered installations. Available in 5MP and 8MP versions, with DC power or an optional 80W solar power system, and Standard or OpenVPN network versions.
OpenVPN Secure Remote Access

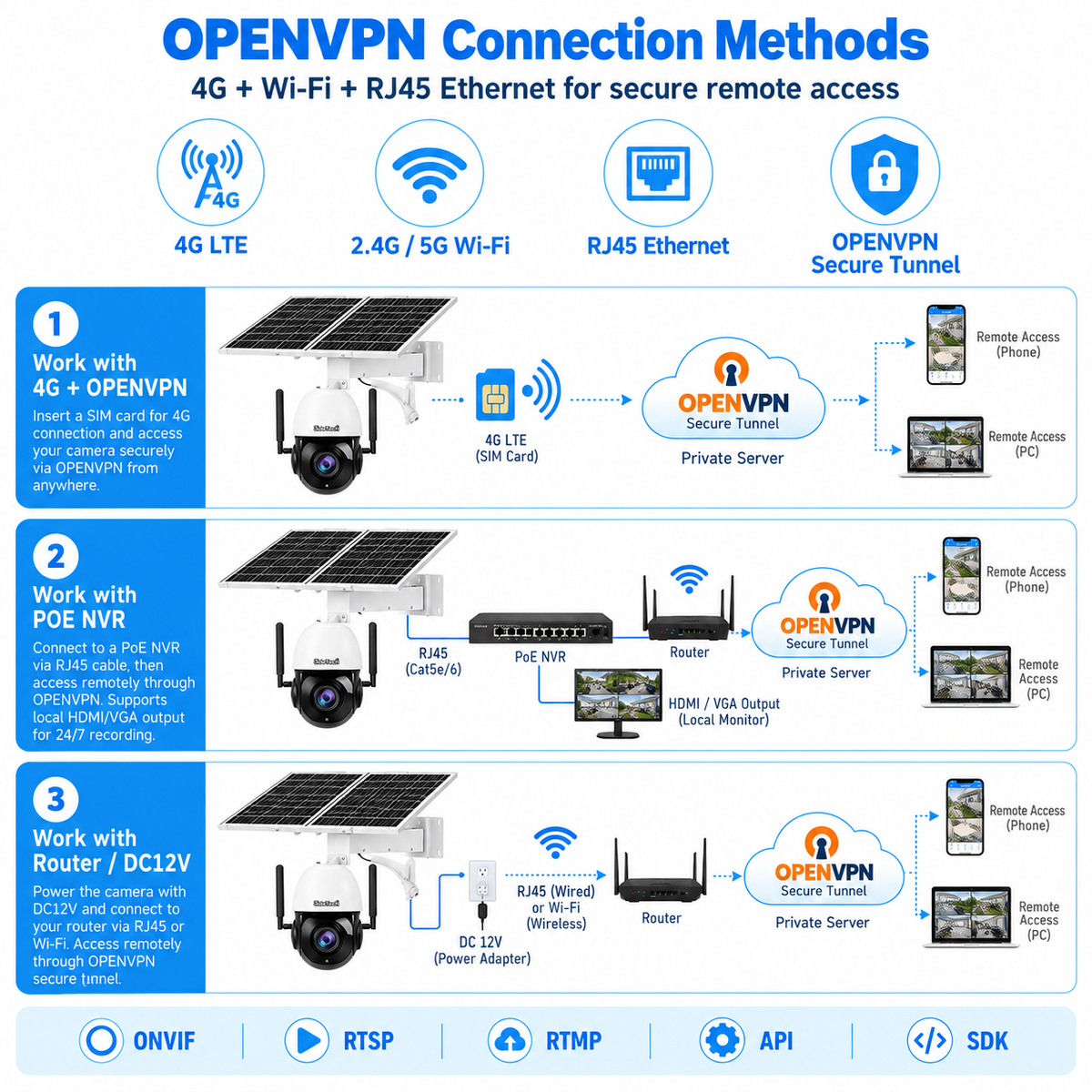

The OpenVPN version is designed for professional and private-network surveillance projects. The camera can establish a secure VPN tunnel to a private OpenVPN server through 4G LTE, WiFi or wired Ethernet, allowing remote access without directly exposing the camera to the public Internet.
Private VPN Server
Connect the camera securely to your own OpenVPN server for professional private-network deployment.
4G + WiFi + Ethernet
Flexible connectivity for remote sites, solar surveillance and fixed network installations.
Secure Remote Access
Access the camera through a secure VPN tunnel instead of exposing device ports directly to the public Internet.
Professional Projects
Suitable for farms, highways, construction sites, industrial sites, government projects and remote surveillance systems.
ONVIF • RTSP • RTMP • API • SDK
Unlike many consumer 4G cameras, this professional PTZ platform is designed for NVR, VMS and third-party system integration.
Profile S / G
Direct video streaming
Live streaming support
System integration
Development support
Choose Your Camera Version
Five camera configurations are available to match different resolution, image-performance and project requirements.
| Camera Version | Resolution | Sensor Type | Frame Rate | Optical Zoom |
|---|---|---|---|---|
| 5MP Standard 4G | 5MP | Standard | Standard | 20X |
| 5MP Sony 4G | 5MP | Sony | Standard | 20X |
| 8MP Standard 4G | 8MP / 4K | Standard | 20FPS | 20X |
| 8MP Sony 20FPS 4G | 8MP / 4K | Sony | 20FPS | 20X |
| 8MP Sony 30FPS 4G | 8MP / 4K | Sony | 30FPS | 20X |
Flexible Configuration Options
Camera Version
5MP Standard / 5MP Sony / 8MP Standard / 8MP Sony 20FPS / 8MP Sony 30FPS
Power Option
DC Power or 80W Solar Power Kit with 40Ah lithium battery.
Network Version
Standard 4G version or OpenVPN 4G version for secure private-network access.

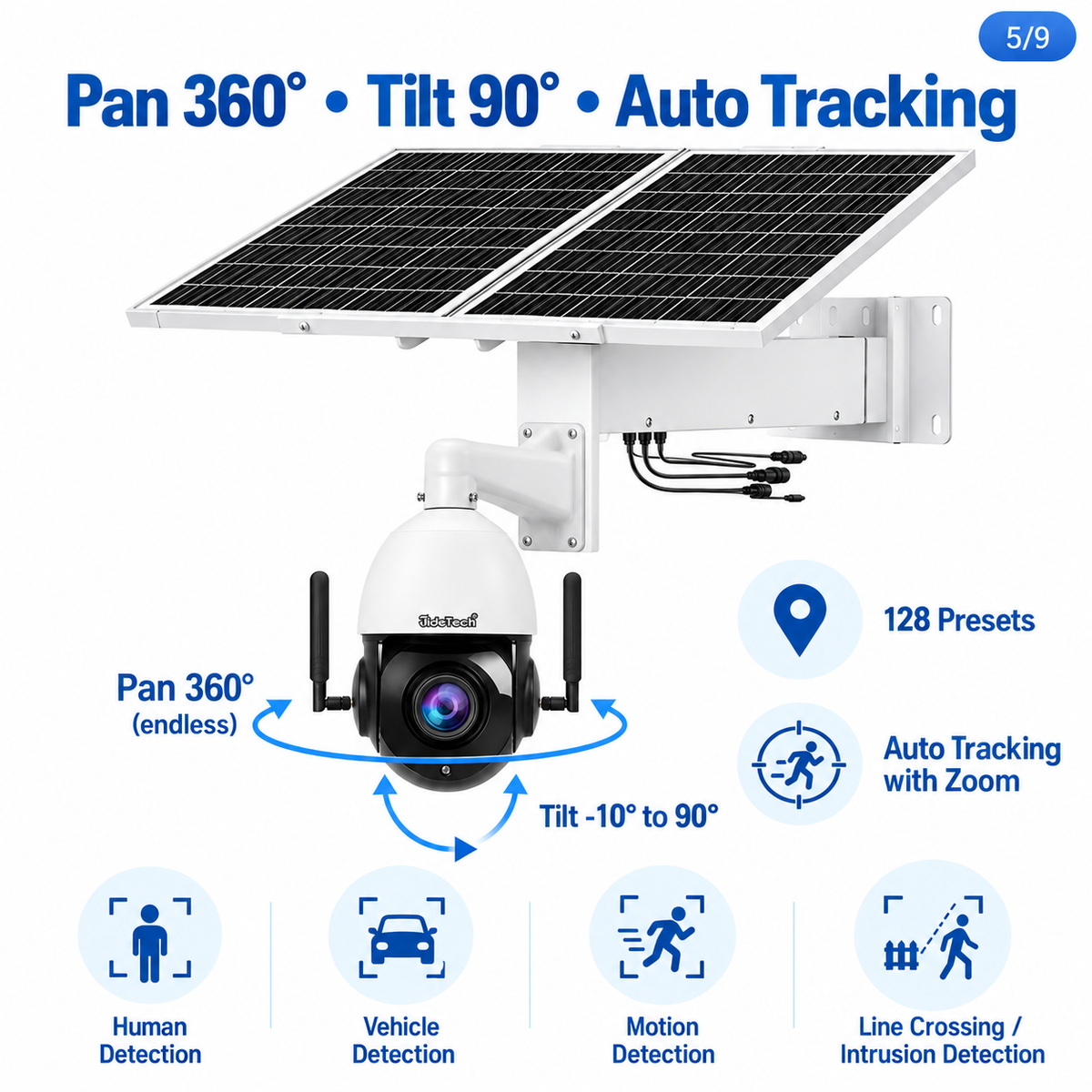

Professional 20X PTZ Performance

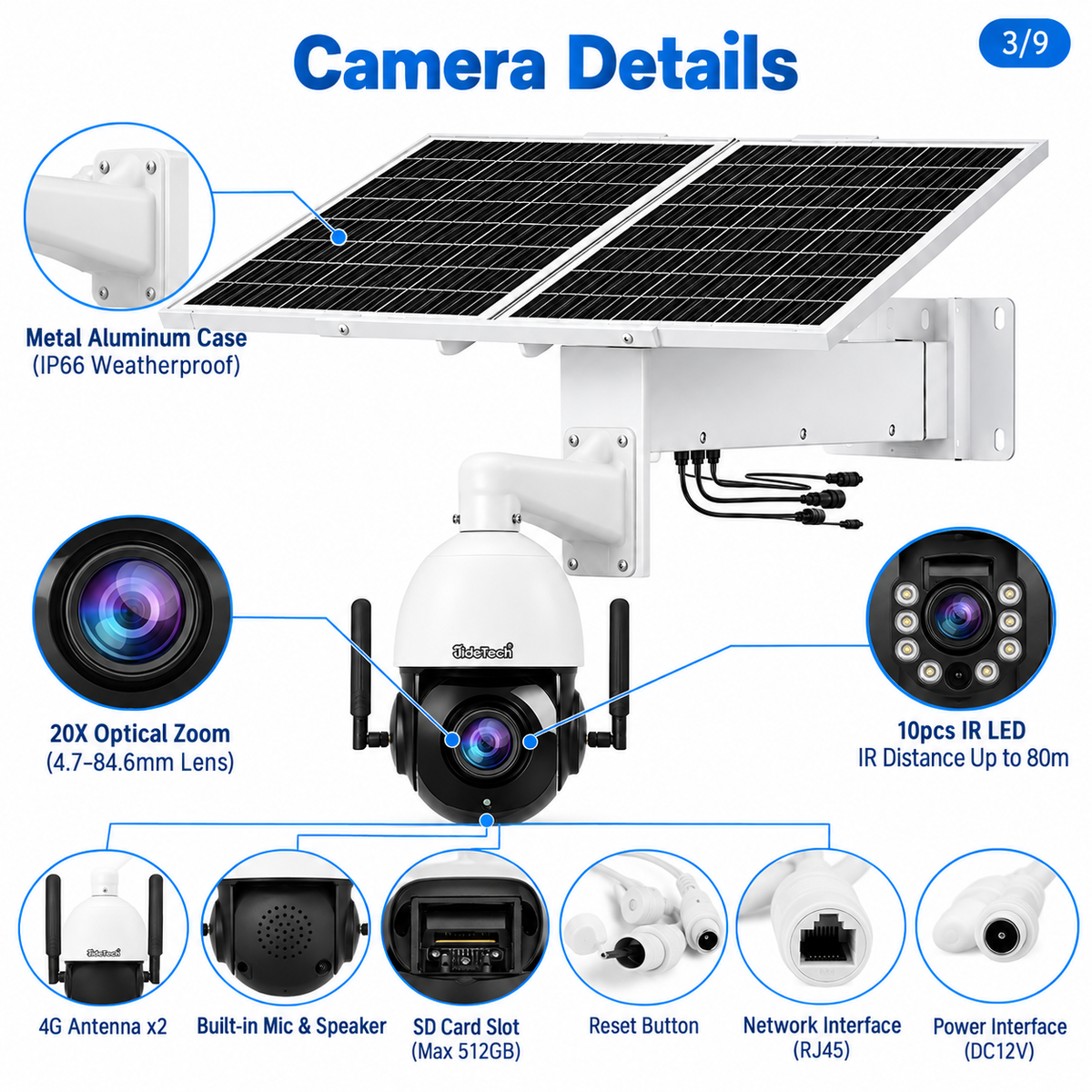

4.7–84.6mm motorized zoom lens for long-distance surveillance.
Continuous horizontal PTZ movement for wide-area coverage.
Wide vertical monitoring range with auto flip.
Save multiple monitoring positions for fast PTZ control.
Automatically track moving targets with PTZ and zoom control.
Supports human, vehicle, intrusion and line-crossing detection.
10 IR LEDs • Up to 80m Night Vision
The camera uses 10 infrared LEDs to provide night surveillance up to approximately 80 meters. Full-color night vision and automatic day/night switching are also supported.
Local Recording & Two-Way Audio
Supports local recording, playback and scheduled recording.
Record audio together with video.
Supports two-way audio communication.
Supports alarm snapshots, FTP upload and recording linkage.

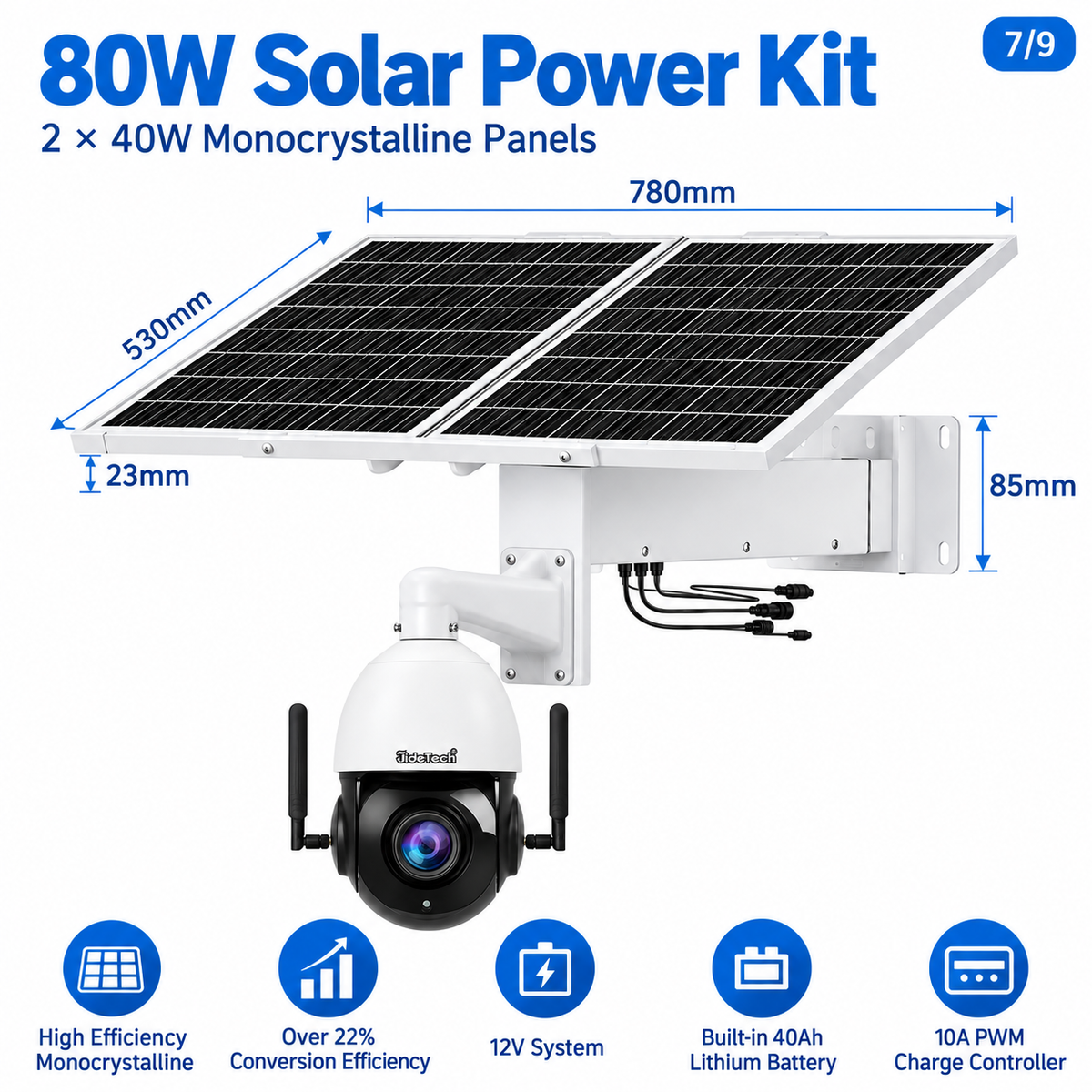

Optional 80W Solar Power System
For remote locations without stable grid power, choose the optional 80W solar power system with a built-in 40Ah lithium battery. The camera is designed with low power consumption to extend off-grid operating time.
Typical daytime operating consumption.
Power consumption when infrared lights are operating at night.
Typical power consumption during nighttime PTZ patrol.
The 80W + 40Ah system can support approximately 3.5 days of operation during continuous rainy or cloudy weather.
Actual backup time depends on PTZ movement, infrared usage, recording load, mobile-network conditions, local weather and available solar charging.

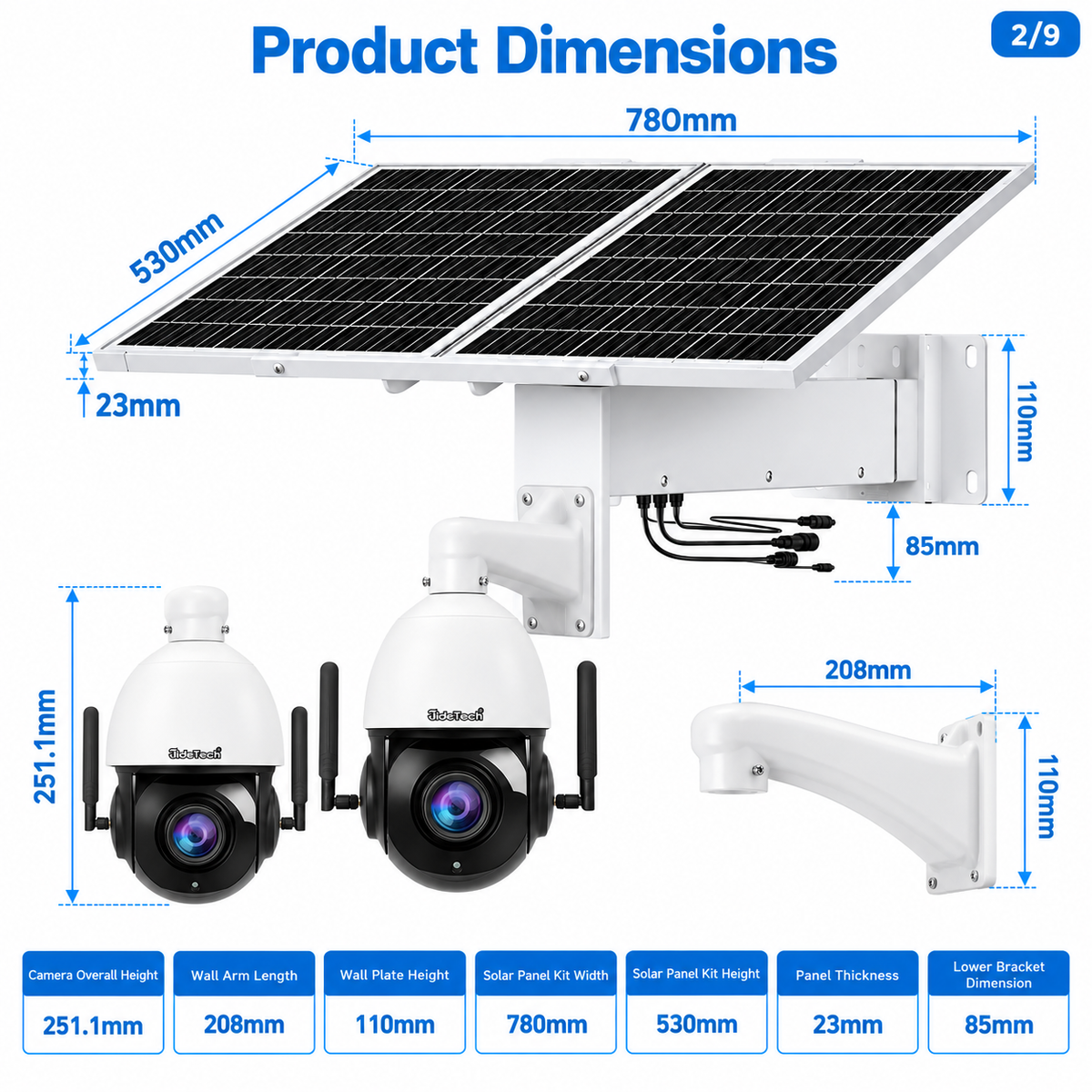

80W Solar Kit
Solar Kit Width
Solar Kit Height
Monocrystalline Panels
Built-in Battery

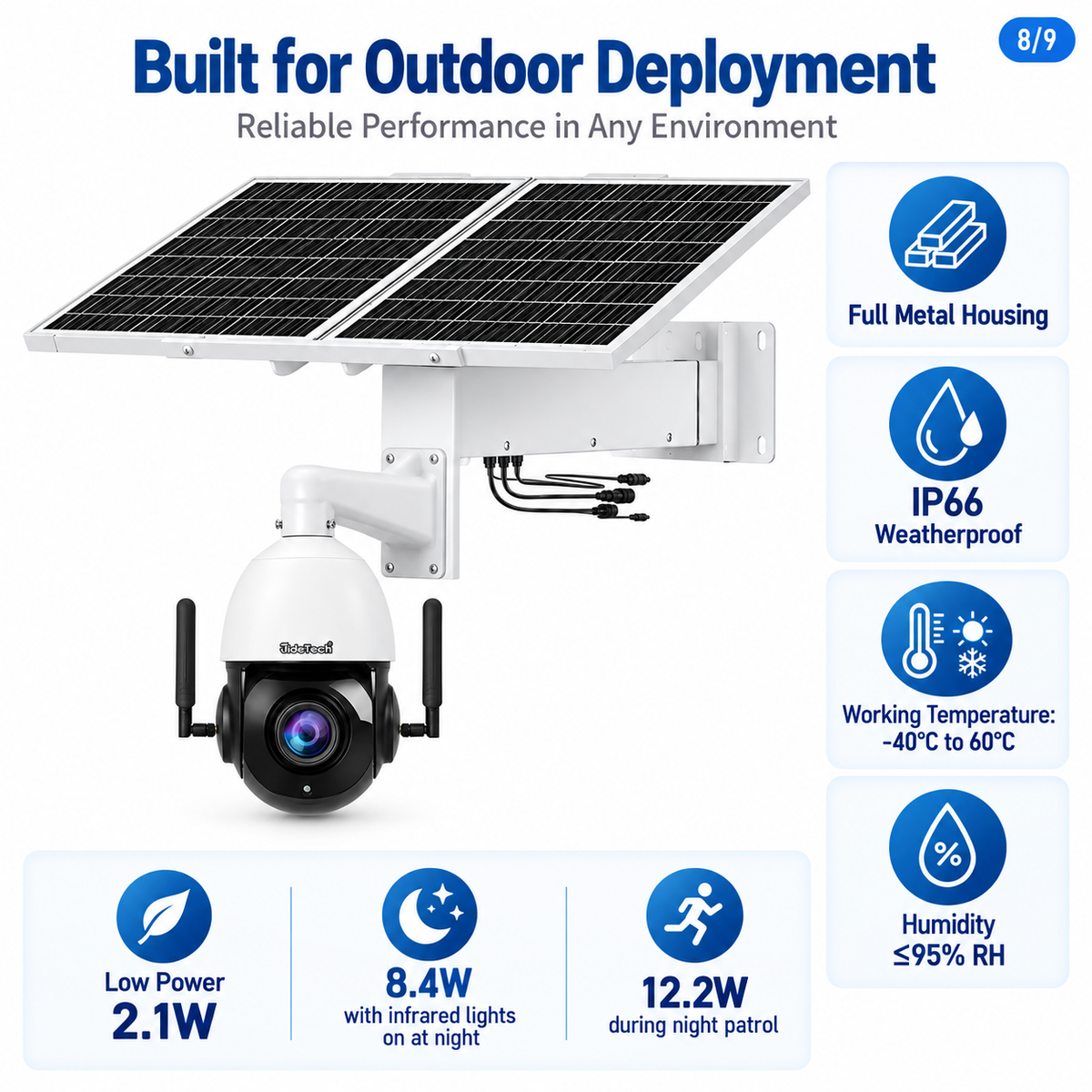

Built for Outdoor Deployment
Working Temperature
Non-condensing Humidity

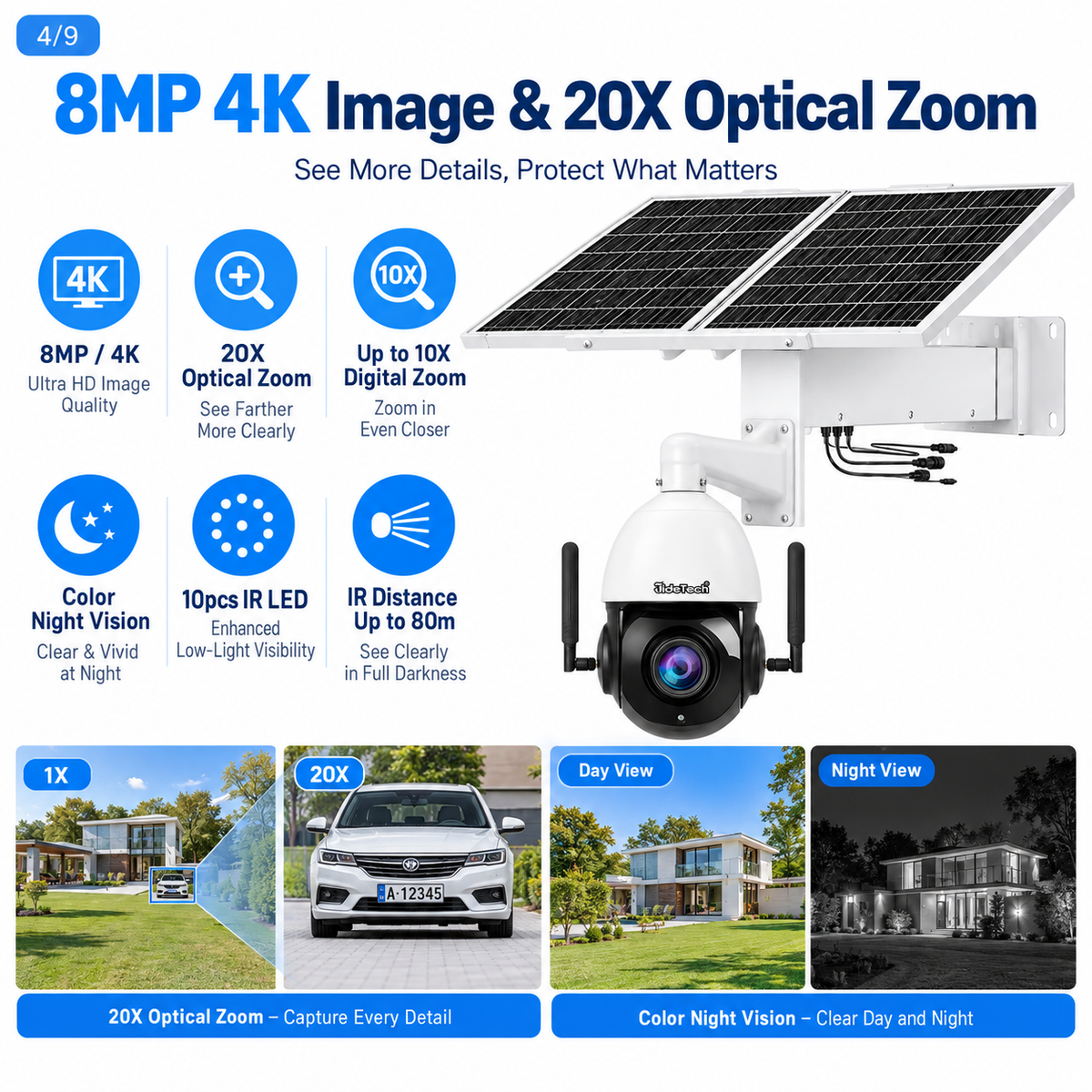

Actual Camera Image Quality
Real daytime surveillance images captured from the camera.
Recommended Applications
Frequently Asked Questions
Does this 4G PTZ camera support OpenVPN?
Yes. The OpenVPN version can connect to a private OpenVPN server through 4G LTE, WiFi or Ethernet for secure private-network remote access.
What is the difference between the Standard and OpenVPN versions?
The Standard version is designed for conventional remote camera access. The OpenVPN version adds secure VPN tunnel capability for customers who need private-server access or professional network integration.
Does it support ONVIF?
Yes. The camera supports ONVIF Profile S and Profile G for compatible NVR and VMS integration.
Does the camera support RTSP?
Yes. RTSP streaming is supported for direct video access and third-party system integration.
Does the camera support RTMP?
Yes. RTMP is supported for compatible live-streaming and video-platform applications.
Are API and SDK available?
Yes. API and SDK documentation can be provided for professional integration projects.
Can this camera work without grid power?
Yes. The optional 80W solar kit with a built-in 40Ah lithium battery is designed for remote installations without reliable mains electricity.
How much power does the camera consume?
Typical power consumption is approximately 2.1W during daytime, 8.4W when the infrared lights are operating at night, and 12.2W during nighttime PTZ patrol.
How long can the 80W solar system operate during rainy days?
With the optional 80W solar panel and 40Ah battery system, the camera can operate for approximately 3.5 days during continuous rainy or cloudy weather. Actual backup time varies depending on PTZ patrol frequency, infrared operation, recording load, network usage and weather conditions.
How far is the night vision distance?
The camera uses 10 infrared LEDs and supports an infrared night vision distance of up to approximately 80 meters.
How much local storage does the camera support?
The camera supports a microSD card up to 512GB for local recording and playback.
What camera versions are available?
Available versions include 5MP Standard 4G, 5MP Sony 4G, 8MP Standard 4G, 8MP Sony 20FPS 4G and 8MP Sony 30FPS 4G.
JideTech Professional 4G OpenVPN Solar PTZ Camera
JideTech P2 Series is a professional 5MP / 8MP 20X optical zoom 4G LTE PTZ security camera designed for solar surveillance, private-network access and system integration. It supports optional OpenVPN, ONVIF, RTSP, RTMP, API, SDK, WiFi, RJ45 Ethernet, microSD recording up to 512GB, two-way audio, AI detection and an optional 80W solar power system with 40Ah lithium battery.
