12MP 20FPS PoE IP Camera, Smart Dual Light, Human Vehicle Detection, ONVIF – IPC361CLB-12MP
12MP 20FPS PoE IP Camera, Smart Dual Light, Human Vehicle Detection, ONVIF – IPC361CLB-12MP

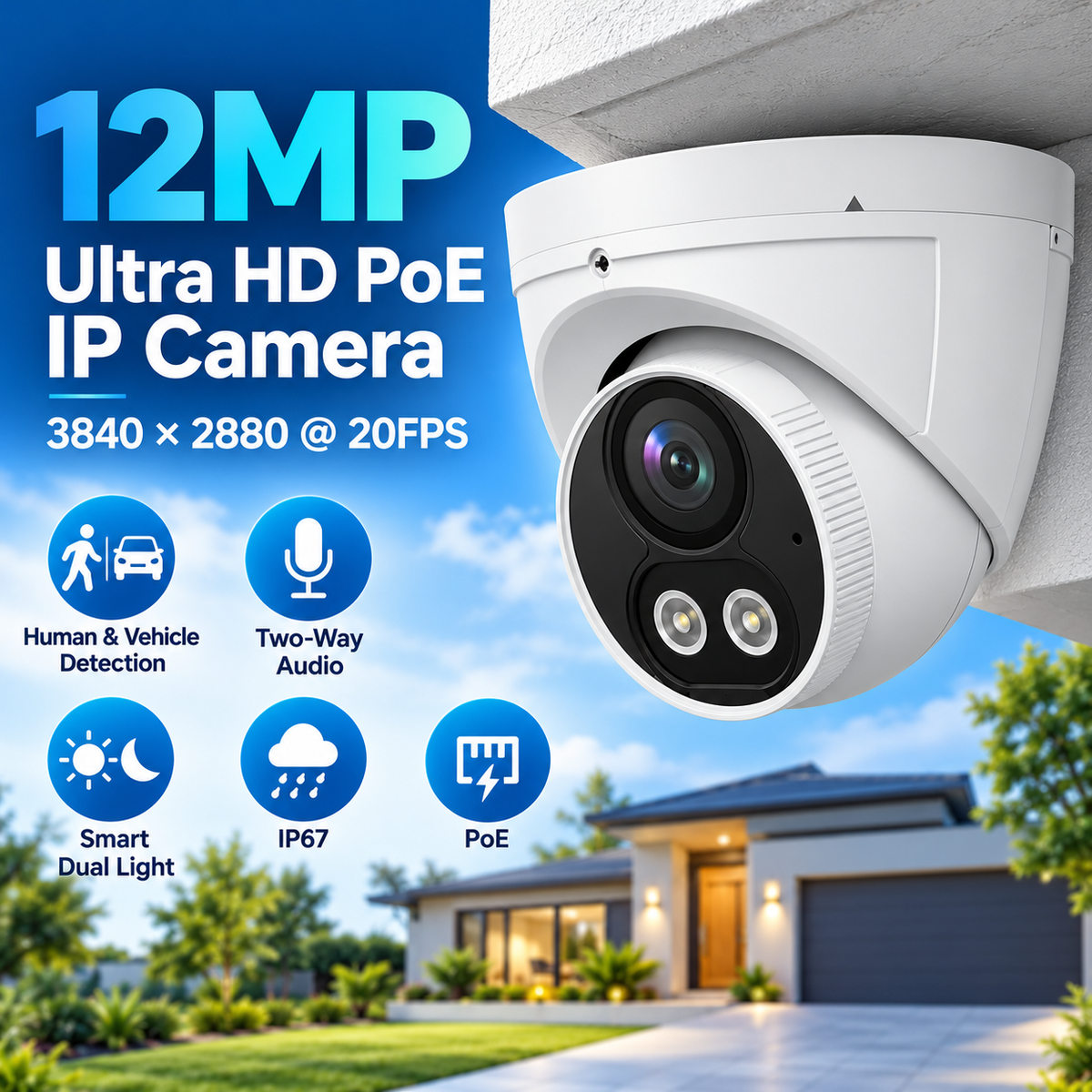

12MP 20FPS PoE IP Camera – Ultra HD Smart Security Camera
The JideTech IPC361CLB-12MP is a professional 12MP PoE IP camera designed for high-resolution security monitoring, commercial surveillance and system integration.
It delivers up to 3840 × 2880 resolution at 20FPS, providing significantly more image detail for entrances, warehouses, offices, retail stores, residential properties and other security applications.
With Smart Dual Light, human and vehicle detection, two-way audio, ONVIF Profile S/G/T, API and SDK support, the IPC361CLB-12MP can be used both as a standalone IP camera and as part of a professional NVR/VMS surveillance system.
Key Features
- 12MP Ultra HD Resolution: 3840 × 2880 up to 20FPS
- 1/2.7" CMOS Sensor
- 2.8mm Fixed Lens: F1.6 aperture
- 106.5° Horizontal Field of View
- Human & Vehicle Detection
- Motion Detection
- Tampering Alarm
- Audio Detection
- Smart Dual Light: IR + Warm Light
- IR Distance: Up to 30m
- Warm Light Distance: Up to 30m
- Built-in Microphone & Speaker
- Two-Way Audio
- H.265 / H.264 Video Compression
- Dual Video Streams
- MicroSD Storage: Up to 512GB
- NAS (NFS) Network Storage
- PoE IEEE 802.3af
- DC 12V Power Input
- ONVIF Profile S / G / T
- RTSP / RTMP / HTTP / HTTPS / FTP
- API & SDK Integration

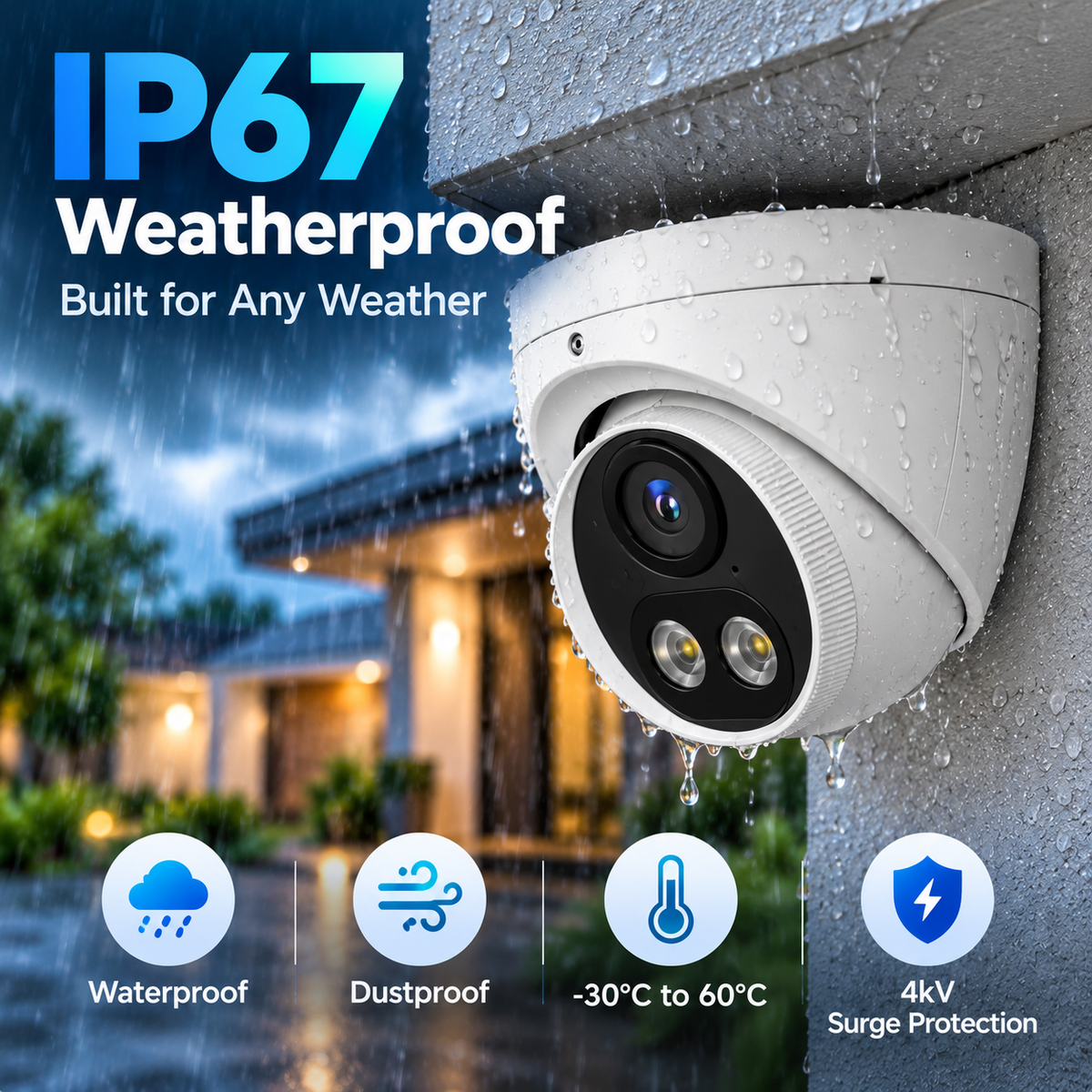

- IP67 Weather Protection
- 4kV Surge Protection
- Operating Temperature: -30°C to 60°C
- APP: Guard Live
12MP Ultra HD – Capture More Details
The camera supports a maximum resolution of 12MP (3840 × 2880) at up to 20 frames per second.
Compared with conventional 1080P and lower-resolution IP cameras, 12MP resolution provides significantly higher image detail, making it suitable for applications where clearer monitoring images are required.
12MP Daytime Image Sample – 3840 × 2880 Ultra HD Resolution
It also supports:
- 12MP (3840 × 2880): up to 20FPS
- 5MP (3072 × 1728): up to 30FPS
- 4MP (2560 × 1440): up to 30FPS
- 1080P (1920 × 1080): up to 30FPS
- 720P (1280 × 720): up to 30FPS
Smart Dual Light Night Vision
The IPC361CLB-12MP features Smart Dual Light technology combining infrared illumination and warm-light illumination.
- Infrared Night Vision: up to 30m
- Warm Light: up to 30m
- IR Wavelength: 850nm
- Day/Night: IR-cut filter with automatic switching
The dual-light design allows the camera to provide both traditional infrared monitoring and full-color nighttime monitoring depending on the application.
Human & Vehicle Detection
Built-in intelligent detection functions help distinguish important surveillance events and reduce unnecessary monitoring.
- Human Detection
- Vehicle Detection
- Motion Detection
- Tampering Alarm
- Audio Detection
Built-in Two-Way Audio
The camera includes a built-in microphone and speaker, allowing users to listen and communicate remotely through the camera.
- Built-in Microphone
- Built-in Speaker
- G.711U / G.711A Audio Compression
- Two-Way Audio Support

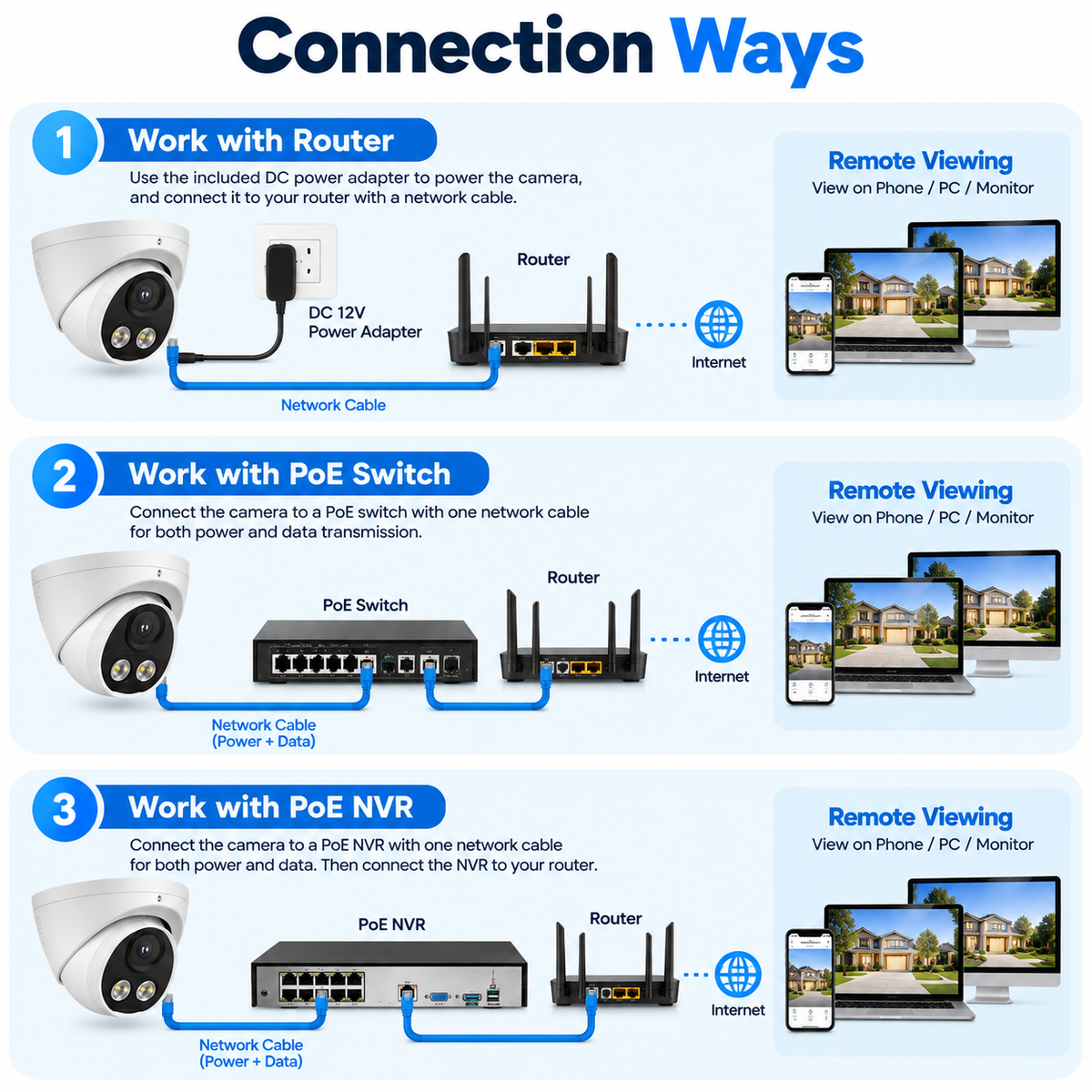

PoE – One Cable for Power and Data
The camera supports IEEE 802.3af PoE, allowing both network data and power to be transmitted through a single Ethernet cable.
It can be connected to:
- PoE NVR
- PoE Switch
- Standard Network Switch + DC 12V Power
This simplifies installation and reduces cabling requirements for professional CCTV projects.
ONVIF, RTSP, API & SDK Integration
Designed for professional surveillance integration, the camera supports:
- ONVIF Profile S
- ONVIF Profile G
- ONVIF Profile T
- RTSP
- RTMP
- HTTP / HTTPS
- FTP
- API
- SDK
This makes the camera suitable for integration with compatible NVR, VMS and third-party video surveillance platforms.

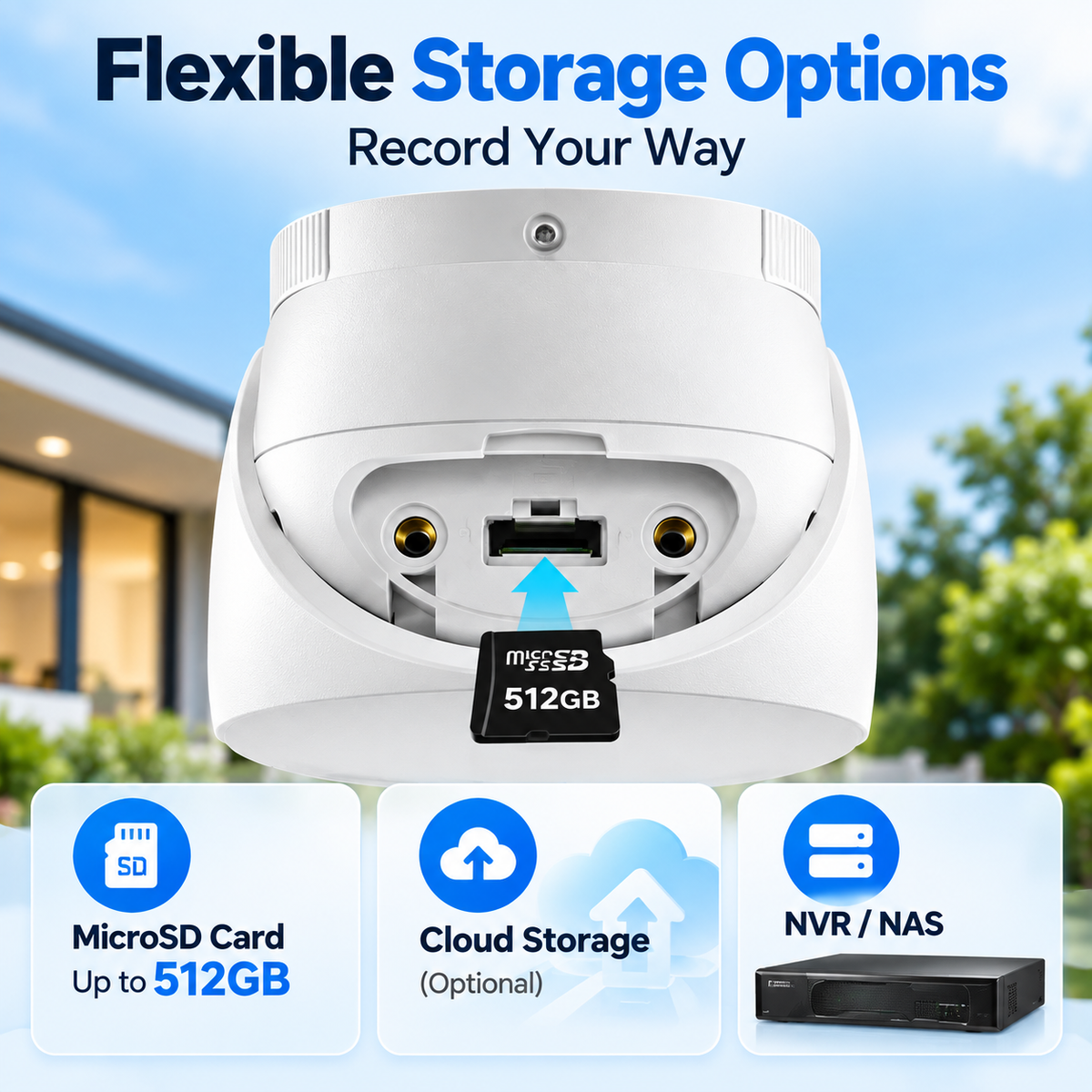

Flexible Storage
- MicroSD Card: Up to 512GB
- NAS: NFS Network Storage
- ANR: Supported
MicroSD card is not included unless specified separately.
Remote Viewing with Guard Live
APP: Guard Live
The Guard Live app supports remote camera access for everyday monitoring, including live viewing and playback.
Professional Image Processing
- 2D / 3D Digital Noise Reduction
- DWDR
- BLC
- HLC
- Digital Defog
- ROI
- Privacy Mask
- Up to 4 OSD Areas
- Smart IR
Network & Security
Supported network protocols include:
IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, IGMP, SMTP, QoS, SSL/TLS, SNMP and FTP.
Security functions include:
- Password Protection
- HTTPS Encryption
- RTSP Authentication
- HTTP Authentication
- TLS 1.2
- ONVIF WSSE Authentication
- IP Address Filtering
- ARP Protection
Technical Specifications
| Model | IPC361CLB-12MP |
| Maximum Resolution | 12MP |
| 12MP Frame Rate | 3840 × 2880 up to 20FPS |
| Image Sensor | 1/2.7" CMOS |
| Lens | 2.8mm Fixed Lens, F1.6 |
| Horizontal FOV | 106.5° |
| Vertical FOV | 59.1° |
| Diagonal FOV | 121.7° |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | 128 Kbps – 16 Mbps |
| IR Distance | Up to 30m |
| Warm Light Distance | Up to 30m |
| Audio | Built-in Microphone & Speaker, Two-Way Audio |
| Edge Storage | MicroSD up to 512GB |
| Network Storage | NAS (NFS) |
| Network Interface | 1 × RJ45 10/100M Base-TX Ethernet |
| ONVIF | Profile S / G / T |
| Integration | API / SDK |
| Power | DC 12V ±25% / PoE IEEE 802.3af |
| Maximum Power Consumption | 4.7W |
| Protection | IP67 |
| Surge Protection | 4kV |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Dimensions | Ø110.5 × 97.6mm |
| Weight | 0.45kg |
| Material | Metal + Plastic |
| APP | Guard Live |
Typical Applications
- Home Security
- Office Surveillance
- Warehouse Monitoring
- Retail Stores
- Commercial Buildings
- Entrances and Parking Areas
- Professional CCTV Systems
- OEM / System Integration Projects
OEM / ODM & Project Support
JideTech supports professional CCTV projects, distributors, system integrators and OEM/ODM customers.
For bulk orders, customized solutions, API/SDK integration or project requirements, please contact us for quotation and technical support.
