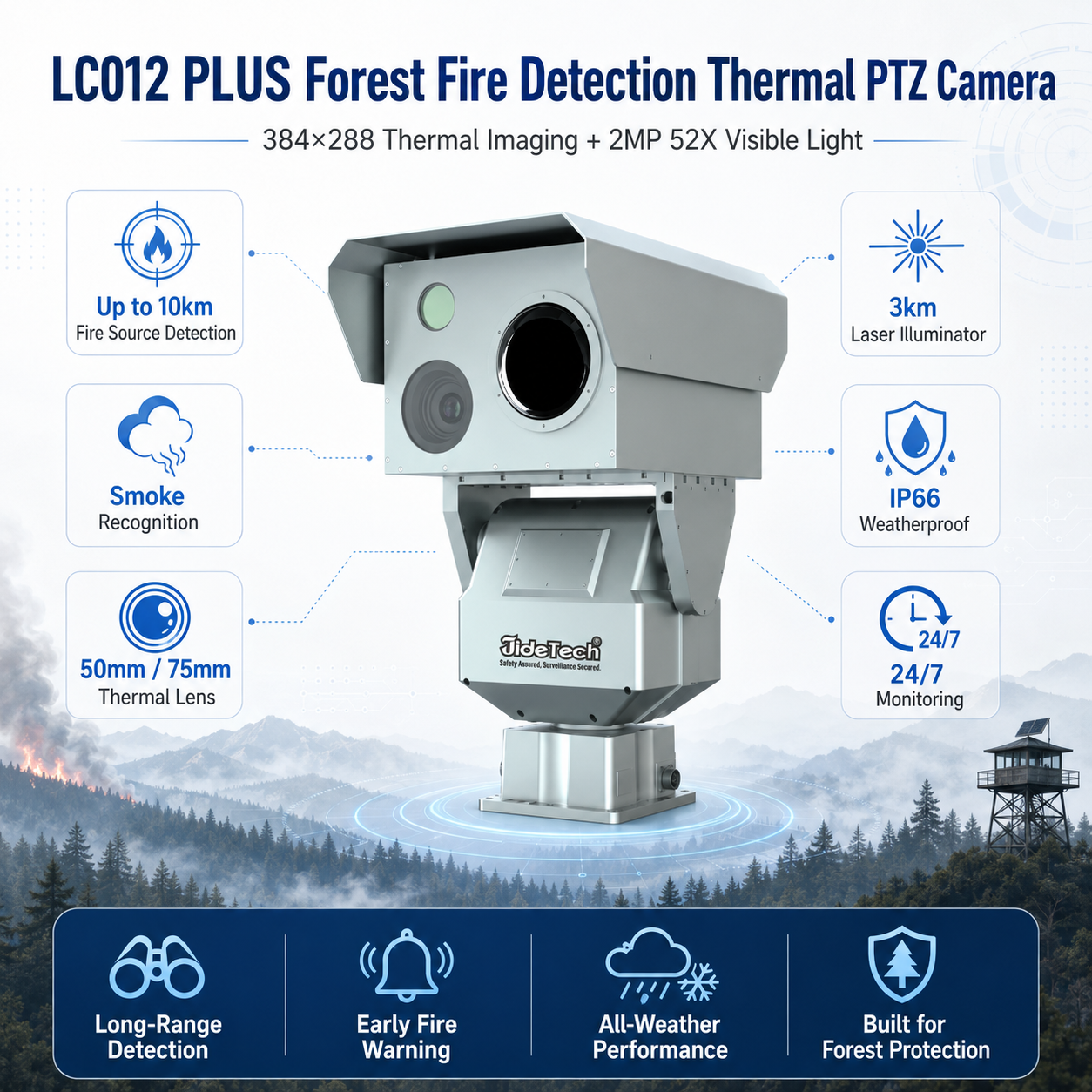

JideTech LC012 PLUS Forest Fire Detection Thermal PTZ Camera
The JideTech LC012 PLUS is a heavy-duty forest fire detection thermal PTZ camera designed for long-range wildfire monitoring, fire source detection, smoke recognition, and 24/7 unattended outdoor surveillance.
With 384×288 thermal imaging, a 2MP HD visible-light camera, 52X optical zoom, optional 50mm or 75mm thermal lens, and a 3km laser illuminator, the LC012 PLUS helps operators detect abnormal heat sources, fire risks, smoke, and perimeter intrusion across large forest areas and remote outdoor sites.
Built for Forest Fire Prevention and Wildfire Early Warning
Forest fire monitoring requires long-distance detection, all-weather operation, and reliable automatic alerts. The LC012 PLUS combines thermal imaging and visible-light zoom in one heavy-duty PTZ platform, allowing users to monitor forests, mountain areas, power-line corridors, border zones, and other high-risk outdoor locations without relying on external lighting.
- Up to 10km fire source detection with the 75mm thermal lens
- Thermal imaging + HD visible light for day and night monitoring
- Smoke recognition and fire warning for early risk detection
- Over-temperature alarm with configurable temperature threshold
- Multi-target heat source detection for multiple thermal targets
- Heat source tracking for abnormal thermal events
- 360° automatic cruise monitoring for wide-area surveillance
- IP66 weatherproof housing for harsh outdoor environments

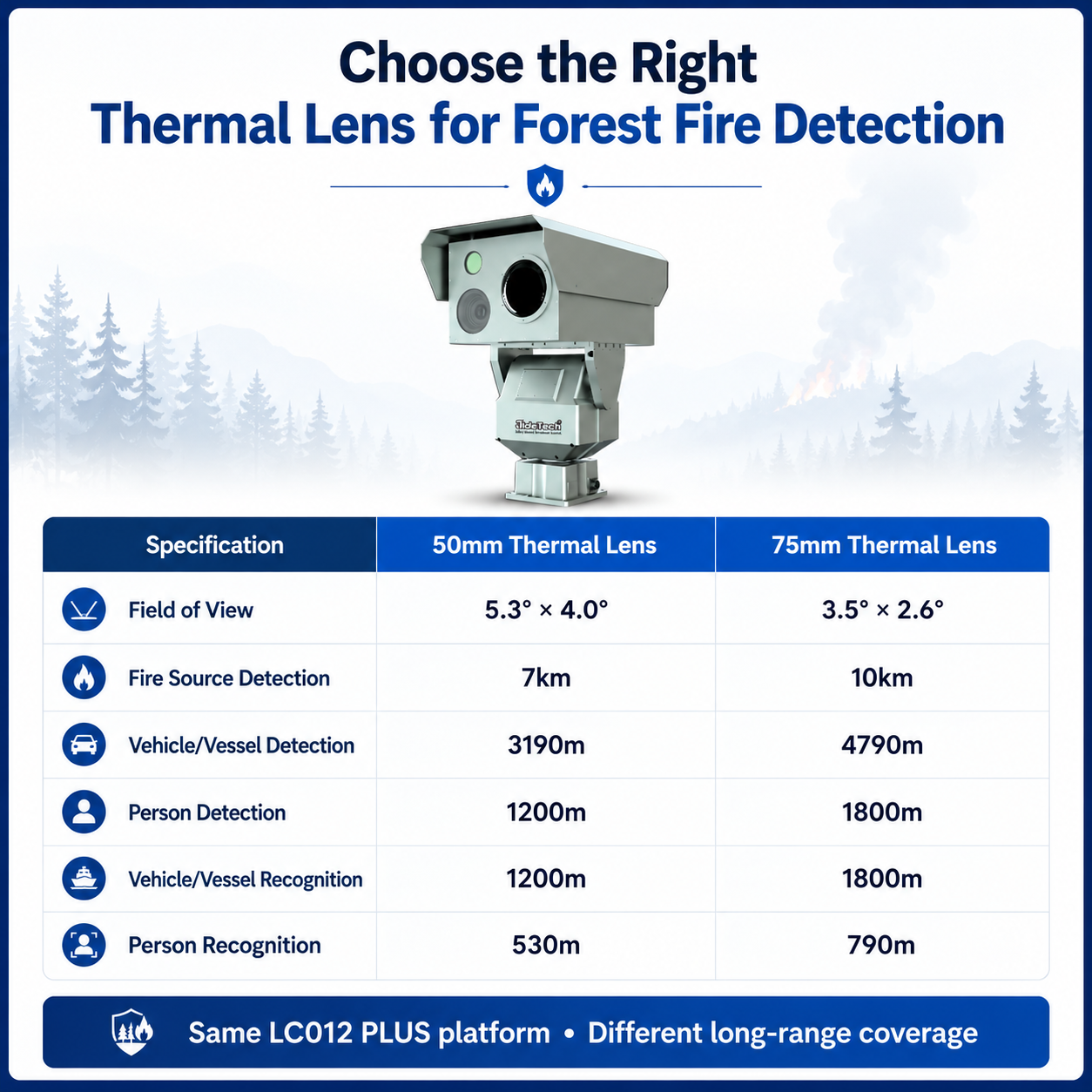

Long-Range Thermal Detection Options
| Thermal Lens | Field of View | Fire Source Detection | Vehicle / Vessel Detection | Person Detection |
|---|---|---|---|---|
| 50mm | 5.3° × 4.0° | 7km | 3190m | 1200m |
| 75mm | 3.5° × 2.6° | 10km | 4790m | 1800m |

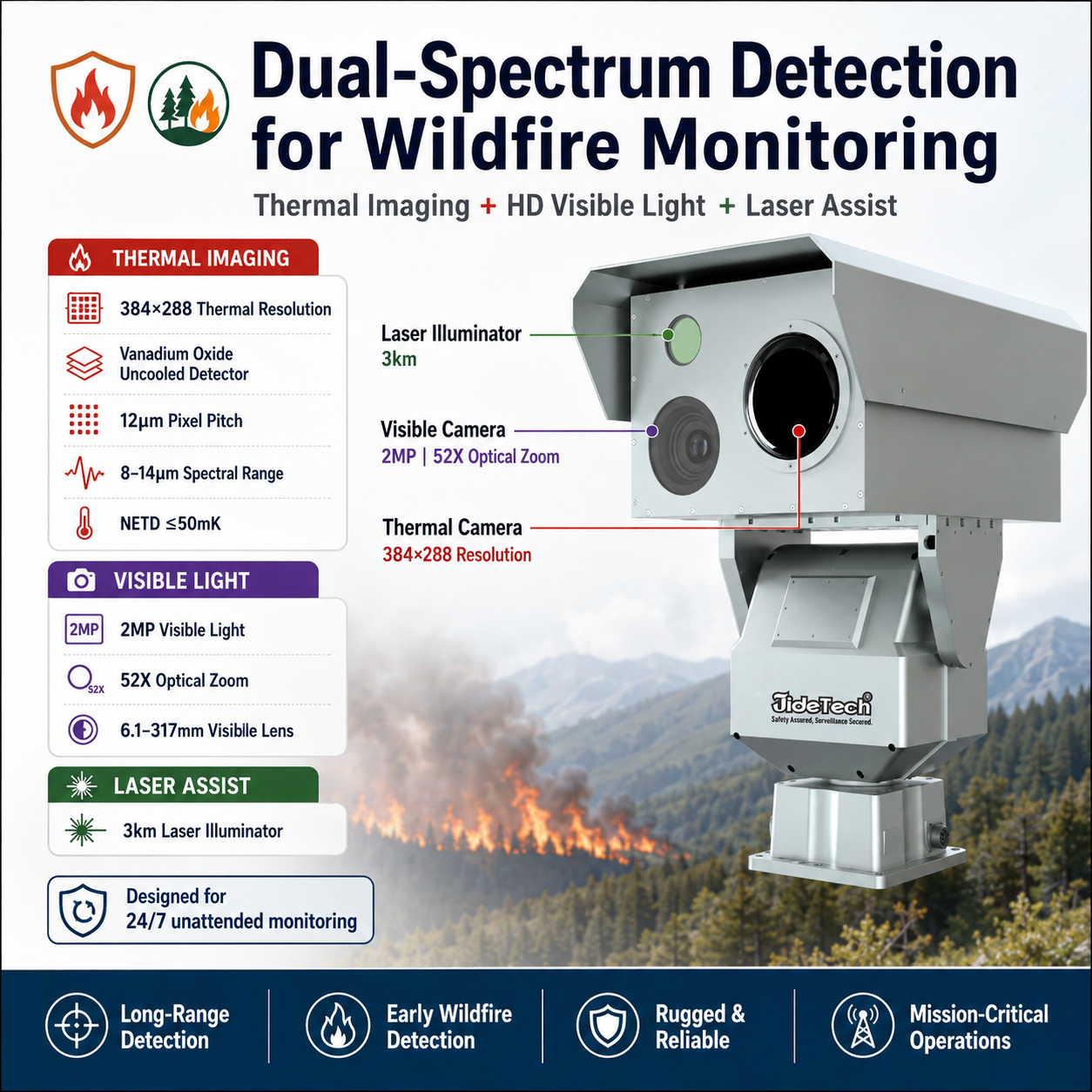

Thermal Imaging and Visible-Light Camera
| Model | LC012 PLUS |
| Thermal Resolution | 384×288 |
| Detector Type | Vanadium oxide uncooled infrared focal plane detector |
| Pixel Pitch | 12μm |
| Spectral Range | 8–14μm |
| NETD | ≤50mK (@25°C, F#1.0) |
| Visible-Light Sensor | 1/1.8" high-performance CMOS |
| Visible-Light Resolution | 2MP, 1920×1080 |
| Visible-Light Lens | 6.1–317mm |
| Optical Zoom | 52X |
| Laser Illuminator | 3km, 808±10nm |

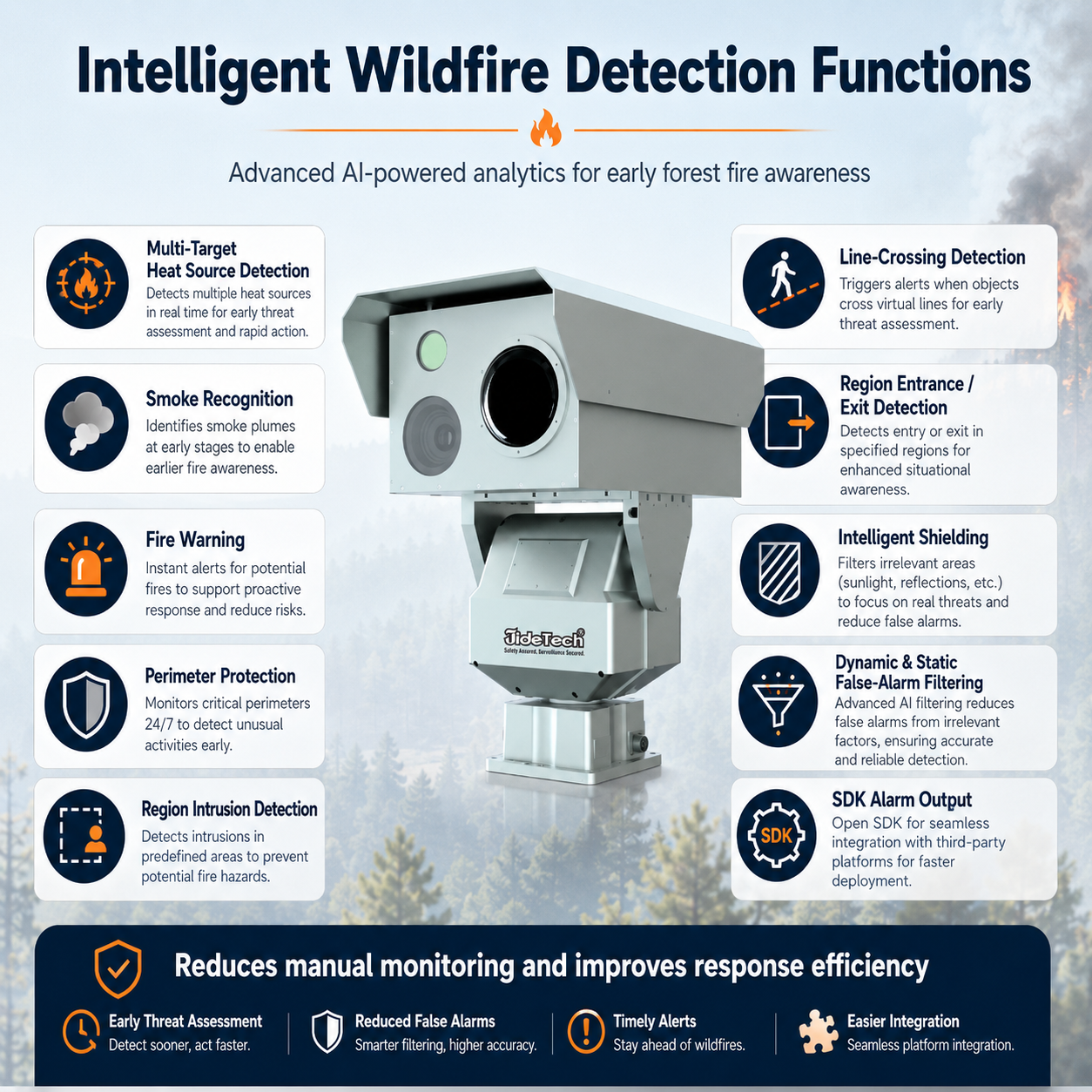

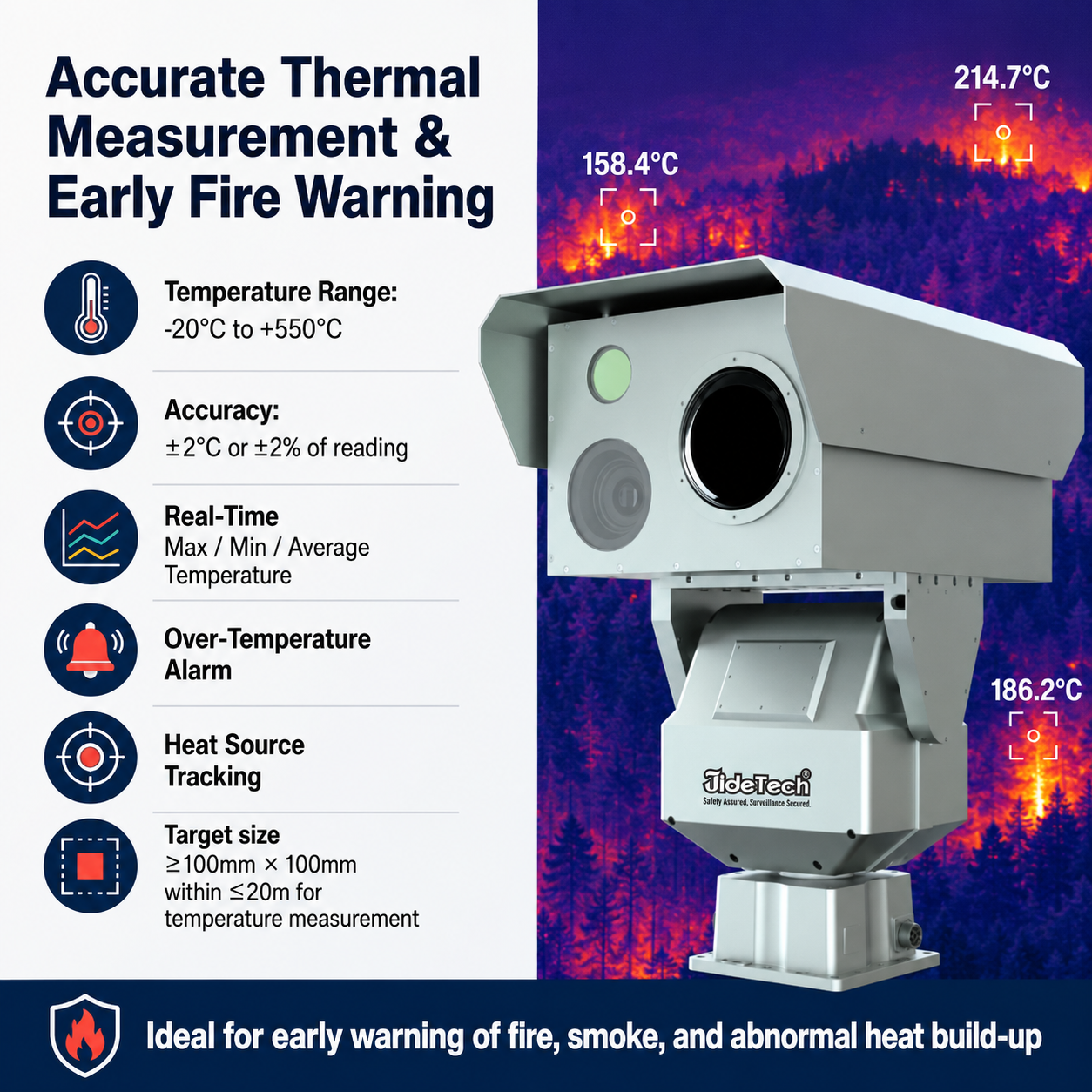

Fire Warning and Thermal Event Detection
The LC012 PLUS supports intelligent thermal event monitoring, including fire warning, smoke recognition, over-temperature alarm, multi-target heat source detection, and heat source tracking. It can display real-time maximum, minimum, and average temperature, helping operators identify abnormal heat build-up before it becomes a major fire risk.
| Temperature Measurement Range | -20℃ to +550℃ |
| Temperature Accuracy | ±2℃ or ±2% of reading, whichever is greater |
| Temperature Display | Real-time maximum, minimum, and average temperature |
| Temperature Measurement Distance | ≤20m for target size ≥100mm × 100mm |
| Alarm Output | Supports SDK alarm output |

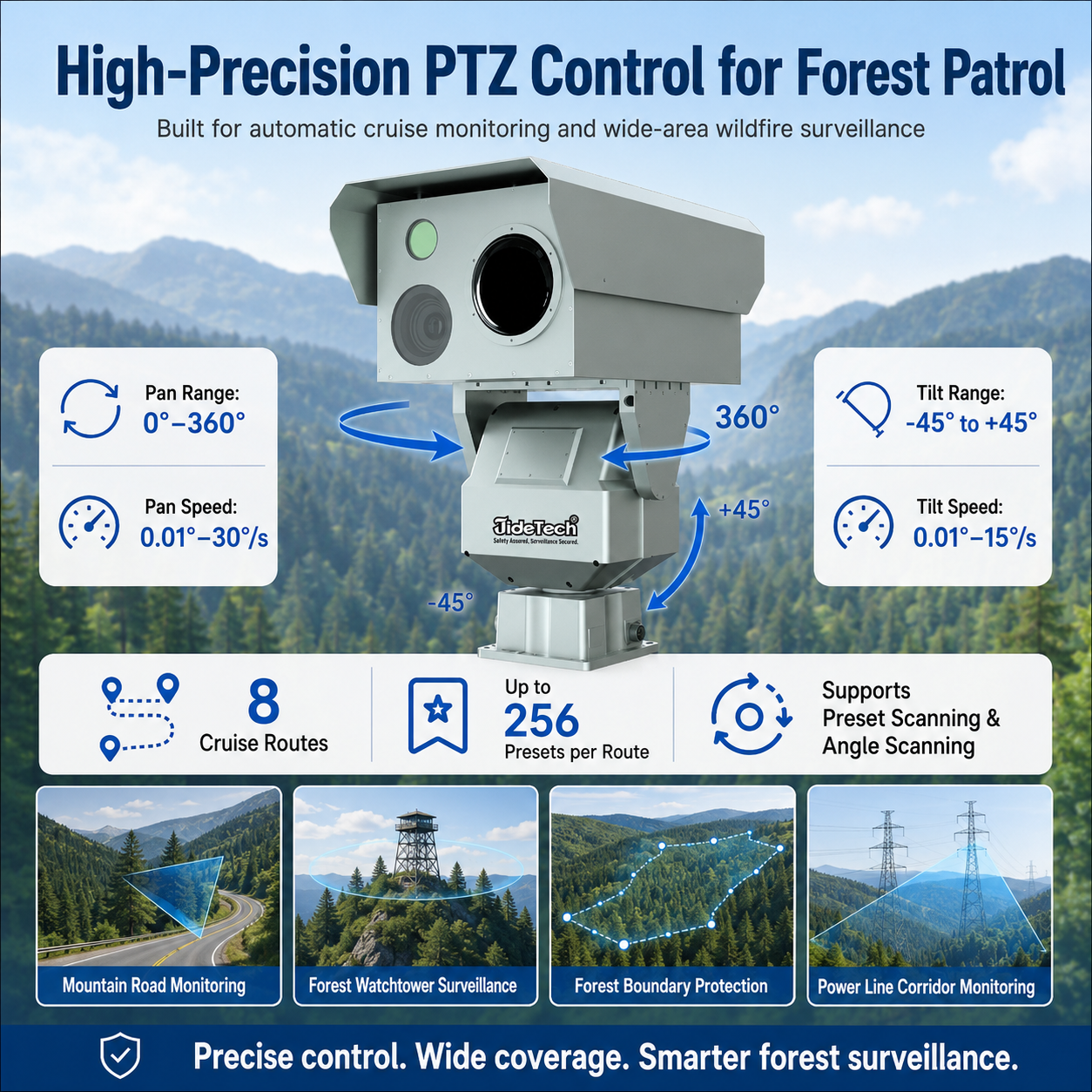

PTZ Cruise Monitoring for Large Forest Areas
The camera supports 0°–360° horizontal rotation, -45° to +45° vertical tilt, preset scanning, angle scanning, and up to 8 cruise routes with 256 presets per route. This makes it suitable for automatic patrol monitoring in forest fire prevention projects and wide-area outdoor surveillance systems.
| Pan Range | 0°–360° |
| Pan Speed | 0.01°–30°/s, configurable |
| Tilt Range | -45° to +45° |
| Tilt Speed | 0.01°–15°/s, configurable |
| Cruise Presets | Supports 8 cruise routes; each route supports up to 256 presets |

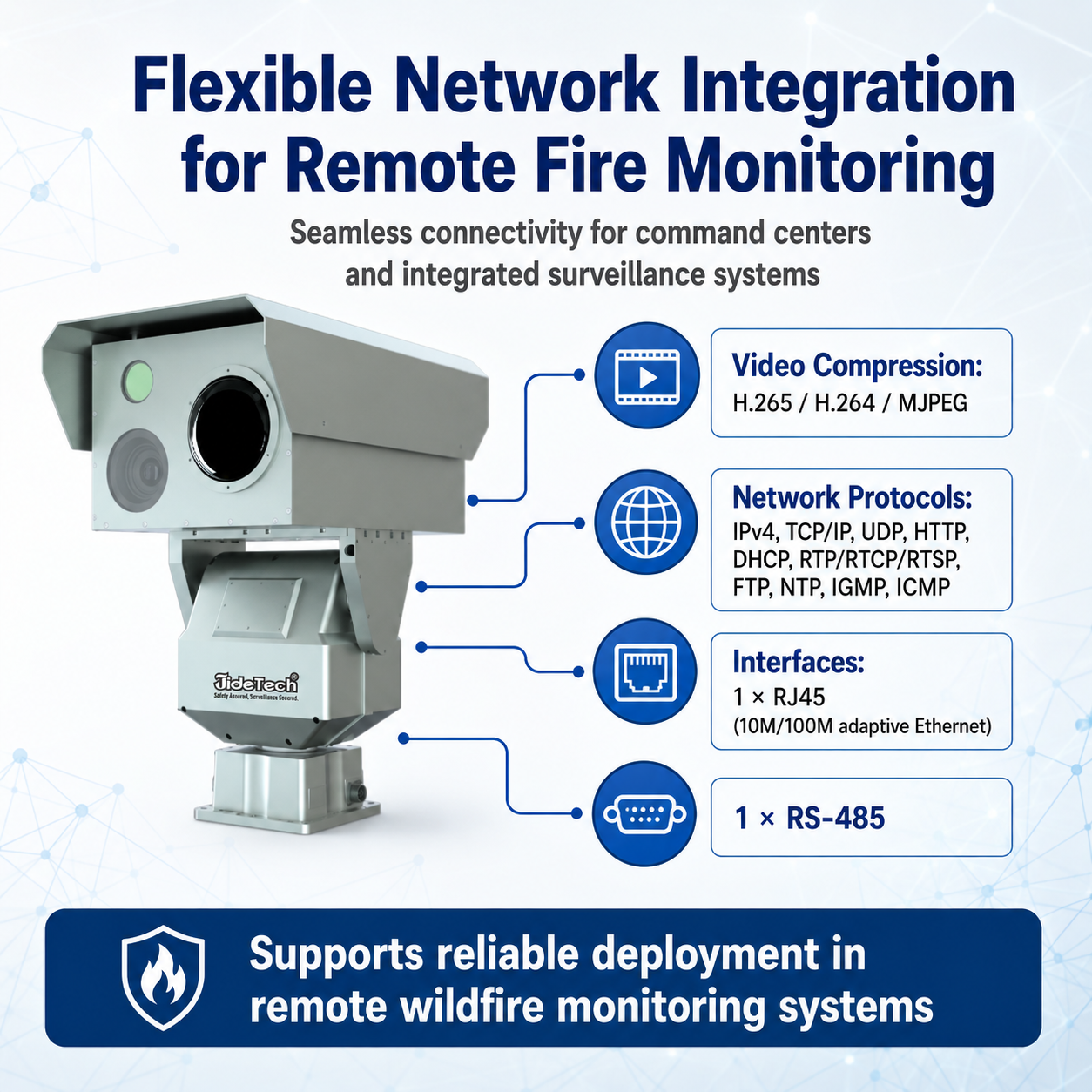

Outdoor Deployment and System Integration
| Video Compression | H.265 / H.264 / MJPEG |
| Network Protocols | IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, NTP, IGMP, ICMP |
| Interfaces | 1 × RJ45 port, 1 × RS-485 interface |
| Ingress Protection | IP66 |
| Operating Temperature | -20℃ to +60℃ |
| Power Supply | DC 36V |
| Power Consumption | ≤120W |

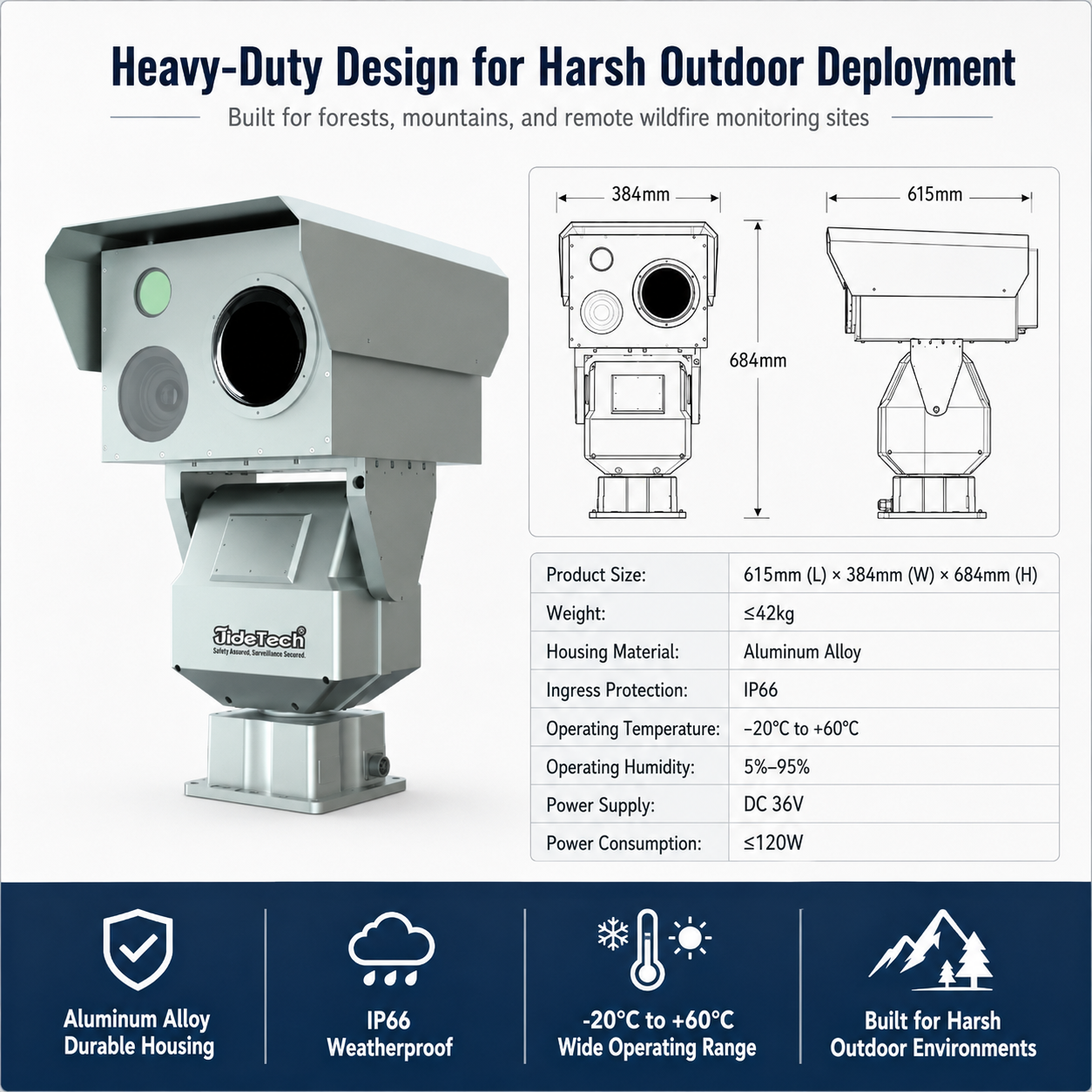

| Device Dimensions | 615mm (L) × 384mm (W) × 684mm (H) |
| Weight | ≤42kg, varies slightly by lens configuration |

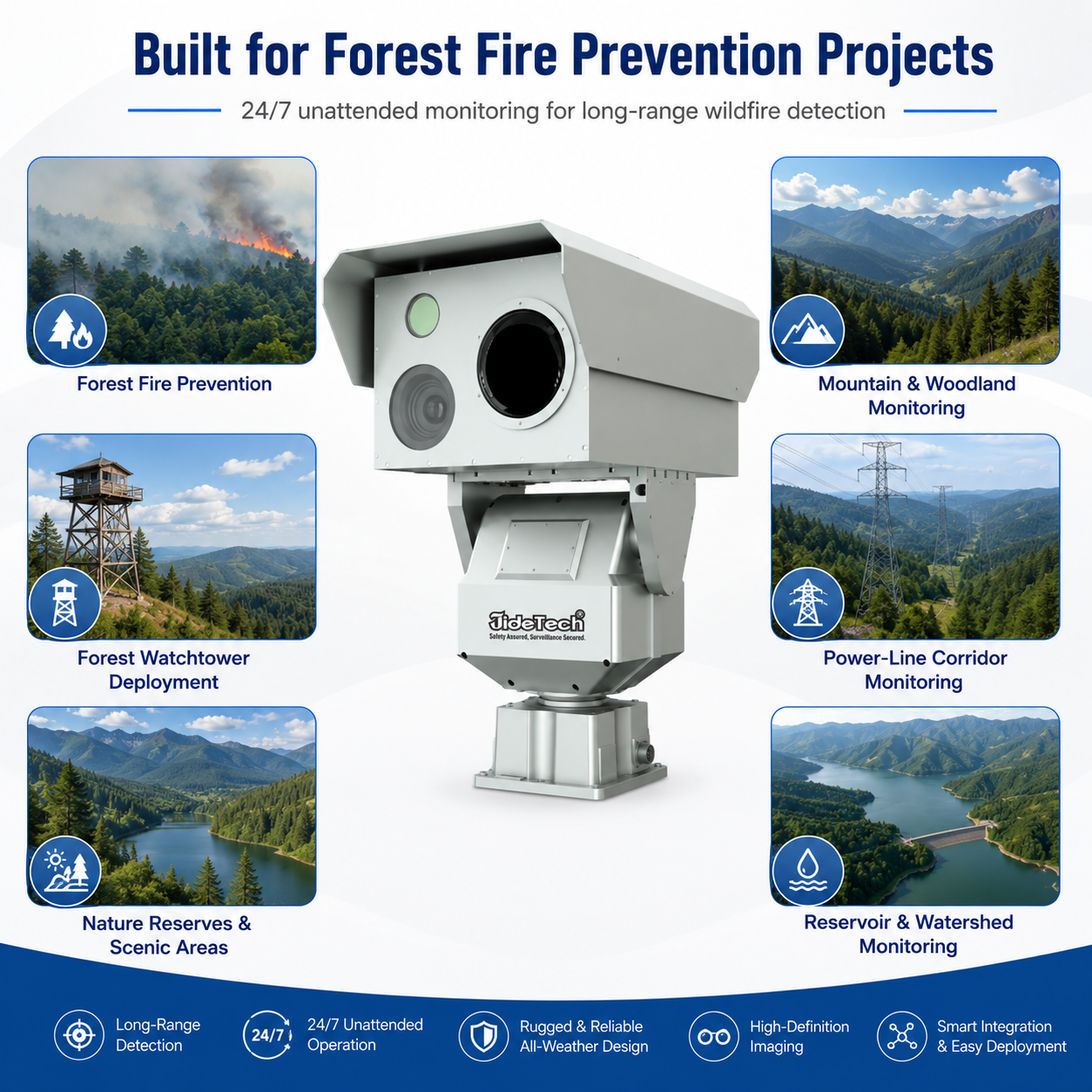

Recommended Applications
- Forest fire detection and wildfire early warning
- Mountain fire prevention and remote-area monitoring
- Power-line corridor fire risk monitoring
- Border and coastal defense surveillance
- Mining area thermal event detection
- Petrochemical and refining plant perimeter monitoring
- Pipeline transportation and long-distance outdoor security
FAQ
What is the LC012 PLUS mainly used for?
The LC012 PLUS is mainly used for forest fire detection, wildfire monitoring, long-range thermal surveillance, and outdoor perimeter protection.
How far can this thermal PTZ camera detect a fire source?
With the 50mm thermal lens, it can detect a 2m × 2m fire source up to 7km. With the 75mm thermal lens, it can detect a 2m × 2m fire source up to 10km.
Does it support both thermal imaging and visible-light monitoring?
Yes. The LC012 PLUS combines 384×288 thermal imaging with a 2MP HD visible-light camera and 52X optical zoom.
Can it be used for 24/7 outdoor monitoring?
Yes. It is built for 24/7 unattended monitoring and supports IP66 protection for harsh outdoor environments.
What lens options are available?
The LC012 PLUS supports 50mm and 75mm thermal lens options. The 75mm lens provides longer detection distance, while the 50mm lens provides a wider field of view.
