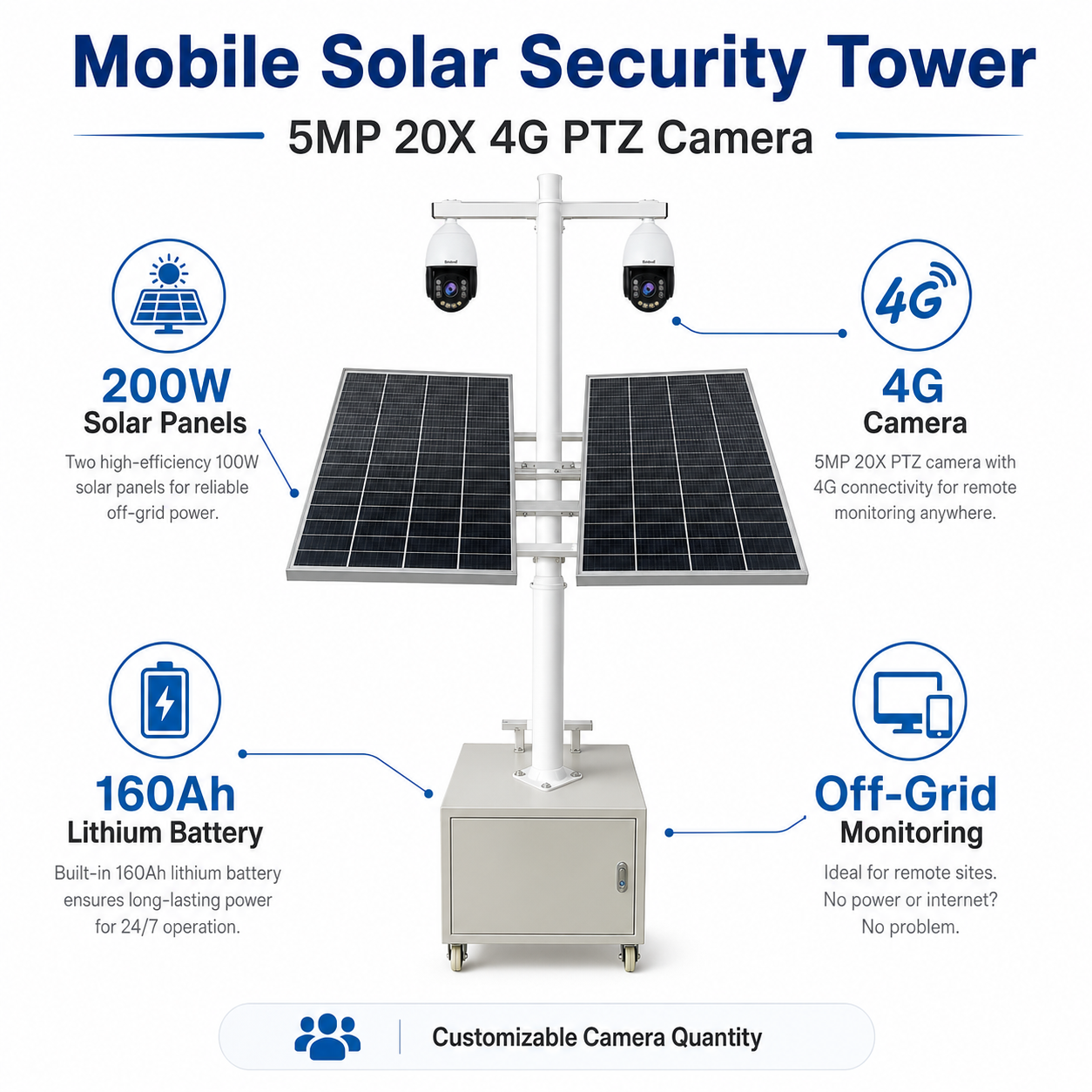

JideTech Mobile Solar Security Tower with 5MP 20X 4G PTZ Camera

The JideTech Mobile Solar Security Tower is a complete off-grid surveillance solution designed for outdoor locations where fixed power and wired internet are not available. It integrates a 5MP 20X optical zoom 4G PTZ camera, 200W solar power system, 160Ah lithium battery, mobile cabinet, and 4-meter pole structure for flexible deployment.

It is ideal for construction sites, farms, parking lots, warehouses, industrial yards, temporary projects, remote entrances, and other outdoor monitoring applications.

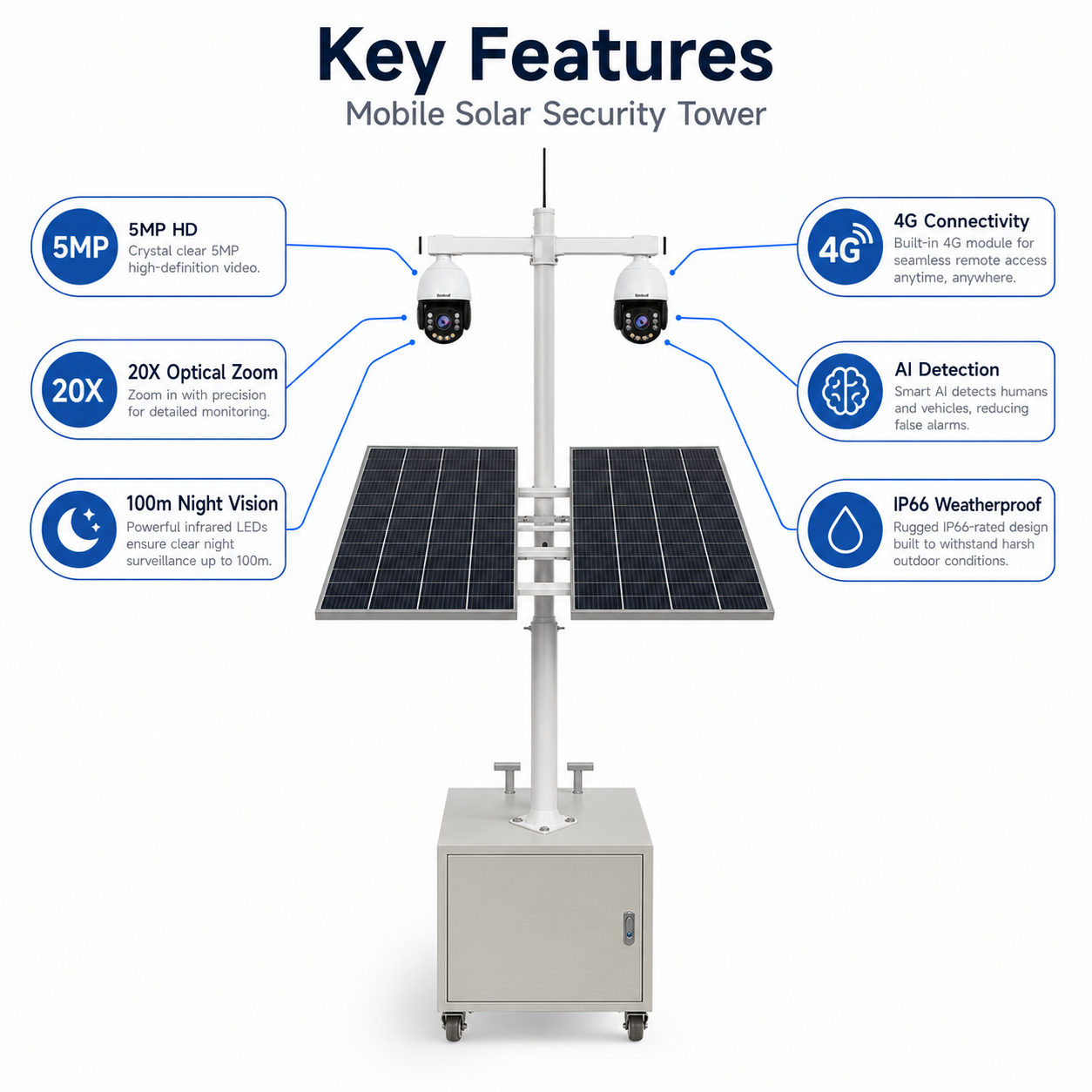

Key Highlights

5MP 20X 4G PTZ Camera

High-definition PTZ camera with 20X optical zoom and built-in 4G remote access.

200W Solar Power

Equipped with 2 × 100W monocrystalline solar panels for off-grid power supply.

160Ah Lithium Battery

Built-in lithium battery storage for outdoor and remote surveillance applications.

Mobile Cabinet Design

Cabinet with wheels allows fast relocation and flexible temporary deployment.

Complete System Configuration

System Type	Mobile Solar Security Tower / Off-Grid CCTV Tower
Camera Model	P10-20X-5MP4G
Camera Resolution	5MP, 2560 × 1920
Optical Zoom	20X Optical Zoom, 4.7–84.6 mm motorized lens
Network Connection	4G LTE, 2.4G / 5G Wi-Fi, Ethernet
Solar Power System	200W Total, 2 × 100W Monocrystalline Solar Panels
Battery	L12160 160Ah Lithium Battery, 1776Wh nominal energy
Cabinet Size	Approx. 60 × 60 × 50 cm
Pole Height	Approx. 4 m pole; total height approx. 450 cm including cabinet

5MP 20X 4G PTZ Camera

The integrated PTZ camera provides 5MP HD video, 20X optical zoom, 360° pan rotation, 90° tilt movement, and 128 preset positions. With built-in 4G connectivity, it can be deployed in remote locations without wired internet.

```

5MP resolution: 2560 × 1920
20X optical zoom lens: 4.7–84.6 mm
Pan range: 360° endless rotation
Tilt range: 0°–90°
Maximum rotation speed: 30°/s
128 preset positions
Supports fixed-point tracking and cruise tracking
Supports H.265+, H.265, and H.264 video compression
Supports Micro SD card storage up to 256GB
Built-in speaker and microphone for two-way audio
Supports ONVIF 2.4 and RTSP protocol
IP66 weatherproof protection for outdoor use

```

4G / Wi-Fi Remote Access

The PTZ camera supports 4G LTE, 2.4G / 5G Wi-Fi, and Ethernet connection. Users can remotely view live video, control PTZ movement, check playback, and receive alarm notifications.

```

LTE FDD	B1 / B3 / B5 / B7 / B8 / B20 / B28
LTE TDD	B38 / B40 / B41
WCDMA	B1 / B5 / B8
Wi-Fi	2.4G / 5G Wi-Fi

```

Full-Color Night Vision

The PTZ camera supports full-color night vision with IR and white light. It is equipped with 10 LED lights and smart supplement light control, providing night monitoring up to 100 meters.

```

IR & White Light

Dual-light design for clearer night monitoring.

Up to 100 m

Long-range illumination for outdoor surveillance.

Smart Supplement Light

Automatically improves visibility in low-light environments.

```

200W Solar Power System

The tower is equipped with two high-efficiency 100W monocrystalline solar panels, providing a total solar power capacity of 200W. This configuration is designed to support outdoor off-grid operation and reduce dependence on fixed power infrastructure.

```

Total Solar Power	200W
Solar Panel Quantity	2 × 100W
Solar Panel Type	Monocrystalline Silicon
Maximum Operating Voltage	18.2V
Maximum Operating Current	5.99A per panel
Open-Circuit Voltage	21.4V
Panel Size	830 × 670 × 30 mm per panel

```

160Ah Lithium Battery

The built-in 160Ah lithium battery stores solar energy and provides stable power support for off-grid surveillance applications. It is suitable for mobile monitoring projects that require flexible deployment and independent power supply.

```

Battery Model	L12160
Battery Capacity	160Ah
Nominal Voltage	11.1V
Nominal Energy	1776Wh
Recommended Charging Current	5A
Maximum Continuous Charging Current	20A
Maximum Discharge Current	20A
Recommended Charging Temperature	10°C to 45°C
Discharging Temperature	-20°C to 60°C

```

Tower Structure & Dimensions

Total Height	Approx. 450 cm including cabinet
Pole Height	Approx. 400 cm
Upper Pole Diameter	φ76 mm
Lower Pole Diameter	φ114 mm
Cabinet Size	Approx. 60 × 60 × 50 cm

Application Scenarios

This mobile solar security tower is designed for flexible off-grid surveillance in outdoor and temporary locations.

```

Construction site security
Farm and ranch monitoring
Parking lot surveillance
Warehouse and logistics yard monitoring
Industrial site and perimeter protection
Temporary event security
Remote entrance and road monitoring
Remote areas without fixed power or wired internet

```

Custom Configuration Available

Camera quantity, solar panel quantity, battery capacity, pole height, cabinet design, and network configuration can be customized according to project requirements.

Need a project solution?

Contact JideTech for configuration confirmation, project evaluation, and quotation.
