Absolute Positioning PTZ Cameras
Use ONVIF AbsoluteMove to send target pan, tilt and zoom positions on supported JideTech PTZ configurations. Compare models for perimeter monitoring, preset patrol and VMS integration.
A real positioning sequence
Captured through ONVIF Device Manager during an 8MP 30X field test from the 20th floor.
Compare Absolute Positioning PTZ Cameras
| Model | Resolution | Optical zoom | Connection |
|---|---|---|---|
| P1 PLUS | 8MP | 5× | PoE |
| P2 PoE | 8MP | 20× | PoE |
| P7 | 8MP | 20× or 30×, by version | PoE |
| P22 | 8MP | 30× | PoE |
| P22 PLUS | 12MP | 23× or 30×, by version | PoE |
Confirm the exact zoom, firmware and PTZ functions when ordering. Absolute positioning is optional on the P2 Wi-Fi listing.
More reliable movement for serious surveillance projects.
Standard presets may be sufficient for basic monitoring. Coordinate-based PTZ control is designed for applications where repeatability and system integration matter.
Accurate preset return
Return to important monitoring points more consistently during patrols, verification and repeated observation.
Coordinate-driven movement
Control Pan, Tilt and Zoom through defined position values instead of relying only on approximate movement.
Integration-ready
A practical fit for VMS, NVR, alarm linkage, command centers and professional ONVIF-based workflows.
See the positioning workflow in motion.
Optical zoom finds the detail. Absolute positioning helps the camera return to the right view again.
- Preset patrol and repeated monitoring
- Alarm-linked camera movement
- ONVIF-based software and system control
One positioning capability. Multiple surveillance workflows.
Perimeter security
Return to gates, fence lines and distant observation points.
Industrial monitoring
Patrol factories, ports, power facilities and outdoor yards.
Smart city systems
Support repeatable movement across roads and public areas.
Alarm verification
Move the PTZ to assigned zones for fast visual confirmation.
Choose the right Absolute Positioning PTZ camera.
Compare available resolutions and optical zoom options for your monitoring distance, integration platform and project requirements.
Planning a PTZ project?
Send us the monitoring distance, required zoom, camera quantity and integration platform. We will recommend the right model and provide project pricing.
Absolute Positioning PTZ cameras for professional projects.
Compare compact dome, long-range, high-speed and high-resolution models for your monitoring distance and integration requirements.

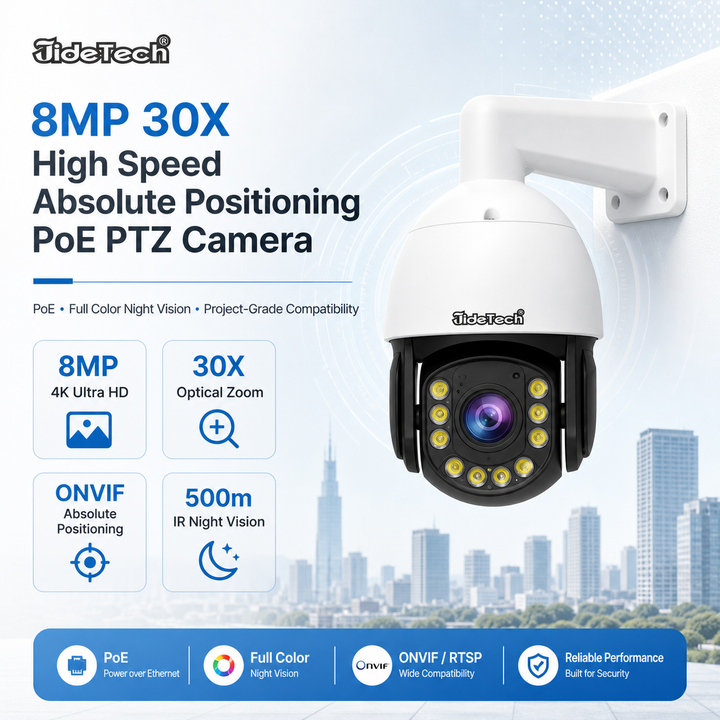

JideTech 8MP 30X High Speed Absolute Positioning PoE PTZ Camera | 500m IR (P22)

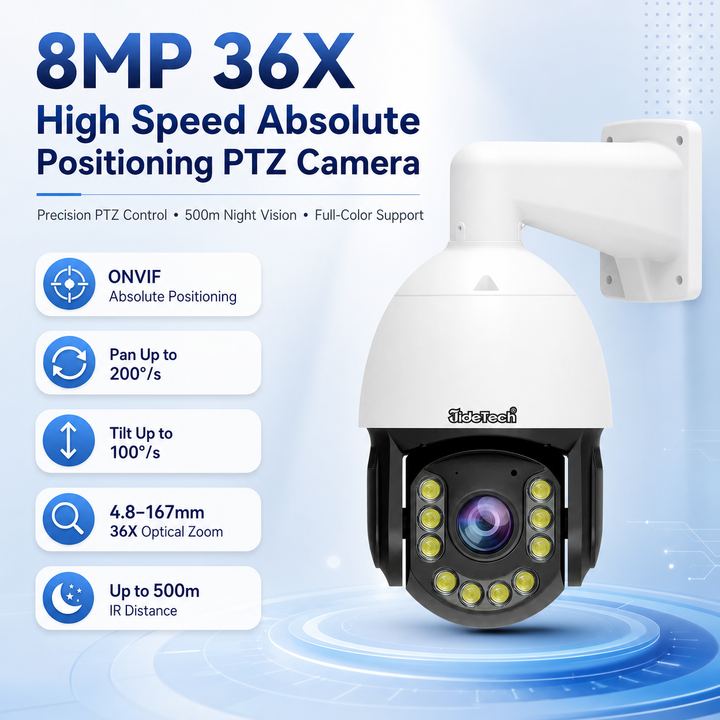

JideTech 8MP 36X High Speed Absolute Positioning PoE PTZ Camera with 500m Night Vision P22

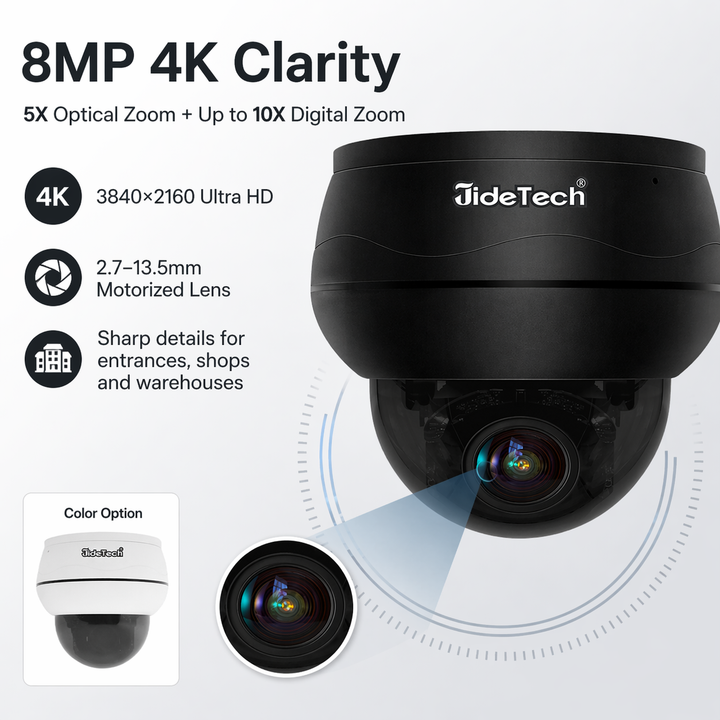

JideTech P1 PLUS 8MP 5X PoE PTZ Dome Camera with ONVIF Absolute Positioning

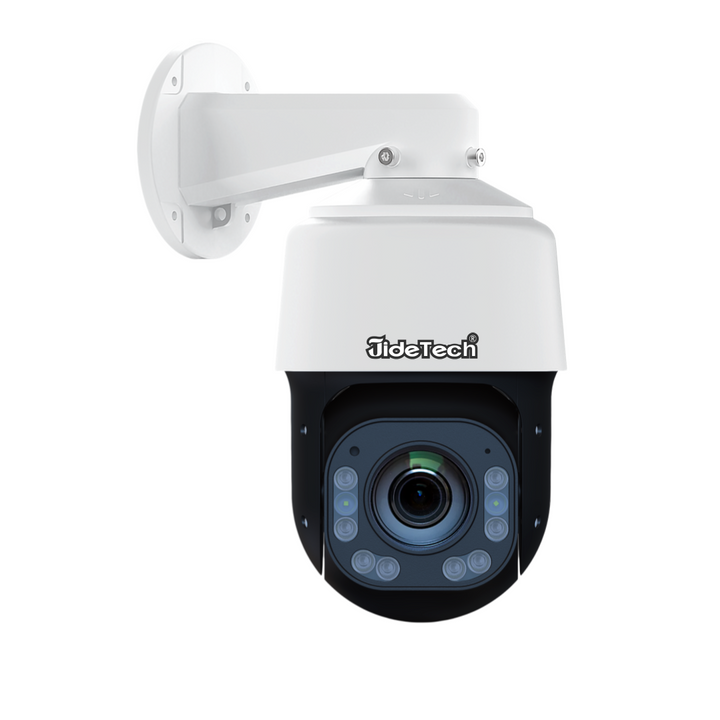

كاميرا JideTech PTZ 8MP PoE بتكبير 30X مع ممسحة (P7-30X-8MP30)

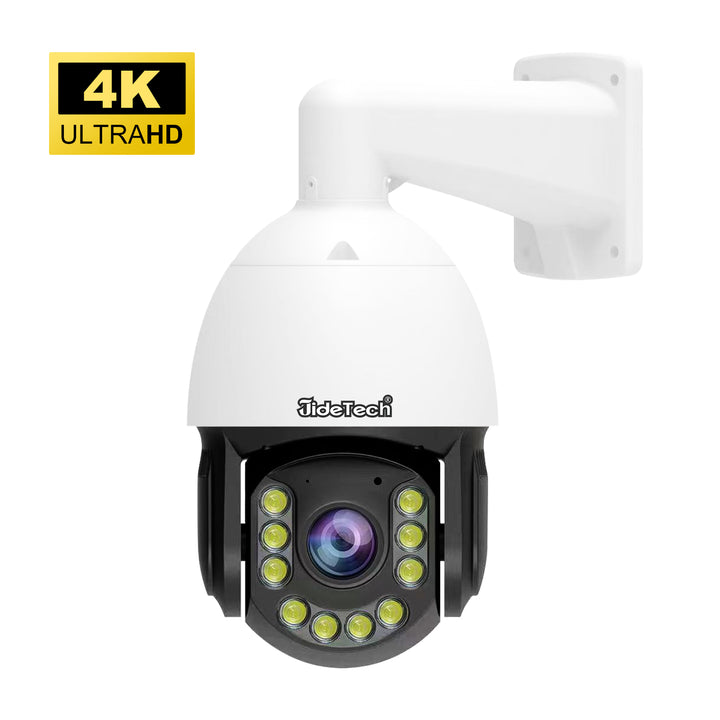

كاميرا مراقبة PTZ ذات تحديد المواقع المطلق بدقة 4K بمعدل 30 إطارًا في الثانية من JideTech (P22-30X-8MP30)

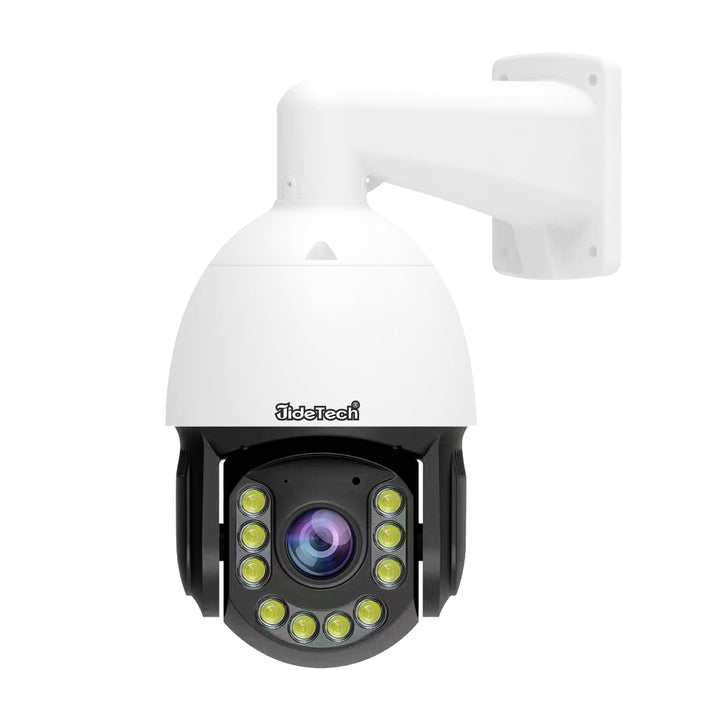

JideTech 12MP 23X/30X Optical Zoom Absolute Positioning PoE PTZ IP Camera(Apply to NDAA)
Explore the full collection.
Additional Absolute Positioning PTZ cameras added to this collection will appear here automatically.
كاميرا مراقبة JideTech PTZ بدقة 8 ميجابكسل وتقريب 30 ضعفًا وتحديد المواقع المطلق (P22-30X-8MP20)

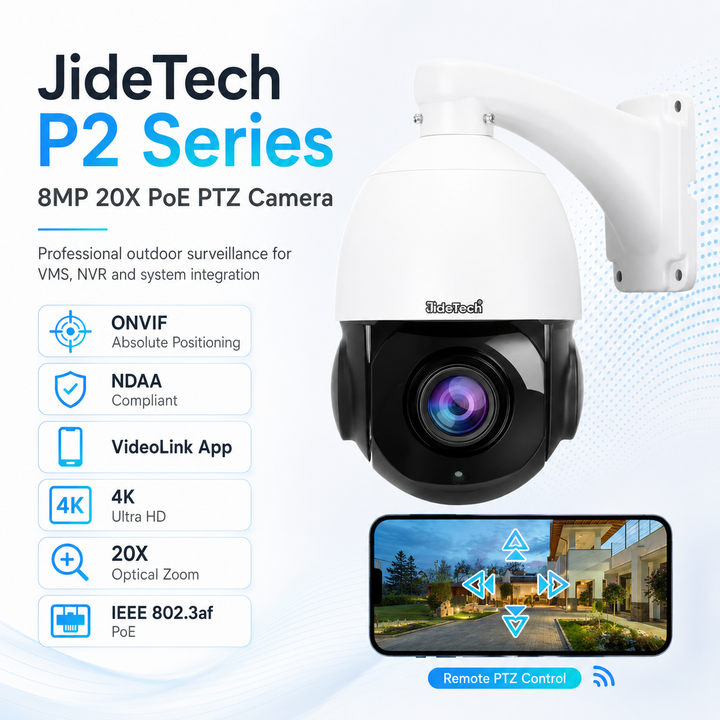

كاميرا مراقبة PTZ بدقة 8 ميجابكسل وتقريب 20X (P2-20X-8MP20) من JideTech
JideTech P4 12MP 23X / 30X PoE PTZ Camera with ONVIF Absolute Positioning
JideTech 8MP 20X PoE PTZ IP Camera with ONVIF Absolute Positioning, Time-Lapse, RTSP & RTMP – P2
JideTech P2 8MP 20X Wi-Fi PTZ Camera | ONVIF & Optional Absolute Positioning

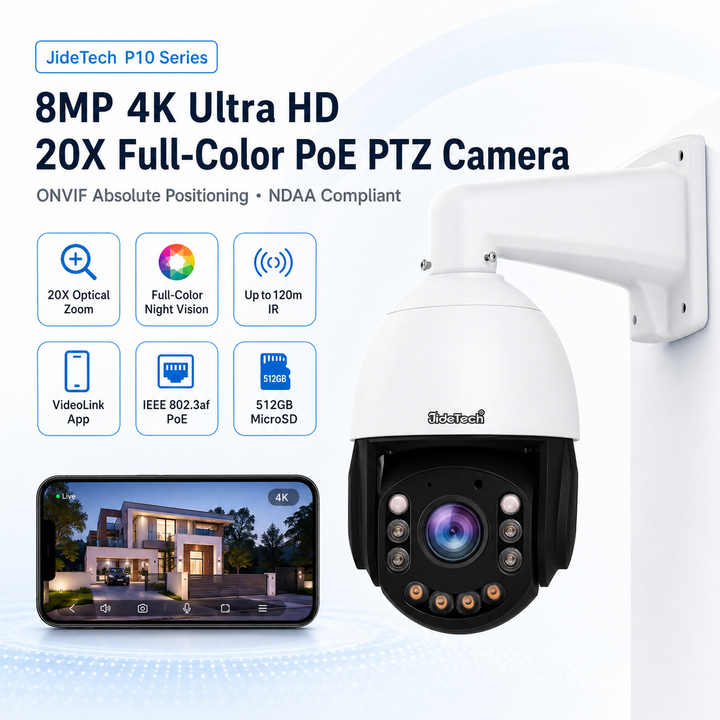

كاميرا JideTech 4K Ultra HD POE IP للحماية الأمنية (P10-20X-8MP)

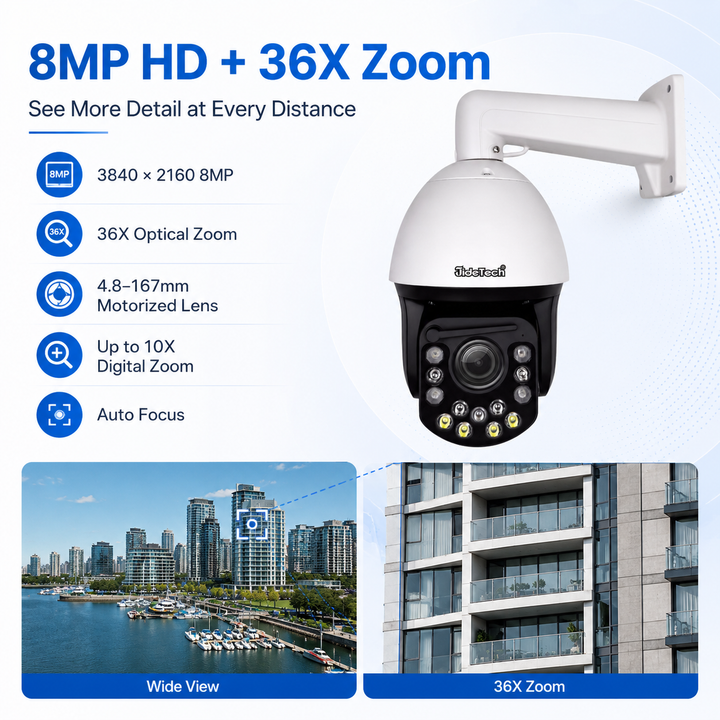

JideTech 8MP 36X Absolute Positioning PoE PTZ Camera with 500m IR Night Vision

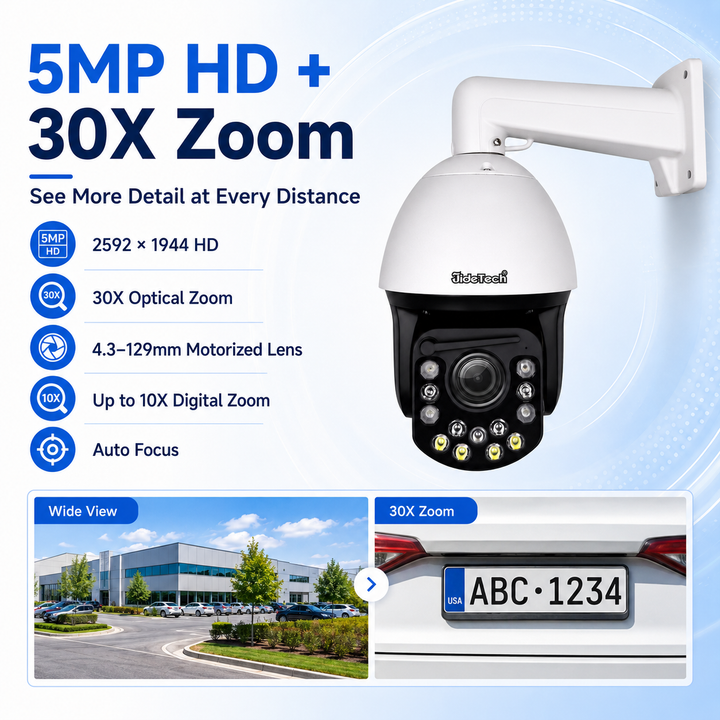

JideTech 5MP 30X Absolute Positioning PoE PTZ Camera with 500m IR Night Vision

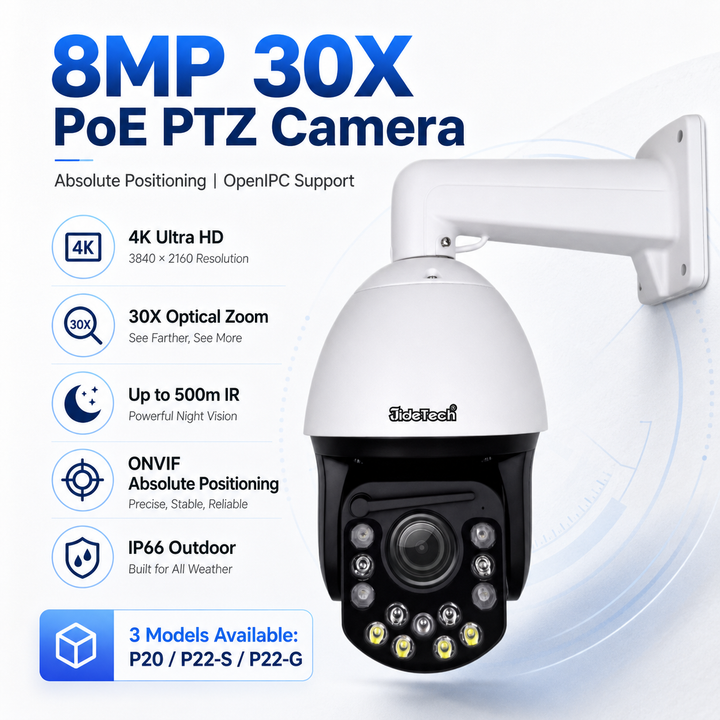

JideTech 8MP 30X Absolute Positioning PoE PTZ Camera with OpenIPC Support
JideTech P4 8MP 30X Starlight PoE PTZ Camera with ONVIF Absolute Positioning

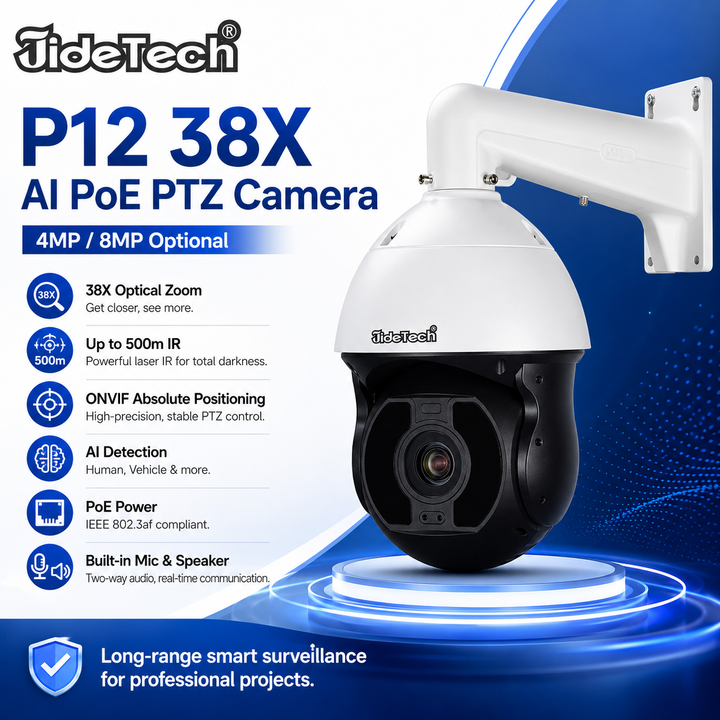

JideTech 8MP 38X Optical Zoom AI PoE PTZ Camera with 500m IR & ONVIF Absolute Positioning
JideTech 5MP 20X Optical Zoom Absolute Positioning PoE PTZ IP Camera (P7-30X-5MP)
كاميرا مراقبة JideTech PTZ بدقة 8 ميجابكسل 36X مع تحديد المواقع المطلق (P22-36X-8MP30)

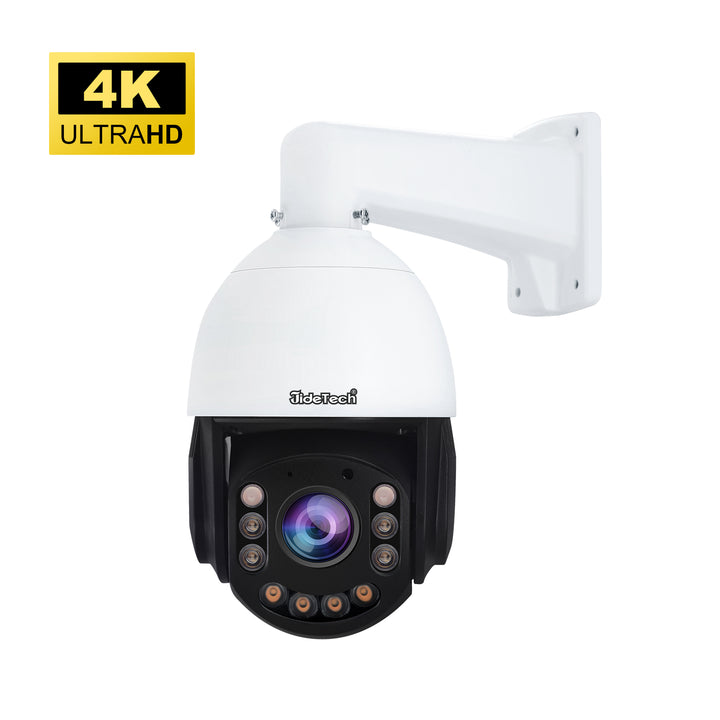

كاميرا JideTech 4K 20fps ذات تحديد المواقع المطلق PTZ (P10-20X-8MP20)
ONVIF PTZ Integration
Absolute Positioning & Real Test Videos
JideTech Absolute Positioning PTZ cameras support four ONVIF PTZ commands for professional system integration:
Yes. ONVIF GetStatus returns the camera's current PTZ position, including Pan, Tilt and Zoom position information.
Actual Camera Footage
Watch the Absolute Positioning Demonstrations
Five original JideTech videos showing real PTZ positioning demonstrations. Click play to view each test.
Absolute Positioning Test 01
Absolute Positioning Test 02
Absolute Positioning Test 03
Absolute Positioning Test 04
Absolute Positioning Test 05
ONVIF Absolute Positioning FAQ
How does ONVIF AbsoluteMove differ from a PTZ preset?
AbsoluteMove sends a target position in a coordinate space advertised by the camera. A preset recalls a view saved on the camera. Both can be used in monitoring workflows on compatible systems.
What do the positioning values mean?
The listed 0.1° value refers to command increments. The 0.0005 value is interface resolution. Confirm its coordinate space and units for the selected model and firmware. Mechanical positioning error and return repeatability are measured separately.
How do I verify AbsoluteMove in my VMS?
Check that the camera and VMS support AbsoluteMove and GetStatus for the selected ONVIF profile. Send an in-range target, check the reported position with GetStatus, then repeat the move and compare the returned view. RelativeMove and ContinuousMove are also available on supported configurations.
What did the long-range field test show?
Using ONVIF Device Manager, an 8MP camera with 30× optical zoom moved from its wide starting view to a target area, zoomed in, then returned to its original monitoring point. The target was approximately 5 km from the 20th-floor test point. Visibility varies with the installation and conditions.
