JideTech LC012 PLUS 4MP 52X Forest Fire Detection Thermal PTZ Camera with Software

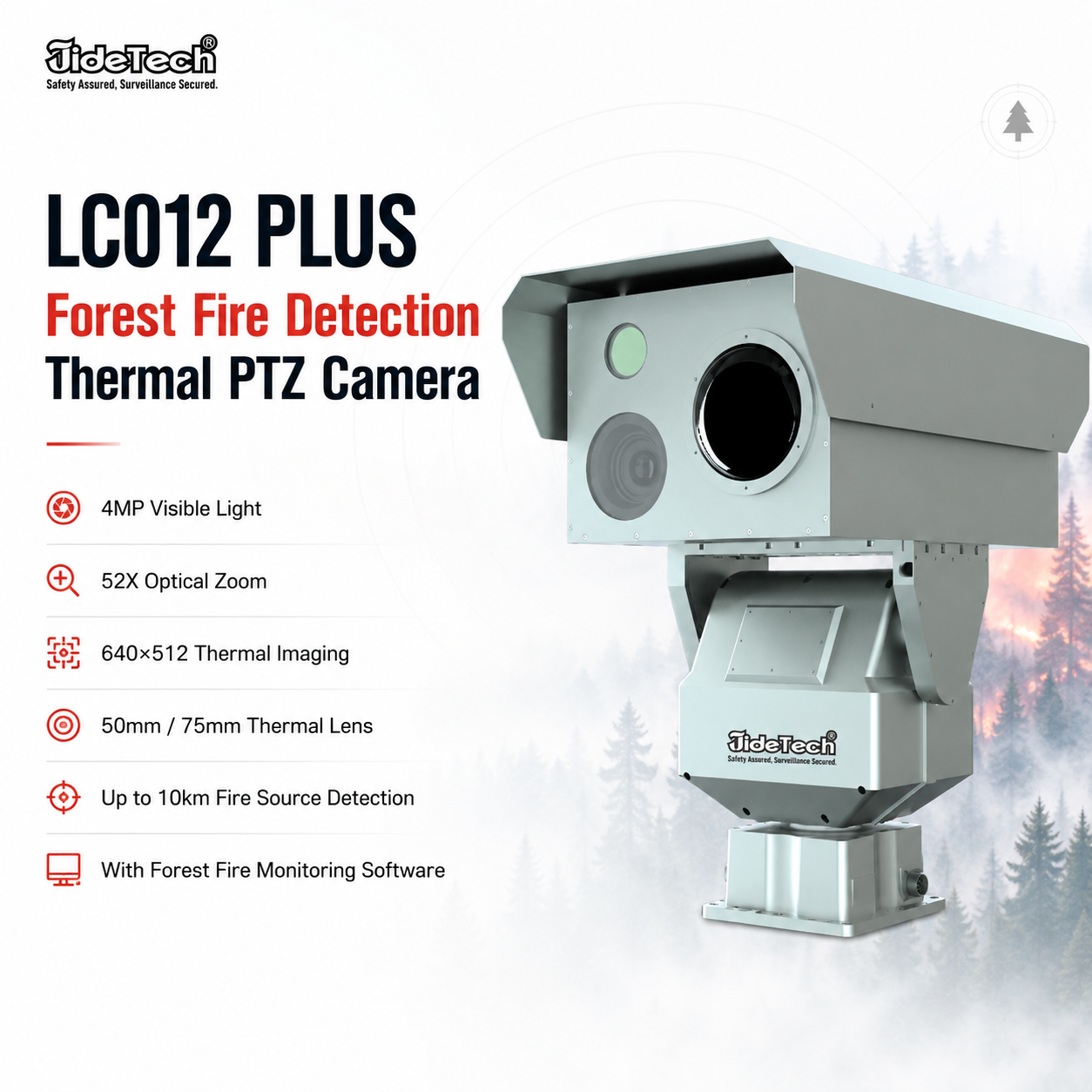

The JideTech LC012 PLUS 4MP 52X is a high-end forest fire detection thermal PTZ camera with monitoring software, designed for wildfire early warning, long-range fire source detection, smoke recognition, thermal measurement, and 24/7 unattended forest surveillance.
This system combines a 640×512 thermal imaging camera, a 4MP HD visible-light camera, 52X optical zoom, 50mm / 75mm thermal lens options, a 3km laser illuminator, and dedicated forest fire monitoring software. It is suitable for forest fire prevention projects, mountain monitoring, forest watchtowers, power-line corridors, nature reserves, reservoirs, and remote command-center surveillance systems.
Built for Forest Fire Prevention and Wildfire Early Warning
Forest fire prevention requires more than a camera. It needs long-range thermal detection, automatic alerts, smoke recognition, historical records, and a software platform that helps operators identify fire risks before they become disasters.
- 640×512 thermal imaging for clearer thermal detail
- 4MP HD visible-light camera with 2560 × 1440 resolution
- 52X optical zoom for long-range visual confirmation
- 50mm / 75mm thermal lens options for different forest monitoring distances
- Up to 10km fire source detection with the 75mm thermal lens
- Forest fire monitoring software included for heat source, smoke, and temperature alarms
- Multi-target heat source detection for multiple abnormal thermal targets
- Smoke recognition and fire warning for earlier wildfire risk detection
- Over-temperature alarm with configurable temperature threshold
- Heat source tracking for abnormal thermal events
- Historical alarm records for review, evidence collection, and event tracing
- IP66 heavy-duty outdoor housing for forests, mountains, and remote sites

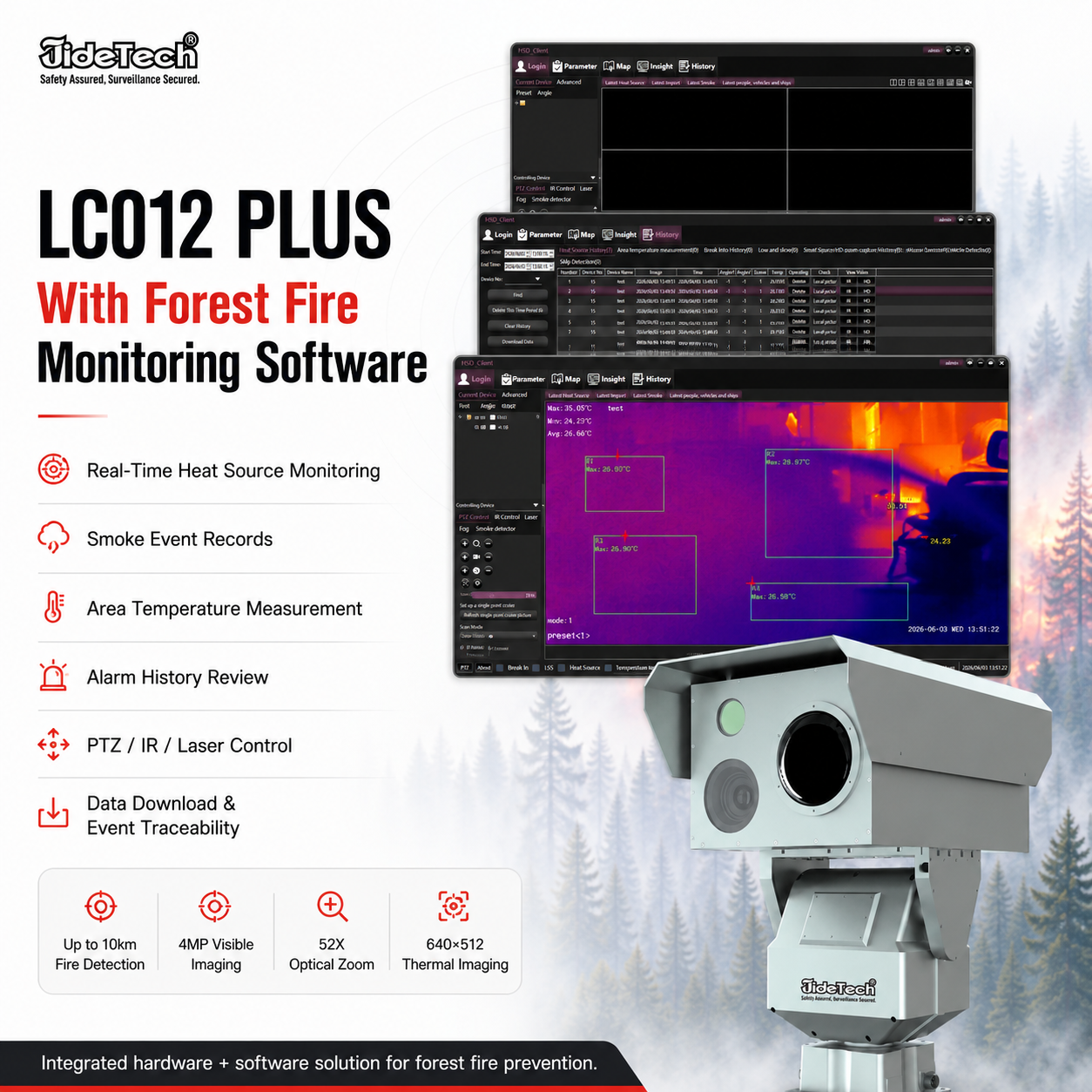

Forest Fire Monitoring Software Included
The LC012 PLUS works with dedicated forest fire monitoring software for real-time thermal monitoring, heat source alarms, smoke detection records, temperature measurement, PTZ control, IR control, laser control, and historical event review. The software helps reduce manual monitoring workload and supports faster response in forest fire prevention projects.
Software Functions for Fire Monitoring
| Latest Heat Source | Displays the latest detected abnormal heat source for fast operator review. |
| Latest Smoke | Supports smoke event records for wildfire early warning and situational awareness. |
| Area Temperature Measurement | Supports selected region temperature monitoring, including real-time maximum, minimum, and average temperature. |
| Heat Source History | Stores heat source detection records for review, verification, and event tracing. |
| Alarm Records | Records alarm type, time, scene number, angle information, temperature, and operation history. |
| PTZ Control | Supports PTZ operation, preset cruise, and scanning control for wide-area forest patrol. |
| IR / Laser Control | Supports infrared and laser control for long-range day and night monitoring. |
| Data Export | Supports historical data download for project management and event reporting. |

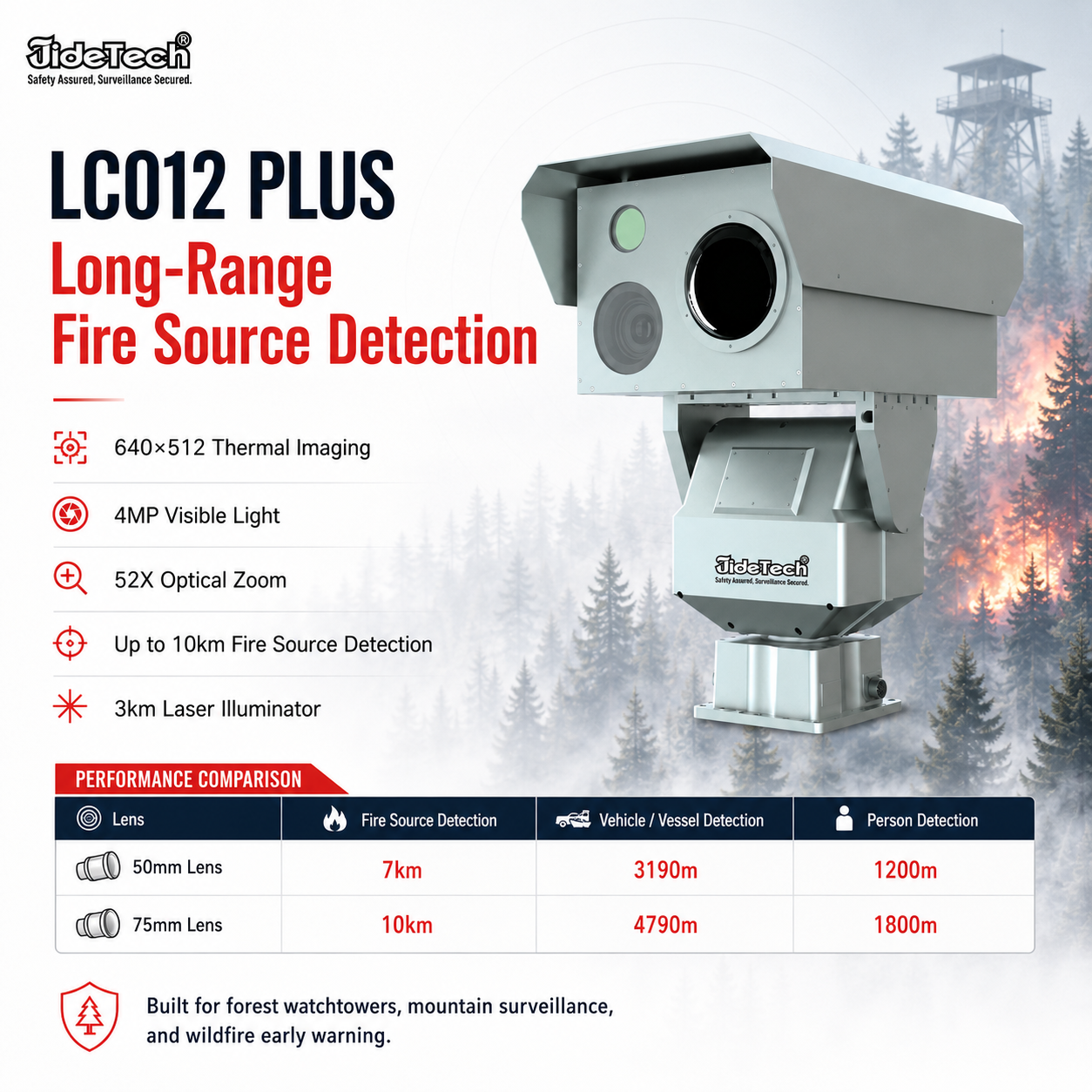

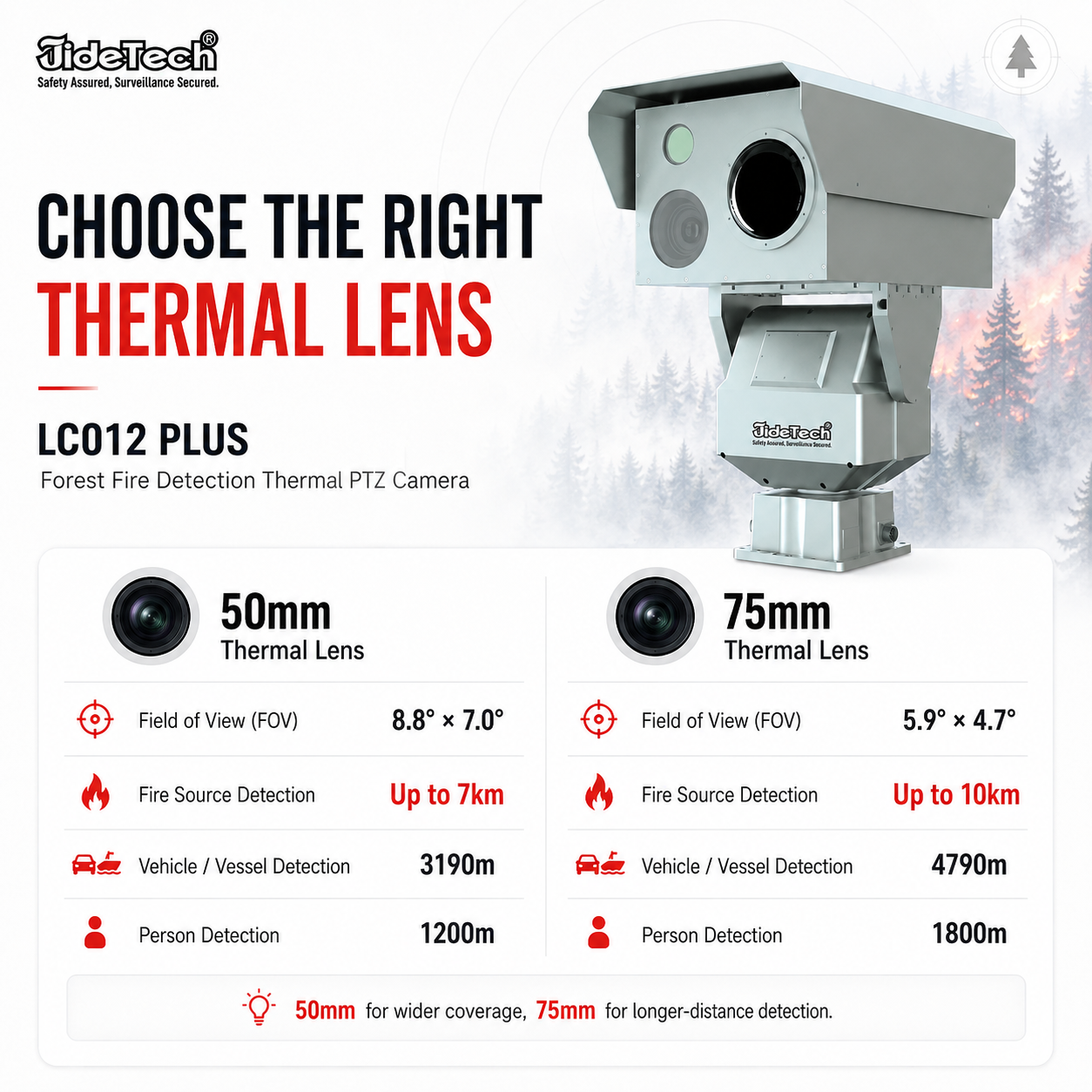

50mm / 75mm Thermal Lens Options
| Thermal Lens | Field of View | Fire Source Detection | Vehicle / Vessel Detection | Person Detection |
|---|---|---|---|---|
| 50mm | 8.8° × 7.0° | 7km | 3190m | 1200m |
| 75mm | 5.9° × 4.7° | 10km | 4790m | 1800m |
Recognition Distance
| Thermal Lens | Vehicle / Vessel Recognition | Person Recognition |
|---|---|---|
| 50mm | 1200m | 530m |
| 75mm | 1800m | 790m |
Thermal Imaging Parameters
| Thermal Detector | Vanadium oxide uncooled infrared focal plane detector |
| Thermal Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Range | 8–14μm |
| NETD | ≤50mK (@25°C, F#1.0) |
| Palette | White Hot / Black Hot / Iron Red / Lava / Rainbow / Iron Gray / Red Hot / Blue-Red |
| Temperature Measurement Distance | ≤20m, target size ≥100mm × 100mm |
4MP Visible-Light Camera
| Sensor Type | 1/1.8" high-performance CMOS |
| Pixels | 4MP |
| Resolution | 2560 × 1440 |
| Visible-Light Lens | 6.1–317mm |
| Optical Zoom | 52X |
| Minimum Illumination | Color: 0.0005 Lux @(F1.4, AGC ON); B/W: 0.0001 Lux @(F1.4, AGC ON) |
| Focus Mode | Manual / Semi-Automatic |
Fire Warning and Thermal Event Detection

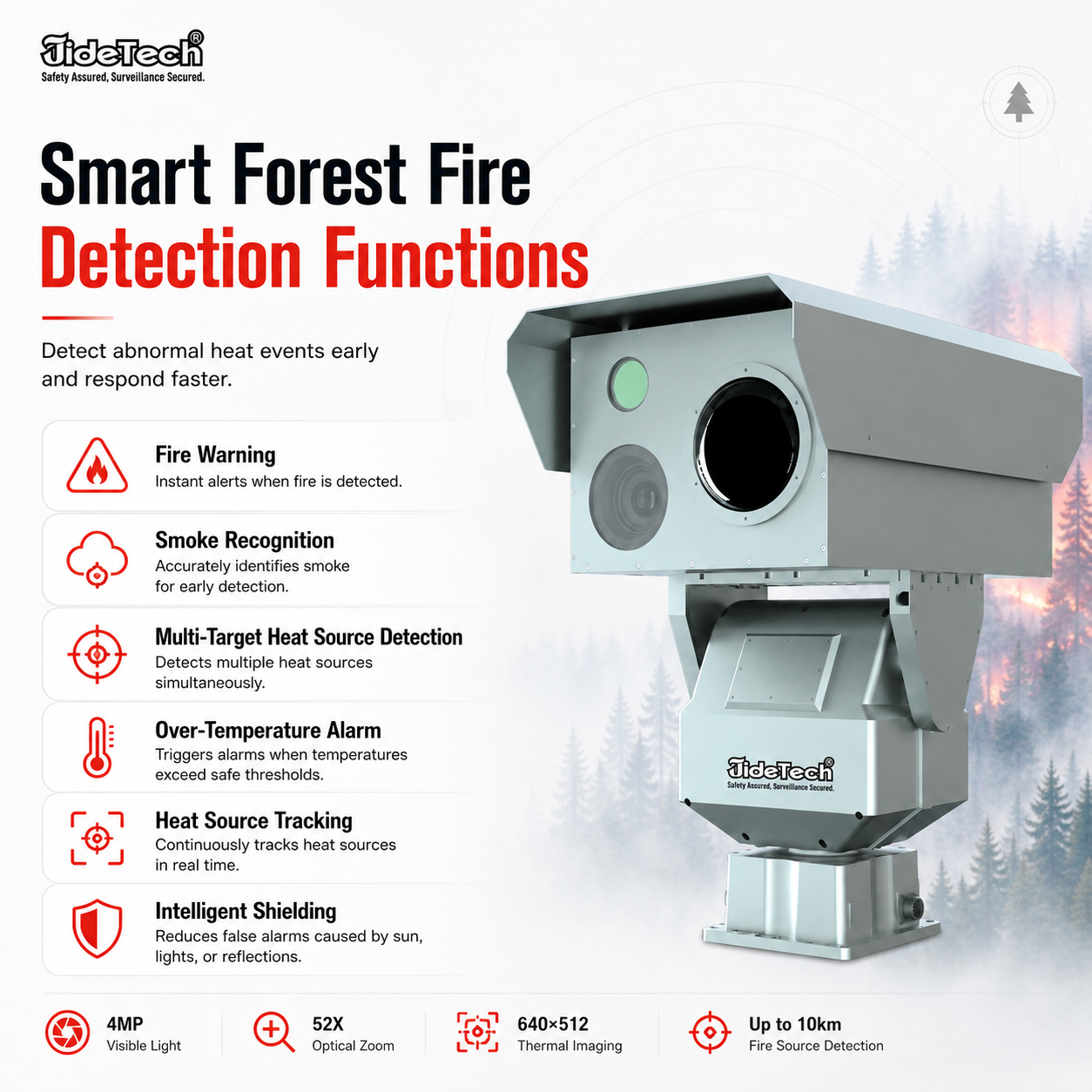

The LC012 PLUS supports multi-target heat source detection, fire warning, smoke recognition, over-temperature alarm, heat source tracking, intelligent shielding, perimeter protection, cruise scanning, and historical event tracing. It is designed to help operators detect early fire risks and abnormal heat build-up before a wildfire becomes difficult to control.

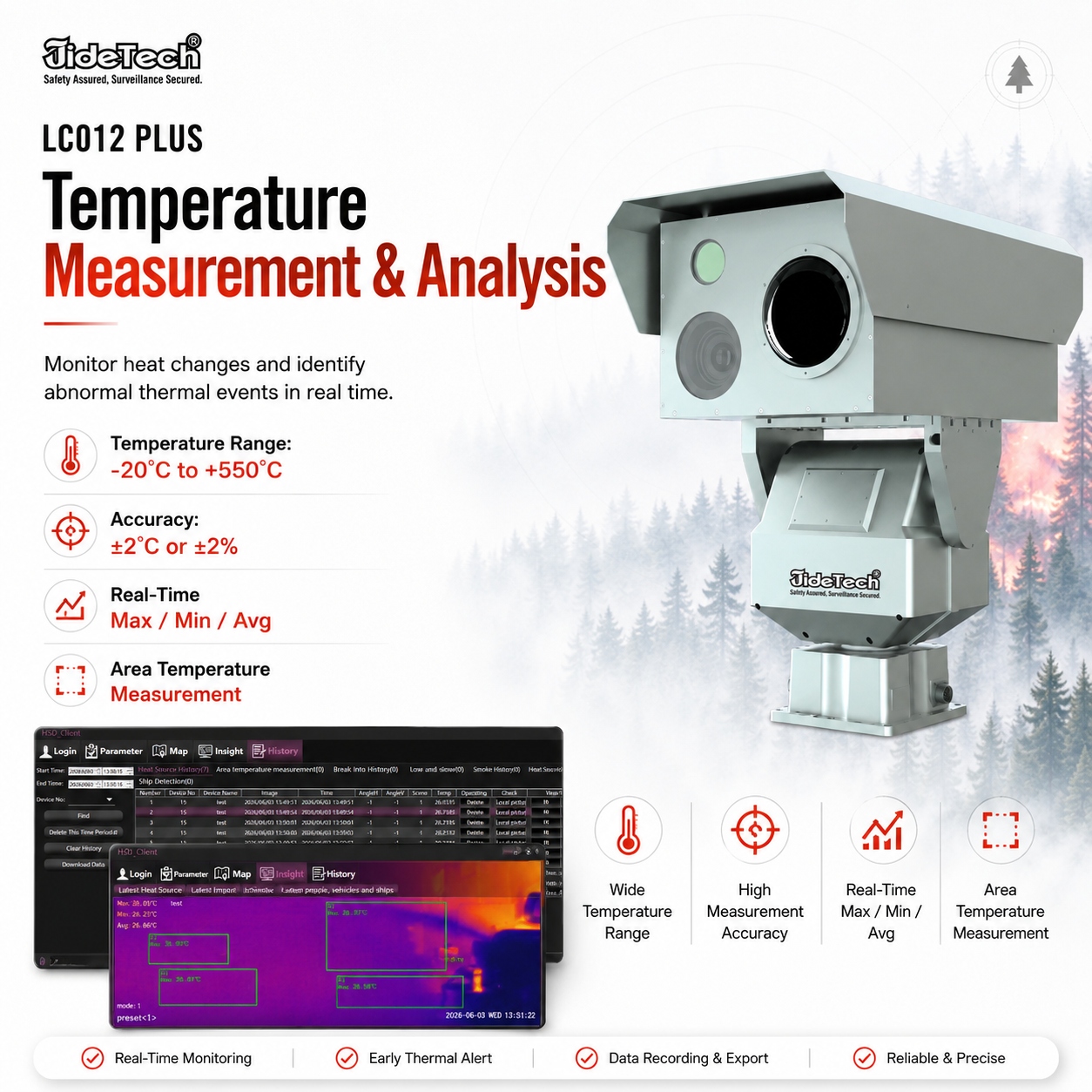

| Temperature Display | Real-time maximum, minimum, and average temperature |
| Temperature Measurement Range | -20℃ to +550℃ |
| Temperature Measurement Accuracy | ±2°C or ±2% of reading, whichever is greater |
| Multi-Target Heat Source Detection | Supports simultaneous detection of multiple heat-source targets |
| Over-Temperature Alarm | Set a temperature threshold and trigger an alarm when it is exceeded |
| Heat Source Tracking | Supported |
| Intelligent Shielding | Supports dynamic and static shielding to filter false alarms |

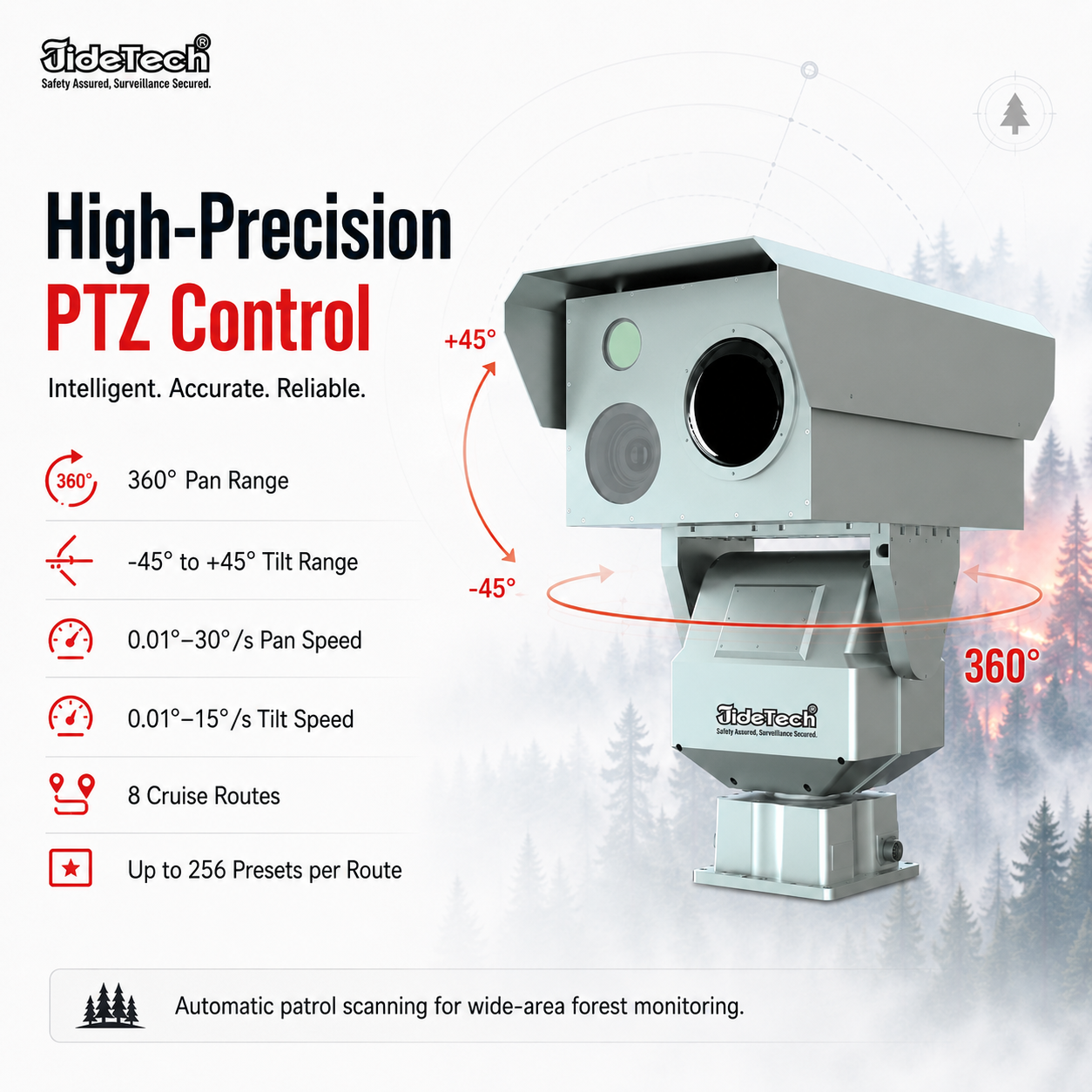

High-Precision PTZ Cruise Monitoring
The high-precision PTZ platform supports 0°–360° horizontal rotation, -45° to +45° vertical tilt, preset scanning, angle scanning, and up to 8 cruise routes with 256 presets per route. It is suitable for automatic forest patrol, mountain fire prevention, watchtower deployment, and wide-area wildfire surveillance.
| Horizontal Rotation Range | 0°–360° |
| Horizontal Rotation Speed | 0.01°–30°/s, speed configurable |
| Vertical Tilt Range | -45° to +45° |
| Vertical Tilt Speed | 0.01°–15°/s, speed configurable |
| Cruise Presets | Supports 8 cruise routes; each route can add 256 presets |
| Cruise Scanning Mode | Supports preset scanning and angle scanning |
Network and System Integration
| Network Protocols | IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, NTP, IGMP, ICMP |
| Video Compression | H.265 / H.264 / MJPEG |
| Communication Interfaces | 1 × RJ45 port, 1 × RS-485 interface |
| Alarm Output | Supports SDK alarm output |

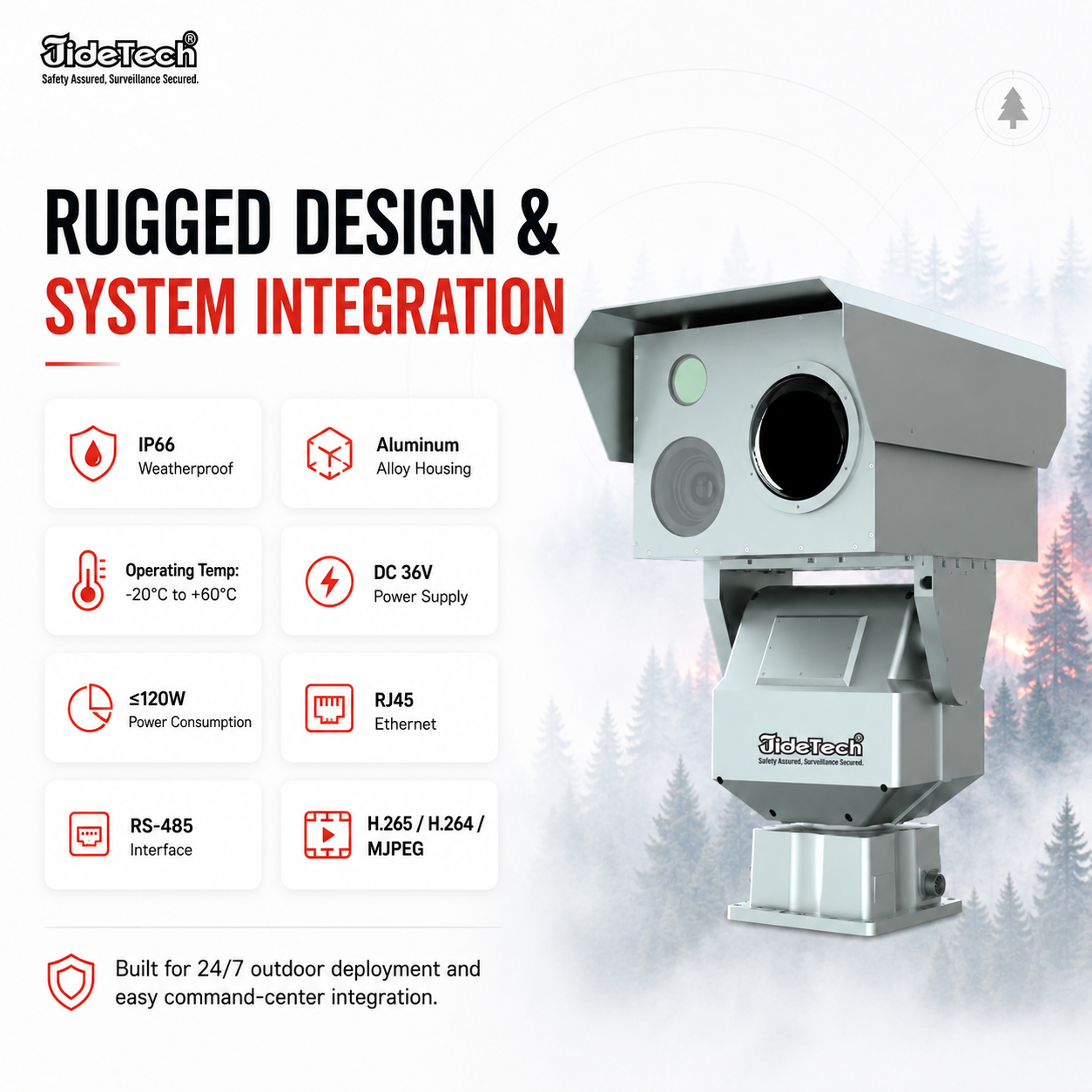

Outdoor Physical Specifications
| Operating Temperature | -20℃ to +60℃ |
| Operating Humidity | 5%–95%, non-condensing |
| Ingress Protection | IP66 |
| Power Supply | DC 36V |
| Power Consumption | ≤120W |
| Housing Material | Aluminum alloy |
| Device Dimensions | 615mm (L) × 384mm (W) × 684mm (H) |
| Package Dimensions | 815mm (L) × 460mm (W) × 400mm (H) housing; 530mm (L) × 520mm (W) × 360mm (H) PTZ |
| Weight | ≤42kg, varies slightly by lens configuration |

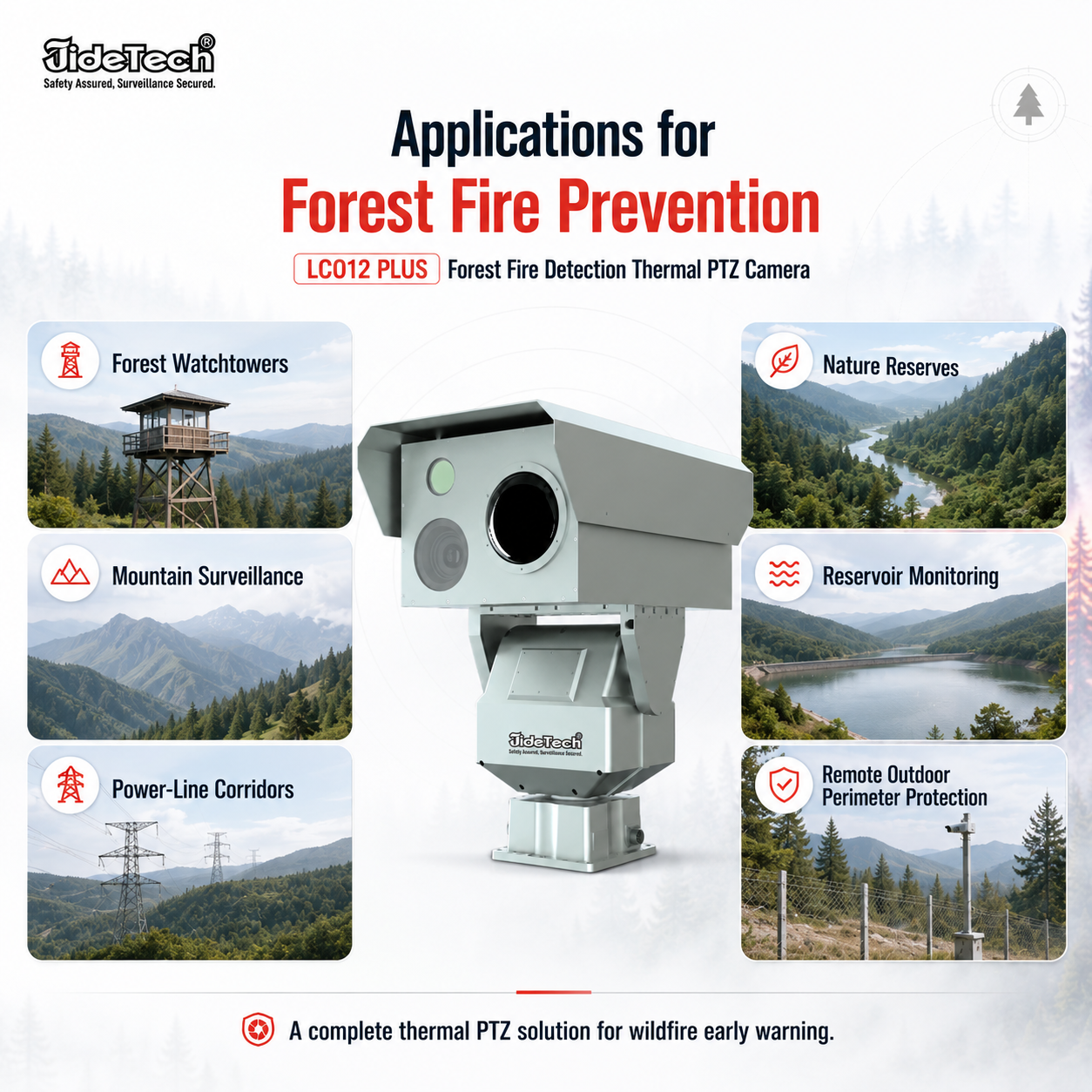

Recommended Applications
- Forest fire detection and wildfire early warning
- Mountain and woodland fire prevention
- Forest watchtower surveillance
- Power-line corridor fire risk monitoring
- Nature reserve and scenic area monitoring
- Reservoir and watershed surveillance
- Remote outdoor perimeter protection
- Petrochemical plant and mining area thermal monitoring
FAQ
Does the LC012 PLUS include forest fire monitoring software?
Yes. This model can be supplied with forest fire monitoring software for heat source detection, smoke event records, area temperature measurement, alarm history, PTZ control, IR control, laser control, and data review.
What is this thermal PTZ camera mainly used for?
It is mainly used for forest fire detection, wildfire monitoring, mountain fire prevention, forest watchtower surveillance, power-line corridor monitoring, and long-range outdoor thermal surveillance.
How far can it detect a fire source?
With the 50mm thermal lens, it can detect a 2m × 2m fire source up to 7km. With the 75mm thermal lens, it can detect a 2m × 2m fire source up to 10km.
What is the difference between the 50mm and 75mm thermal lens?
The 50mm lens provides a wider field of view, while the 75mm lens provides longer-distance detection. For wider forest coverage, choose 50mm. For longer-distance fire source detection, choose 75mm.
Can the software show temperature data?
Yes. The software supports area temperature measurement and can display real-time maximum, minimum, and average temperature in selected regions.
Can it work outdoors 24/7?
Yes. The LC012 PLUS is designed for 24/7 unattended outdoor monitoring and features IP66 protection, aluminum alloy housing, and -20℃ to +60℃ operating temperature.
Does it support system integration?
Yes. It supports H.265/H.264/MJPEG video compression, RTSP-related network protocols, RJ45 Ethernet, RS-485 interface, and SDK alarm output for integration with surveillance systems and command centers.
